HE BIN
9187423 | BKTR6 | 9187423 by ********* Last update: Sat Mar 09 2024
General Info
Ship Name:HE BIN
IMO Code:9187423
Call Sign:BKTR6
Line Operator:9187423
Class Name for Sister Ships:2MZ
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:027
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:834
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

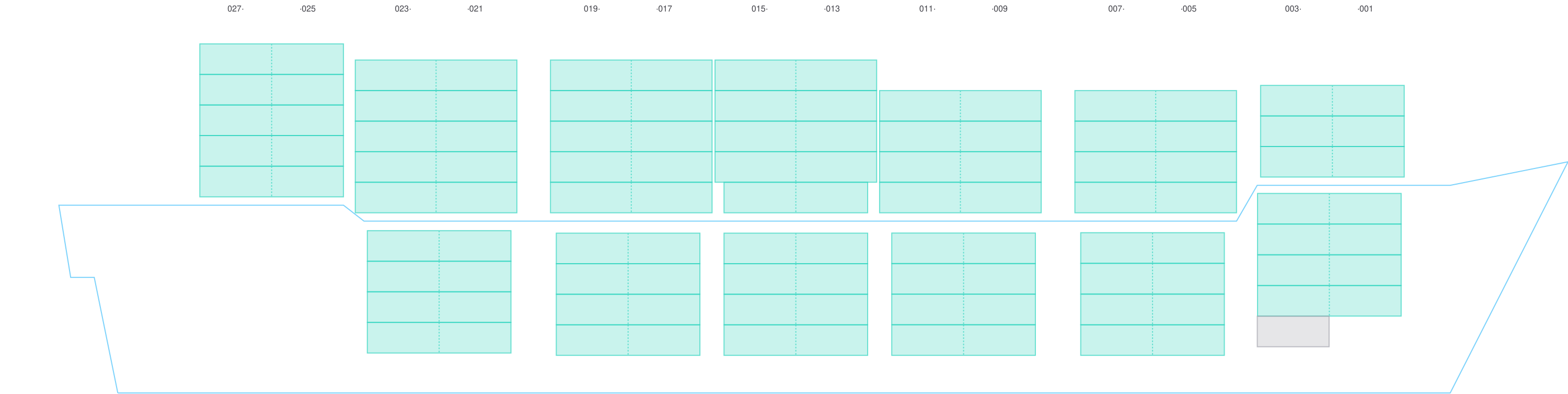

Side View

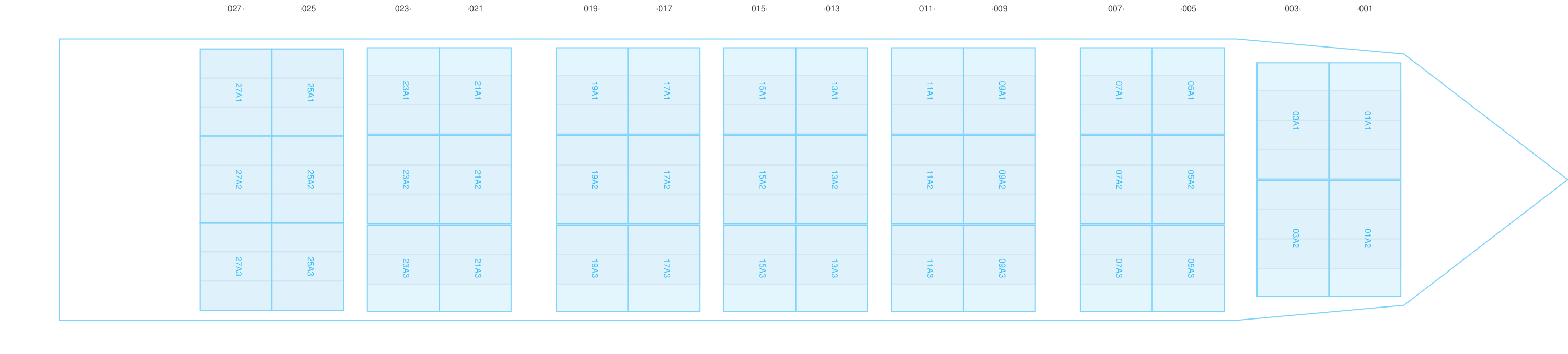

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

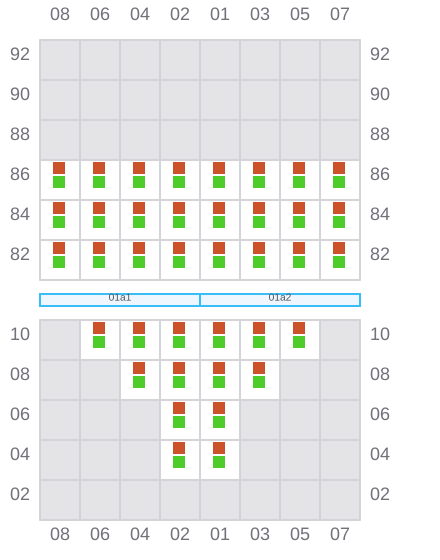

001 (002)
- →

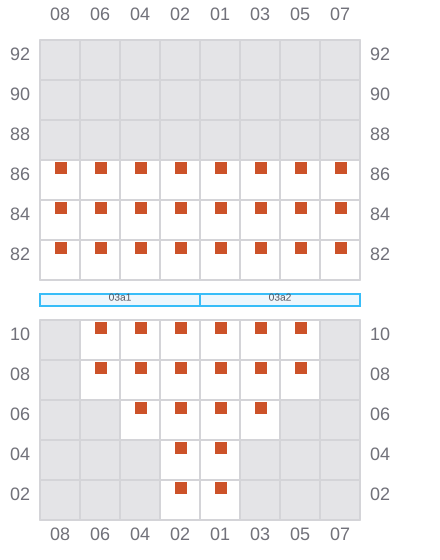

003
- ←

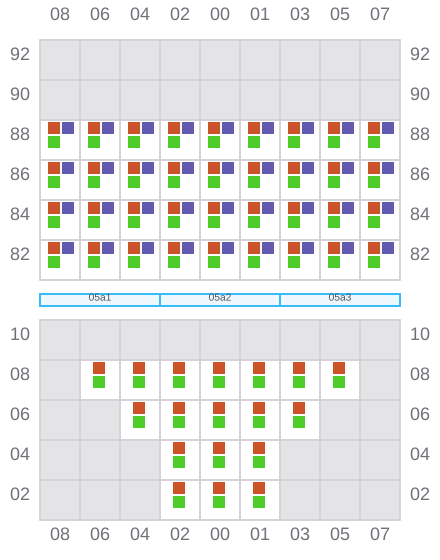

005 (006)
- →

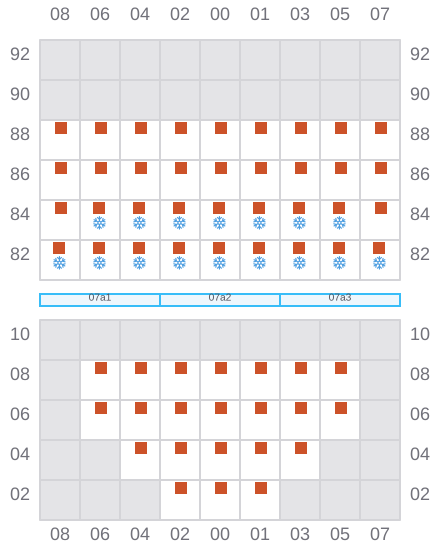

007
- ←

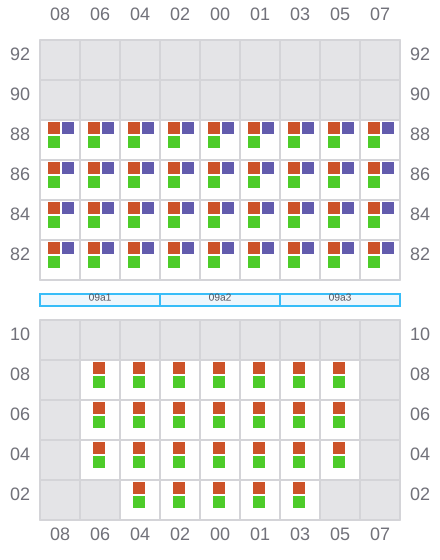

009 (010)
- →

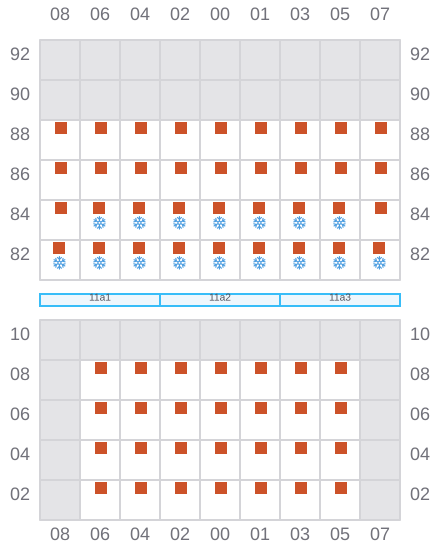

011
- ←

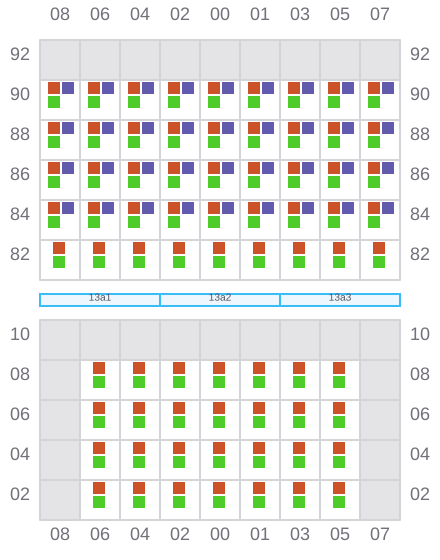

013 (014)
- →

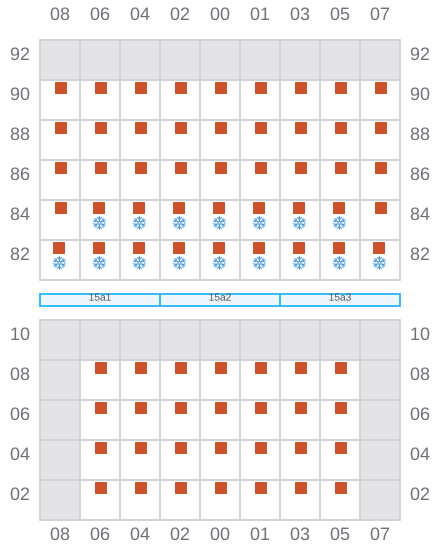

015
- ←
017 (018)
- →

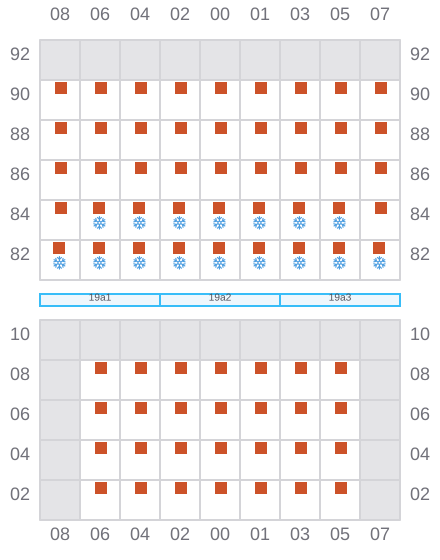

019
- ←

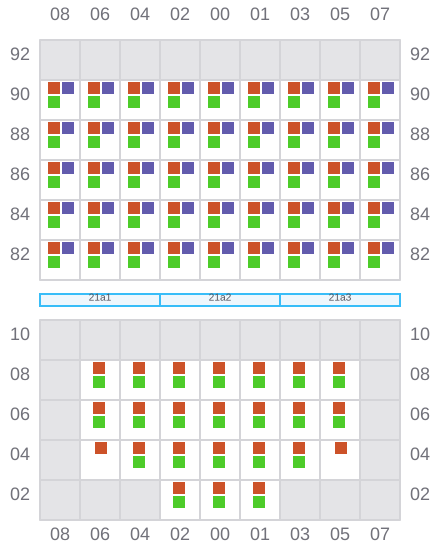

021 (022)
- →
023
- ←

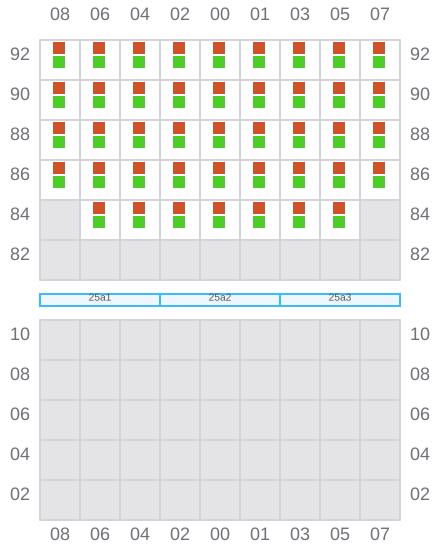

025 (026)
- → / ?

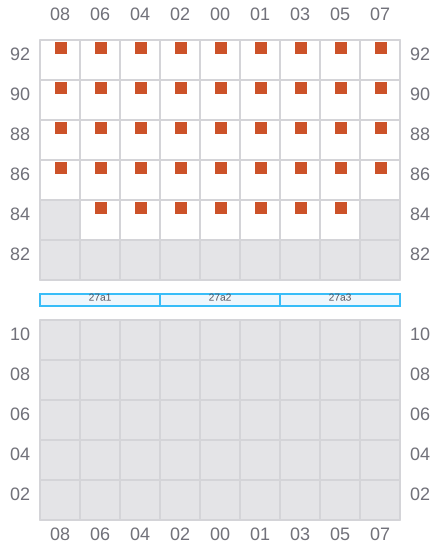

027
- ← / ?
