HE JIN
9138252 | BOYA3 | 9138252 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:HE JIN
IMO Code:9138252
Call Sign:BOYA3
Line Operator:9138252
Class Name for Sister Ships:25M
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,566
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

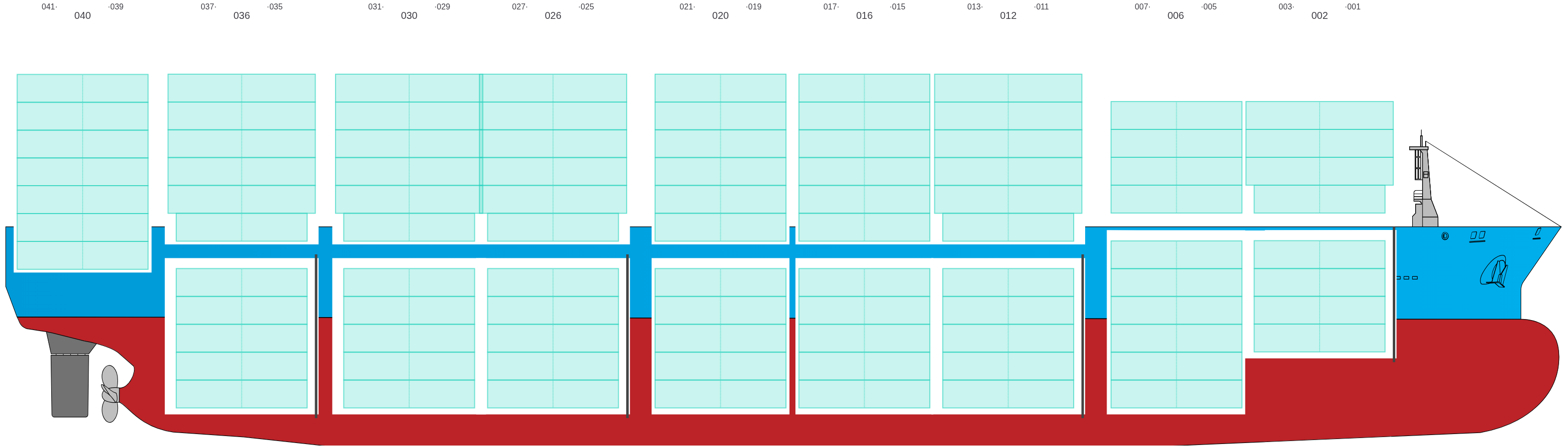

Side View
![Side view of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-sideView.png?v=1709921688825)

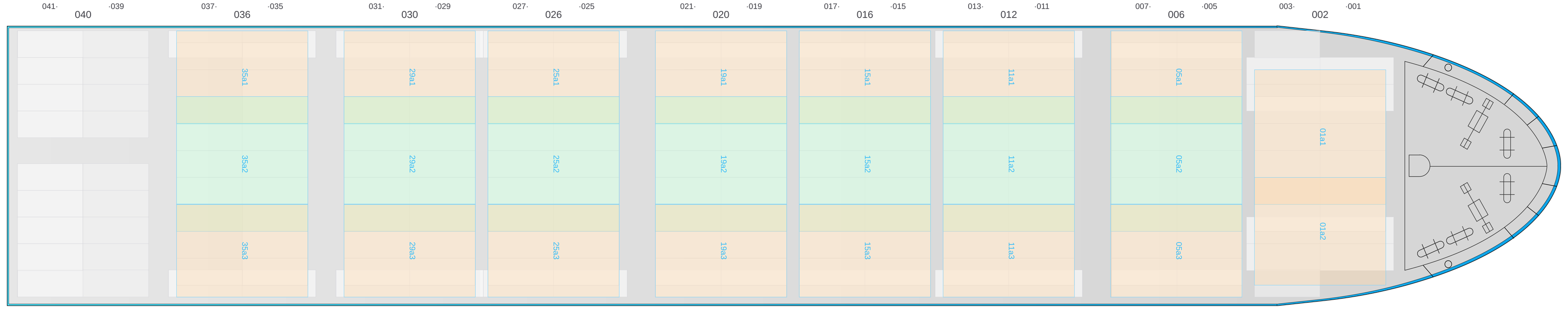

Hatch-Covers View
![Deck view of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-deckView.png?v=1709921688825)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

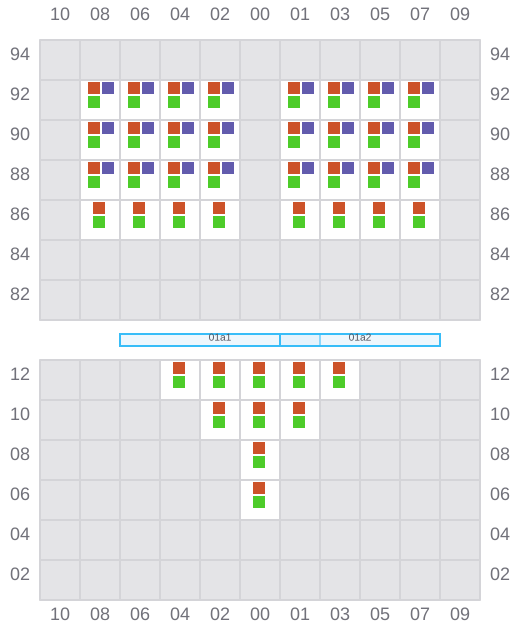

001 (002)
- →
- ← / ?
![Bay 001 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b001.png?v=1709921688825)

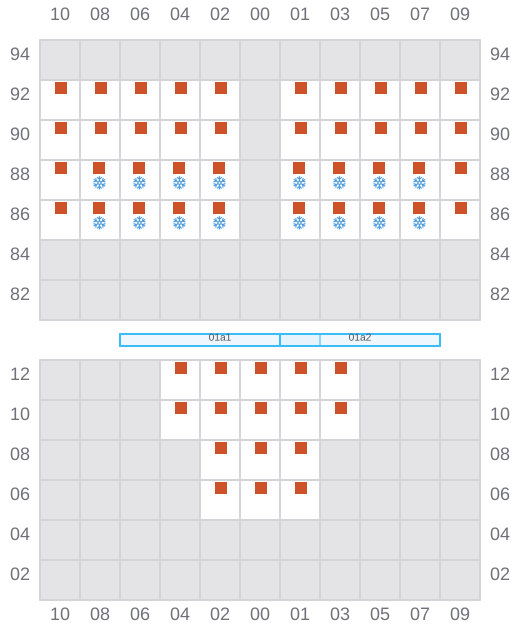

003
- ←
- → / ?
![Bay 003 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b003.png?v=1709921688825)

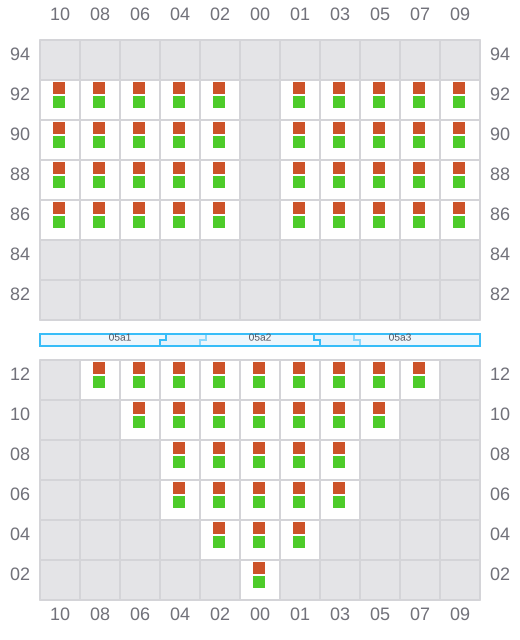

005 (006)
- →
- ← / ?
![Bay 005 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b005.png?v=1709921688825)

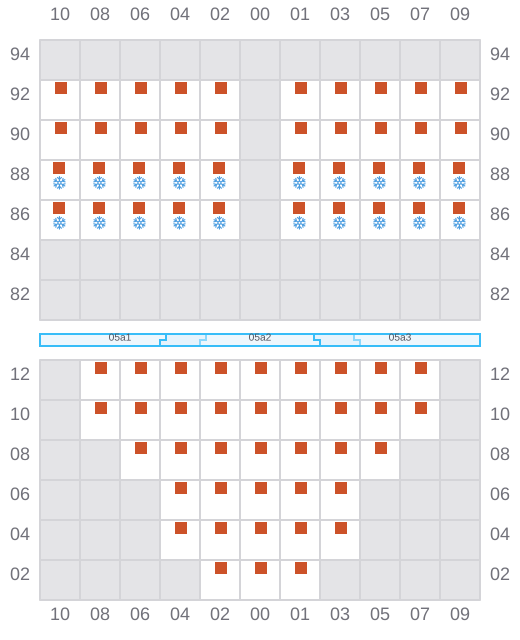

007
- ←
- → / ?
![Bay 007 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b007.png?v=1709921688825)
009
![Bay 009 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b009.png?v=1709921688825)

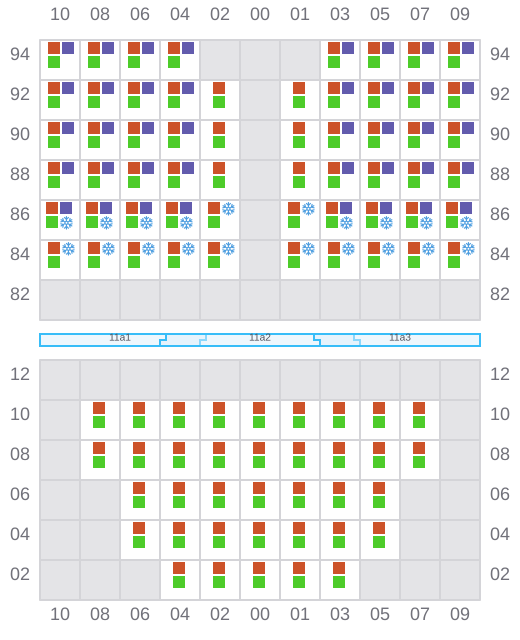

011 (012)
- →
- ← / ?
![Bay 011 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b011.png?v=1709921688825)

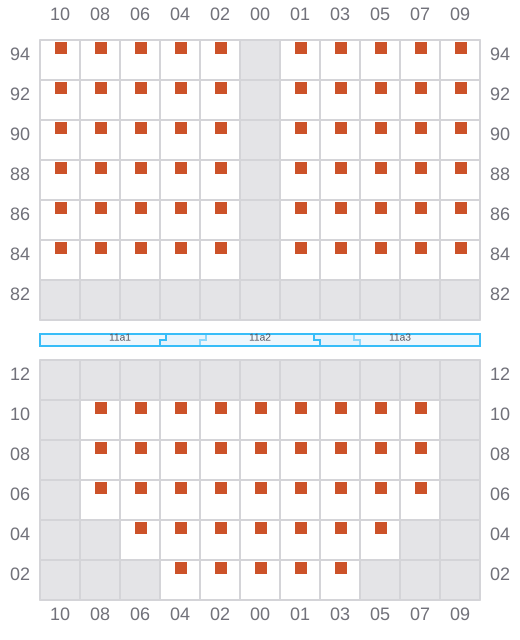

013
- ←
![Bay 013 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b013.png?v=1709921688825)

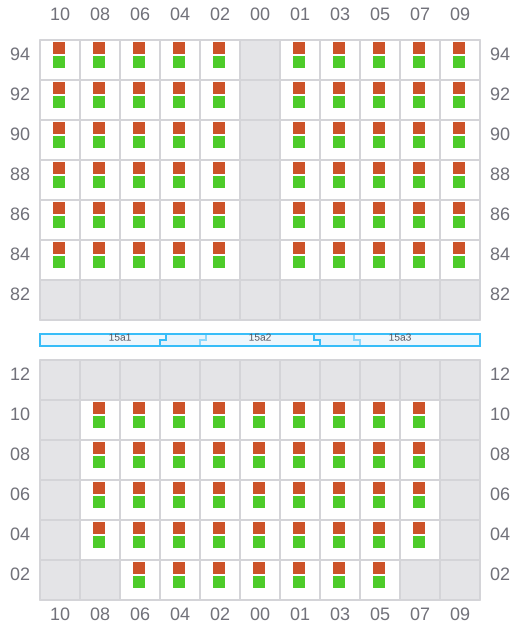

015 (016)
- →
- ← / ?
![Bay 015 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b015.png?v=1709921688825)

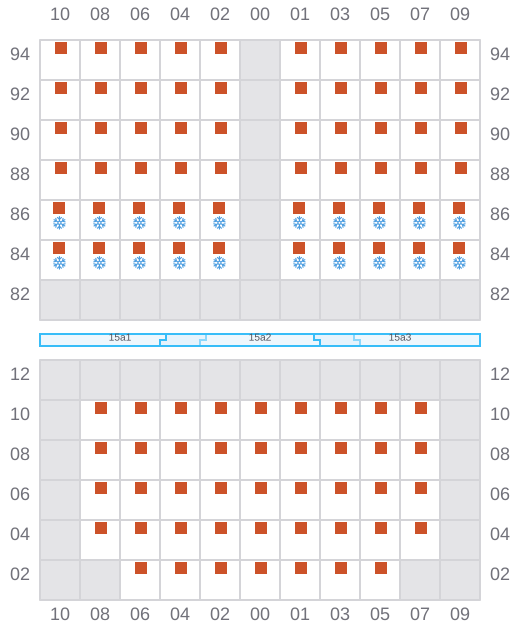

017
- ←
- → / ?
![Bay 017 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b017.png?v=1709921688825)

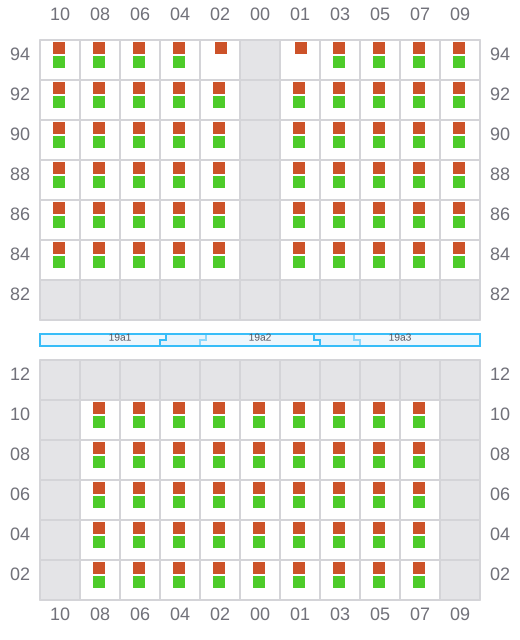

019 (020)
- →
![Bay 019 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b019.png?v=1709921688825)

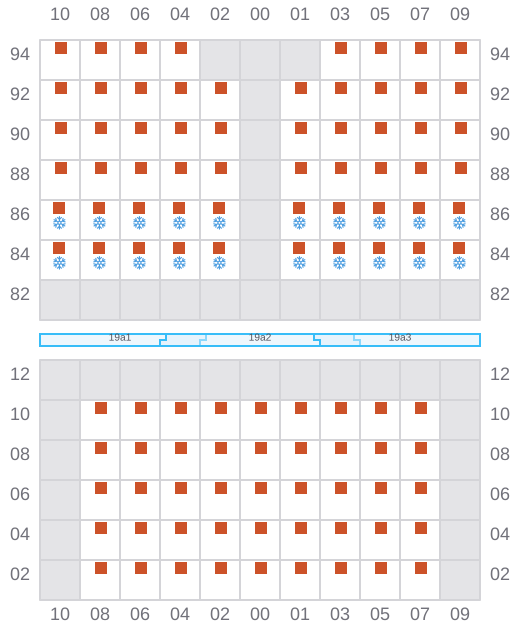

021
- ←
- → / ?
![Bay 021 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b021.png?v=1709921688825)

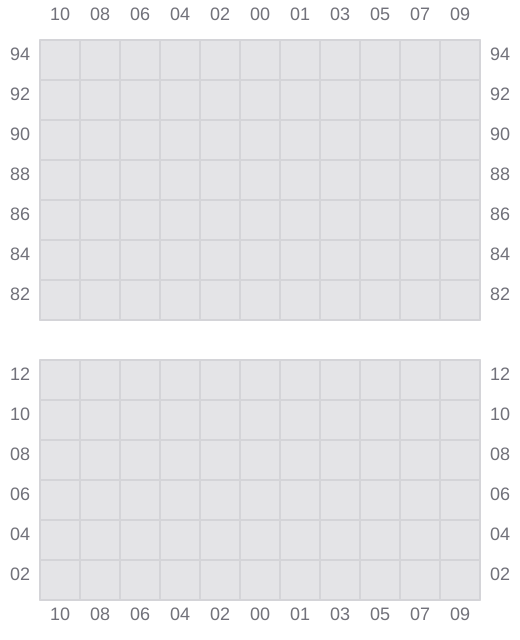

023
![Bay 023 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b023.png?v=1709921688825)

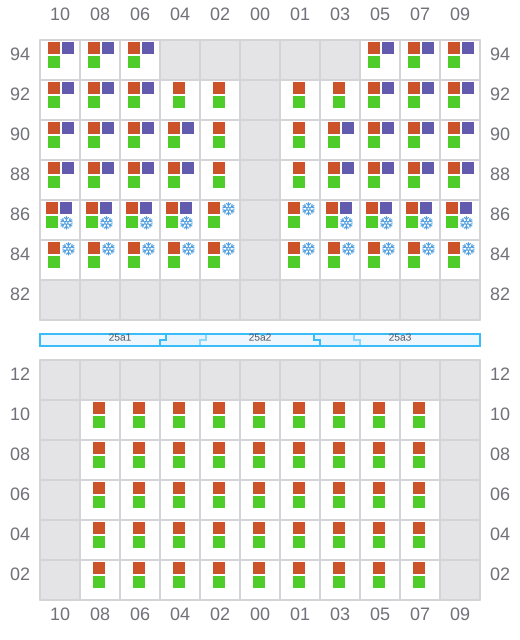

025 (026)
- →
- ← / ?
![Bay 025 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b025.png?v=1709921688825)

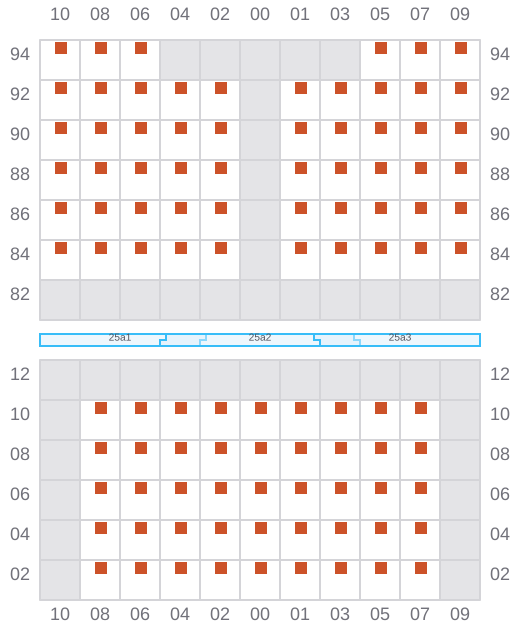

027
- ←
![Bay 027 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b027.png?v=1709921688825)

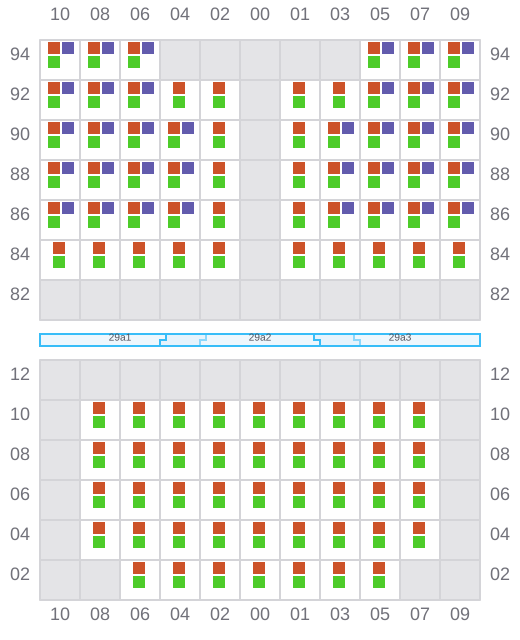

029 (030)
- →
- ← / ?
![Bay 029 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b029.png?v=1709921688825)

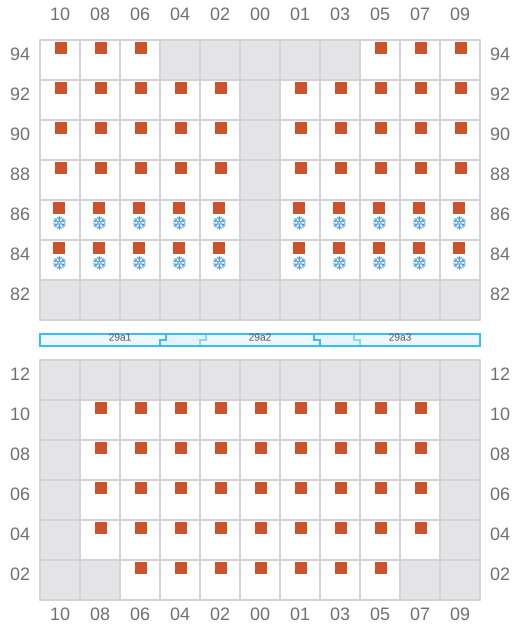

031
- ←
- → / ?
![Bay 031 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b031.png?v=1709921688825)
033
![Bay 033 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b033.png?v=1709921688825)

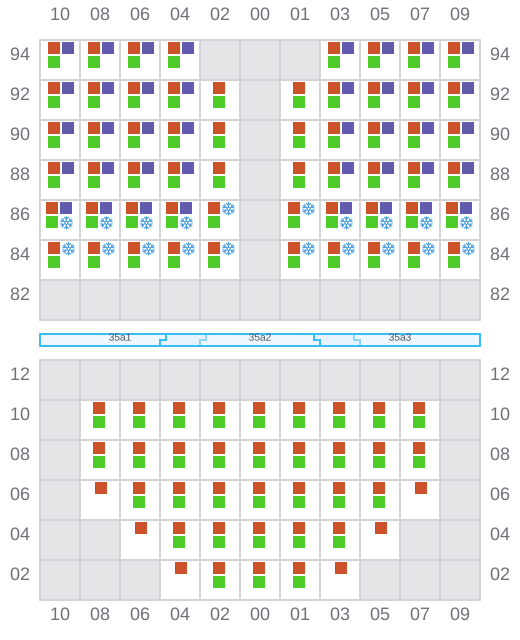

035 (036)
- →
- ← / ?
![Bay 035 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b035.png?v=1709921688825)

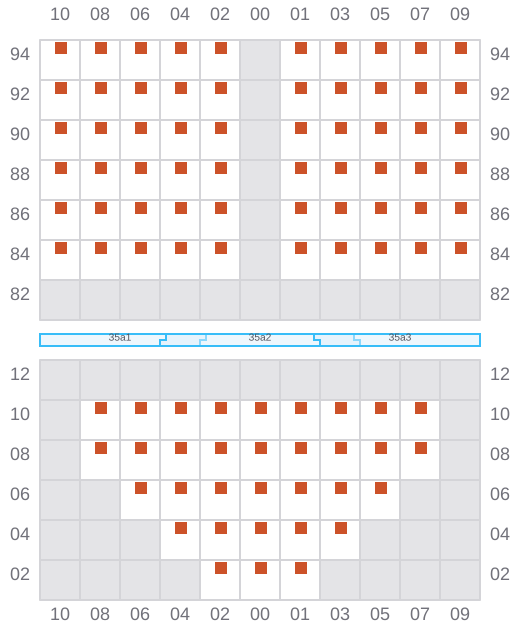

037
- ←
- → / ?
![Bay 037 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b037.png?v=1709921688825)

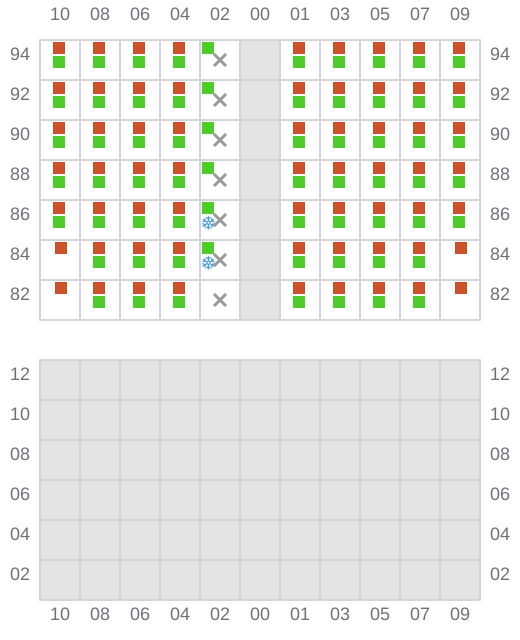

039 (040)
- → / ?
- ← / ?
![Bay 039 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b039.png?v=1709921688825)

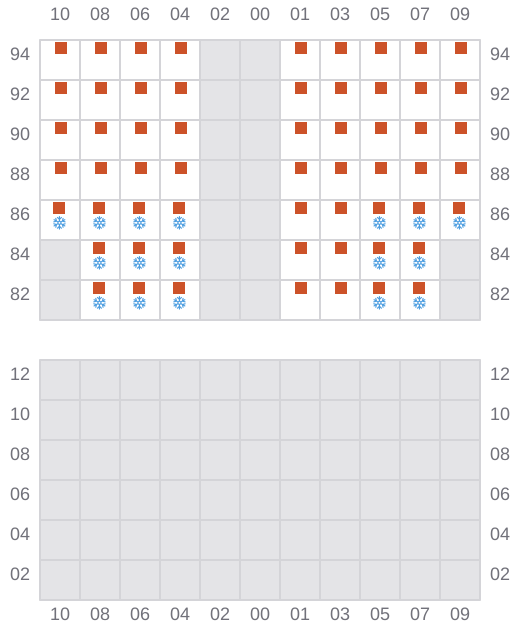

041
- ← / ?
- → / ?
![Bay 041 view and slots of HE JIN](/vessel-images/08295a56-2dec-4244-a76f-e9b45ed1890f-b041.png?v=1709921688825)
