HELGOLAND
9944766 | V2HR4 | HDS by ******************** Last update: Mon Nov 10 2025
General Info
Ship Name:HELGOLAND
IMO Code:9944766
Call Sign:V2HR4
Line Operator:HDS
Class Name for Sister Ships:HELD
Year Built:2023
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):169.00
LOA (Length Overall):172.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-
Size Summary
ISO Bays:039
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,762
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001
- →
- ✓
003 (002)
- ←
- ✓

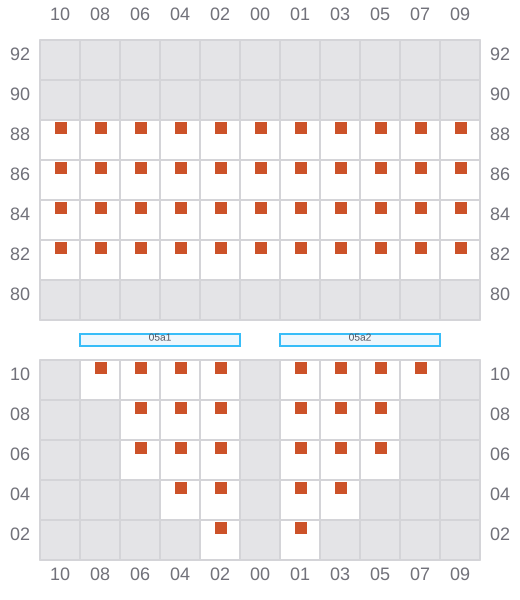

005
- →
- ✓
007 (006)
- ←
- ✓

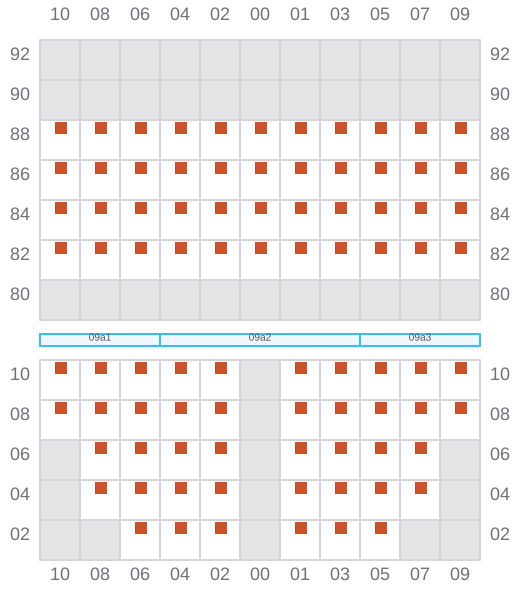

009
- →
- ✓
011 (010)
- ←
- ✓
013
- →
- ✓

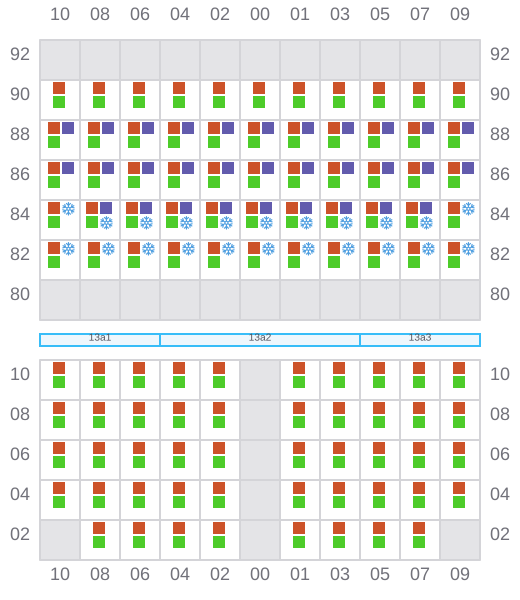

015 (014)
- ←
- ✓

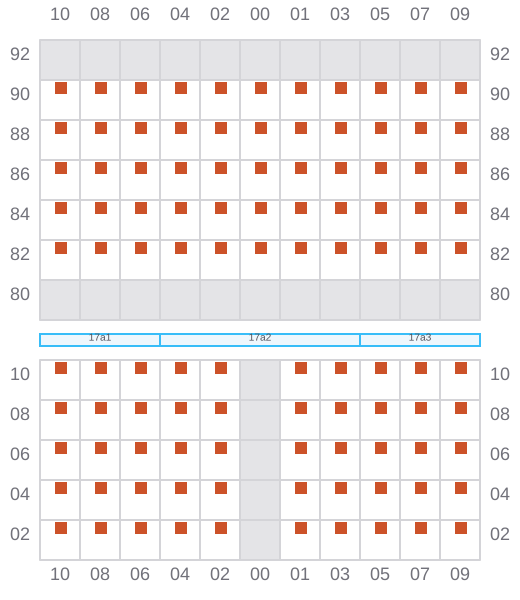

017
- →
- ✓

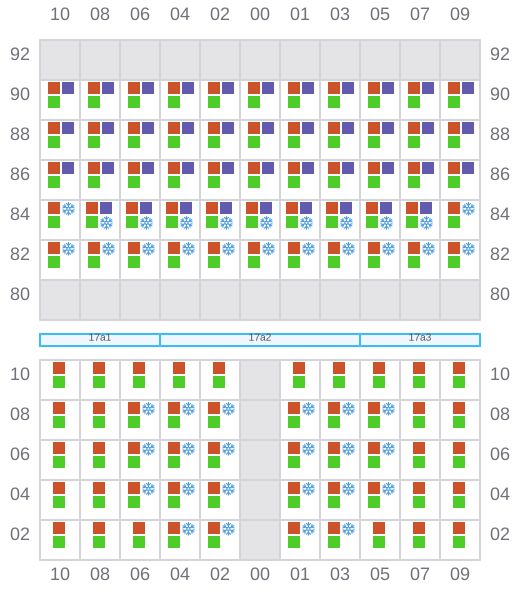

019 (018)
- ←
- ✓
021
- →
- ✓
023 (022)
- ←
- ✓

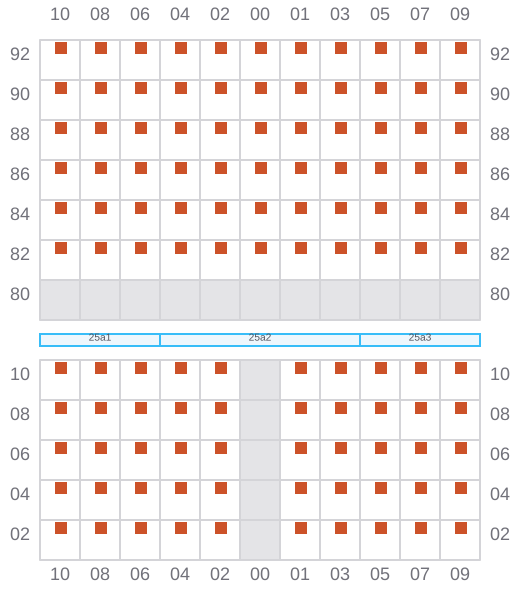

025
- →
- ✓

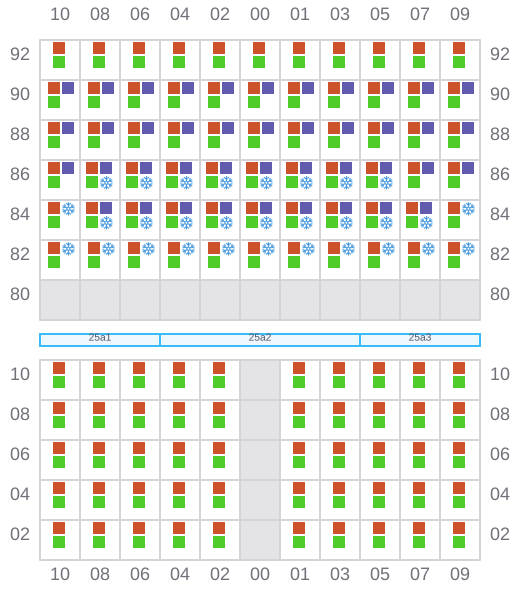

027 (026)
- ←
- ✓

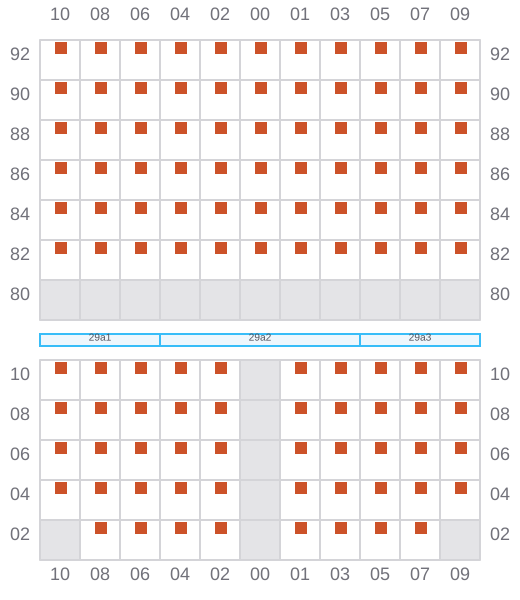

029
- →
- ✓

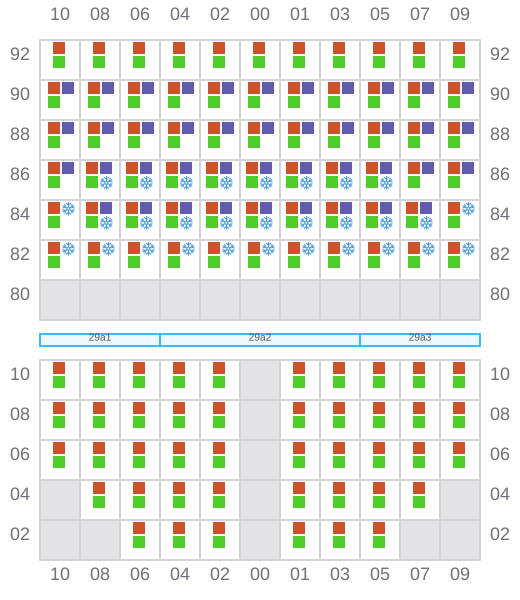

031 (030)
- ←
- ✓

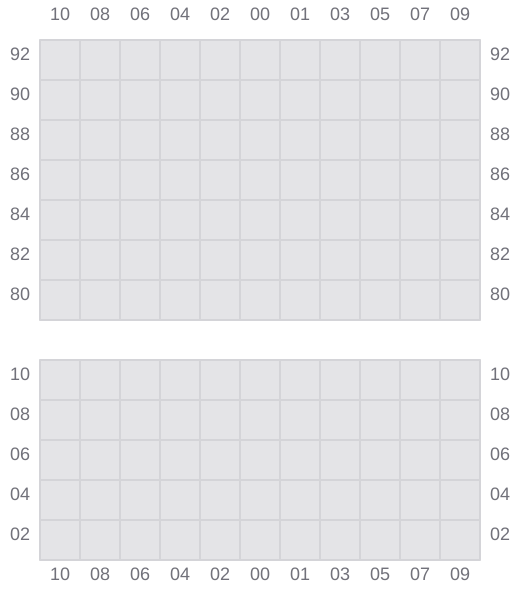

033
- →
- ✓
035 (034)
- ←
- ? / ?
- ? / ?
- ✓
037
- →
- ✓

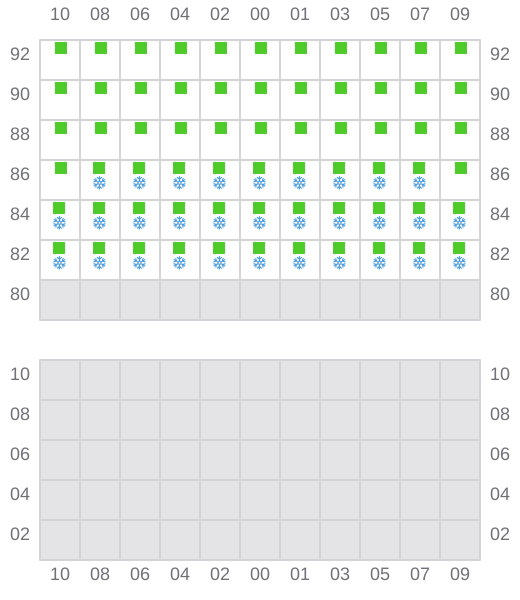

039 (038)
- ←
- ✓
