HERMANN SCHULTE
9535187 | VRJU7 | MOL by *********************** Last update: Tue Feb 04 2025

General Info

Ship Name:HERMANN SCHULTE
IMO Code:9535187
Call Sign:VRJU7
Line Operator:MOL
Class Name for Sister Ships:MGRA
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,605

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of HERMANN SCHULTE

Hatch-Covers View

Deck view of HERMANN SCHULTE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
  • →
Bay 001 view and slots of HERMANN SCHULTE

003 (002)

  • ←
  • → / ?
  • →
Bay 003 view and slots of HERMANN SCHULTE

005

  • →
  • →

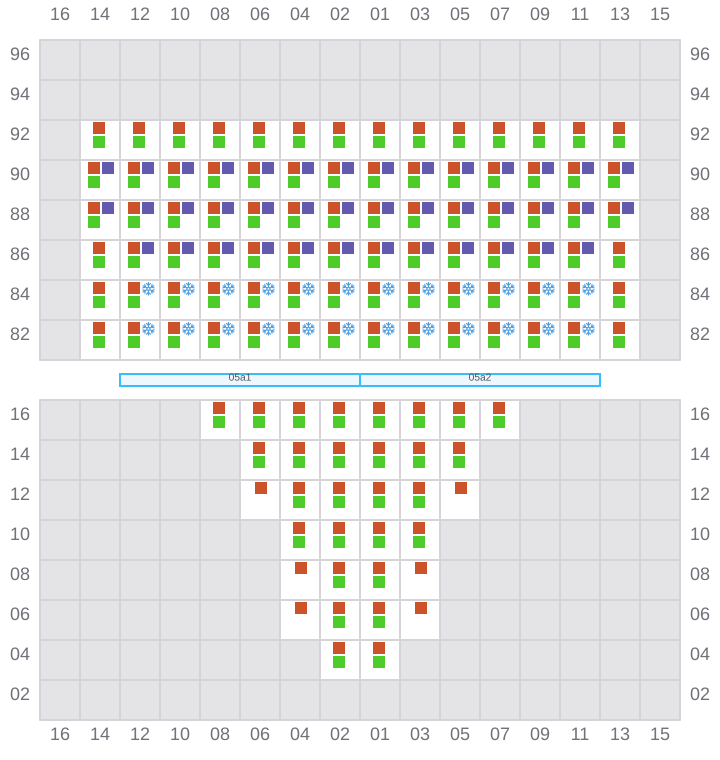

Bay 005 view and slots of HERMANN SCHULTE

007 (006)

  • ←
  • → / ?
  • →
Bay 007 view and slots of HERMANN SCHULTE

009

  • →
  • →
Bay 009 view and slots of HERMANN SCHULTE

011 (010)

  • ←
  • → / ?
  • →
Bay 011 view and slots of HERMANN SCHULTE

013

  • →
  • →

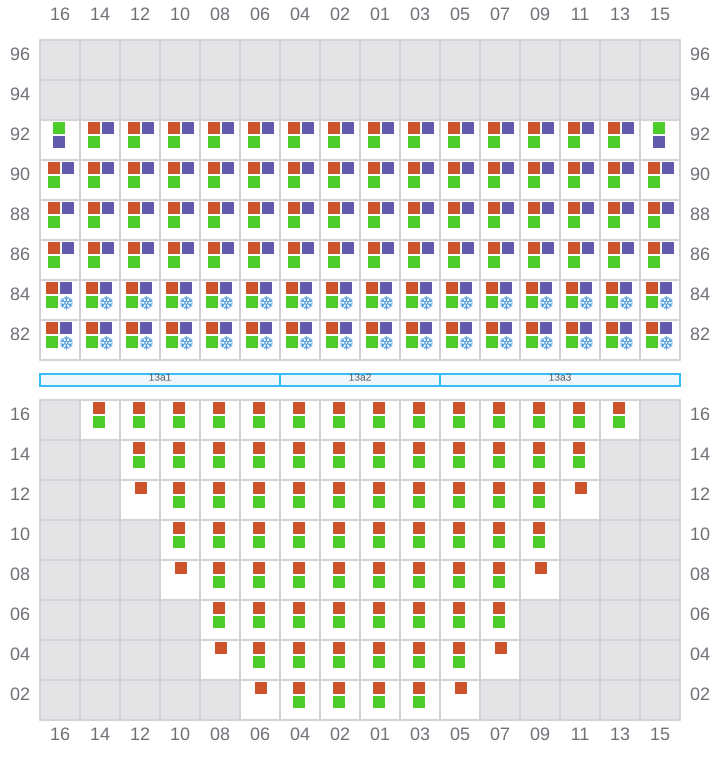

Bay 013 view and slots of HERMANN SCHULTE

015 (014)

  • ←
  • → / ?
  • →
Bay 015 view and slots of HERMANN SCHULTE

017

  • →
  • →
Bay 017 view and slots of HERMANN SCHULTE

019 (018)

  • ←
  • → / ?
  • →
Bay 019 view and slots of HERMANN SCHULTE

021

  • →
  • →
Bay 021 view and slots of HERMANN SCHULTE

023 (022)

  • ←
  • → / ?
  • →
Bay 023 view and slots of HERMANN SCHULTE

025

  • →
  • →
Bay 025 view and slots of HERMANN SCHULTE

027 (026)

  • ←
  • → / ?
  • →
Bay 027 view and slots of HERMANN SCHULTE

029

  • →
  • →
Bay 029 view and slots of HERMANN SCHULTE

031 (030)

  • ←
  • → / ?
  • →
Bay 031 view and slots of HERMANN SCHULTE

033

  • →
  • →
Bay 033 view and slots of HERMANN SCHULTE

035 (034)

  • ←
  • →
  • →
Bay 035 view and slots of HERMANN SCHULTE

037

  • →
  • →
Bay 037 view and slots of HERMANN SCHULTE

039 (038)

  • ←
  • → / ?
  • →
Bay 039 view and slots of HERMANN SCHULTE

041

  • →
  • →
Bay 041 view and slots of HERMANN SCHULTE

043 (042)

  • ←
  • →
  • →
Bay 043 view and slots of HERMANN SCHULTE

045

  • →
  • →
Bay 045 view and slots of HERMANN SCHULTE

047 (046)

  • ←
  • → / ?
  • →

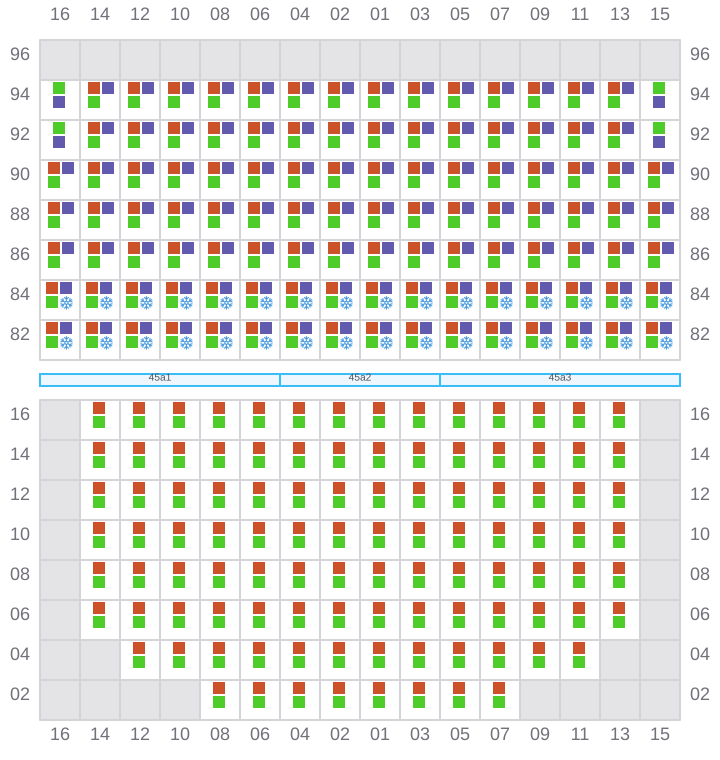

Bay 047 view and slots of HERMANN SCHULTE

049

  • →
  • →
Bay 049 view and slots of HERMANN SCHULTE

051 (050)

  • ←
  • → / ?
  • →
Bay 051 view and slots of HERMANN SCHULTE

053

  • →
  • →
Bay 053 view and slots of HERMANN SCHULTE

055 (054)

  • ←
  • → / ?
  • →
Bay 055 view and slots of HERMANN SCHULTE

057

  • →
  • →
Bay 057 view and slots of HERMANN SCHULTE

059 (058)

  • ←
  • → / ?
  • →
Bay 059 view and slots of HERMANN SCHULTE

061 (062)

  • → / ?
  • ← / ?
  • → / ?
Bay 061 view and slots of HERMANN SCHULTE
