HH DIAMOND
9161211 | 3EJS | 9161211 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:HH DIAMOND
IMO Code:9161211
Call Sign:3EJS
Line Operator:9161211
Class Name for Sister Ships:32A
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,301
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-sideView.png?v=1709935872129)

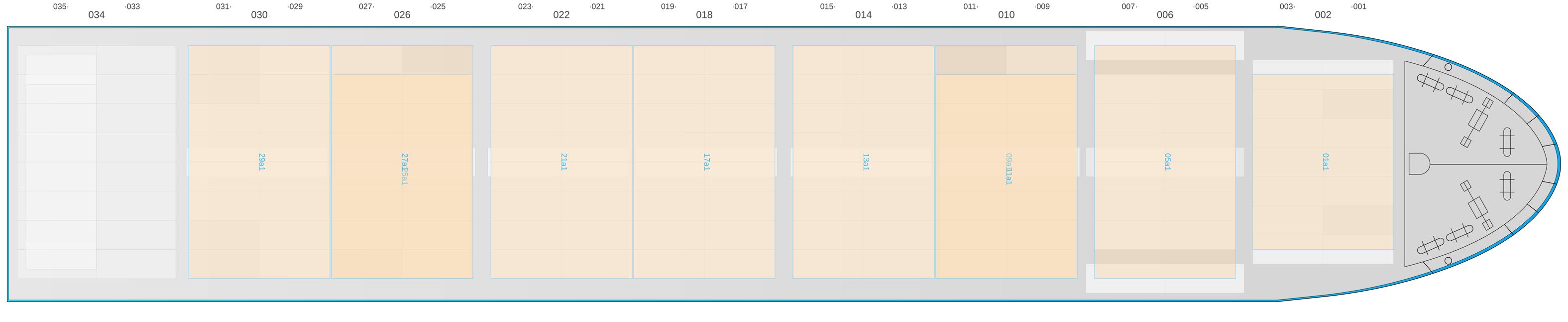

Hatch-Covers View
![Deck view of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-deckView.png?v=1709935872129)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

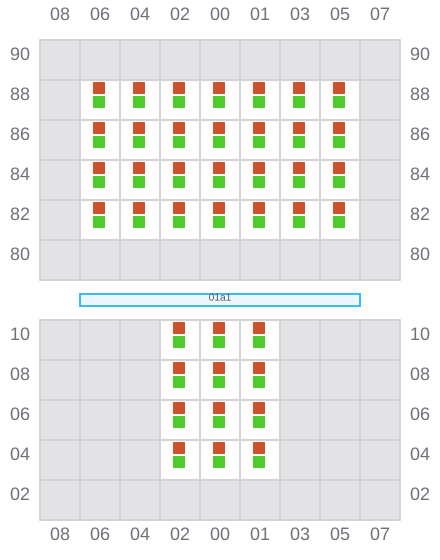

001 (002)
- →
![Bay 001 view and slots of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-b001.png?v=1709935872129)

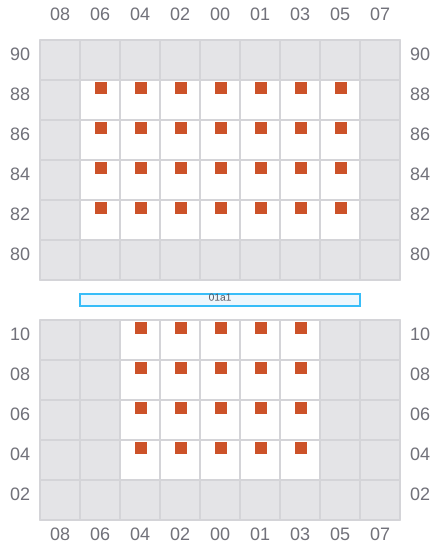

003
- ←
![Bay 003 view and slots of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-b003.png?v=1709935872129)

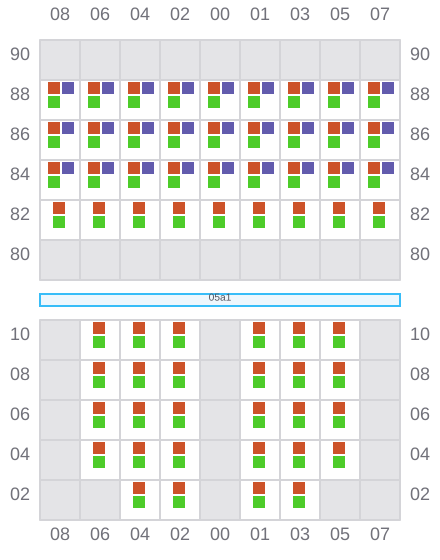

005 (006)
- →
![Bay 005 view and slots of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-b005.png?v=1709935872129)

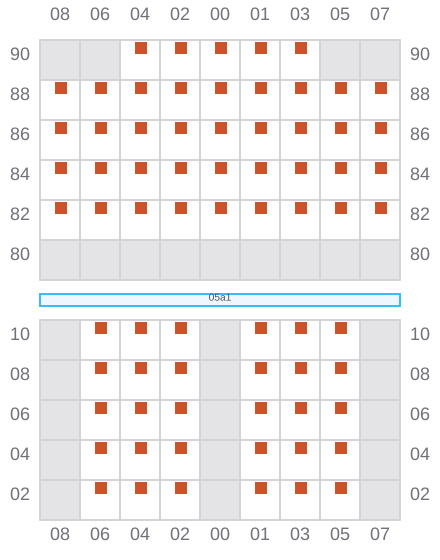

007
- ←
![Bay 007 view and slots of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-b007.png?v=1709935872129)

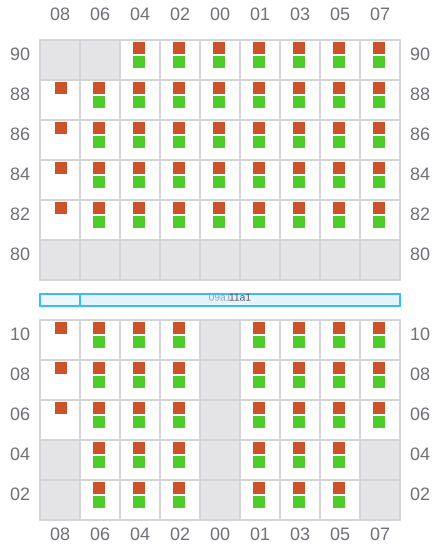

009 (010)
- →
![Bay 009 view and slots of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-b009.png?v=1709935872129)

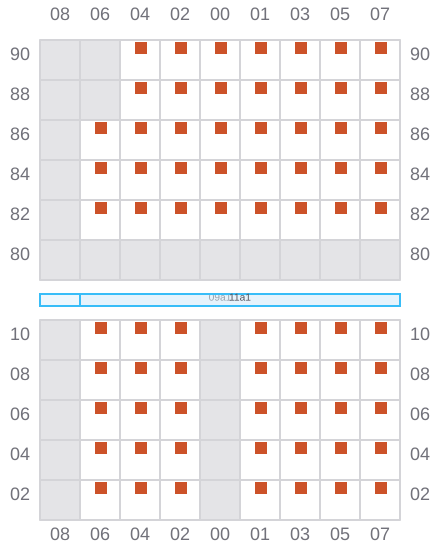

011
- ←
![Bay 011 view and slots of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-b011.png?v=1709935872129)

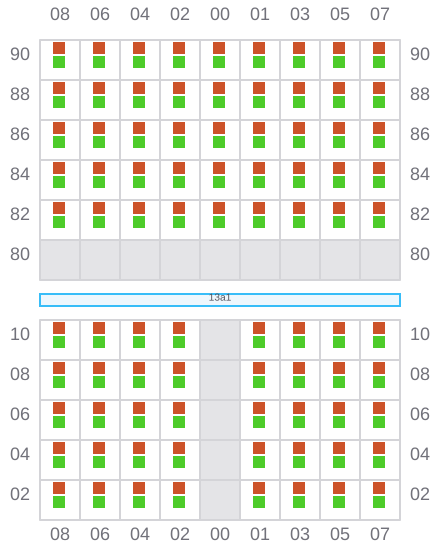

013 (014)
- →
![Bay 013 view and slots of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-b013.png?v=1709935872129)

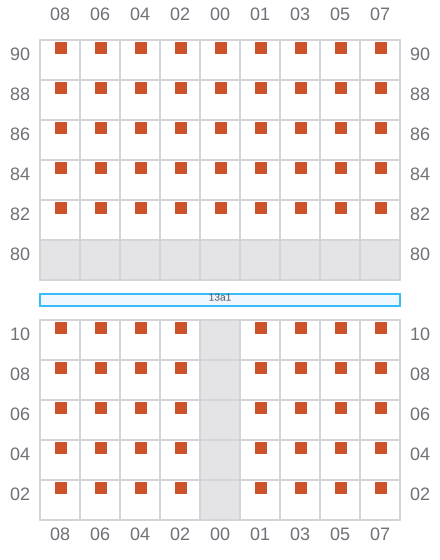

015
- ←
![Bay 015 view and slots of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-b015.png?v=1709935872129)
017 (018)
- →
![Bay 017 view and slots of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-b017.png?v=1709935872129)

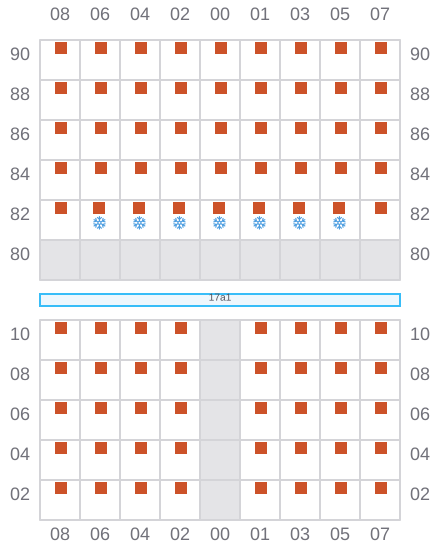

019
- ←
- → / ?
![Bay 019 view and slots of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-b019.png?v=1709935872129)

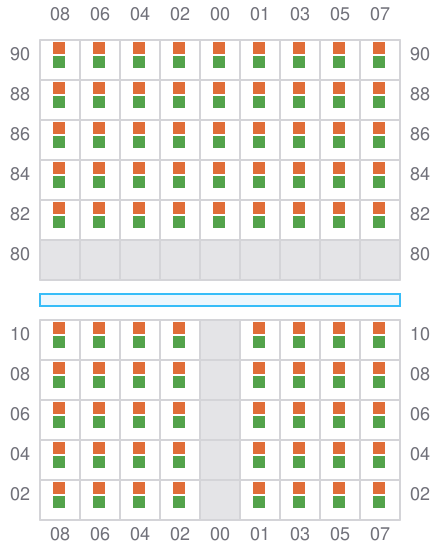

021 (022)
- →
![Bay 021 view and slots of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-b021.png?v=1709935872129)

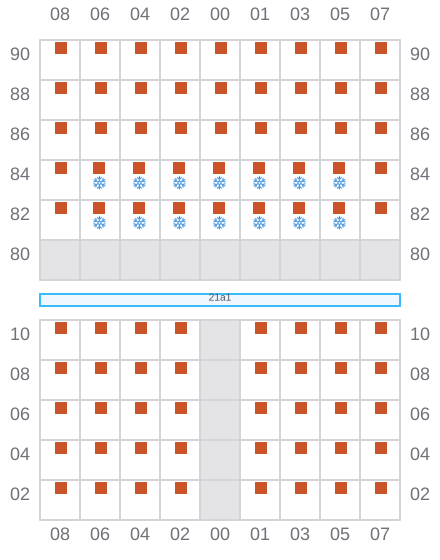

023
- ←
- → / ?
![Bay 023 view and slots of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-b023.png?v=1709935872129)

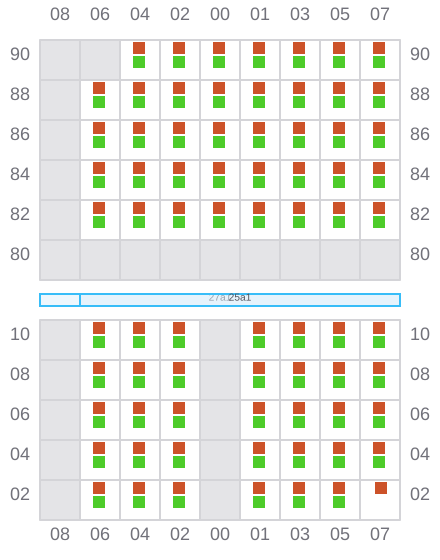

025 (026)
- →
![Bay 025 view and slots of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-b025.png?v=1709935872129)

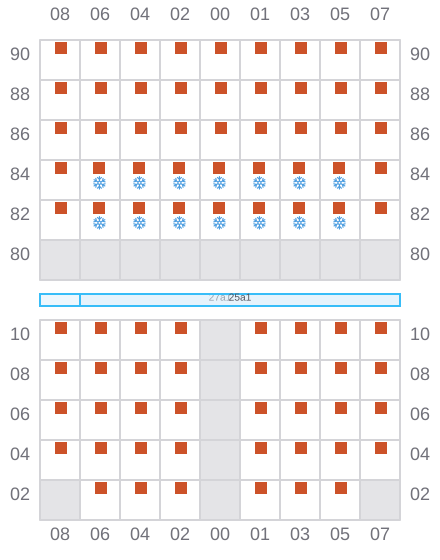

027
- ←
- → / ?
![Bay 027 view and slots of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-b027.png?v=1709935872129)

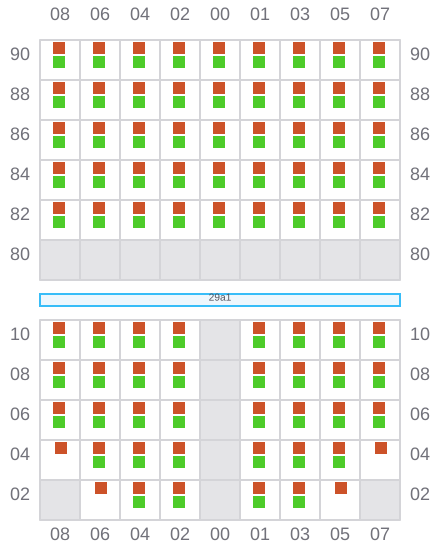

029 (030)
- →
![Bay 029 view and slots of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-b029.png?v=1709935872129)

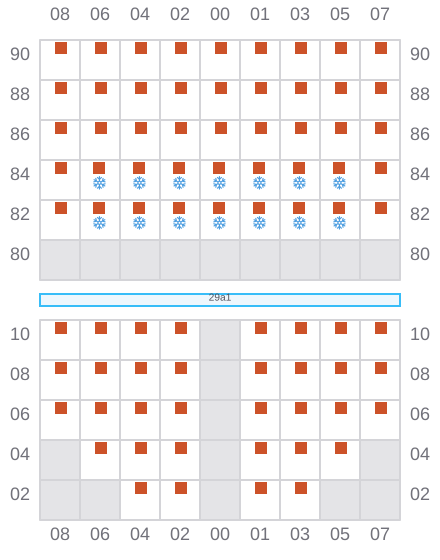

031
- ←
- → / ?
![Bay 031 view and slots of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-b031.png?v=1709935872129)

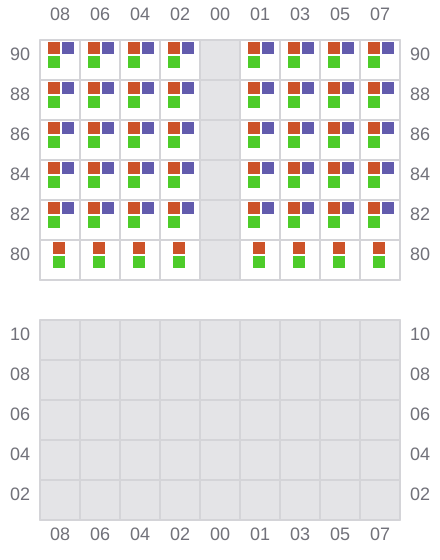

033 (034)
- → / ?
![Bay 033 view and slots of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-b033.png?v=1709935872129)
035
- ← / ?
- → / ?
![Bay 035 view and slots of HH DIAMOND](/vessel-images/0ca40fbe-0b98-41de-985e-7a6c7ef4e2b6-b035.png?v=1709935872129)
