HILIR MAS
9672399 | POYK | 7328645 by ************* Last update: Fri Mar 01 2024
General Info
Ship Name:HILIR MAS
IMO Code:9672399
Call Sign:POYK
Line Operator:7328645
Class Name for Sister Ships:4J9
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:025
Max ISO Row:08
Center Line Row:No
Max Above ISO Tier:86
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:496
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

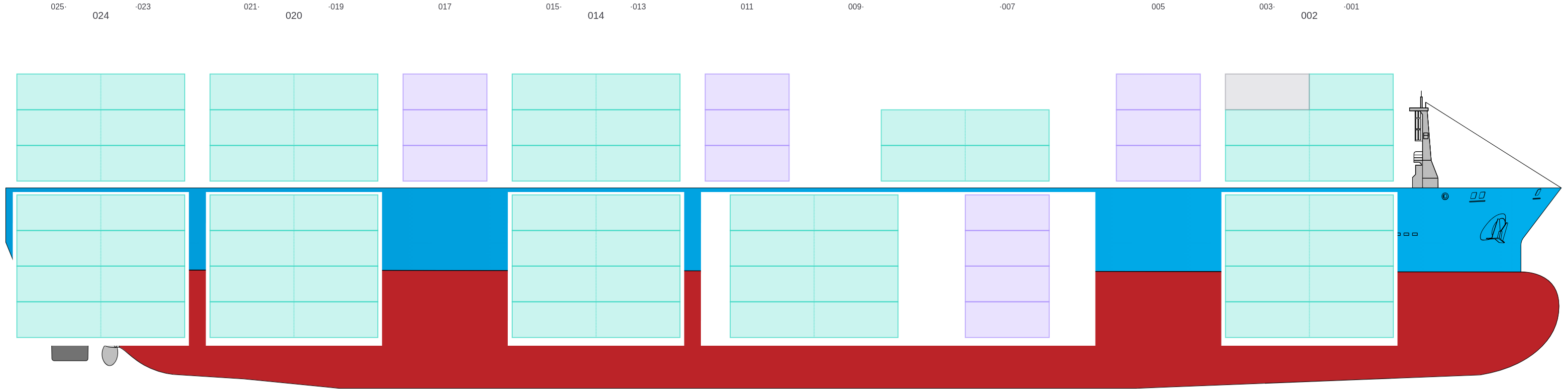

Side View

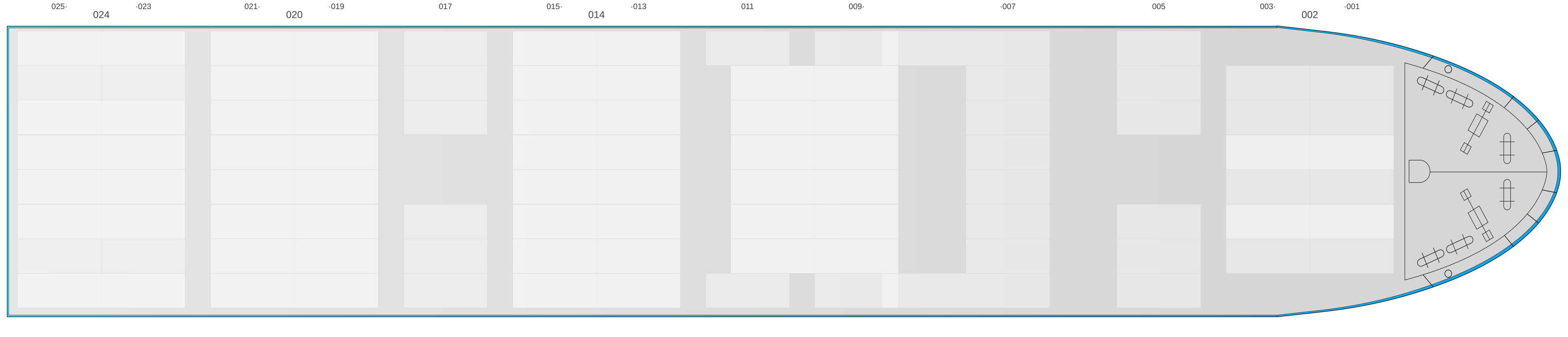

Hatch-Covers View

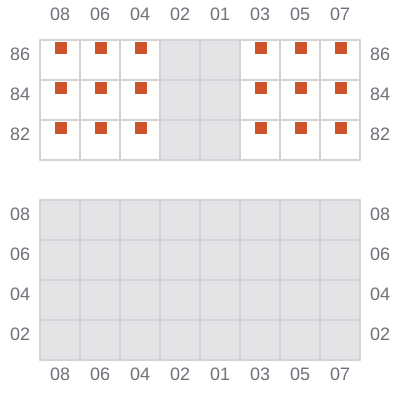

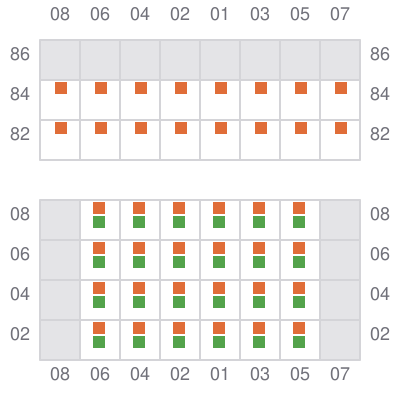

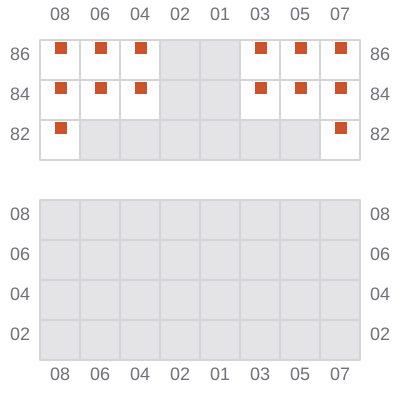

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

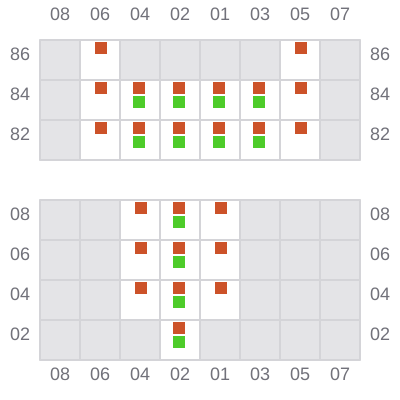

001 (002)
- →

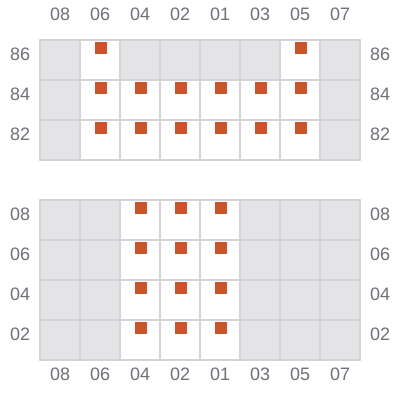

003
- ←
005

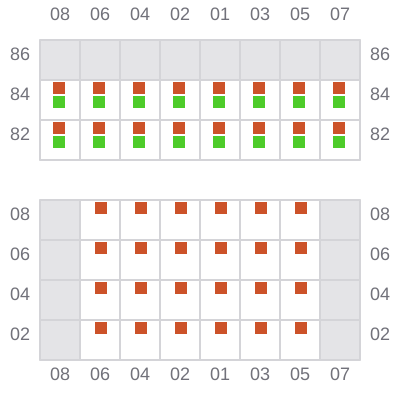

007 (008)
- → / ?
009 (010)
- ← / →
011
- ? / ←
013 (014)
- →

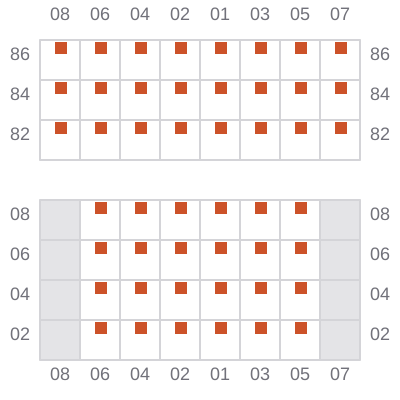

015
- ←
017
019 (020)
- →

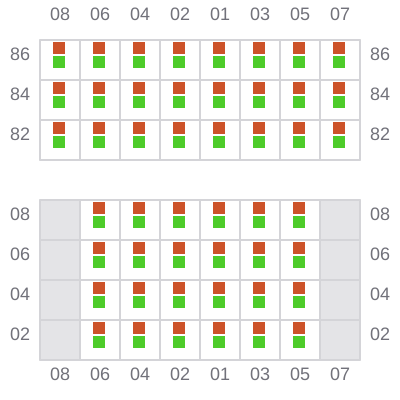

021
- ←

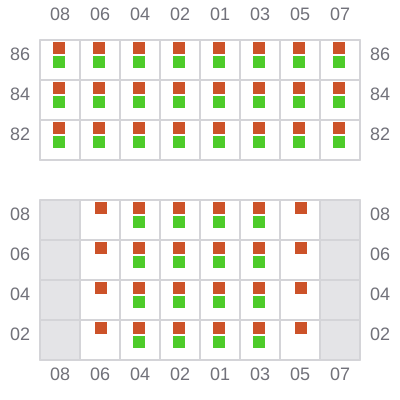

023 (024)
- →

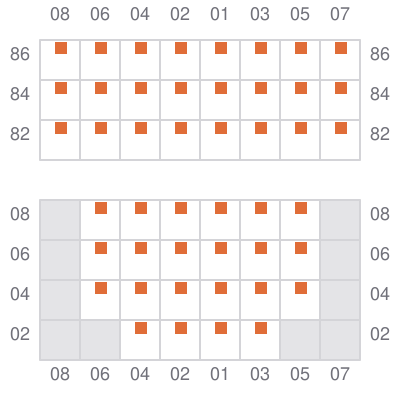

025
- ←
