HISTORY MARIA
9348998 | 5LIG2 | 9348998 by ********* Last update: Fri Jun 21 2024
General Info
Ship Name:HISTORY MARIA
IMO Code:9348998
Call Sign:5LIG2
Line Operator:9348998
Class Name for Sister Ships:MSK
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,728
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

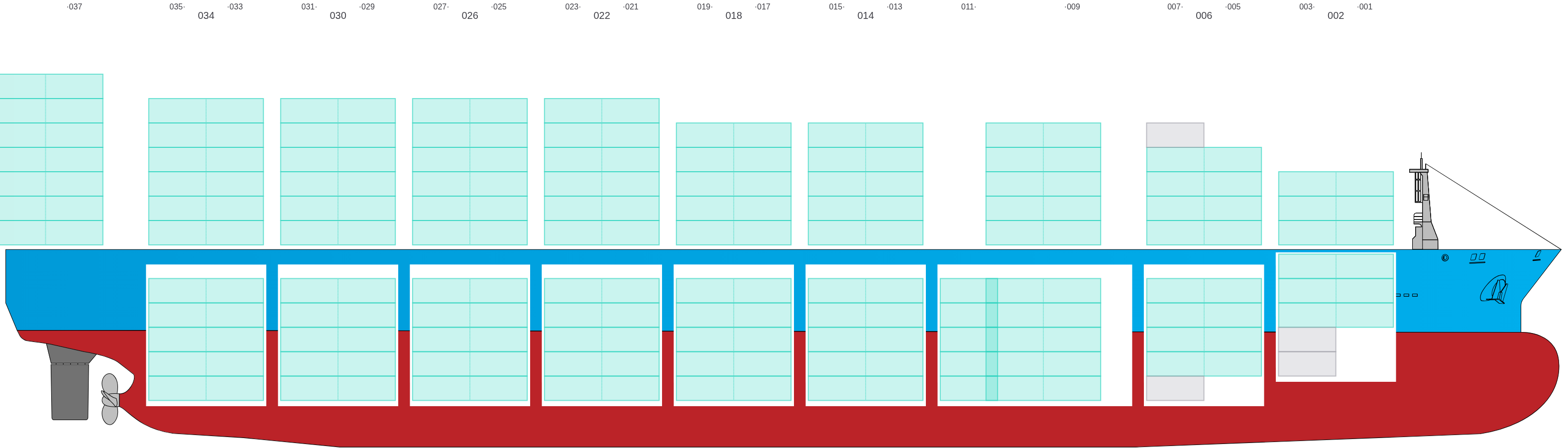

Side View
![Side view of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-sideView.png?v=1718995720729)

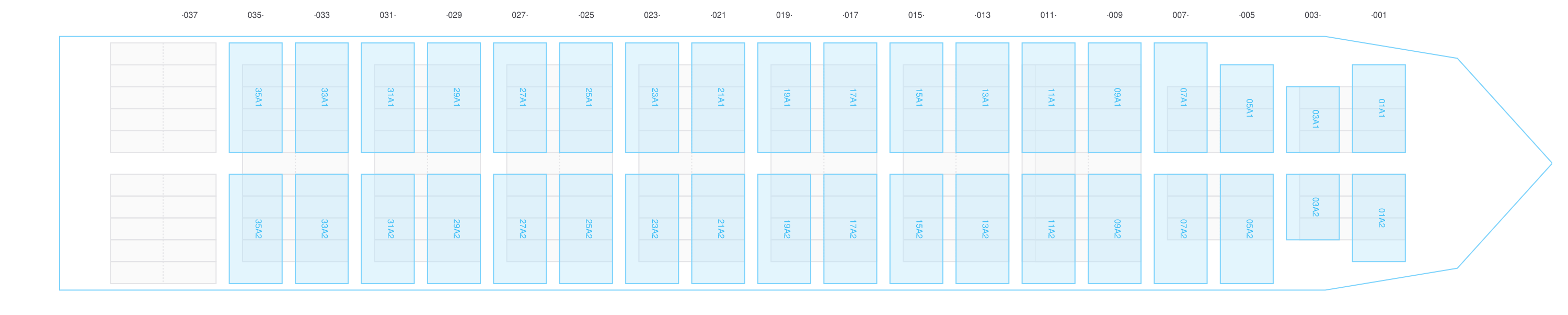

Hatch-Covers View
![Deck view of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-deckView.png?v=1718995720729)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

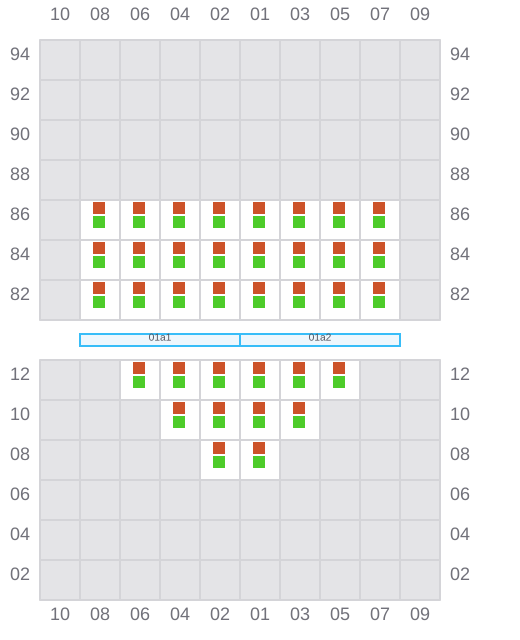

001 (002)
- →
![Bay 001 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b001.png?v=1718995720729)

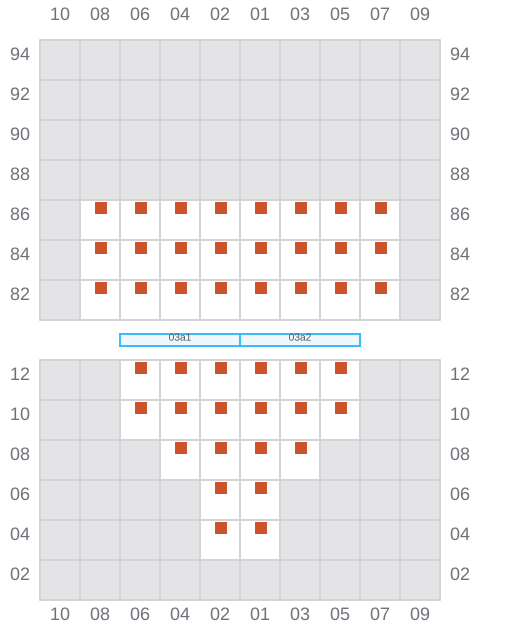

003
- ←
![Bay 003 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b003.png?v=1718995720729)

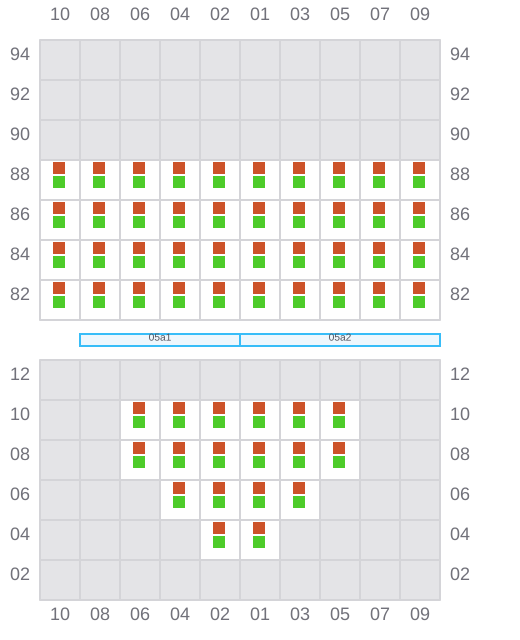

005 (006)
- →
![Bay 005 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b005.png?v=1718995720729)

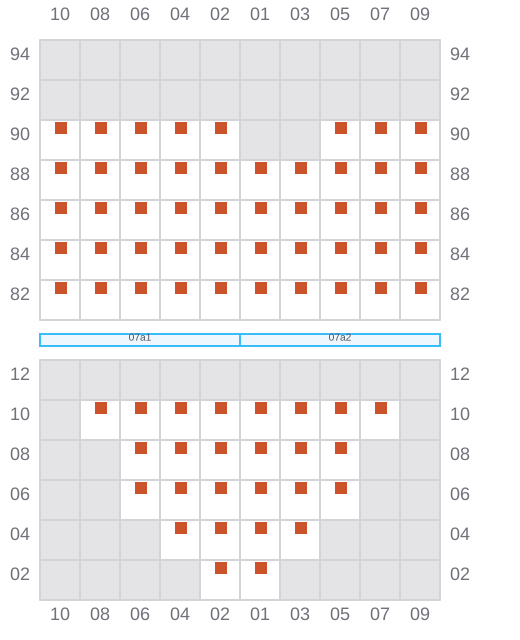

007
- ←
![Bay 007 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b007.png?v=1718995720729)

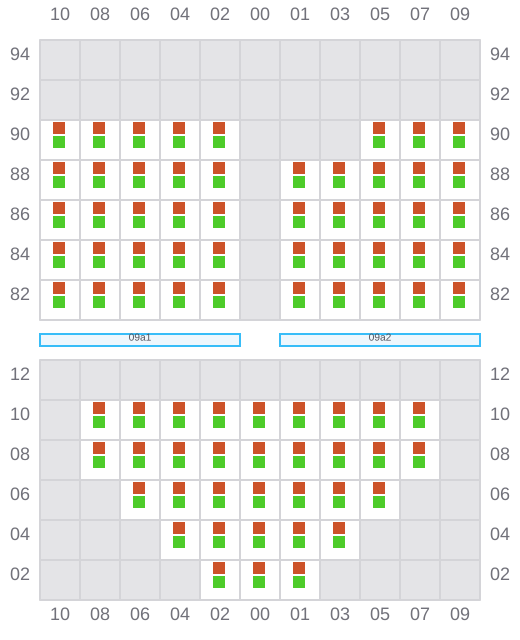

009 (010)
- →
![Bay 009 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b009.png?v=1718995720729)

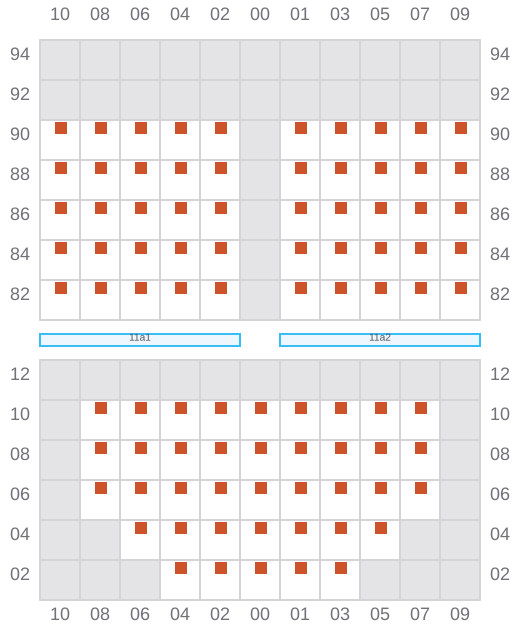

011
- ← / →
![Bay 011 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b011.png?v=1718995720729)

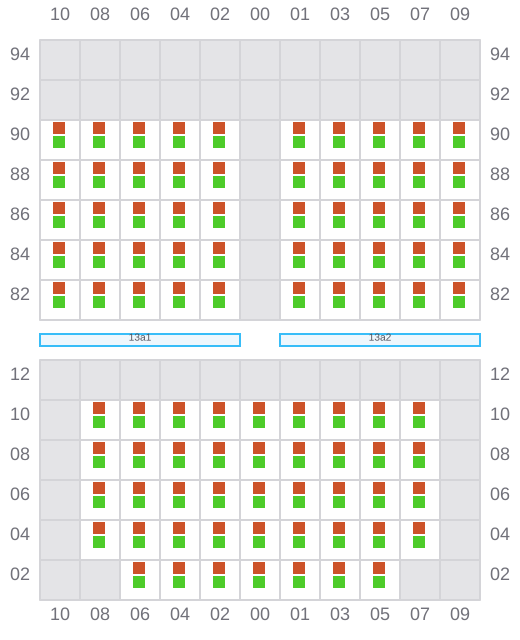

013 (014)
- →
![Bay 013 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b013.png?v=1718995720729)
015
- ←
![Bay 015 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b015.png?v=1718995720729)
017 (018)
- →
![Bay 017 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b017.png?v=1718995720729)
019
- ←
![Bay 019 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b019.png?v=1718995720729)

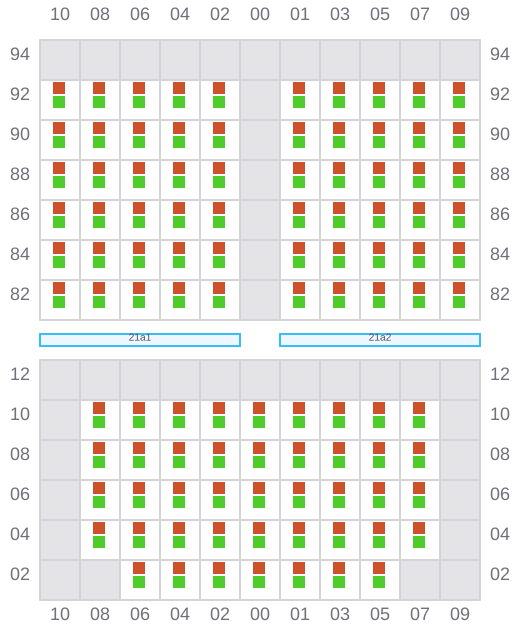

021 (022)
- →
![Bay 021 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b021.png?v=1718995720729)
023
- ←
![Bay 023 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b023.png?v=1718995720729)

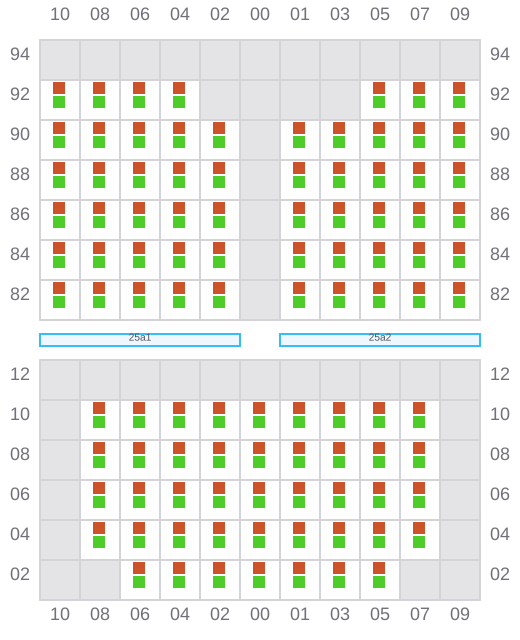

025 (026)
- →
![Bay 025 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b025.png?v=1718995720729)

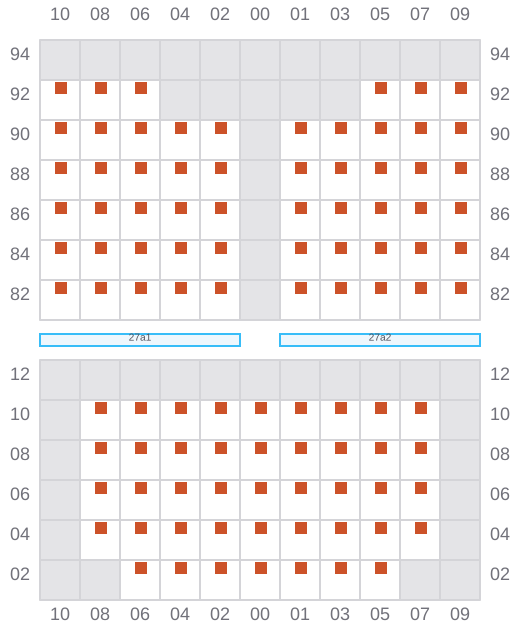

027
- ←
![Bay 027 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b027.png?v=1718995720729)
029 (030)
- →
![Bay 029 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b029.png?v=1718995720729)
031
- ←
![Bay 031 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b031.png?v=1718995720729)

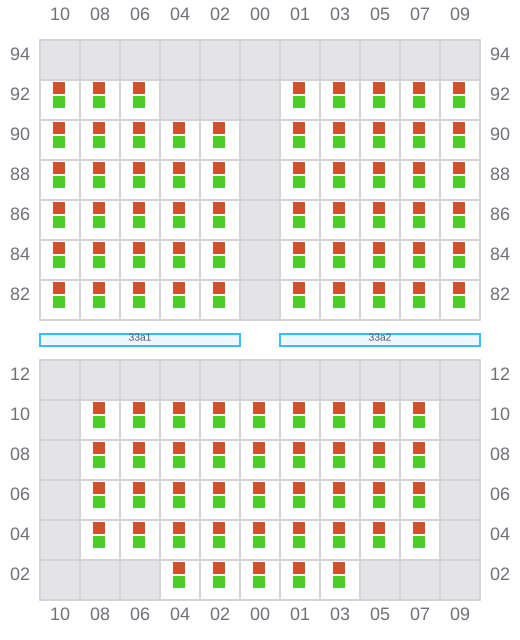

033 (034)
- →
![Bay 033 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b033.png?v=1718995720729)
035
- ←
![Bay 035 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b035.png?v=1718995720729)

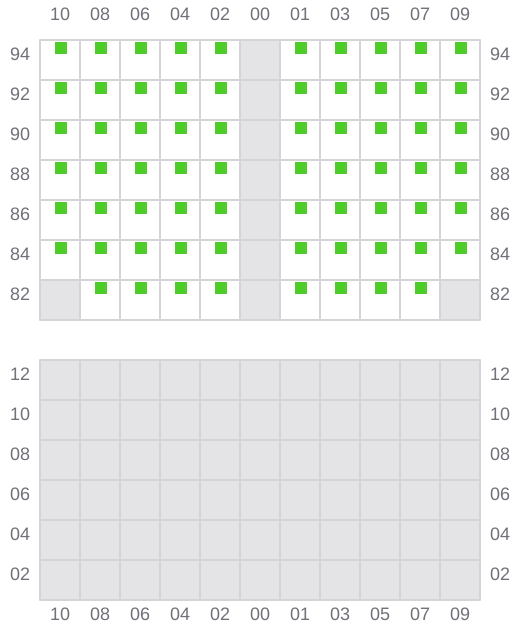

037 (038)
- → / ?
![Bay 037 view and slots of HISTORY MARIA](/vessel-images/6eaa6868-b703-476a-ac7e-97a2e3e71f61-b037.png?v=1718995720729)
