HMM ALGECIRAS
9863297 | D7JI by ******** Last update: Thu Sep 24 2026

General Info

Ship Name:HMM ALGECIRAS
IMO Code:9863297
Call Sign:D7JI
Line Operator:
Class Name for Sister Ships:
Year Built:2020
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:0.00
Features Informed:Standard
Also Known As...:-
40' Bays Location:-

Size Summary

ISO Bays:095
Max ISO Row:24
Center Line Row:No
Max Above ISO Tier:88
Min Above ISO Tier:70
Max Below ISO Tier:24
Min Below ISO Tier:02
Total TEU:17,514

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

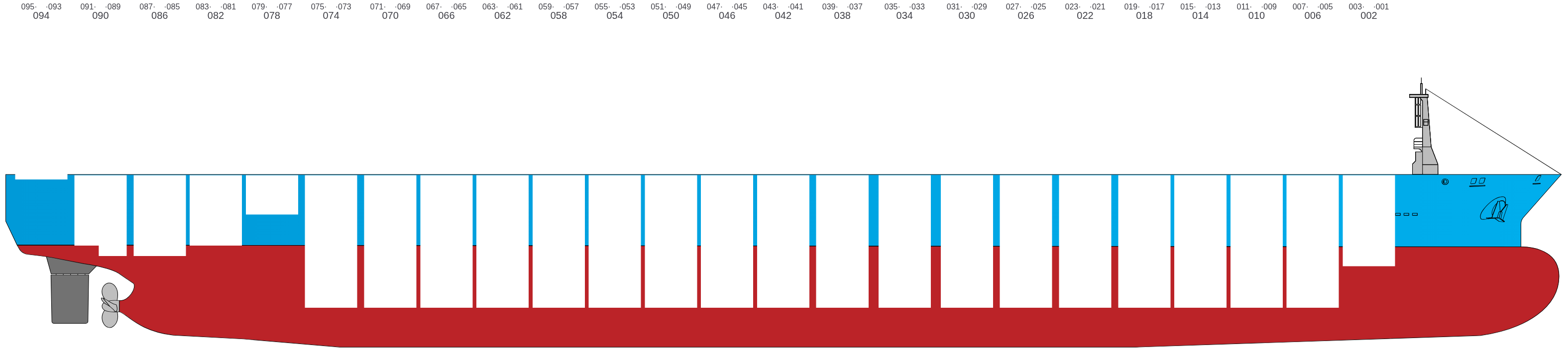

Side view of HMM ALGECIRAS

Hatch-Covers View

Deck view of HMM ALGECIRAS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

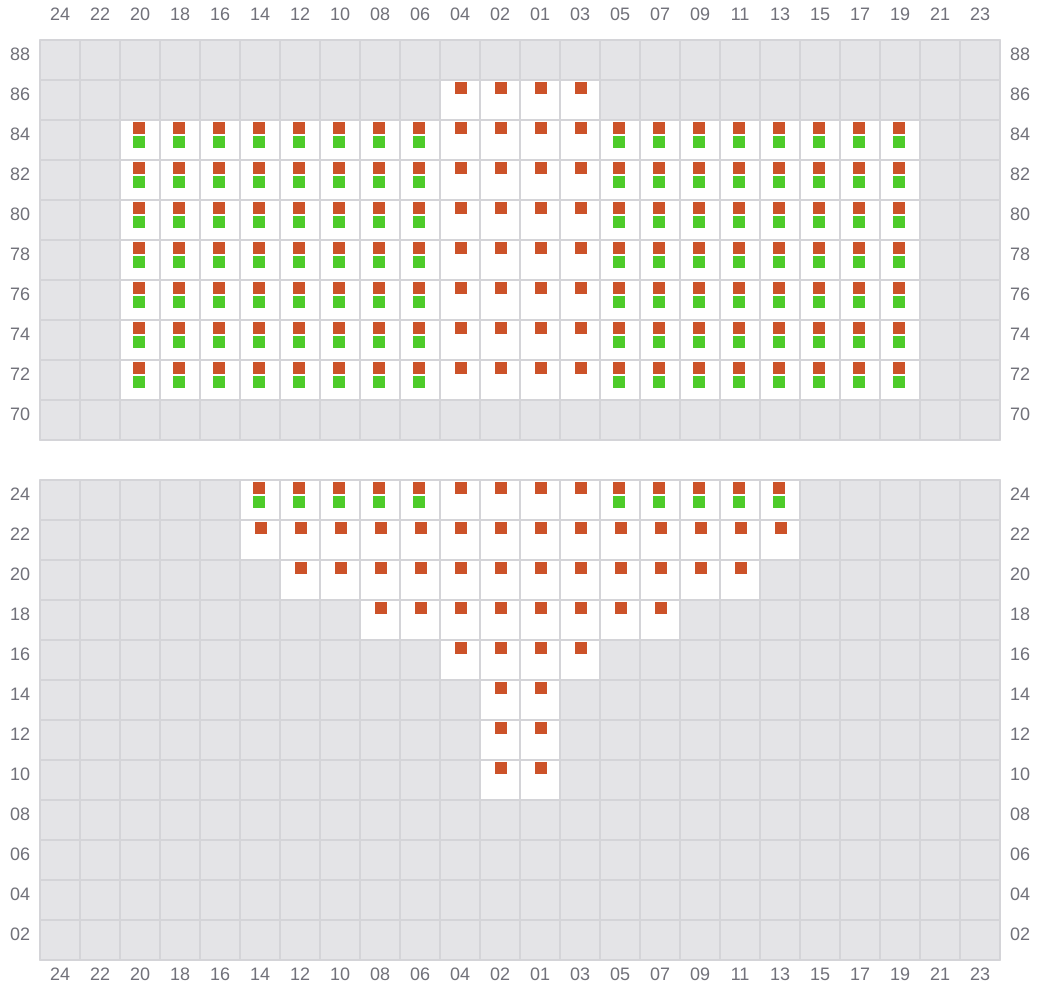

001 (002)

  • →
Bay 001 view and slots of HMM ALGECIRAS

003

  • ←

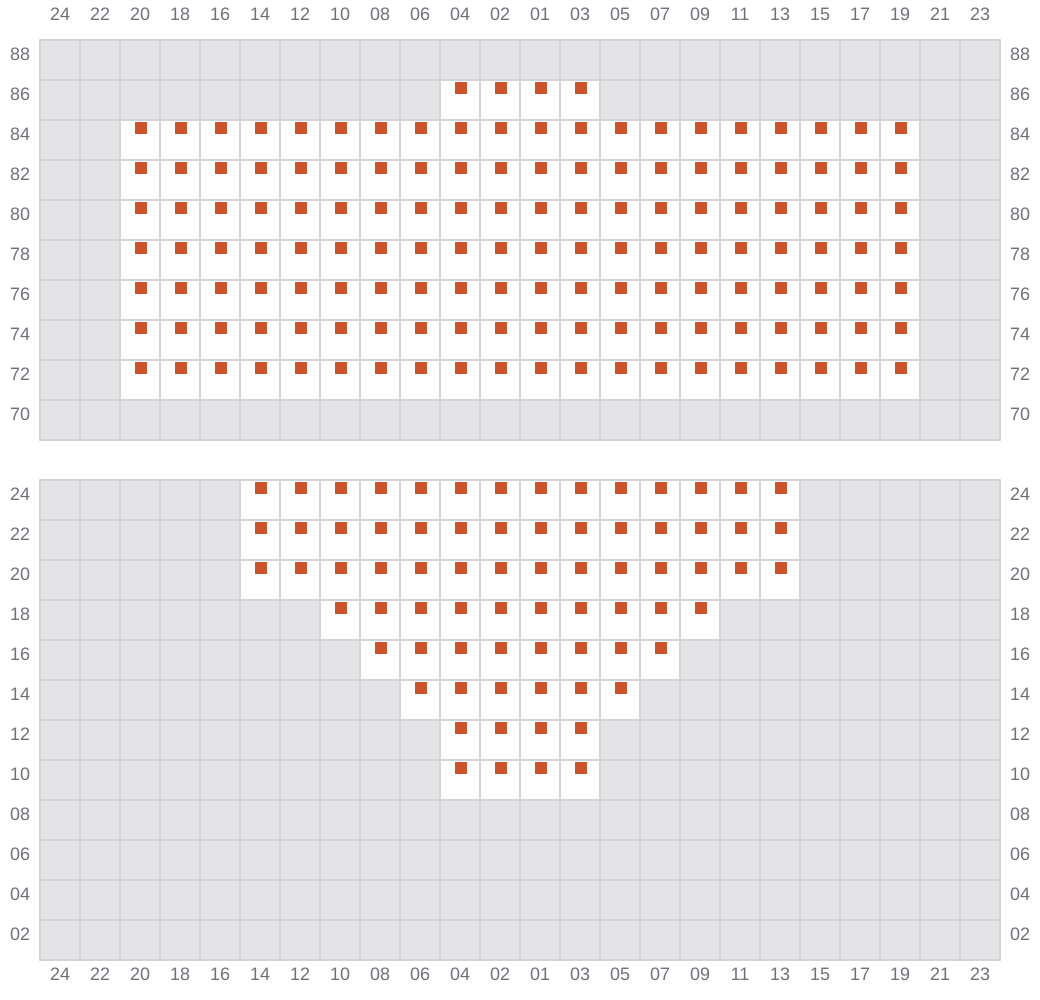

Bay 003 view and slots of HMM ALGECIRAS

005 (006)

  • →

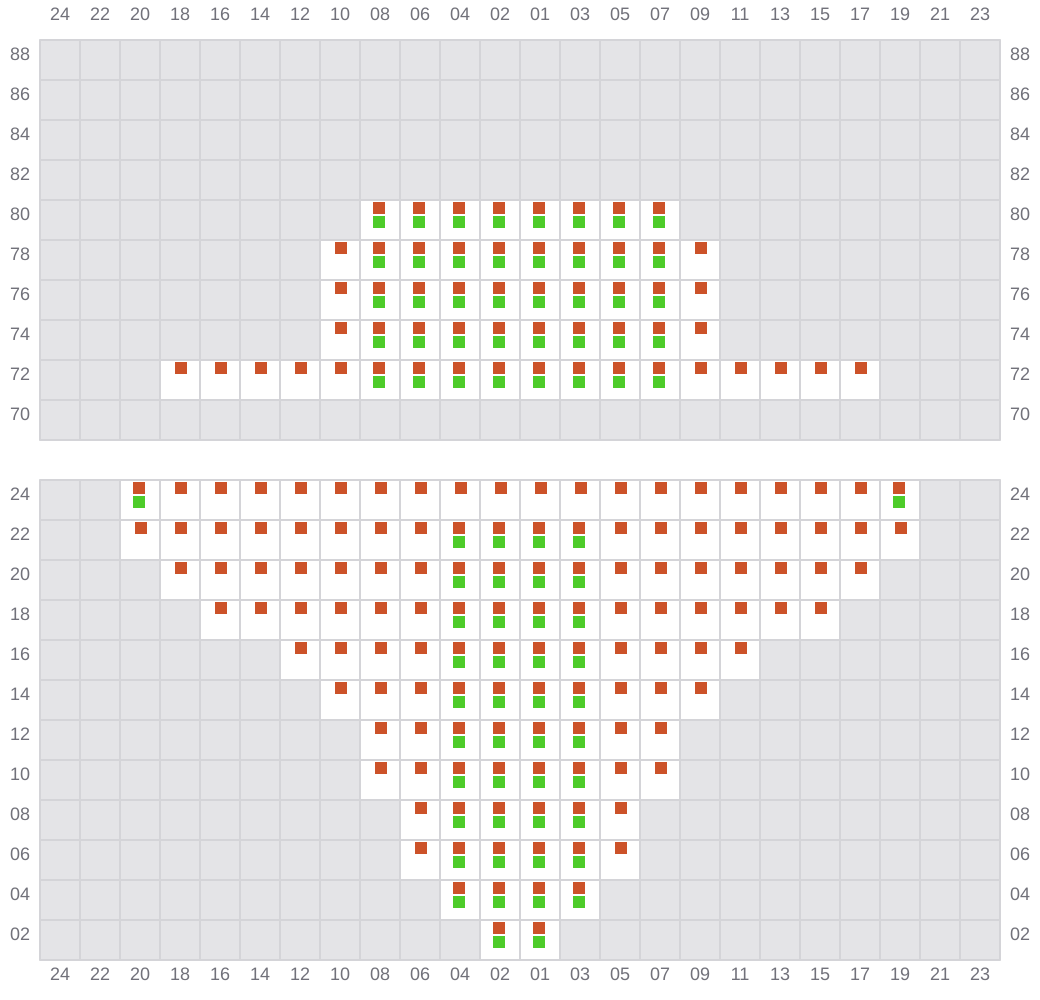

Bay 005 view and slots of HMM ALGECIRAS

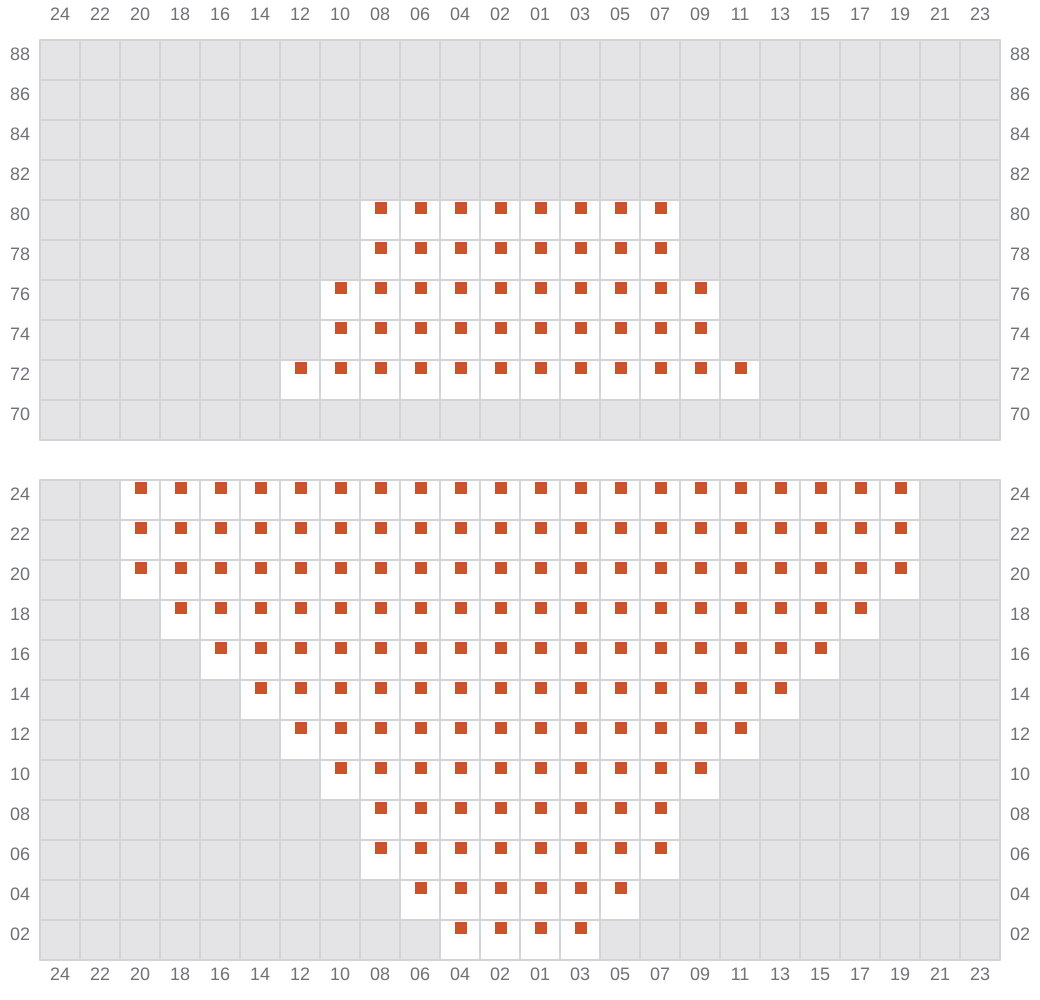

007

  • ←
Bay 007 view and slots of HMM ALGECIRAS

009 (010)

  • →

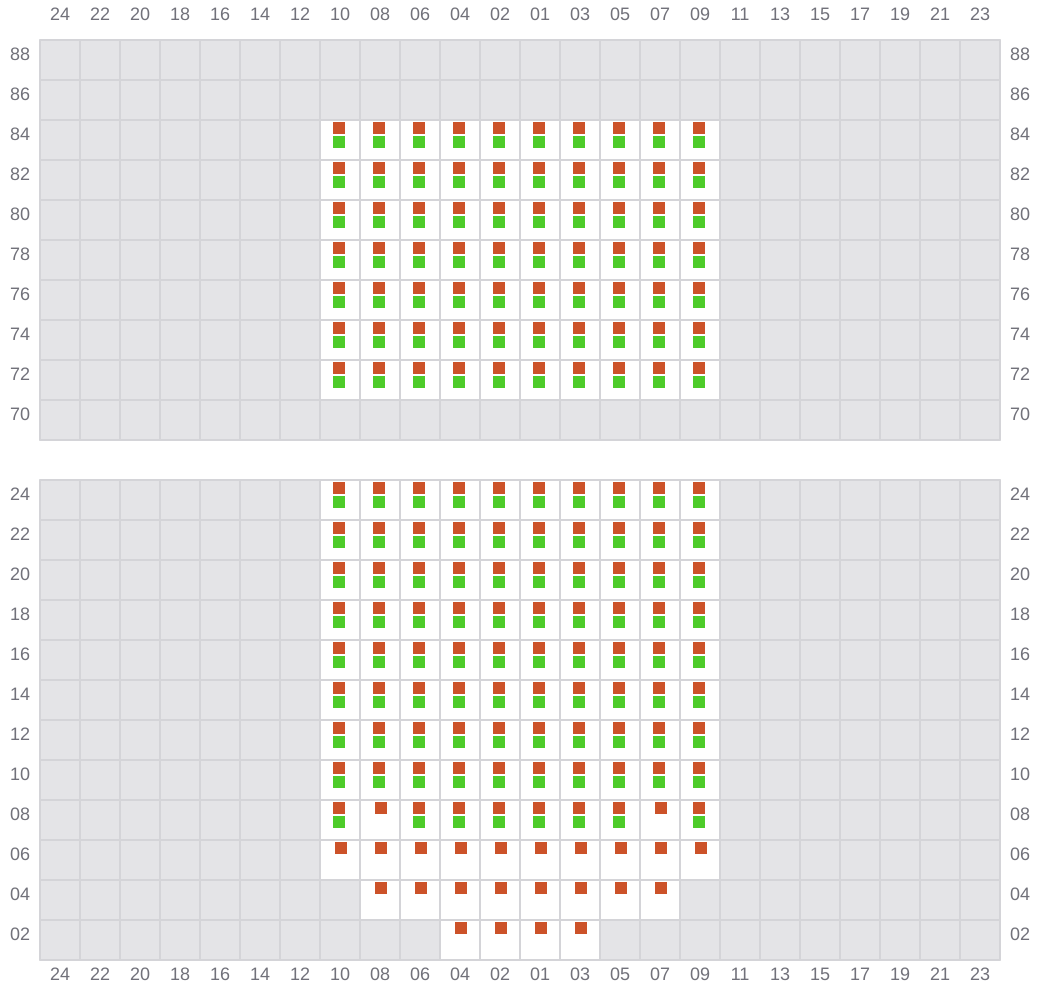

Bay 009 view and slots of HMM ALGECIRAS

011

  • ←

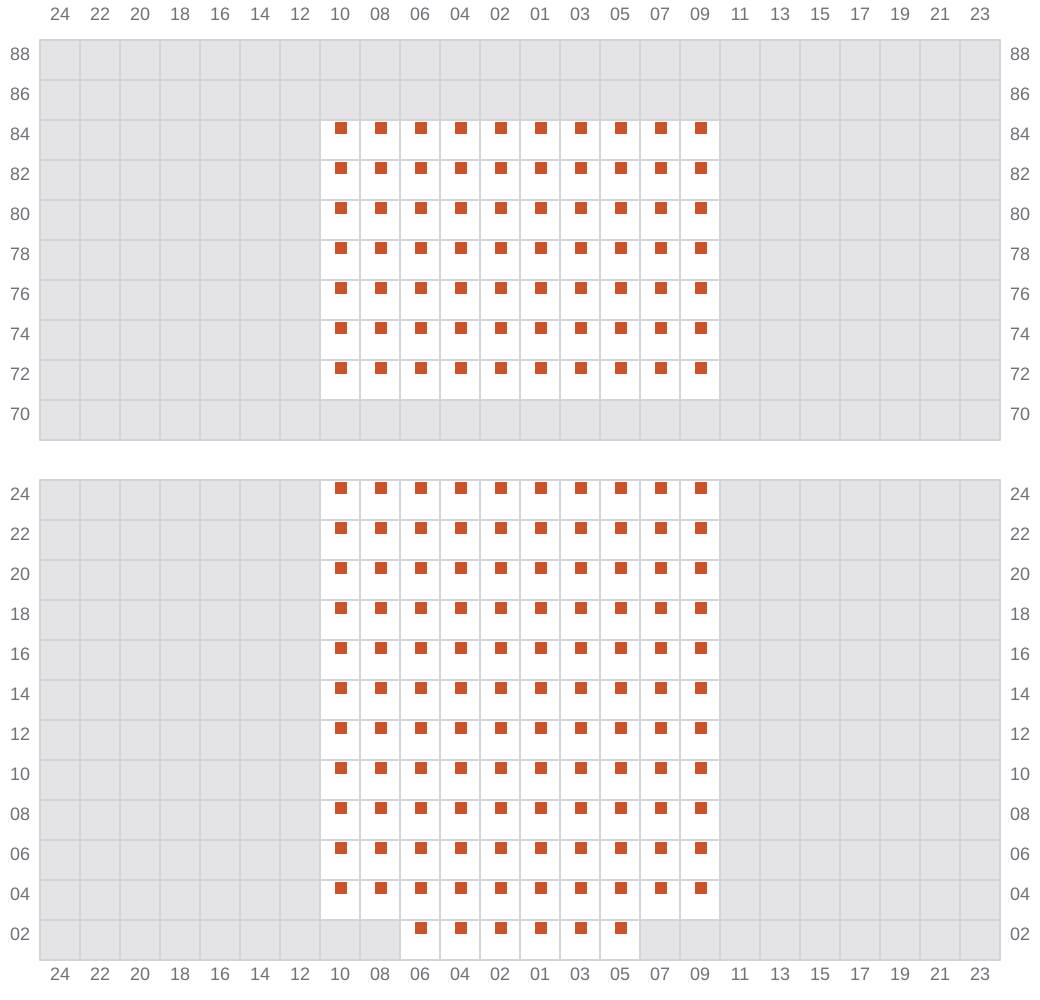

Bay 011 view and slots of HMM ALGECIRAS

013 (014)

  • →

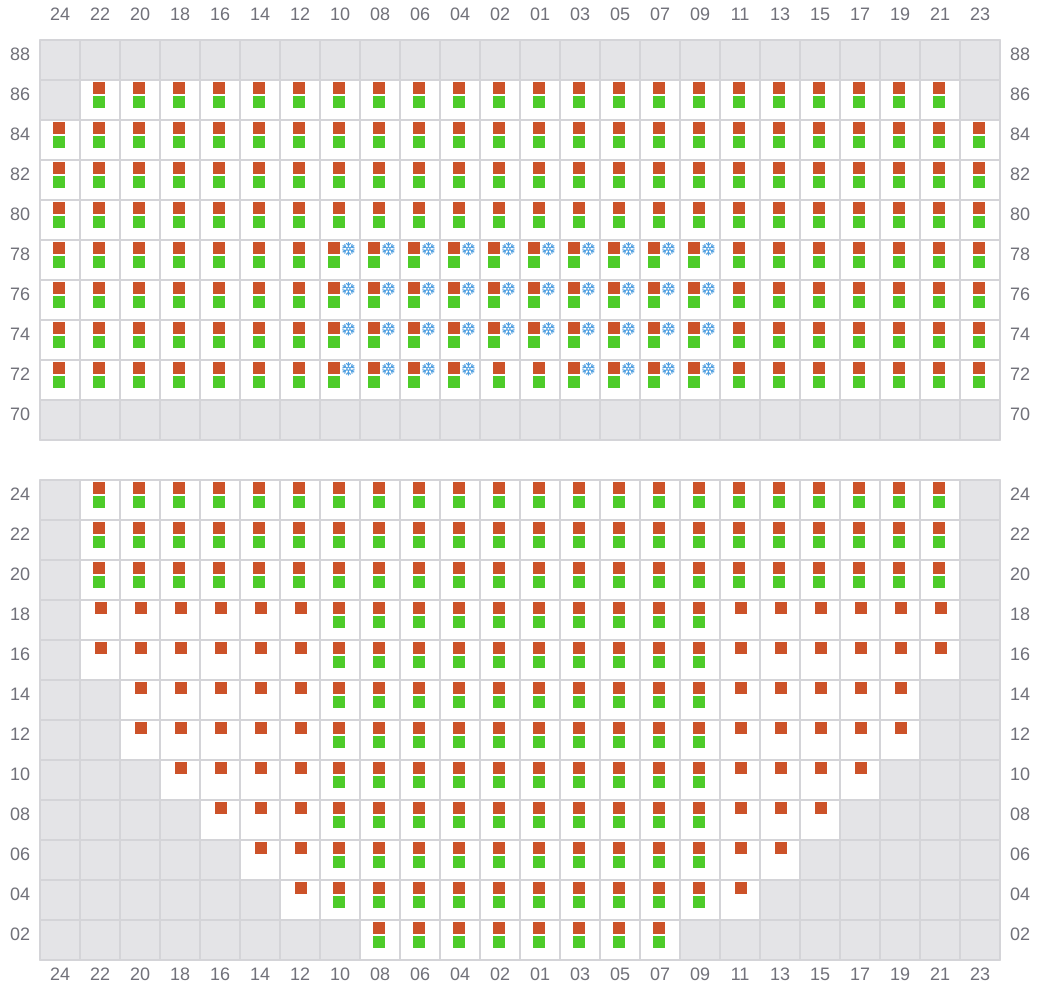

Bay 013 view and slots of HMM ALGECIRAS

015

  • ←

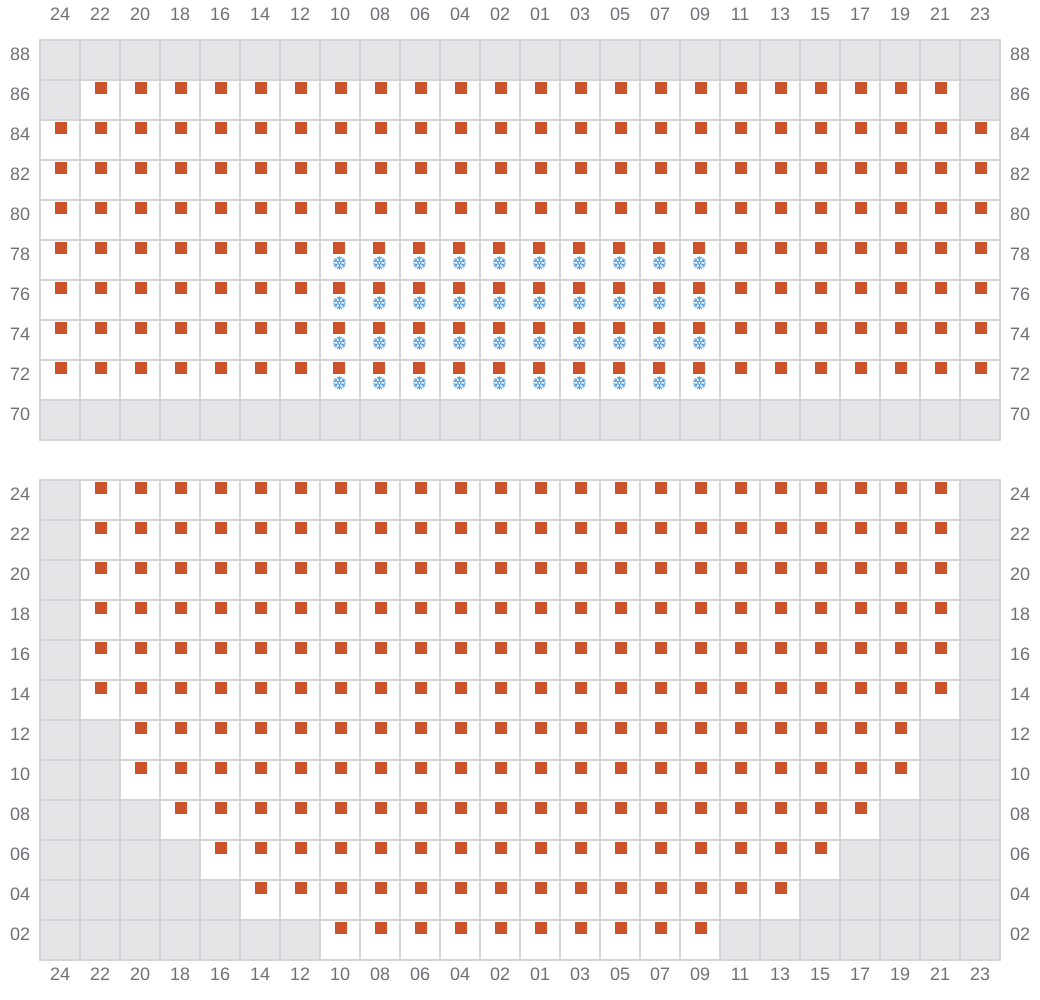

Bay 015 view and slots of HMM ALGECIRAS

017 (018)

  • →

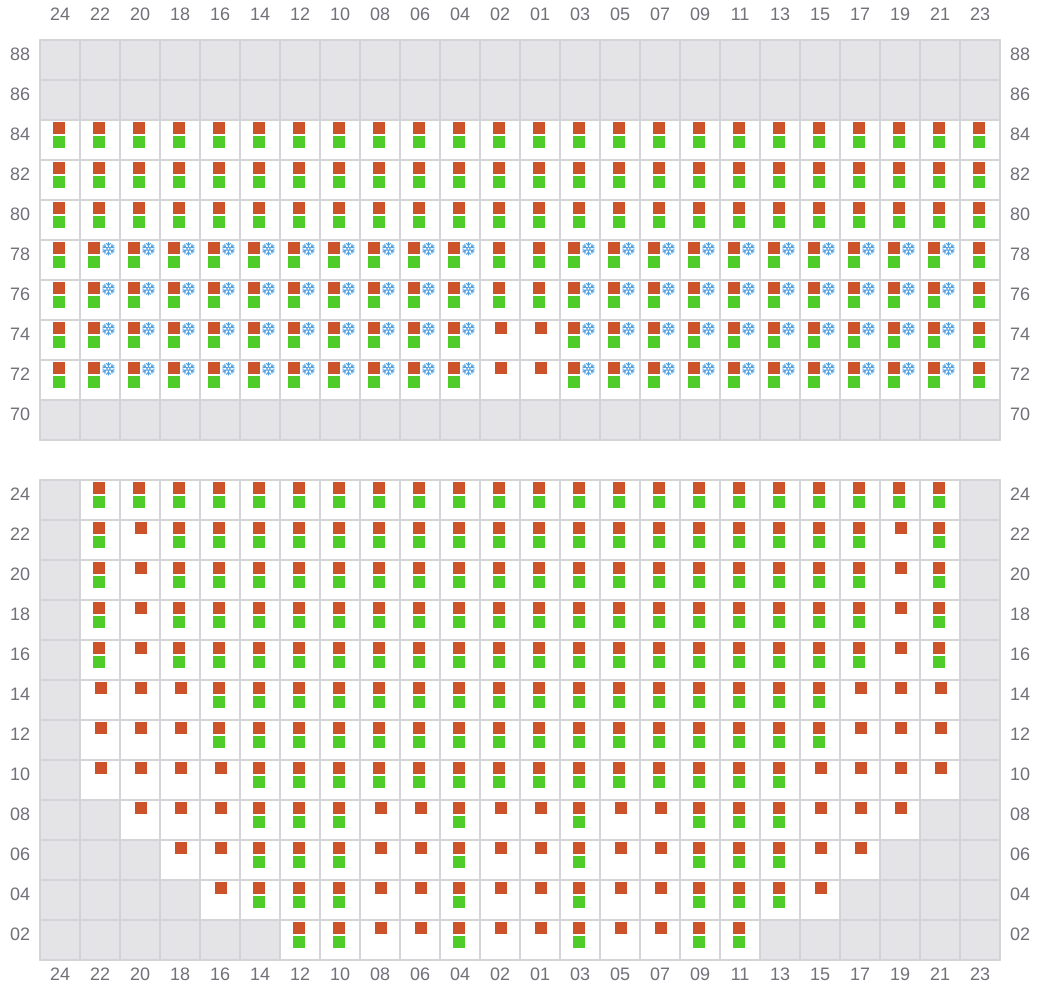

Bay 017 view and slots of HMM ALGECIRAS

019

  • ←

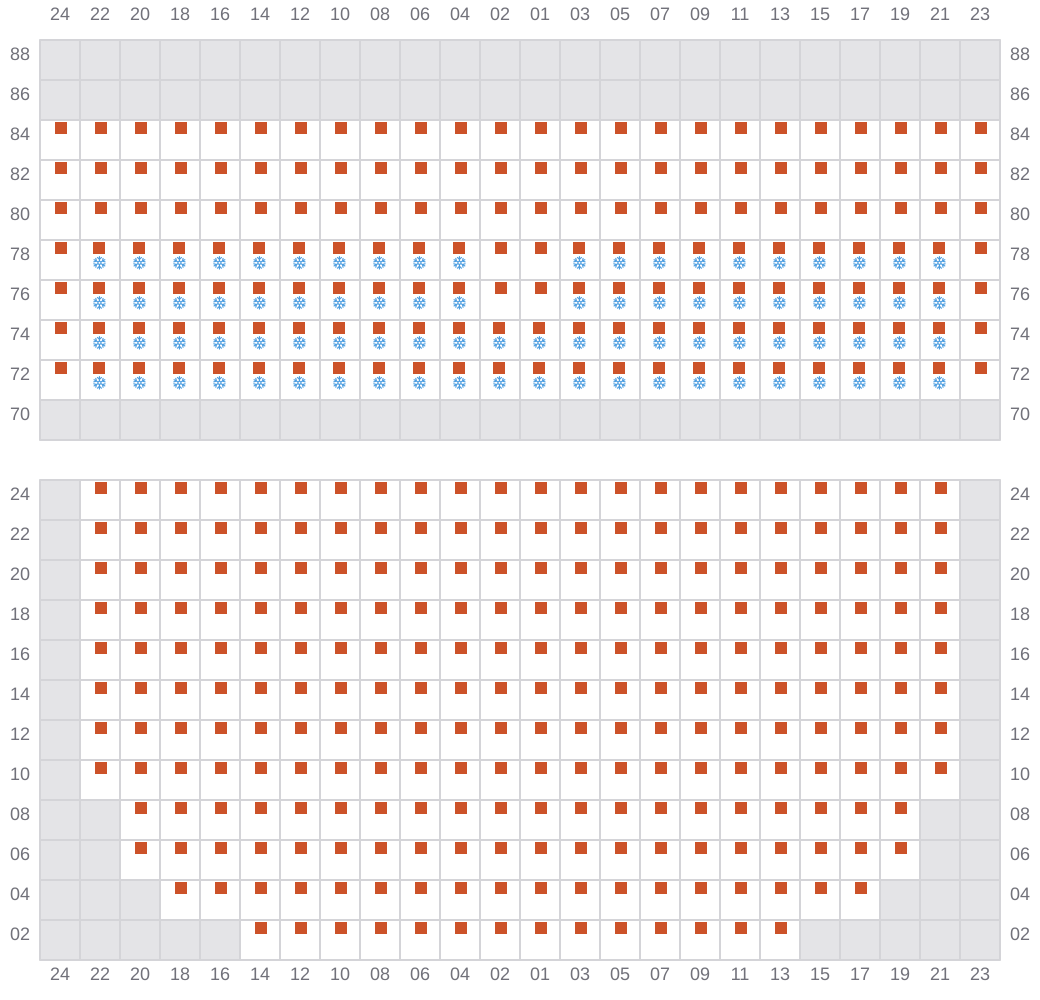

Bay 019 view and slots of HMM ALGECIRAS

021 (022)

  • →

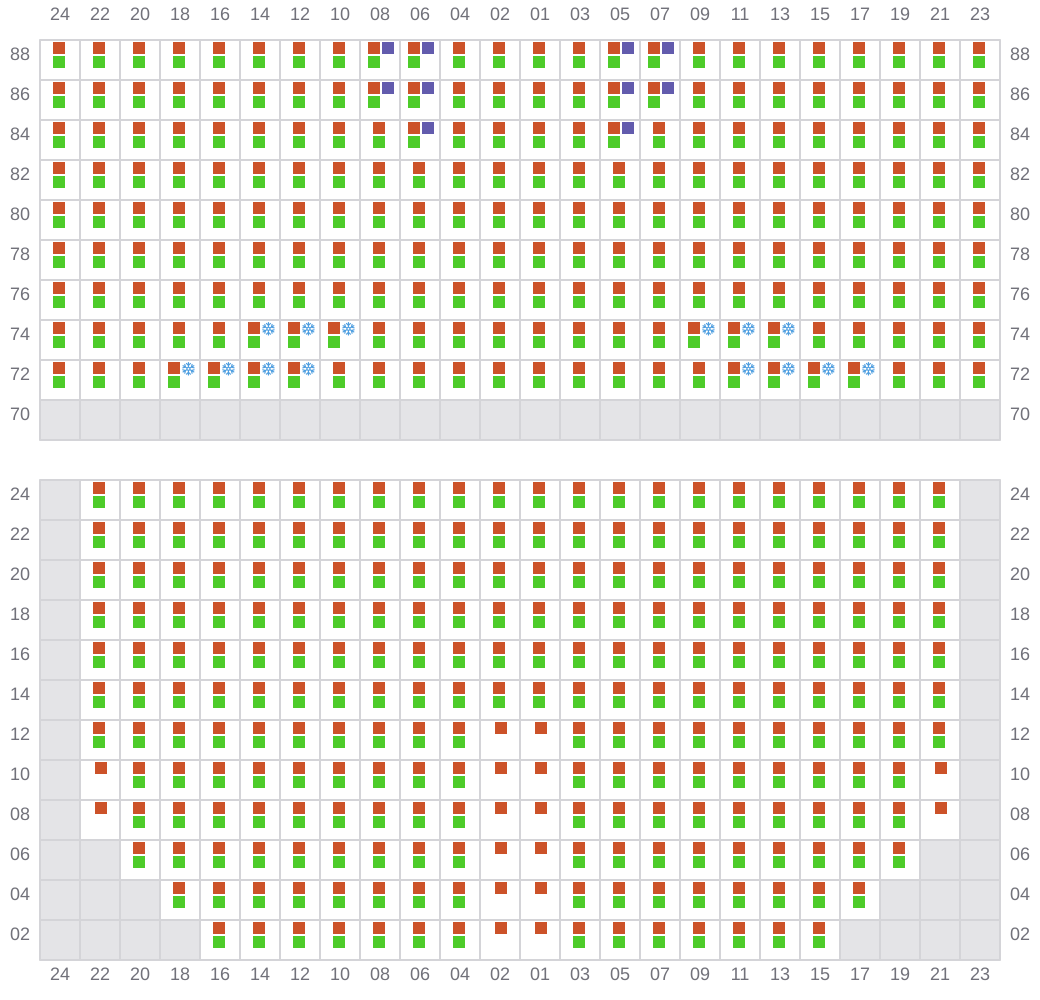

Bay 021 view and slots of HMM ALGECIRAS

023

  • ←

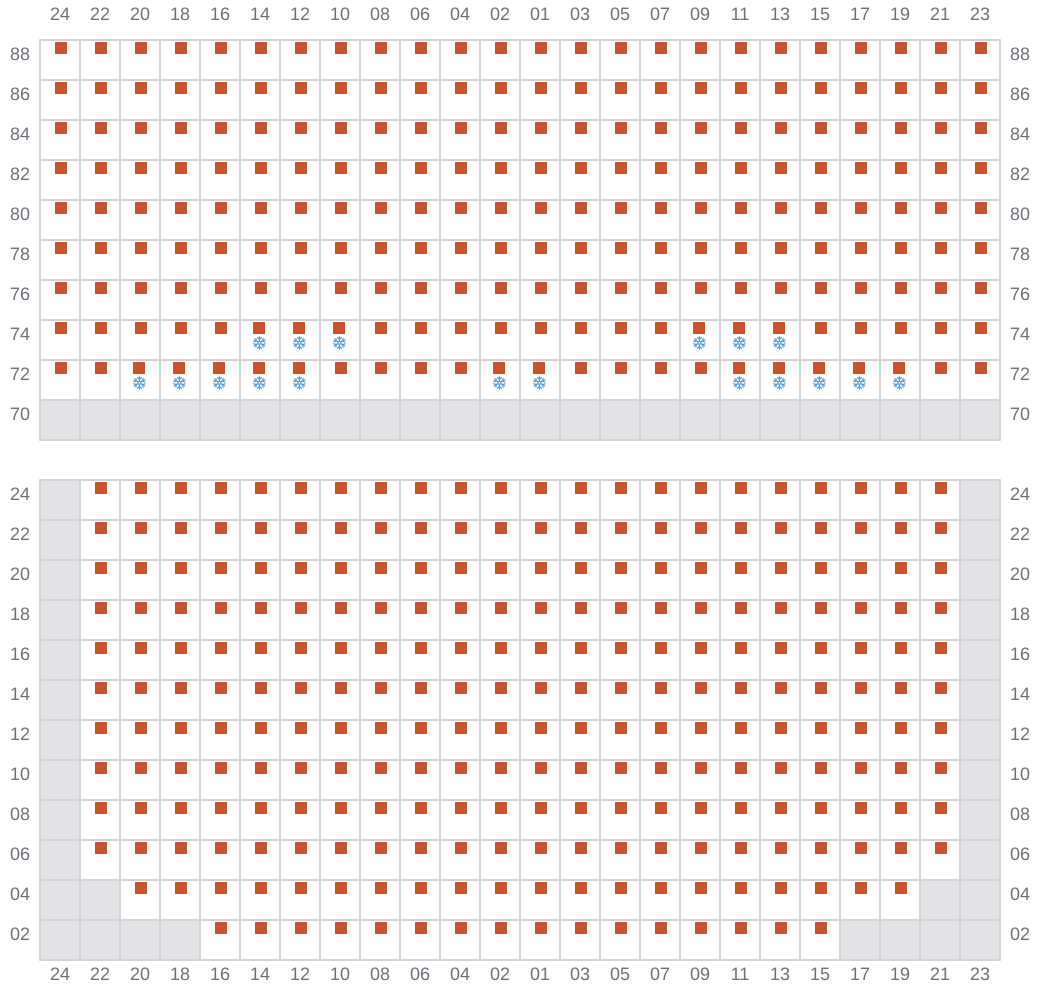

Bay 023 view and slots of HMM ALGECIRAS

025 (026)

  • →

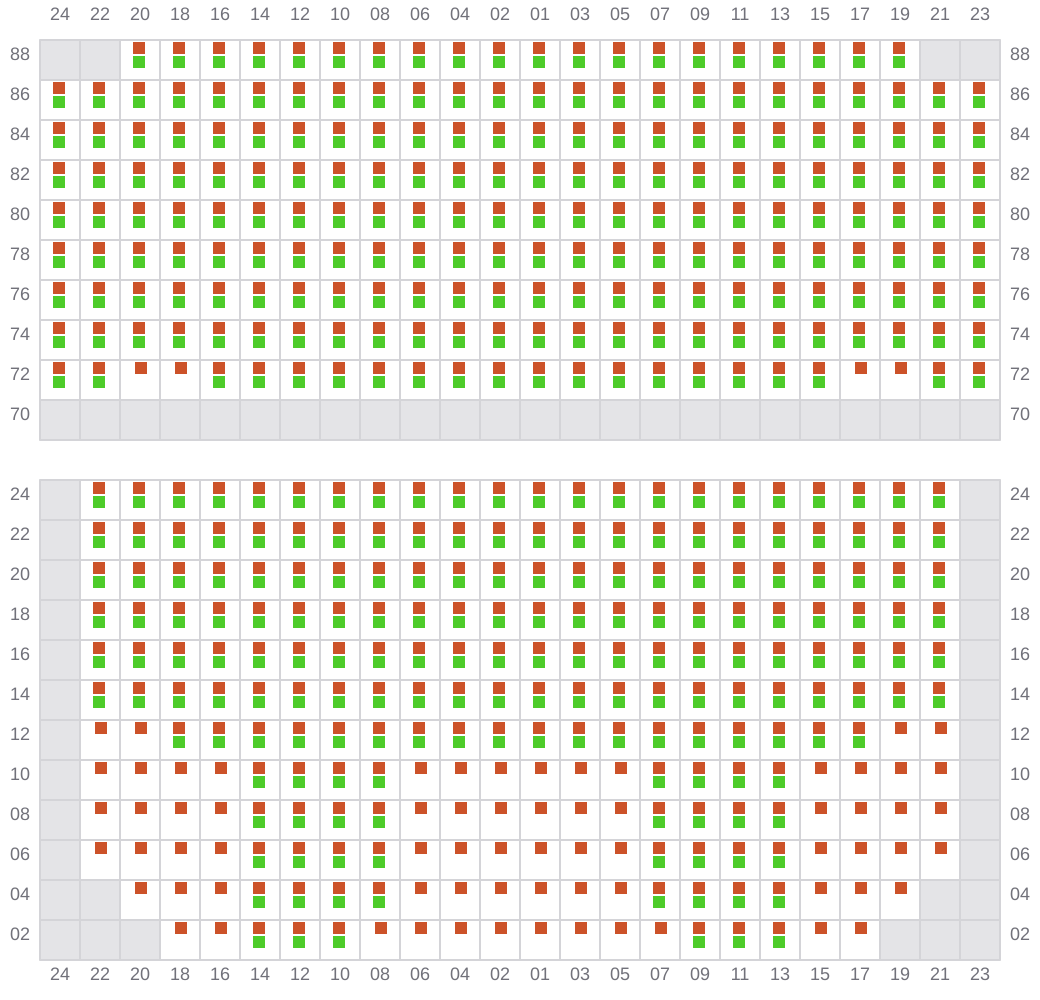

Bay 025 view and slots of HMM ALGECIRAS

027

  • ←

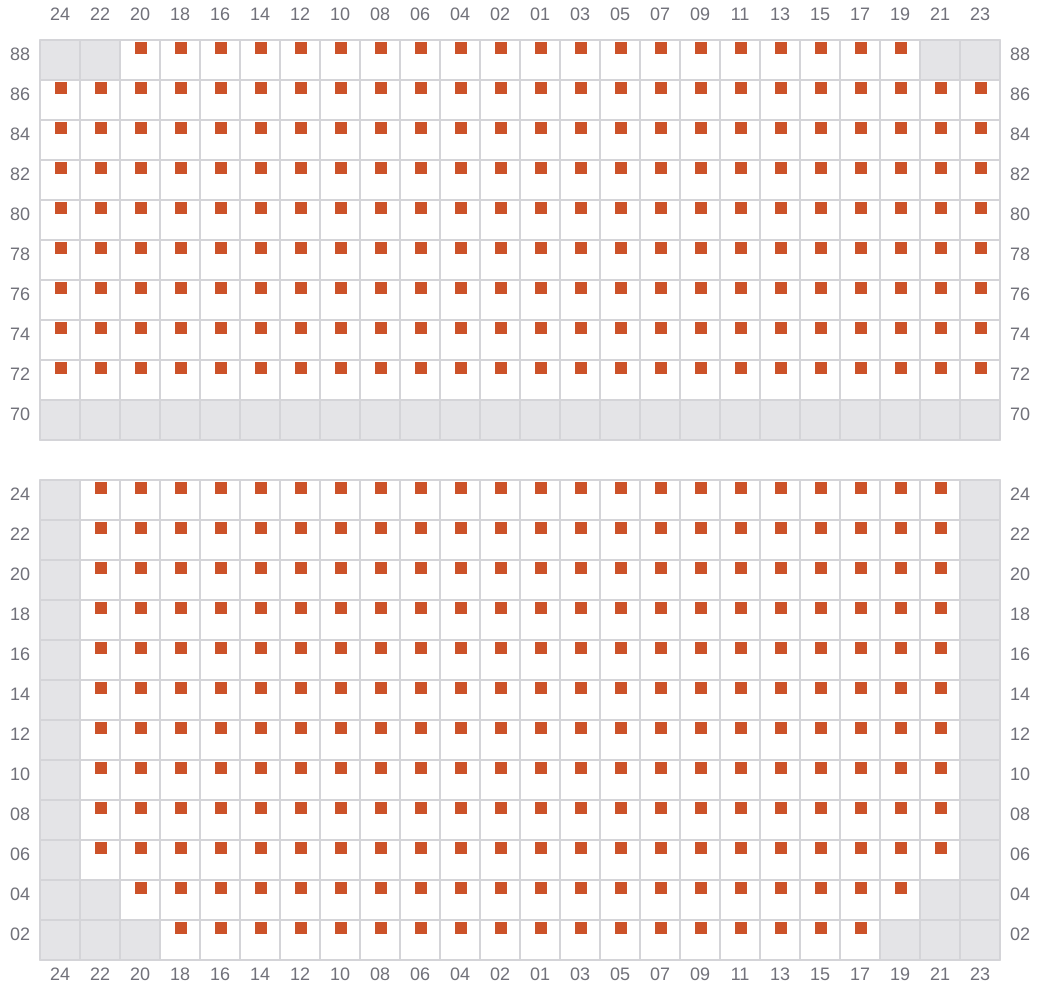

Bay 027 view and slots of HMM ALGECIRAS

029 (030)

  • →

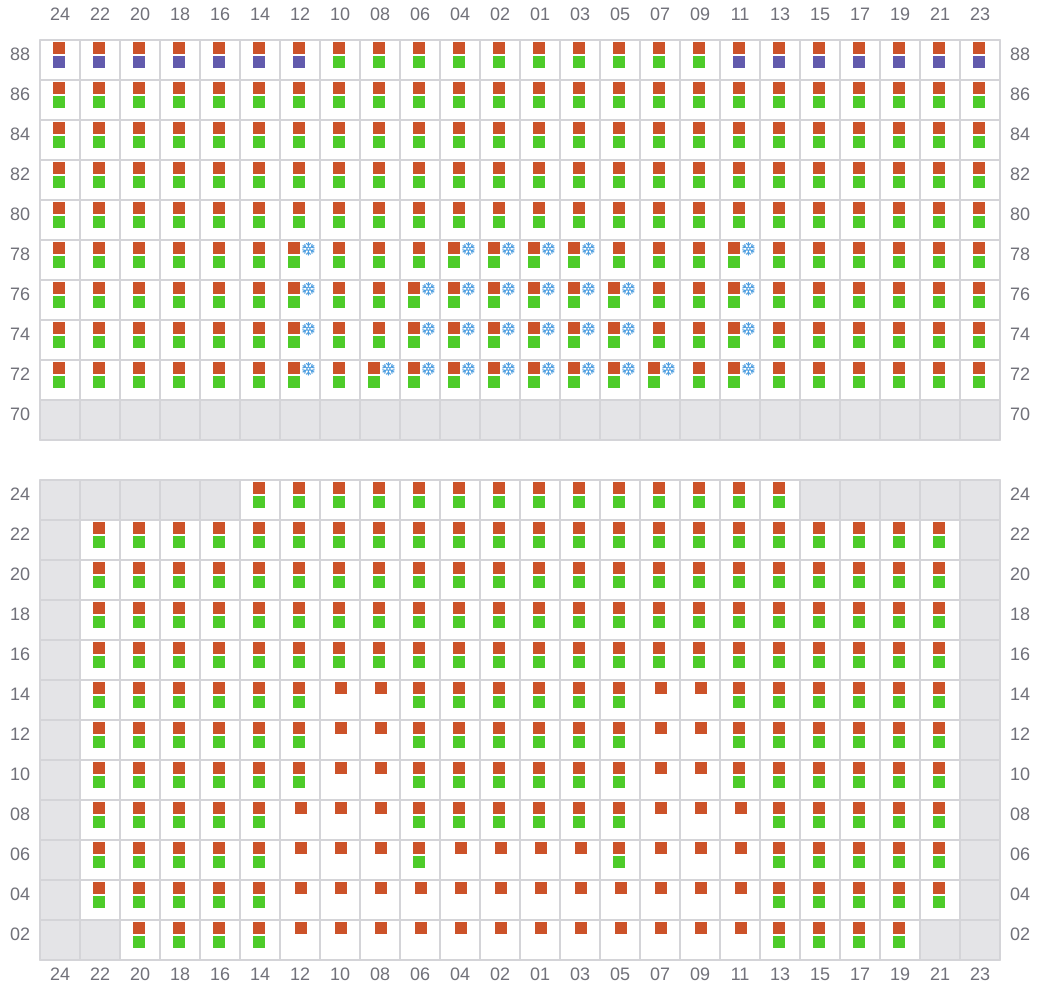

Bay 029 view and slots of HMM ALGECIRAS

031

  • ←

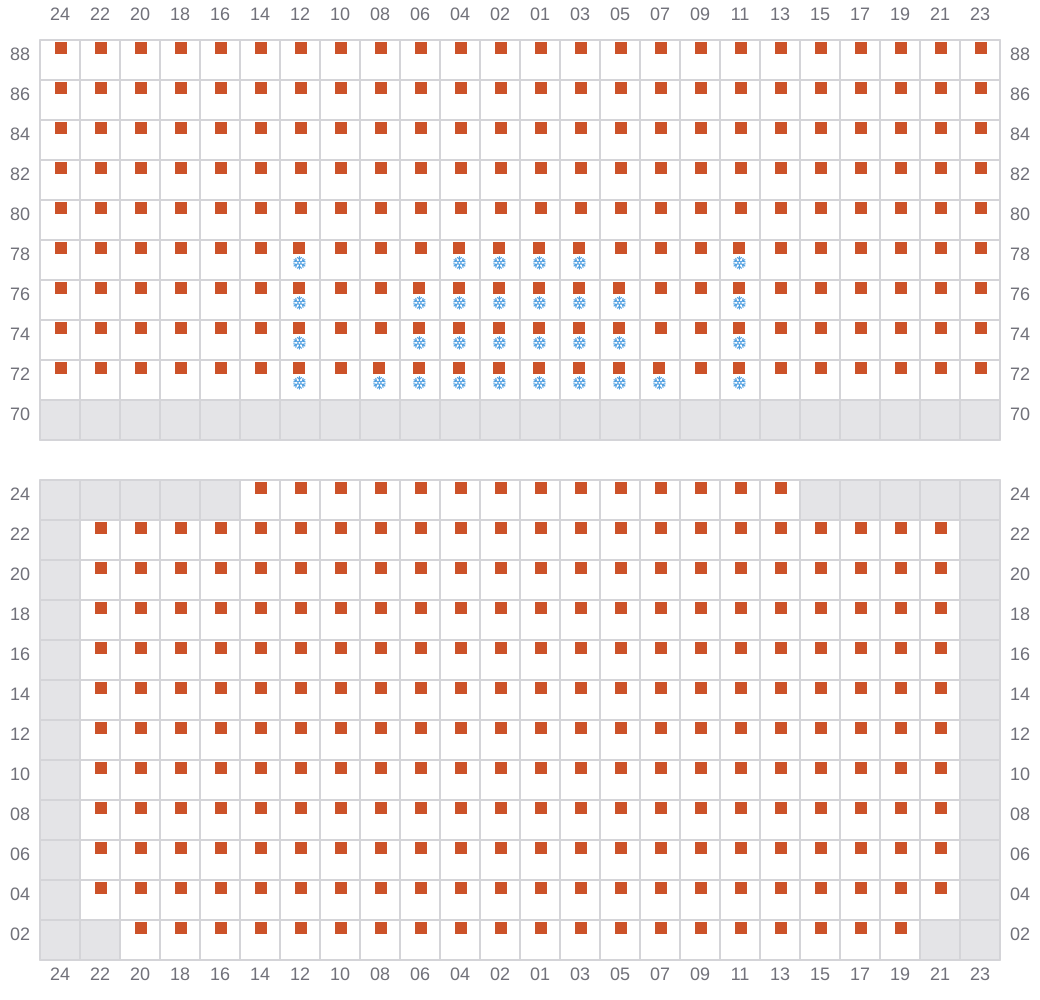

Bay 031 view and slots of HMM ALGECIRAS

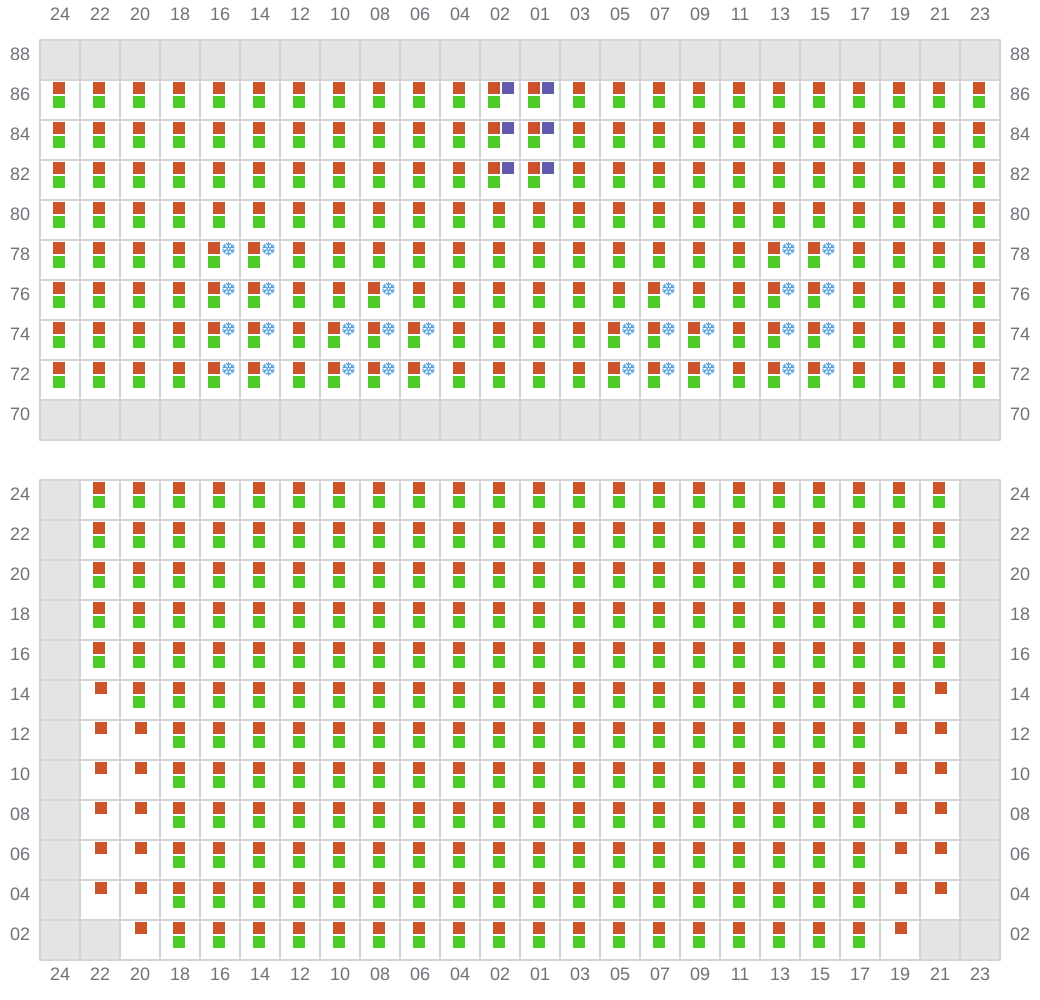

033 (034)

  • →
Bay 033 view and slots of HMM ALGECIRAS

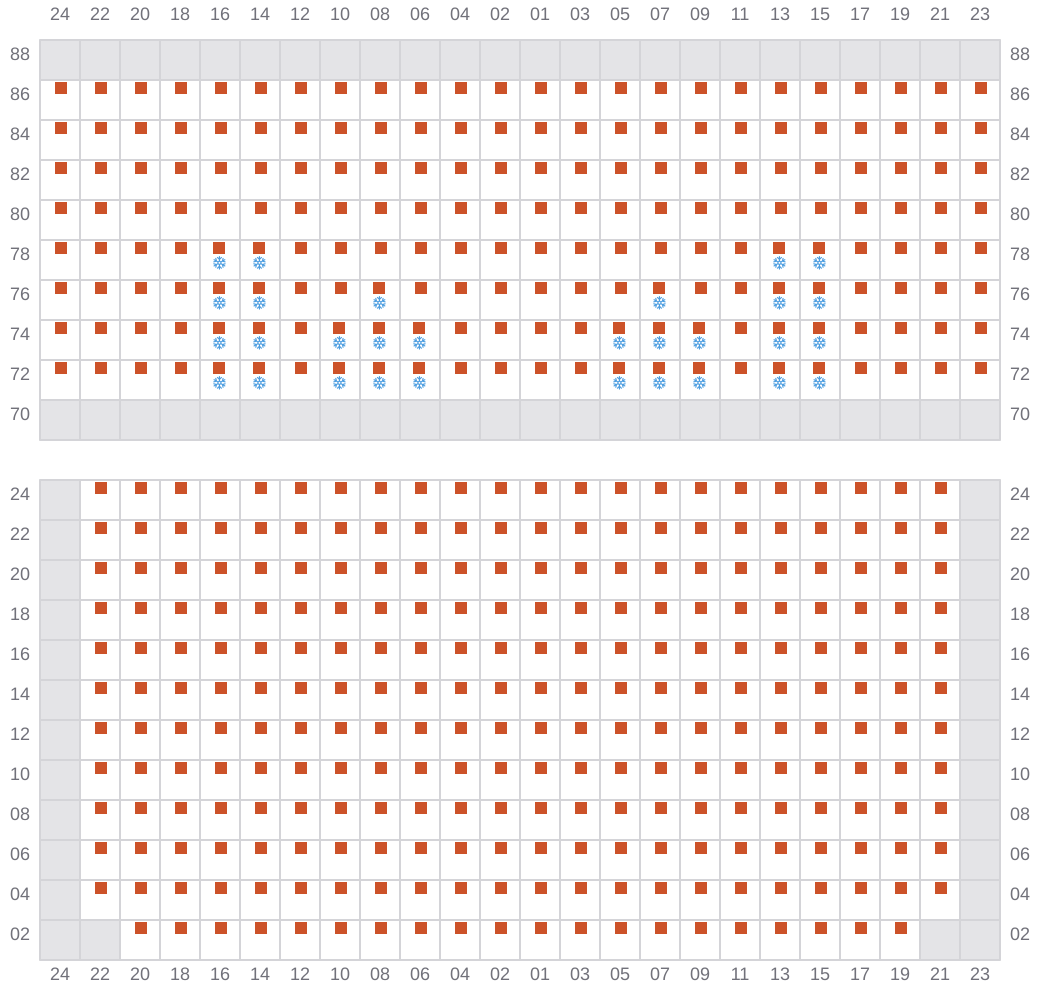

035

  • ←
Bay 035 view and slots of HMM ALGECIRAS

037 (038)

  • →

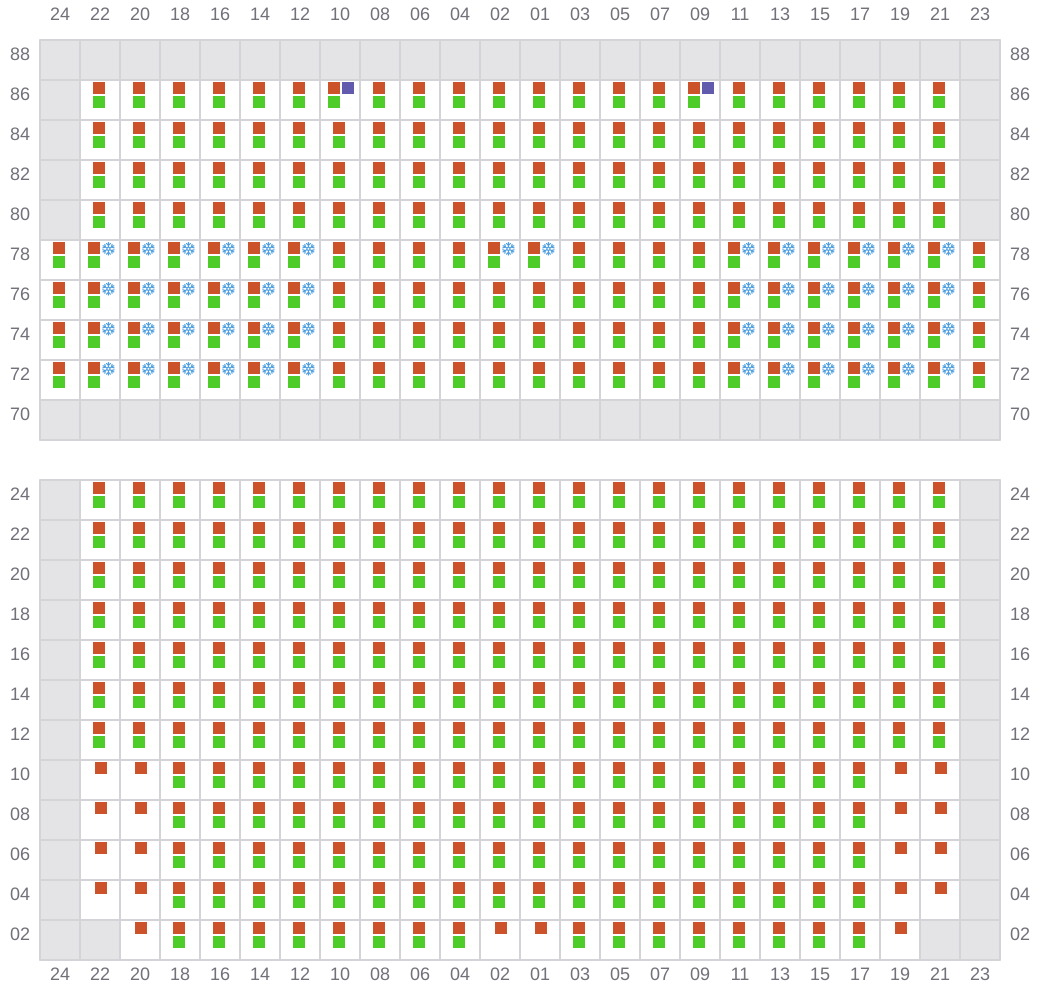

Bay 037 view and slots of HMM ALGECIRAS

039

  • ←

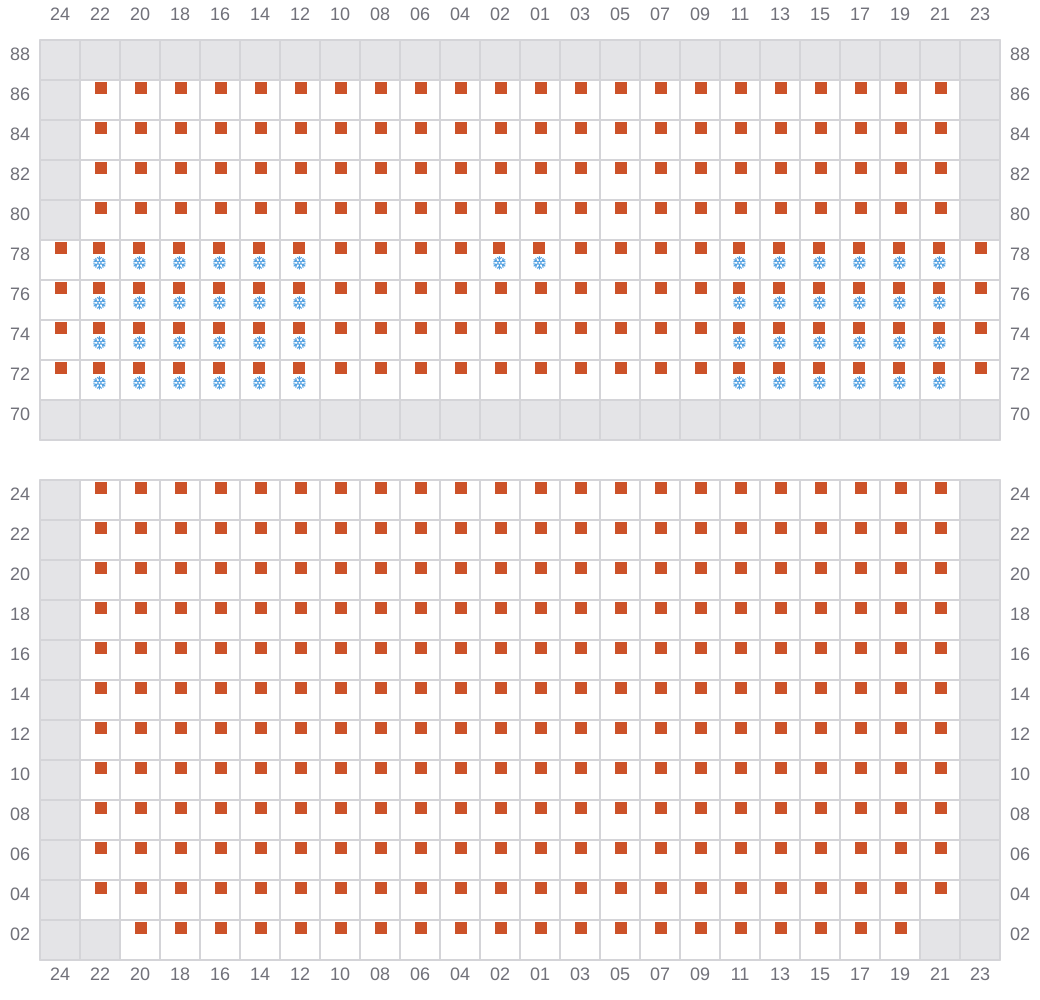

Bay 039 view and slots of HMM ALGECIRAS

041 (042)

  • →

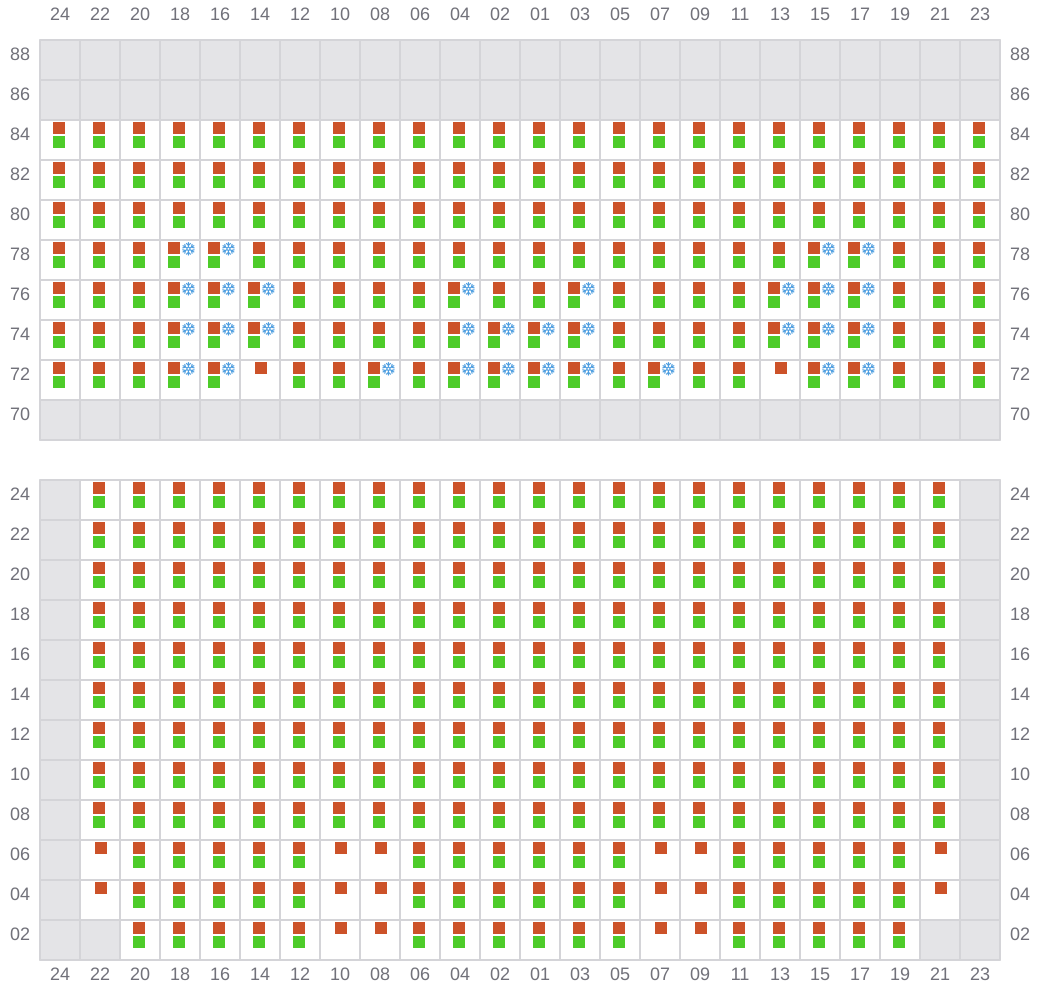

Bay 041 view and slots of HMM ALGECIRAS

043

  • ←

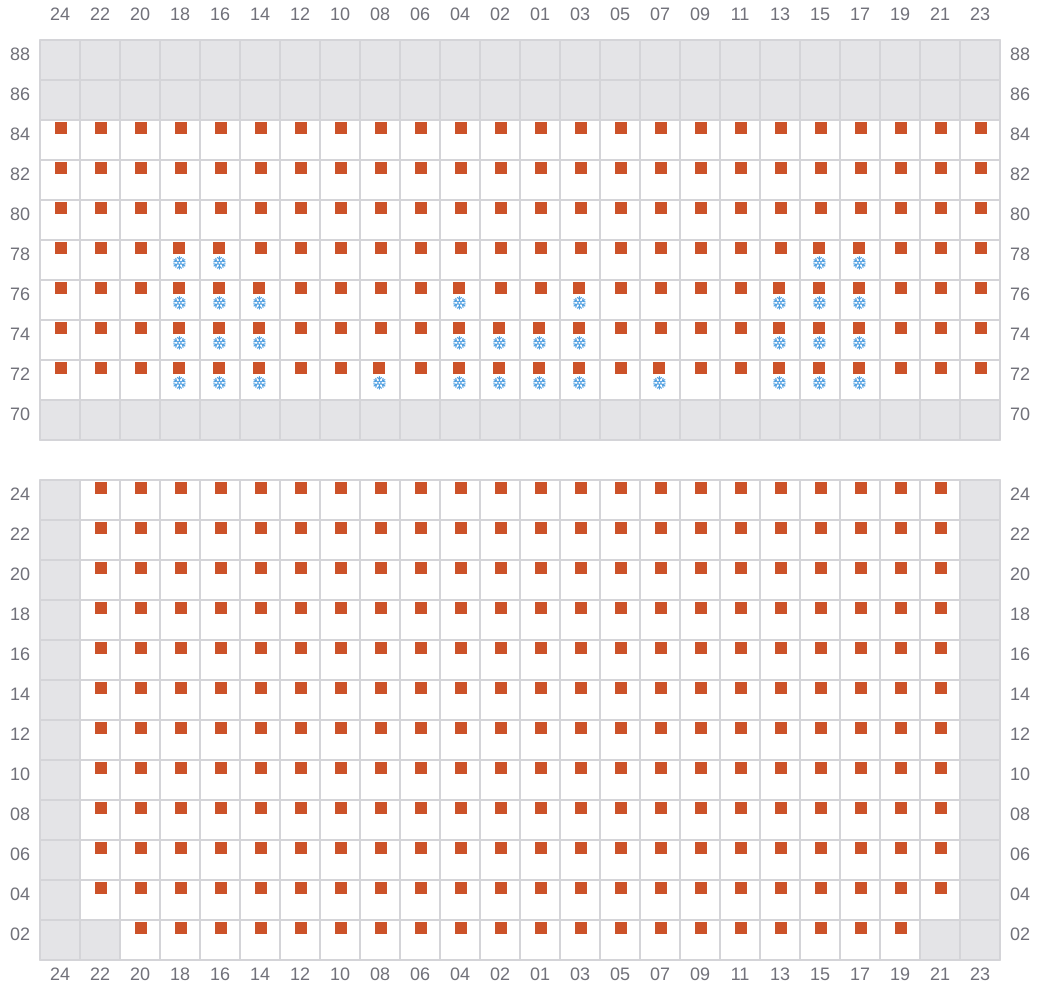

Bay 043 view and slots of HMM ALGECIRAS

045 (046)

  • →

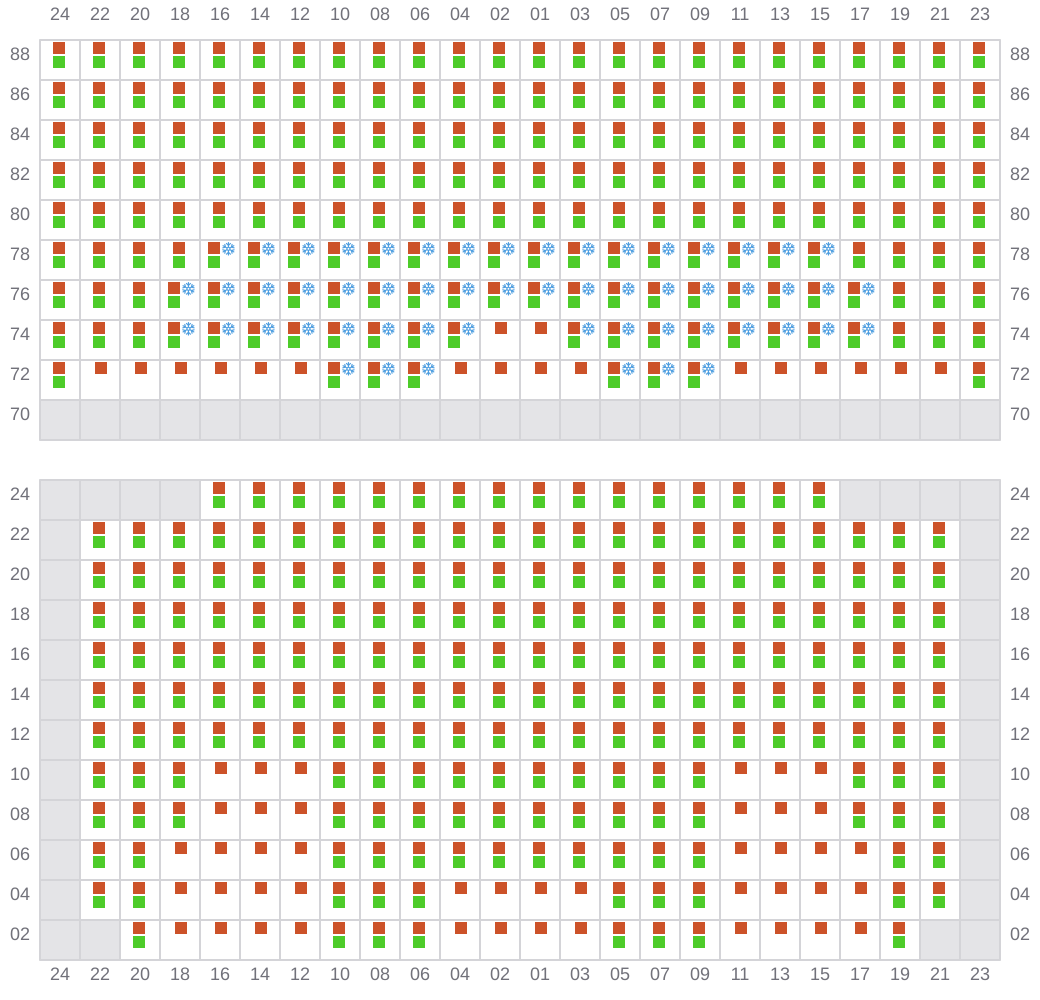

Bay 045 view and slots of HMM ALGECIRAS

047

  • ←

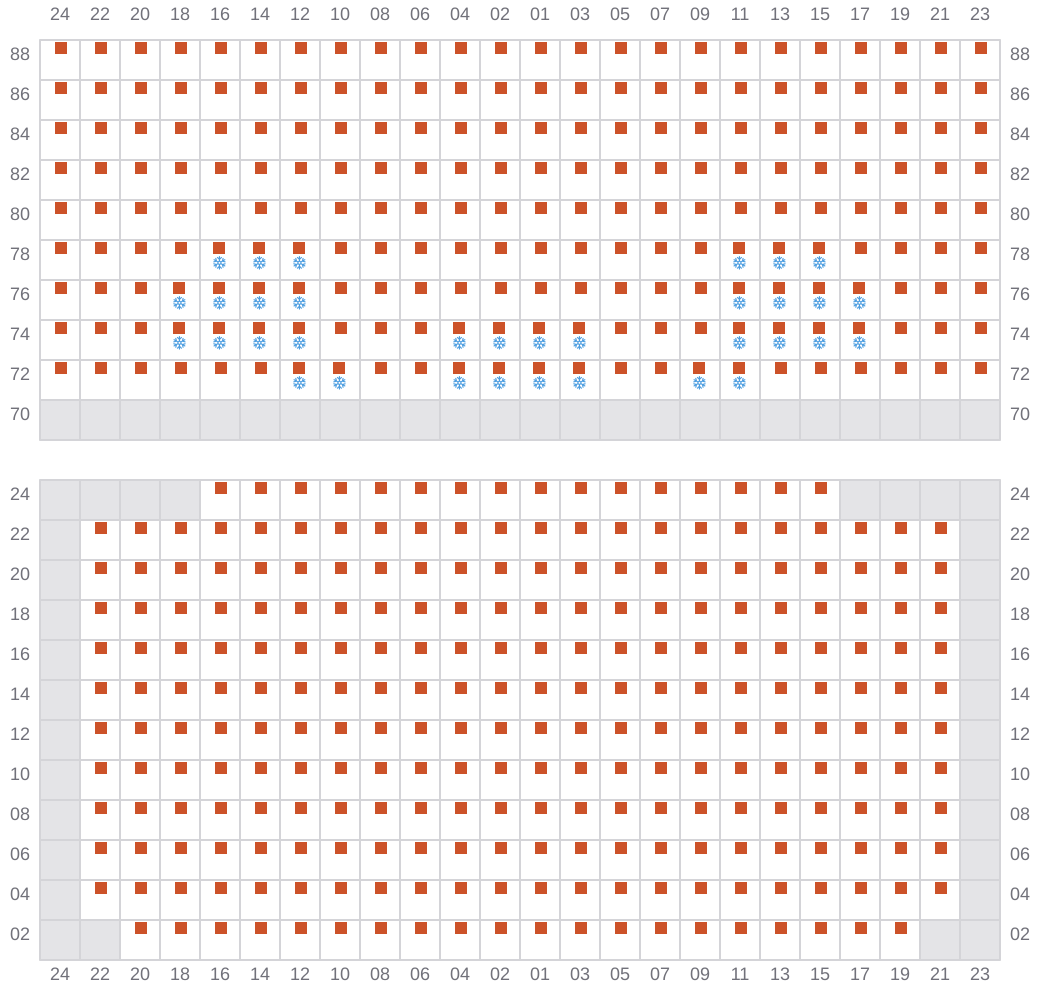

Bay 047 view and slots of HMM ALGECIRAS

049 (050)

  • →

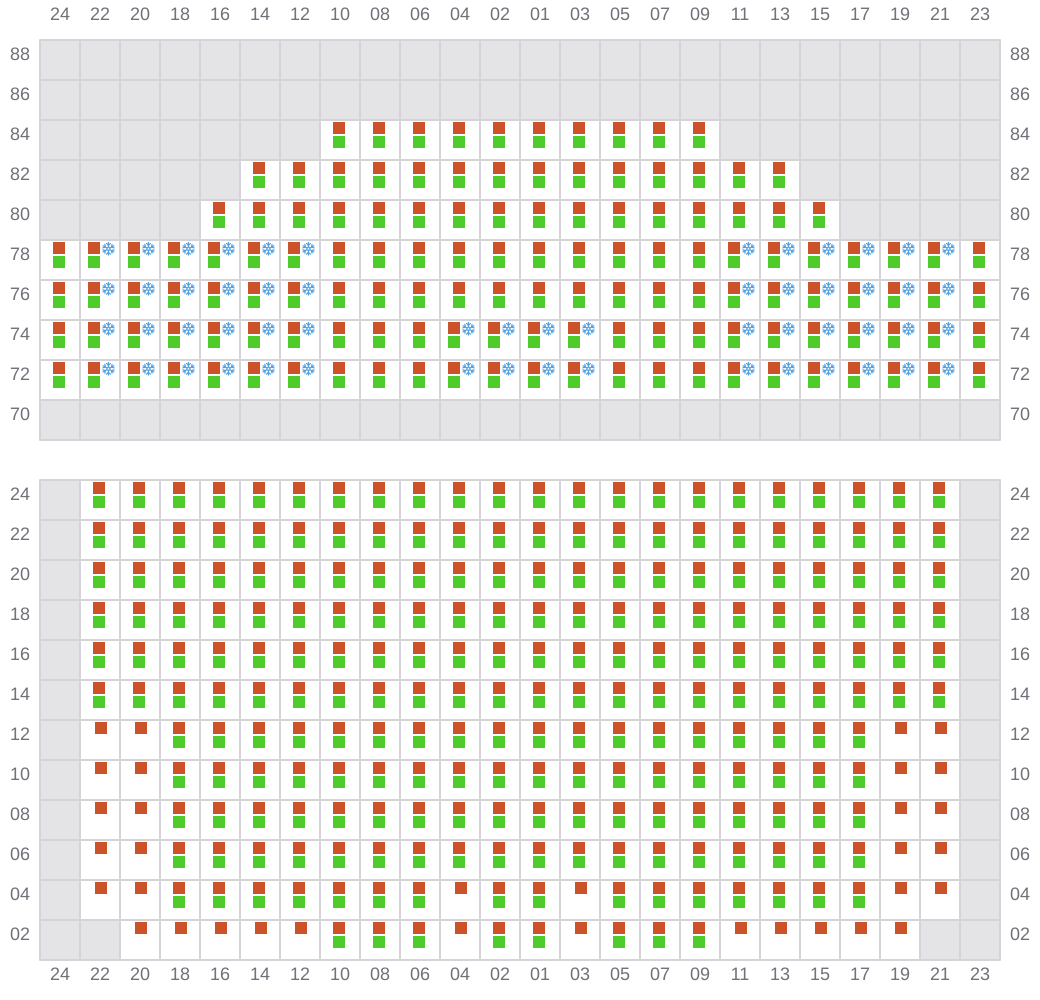

Bay 049 view and slots of HMM ALGECIRAS

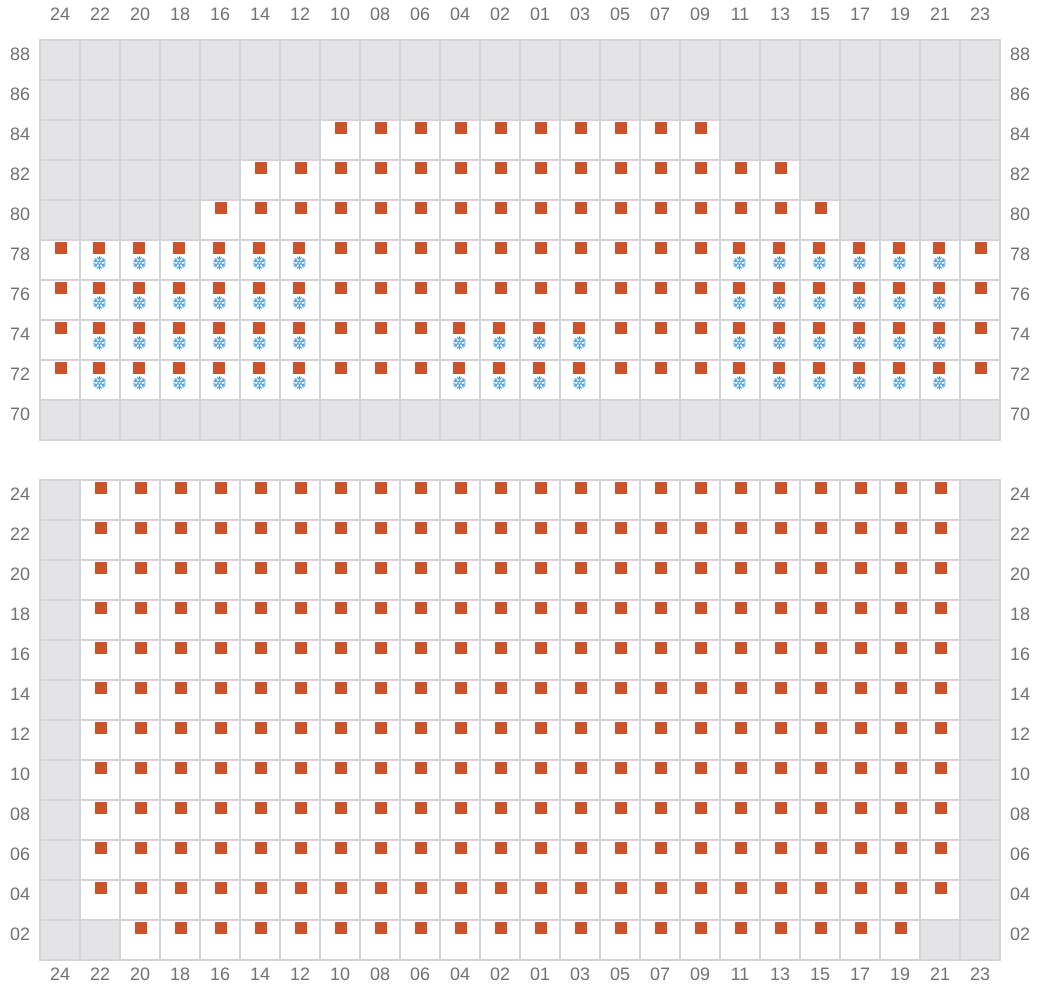

051

  • ←
Bay 051 view and slots of HMM ALGECIRAS

053 (054)

  • →

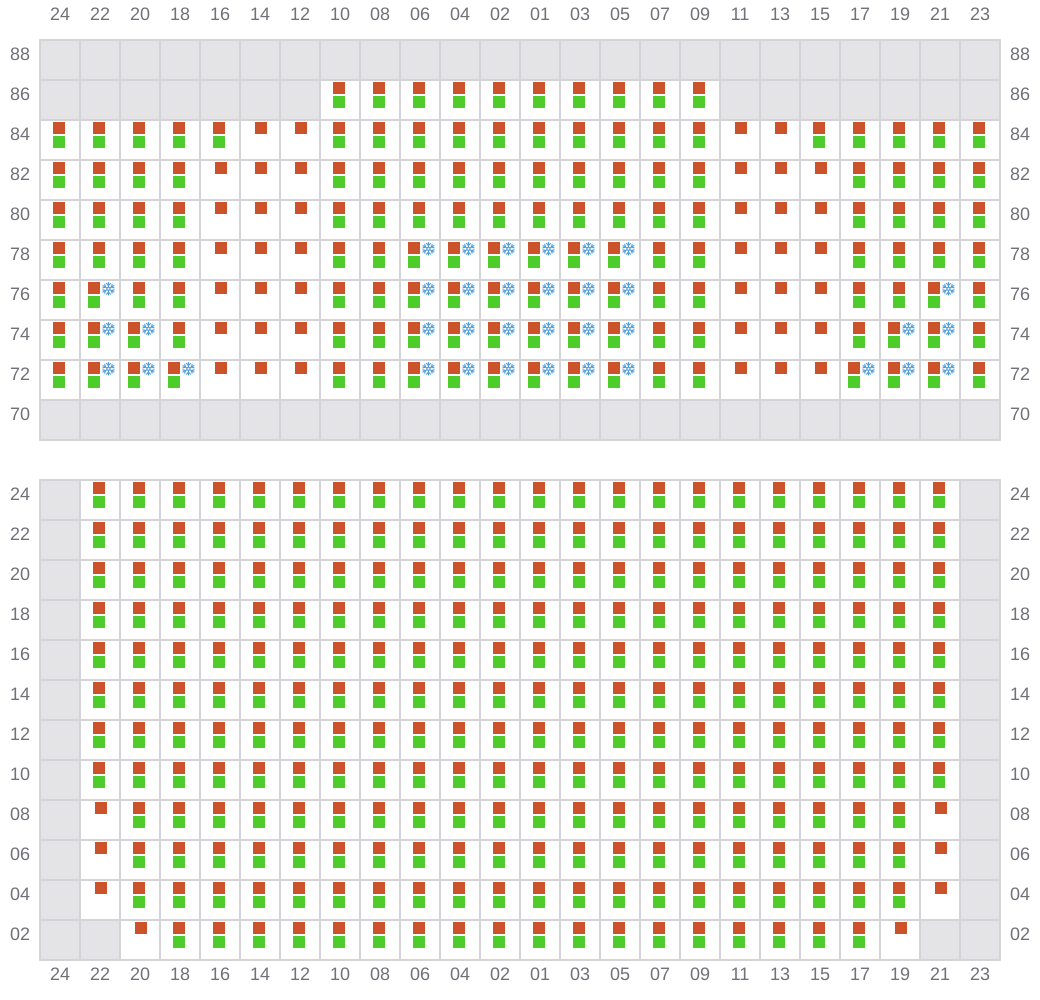

Bay 053 view and slots of HMM ALGECIRAS

055

  • ←

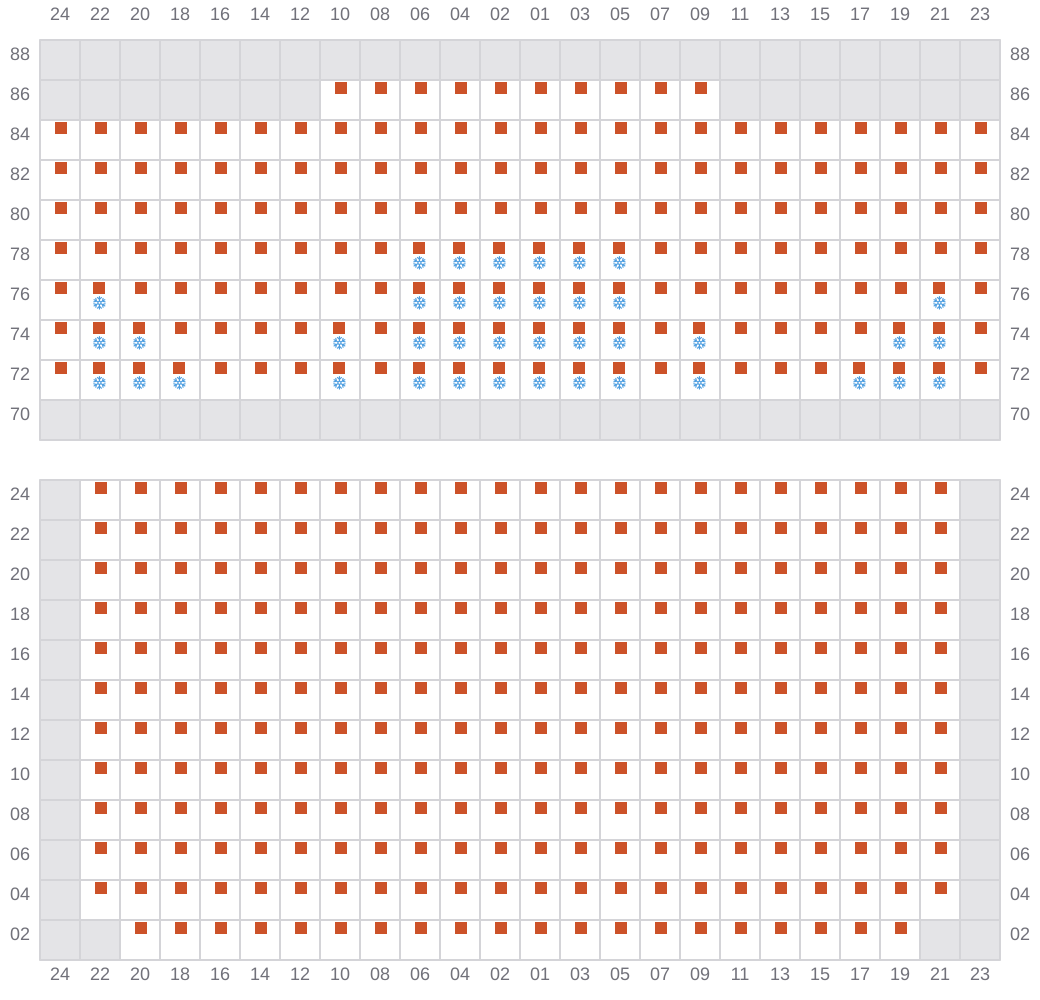

Bay 055 view and slots of HMM ALGECIRAS

057 (058)

  • →

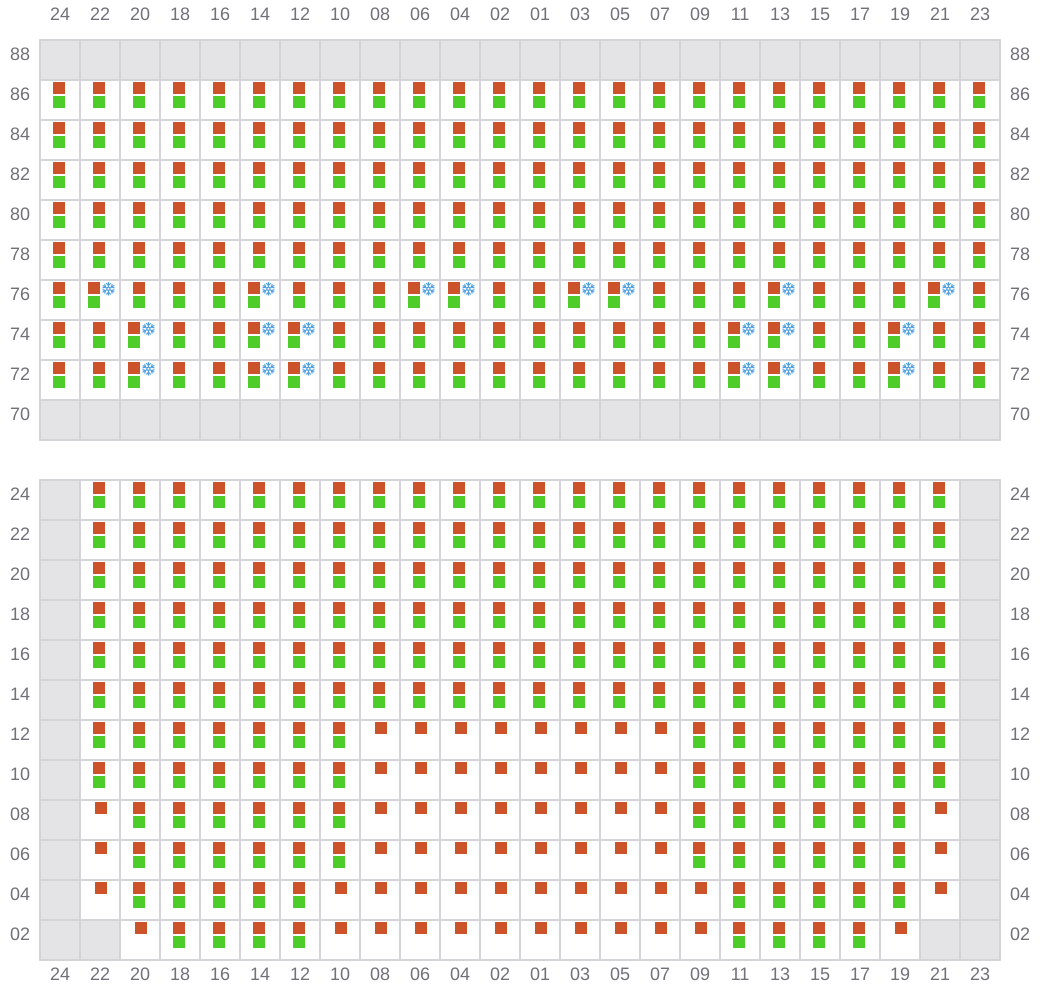

Bay 057 view and slots of HMM ALGECIRAS

059 (058)

  • ←
Bay 059 view and slots of HMM ALGECIRAS

061 (062)

  • →

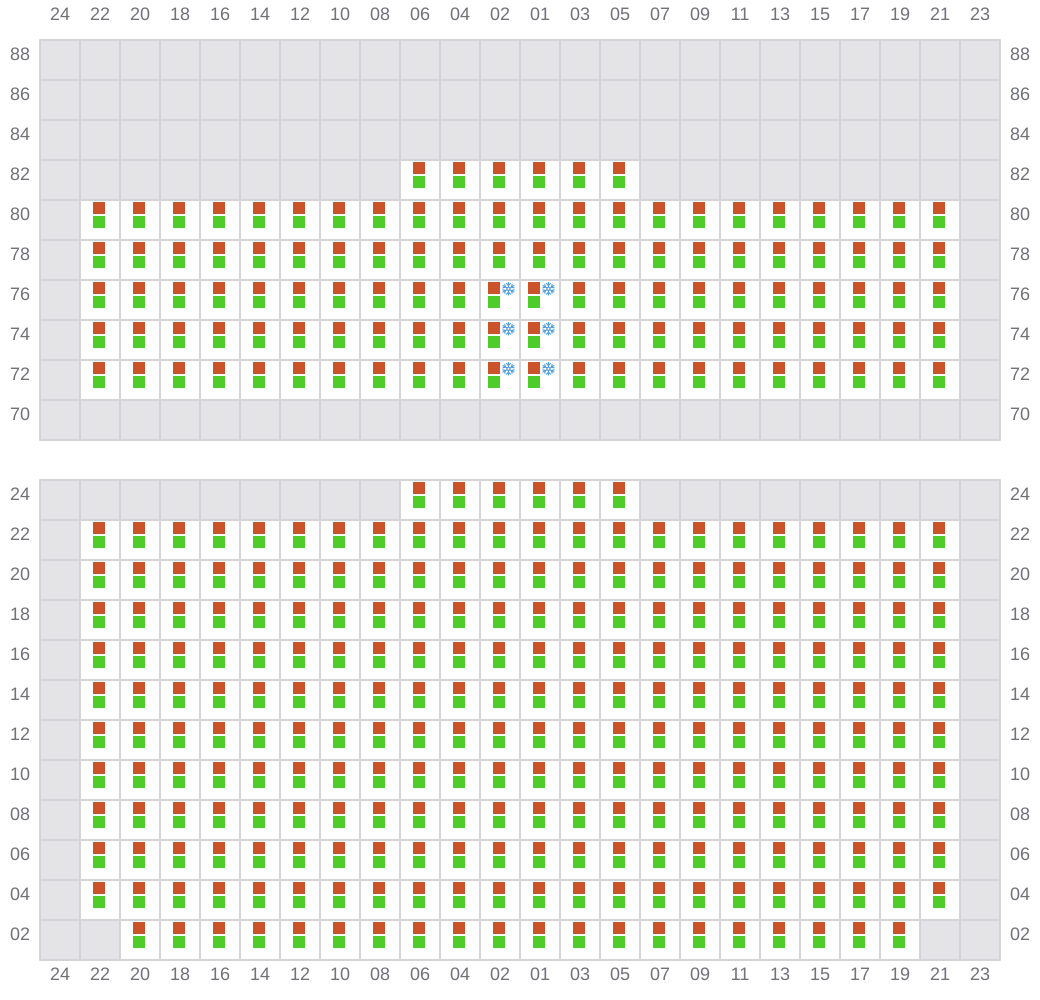

Bay 061 view and slots of HMM ALGECIRAS

063

  • ←

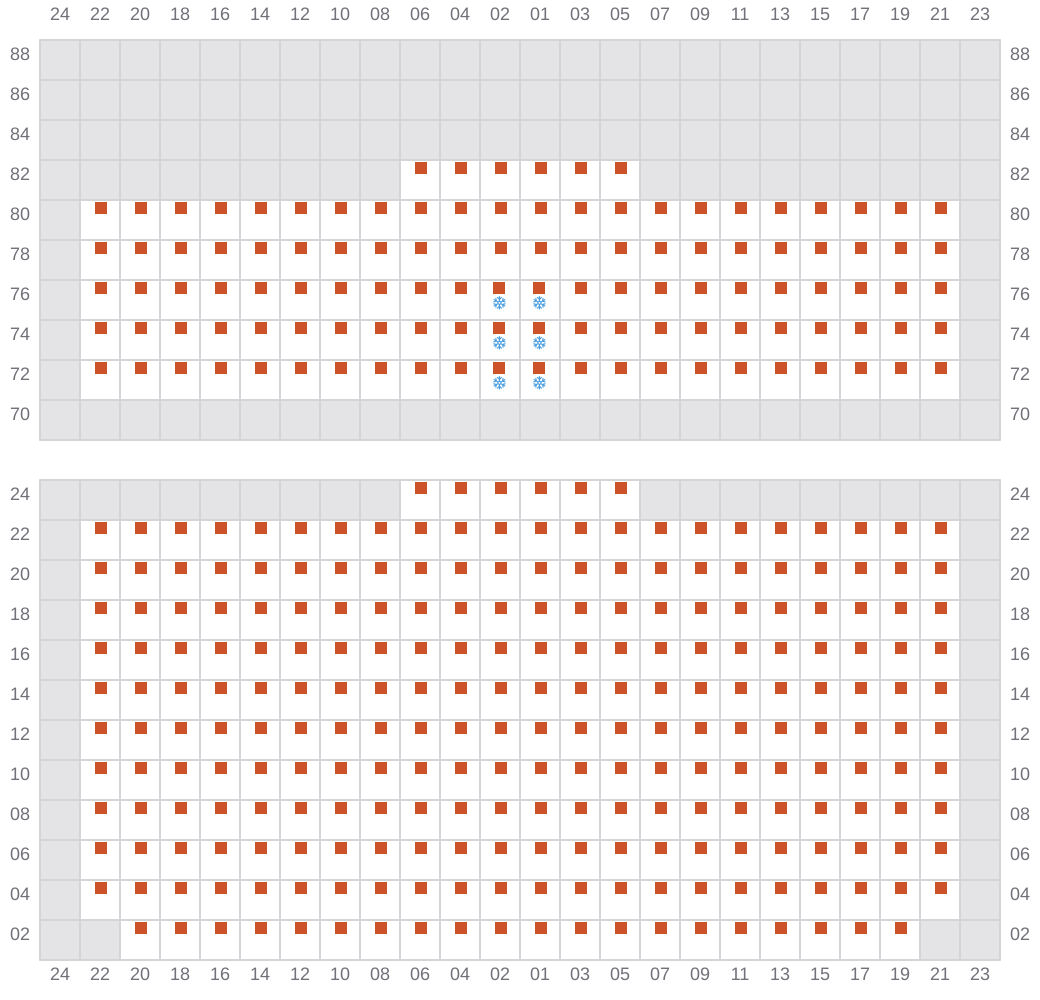

Bay 063 view and slots of HMM ALGECIRAS

065 (066)

  • →

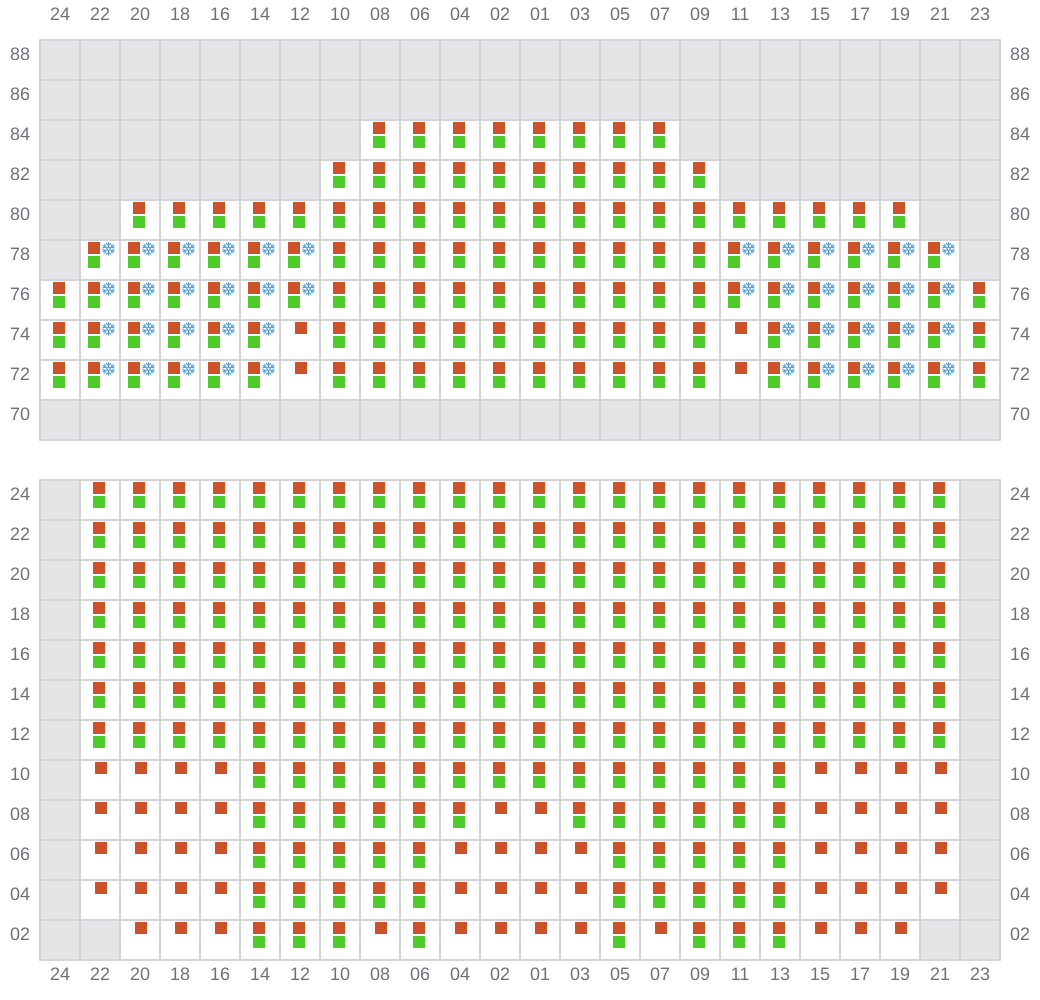

Bay 065 view and slots of HMM ALGECIRAS

067

  • ←

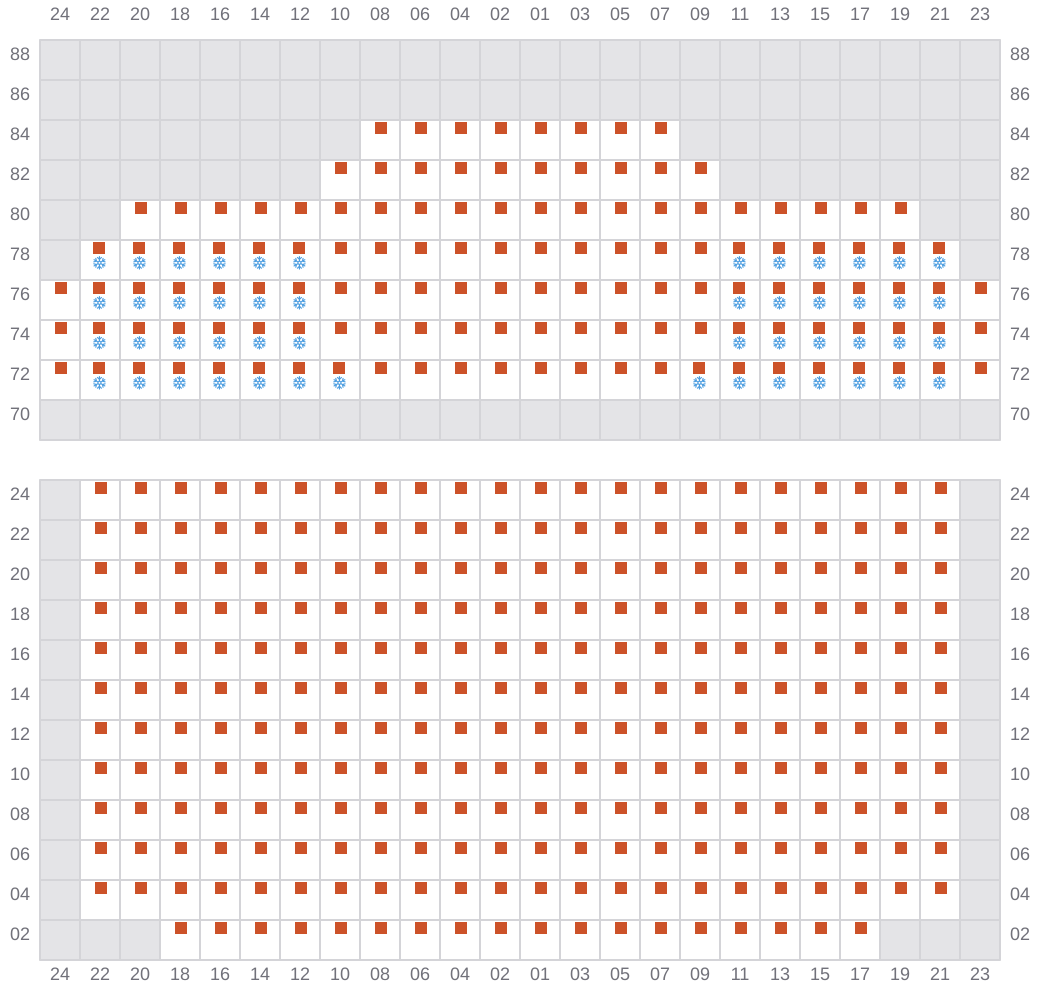

Bay 067 view and slots of HMM ALGECIRAS

069 (070)

  • →

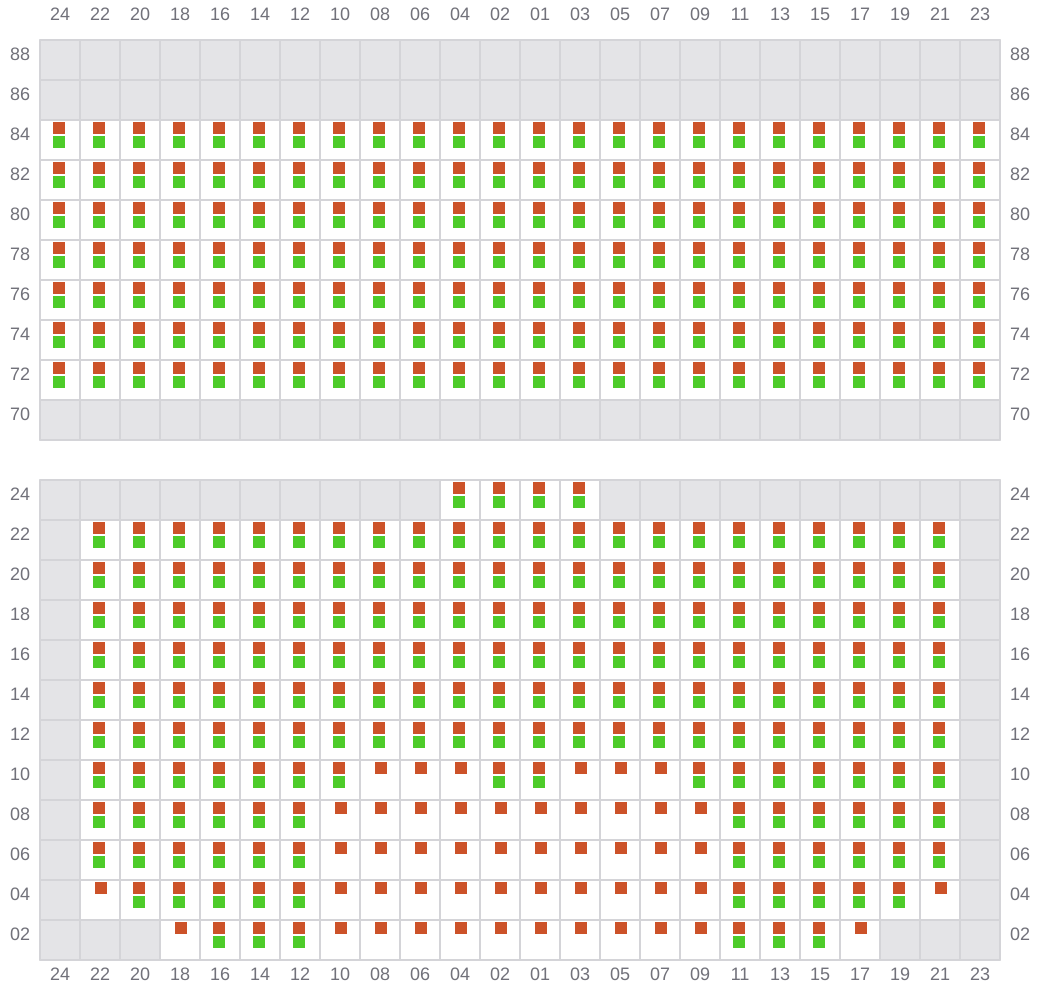

Bay 069 view and slots of HMM ALGECIRAS

071

  • ←

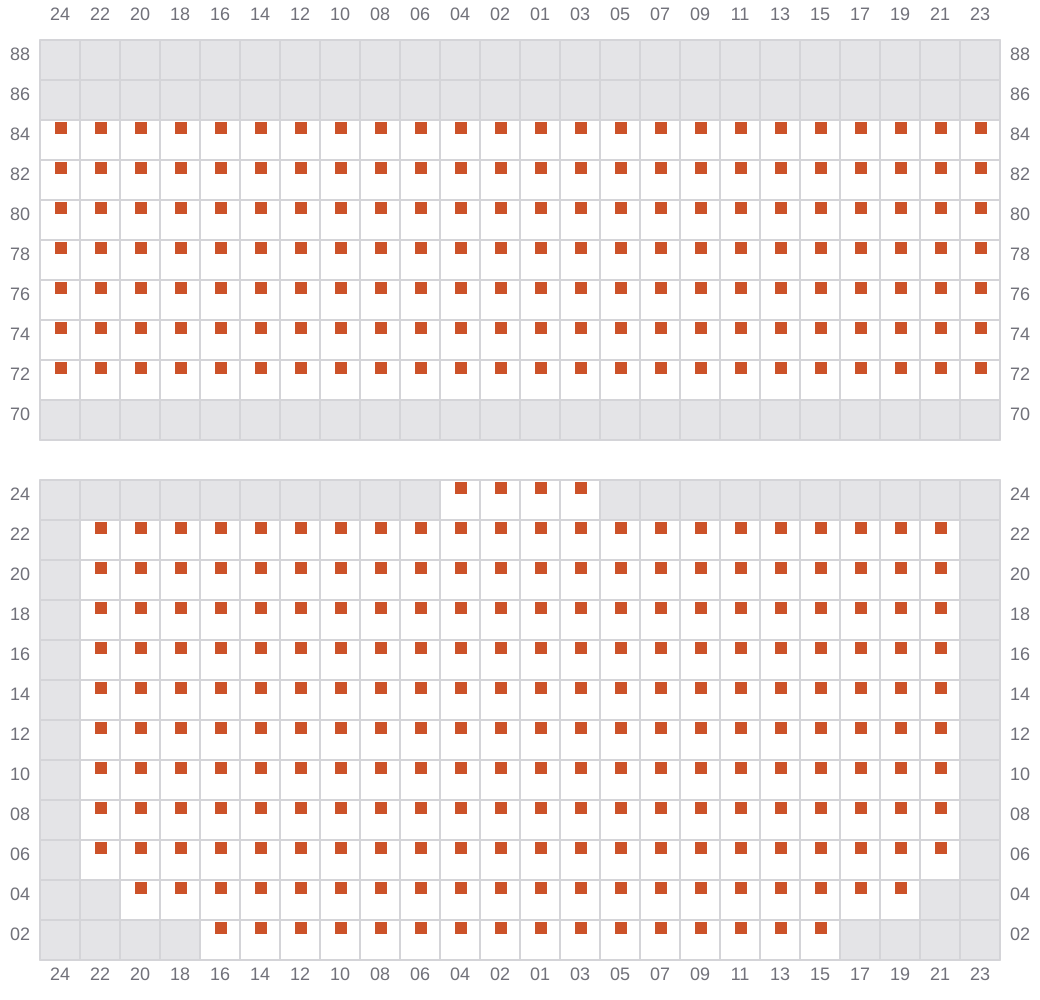

Bay 071 view and slots of HMM ALGECIRAS

073 (074)

  • →

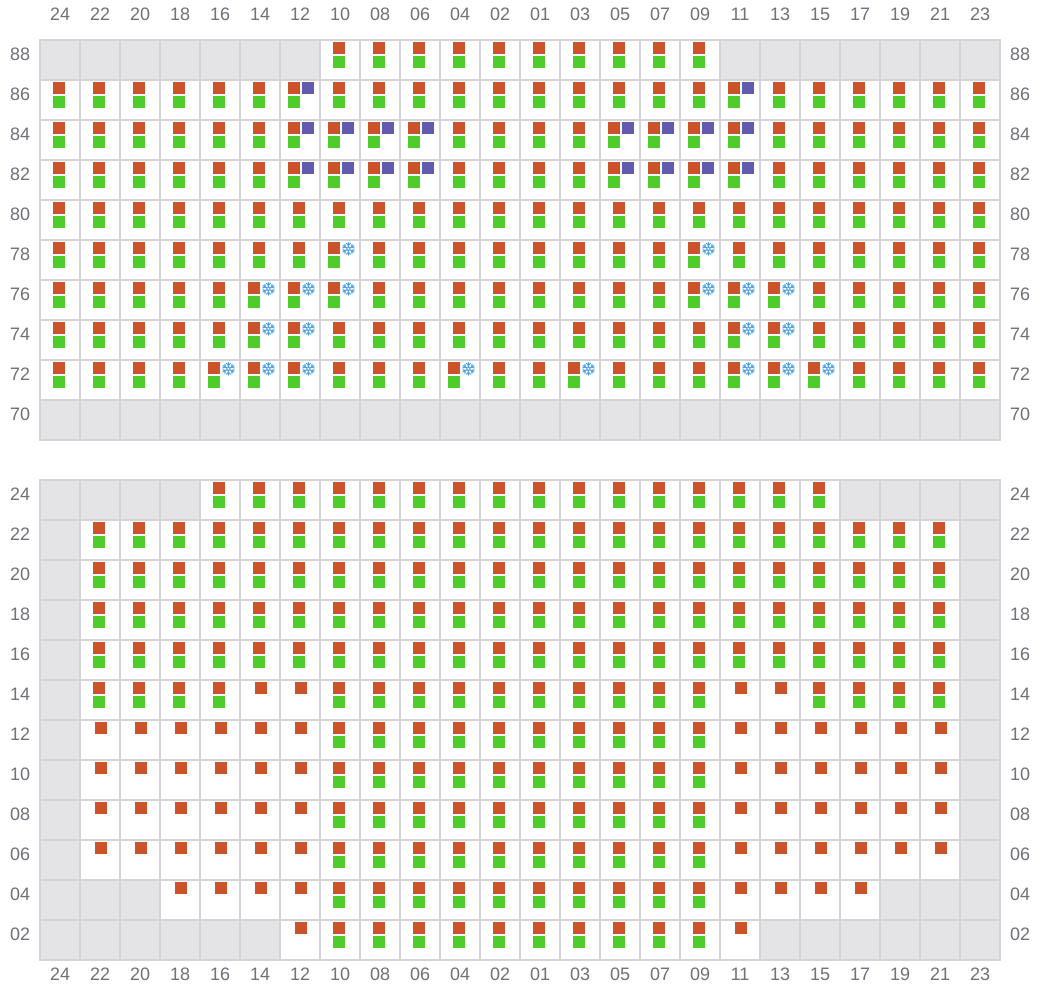

Bay 073 view and slots of HMM ALGECIRAS

075

  • ←

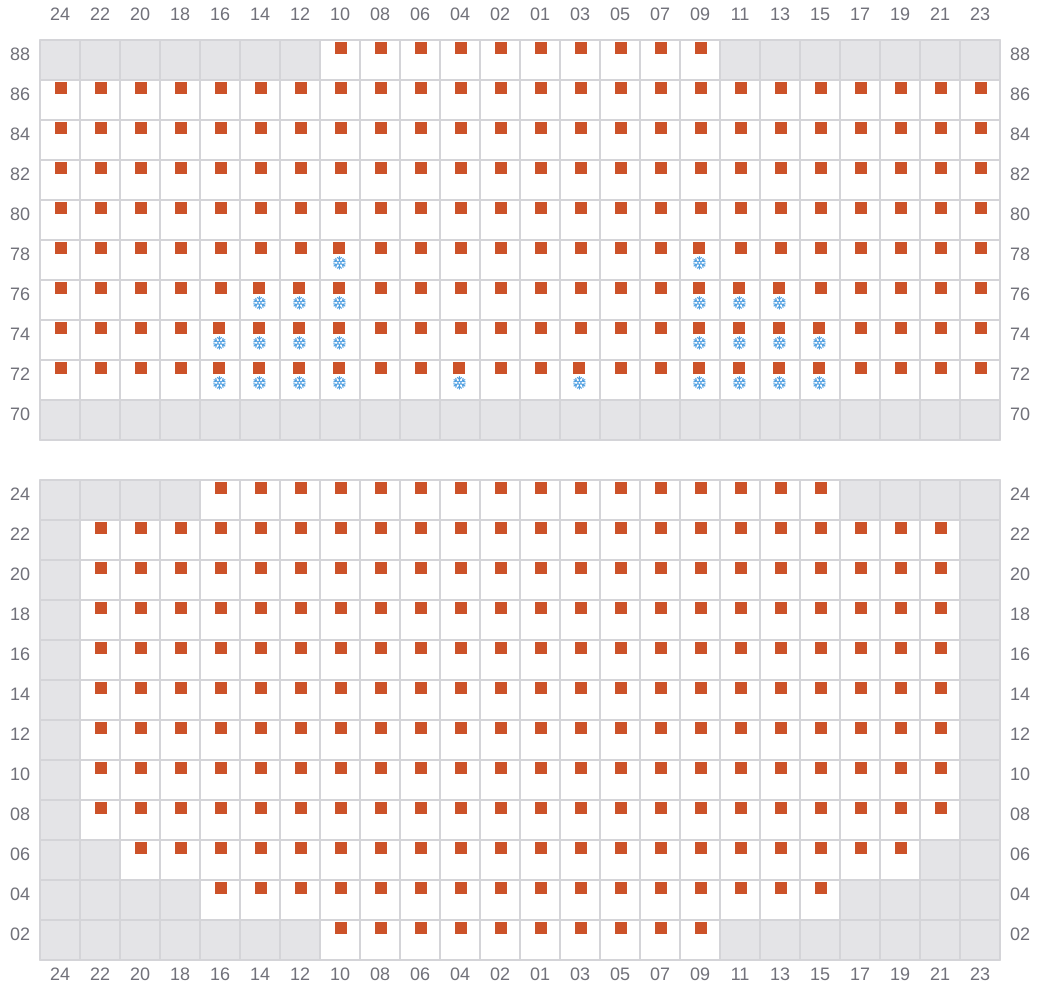

Bay 075 view and slots of HMM ALGECIRAS

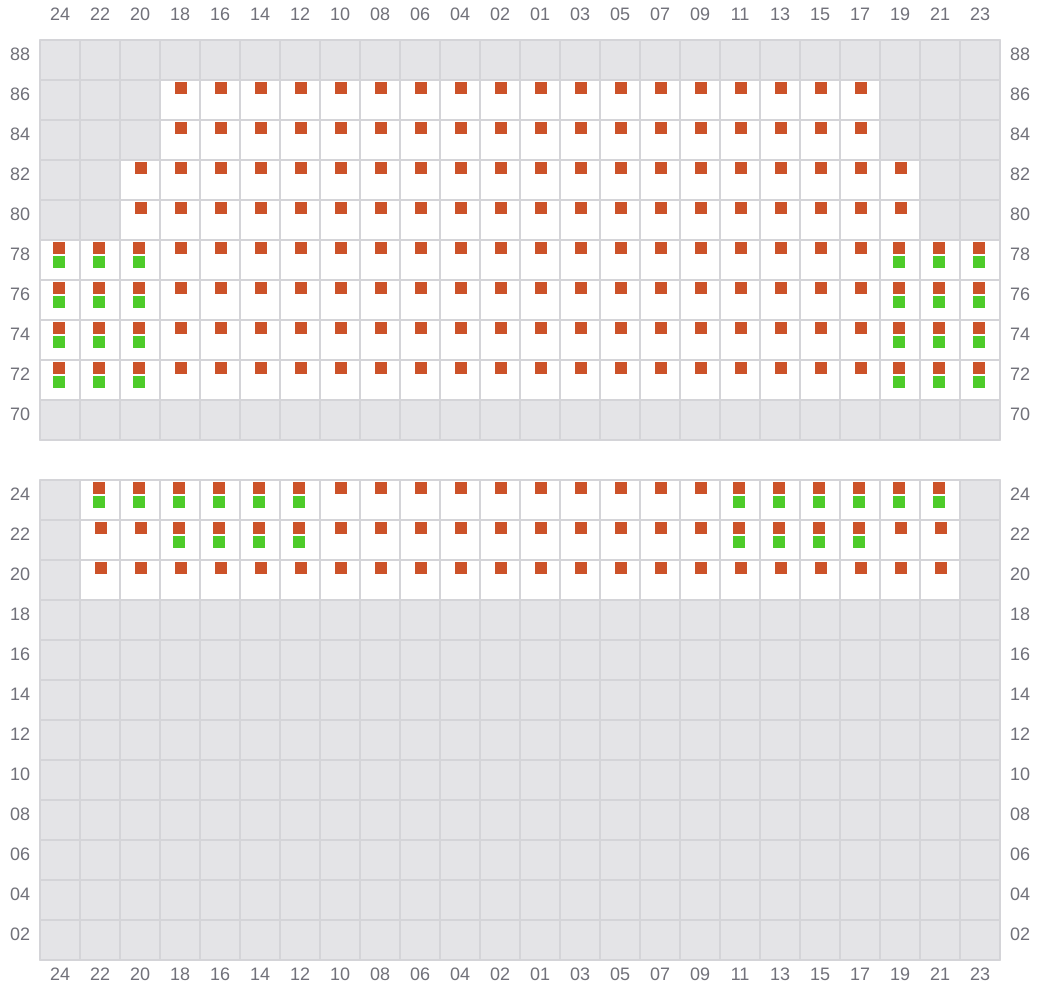

077 (078)

  • →
Bay 077 view and slots of HMM ALGECIRAS

079

  • ←

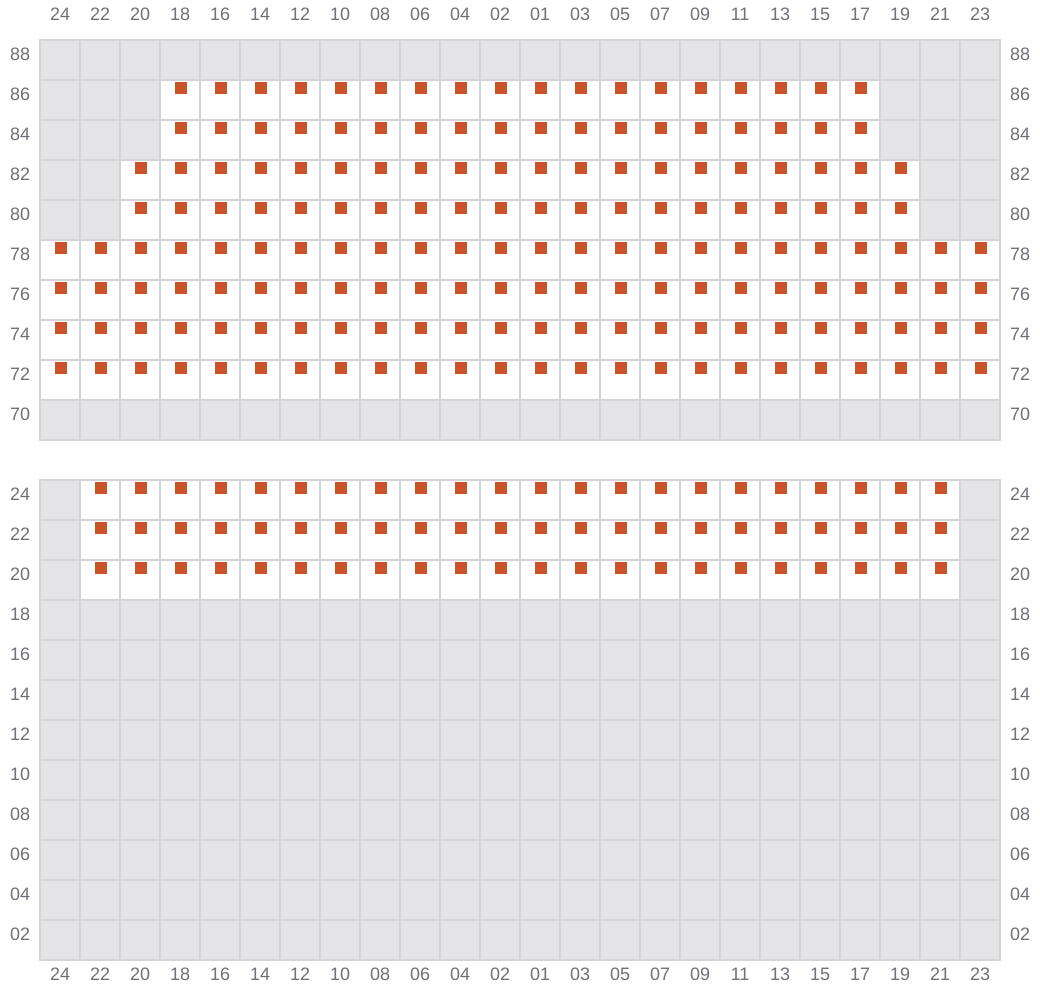

Bay 079 view and slots of HMM ALGECIRAS

081 (082)

  • →

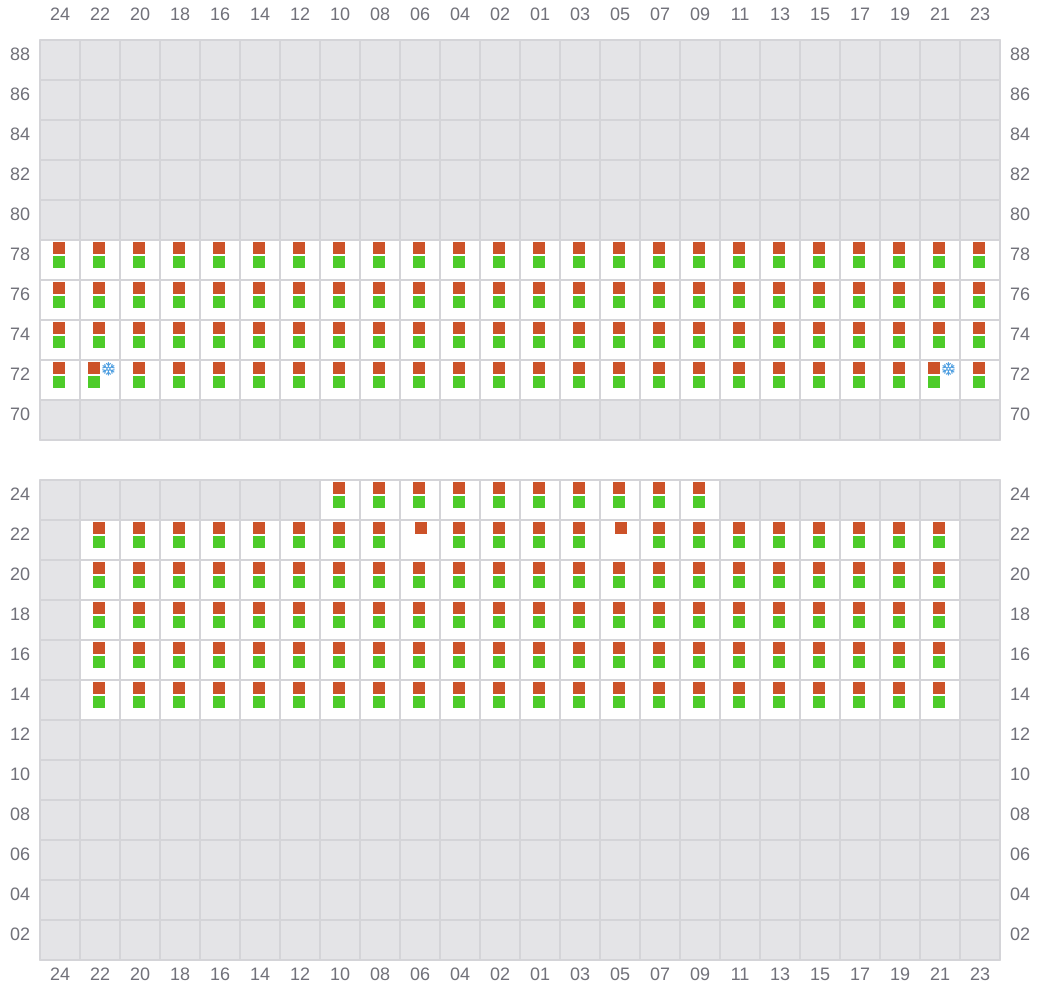

Bay 081 view and slots of HMM ALGECIRAS

083

  • ←

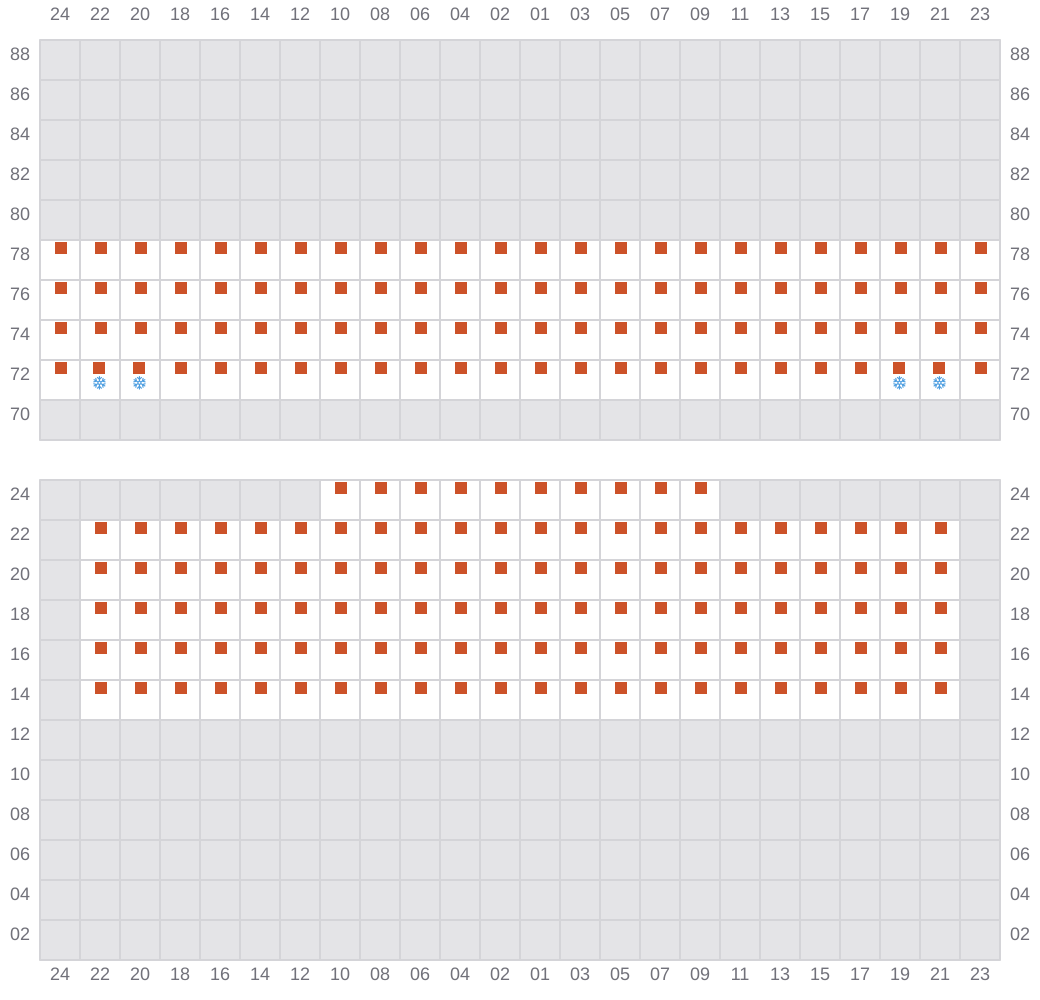

Bay 083 view and slots of HMM ALGECIRAS

085 (086)

  • →

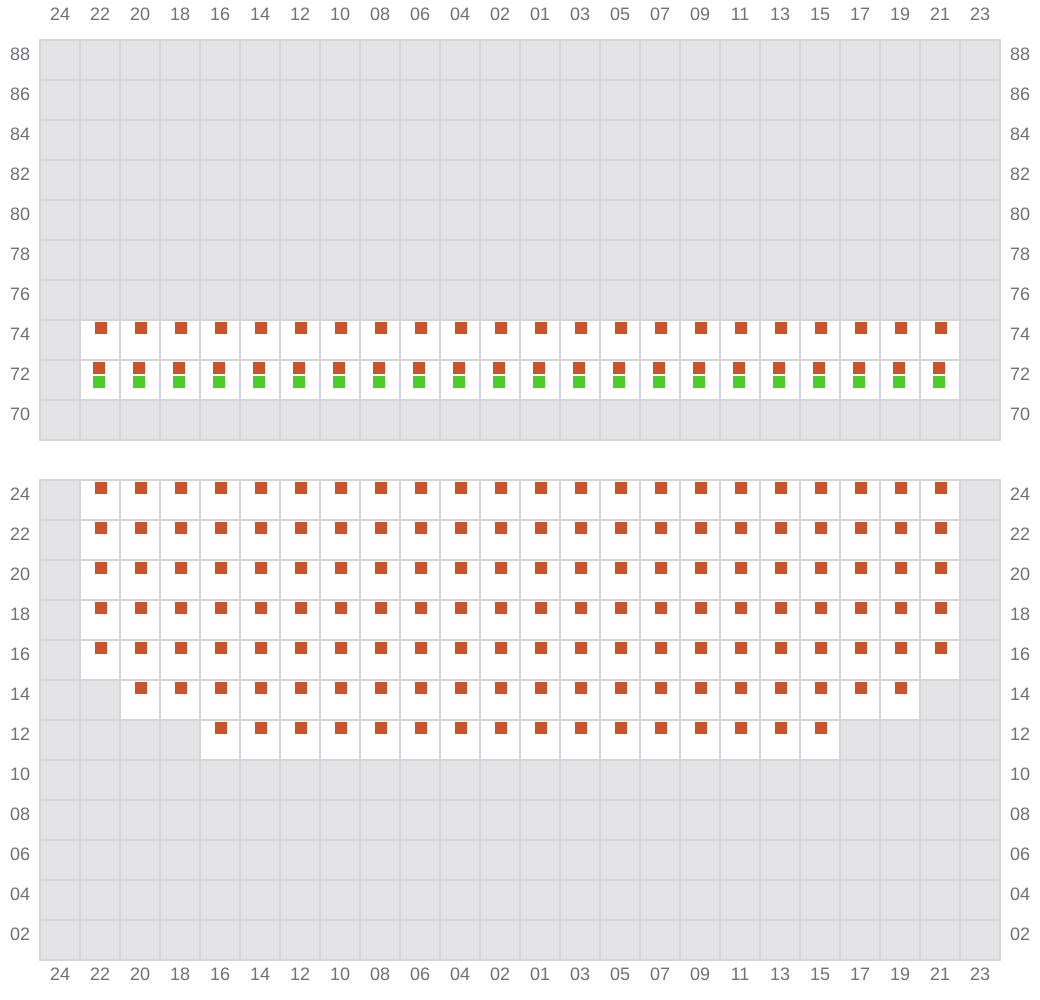

Bay 085 view and slots of HMM ALGECIRAS

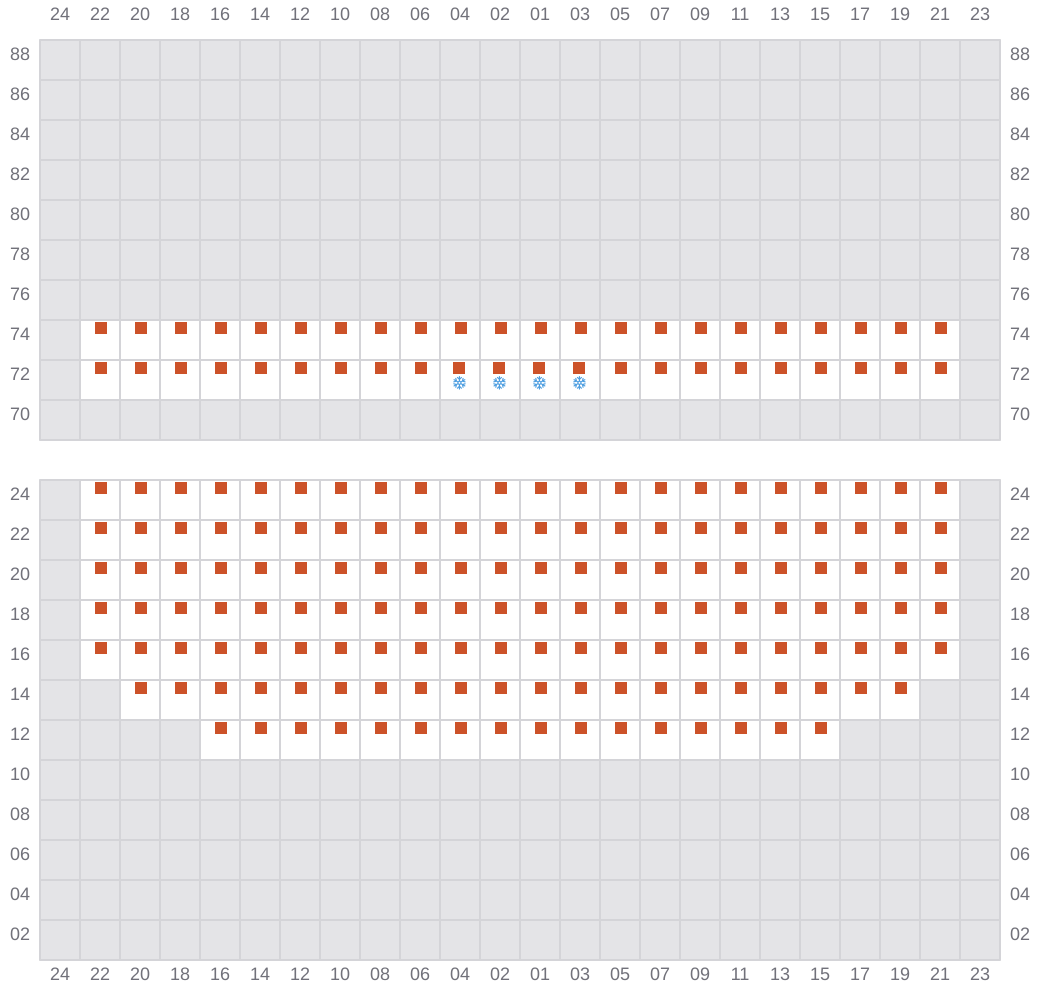

087

  • ←
Bay 087 view and slots of HMM ALGECIRAS

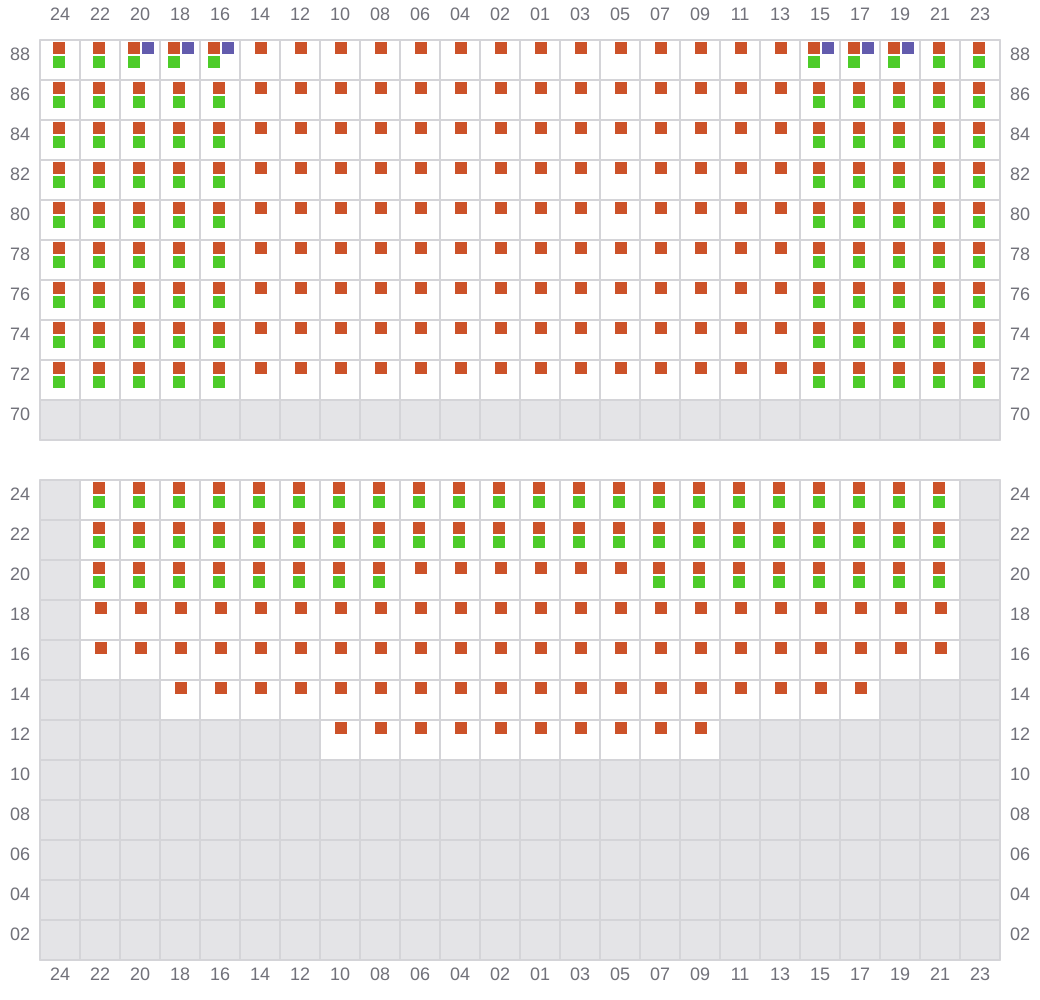

089 (090)

  • →
Bay 089 view and slots of HMM ALGECIRAS

091

  • ←

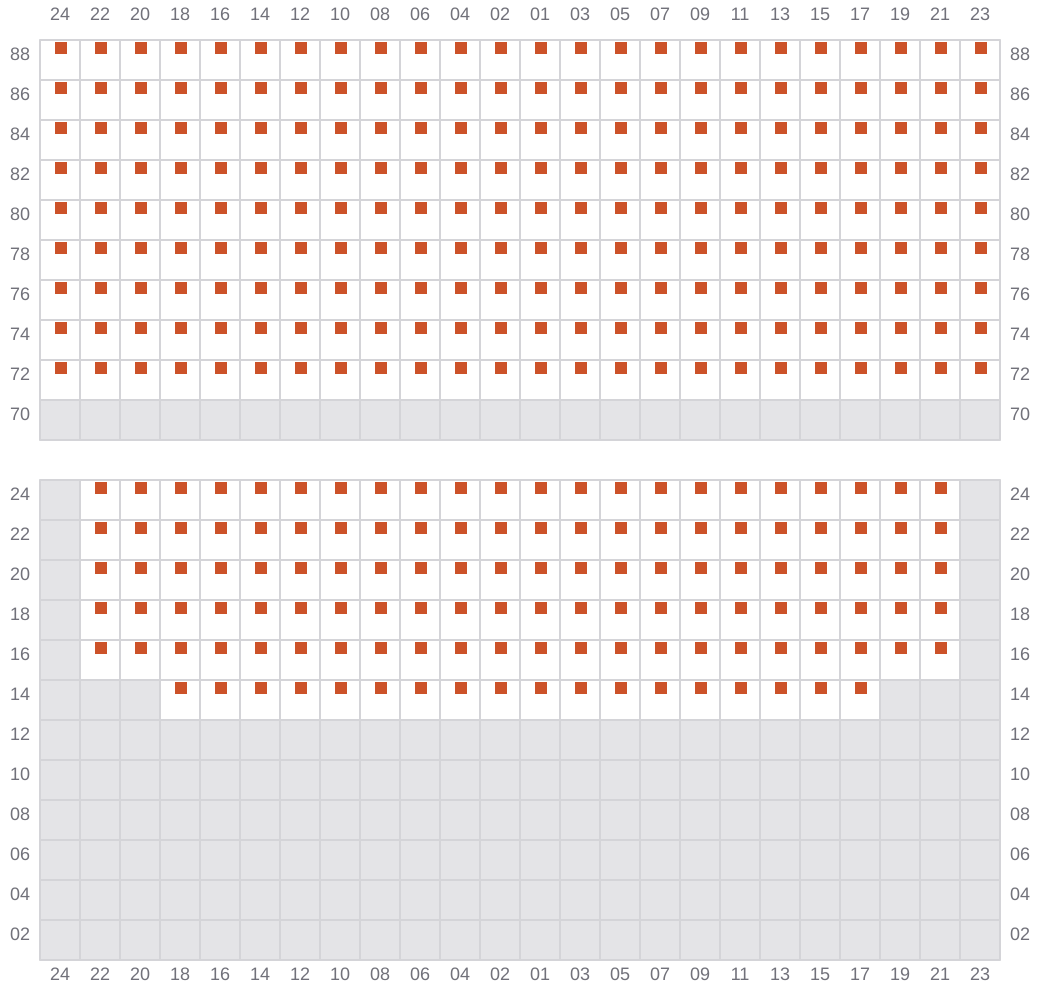

Bay 091 view and slots of HMM ALGECIRAS

093 (094)

  • →

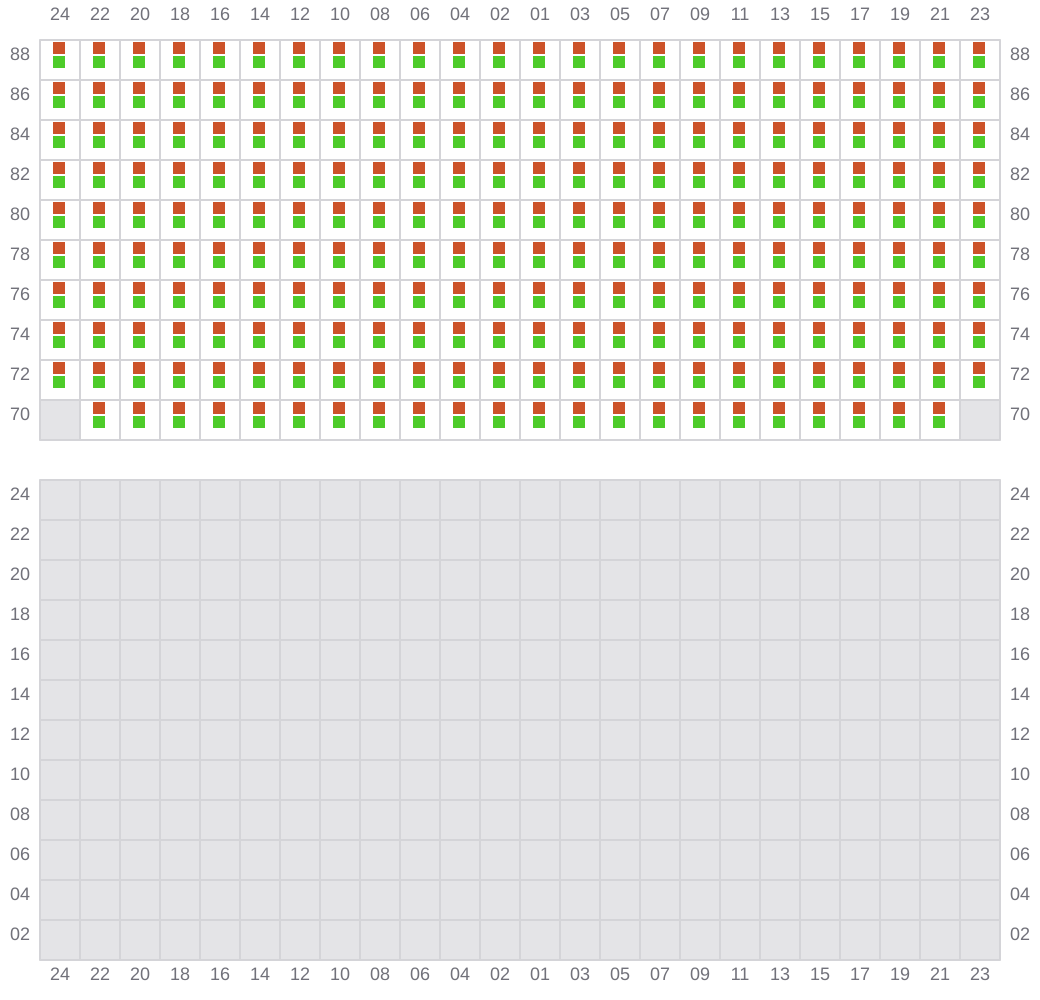

Bay 093 view and slots of HMM ALGECIRAS

095

  • ←

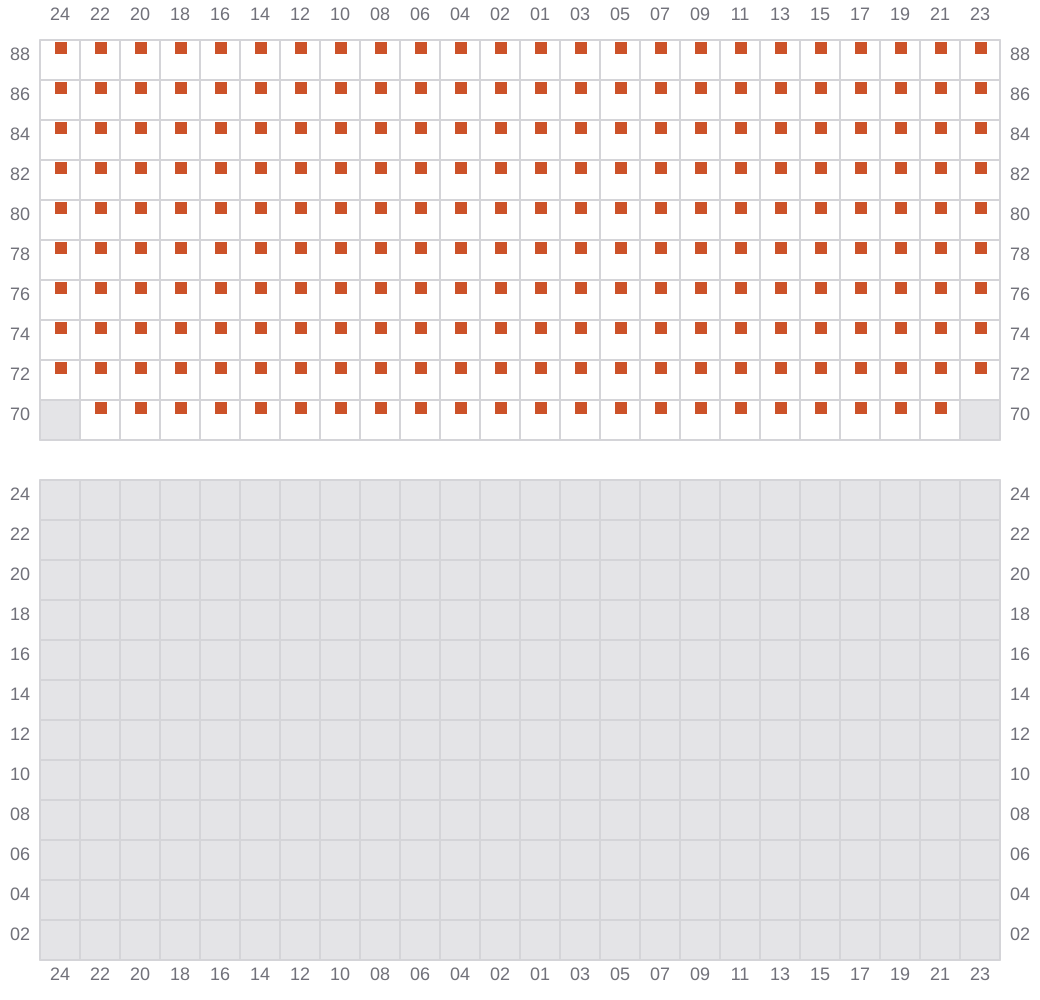

Bay 095 view and slots of HMM ALGECIRAS
