HMM BANGKOK
9323510 | D7HB | HMM by *********************** Last update: Thu Jan 23 2025

General Info

Ship Name:HMM BANGKOK
IMO Code:9323510
Call Sign:D7HB
Line Operator:HMM
Class Name for Sister Ships:HHBN
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,755

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of HMM BANGKOK

Hatch-Covers View

Deck view of HMM BANGKOK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

Bay 001 view and slots of HMM BANGKOK

003

Bay 003 view and slots of HMM BANGKOK

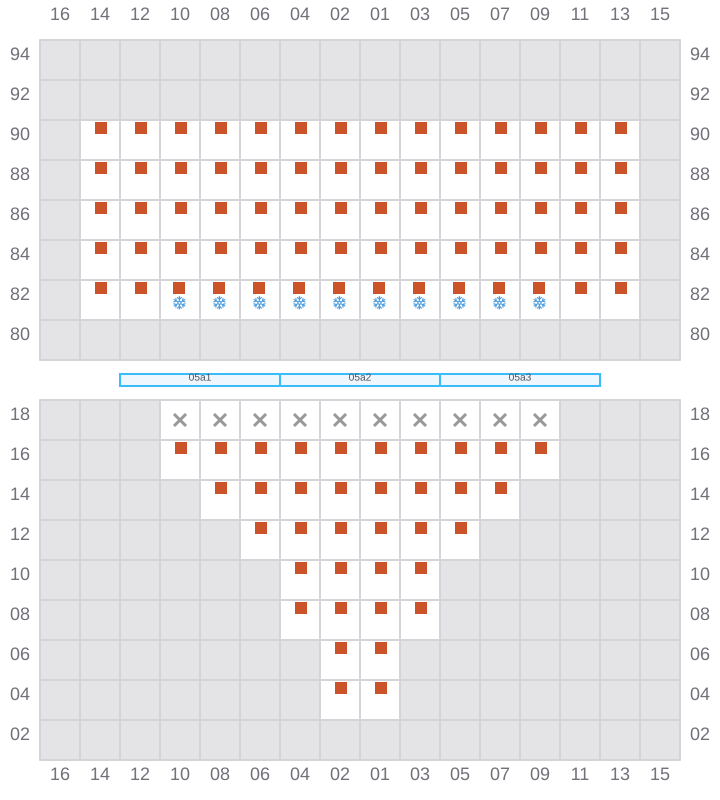

005 (006)

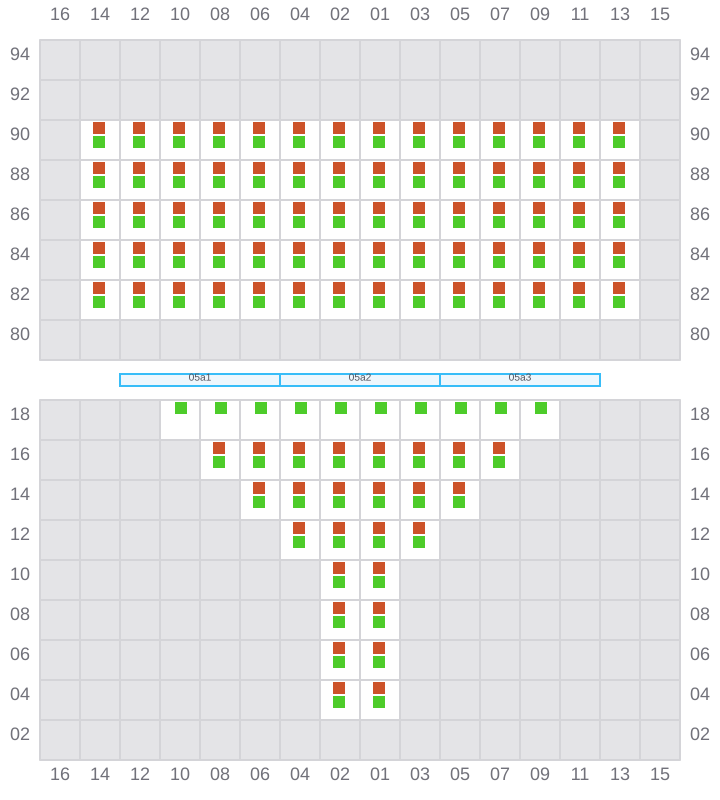

Bay 005 view and slots of HMM BANGKOK

007

  • / ?
Bay 007 view and slots of HMM BANGKOK

009 (010)

Bay 009 view and slots of HMM BANGKOK

011

  • / ?
Bay 011 view and slots of HMM BANGKOK

013 (014)

Bay 013 view and slots of HMM BANGKOK

015

  • / ?
Bay 015 view and slots of HMM BANGKOK

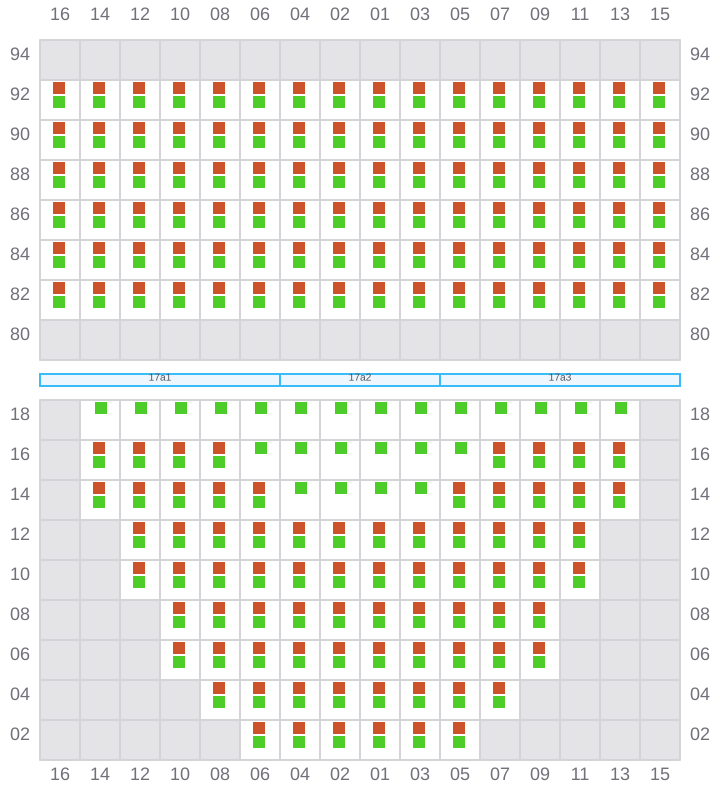

017 (018)

Bay 017 view and slots of HMM BANGKOK

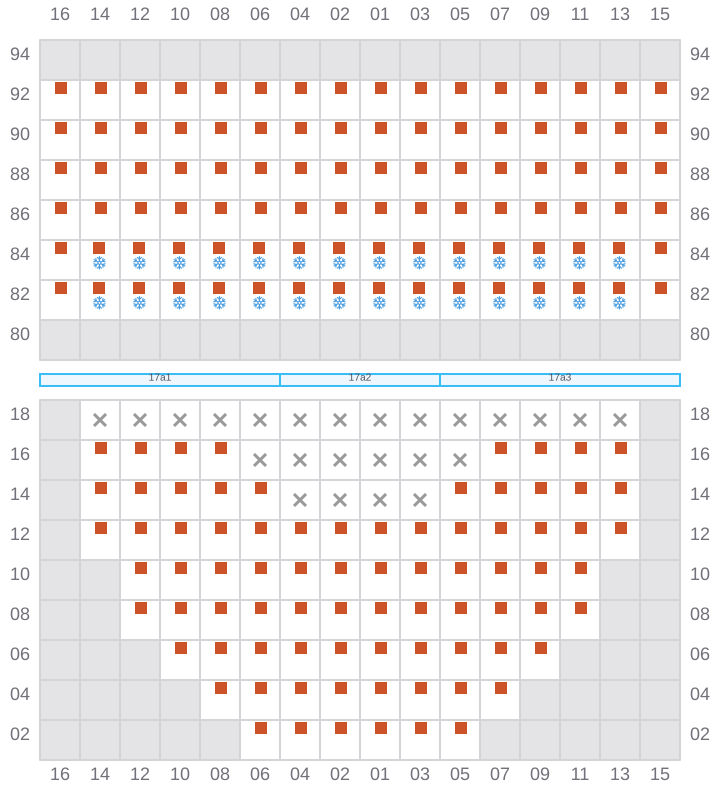

019

Bay 019 view and slots of HMM BANGKOK

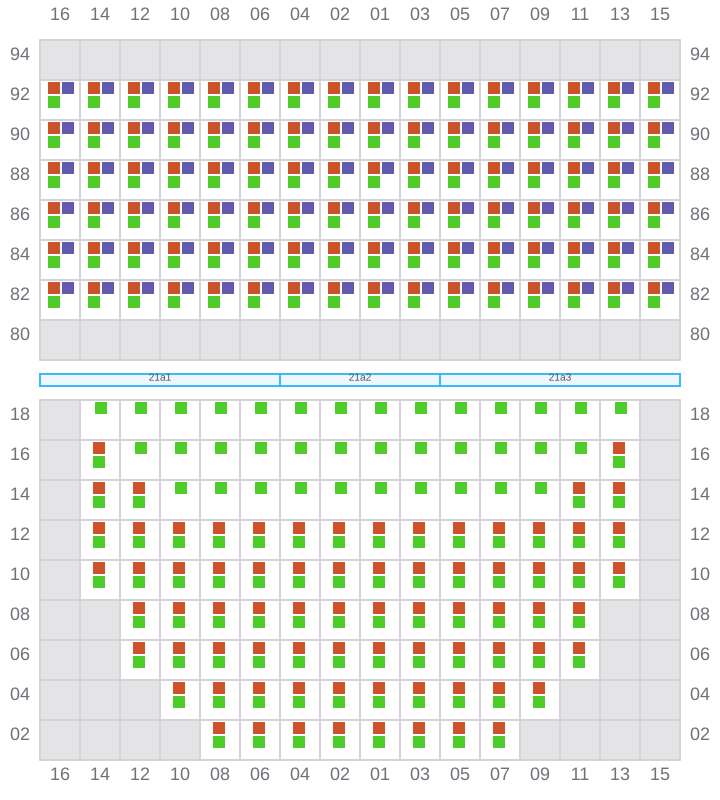

021 (022)

  • / ?
Bay 021 view and slots of HMM BANGKOK

023

  • / ?
Bay 023 view and slots of HMM BANGKOK

025 (026)

  • / ?
Bay 025 view and slots of HMM BANGKOK

027

  • / ?
Bay 027 view and slots of HMM BANGKOK

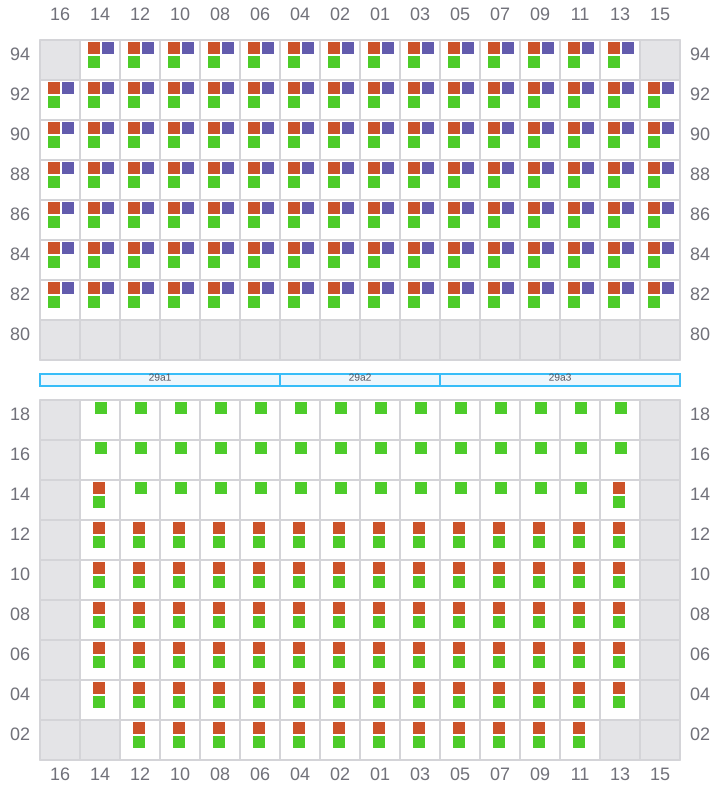

029 (030)

  • / ?
Bay 029 view and slots of HMM BANGKOK

031

  • / ?
Bay 031 view and slots of HMM BANGKOK

033 (034)

  • / ?
Bay 033 view and slots of HMM BANGKOK

035

  • / ?
Bay 035 view and slots of HMM BANGKOK

037 (038)

  • / ?
Bay 037 view and slots of HMM BANGKOK

039

  • / ?
Bay 039 view and slots of HMM BANGKOK

041 (042)

  • / ?
Bay 041 view and slots of HMM BANGKOK

043

  • / ?
Bay 043 view and slots of HMM BANGKOK

045 (046)

  • / ?
Bay 045 view and slots of HMM BANGKOK

047

  • / ?
Bay 047 view and slots of HMM BANGKOK

049 (050)

  • / ?

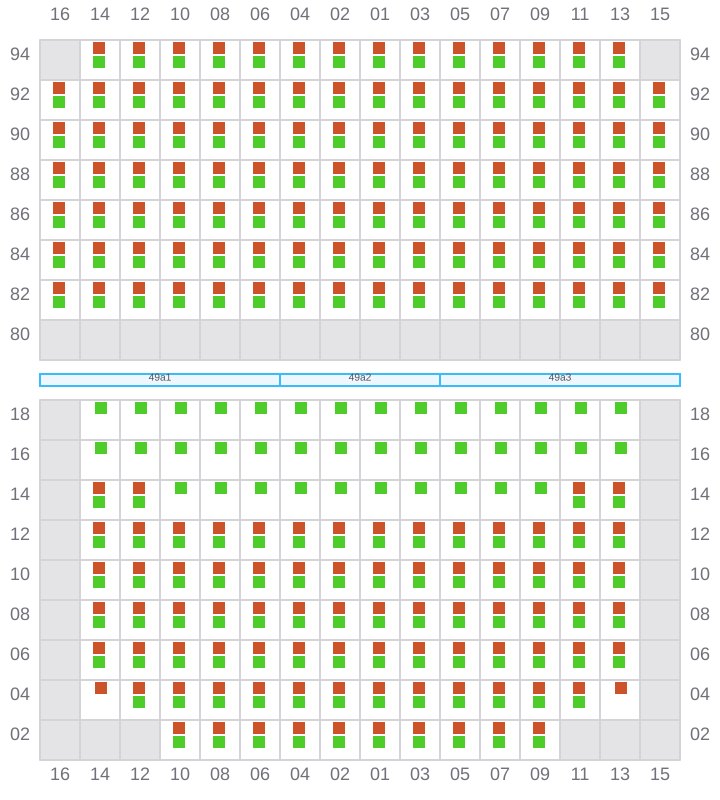

Bay 049 view and slots of HMM BANGKOK

051

  • / ?
Bay 051 view and slots of HMM BANGKOK

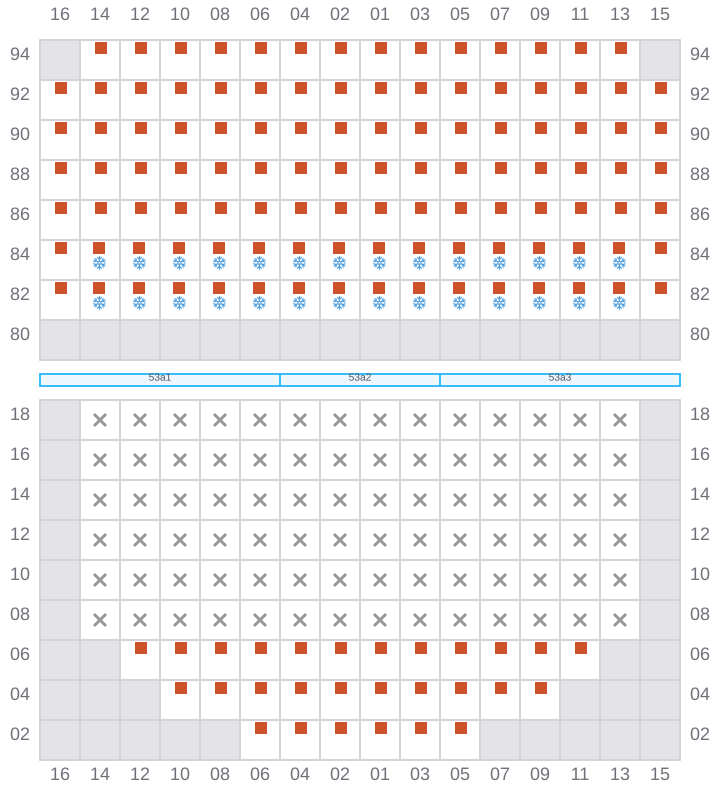

053 (054)

  • / ?
Bay 053 view and slots of HMM BANGKOK

055

  • / ?
Bay 055 view and slots of HMM BANGKOK

057 (058)

  • / ?
Bay 057 view and slots of HMM BANGKOK

059

  • / ?
Bay 059 view and slots of HMM BANGKOK

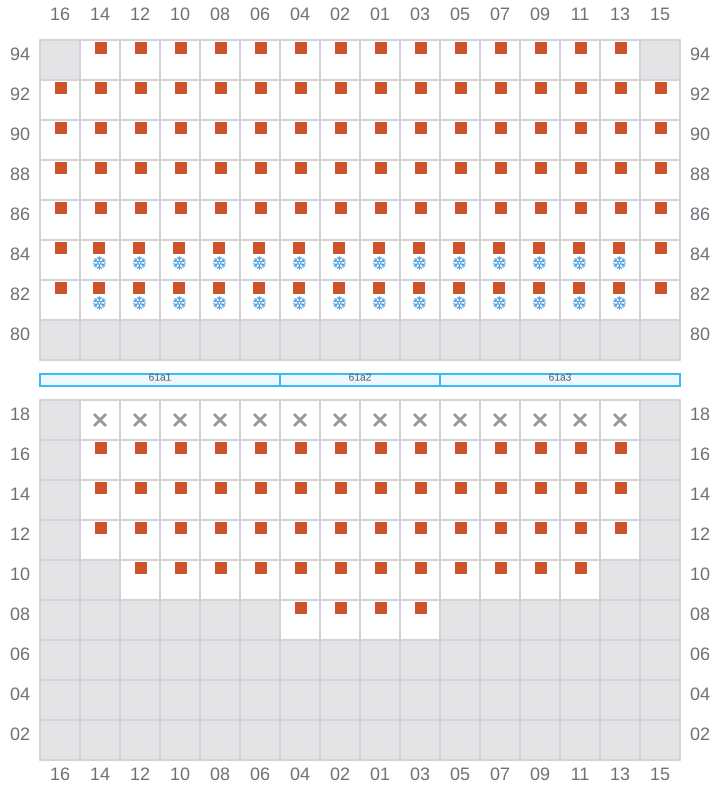

061 (062)

  • / ?
Bay 061 view and slots of HMM BANGKOK

063

  • / ?
Bay 063 view and slots of HMM BANGKOK

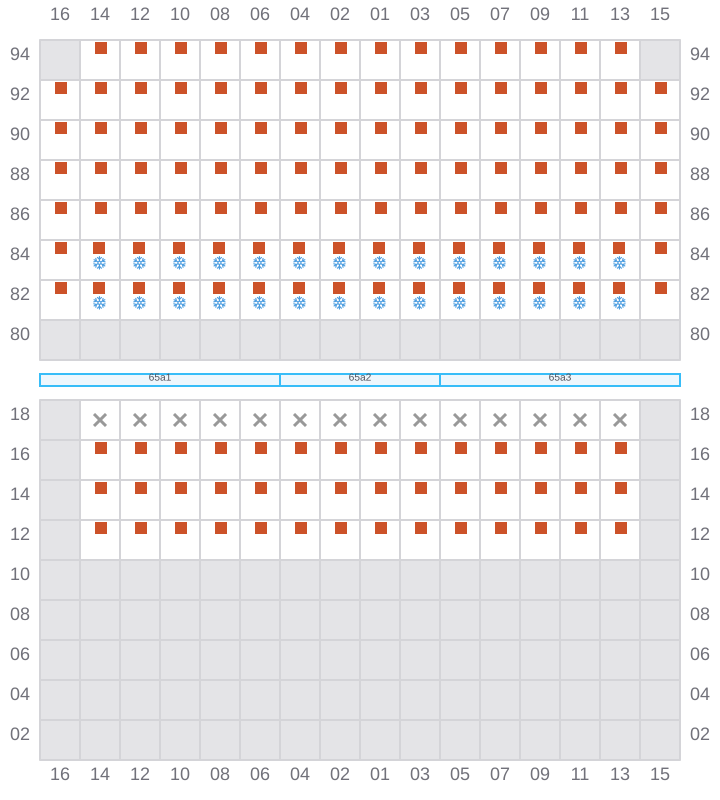

065 (066)

  • / ?
Bay 065 view and slots of HMM BANGKOK

067

  • / ?
Bay 067 view and slots of HMM BANGKOK

069 (070)

  • / ?
Bay 069 view and slots of HMM BANGKOK
