HMM DHAKA
9658458 | D7FN | 9658458 by ********* Last update: Mon Jun 24 2024
General Info
Ship Name:HMM DHAKA
IMO Code:9658458
Call Sign:D7FN
Line Operator:9658458
Class Name for Sister Ships:MCC
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:039
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,194
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

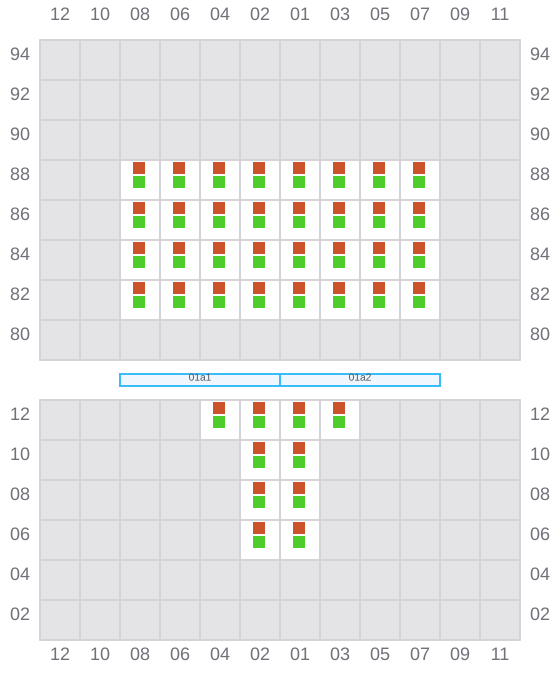

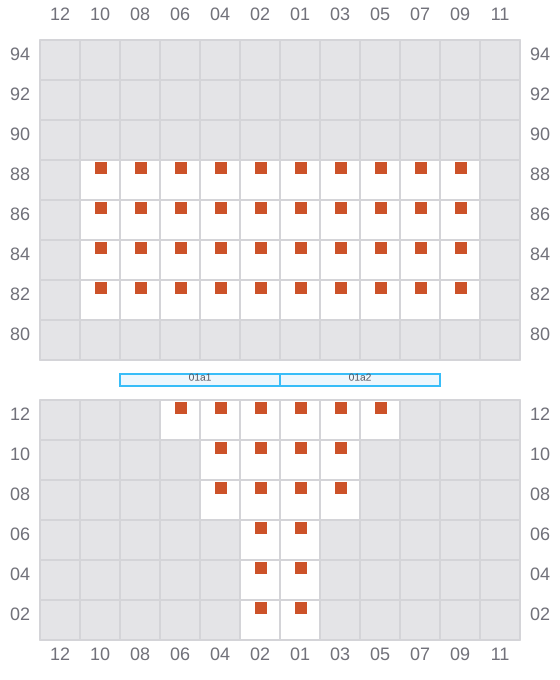

001 (002)
- →
003
- ←
- ? / →

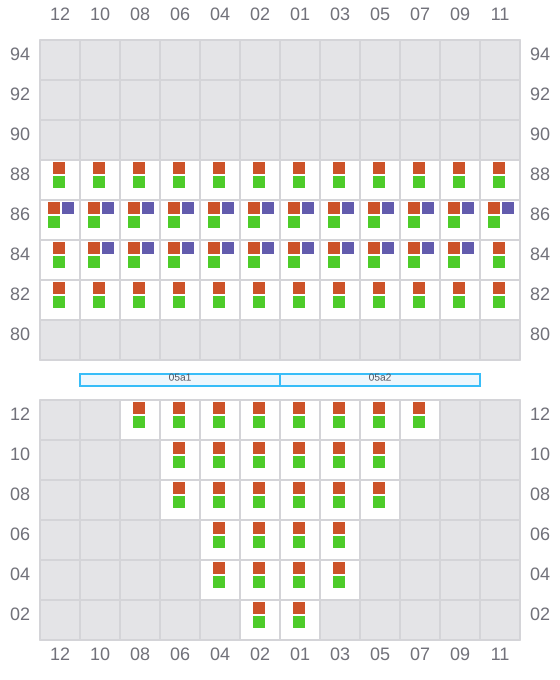

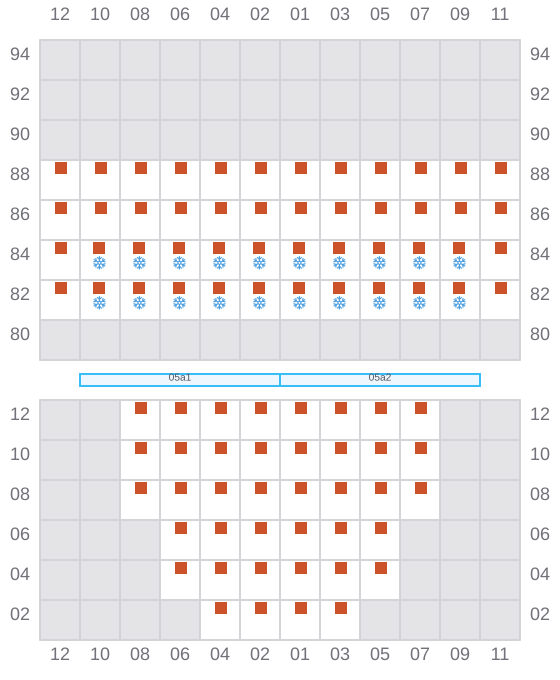

005 (006)
- →
007
- ←
- →

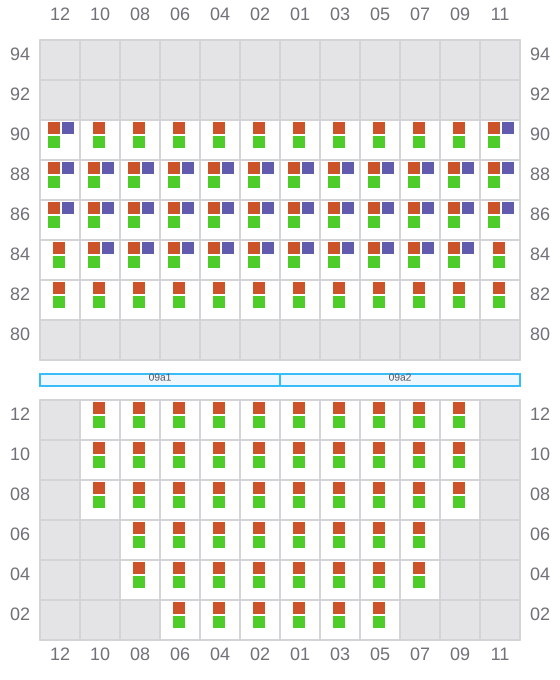

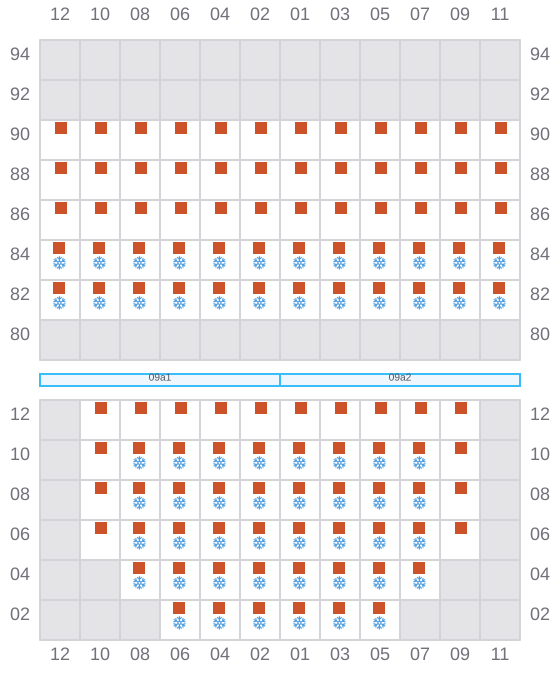

009 (010)
- →
- ? / ←
011
- ←
- → / ?

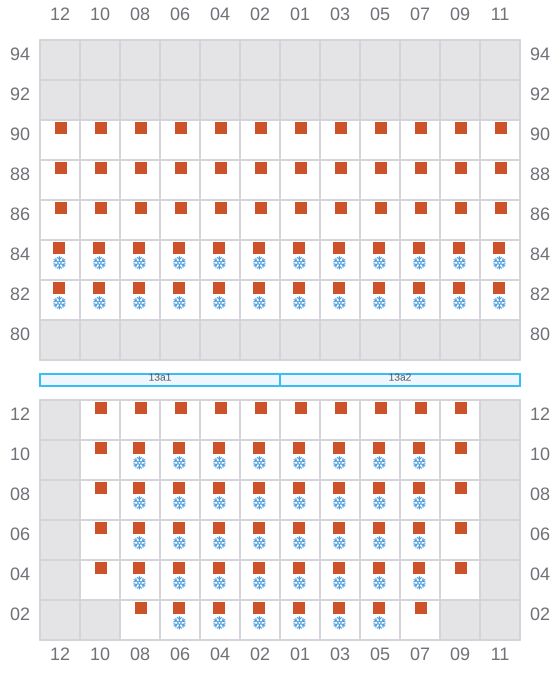

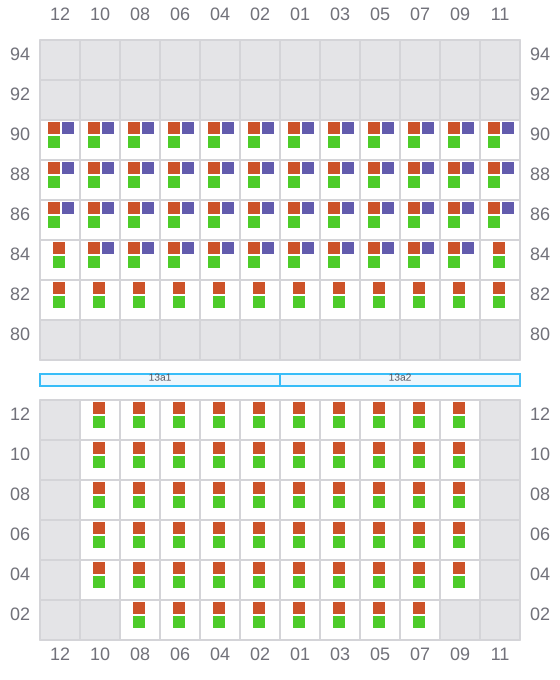

013 (014)
- →
015
- ←
- →
017 (018)
- →
- ? / ←
019
- ←
- →

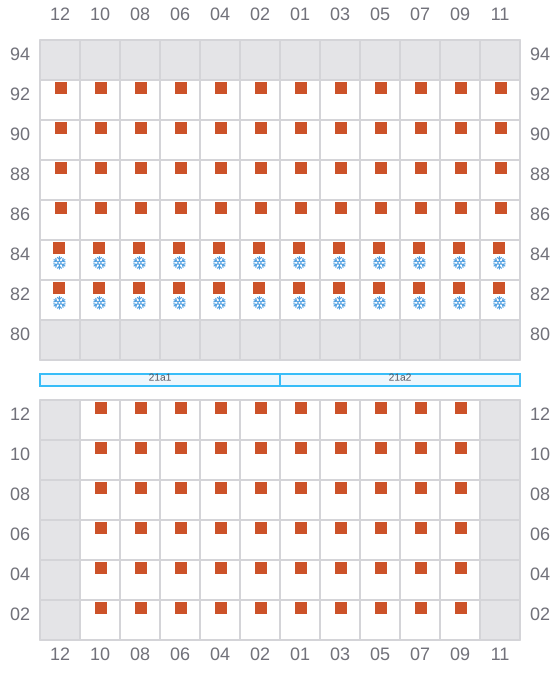

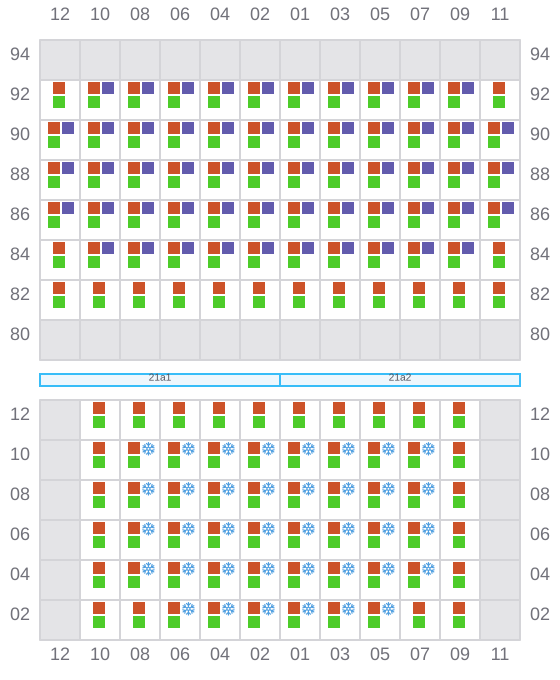

021 (022)
- →
023
- ←
- →

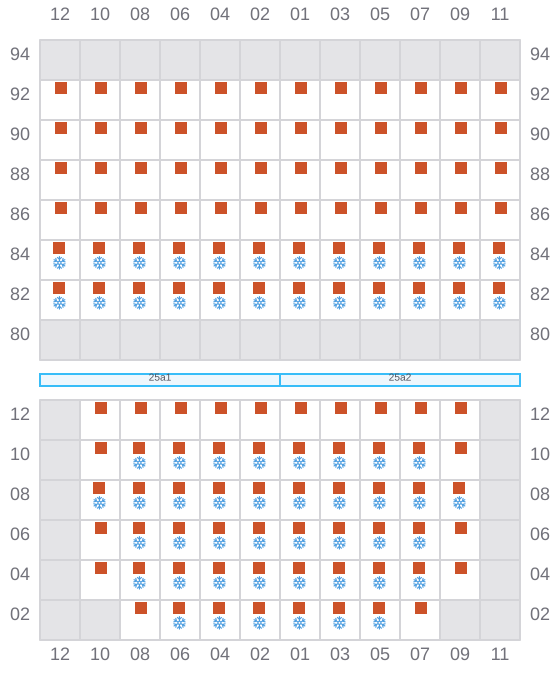

025 (026)
- →
- ? / ←
027
- ←
- →

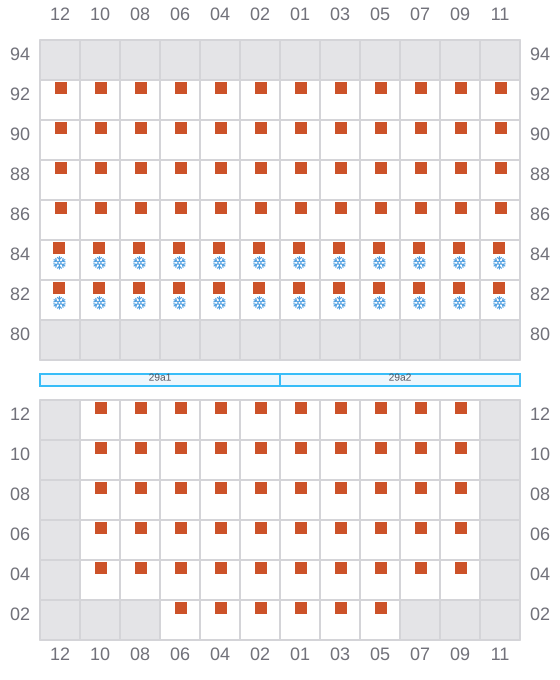

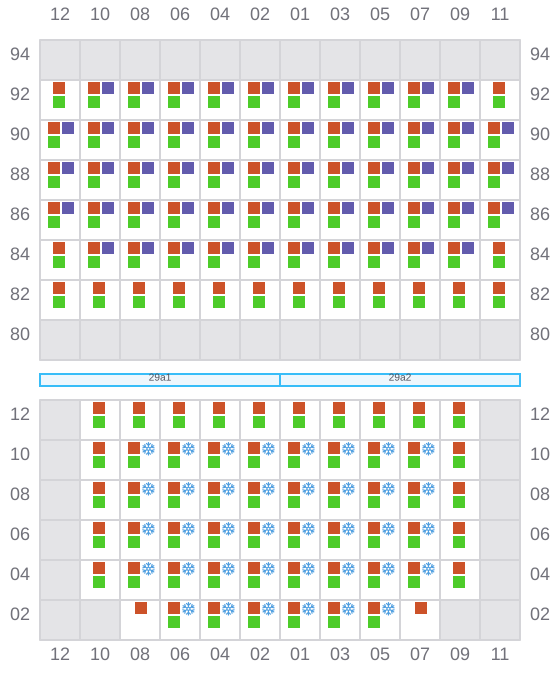

029 (030)
- →
031
- ←
- →

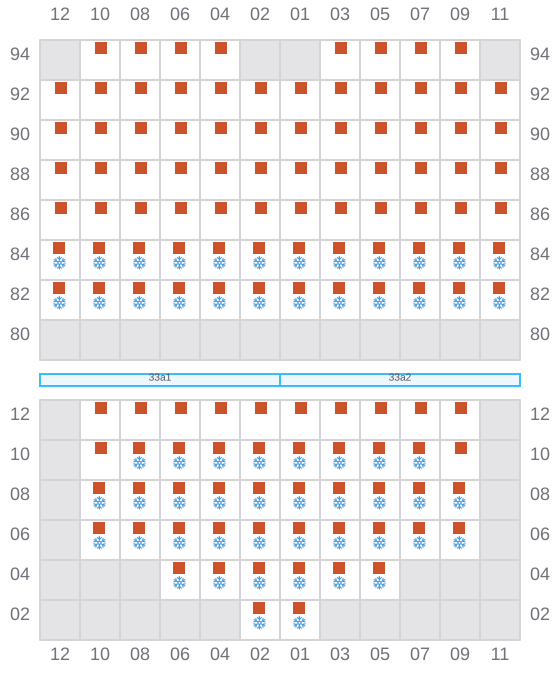

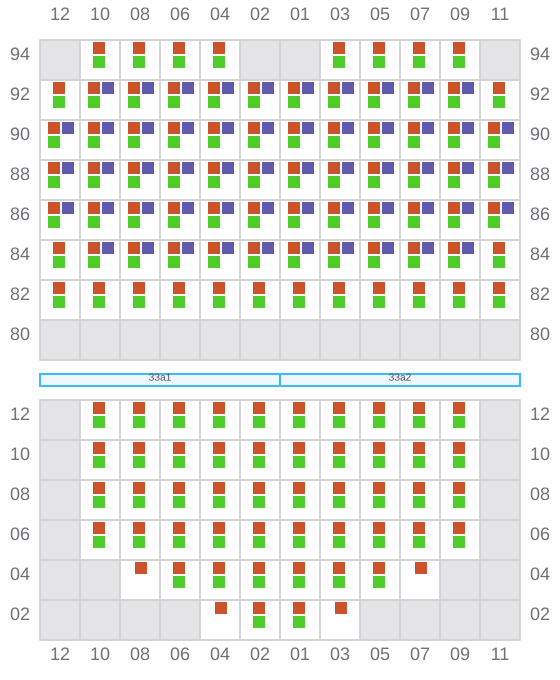

033 (034)
- →
- ? / ←
035
- ←
- → / ?

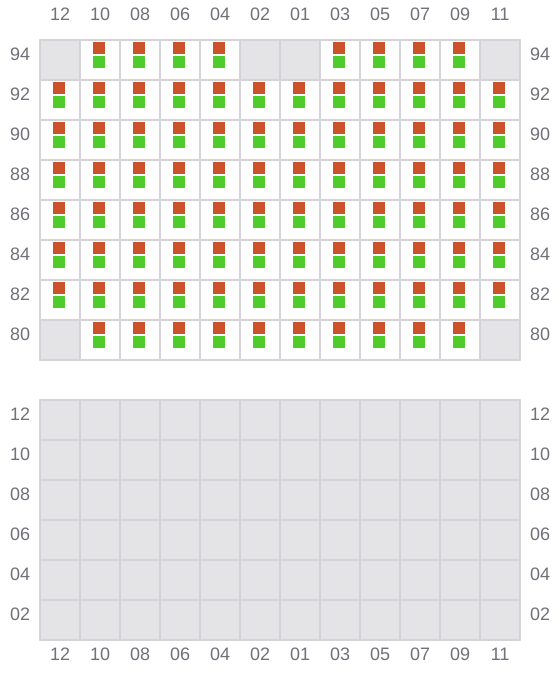

037 (038)
- → / ?
- ← / ?

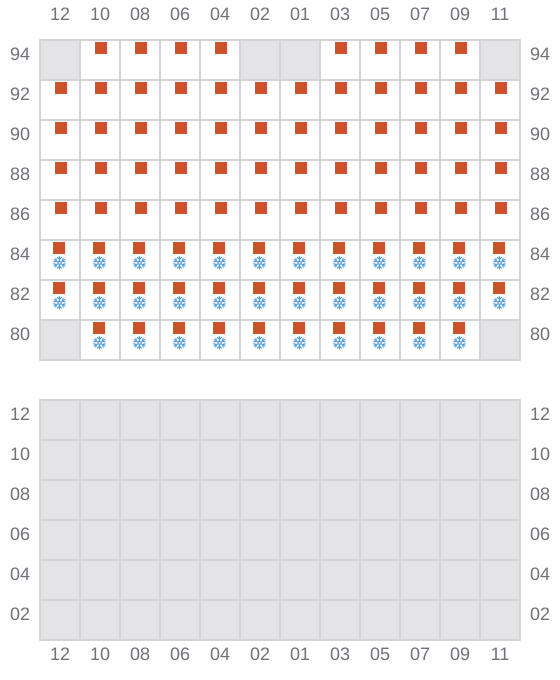

039
- ← / ?
