HMM MONGLA
9658446 | D7IJ | 9658446 by ********* Last update: Tue Jul 02 2024
General Info
Ship Name:HMM MONGLA
IMO Code:9658446
Call Sign:D7IJ
Line Operator:9658446
Class Name for Sister Ships:MCC
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:039
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,194
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

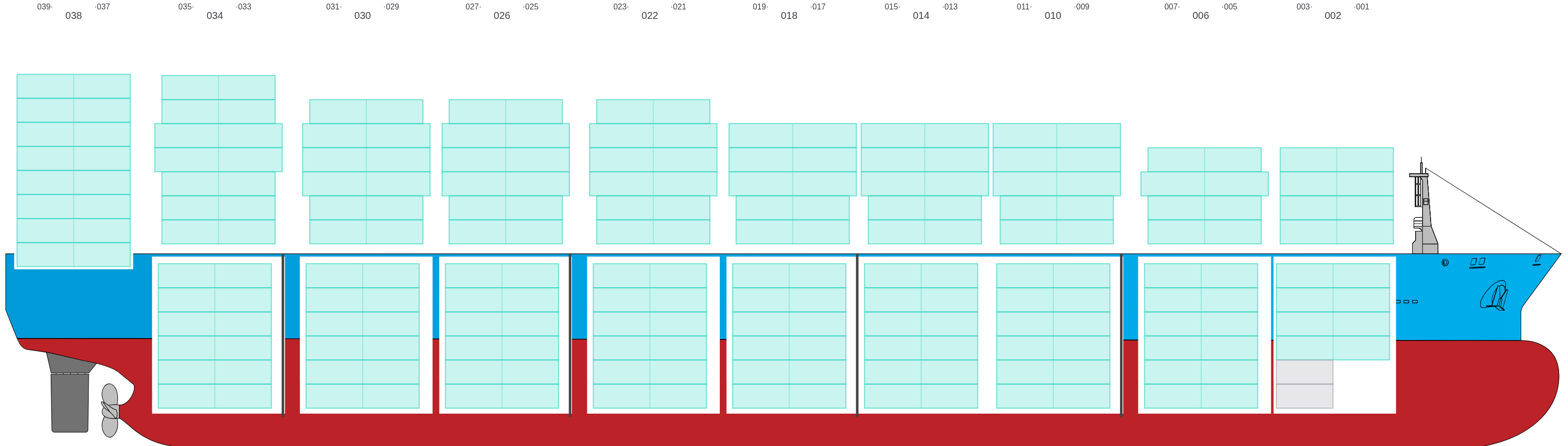

Side View
![Side view of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-sideView.png?v=1719942329291)
Hatch-Covers View
![Deck view of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-deckView.png?v=1719942329291)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

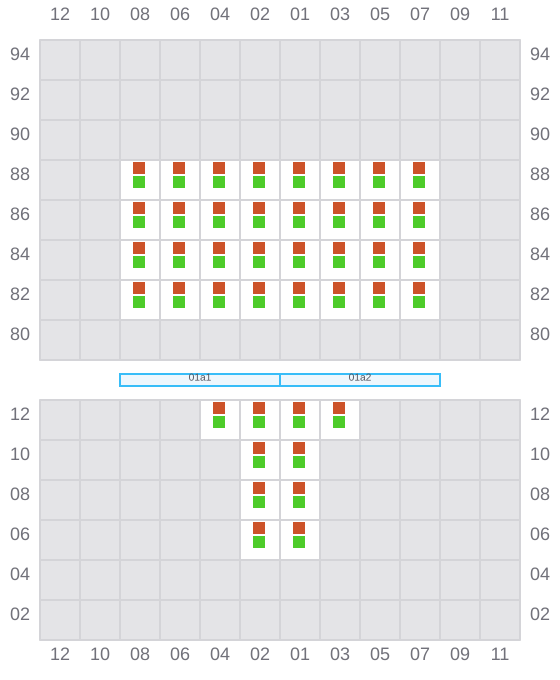

001 (002)
- →
![Bay 001 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b001.png?v=1719942329291)

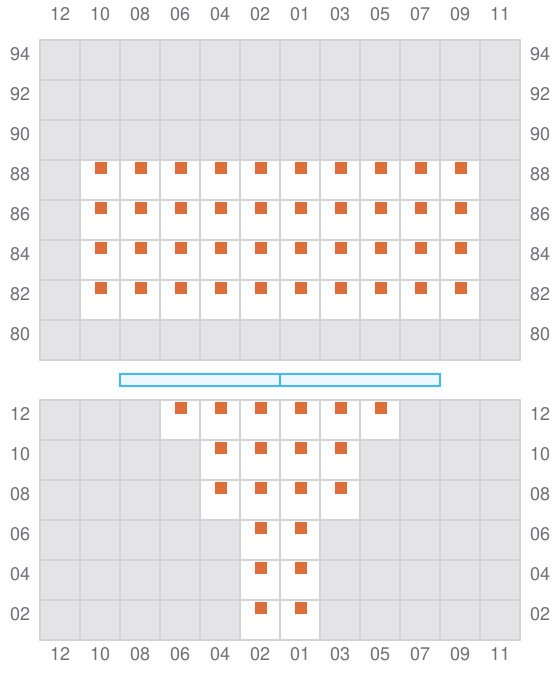

003
- ←
- ? / →
![Bay 003 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b003.png?v=1719942329291)

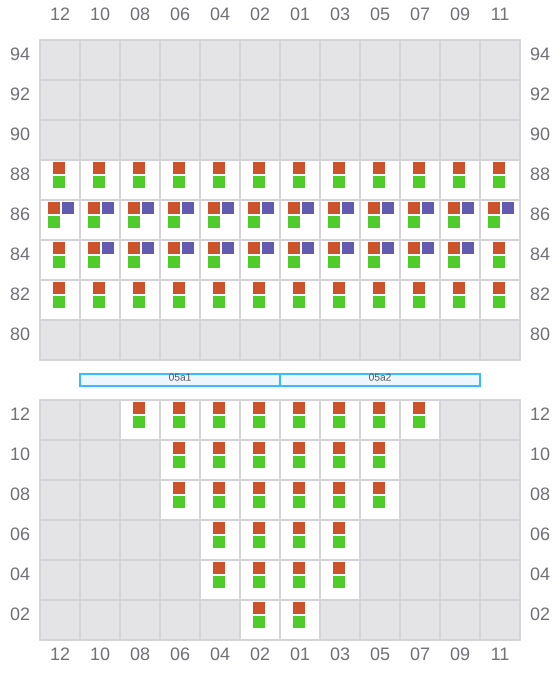

005 (006)
- →
![Bay 005 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b005.png?v=1719942329291)

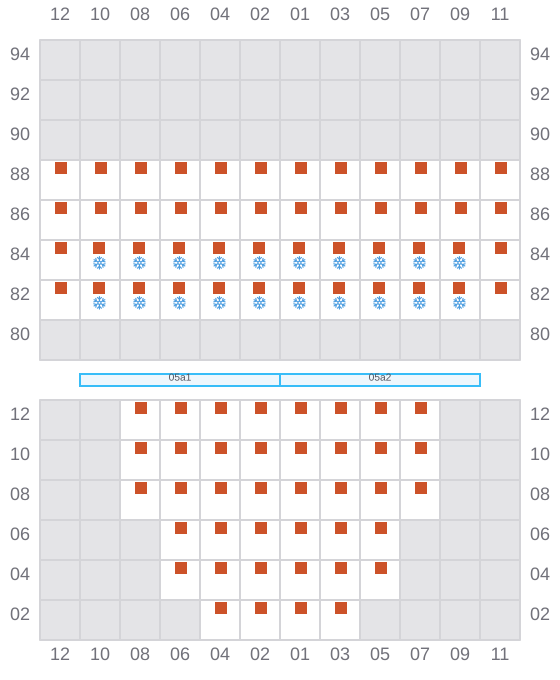

007
- ←
- →
![Bay 007 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b007.png?v=1719942329291)

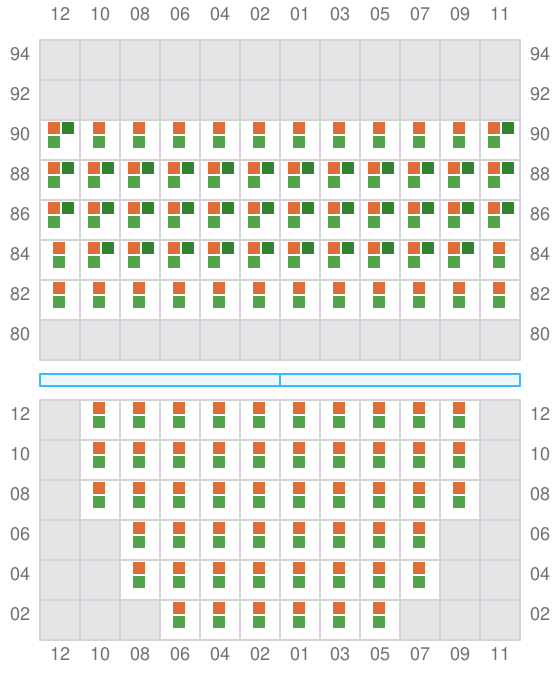

009 (010)
- →
- ? / ←
![Bay 009 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b009.png?v=1719942329291)

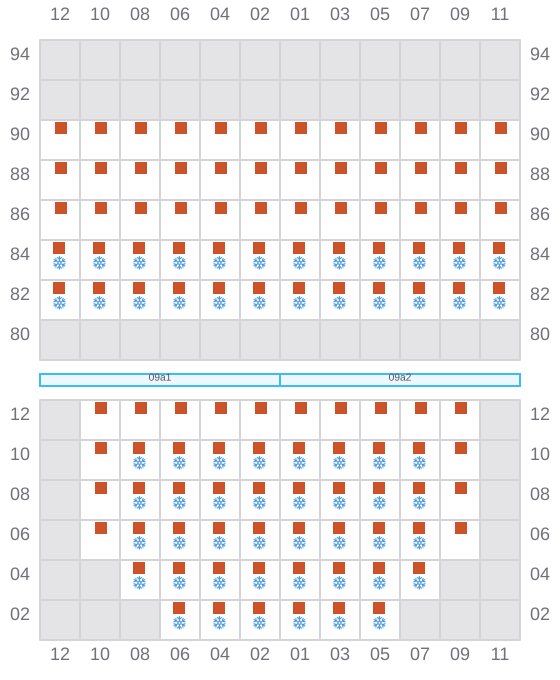

011
- ←
- → / ?
![Bay 011 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b011.png?v=1719942329291)

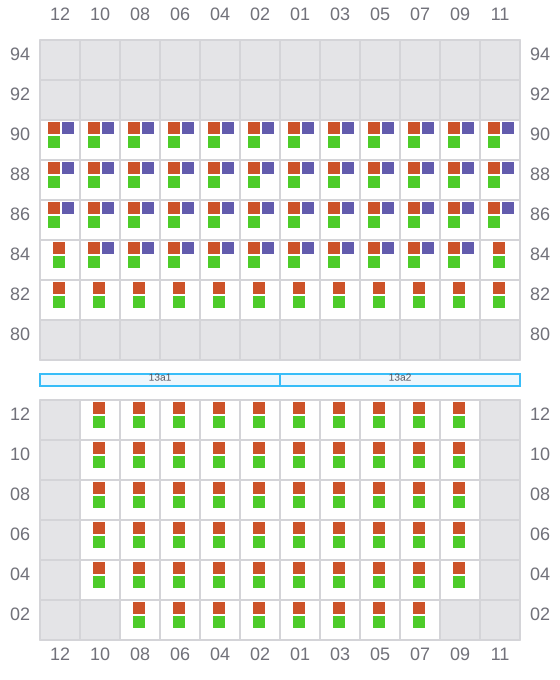

013 (014)
- →
![Bay 013 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b013.png?v=1719942329291)

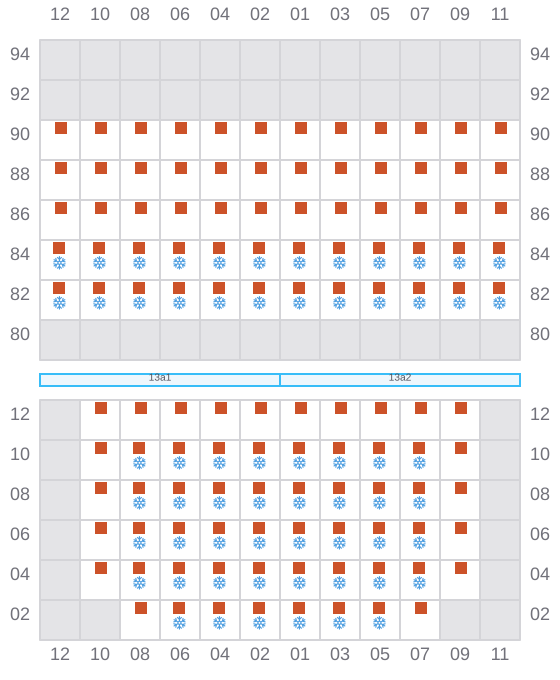

015
- ←
- →
![Bay 015 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b015.png?v=1719942329291)

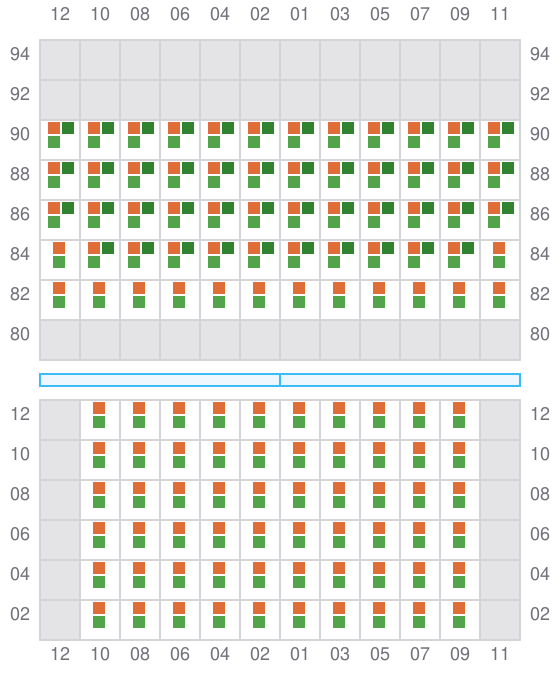

017 (018)
- →
- ? / ←
![Bay 017 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b017.png?v=1719942329291)

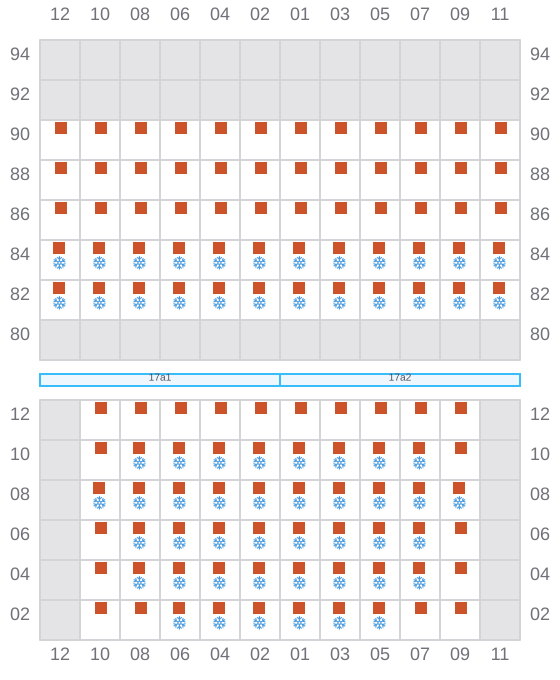

019
- ←
- →
![Bay 019 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b019.png?v=1719942329291)

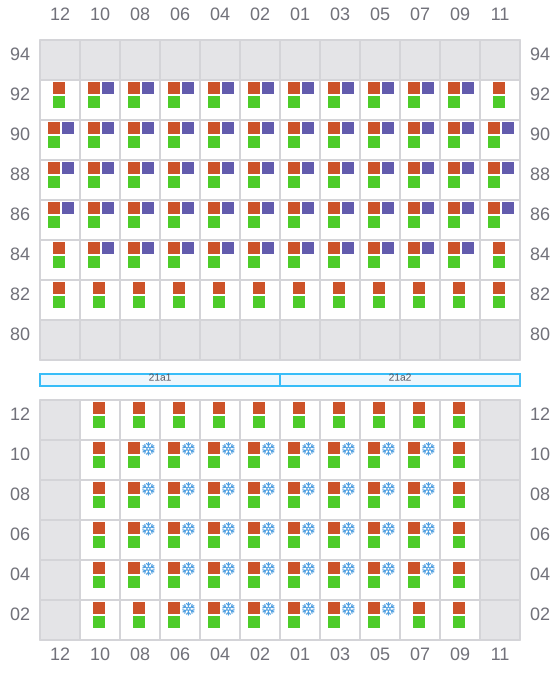

021 (022)
- →
![Bay 021 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b021.png?v=1719942329291)

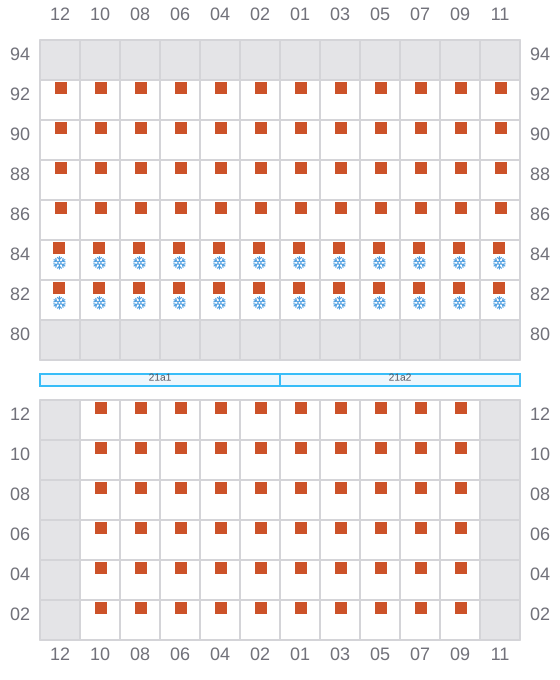

023
- ←
- →
![Bay 023 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b023.png?v=1719942329291)

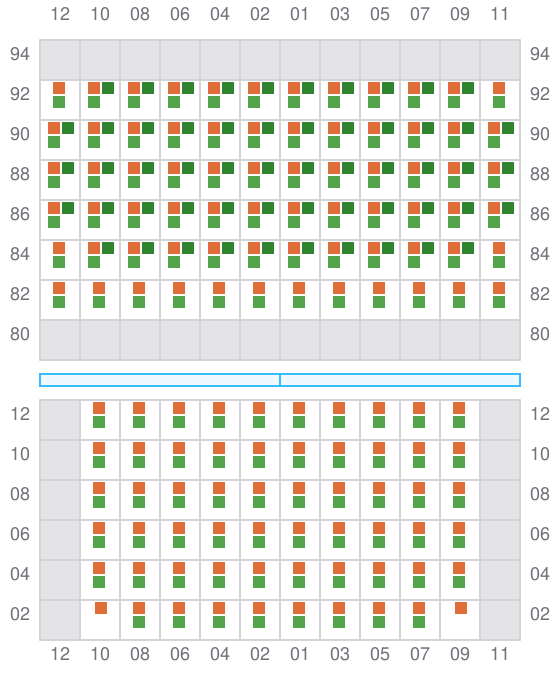

025 (026)
- →
- ? / ←
![Bay 025 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b025.png?v=1719942329291)

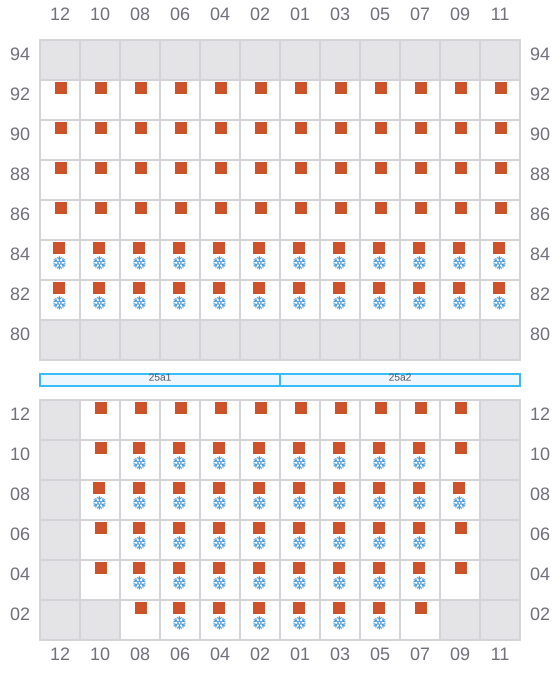

027
- ←
- →
![Bay 027 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b027.png?v=1719942329291)

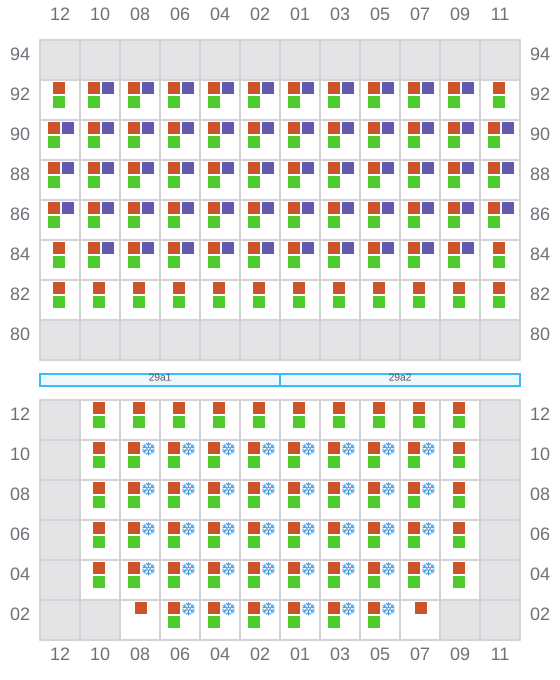

029 (030)
- →
![Bay 029 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b029.png?v=1719942329291)

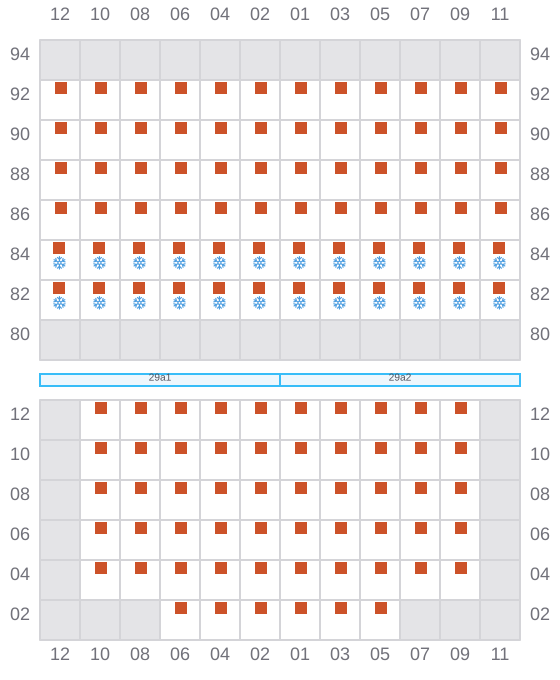

031
- ←
- →
![Bay 031 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b031.png?v=1719942329291)

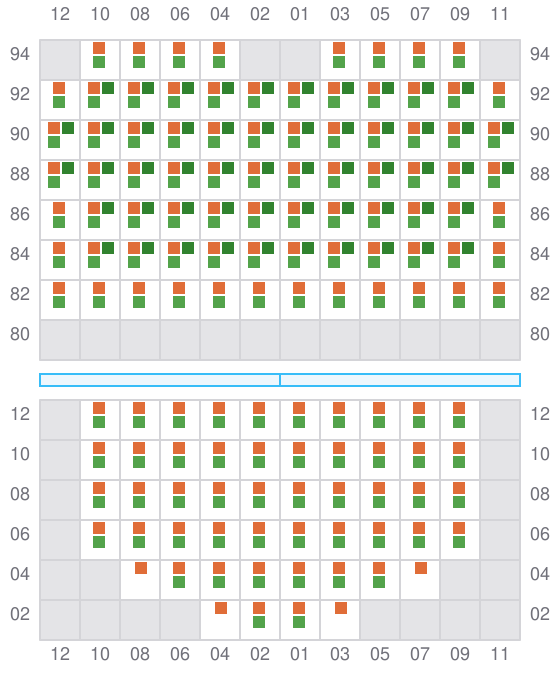

033 (034)
- →
- ? / ←
![Bay 033 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b033.png?v=1719942329291)

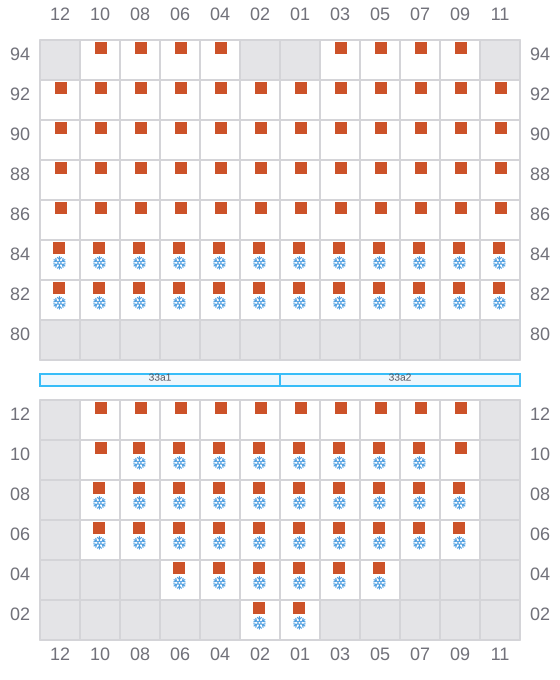

035
- ←
- → / ?
![Bay 035 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b035.png?v=1719942329291)

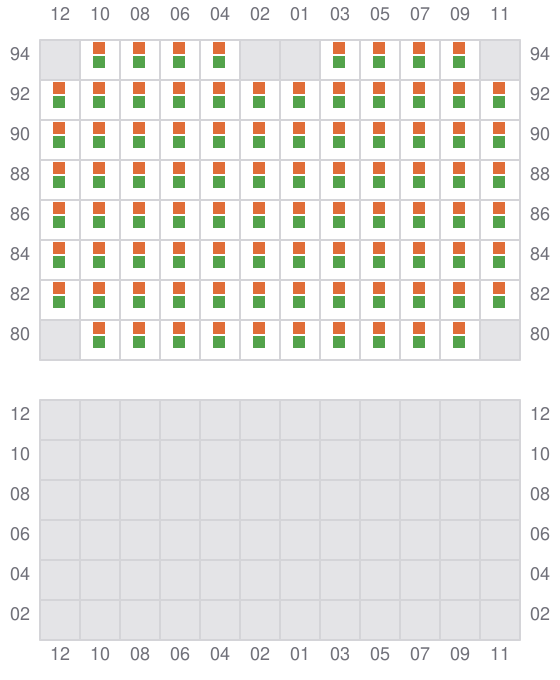

037 (038)
- → / ?
- ← / ?
![Bay 037 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b037.png?v=1719942329291)

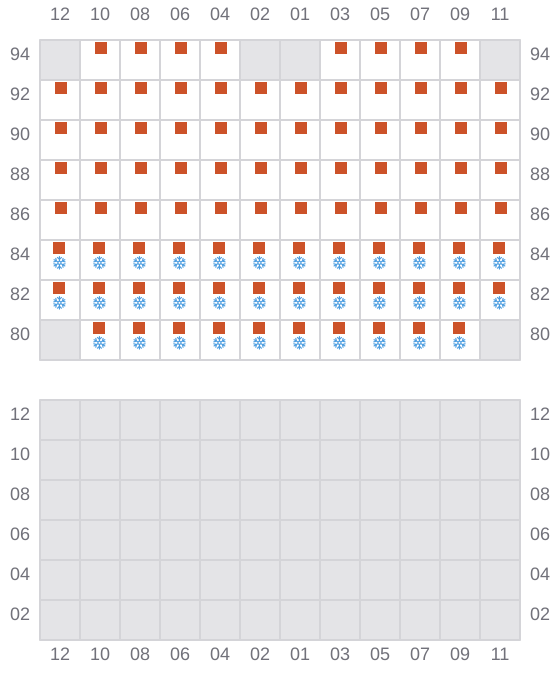

039
- ← / ?
![Bay 039 view and slots of HMM MONGLA](/vessel-images/36bfe437-642f-4d19-b622-bad39158776b-b039.png?v=1719942329291)
