HMM OSLO
9868326 | D7JW | HMM by *********************** Last update: Thu Feb 13 2025

General Info

Ship Name:HMM OSLO
IMO Code:9868326
Call Sign:D7JW
Line Operator:HMM
Class Name for Sister Ships:HHOS
Year Built:2020
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:093
Max ISO Row:24
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:68
Max Below ISO Tier:24
Min Below ISO Tier:02
Total TEU:23,772

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of HMM OSLO

Hatch-Covers View

Deck view of HMM OSLO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • →
Bay 001 view and slots of HMM OSLO

003

  • ←
  • →
Bay 003 view and slots of HMM OSLO

005 (006)

  • →
  • →

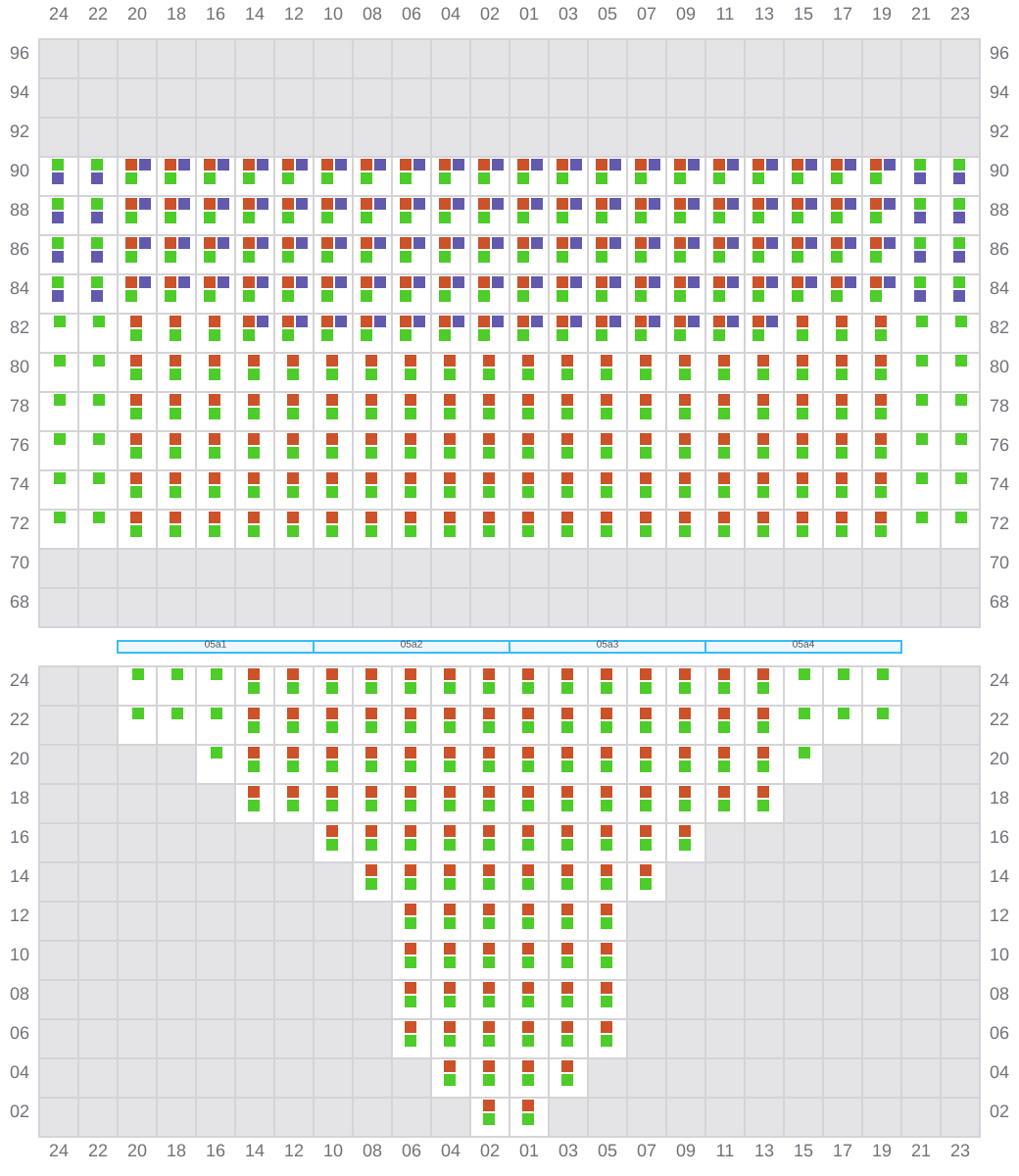

Bay 005 view and slots of HMM OSLO

007

  • ←
  • →

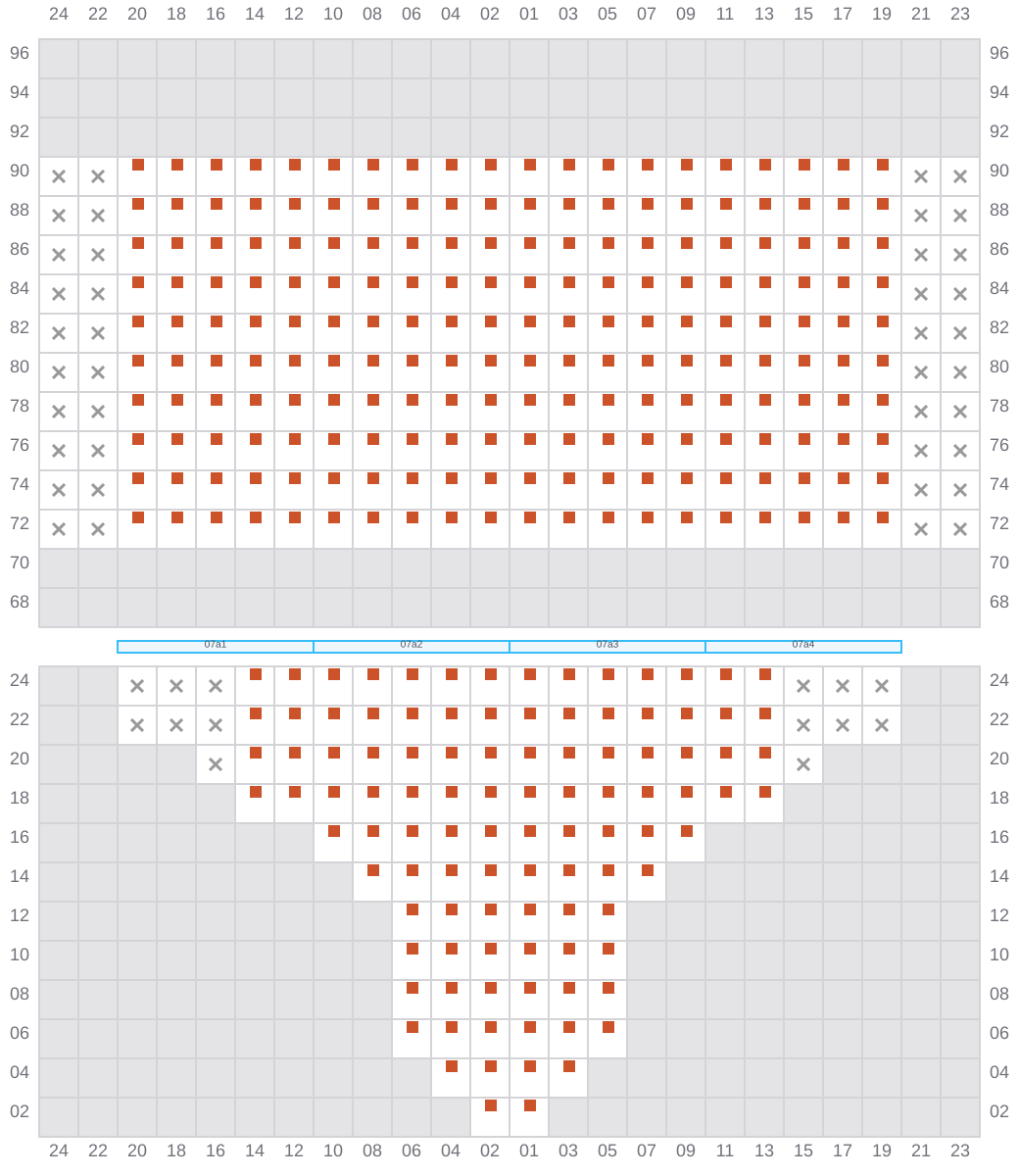

Bay 007 view and slots of HMM OSLO

009 (010)

  • →
  • → / ?
  • →
Bay 009 view and slots of HMM OSLO

011

  • ←
  • → / ?
  • →
Bay 011 view and slots of HMM OSLO

013 (014)

  • →
  • → / ?
  • →

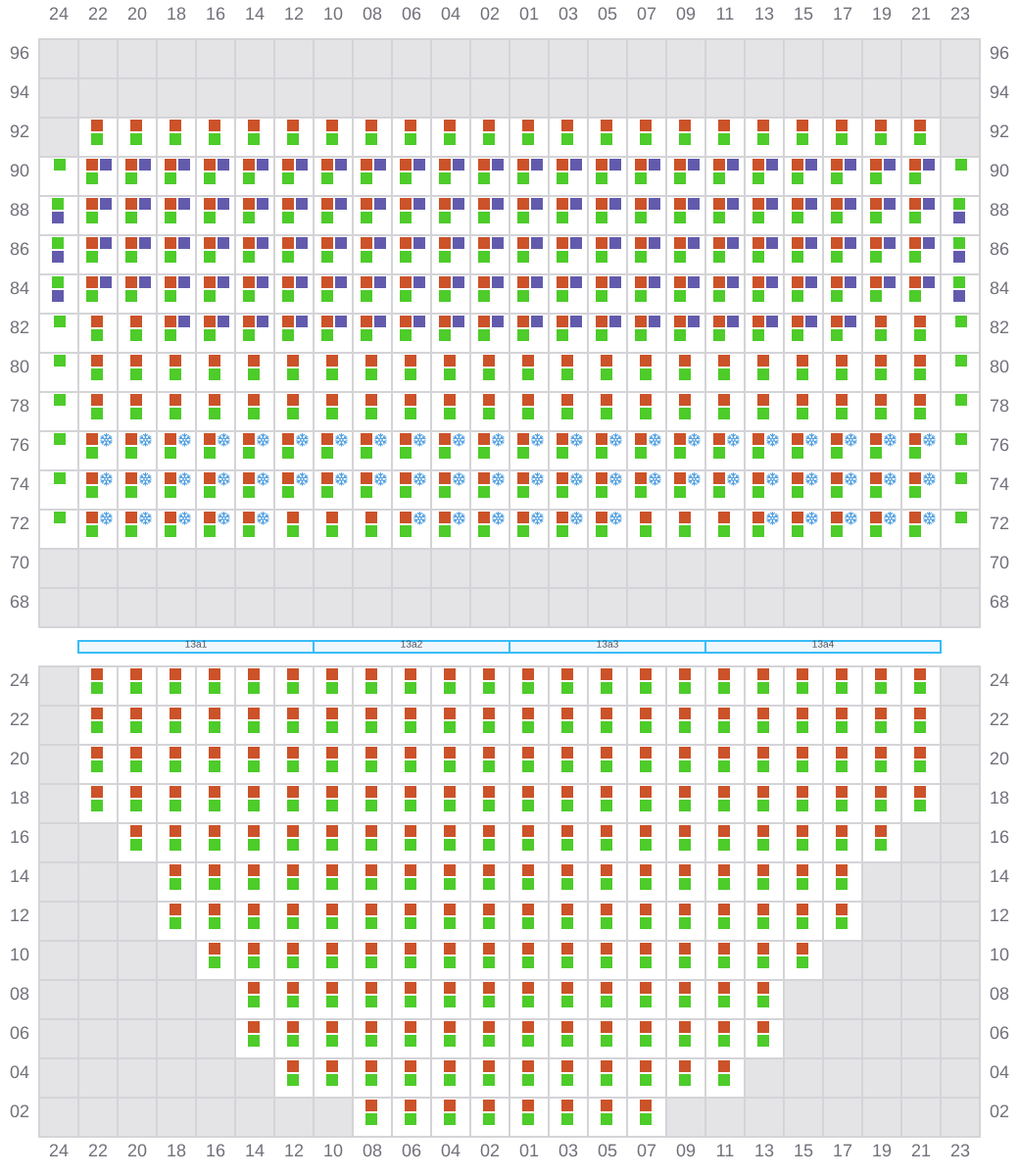

Bay 013 view and slots of HMM OSLO

015

  • ←
  • → / ?
  • →

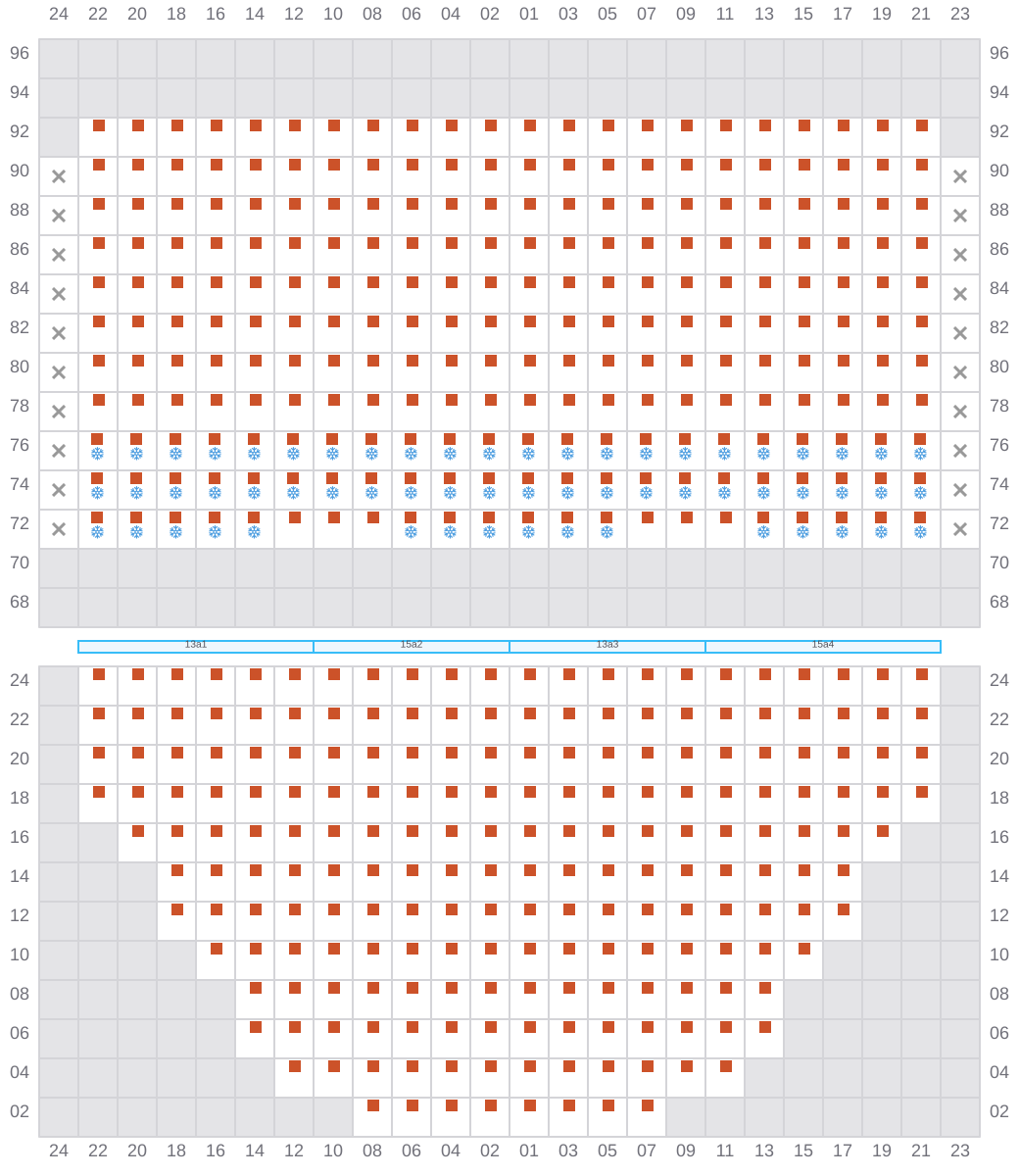

Bay 015 view and slots of HMM OSLO

017 (018)

  • →
  • → / ?
  • →
Bay 017 view and slots of HMM OSLO

019

  • ←
  • → / ?
  • →

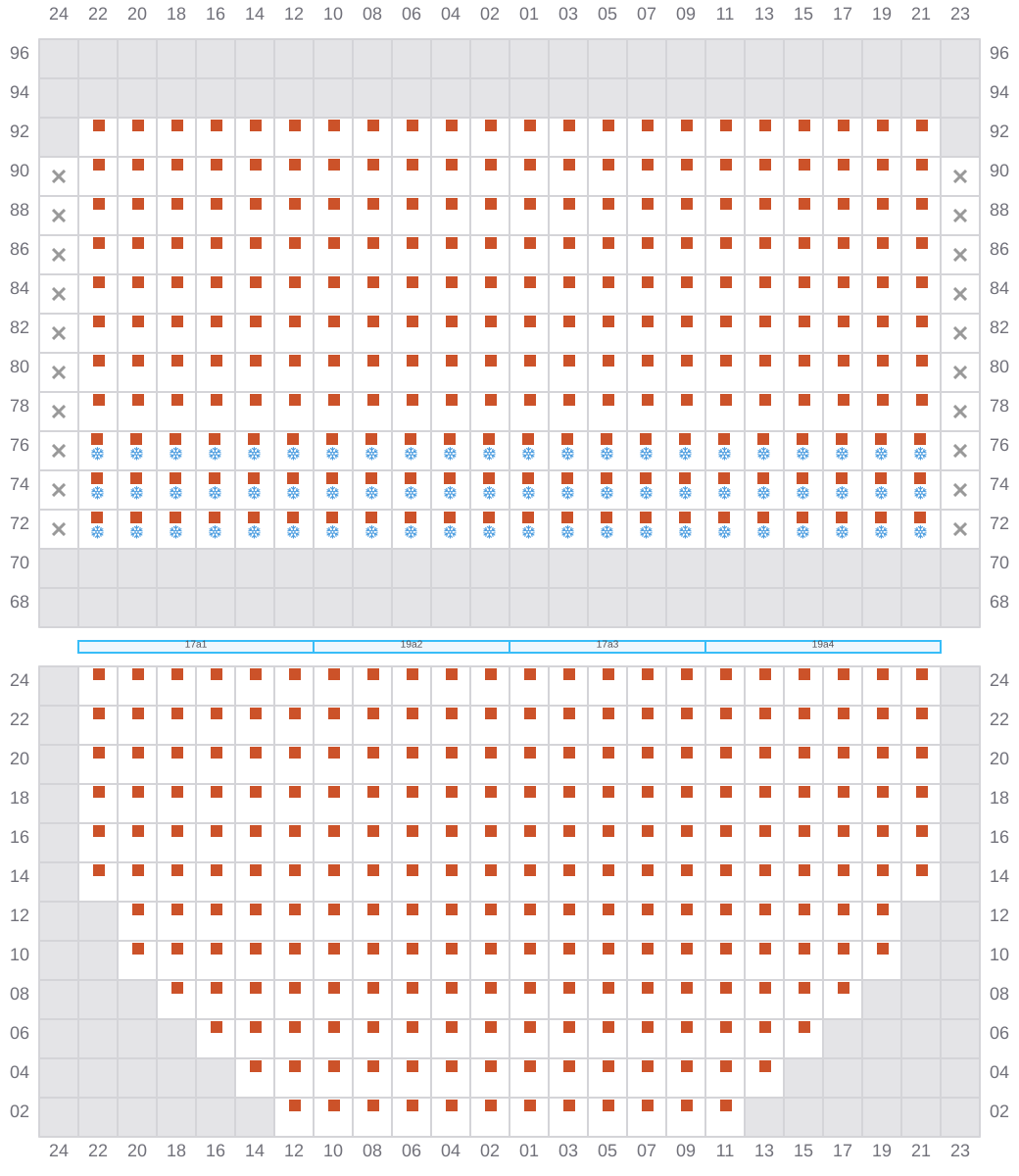

Bay 019 view and slots of HMM OSLO

021 (022)

  • →
  • → / ?
  • →
Bay 021 view and slots of HMM OSLO

023

  • ←
  • → / ?
  • →
Bay 023 view and slots of HMM OSLO

025 (026)

  • →
  • → / ?
  • →

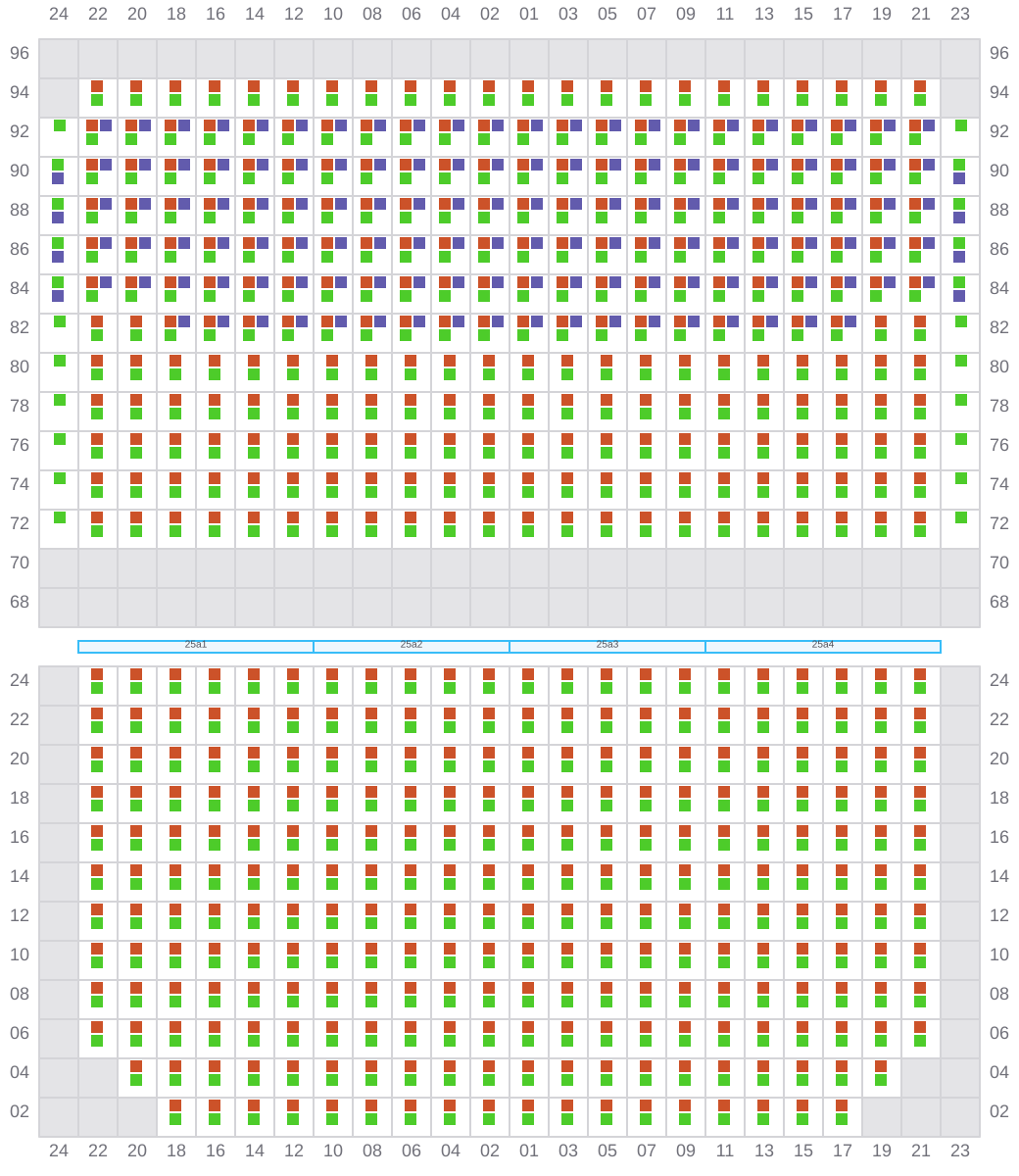

Bay 025 view and slots of HMM OSLO

027

  • ←
  • → / ?
  • →
Bay 027 view and slots of HMM OSLO

029 (030)

  • →
  • → / ?
  • →
Bay 029 view and slots of HMM OSLO

031

  • ←
  • → / ?
  • →
Bay 031 view and slots of HMM OSLO

033 (034)

  • →
  • → / ?
  • →
Bay 033 view and slots of HMM OSLO

035

  • ←
  • → / ?
  • →

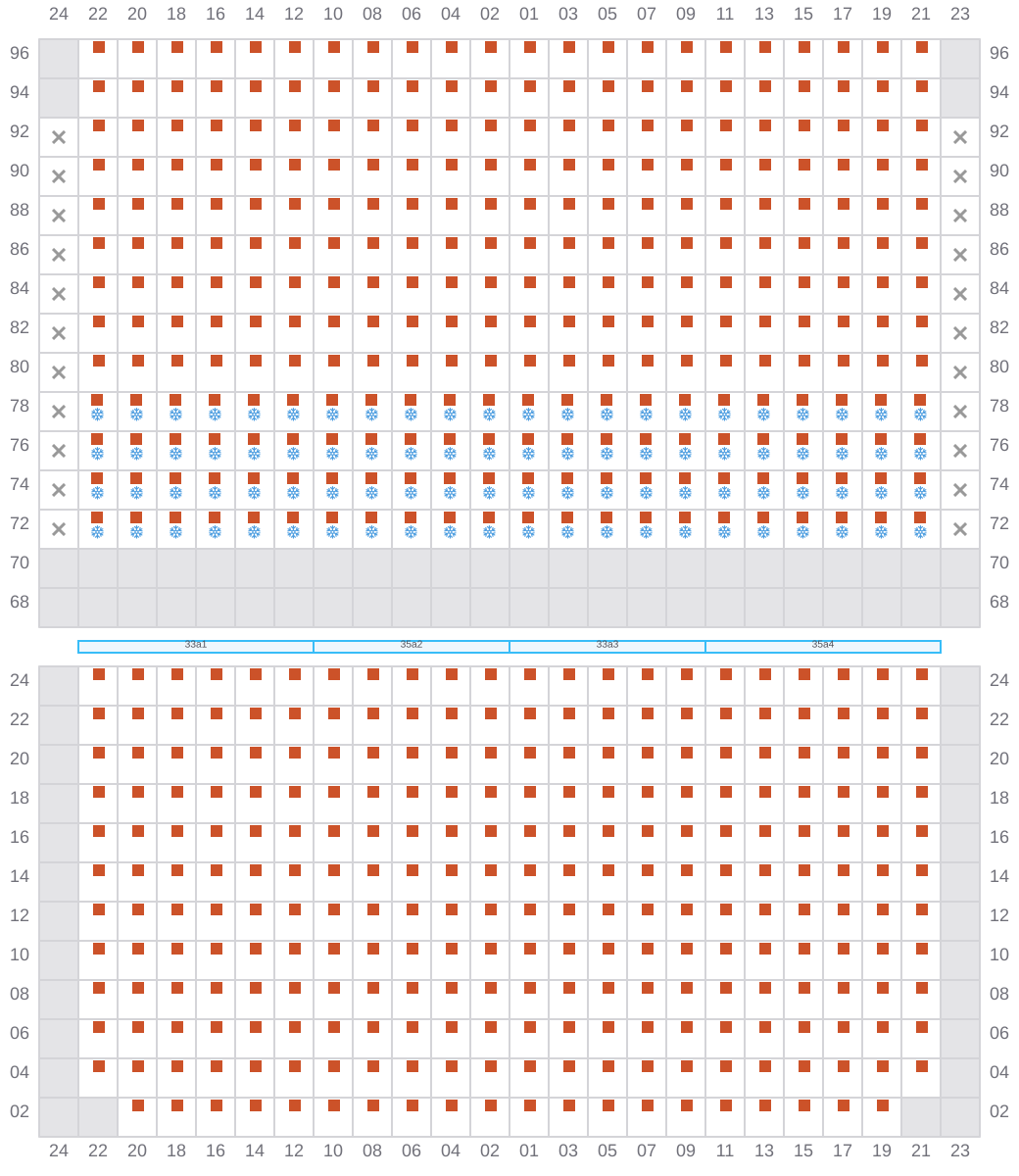

Bay 035 view and slots of HMM OSLO

037 (038)

  • →
  • → / ?
  • →
Bay 037 view and slots of HMM OSLO

039

  • ←
  • → / ?
  • →
Bay 039 view and slots of HMM OSLO

041 (042)

  • →
  • → / ?
  • →
Bay 041 view and slots of HMM OSLO

043

  • ←
  • → / ?
  • →
Bay 043 view and slots of HMM OSLO

045 (046)

  • →
  • → / ?
  • →
Bay 045 view and slots of HMM OSLO

047

  • ←
  • → / ?
  • →

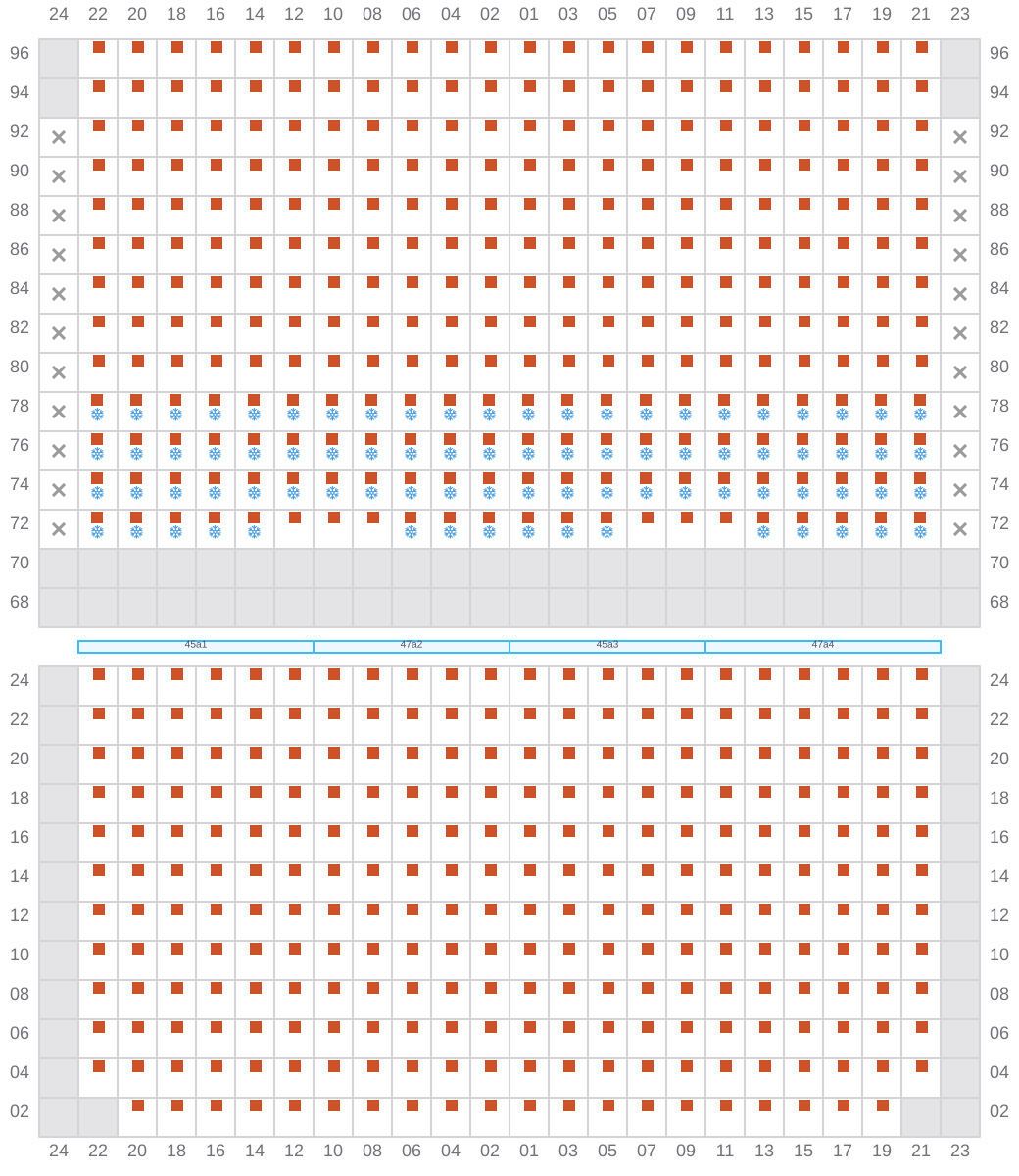

Bay 047 view and slots of HMM OSLO

049 (050)

  • →
  • → / ?
  • →
Bay 049 view and slots of HMM OSLO

051

  • ←
  • → / ?
  • →
Bay 051 view and slots of HMM OSLO

053 (054)

  • →
  • → / ?
  • →
Bay 053 view and slots of HMM OSLO

055

  • ←
  • → / ?
  • →
Bay 055 view and slots of HMM OSLO

057 (058)

  • →
  • → / ?
  • →
Bay 057 view and slots of HMM OSLO

059

  • ←
  • → / ?
  • →
Bay 059 view and slots of HMM OSLO

061 (062)

  • →
  • → / ?
  • →
Bay 061 view and slots of HMM OSLO

063

  • ←
  • → / ?
  • →

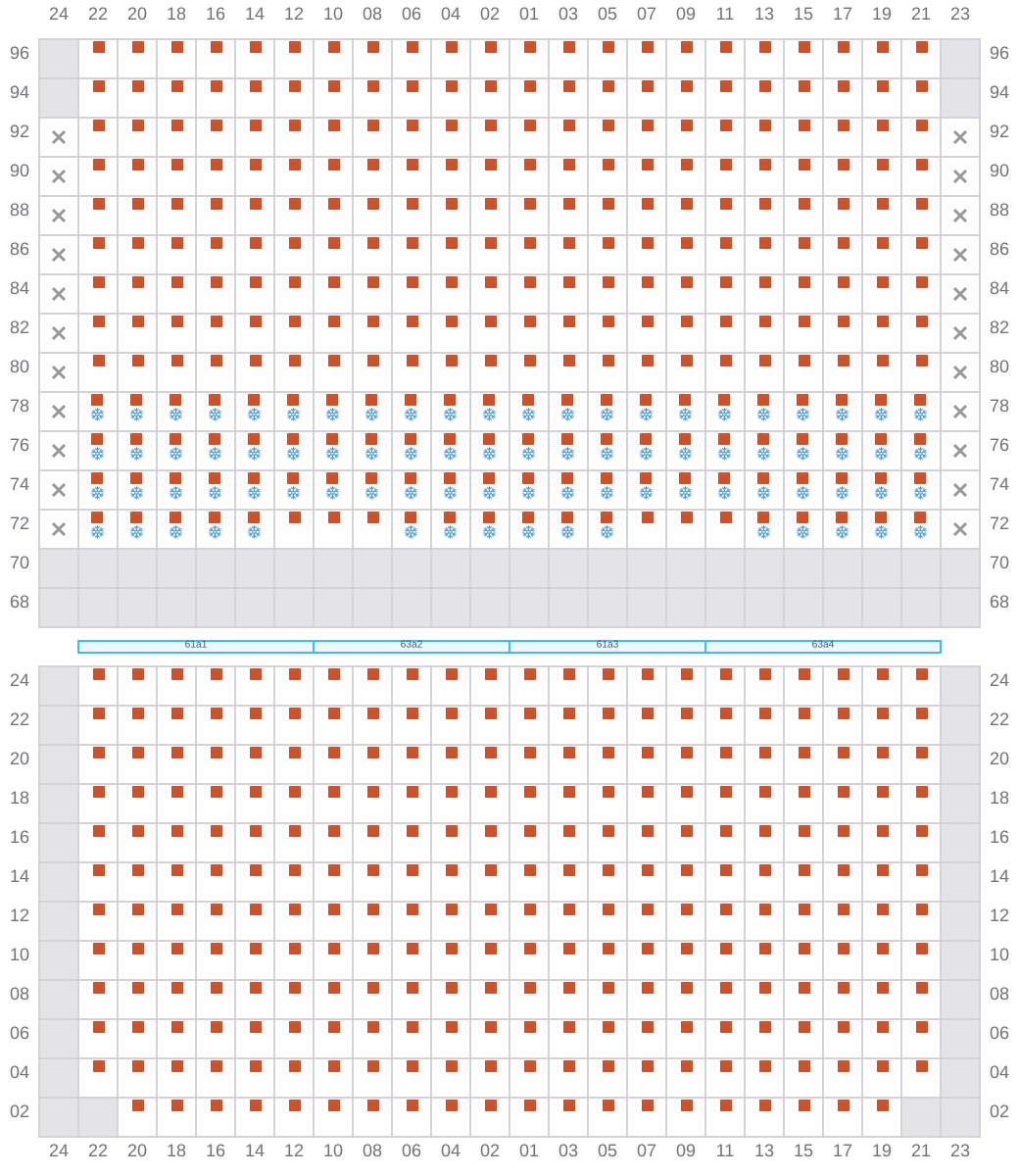

Bay 063 view and slots of HMM OSLO

065 (066)

  • →
  • → / ?
  • →

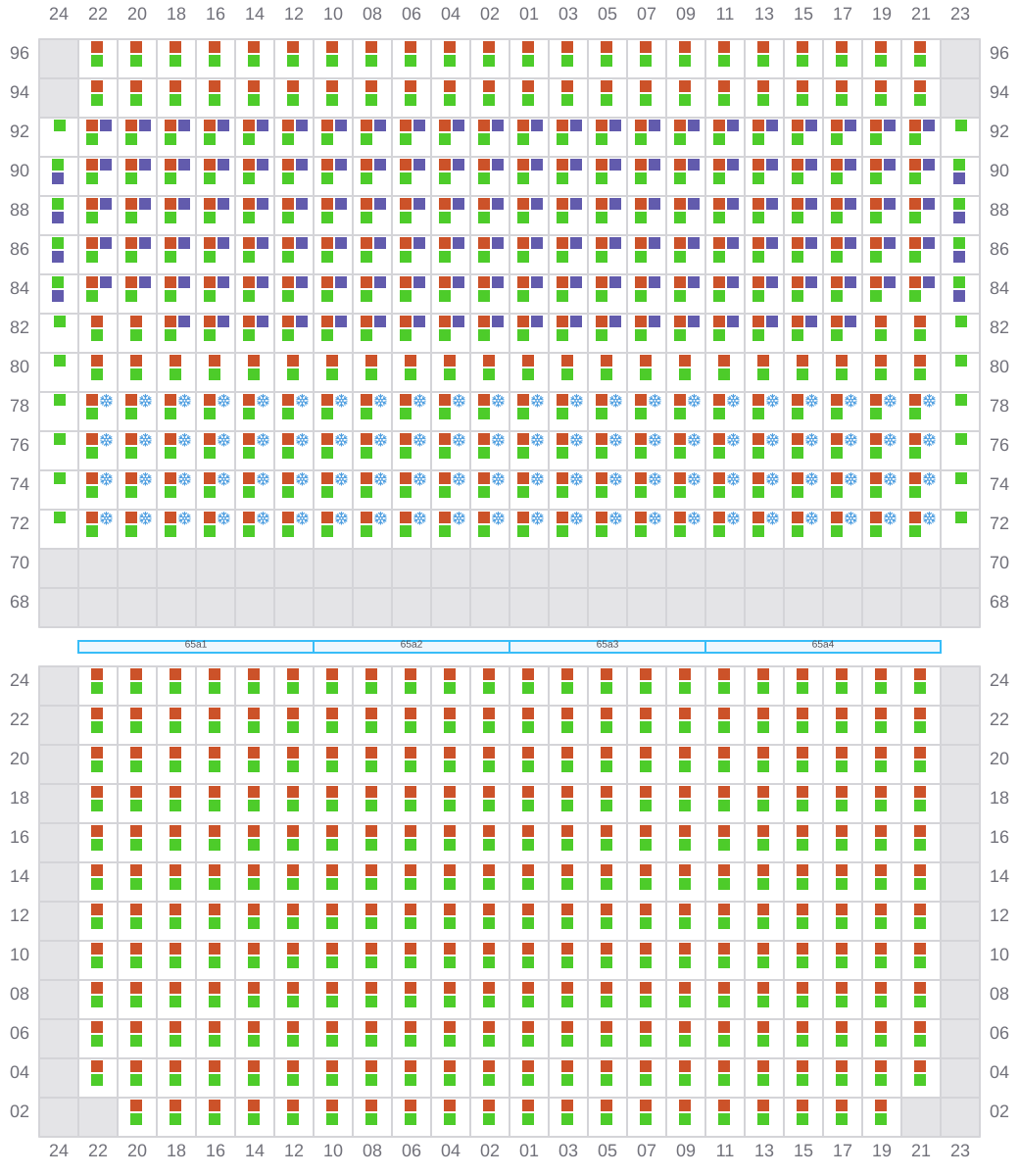

Bay 065 view and slots of HMM OSLO

067

  • ←
  • → / ?
  • →
Bay 067 view and slots of HMM OSLO

069 (070)

  • →
  • → / ?
  • →

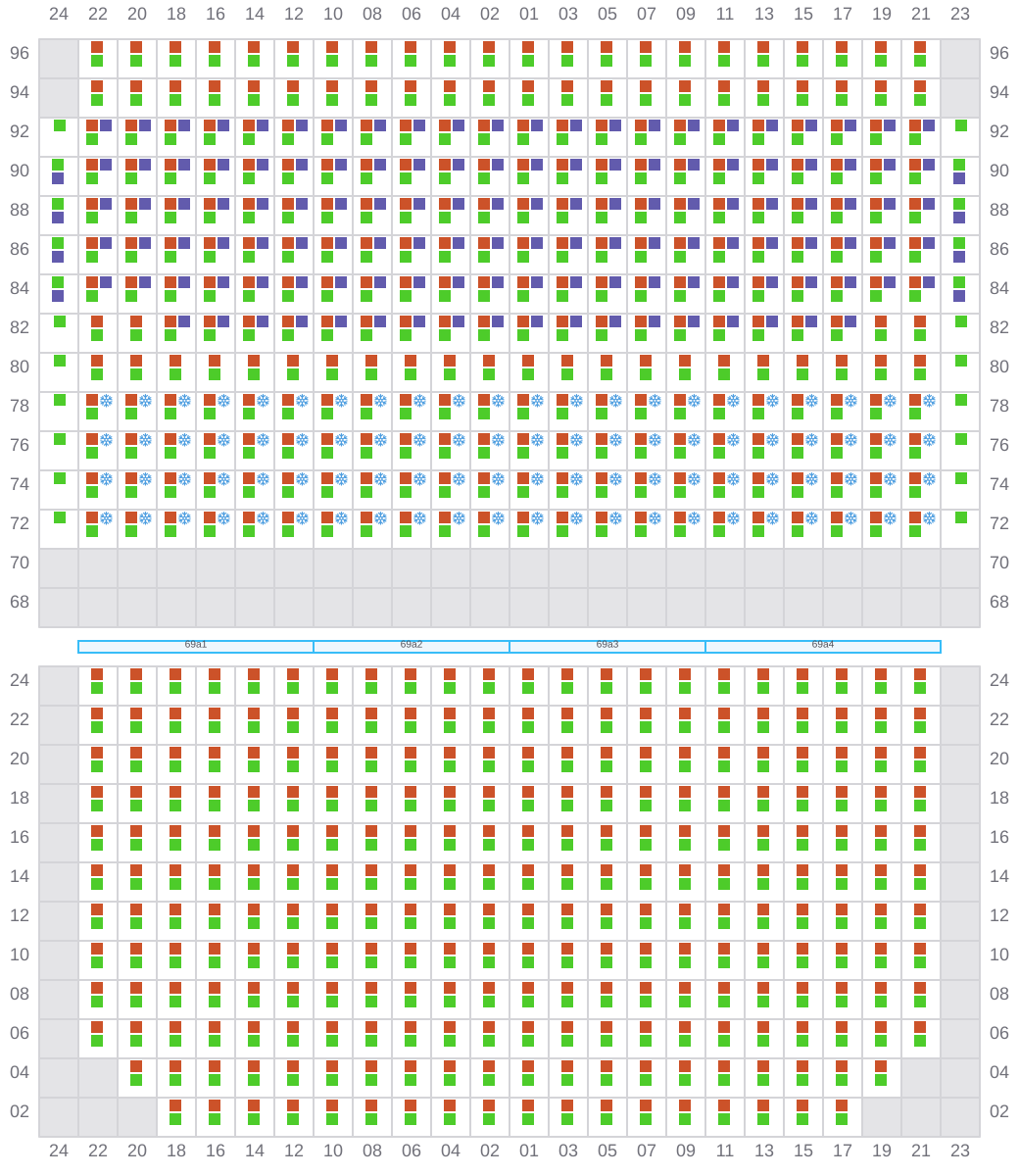

Bay 069 view and slots of HMM OSLO

071

  • ←
  • → / ?
  • →
Bay 071 view and slots of HMM OSLO

073 (074)

  • →
  • → / ?
  • →

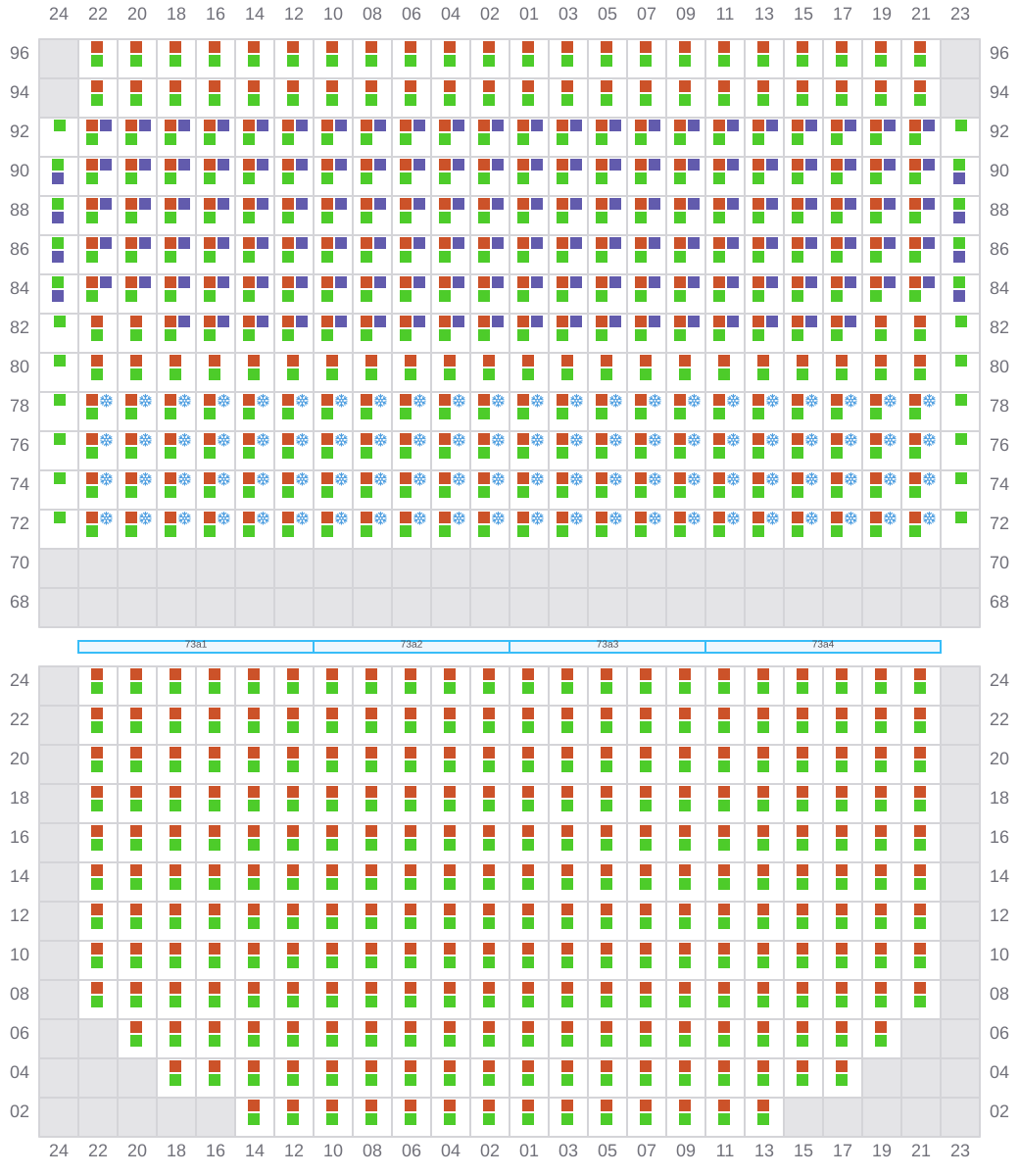

Bay 073 view and slots of HMM OSLO

075

  • ←
  • → / ?
  • →

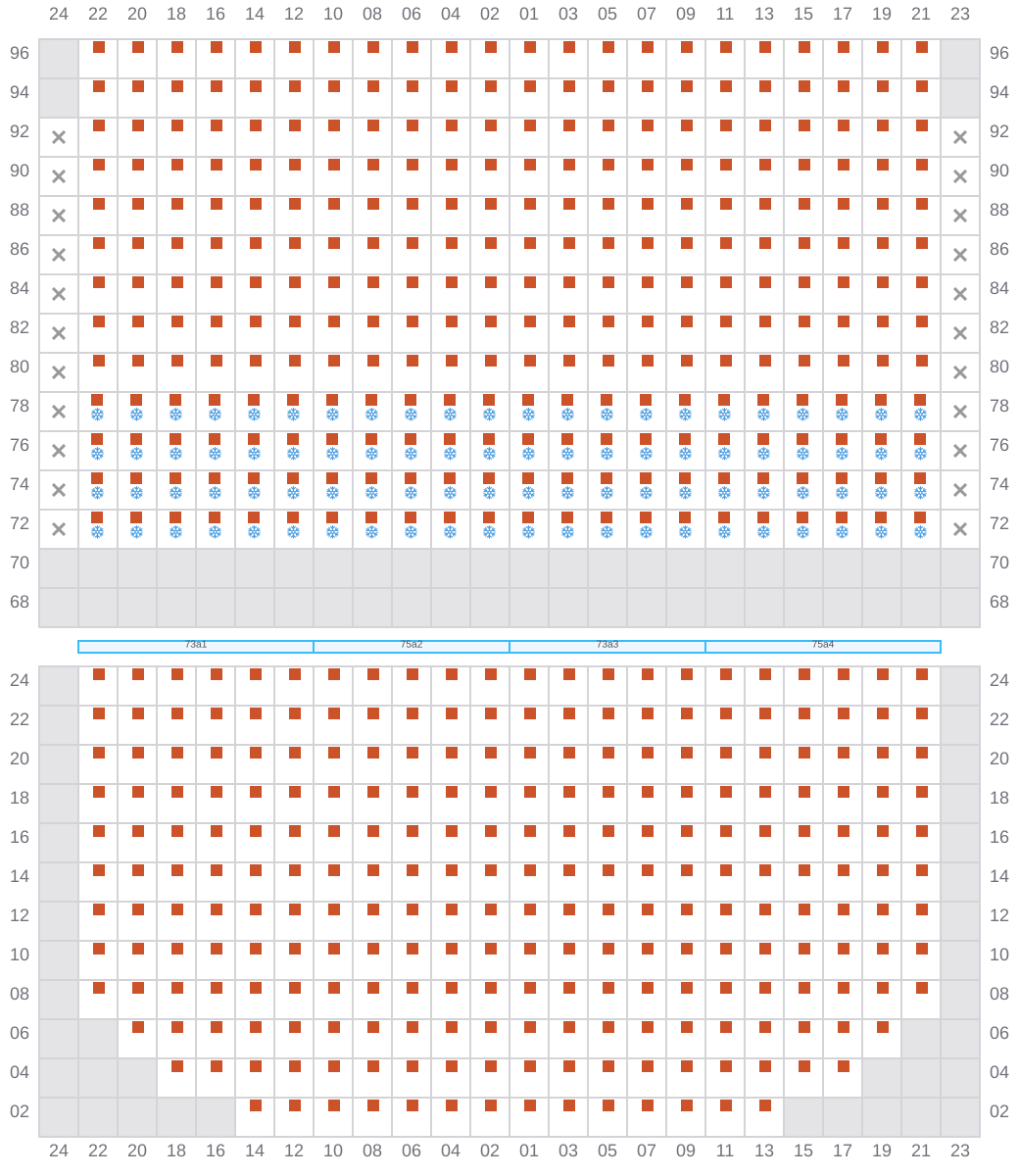

Bay 075 view and slots of HMM OSLO

077 (078)

  • →
  • → / ?
  • →
Bay 077 view and slots of HMM OSLO

079

  • ←
  • → / ?
  • →
Bay 079 view and slots of HMM OSLO

081 (082)

  • →
  • → / ?
  • →
Bay 081 view and slots of HMM OSLO

083

  • ←
  • → / ?
  • →

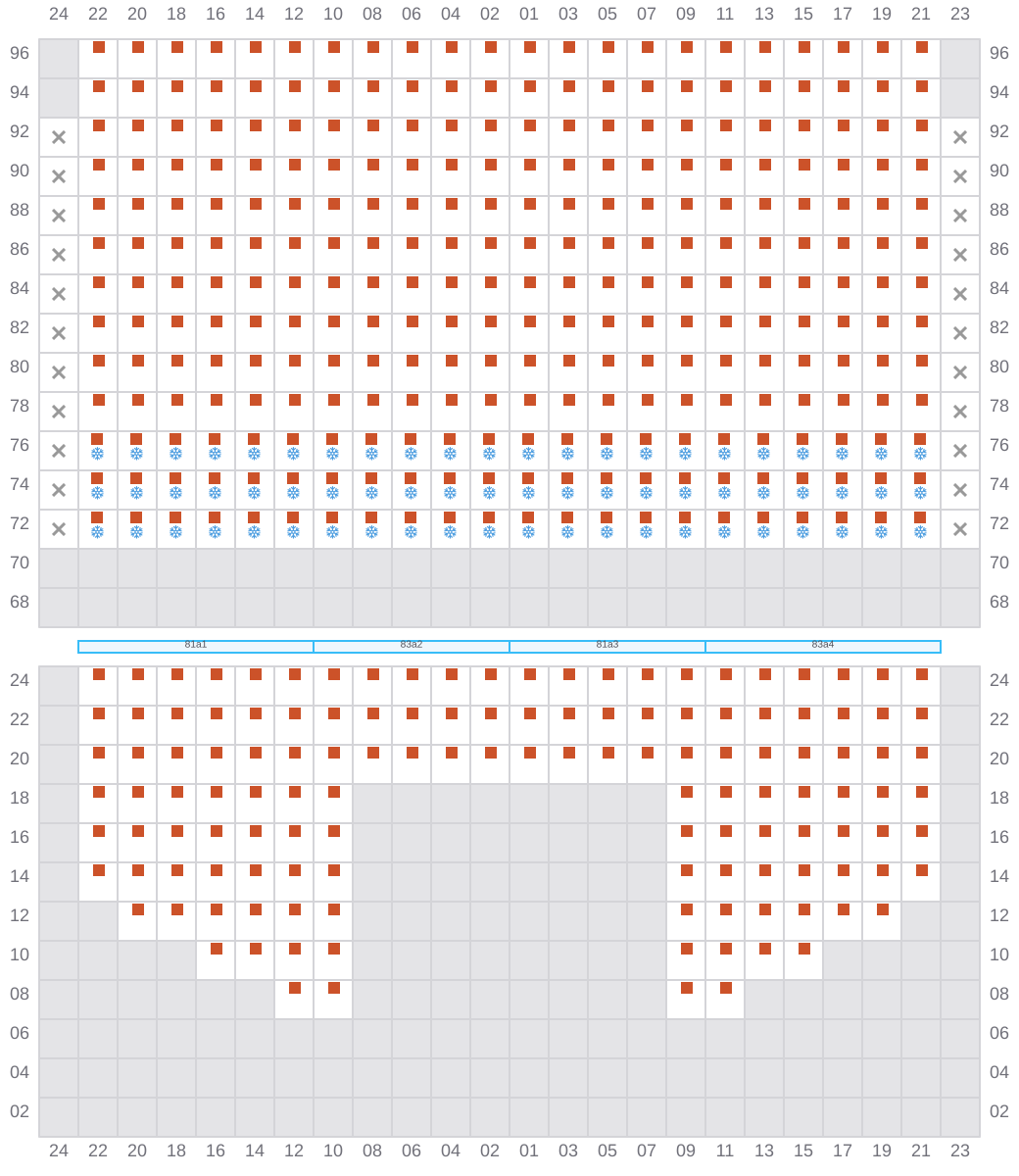

Bay 083 view and slots of HMM OSLO

085 (086)

  • →
  • → / ?
  • →
Bay 085 view and slots of HMM OSLO

087

  • ←
  • → / ?
  • →
Bay 087 view and slots of HMM OSLO

089 (090)

  • →
  • → / ?
  • →
Bay 089 view and slots of HMM OSLO

091

  • ←
  • → / ?
  • →

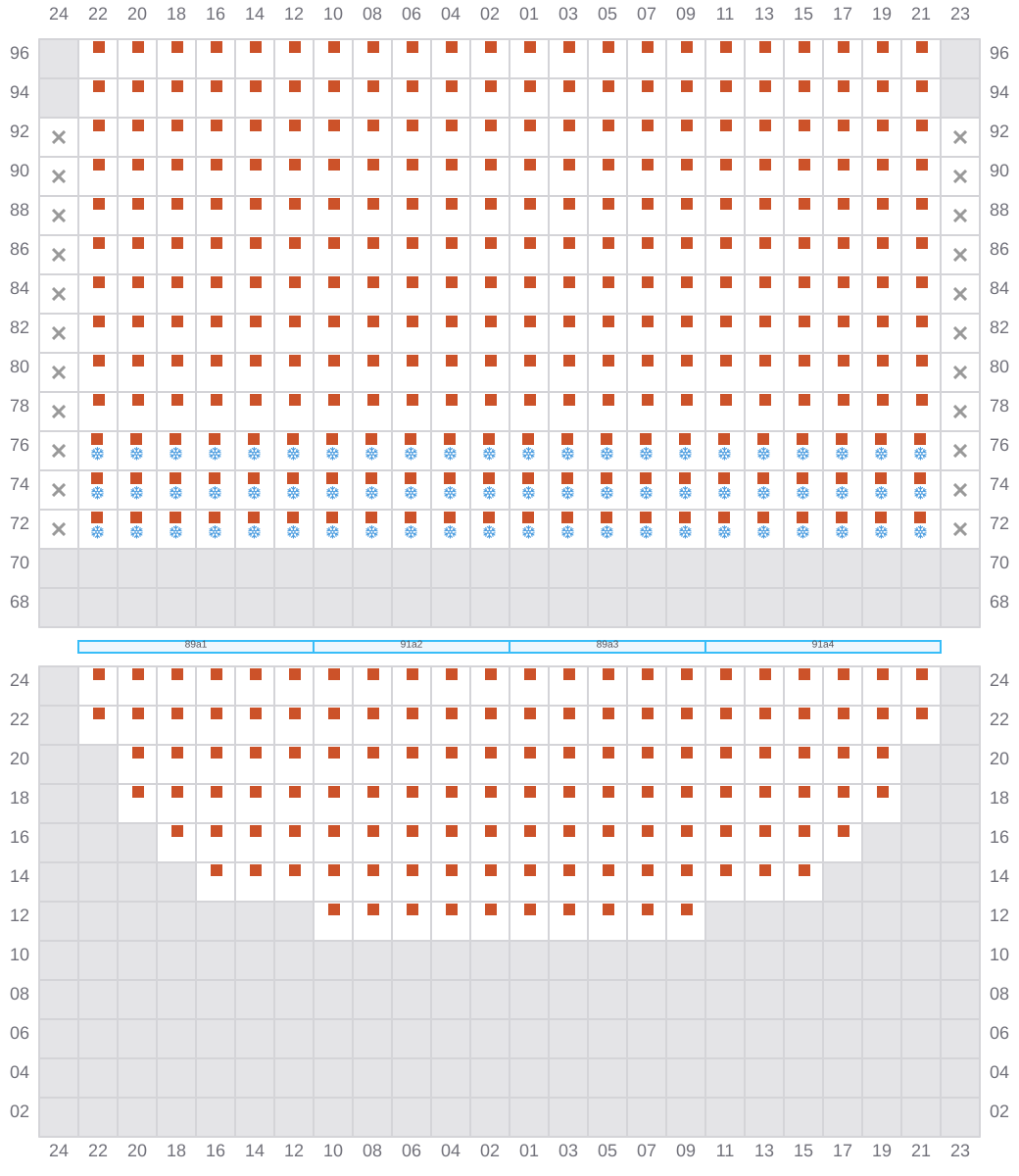

Bay 091 view and slots of HMM OSLO

093 (094)

  • → / ?
  • → / ?
  • → / ?
Bay 093 view and slots of HMM OSLO
