HMM PEARL
9944508 | 5LRX9 | HMM CO LTD by ************** Last update: Wed Sep 02 2026

General Info

Ship Name:HMM PEARL

IMO Code:9944508

Call Sign:5LRX9

Line Operator:HMM CO LTD

Class Name for Sister Ships:PEARL

Year Built:2024

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):320.00

LOA (Length Overall):335.07

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:079

Max ISO Row:20

Center Line Row:No

Max Above ISO Tier:96

Min Above ISO Tier:72

Max Below ISO Tier:20

Min Below ISO Tier:02

Total TEU:13,816

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

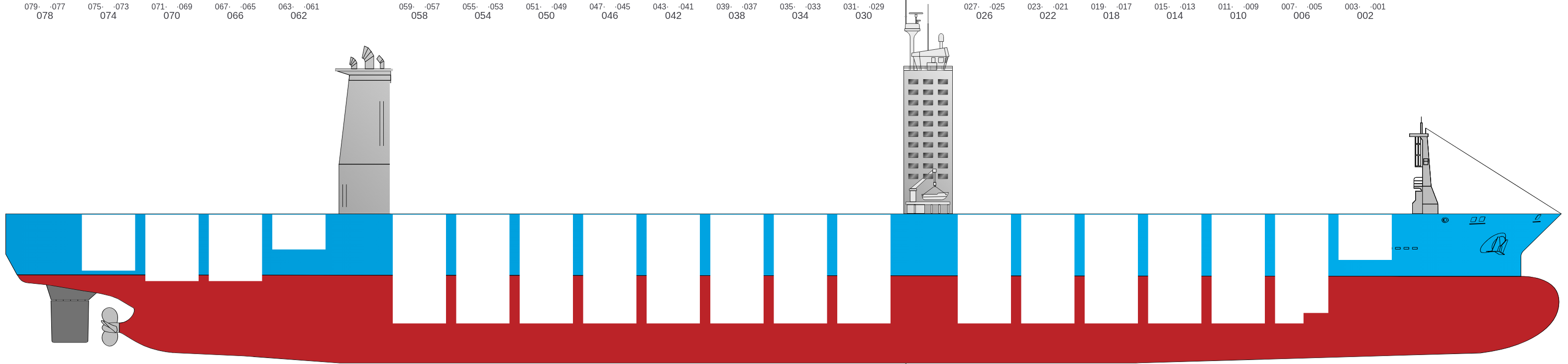

Side view of HMM PEARL

Hatch-Covers View

Deck view of HMM PEARL

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001

→
→
→
✓

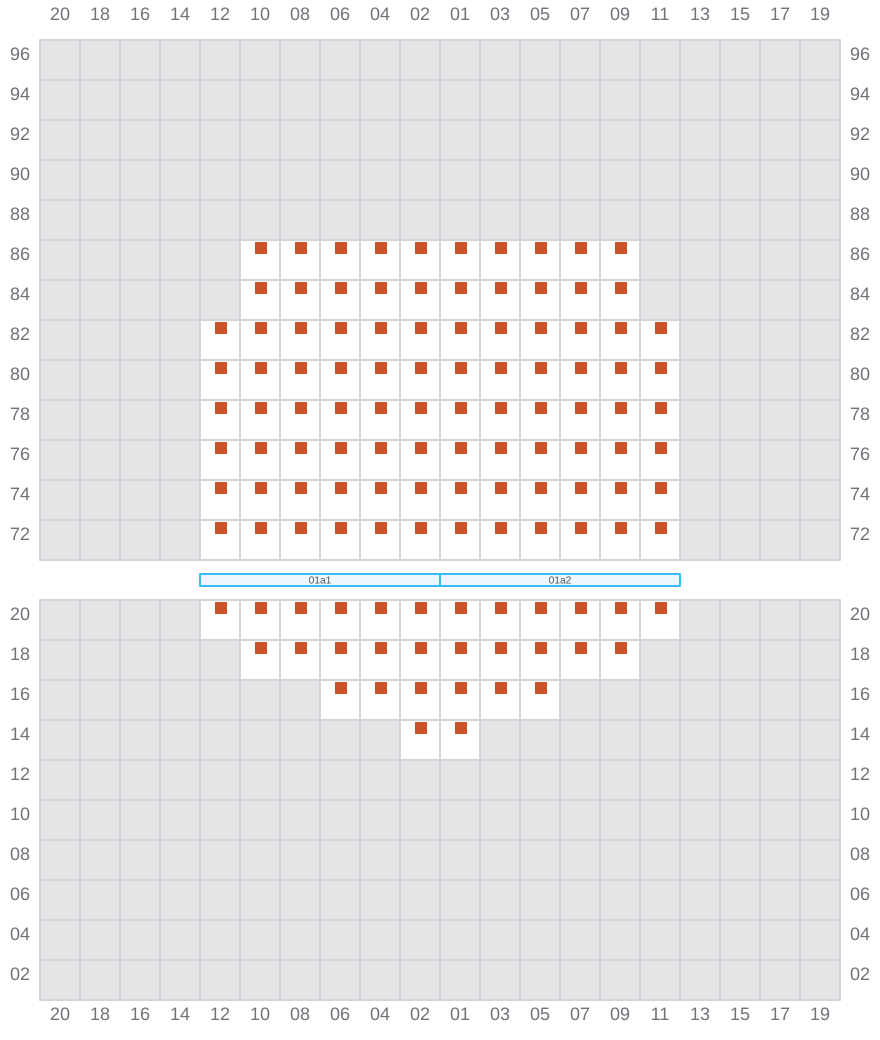

Bay 001 view and slots of HMM PEARL

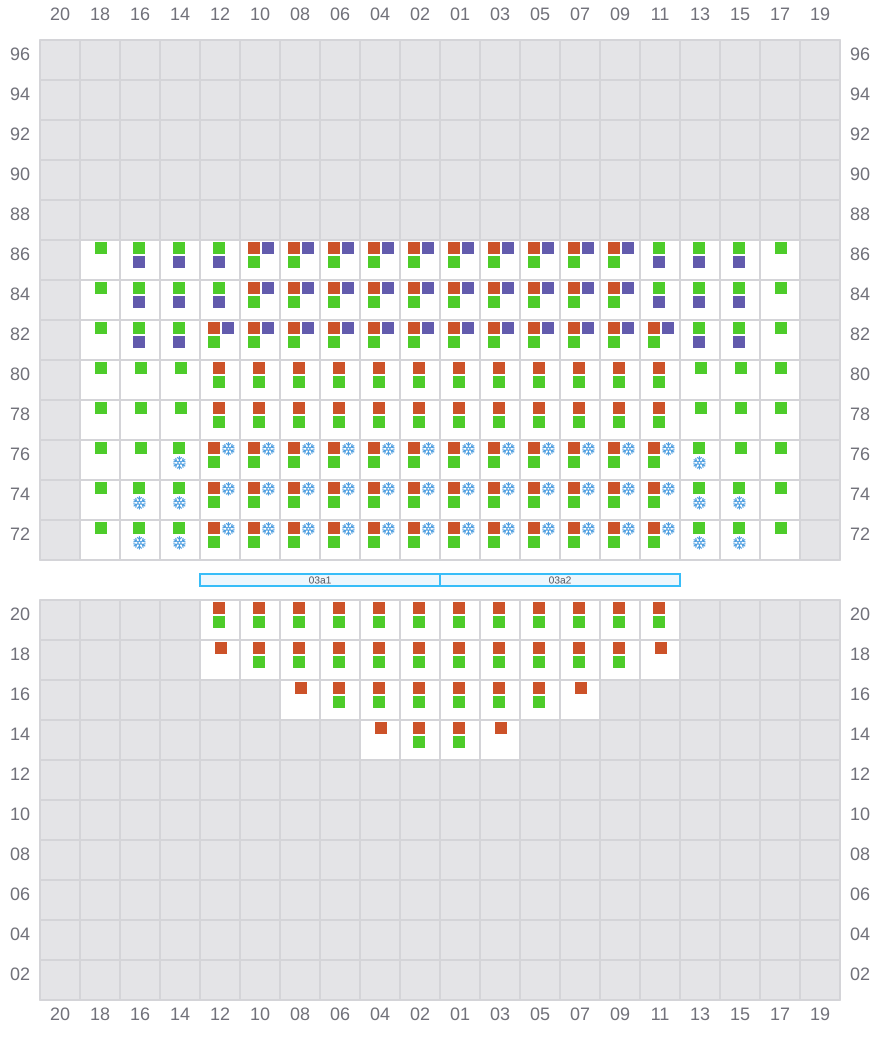

003 (002)

←
→
→
✓

Bay 003 view and slots of HMM PEARL

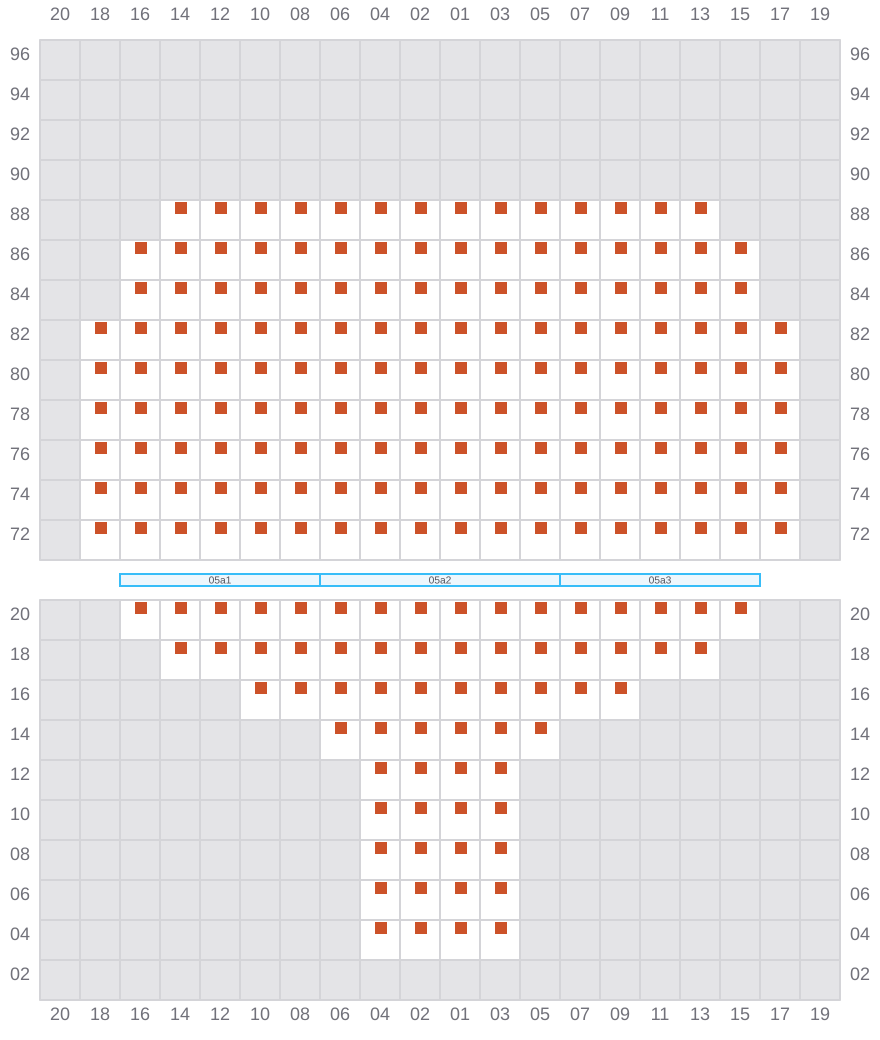

005

→
→
→
✓

Bay 005 view and slots of HMM PEARL

007 (006)

←
→
→
✓

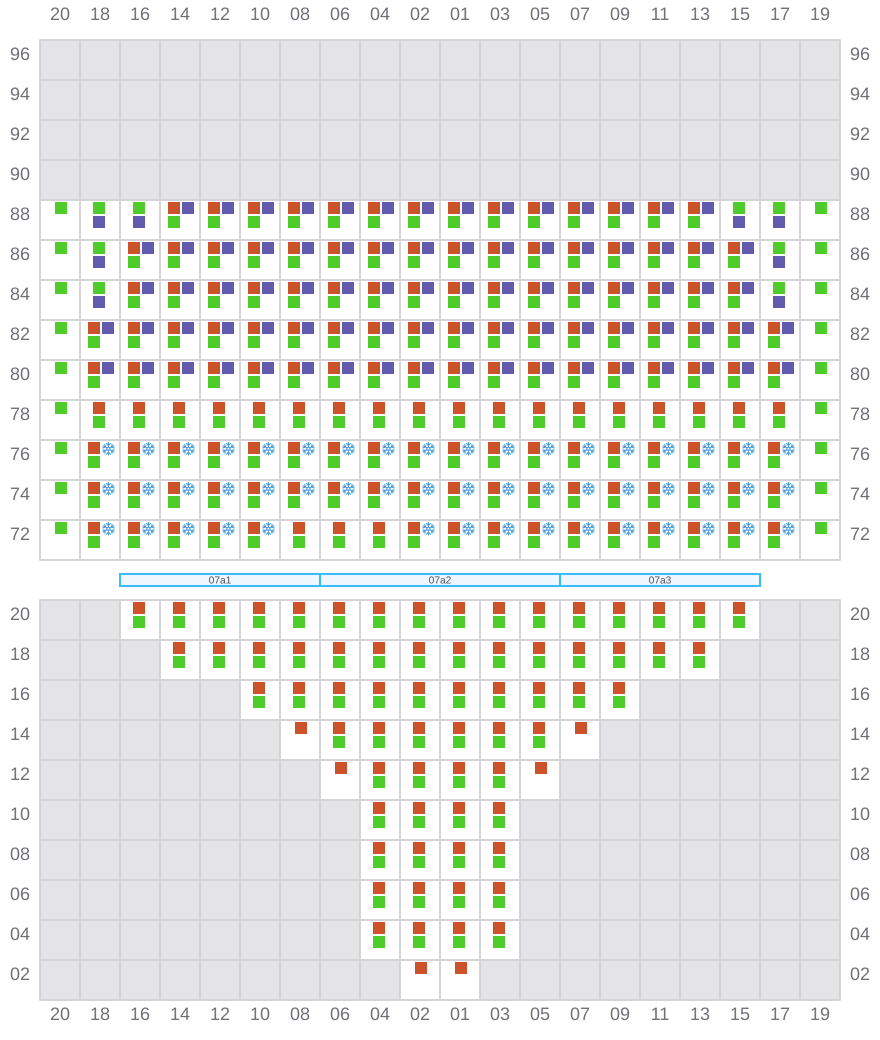

Bay 007 view and slots of HMM PEARL

009

→
→
→
✓

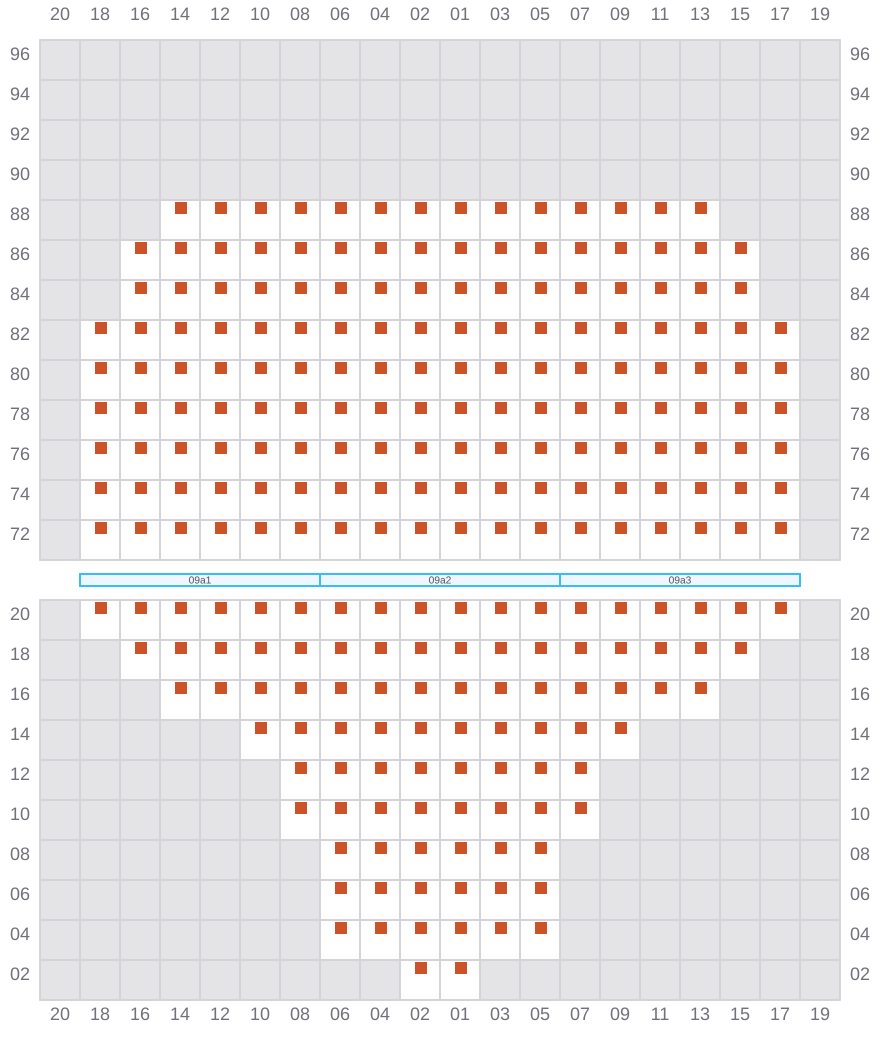

Bay 009 view and slots of HMM PEARL

011 (010)

←
→
→
✓

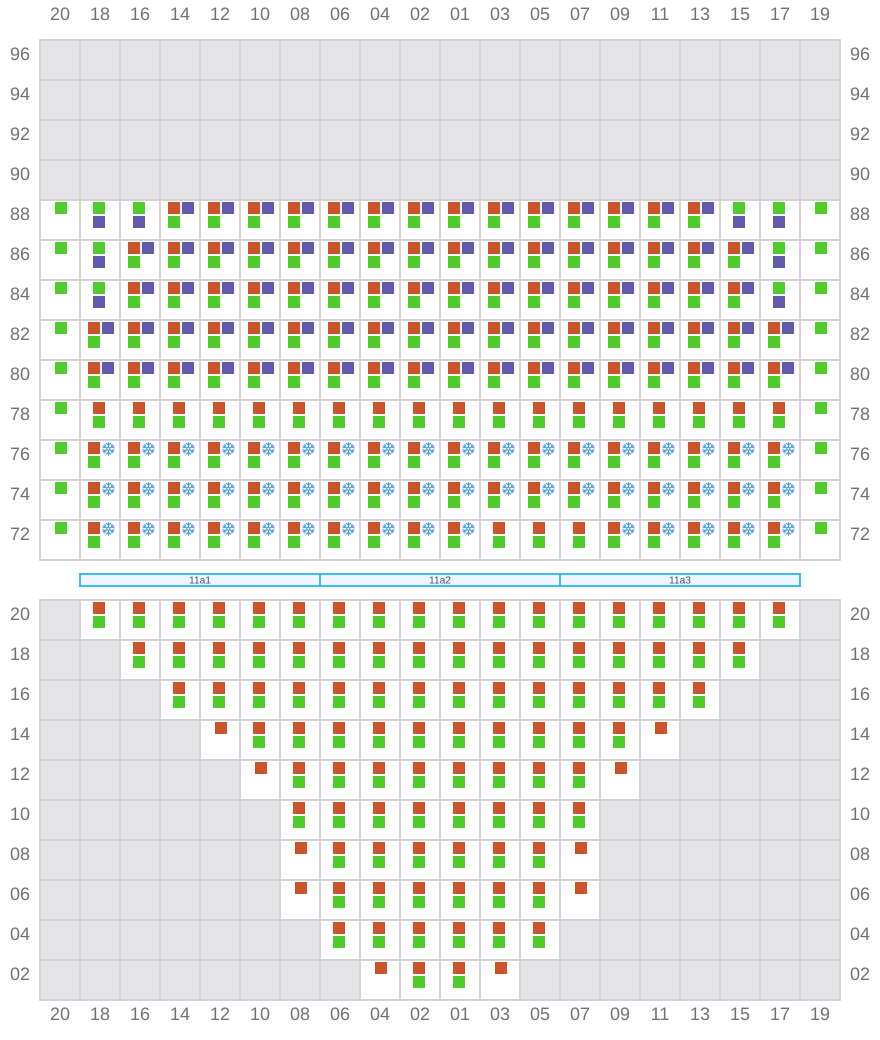

Bay 011 view and slots of HMM PEARL

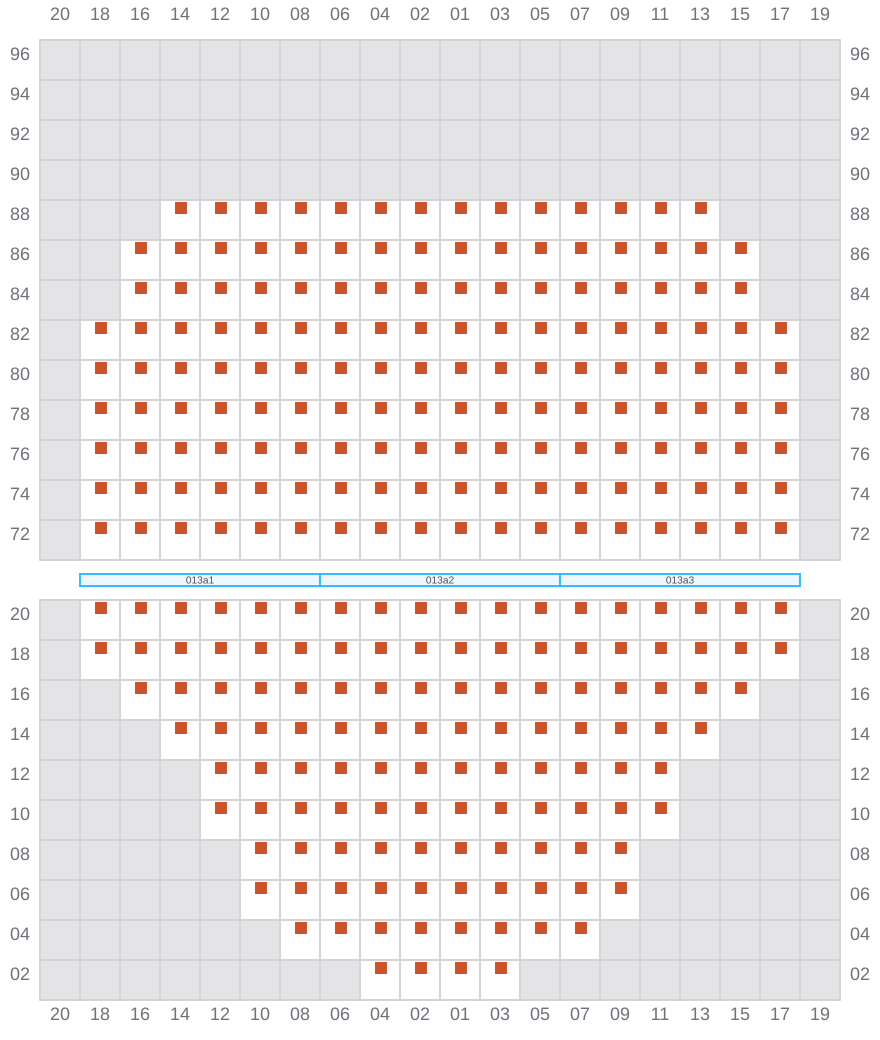

013

→
→
→
✓

Bay 013 view and slots of HMM PEARL

015 (014)

←
→
→
✓

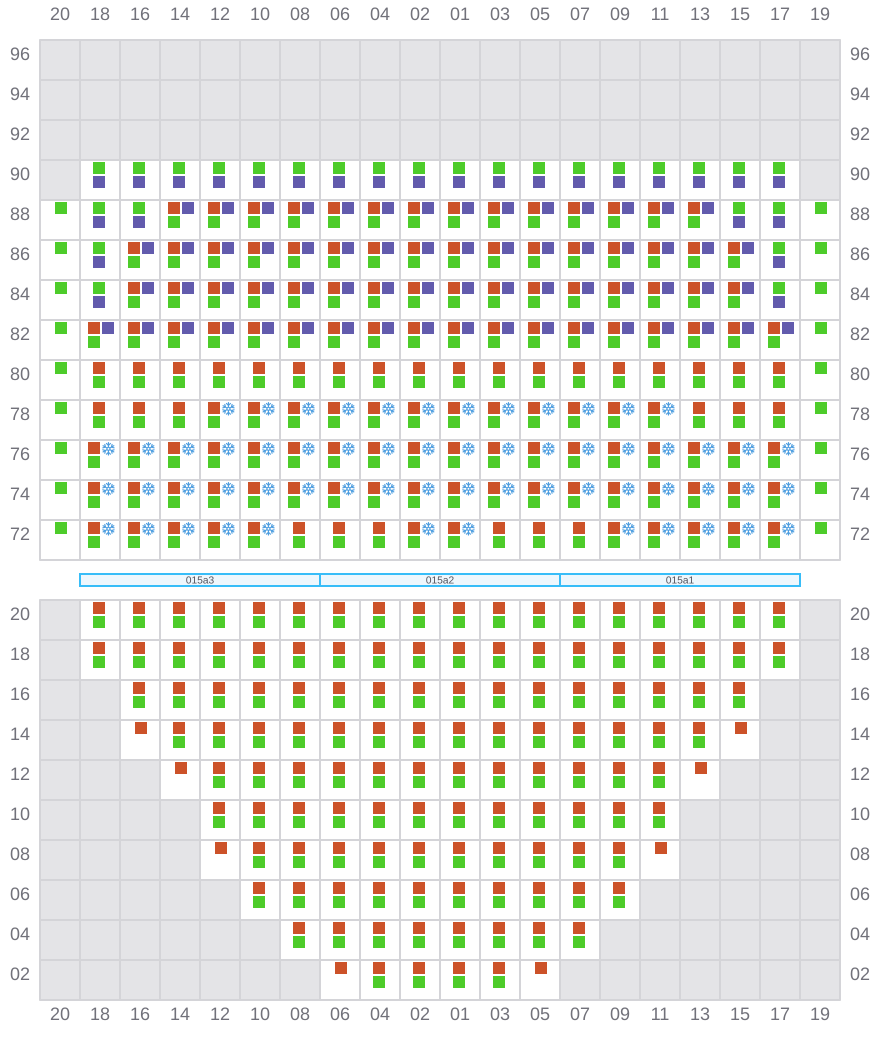

Bay 015 view and slots of HMM PEARL

017

→
→
→
✓

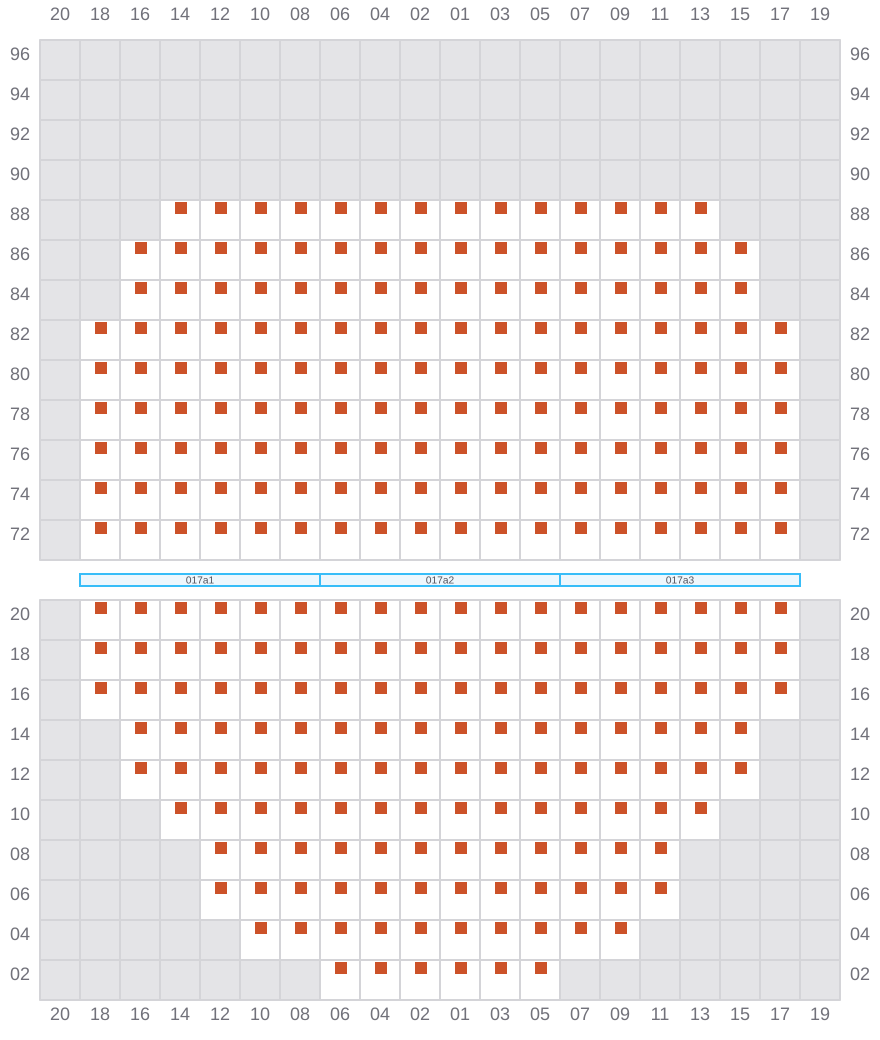

Bay 017 view and slots of HMM PEARL

019 (018)

←
→
→
✓

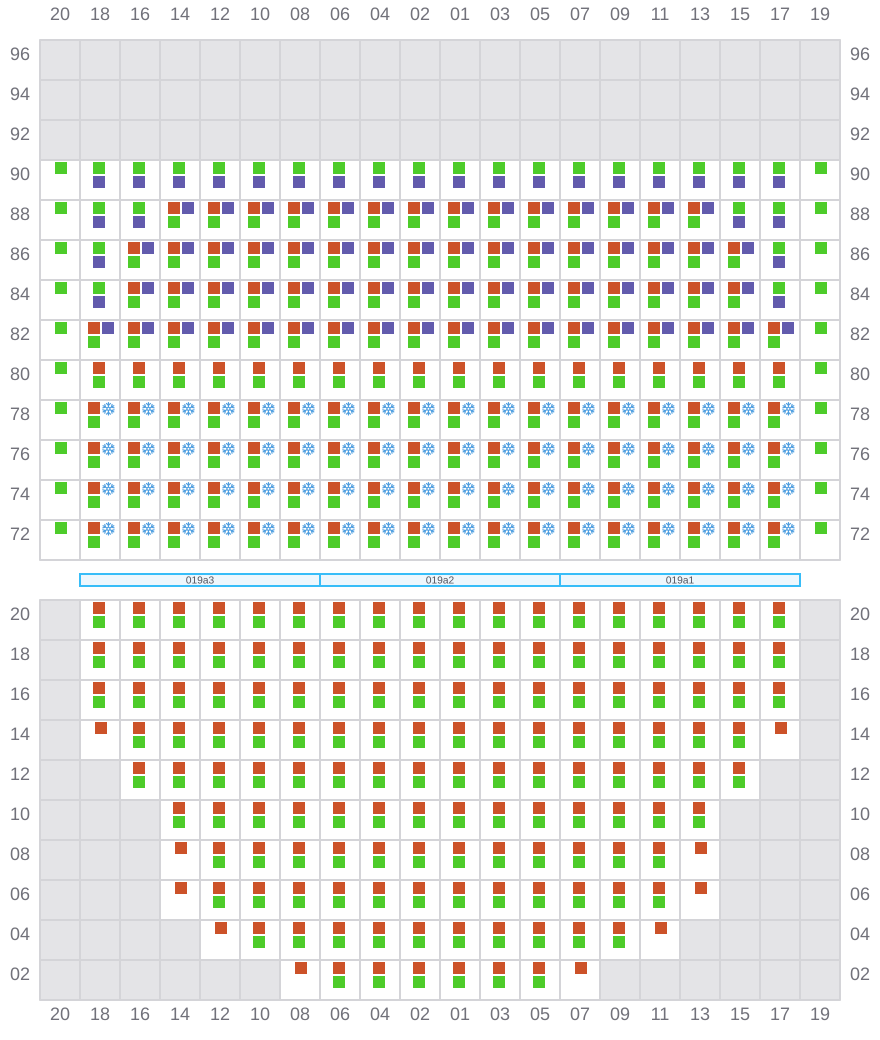

Bay 019 view and slots of HMM PEARL

021

→
→
→
✓

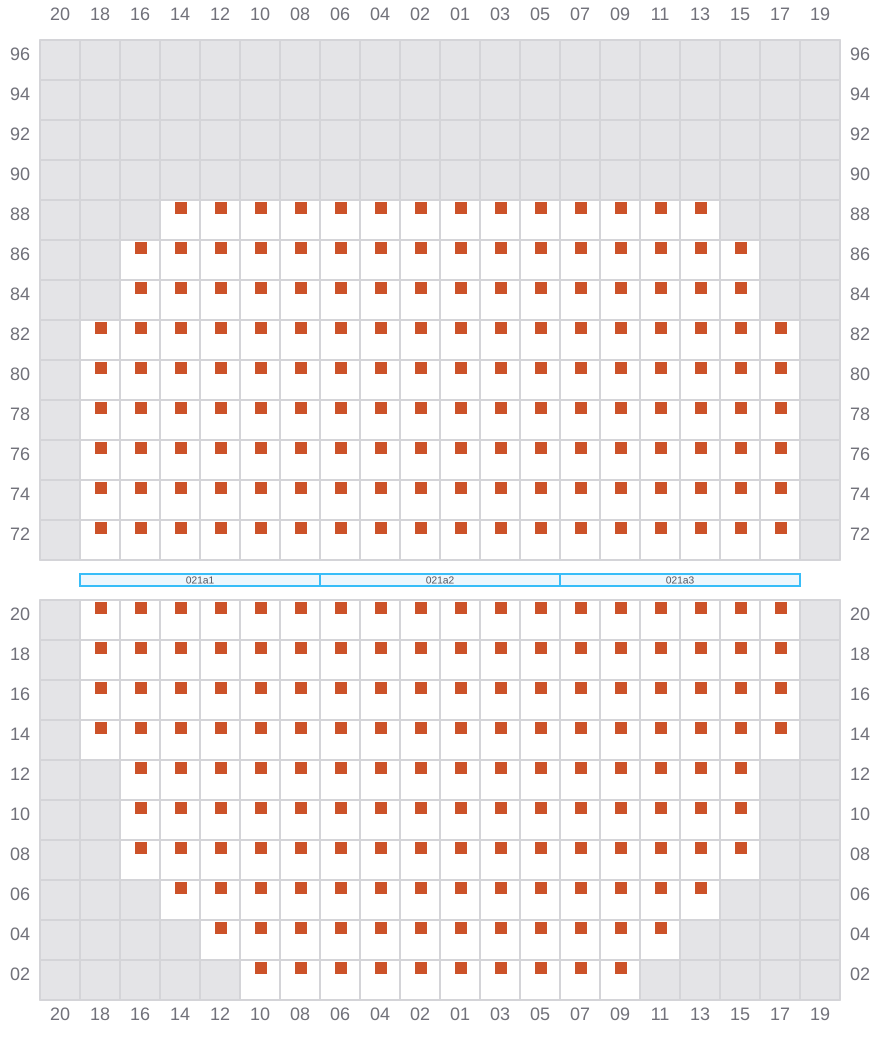

Bay 021 view and slots of HMM PEARL

023 (022)

←
→
→
✓

Bay 023 view and slots of HMM PEARL

025

→
→
→
✓

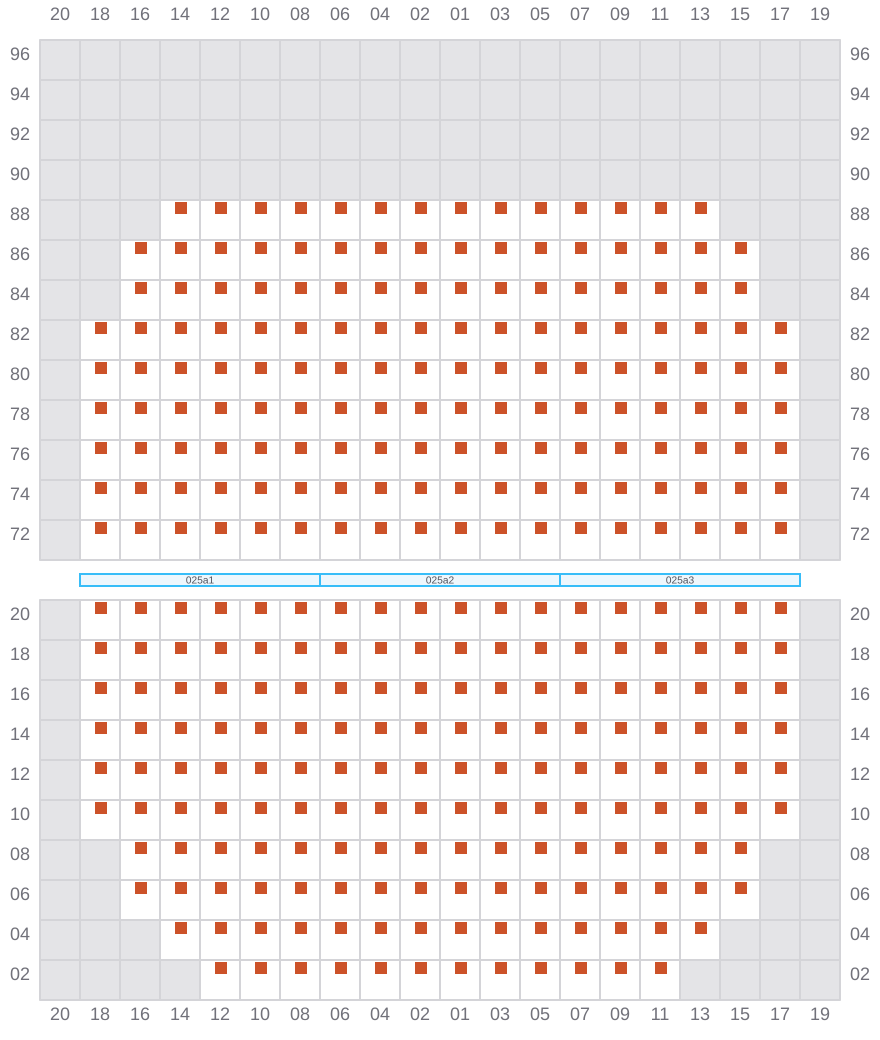

Bay 025 view and slots of HMM PEARL

027 (026)

←
→
→
✓

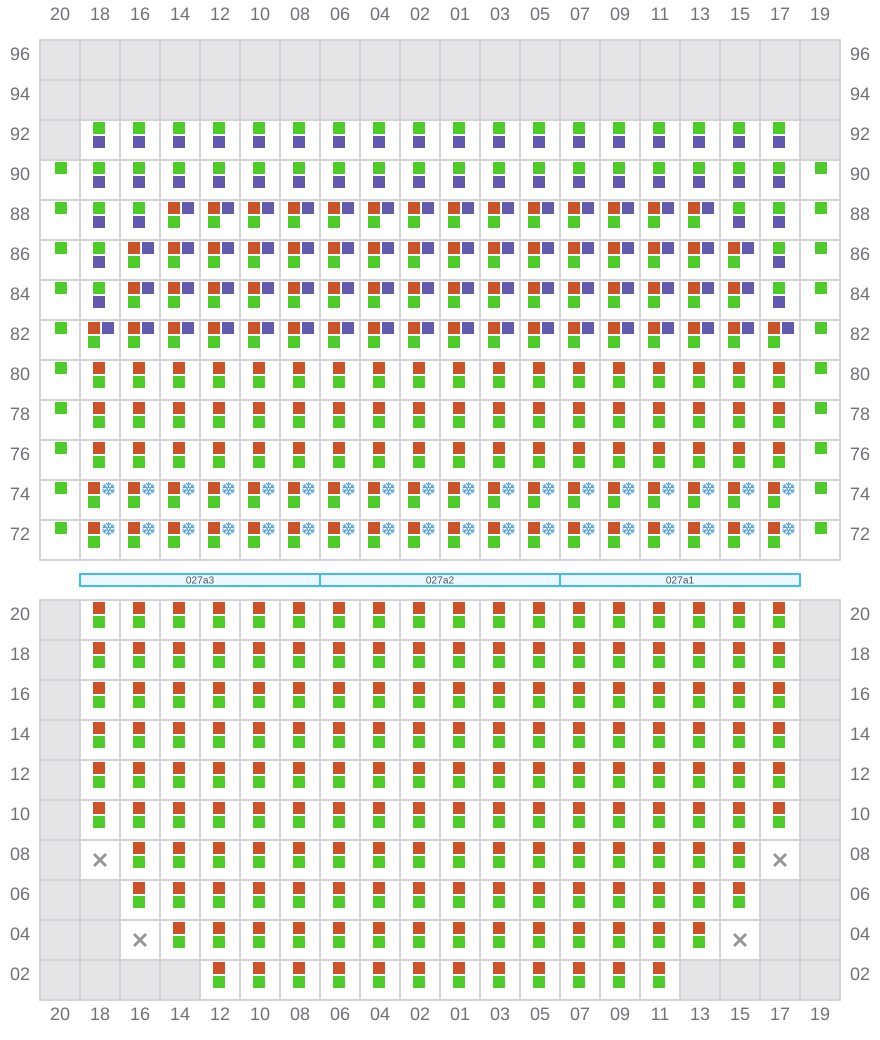

Bay 027 view and slots of HMM PEARL

029

→
→
→
✓

Bay 029 view and slots of HMM PEARL

031 (030)

←
→
→
✓

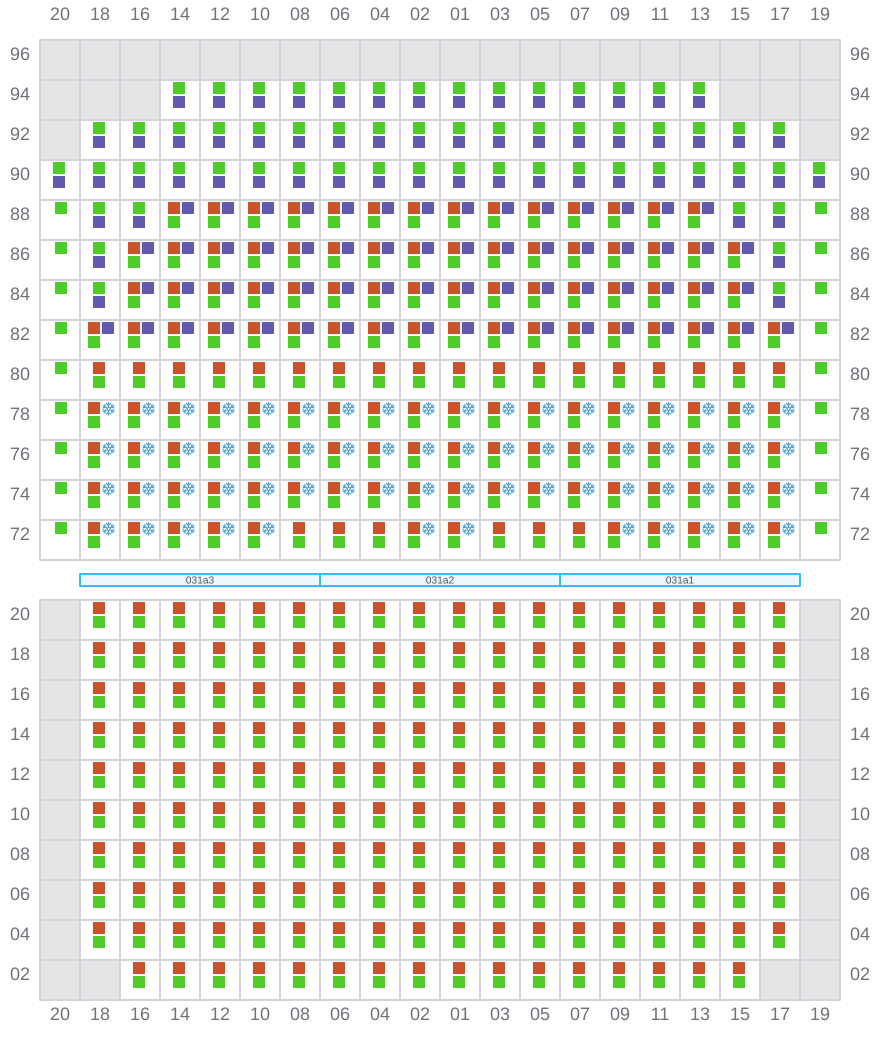

Bay 031 view and slots of HMM PEARL

033

→
→
→
✓

Bay 033 view and slots of HMM PEARL

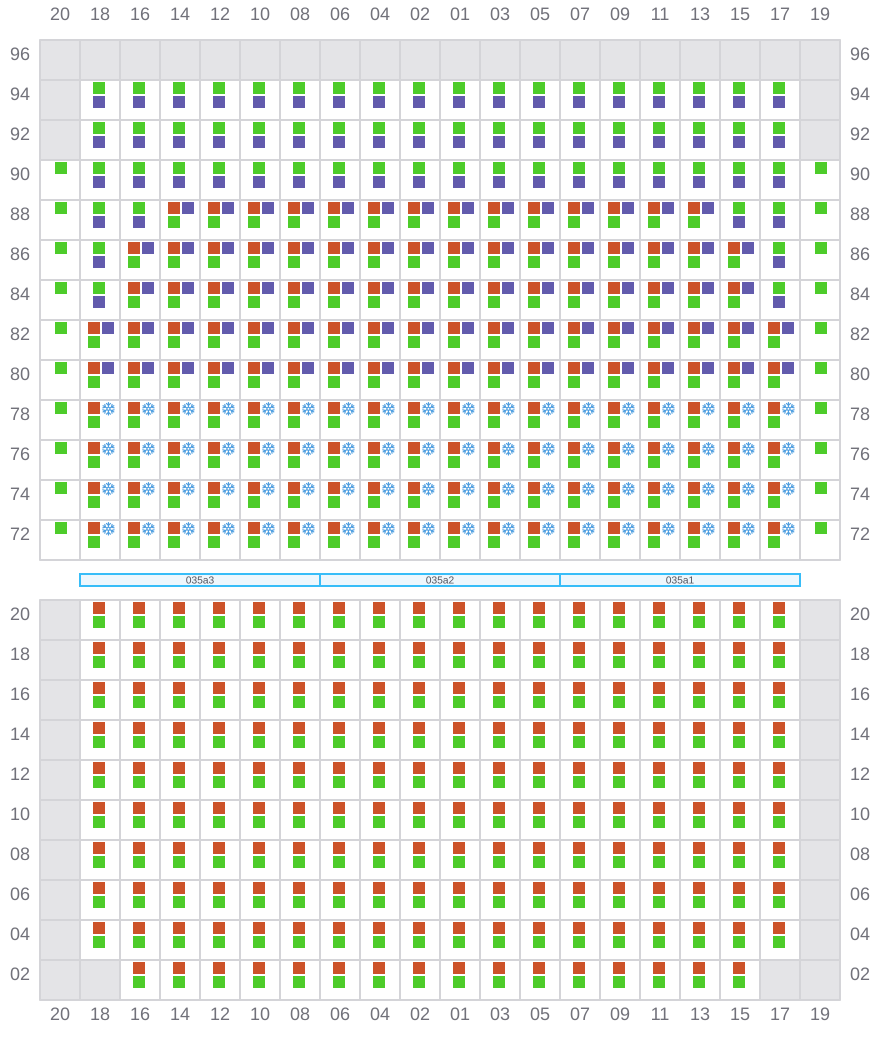

035 (034)

←
→
→
✓

Bay 035 view and slots of HMM PEARL

037

→
→
→
✓

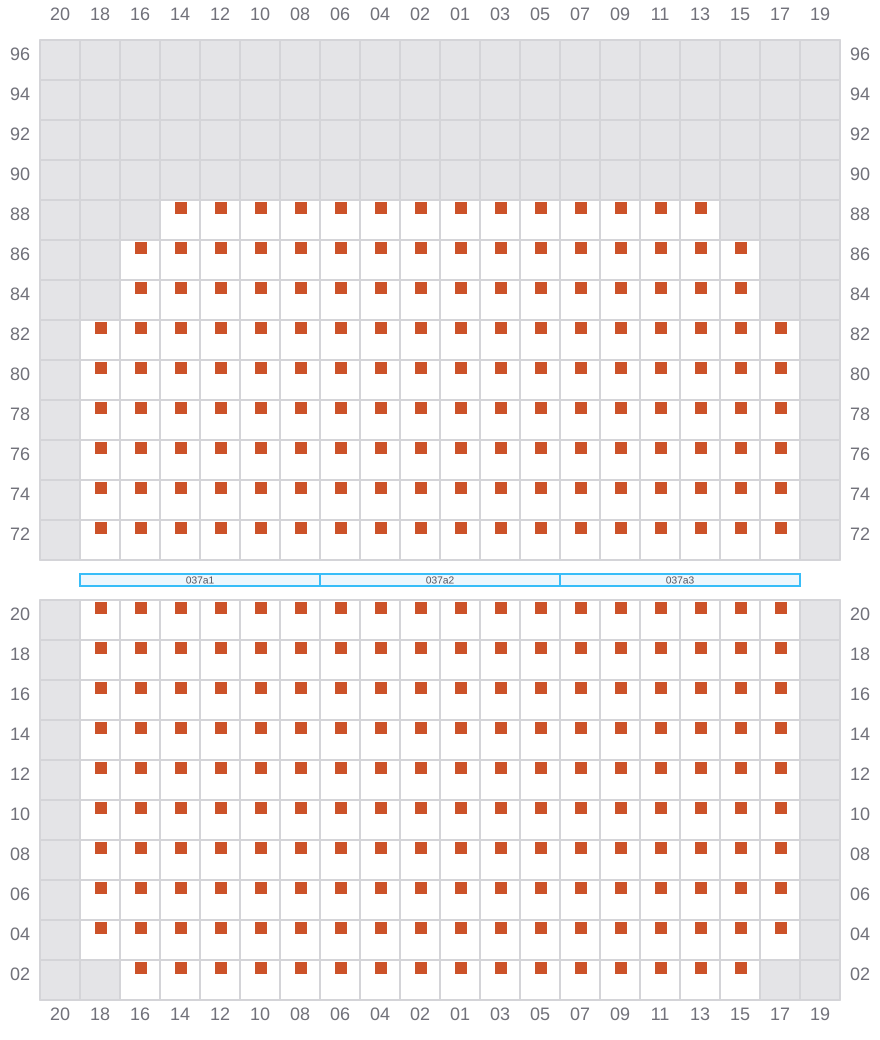

Bay 037 view and slots of HMM PEARL

039 (038)

←
→
→
✓

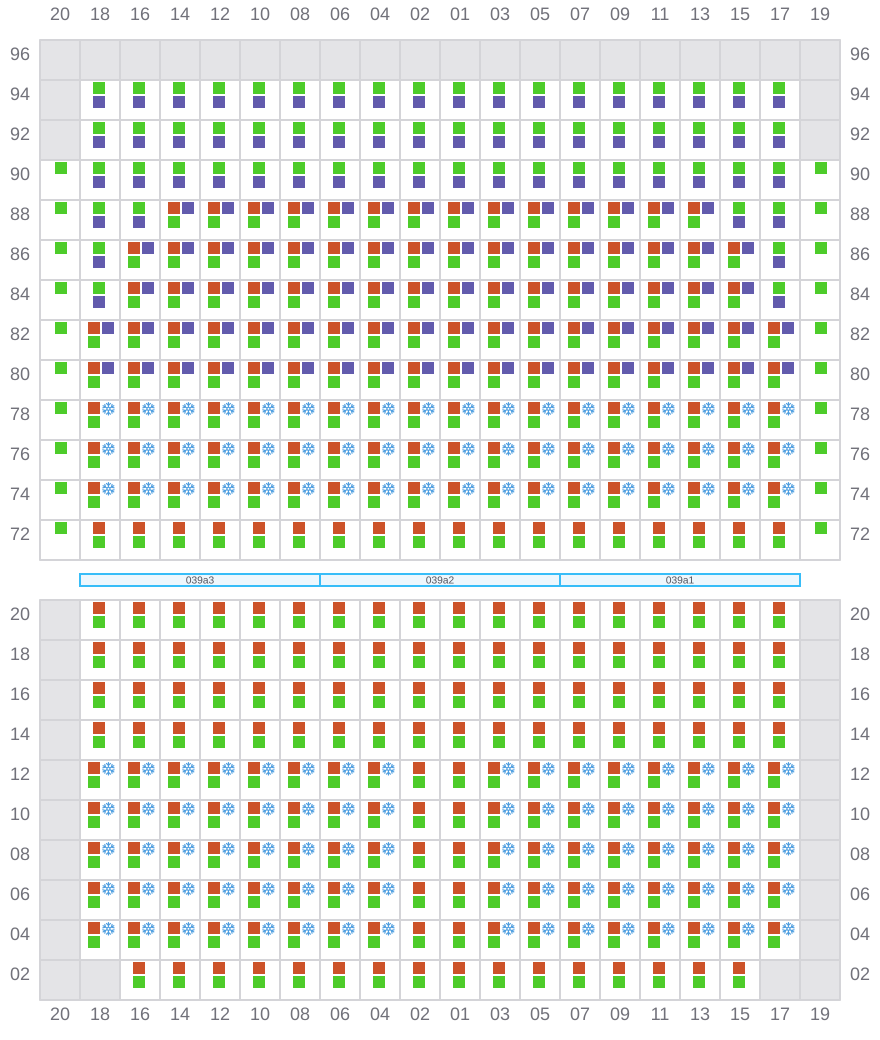

Bay 039 view and slots of HMM PEARL

041

→
→
→
✓

Bay 041 view and slots of HMM PEARL

043 (042)

←
→
→
✓

Bay 043 view and slots of HMM PEARL

045

→
→
→
✓

Bay 045 view and slots of HMM PEARL

047 (046)

←
→
→
✓

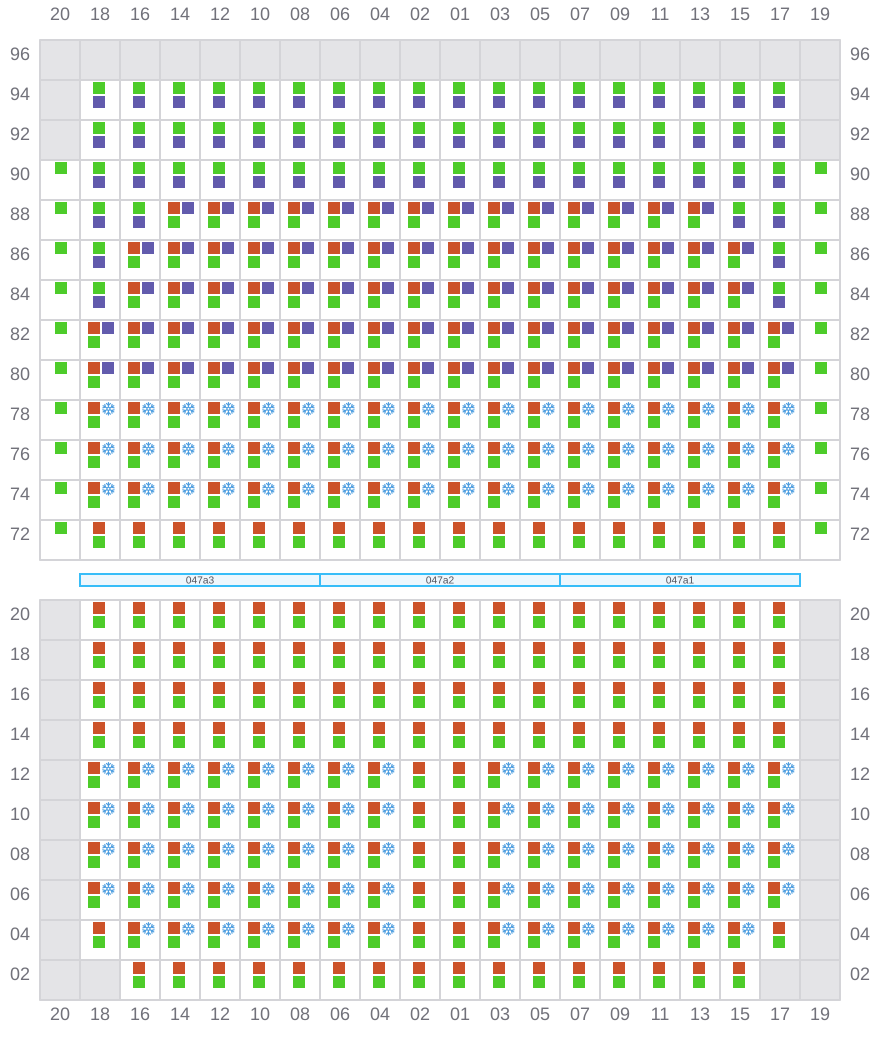

Bay 047 view and slots of HMM PEARL

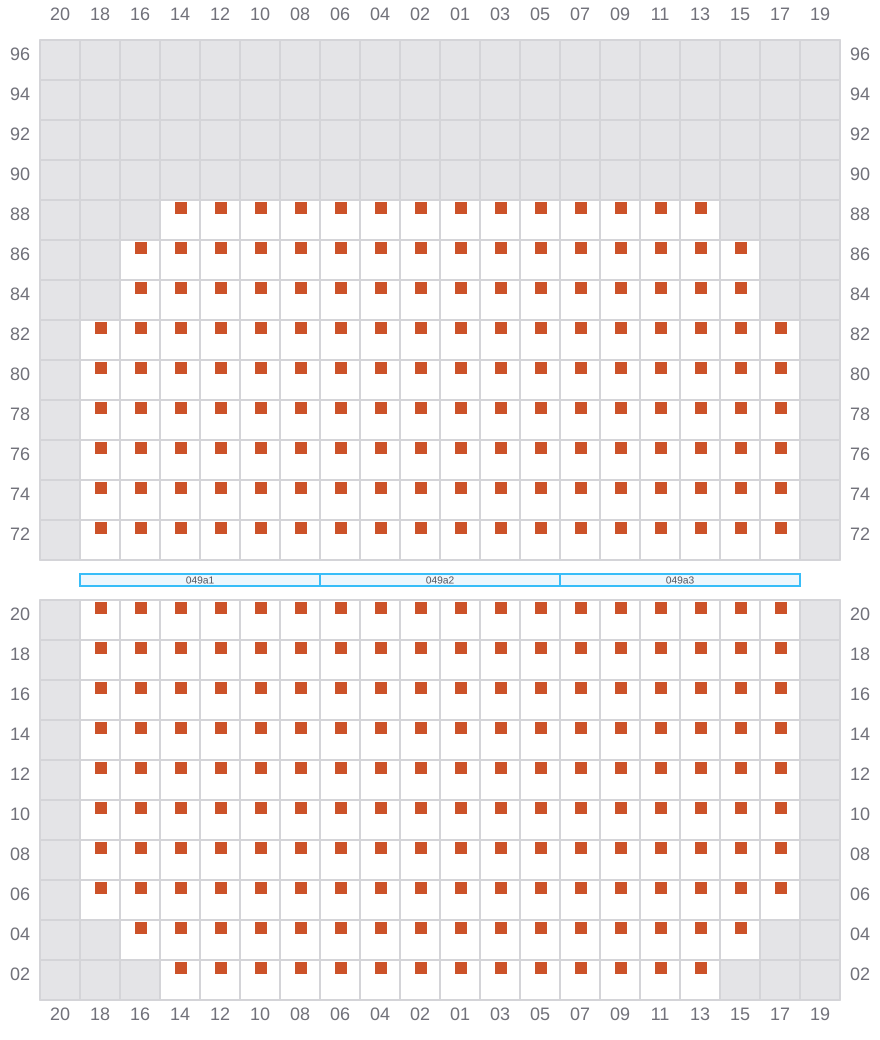

049

→
→
→
✓

Bay 049 view and slots of HMM PEARL

051 (050)

←
→
→
✓

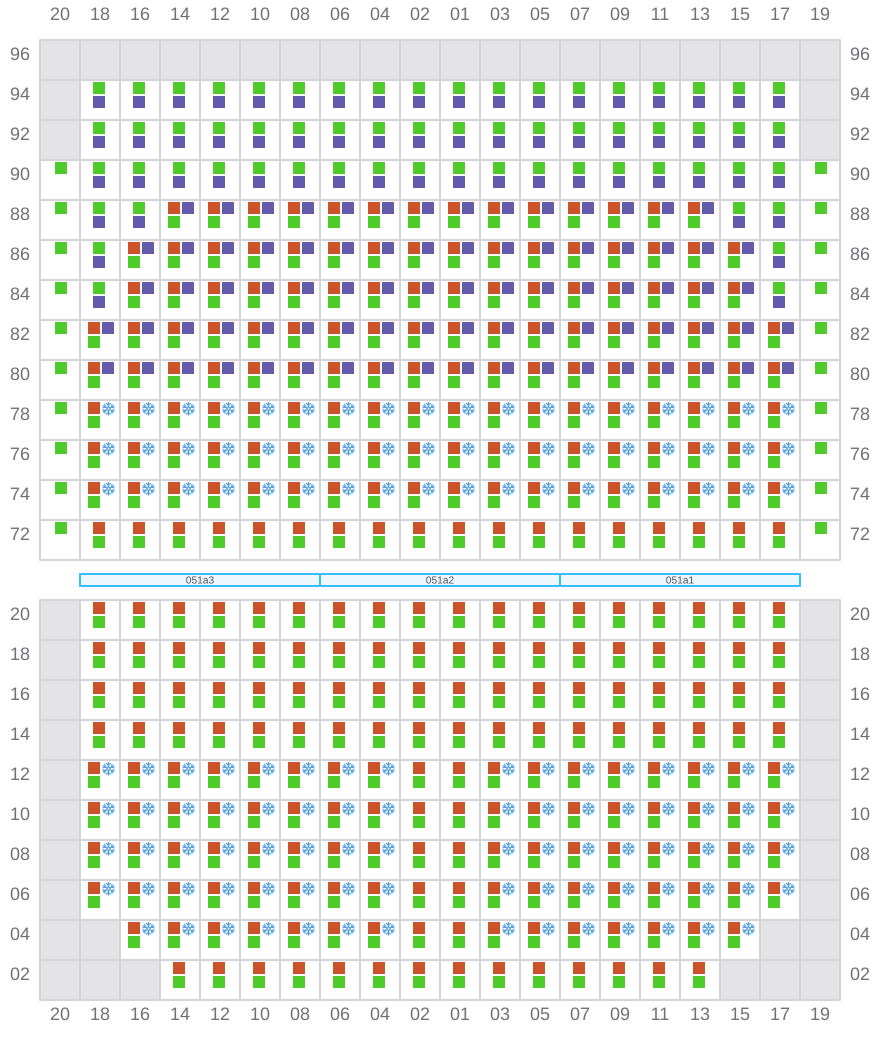

Bay 051 view and slots of HMM PEARL

053

→
→
→
✓

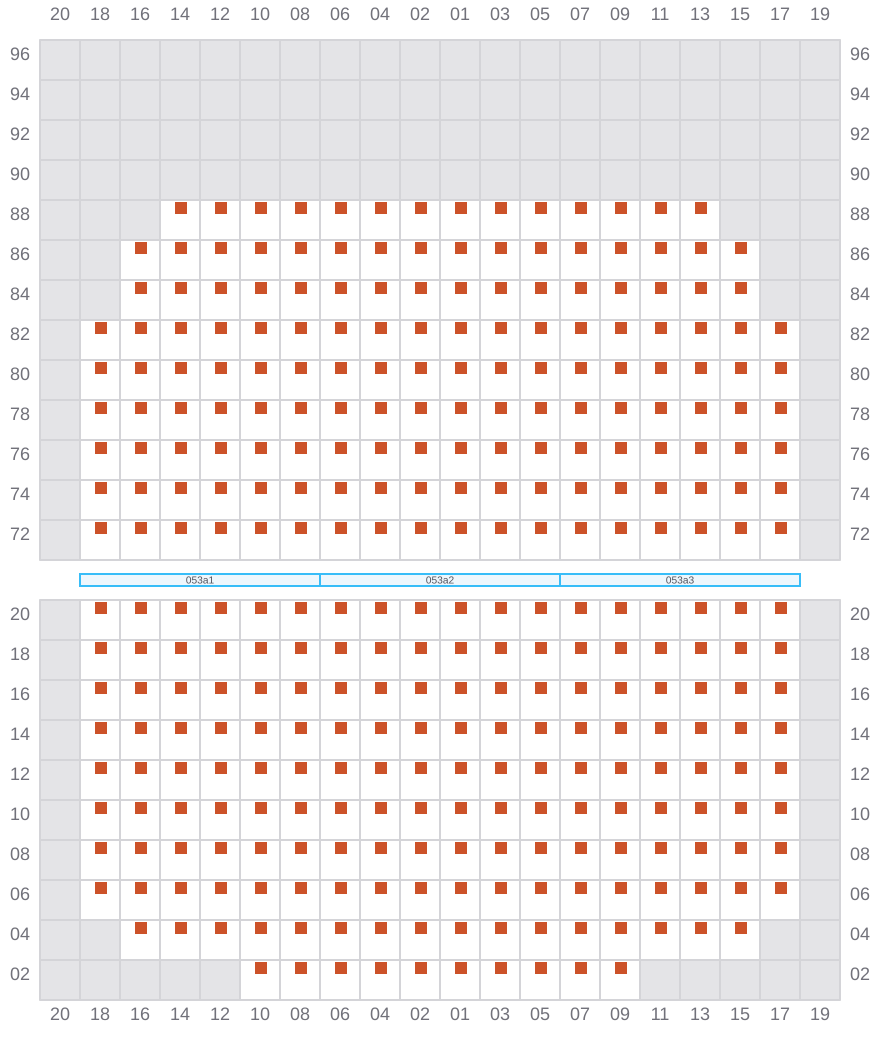

Bay 053 view and slots of HMM PEARL

055 (054)

←
→
→
✓

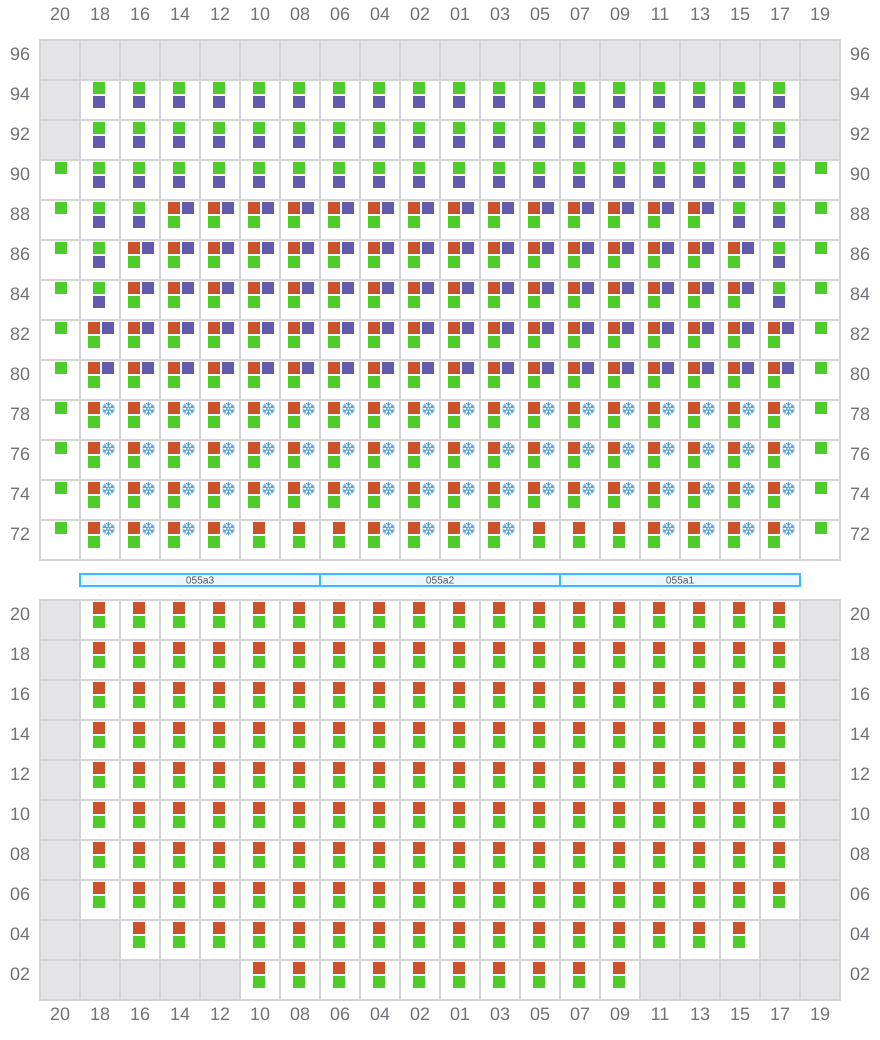

Bay 055 view and slots of HMM PEARL

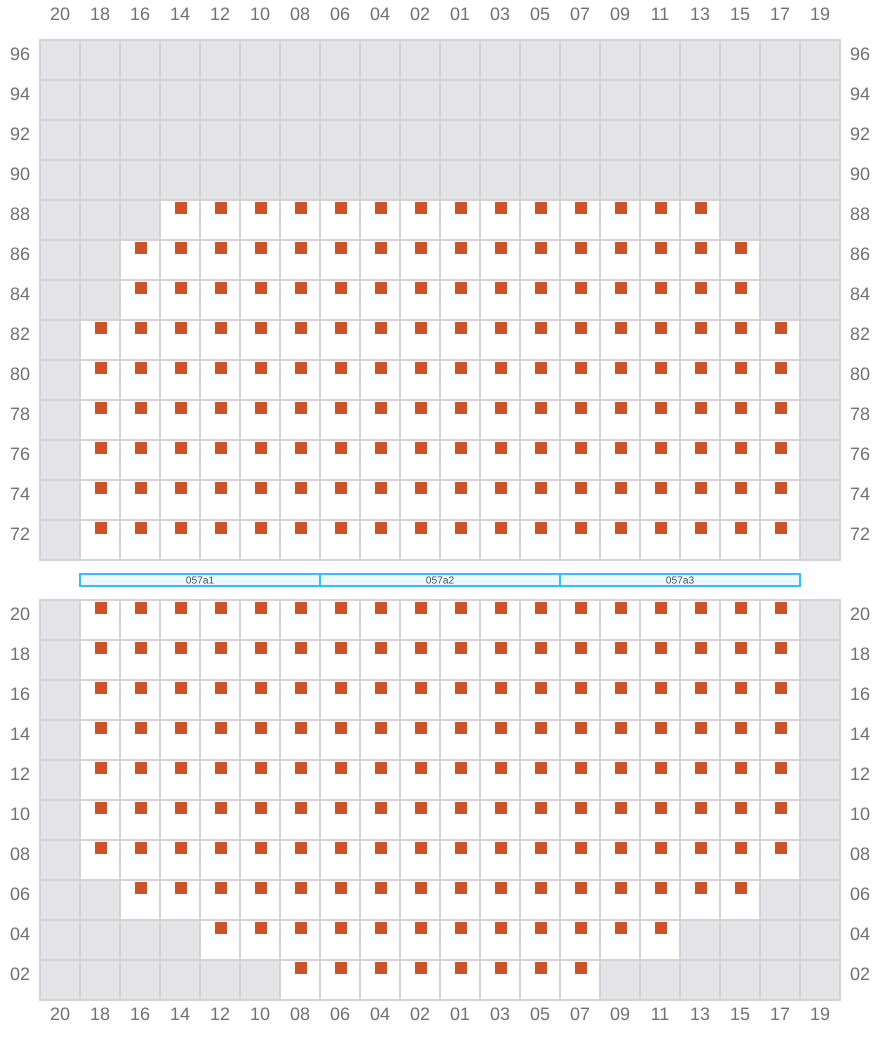

057

→
→
→
✓

Bay 057 view and slots of HMM PEARL

059 (058)

←
→
→
✓

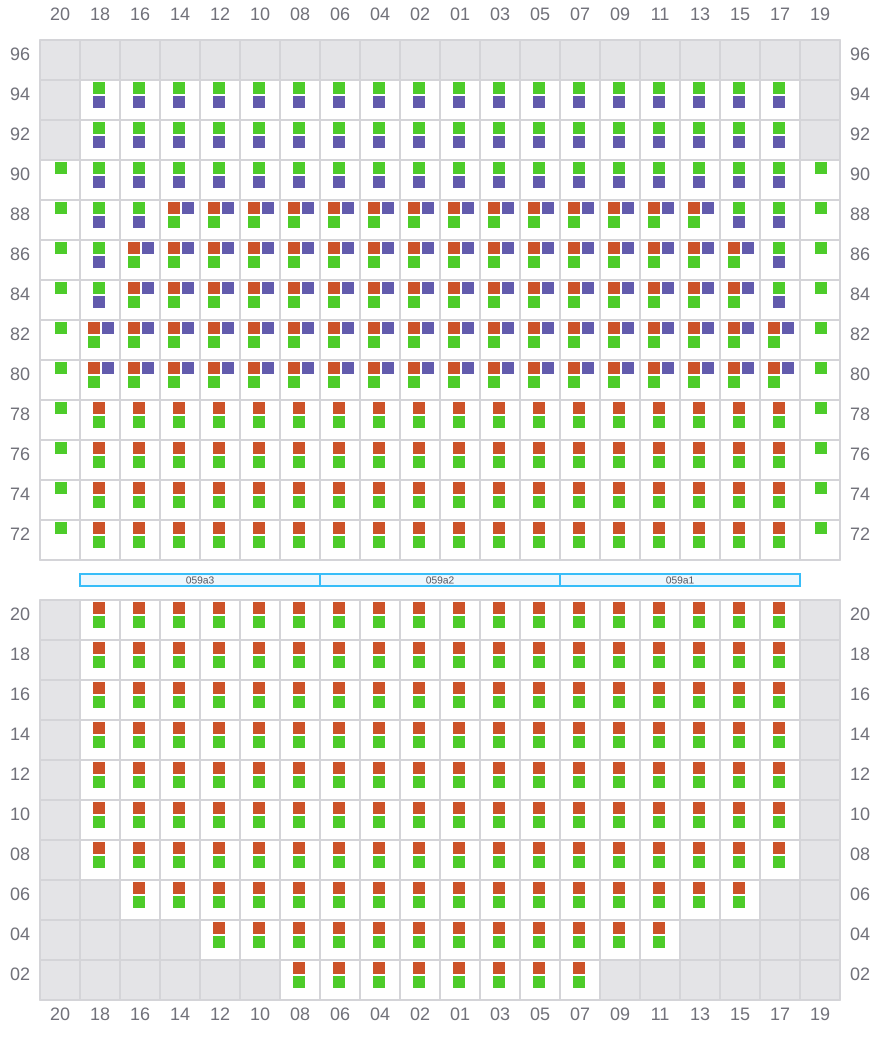

Bay 059 view and slots of HMM PEARL

061

→
→
→
✓

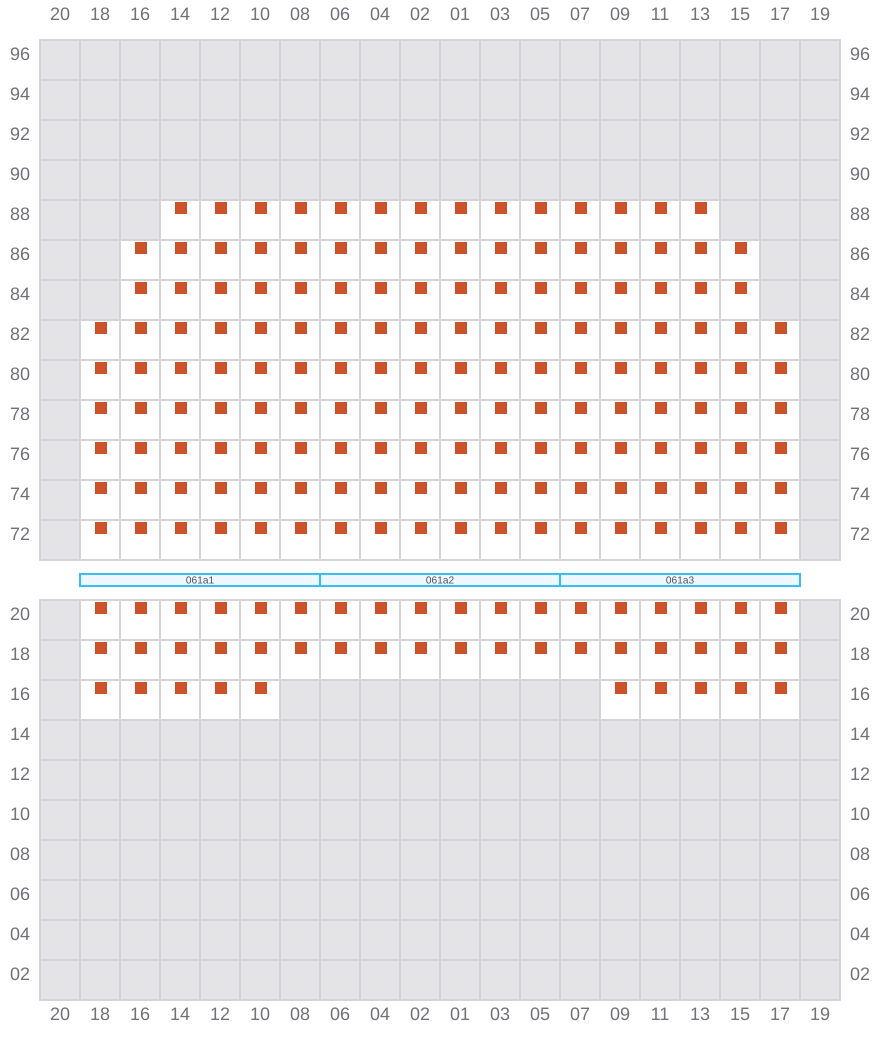

Bay 061 view and slots of HMM PEARL

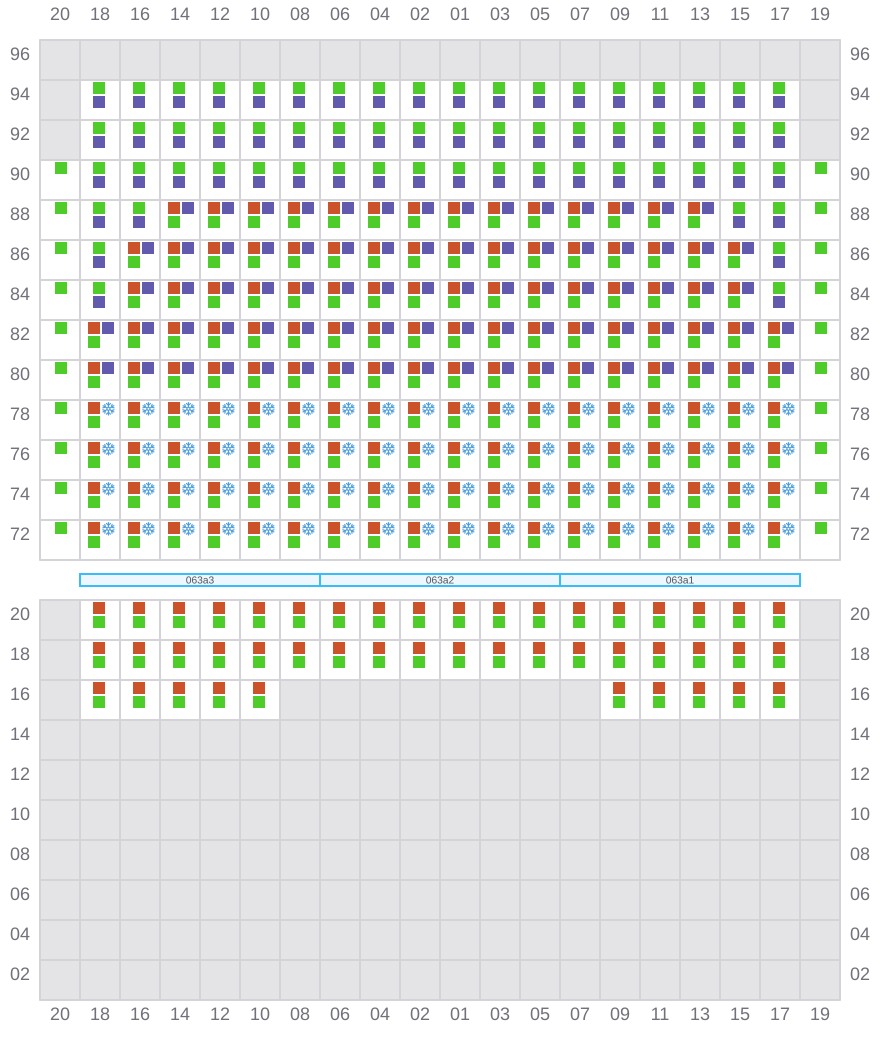

063 (062)

←
→
→
✓

Bay 063 view and slots of HMM PEARL

065

→
→
→
✓

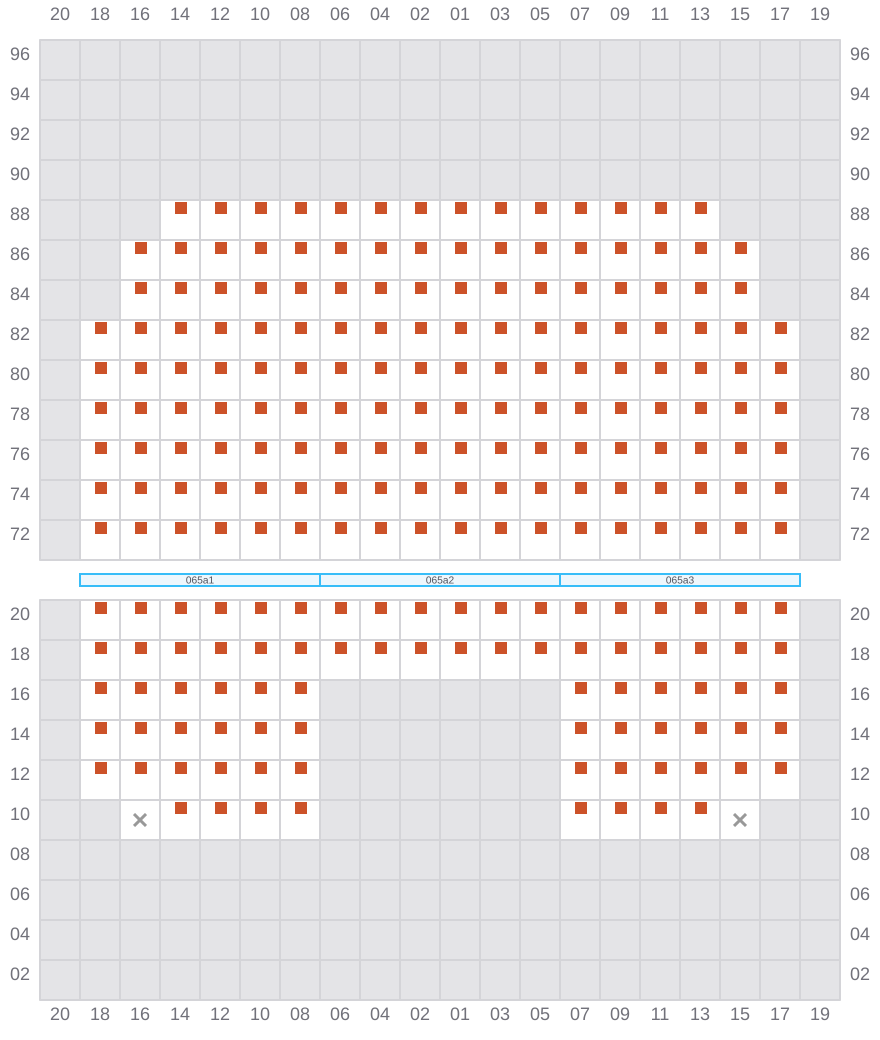

Bay 065 view and slots of HMM PEARL

067 (066)

←
→
→
✓

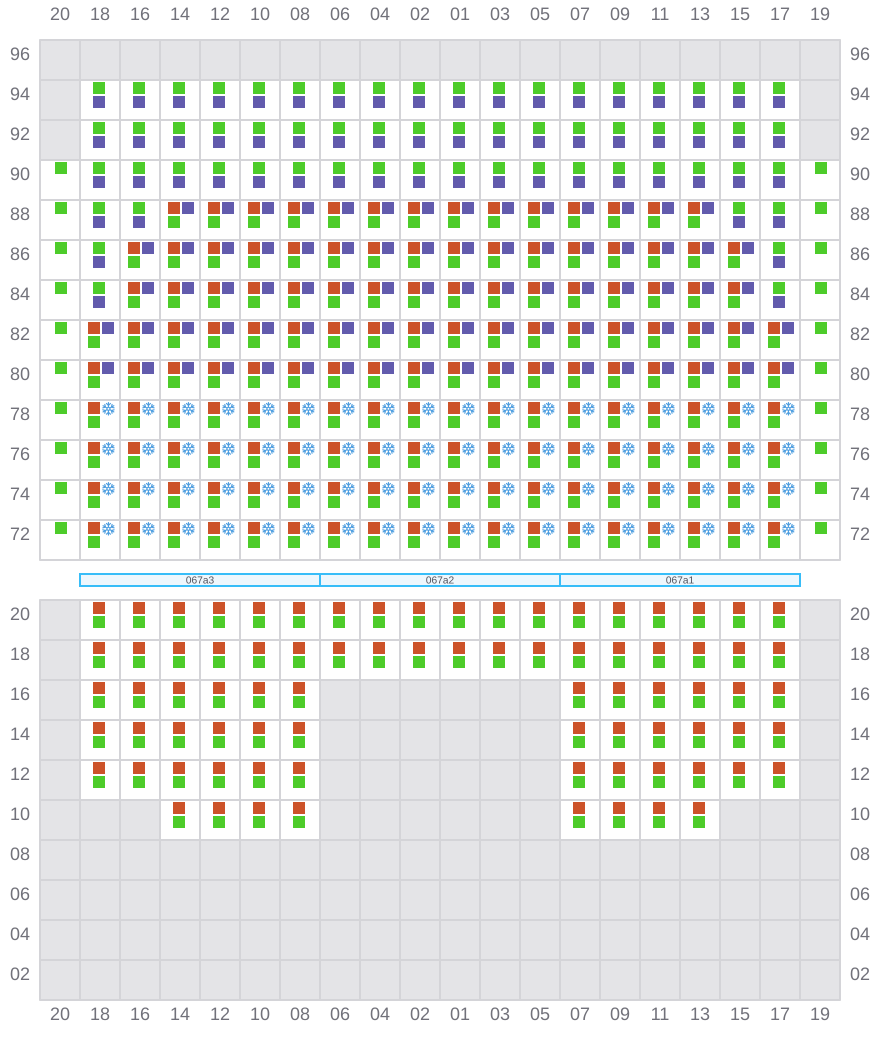

Bay 067 view and slots of HMM PEARL

069

→
→
→
✓

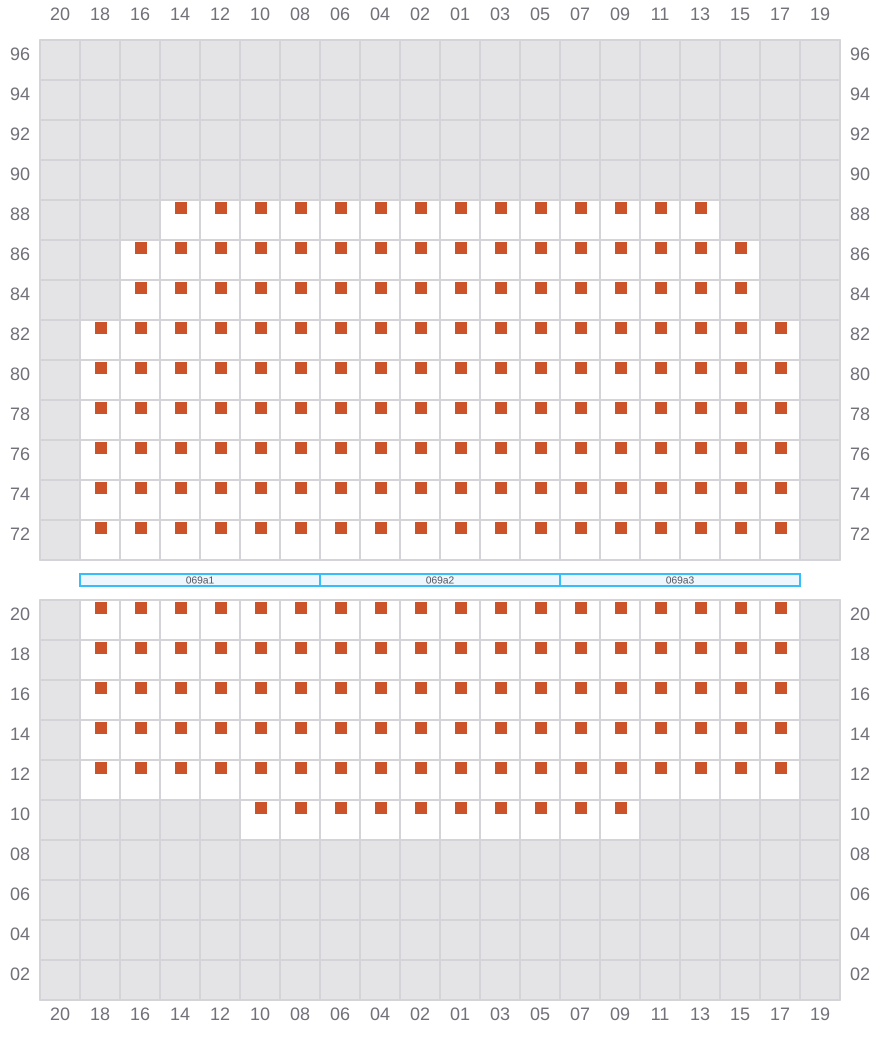

Bay 069 view and slots of HMM PEARL

071 (070)

←
→
→
✓

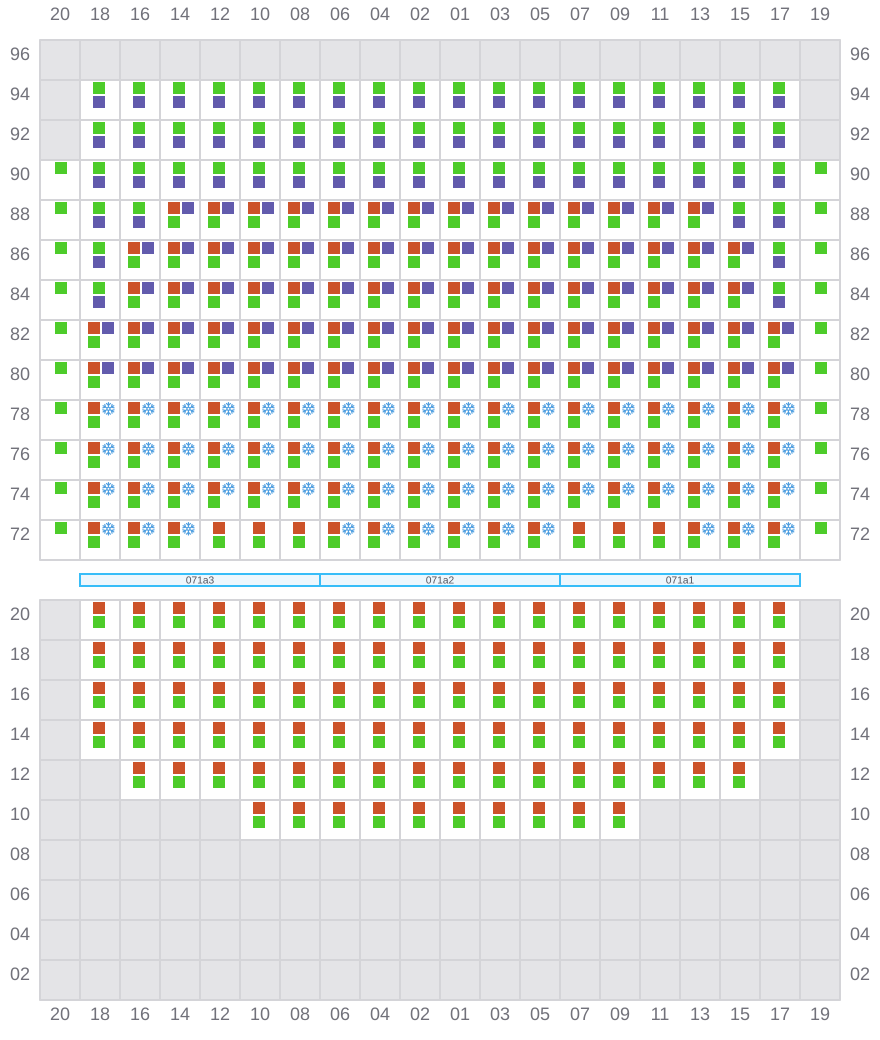

Bay 071 view and slots of HMM PEARL

073

→
→
→
✓

Bay 073 view and slots of HMM PEARL

075 (074)

←
→
→
✓

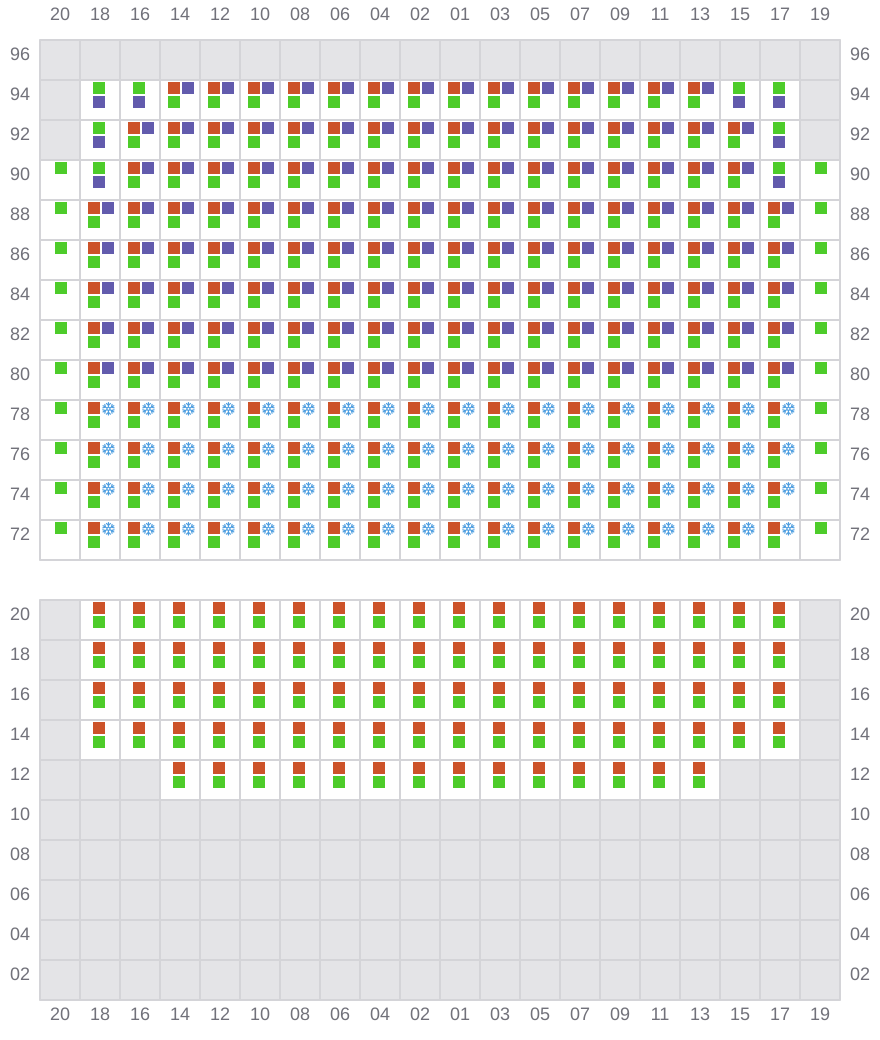

Bay 075 view and slots of HMM PEARL

077

→
→
→
✓

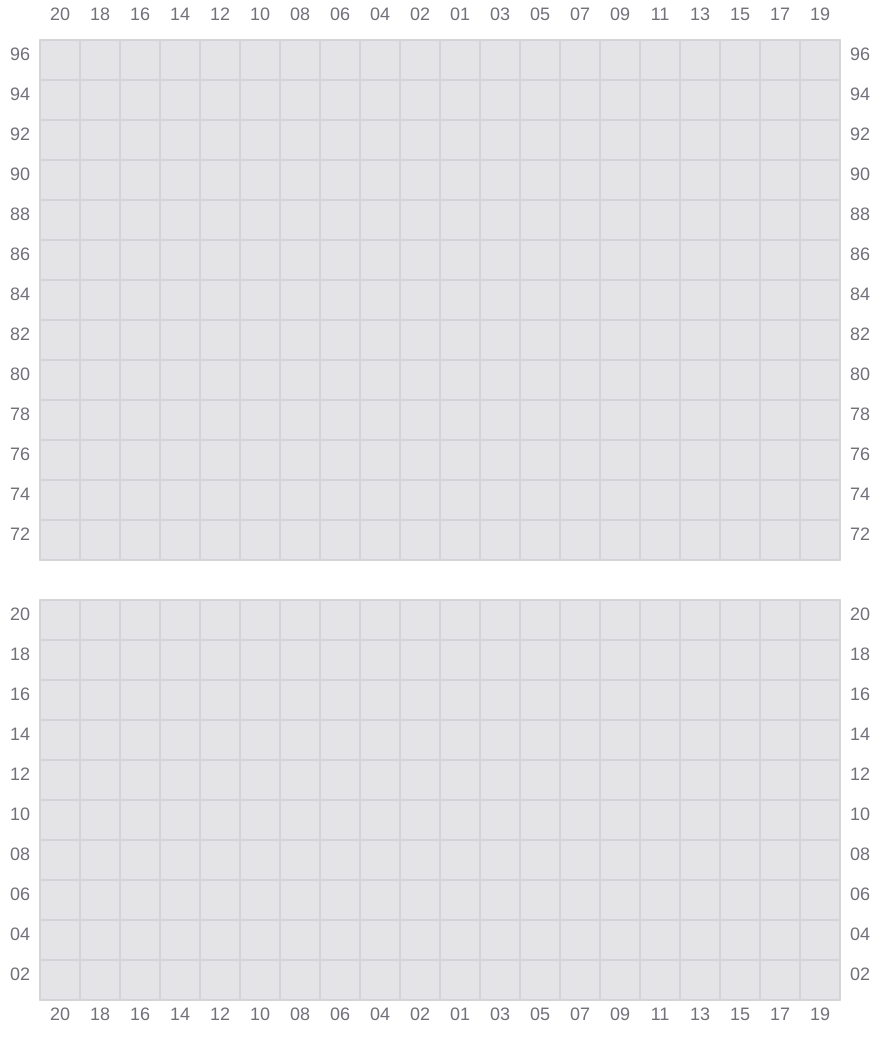

Bay 077 view and slots of HMM PEARL

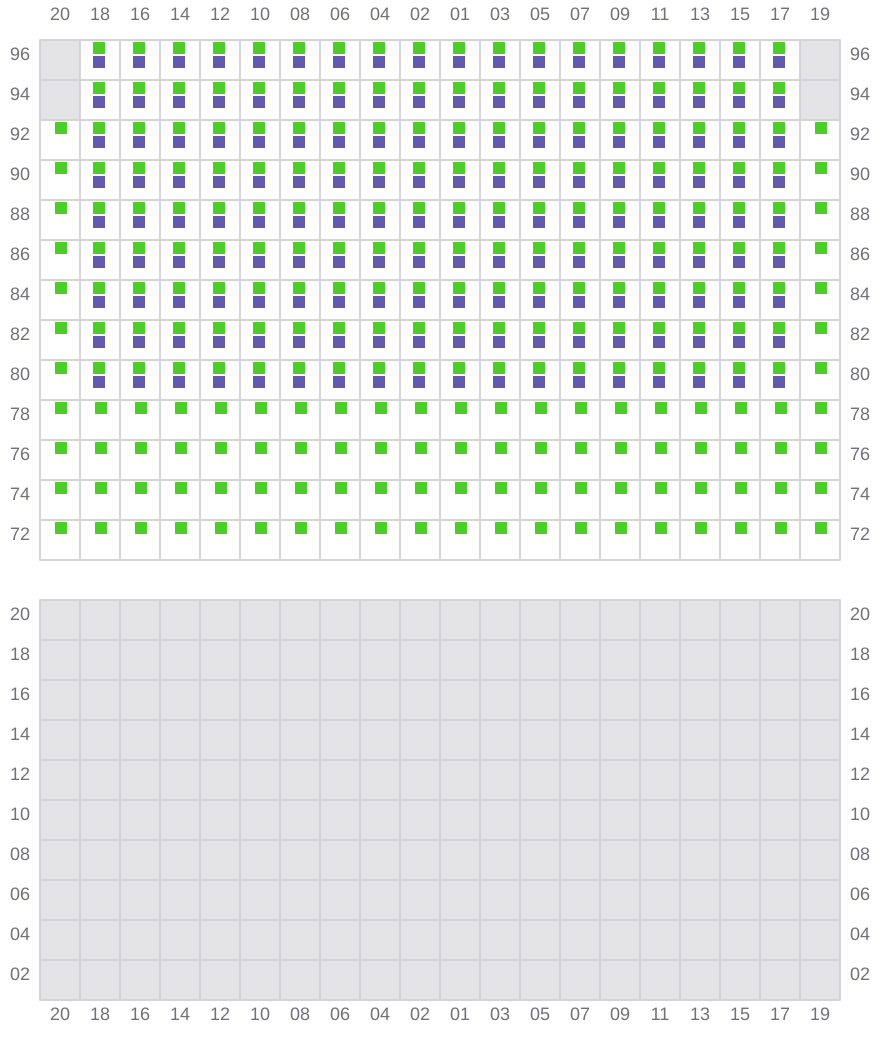

079 (078)

←
→
→
✓

Bay 079 view and slots of HMM PEARL
