HMM PRIDE
9637260 | D8HP | HMM by *********************** Last update: Wed Feb 05 2025

General Info

Ship Name:HMM PRIDE
IMO Code:9637260
Call Sign:D8HP
Line Operator:HMM
Class Name for Sister Ships:HPRI
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,190

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of HMM PRIDE

Hatch-Covers View

Deck view of HMM PRIDE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
  • →

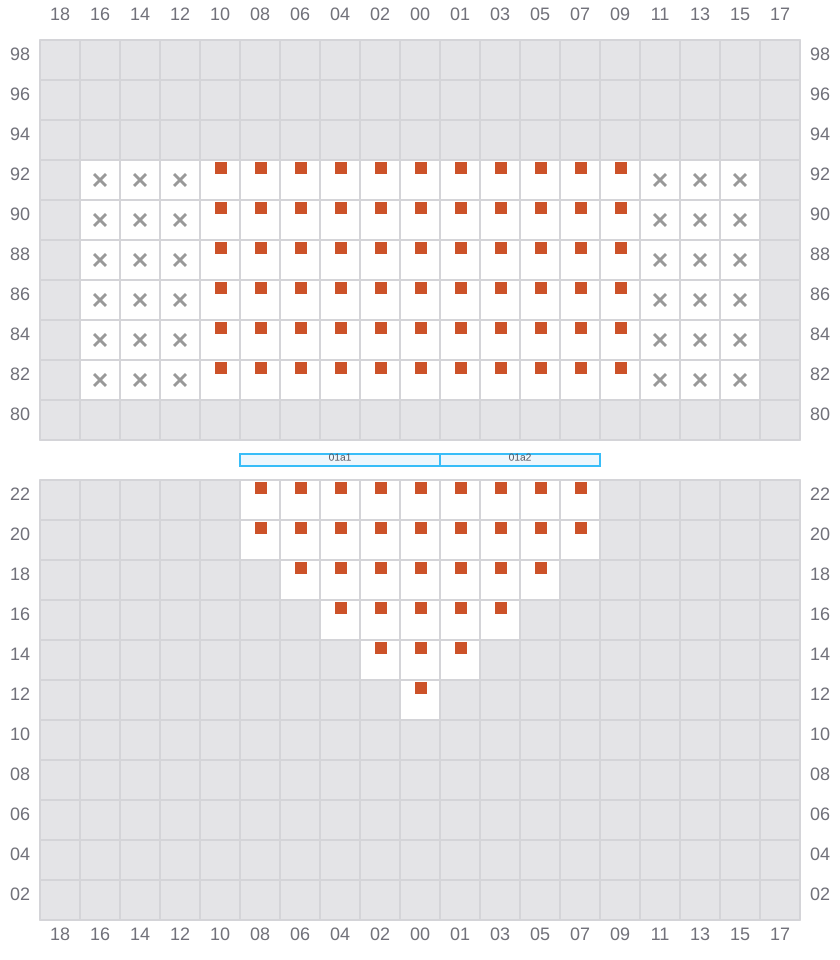

Bay 001 view and slots of HMM PRIDE

003 (002)

  • ←
  • → / ?
  • →
Bay 003 view and slots of HMM PRIDE

005

  • →
  • ← / ?
  • →
Bay 005 view and slots of HMM PRIDE

007 (006)

  • ←
  • → / ?
  • →
Bay 007 view and slots of HMM PRIDE

009

  • →
  • ← / ?
  • →
Bay 009 view and slots of HMM PRIDE

011 (010)

  • ←
  • → / ?
  • →
Bay 011 view and slots of HMM PRIDE

013

  • →
  • ← / ?
  • →
Bay 013 view and slots of HMM PRIDE

015 (014)

  • ←
  • → / ?
  • →
Bay 015 view and slots of HMM PRIDE

017

  • →
  • ← / ?
  • →

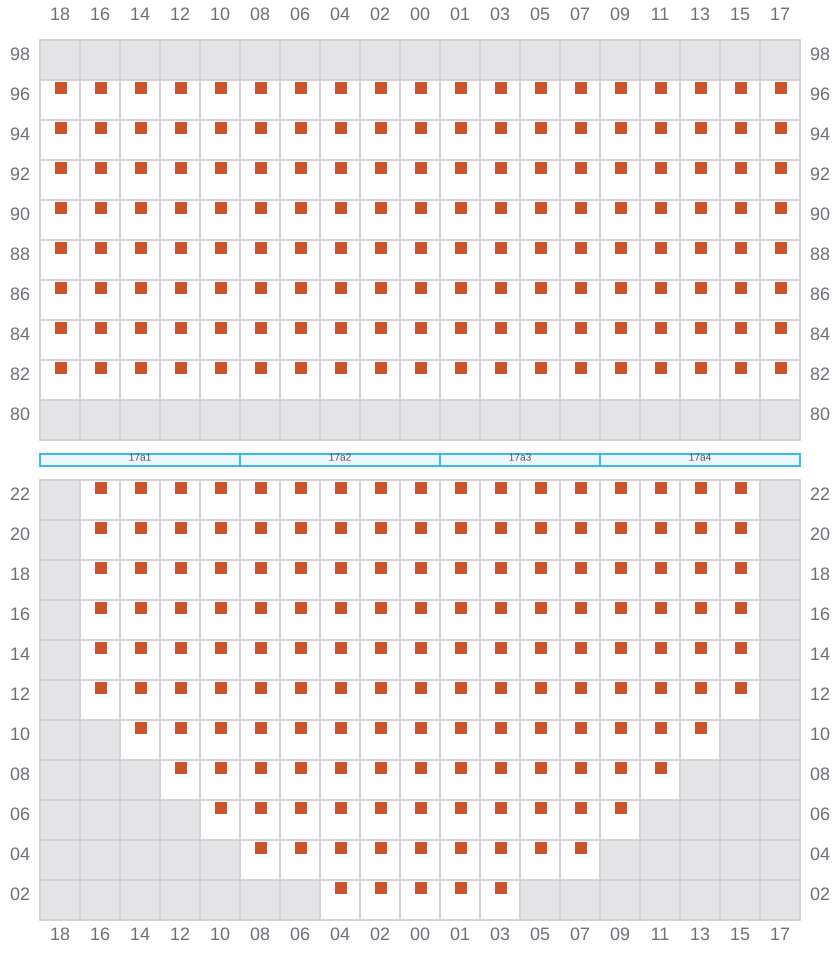

Bay 017 view and slots of HMM PRIDE

019 (018)

  • ←
  • → / ?
  • →
Bay 019 view and slots of HMM PRIDE

021

  • →
  • ← / ?
  • →
Bay 021 view and slots of HMM PRIDE

023 (022)

  • ←
  • → / ?
  • →
Bay 023 view and slots of HMM PRIDE

025

  • →
  • ← / ?
  • →
Bay 025 view and slots of HMM PRIDE

027 (026)

  • ←
  • → / ?
  • →
Bay 027 view and slots of HMM PRIDE

029

  • →
  • →

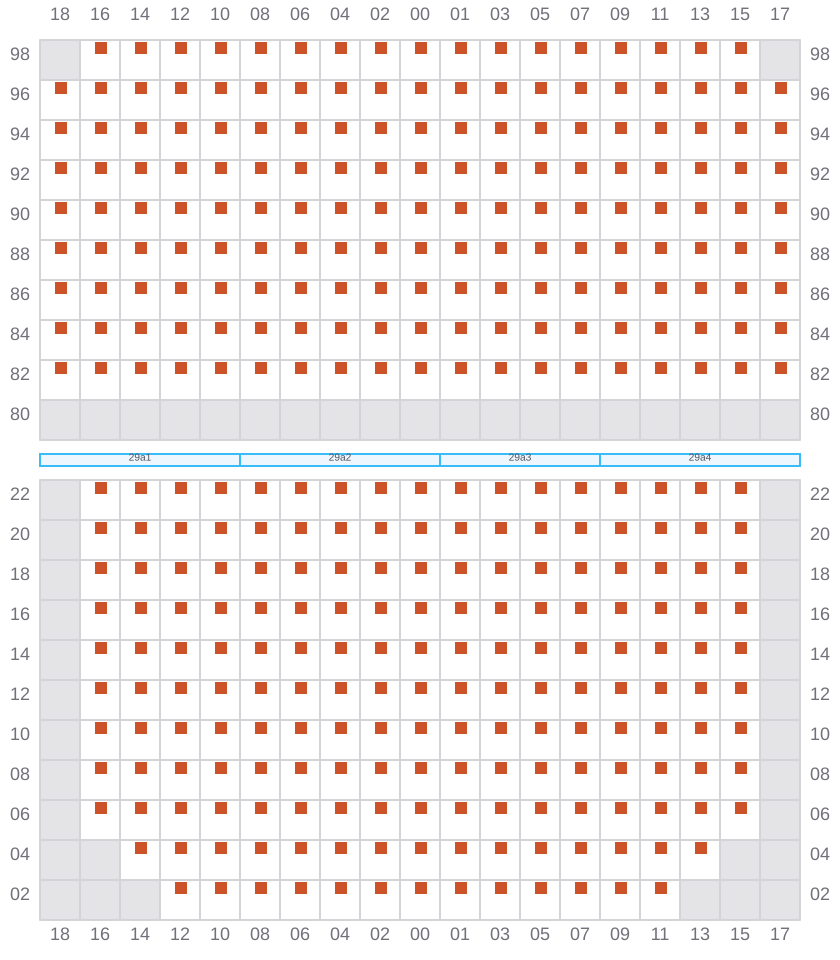

Bay 029 view and slots of HMM PRIDE

031 (030)

  • ←
  • → / ?
  • →

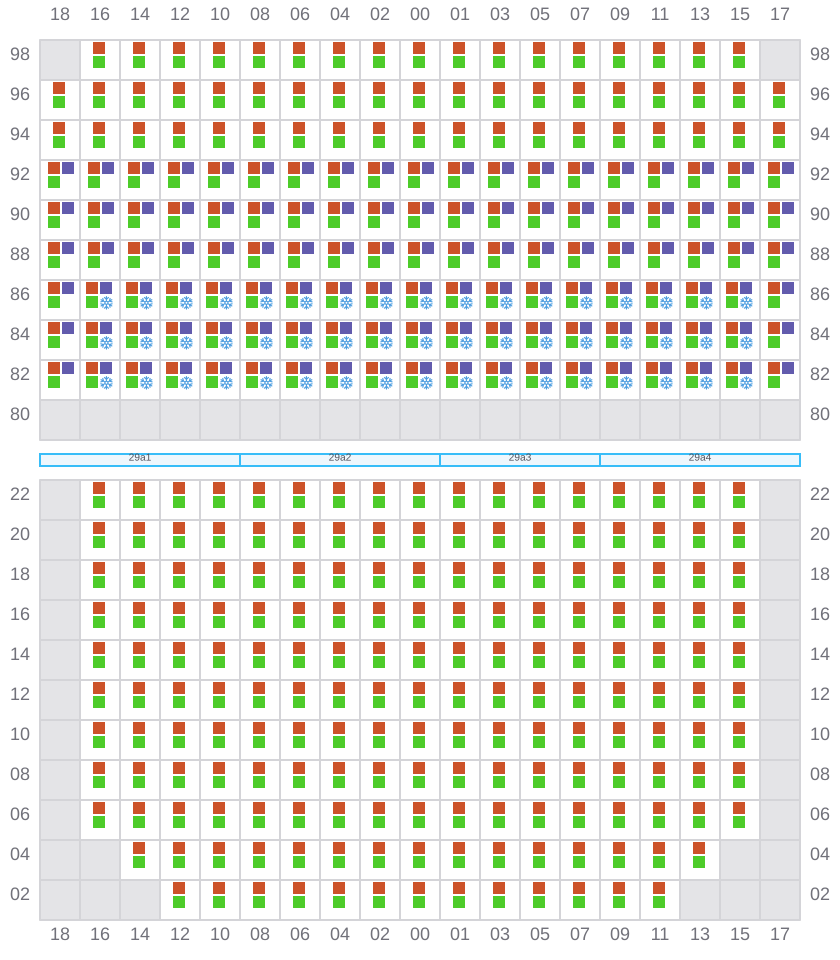

Bay 031 view and slots of HMM PRIDE

033

  • →
  • ← / ?
  • →
Bay 033 view and slots of HMM PRIDE

035 (034)

  • ←
  • → / ?
  • →
Bay 035 view and slots of HMM PRIDE

037

  • →
  • ← / ?
  • →
Bay 037 view and slots of HMM PRIDE

039 (038)

  • ←
  • → / ?
  • →
Bay 039 view and slots of HMM PRIDE

041

  • →
  • ← / ?
  • →
Bay 041 view and slots of HMM PRIDE

043 (042)

  • ←
  • → / ?
  • →
Bay 043 view and slots of HMM PRIDE

045

  • →
  • ← / ?
  • →
Bay 045 view and slots of HMM PRIDE

047 (046)

  • ←
  • → / ?
  • →
Bay 047 view and slots of HMM PRIDE

049

  • →
  • ← / ?
  • →
Bay 049 view and slots of HMM PRIDE

051 (050)

  • ←
  • → / ?
  • →
Bay 051 view and slots of HMM PRIDE

053

  • →
  • ← / ?
  • →

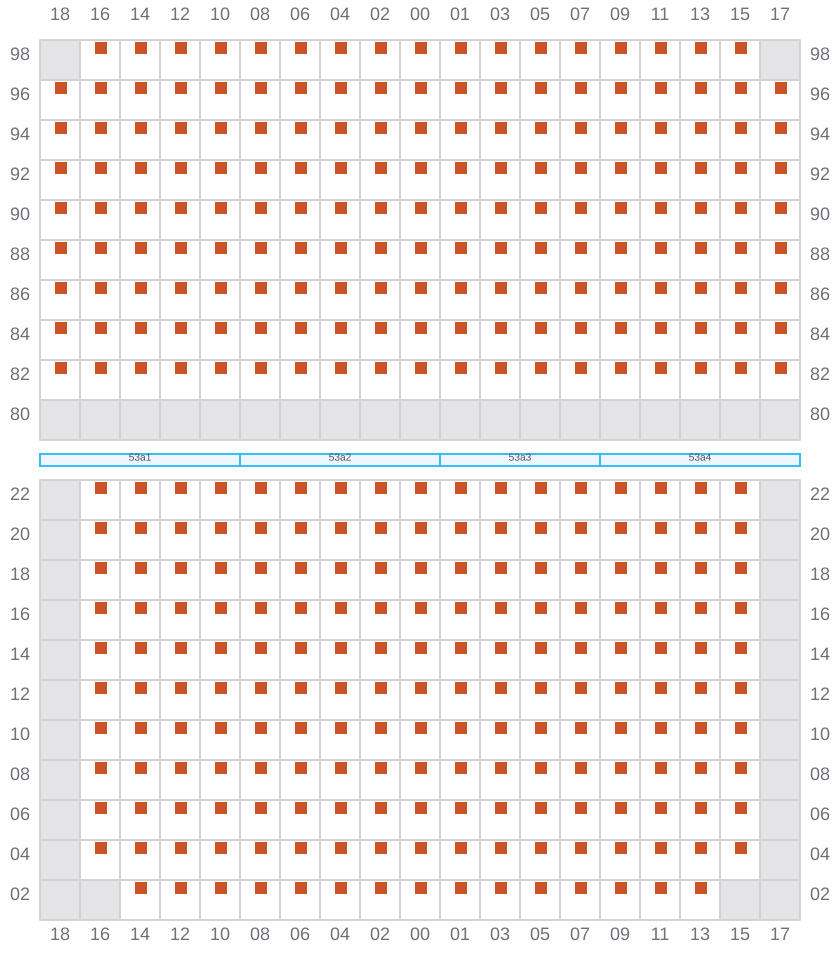

Bay 053 view and slots of HMM PRIDE

055 (054)

  • ←
  • → / ?
  • →
Bay 055 view and slots of HMM PRIDE

057

  • →
  • ← / ?
  • →
Bay 057 view and slots of HMM PRIDE

059 (058)

  • ←
  • →
  • →
Bay 059 view and slots of HMM PRIDE

061

  • →
  • ← / ?
  • →
Bay 061 view and slots of HMM PRIDE

063 (062)

  • ←
  • →
  • →
Bay 063 view and slots of HMM PRIDE

065

  • →
  • ← / ?
  • →

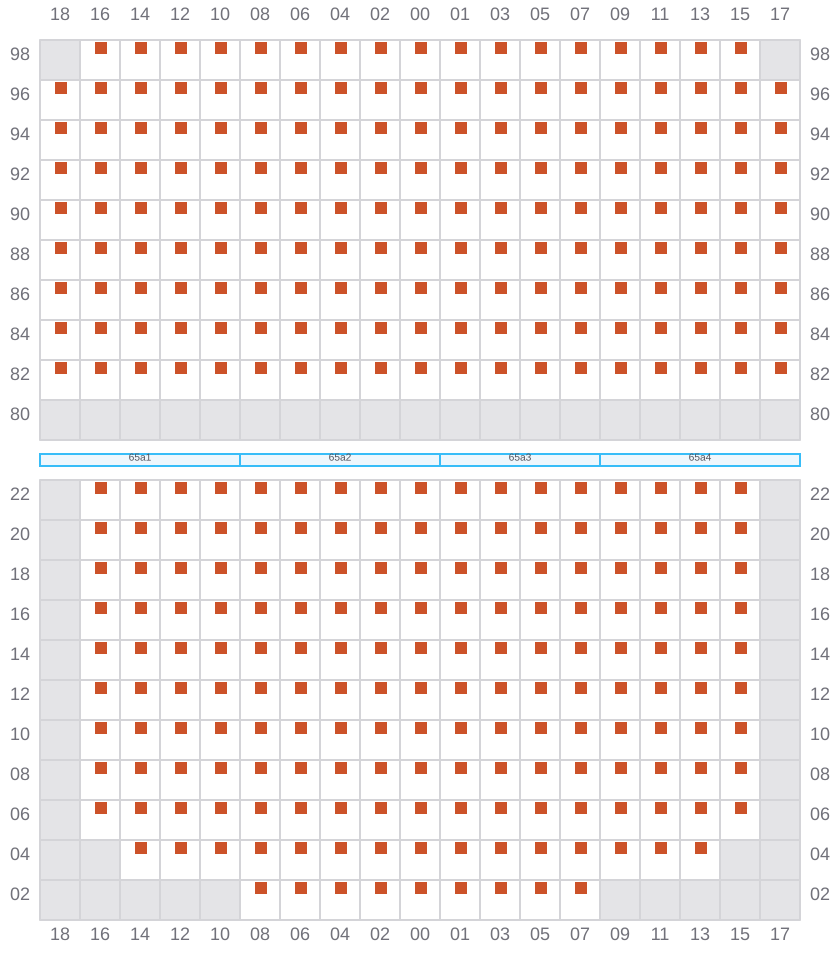

Bay 065 view and slots of HMM PRIDE

067 (066)

  • ←
  • → / ?
  • →
Bay 067 view and slots of HMM PRIDE

069 (070)

  • → / ?
  • → / ?
  • → / ?
Bay 069 view and slots of HMM PRIDE

071

Bay 071 view and slots of HMM PRIDE

073

  • →
  • ← / ?
  • →
Bay 073 view and slots of HMM PRIDE

075 (074)

  • ←
  • → / ?
  • →
Bay 075 view and slots of HMM PRIDE

077

  • →
  • ← / ?
  • →
Bay 077 view and slots of HMM PRIDE

079 (078)

  • ←
  • → / ?
  • →
Bay 079 view and slots of HMM PRIDE

081

  • →
  • ← / ?
  • →
Bay 081 view and slots of HMM PRIDE

083 (082)

  • ←
  • → / ?
  • →
Bay 083 view and slots of HMM PRIDE

085 (086)

  • → / ?
  • ← / ?
  • → / ?
Bay 085 view and slots of HMM PRIDE
