HMM PROMISE
9742168 | D7EV | HMM by *********************** Last update: Mon Feb 10 2025

General Info

Ship Name:HMM PROMISE
IMO Code:9742168
Call Sign:D7EV
Line Operator:HMM
Class Name for Sister Ships:HHPO
Year Built:2018
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):316.40
LOA (Length Overall):329.99
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:075
Max ISO Row:20
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:70
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:11,112

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of HMM PROMISE

Hatch-Covers View

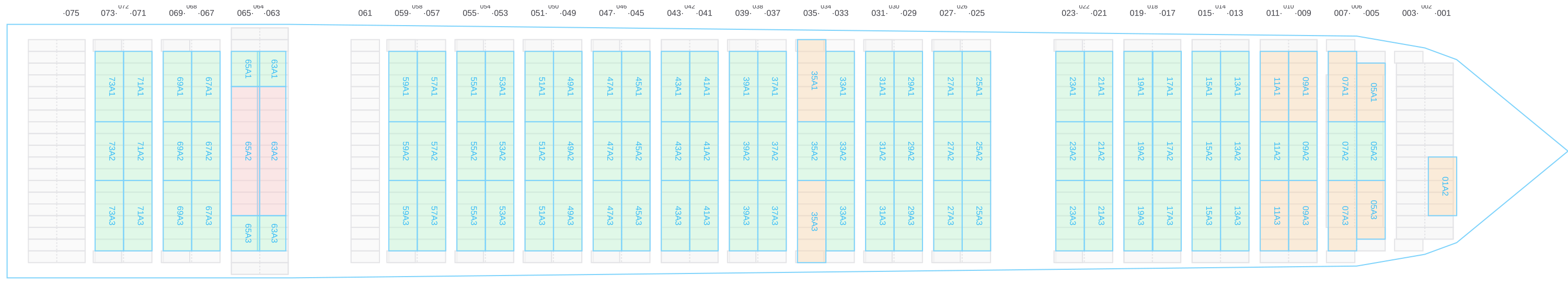

Deck view of HMM PROMISE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →
  • →

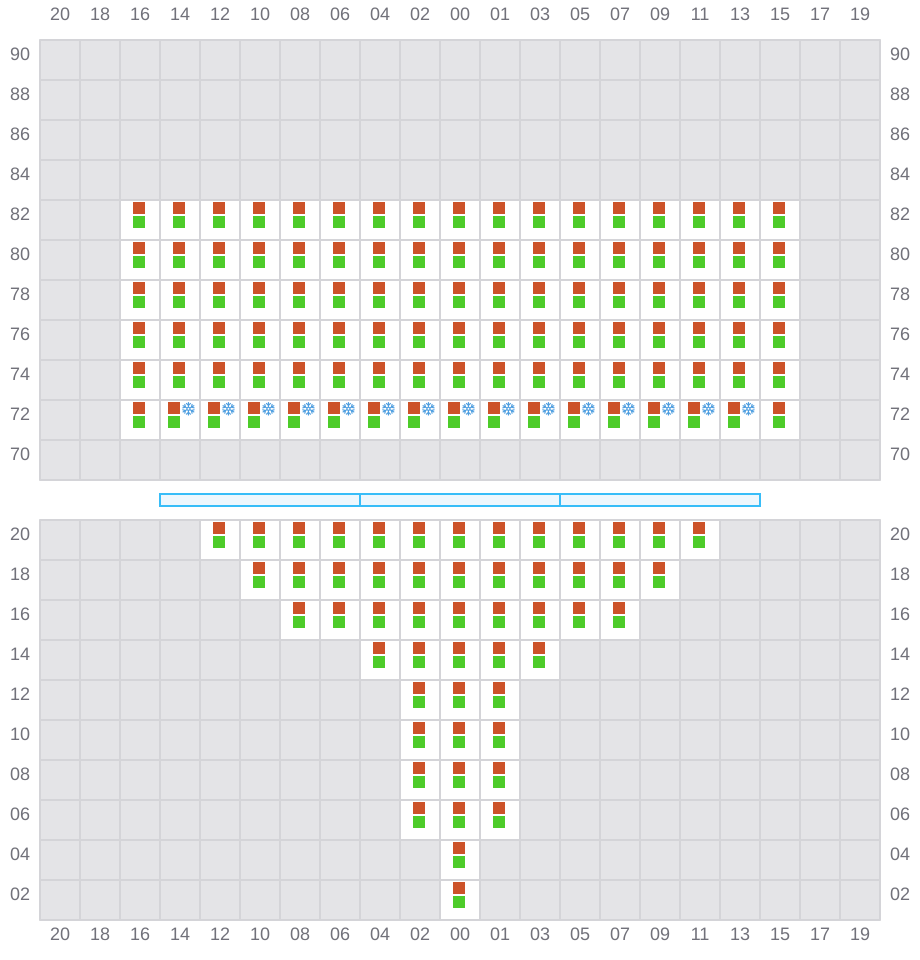

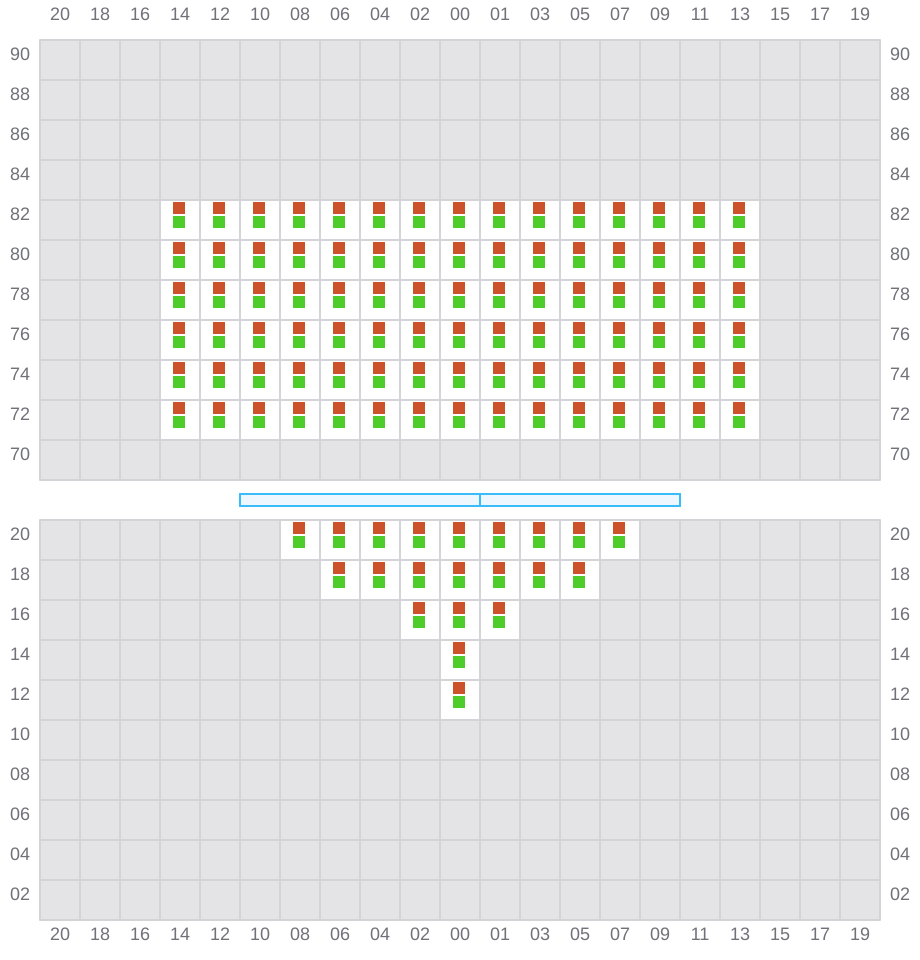

Bay 001 view and slots of HMM PROMISE

003

  • ←
  • →

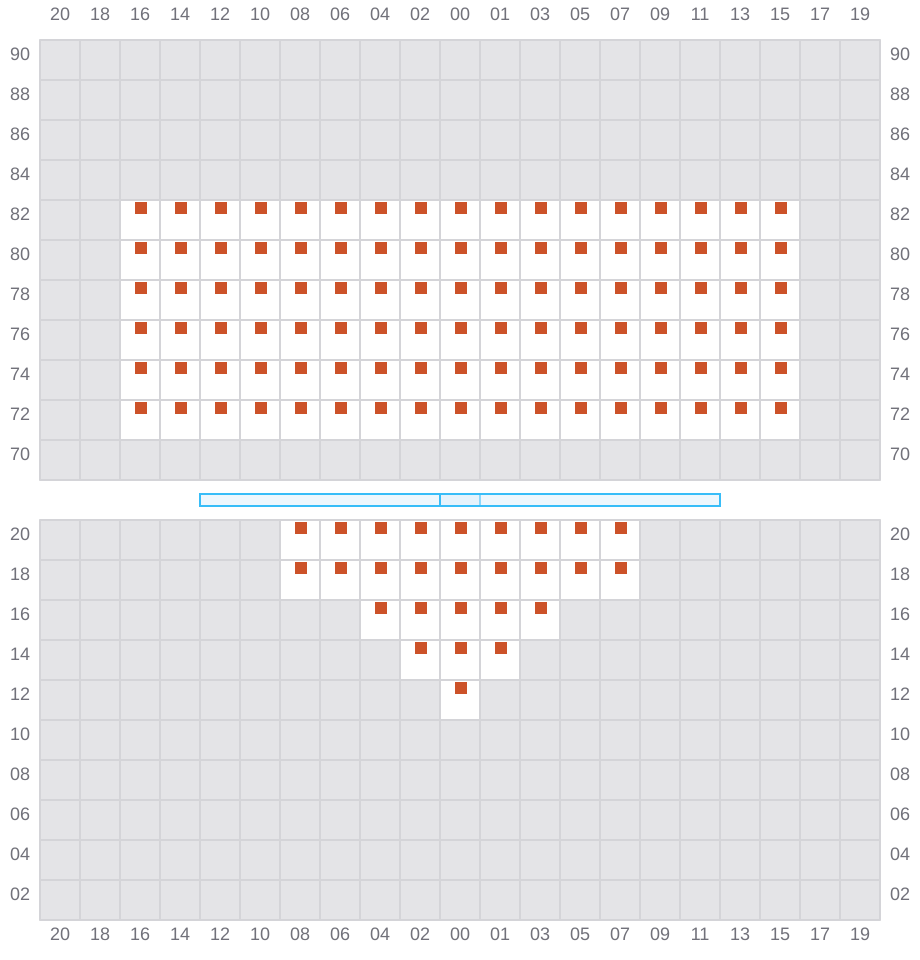

Bay 003 view and slots of HMM PROMISE

005 (006)

  • →
  • → / ?
  • →
Bay 005 view and slots of HMM PROMISE

007

  • ←
  • → / ?
  • →

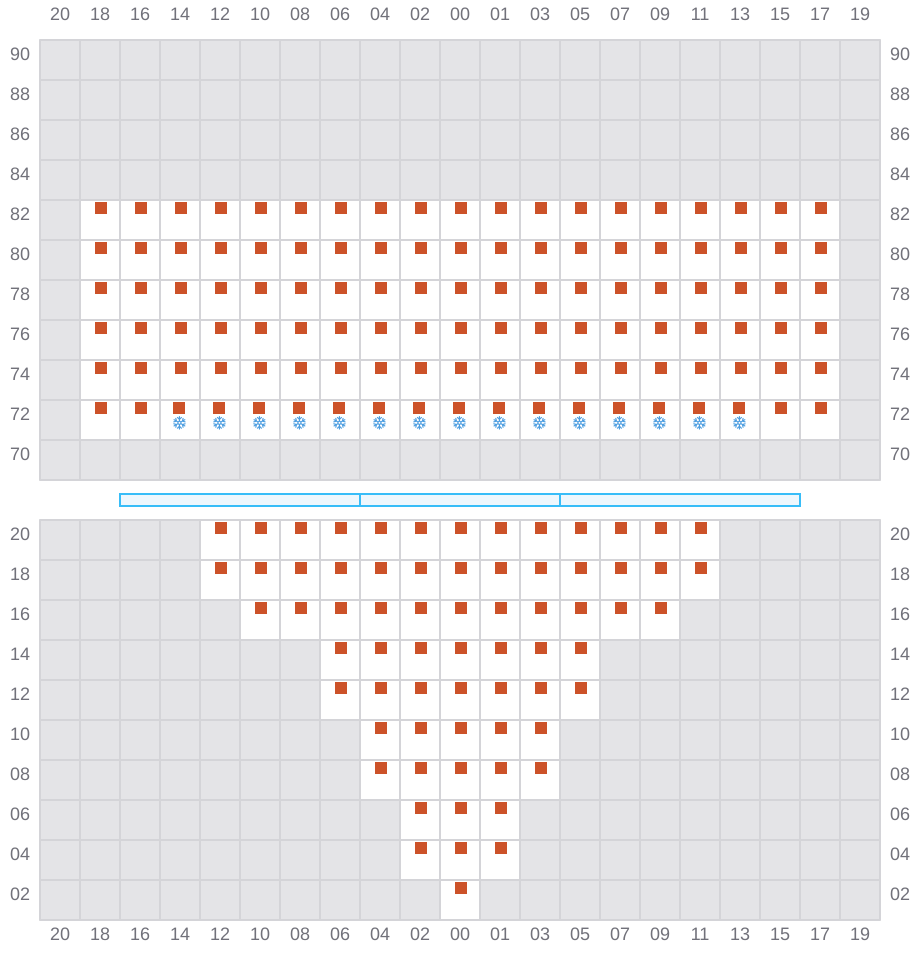

Bay 007 view and slots of HMM PROMISE

009 (010)

  • →
  • → / ?
  • →

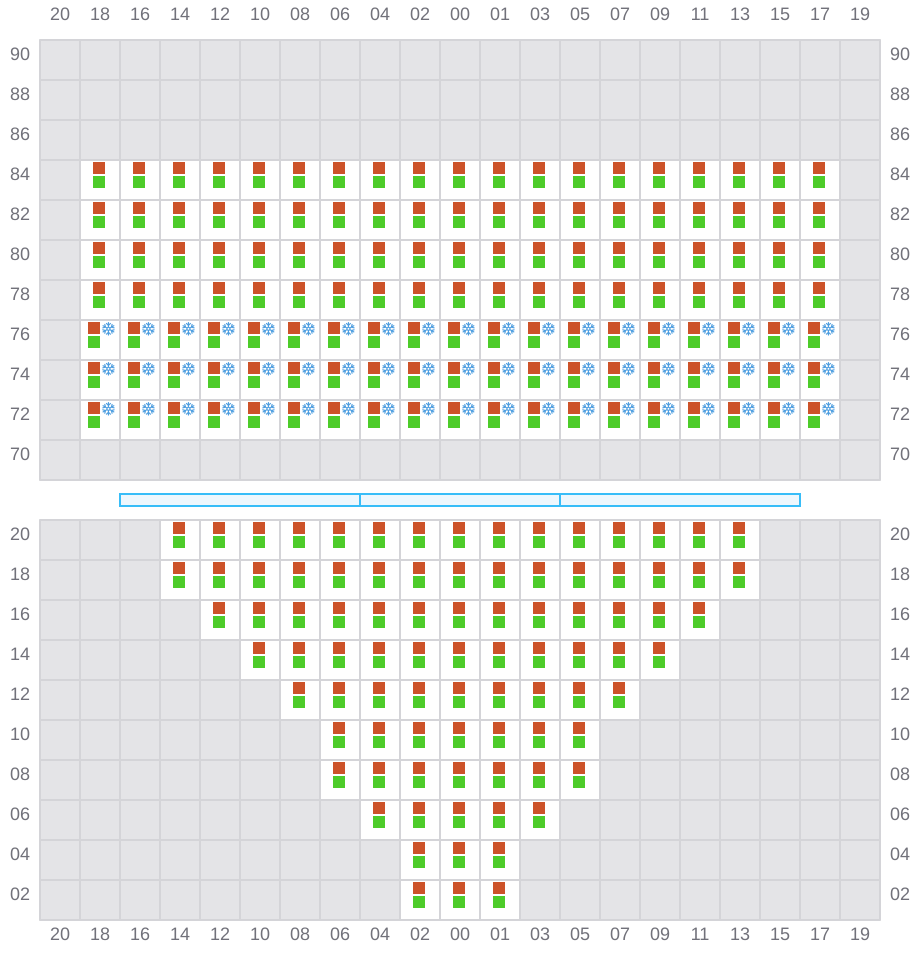

Bay 009 view and slots of HMM PROMISE

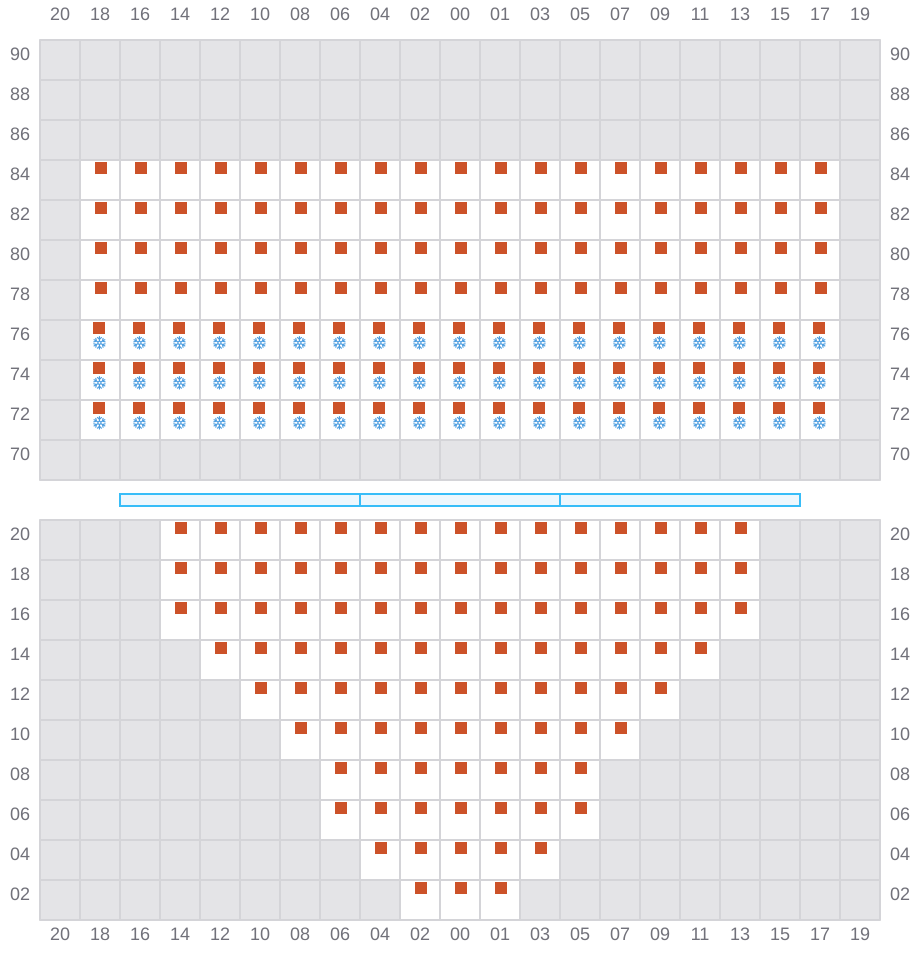

011

  • ←
  • → / ?
  • →
Bay 011 view and slots of HMM PROMISE

013 (014)

  • →
  • → / ?
  • →

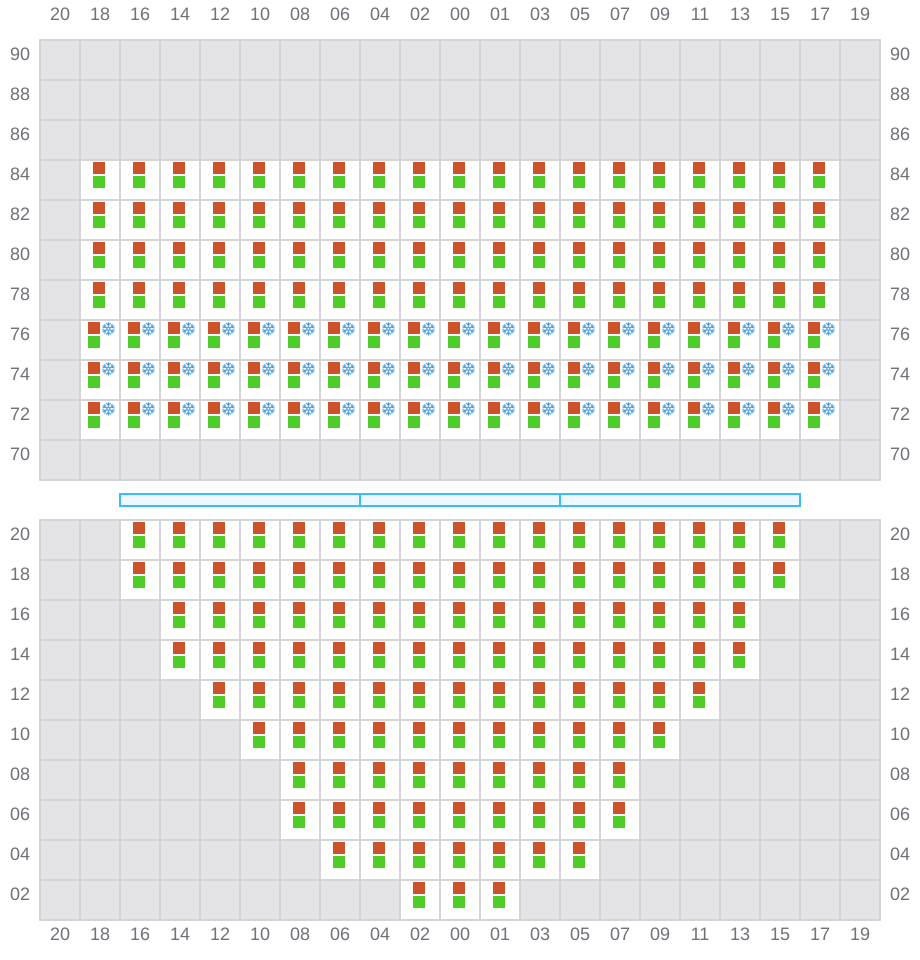

Bay 013 view and slots of HMM PROMISE

015

  • ←
  • →
  • →

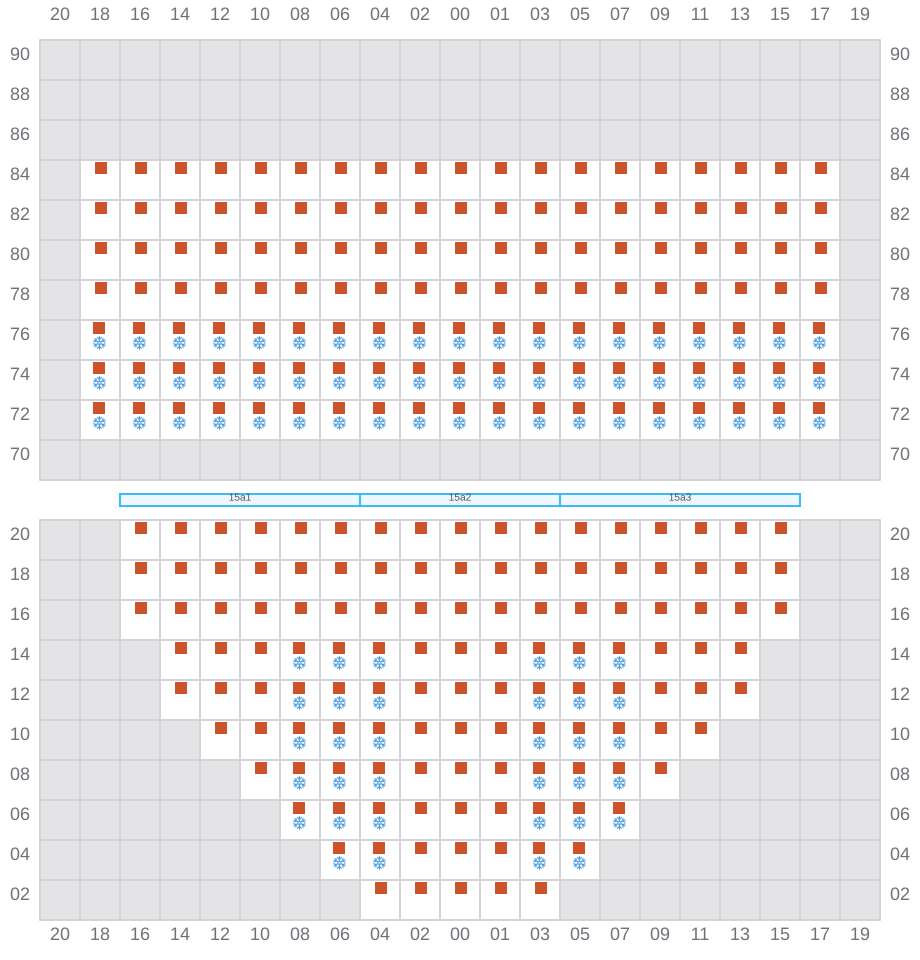

Bay 015 view and slots of HMM PROMISE

017 (018)

  • →
  • → / ?
  • →

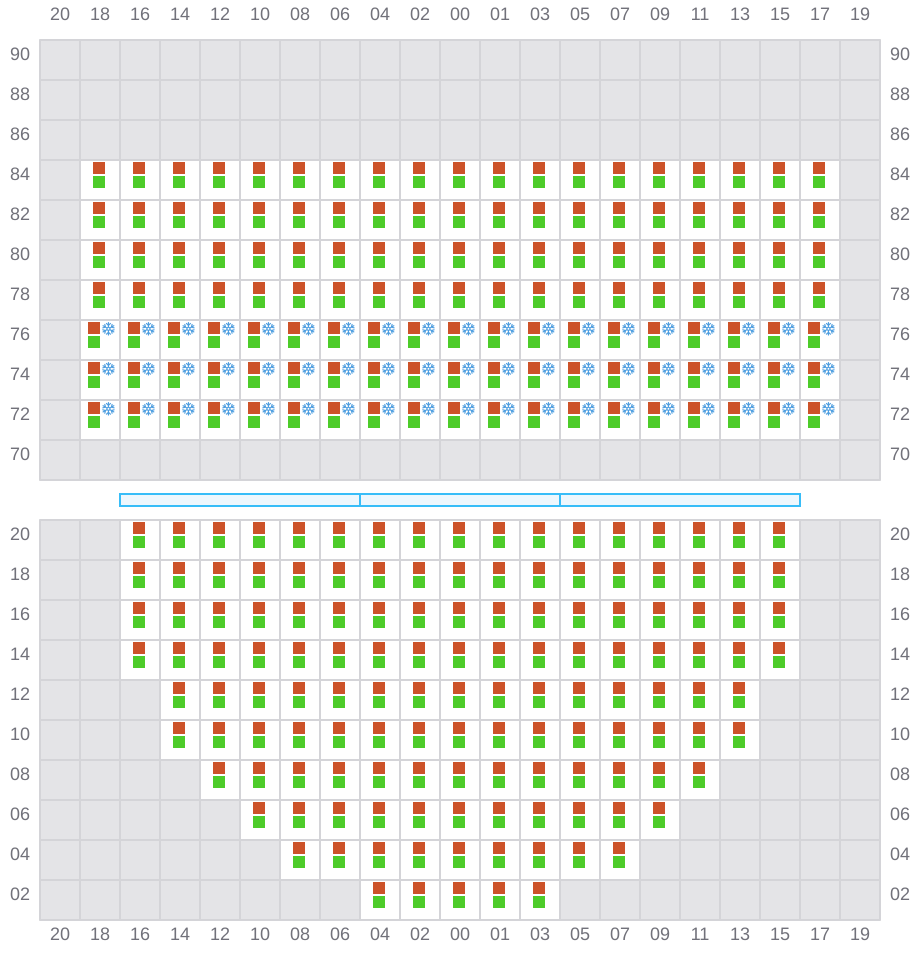

Bay 017 view and slots of HMM PROMISE

019

  • ←
  • →
  • →

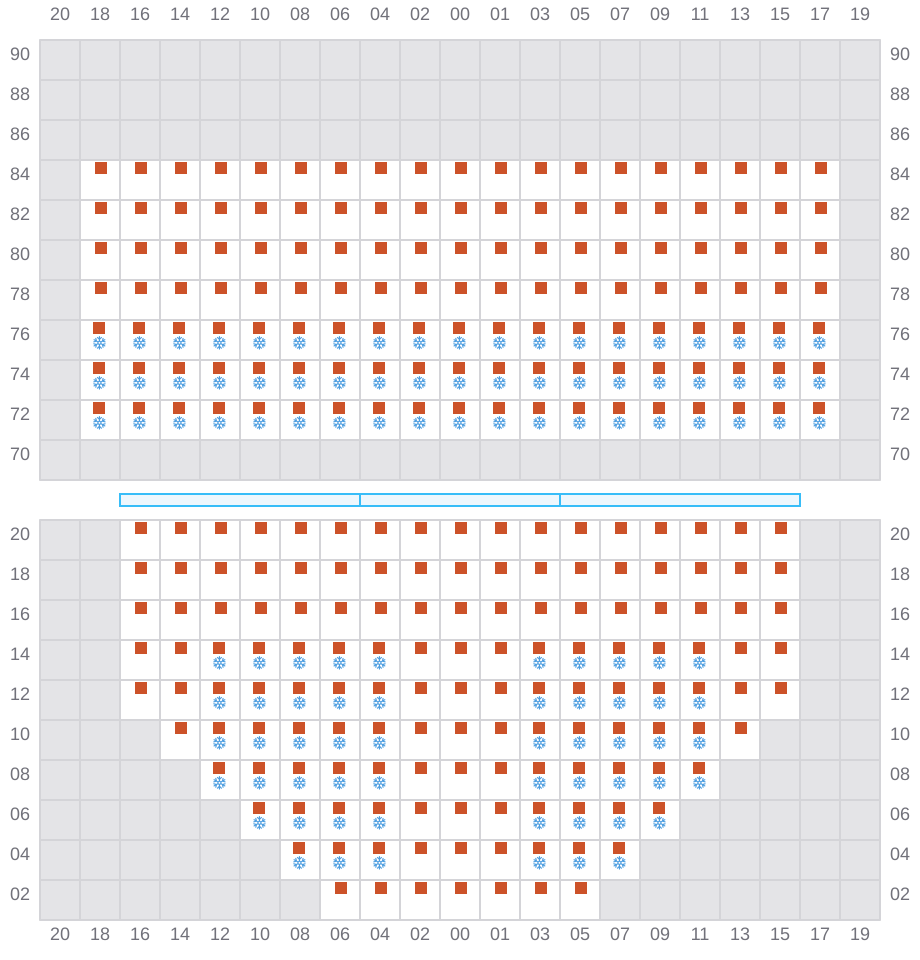

Bay 019 view and slots of HMM PROMISE

021 (022)

  • →
  • → / ?
  • →

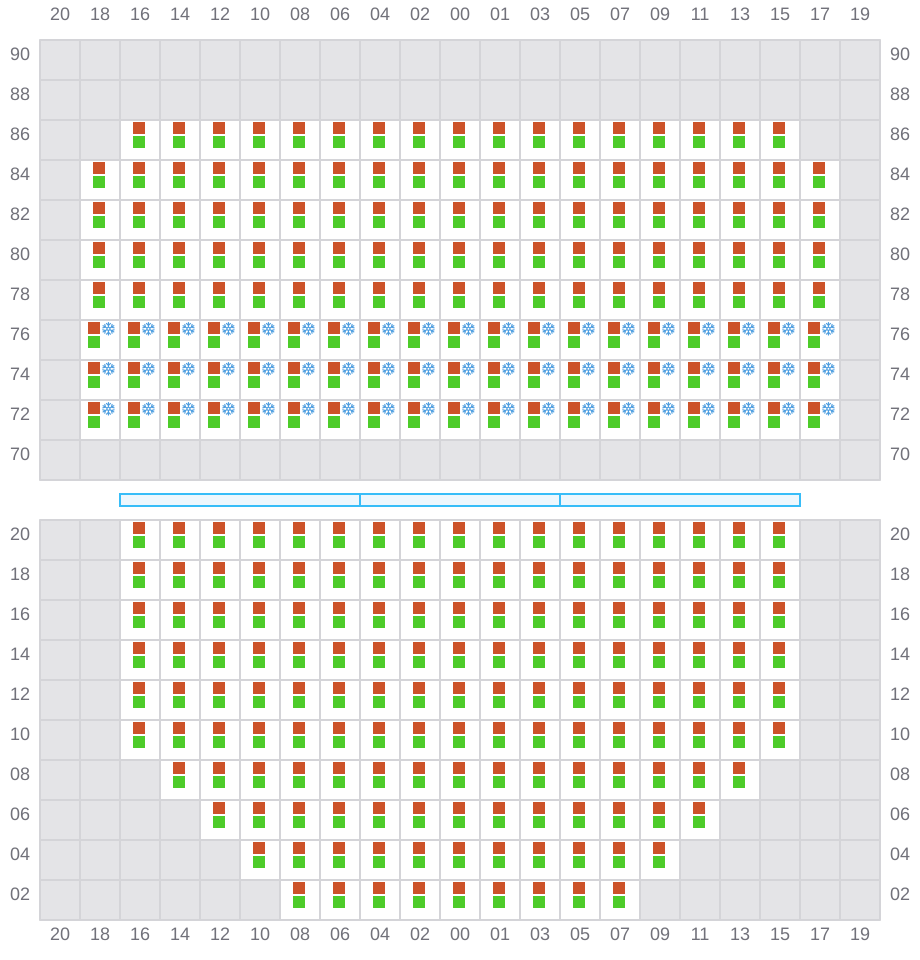

Bay 021 view and slots of HMM PROMISE

023

  • ←
  • → / ?
  • →

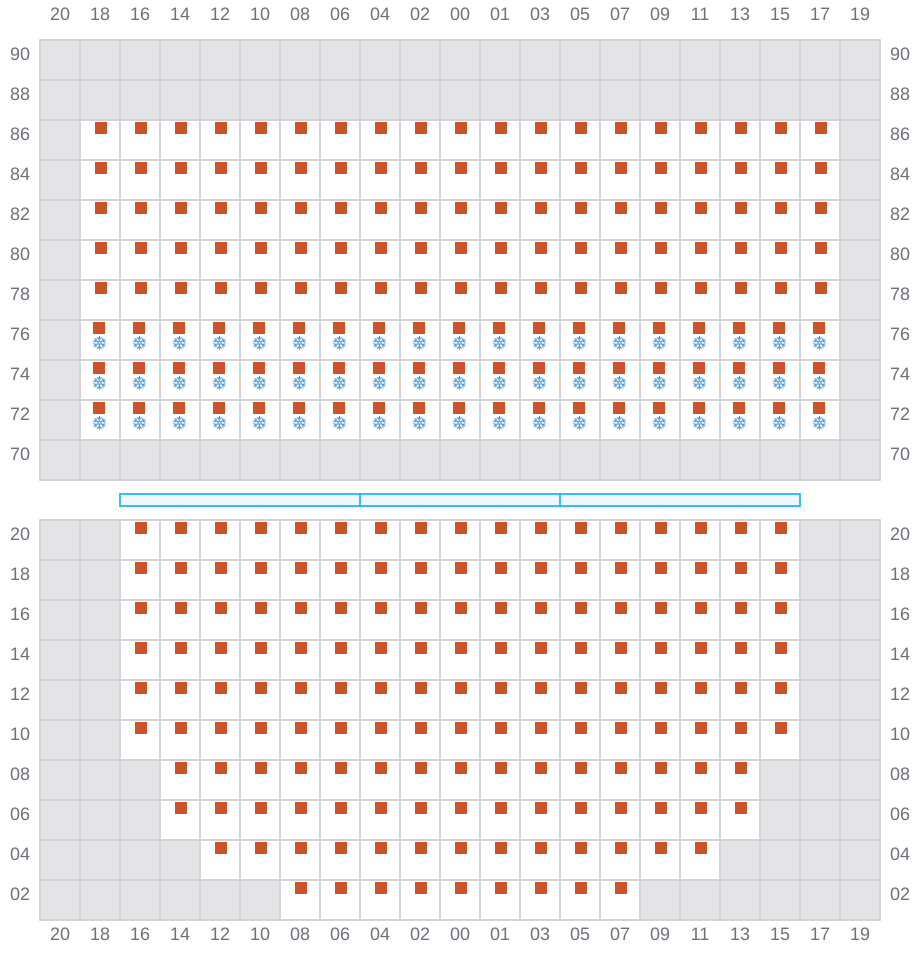

Bay 023 view and slots of HMM PROMISE

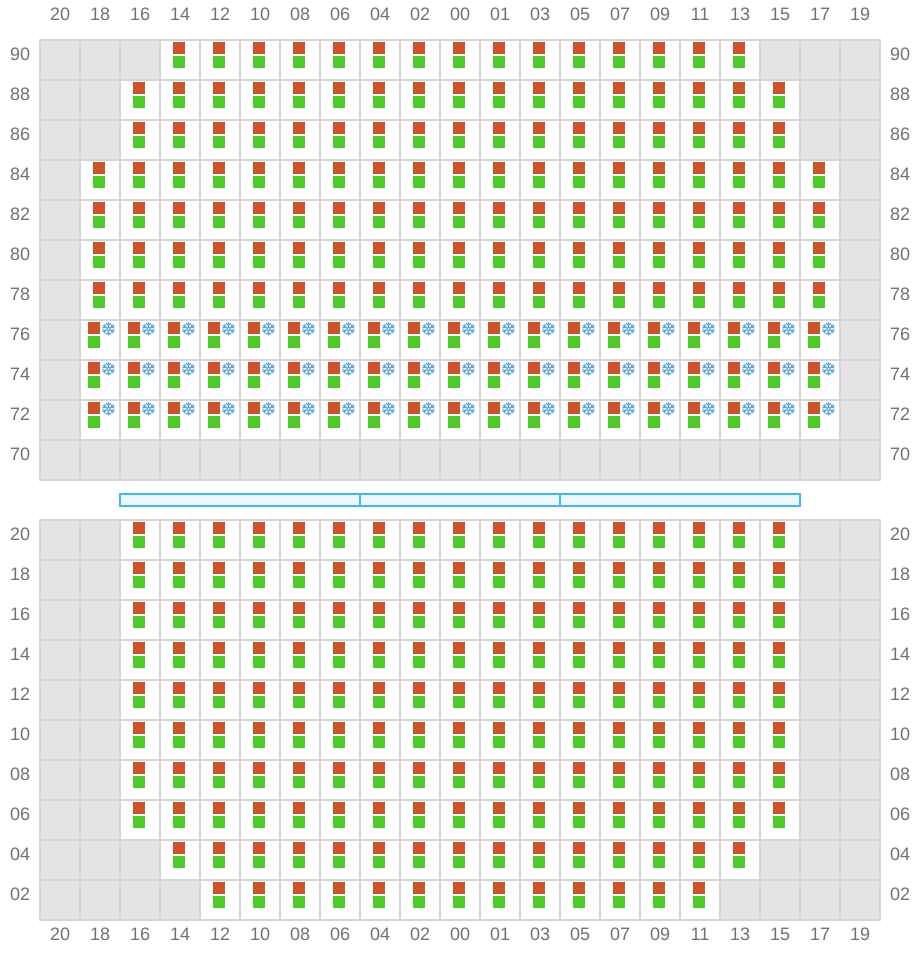

025 (026)

  • →
  • → / ?
  • →
Bay 025 view and slots of HMM PROMISE

027

  • ←
  • → / ?
  • →

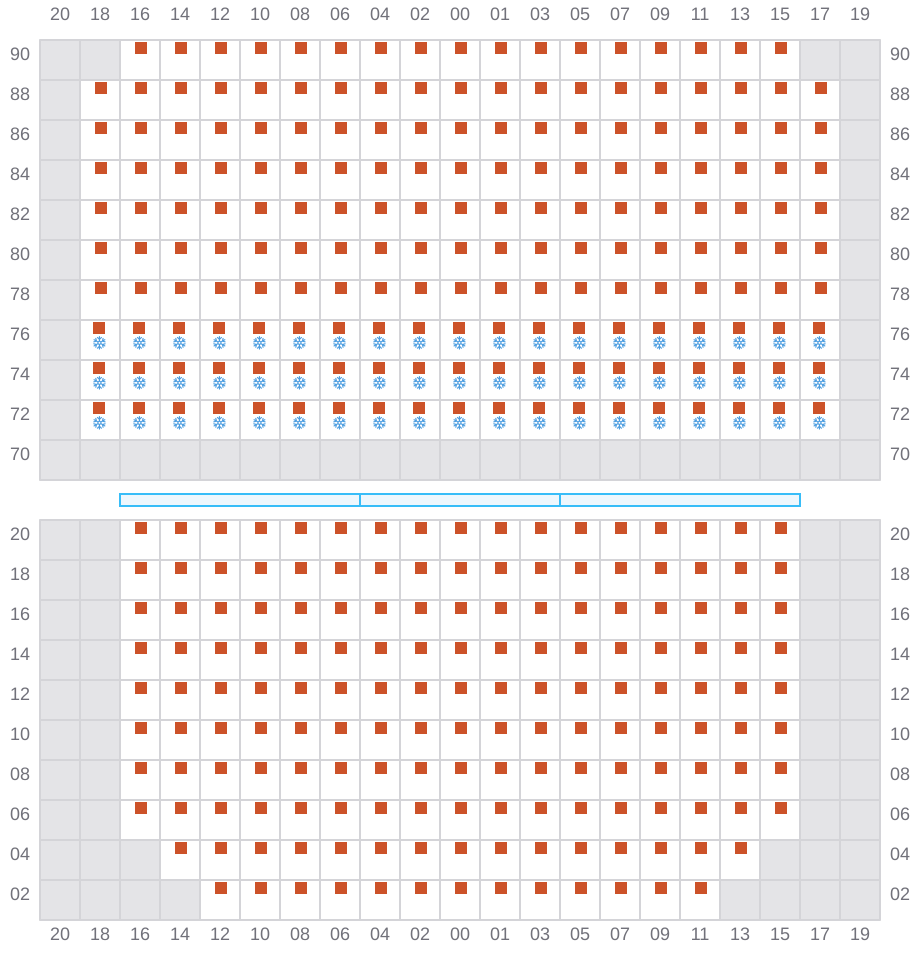

Bay 027 view and slots of HMM PROMISE

029 (030)

  • →
  • → / ?
  • →
Bay 029 view and slots of HMM PROMISE

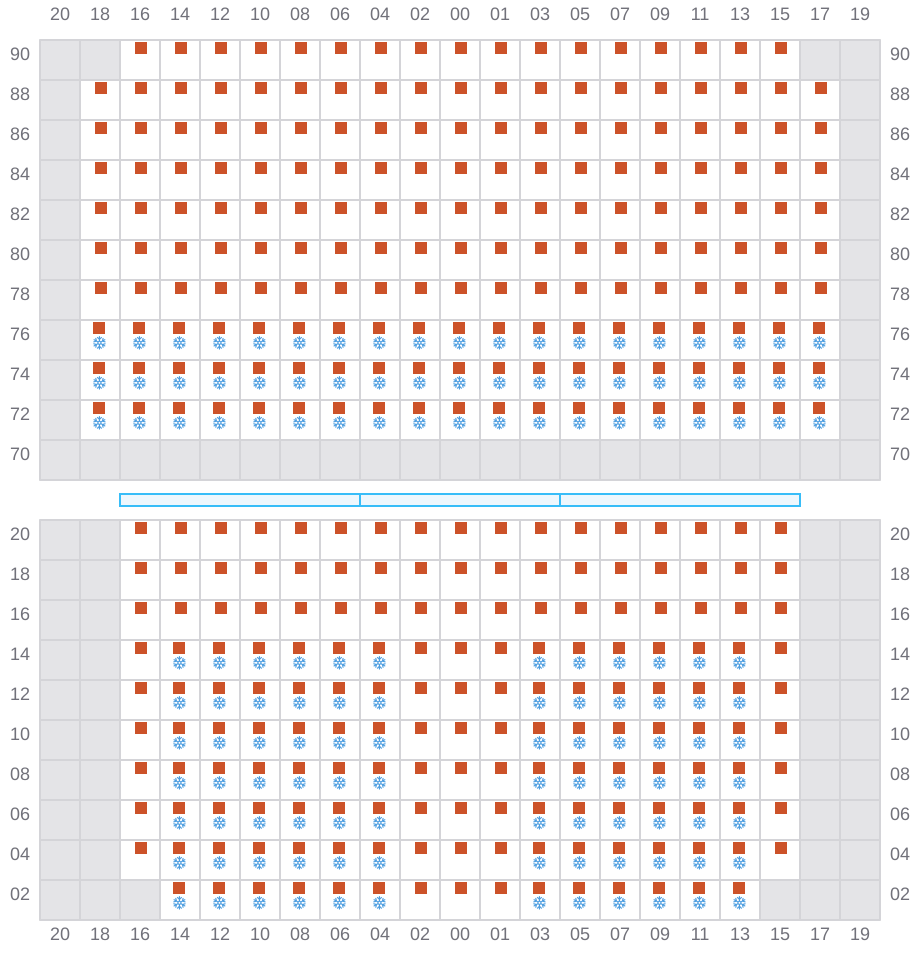

031

  • ←
  • →
  • →
Bay 031 view and slots of HMM PROMISE

033 (034)

  • →
  • → / ?
  • →
Bay 033 view and slots of HMM PROMISE

035

  • ←
  • → / ?
  • →

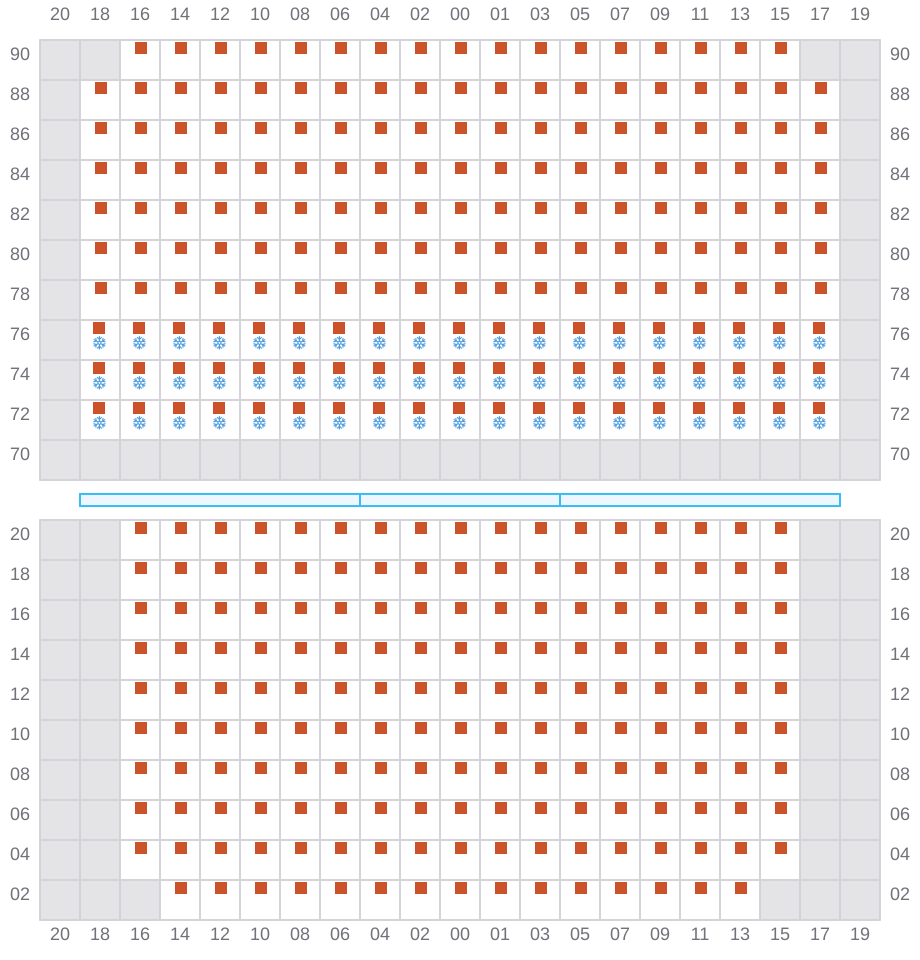

Bay 035 view and slots of HMM PROMISE

037 (038)

  • →
  • → / ?
  • →
Bay 037 view and slots of HMM PROMISE

039

  • ←
  • →
  • →

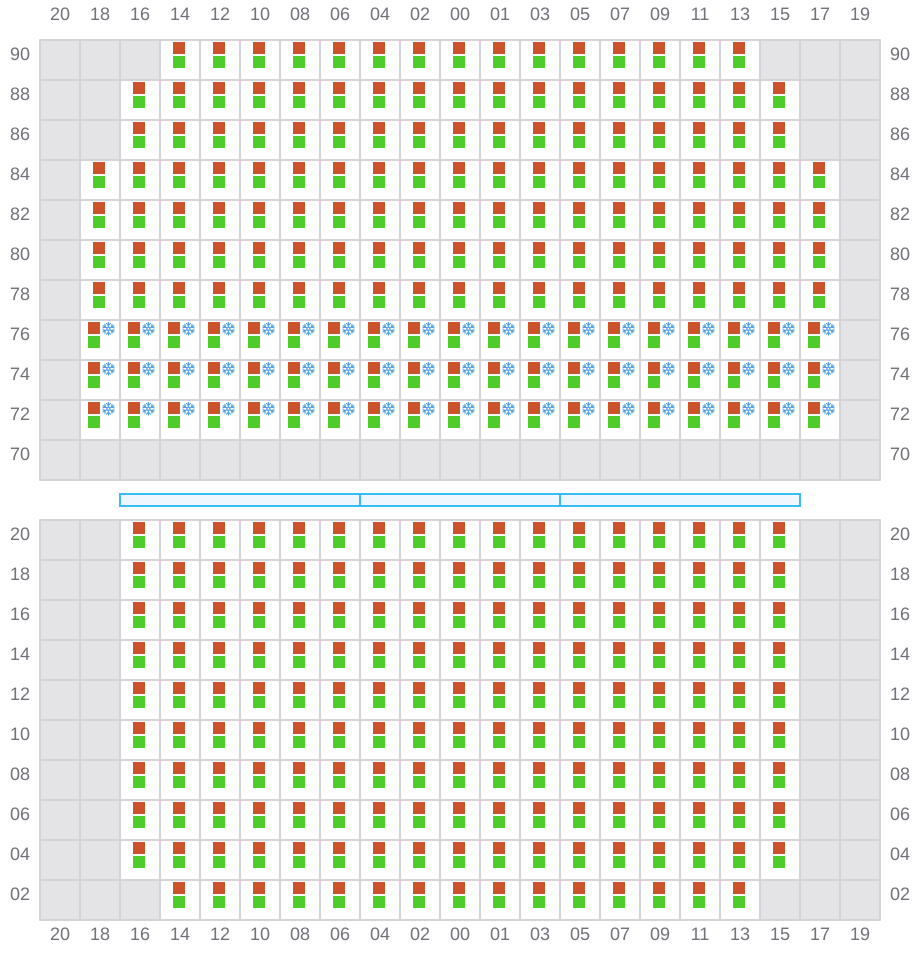

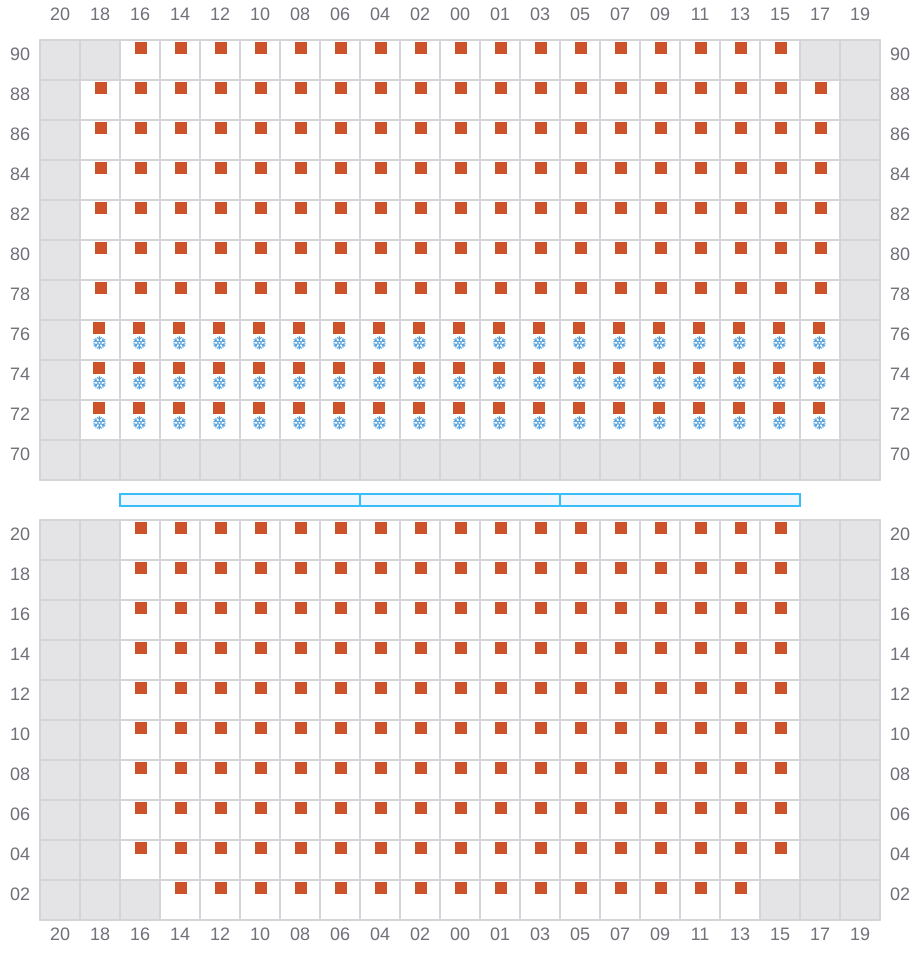

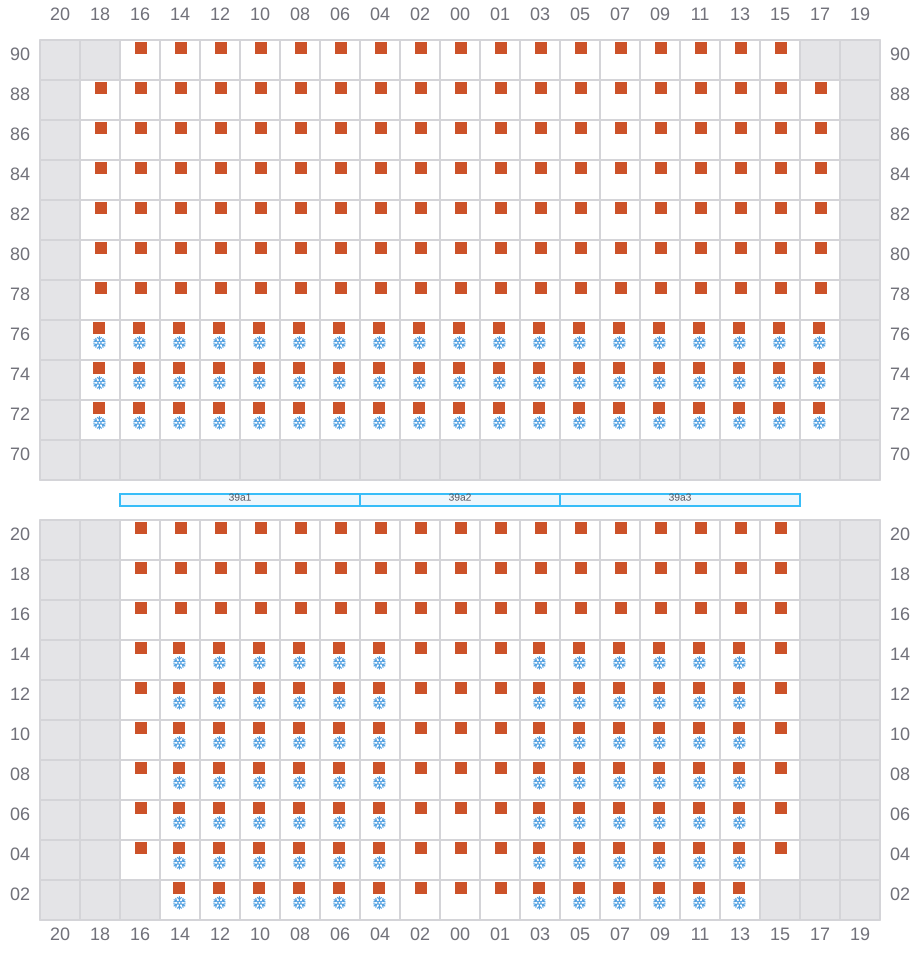

Bay 039 view and slots of HMM PROMISE

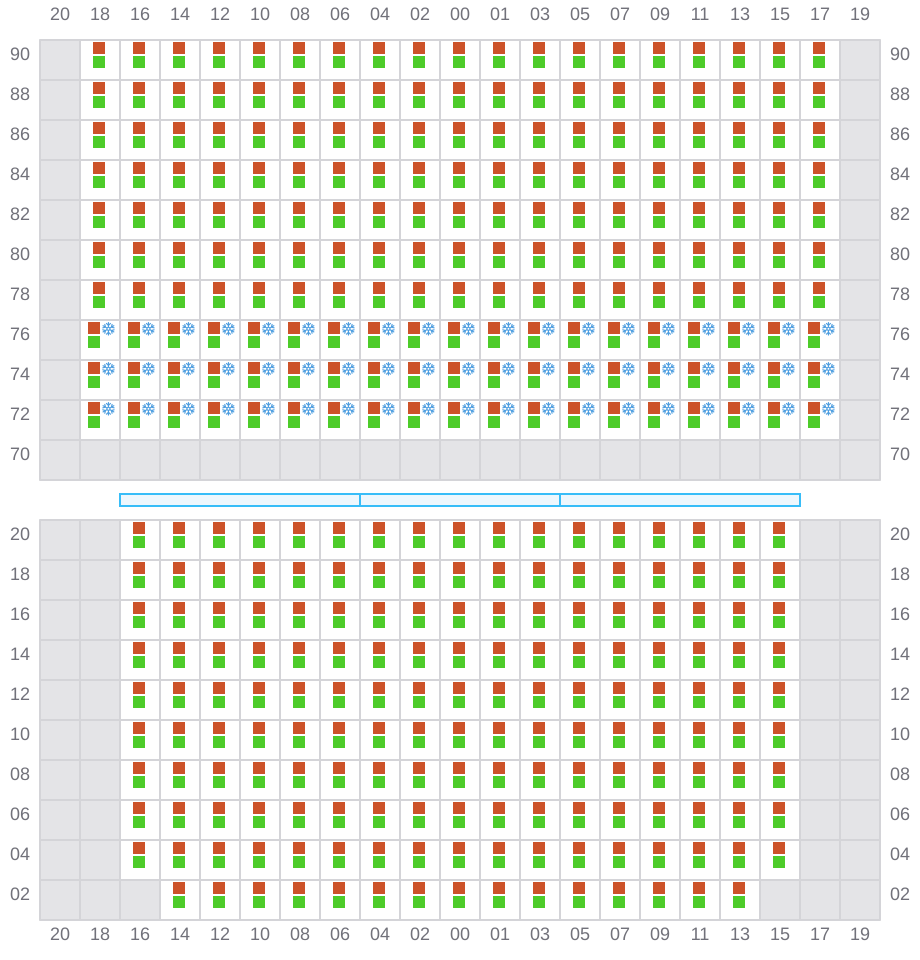

041 (042)

  • →
  • → / ?
  • →
Bay 041 view and slots of HMM PROMISE

043

  • ←
  • → / ?
  • →
Bay 043 view and slots of HMM PROMISE

045 (046)

  • →
  • → / ?
  • →
Bay 045 view and slots of HMM PROMISE

047

  • ←
  • →
  • →

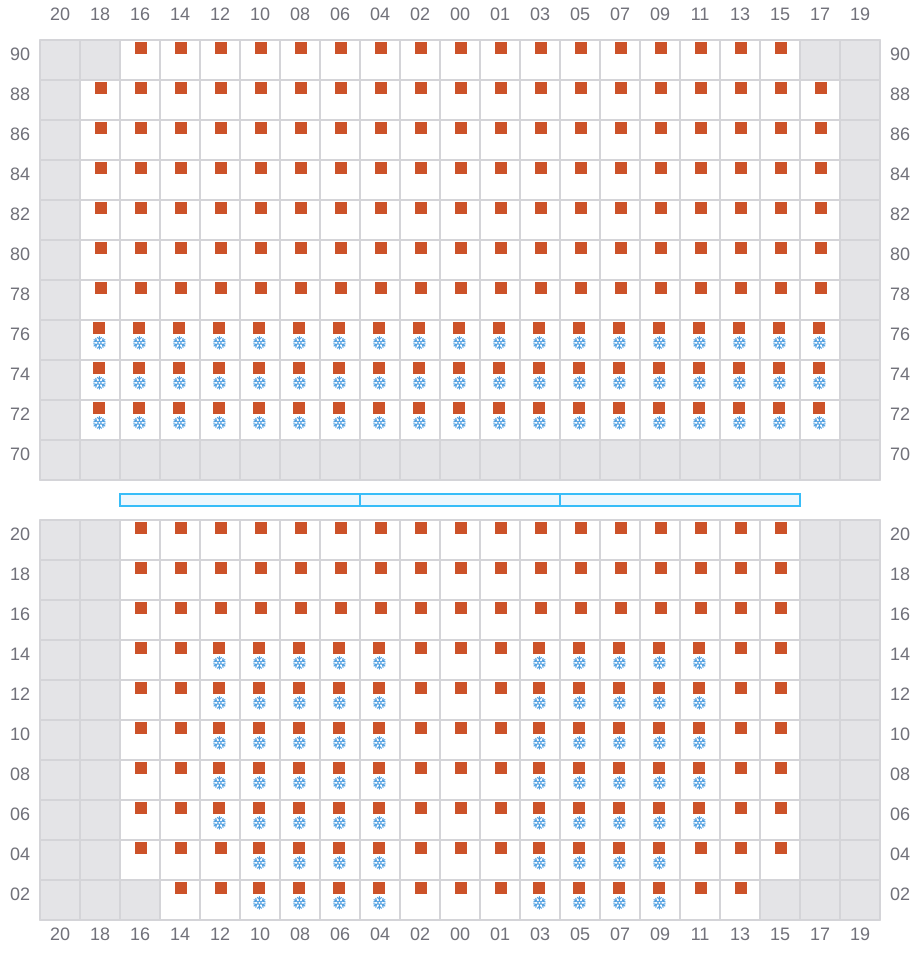

Bay 047 view and slots of HMM PROMISE

049 (050)

  • →
  • → / ?
  • →

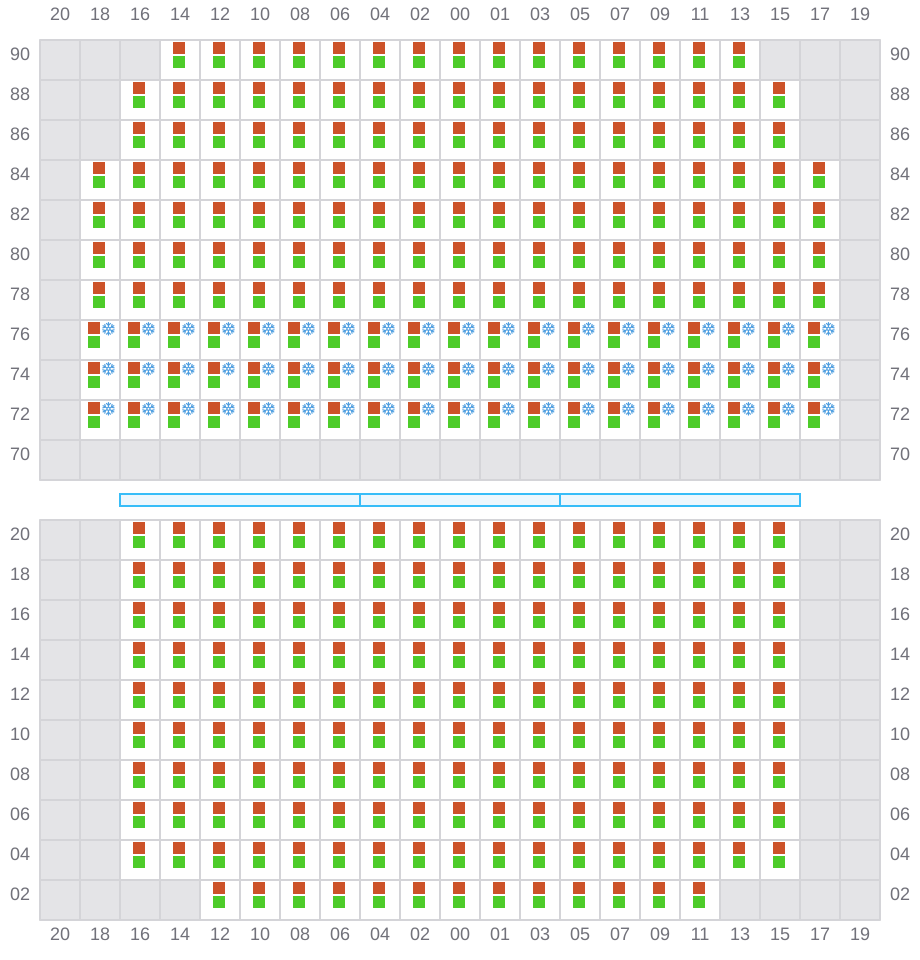

Bay 049 view and slots of HMM PROMISE

051

  • ←
  • →
  • →

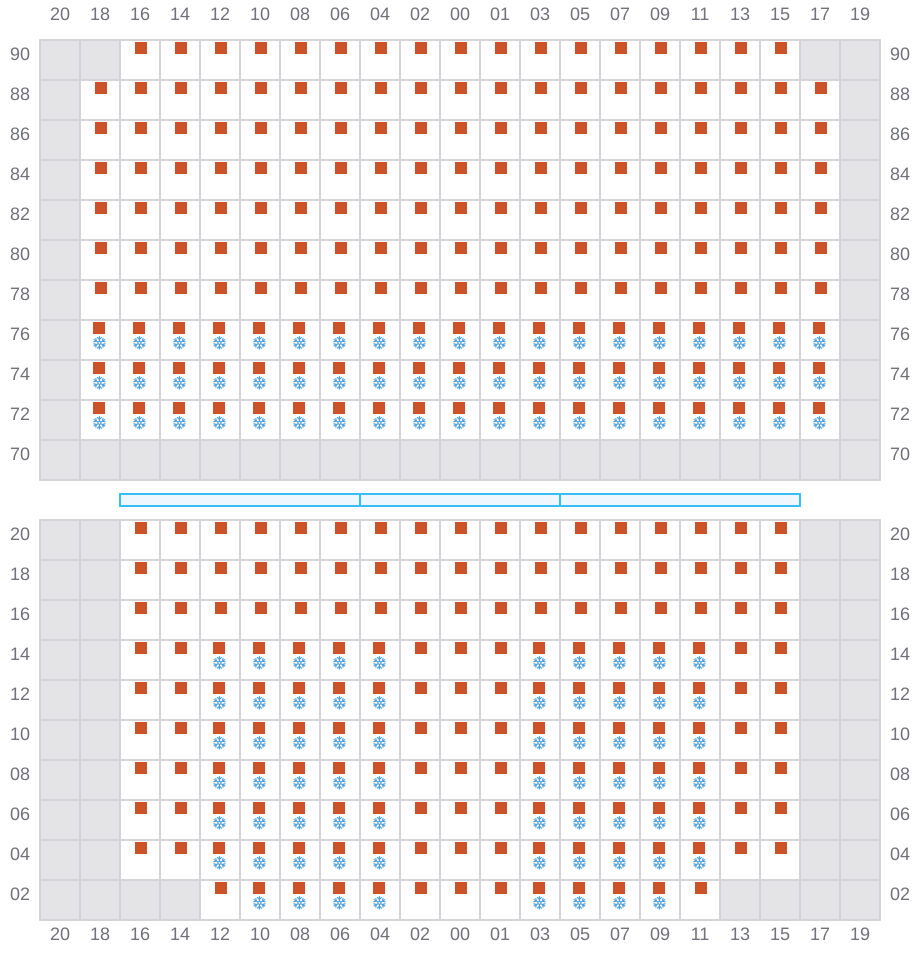

Bay 051 view and slots of HMM PROMISE

053 (054)

  • →
  • → / ?
  • →

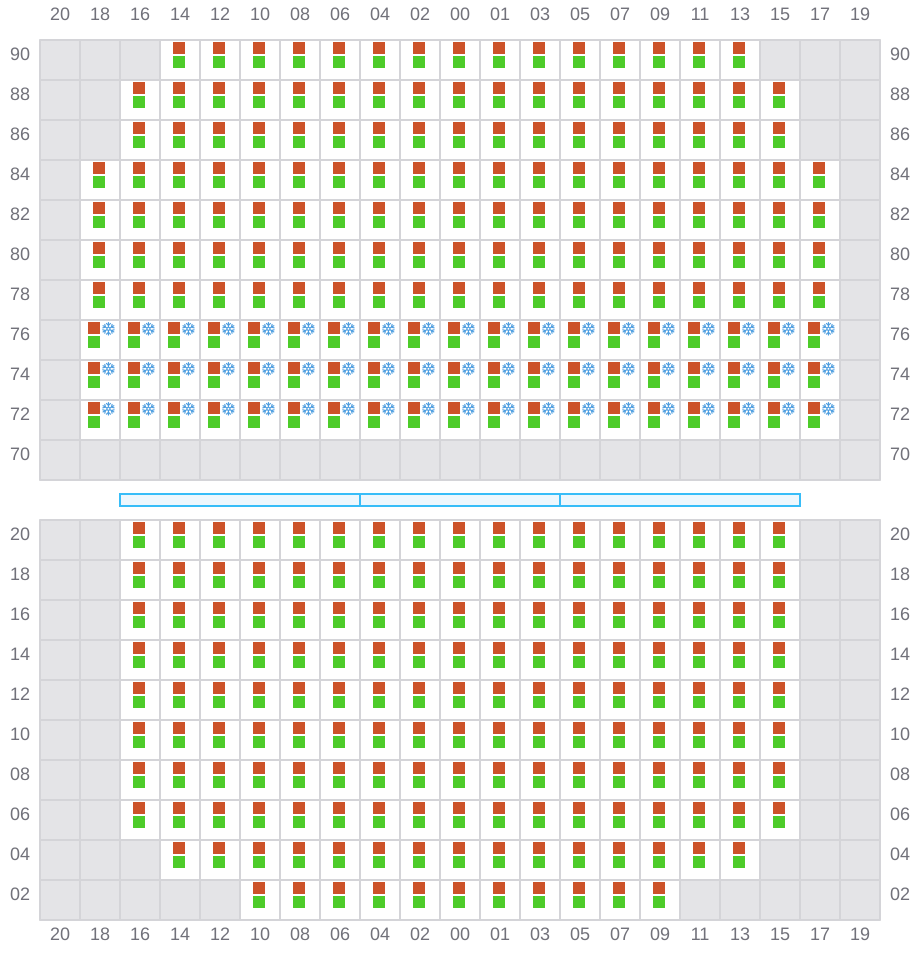

Bay 053 view and slots of HMM PROMISE

055

  • ←
  • →
  • →

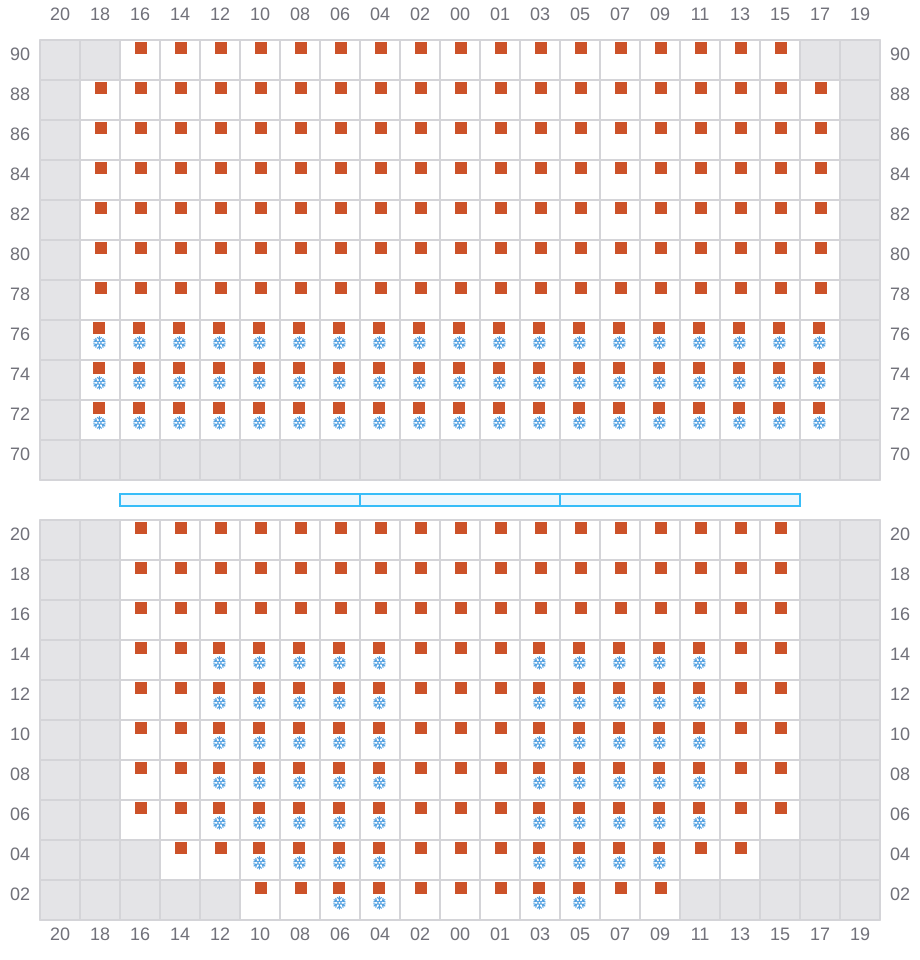

Bay 055 view and slots of HMM PROMISE

057 (058)

  • →
  • → / ?
  • →

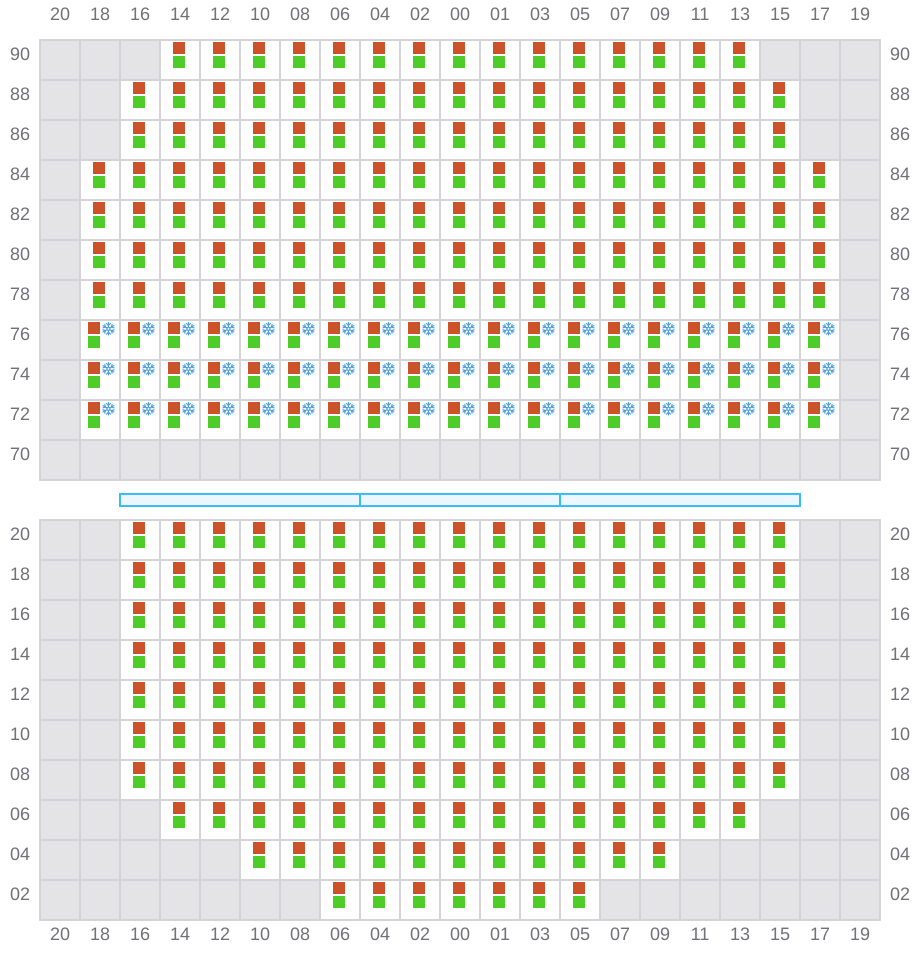

Bay 057 view and slots of HMM PROMISE

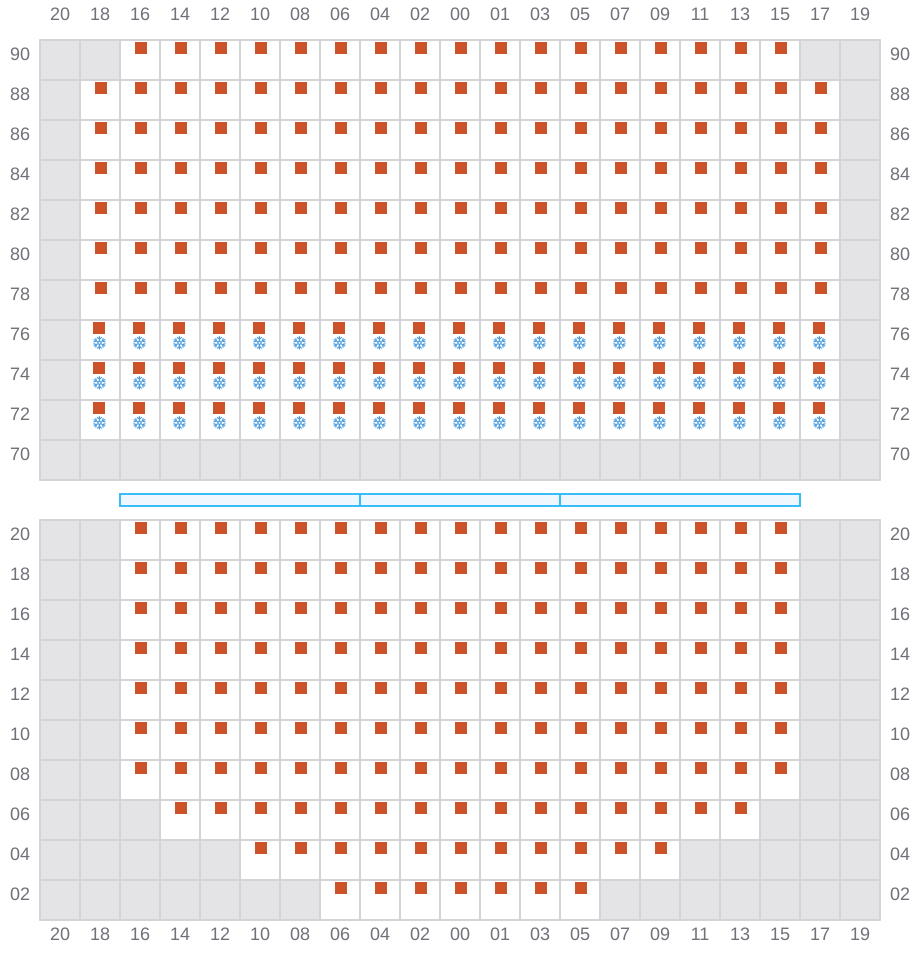

059

  • ←
  • → / ?
  • →
Bay 059 view and slots of HMM PROMISE

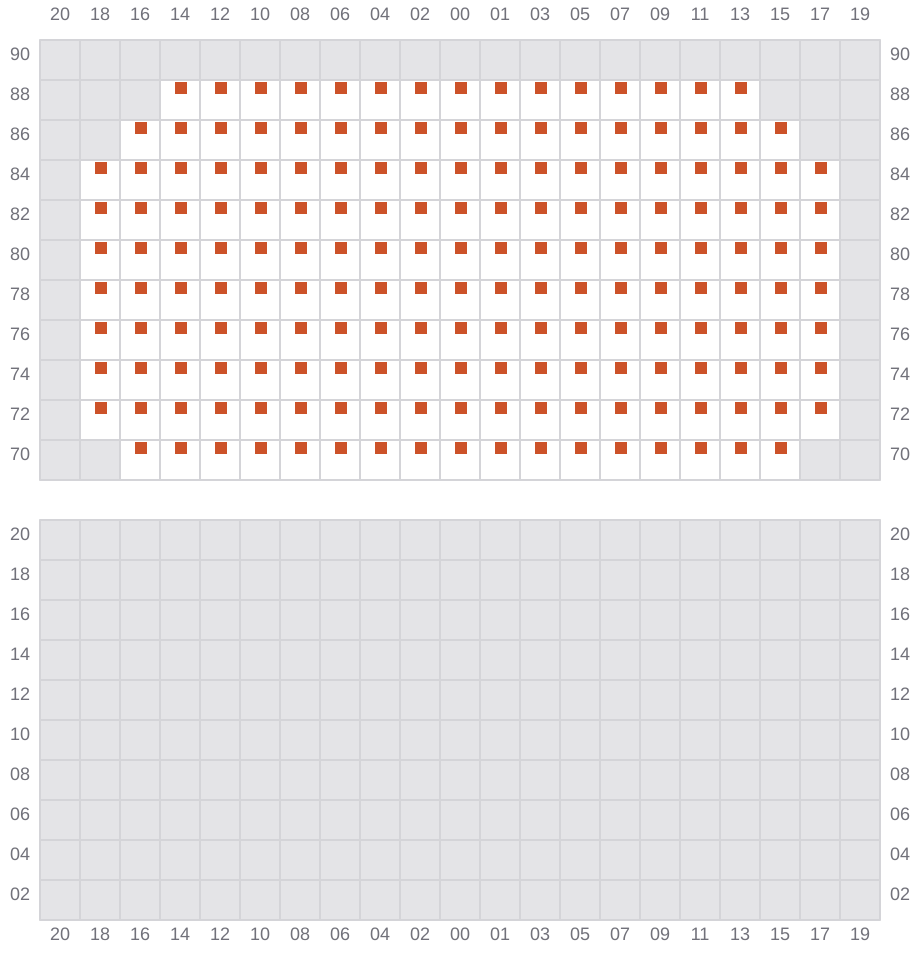

061

  • → / ?
Bay 061 view and slots of HMM PROMISE

063 (064)

  • →
  • → / ?
  • →

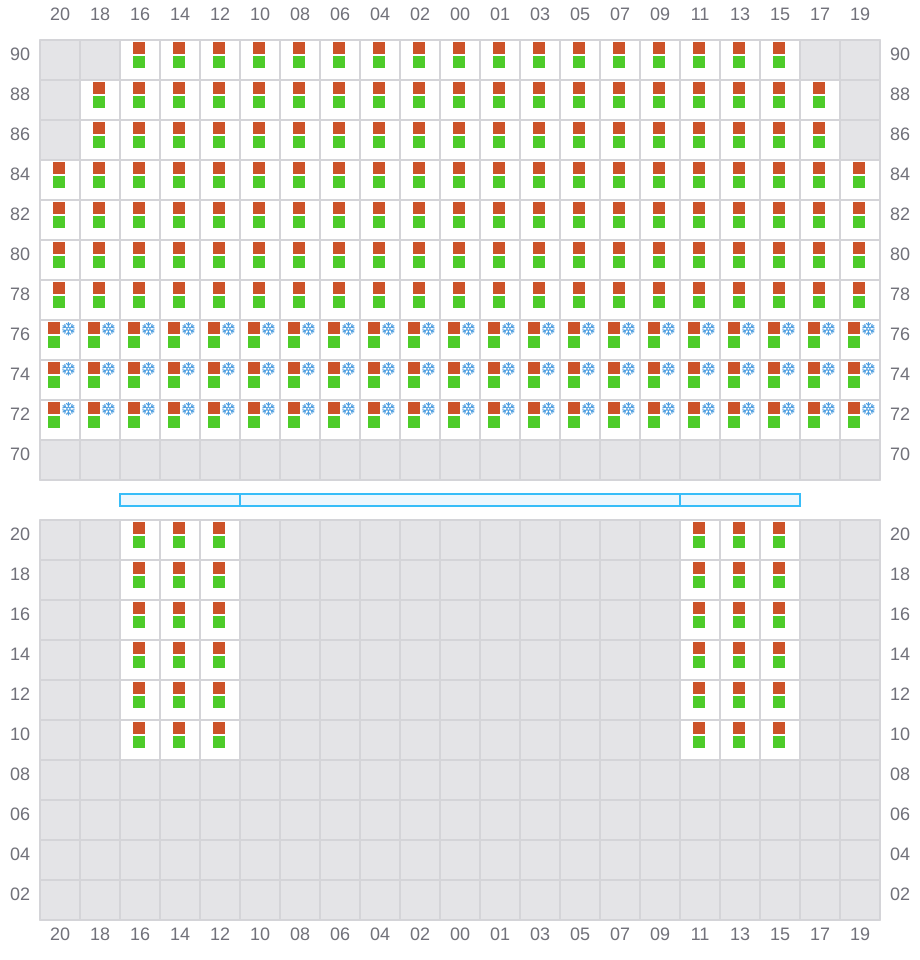

Bay 063 view and slots of HMM PROMISE

065

  • ←
  • → / ?
  • →
Bay 065 view and slots of HMM PROMISE

067 (068)

  • →
  • → / ?
  • →

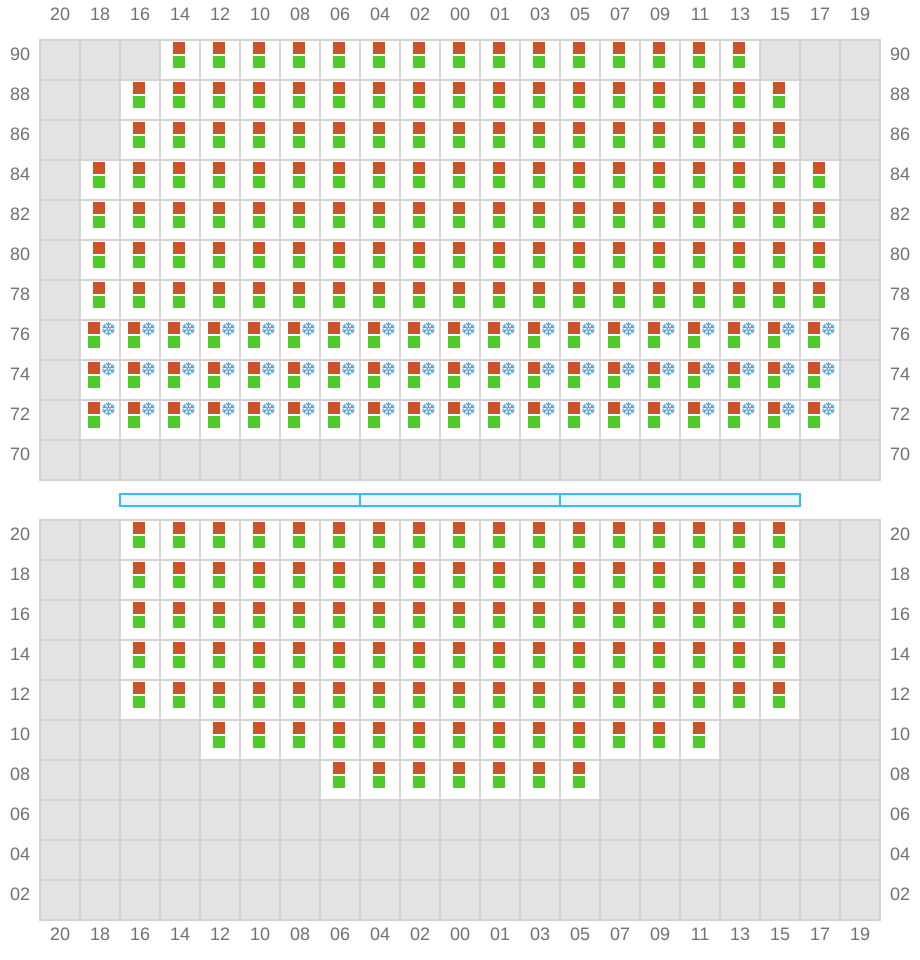

Bay 067 view and slots of HMM PROMISE

069

  • ←
  • → / ?
  • →
Bay 069 view and slots of HMM PROMISE

071 (072)

  • →
  • → / ?
  • →

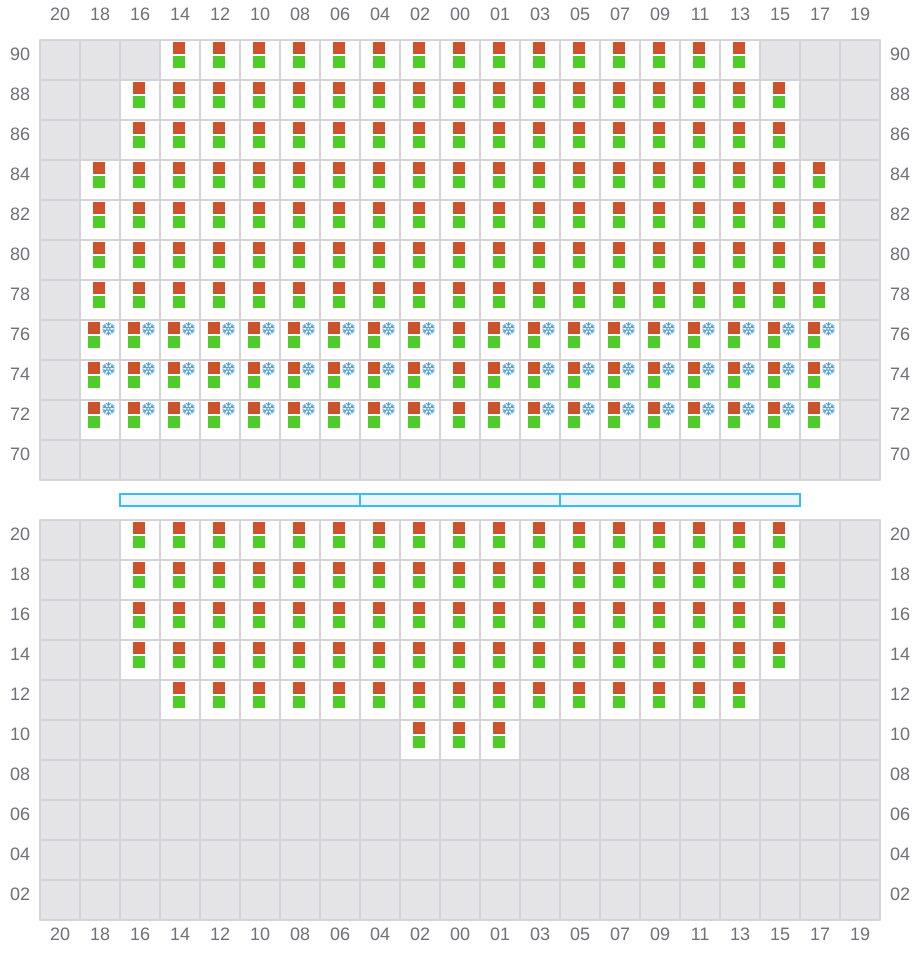

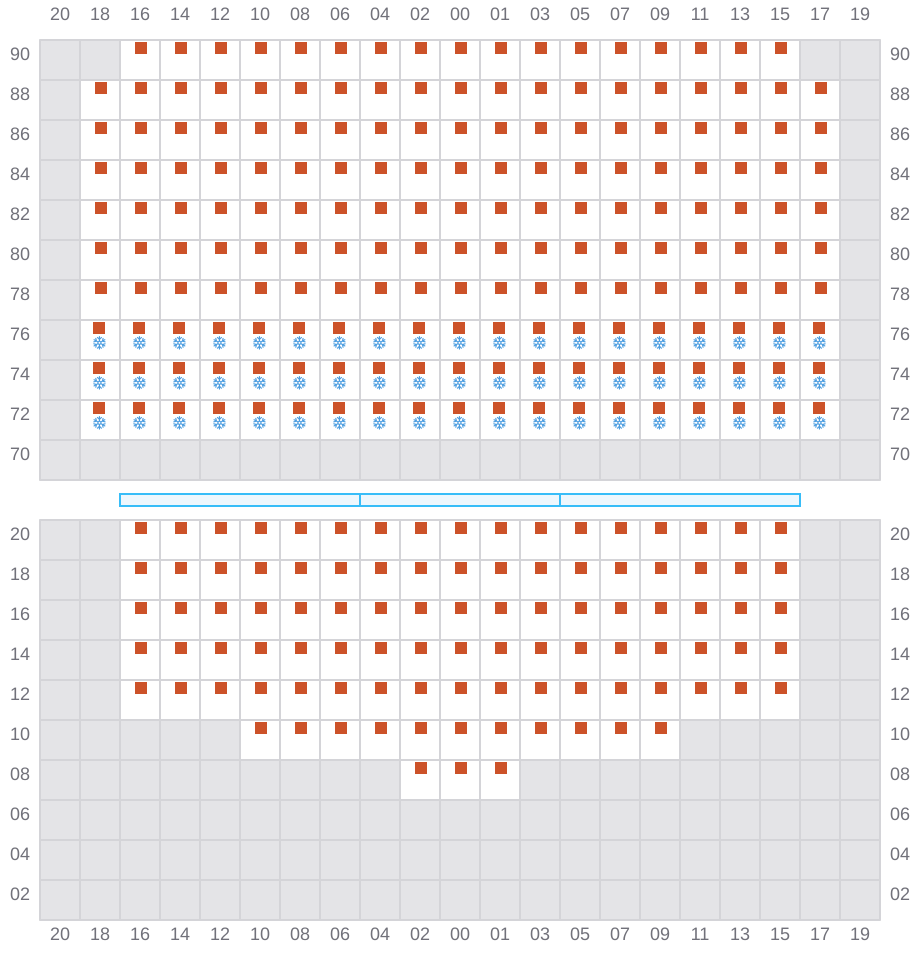

Bay 071 view and slots of HMM PROMISE

073

  • ←
  • → / ?
  • →

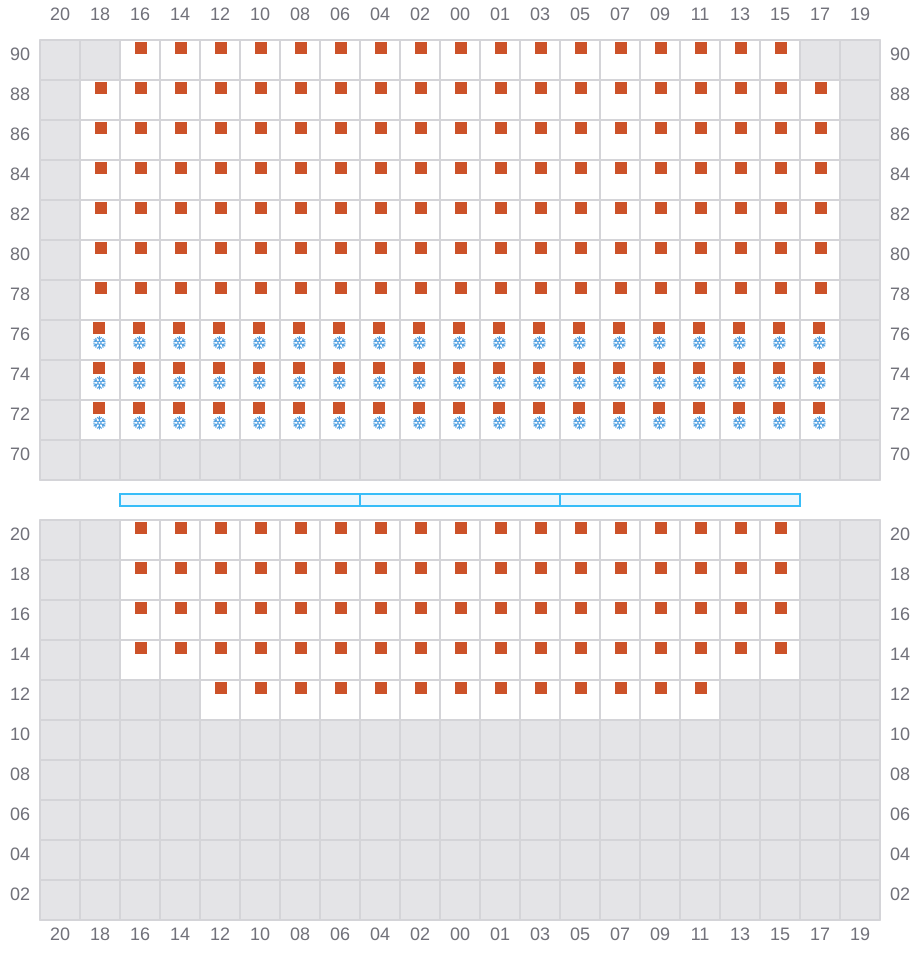

Bay 073 view and slots of HMM PROMISE

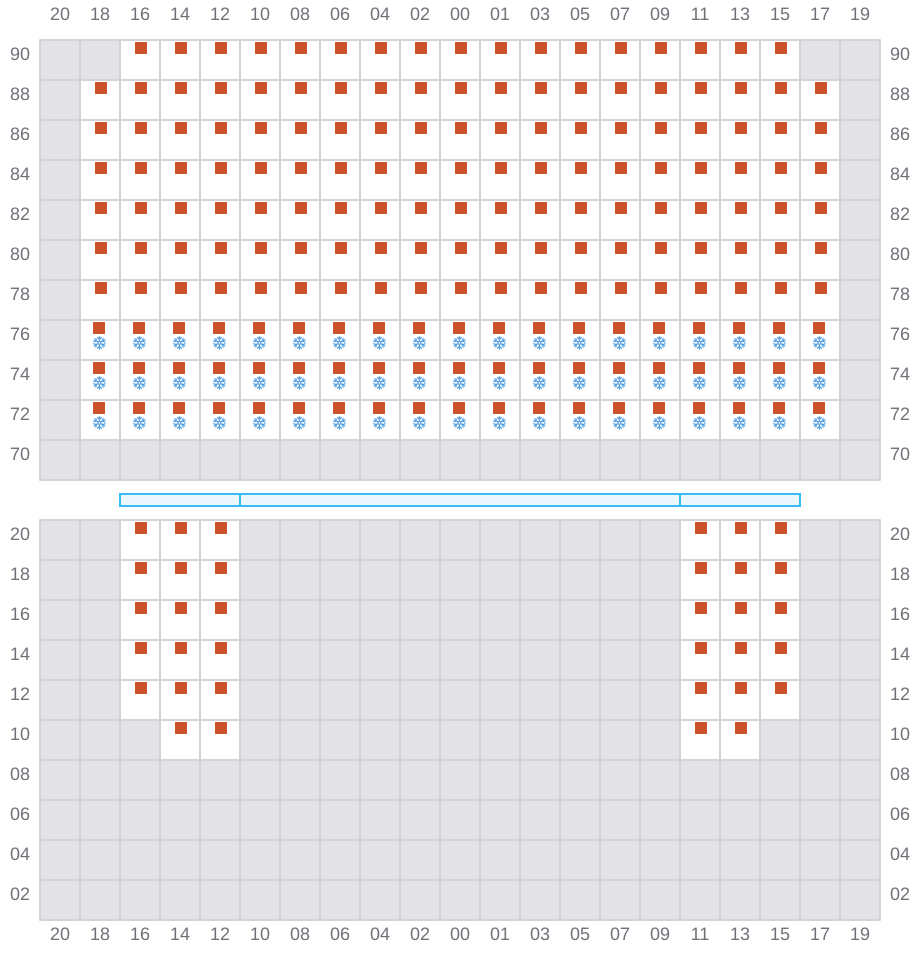

075 (076)

  • → / ?
  • ← / ?
  • → / ?

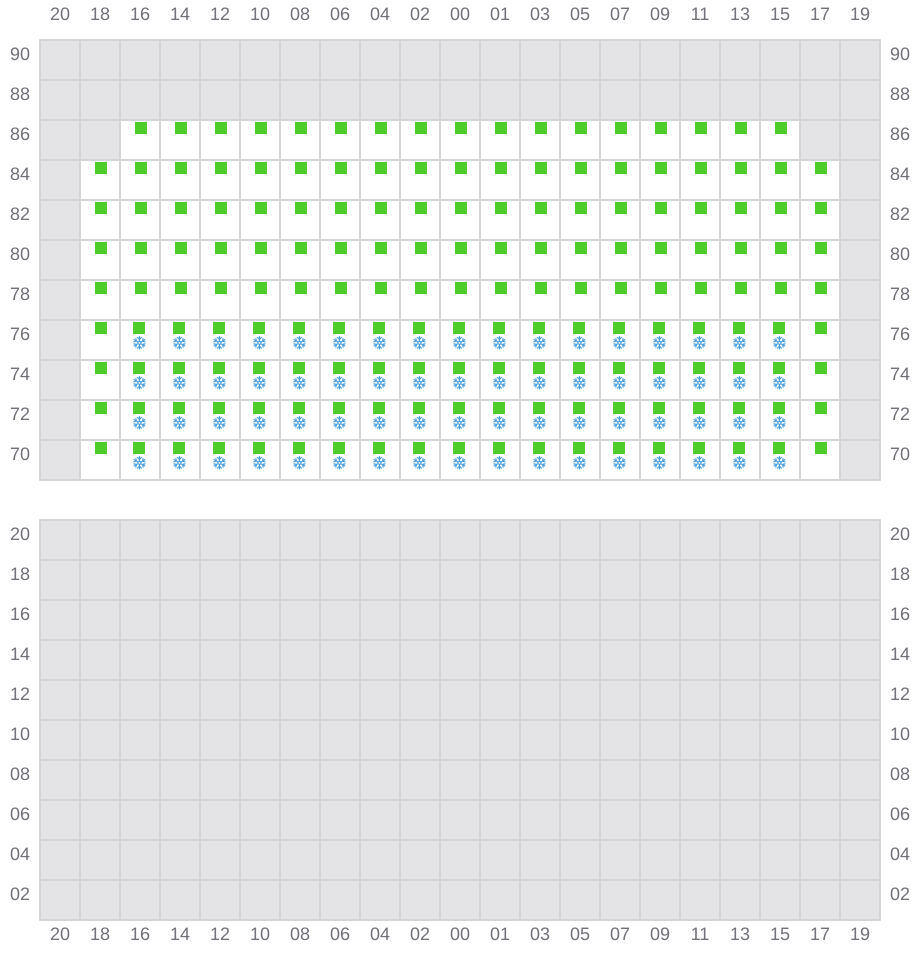

Bay 075 view and slots of HMM PROMISE
