HMM SOUTHAMPTON
9868340 | D7JS | HMM by *********************** Last update: Thu Feb 13 2025

General Info

Ship Name:HMM SOUTHAMPTON

IMO Code:9868340

Call Sign:D7JS

Line Operator:HMM

Class Name for Sister Ships:HHSO

Year Built:2020

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:093

Max ISO Row:24

Center Line Row:No

Max Above ISO Tier:96

Min Above ISO Tier:68

Max Below ISO Tier:24

Min Below ISO Tier:02

Total TEU:23,772

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

Hatch-Covers View

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

Bay 001 view and slots of HMM SOUTHAMPTON

003

Bay 003 view and slots of HMM SOUTHAMPTON

005 (006)

Bay 005 view and slots of HMM SOUTHAMPTON

007

Bay 007 view and slots of HMM SOUTHAMPTON

009 (010)

Bay 009 view and slots of HMM SOUTHAMPTON

011

←
^→ / _?
→

Bay 011 view and slots of HMM SOUTHAMPTON

013 (014)

→
^→ / _?
→

Bay 013 view and slots of HMM SOUTHAMPTON

015

←
^→ / _?
→

Bay 015 view and slots of HMM SOUTHAMPTON

017 (018)

→
^→ / _?
→

Bay 017 view and slots of HMM SOUTHAMPTON

019

←
^→ / _?
→

Bay 019 view and slots of HMM SOUTHAMPTON

021 (022)

→
^→ / _?
→

Bay 021 view and slots of HMM SOUTHAMPTON

023

←
^→ / _?
→

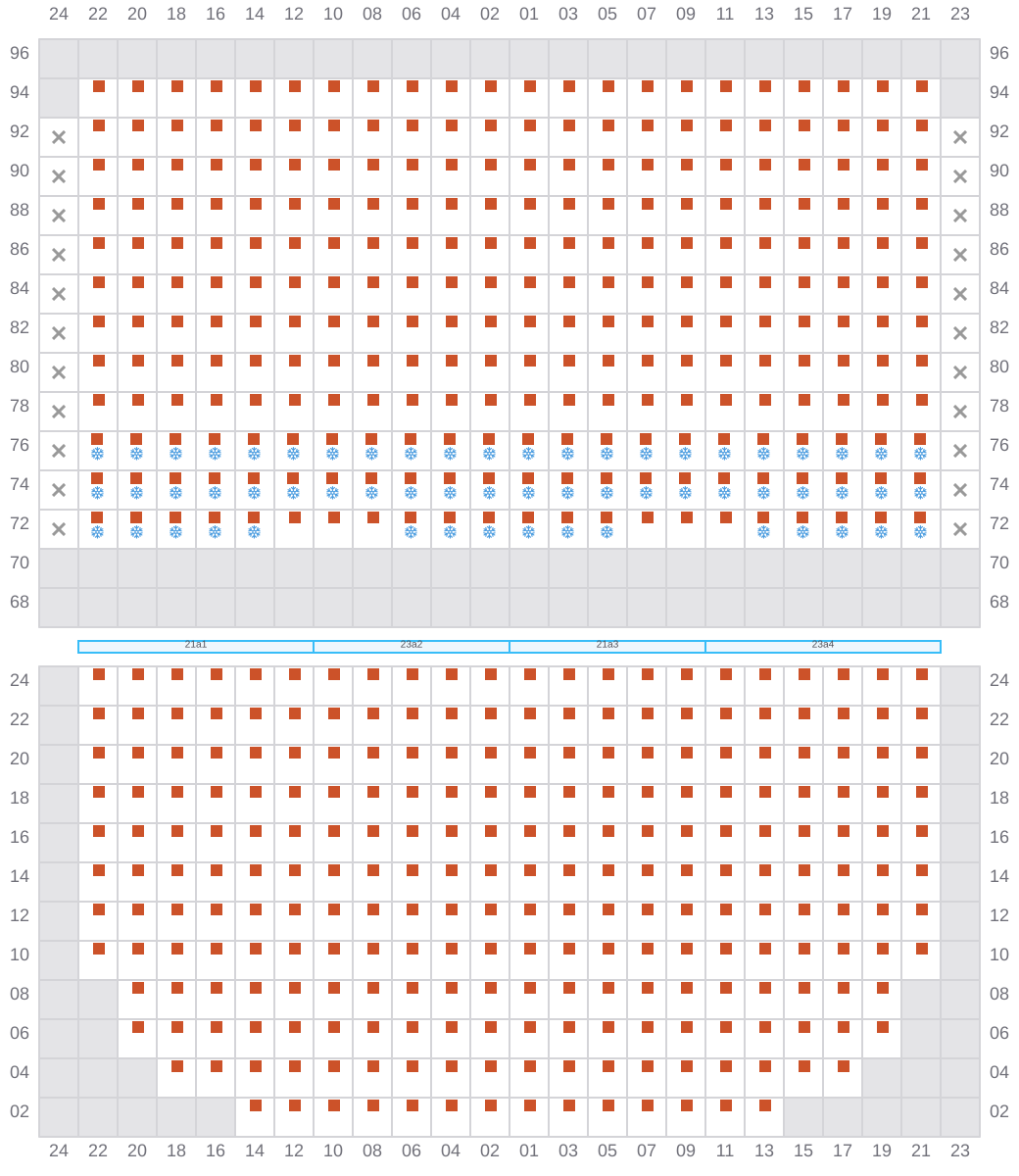

Bay 023 view and slots of HMM SOUTHAMPTON

025 (026)

→
^→ / _?
→

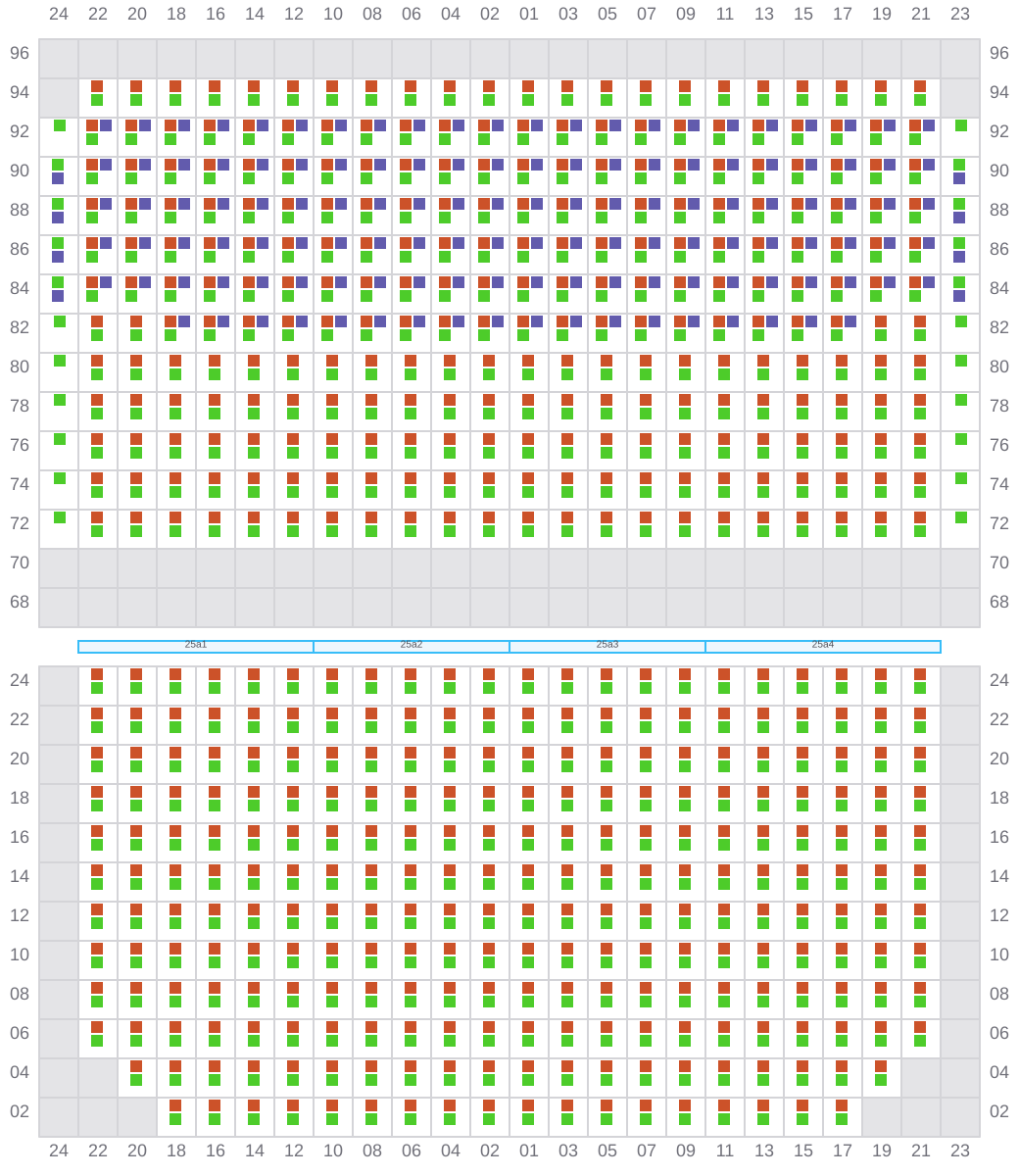

Bay 025 view and slots of HMM SOUTHAMPTON

027

←
^→ / _?
→

Bay 027 view and slots of HMM SOUTHAMPTON

029 (030)

→
^→ / _?
→

Bay 029 view and slots of HMM SOUTHAMPTON

031

←
^→ / _?
→

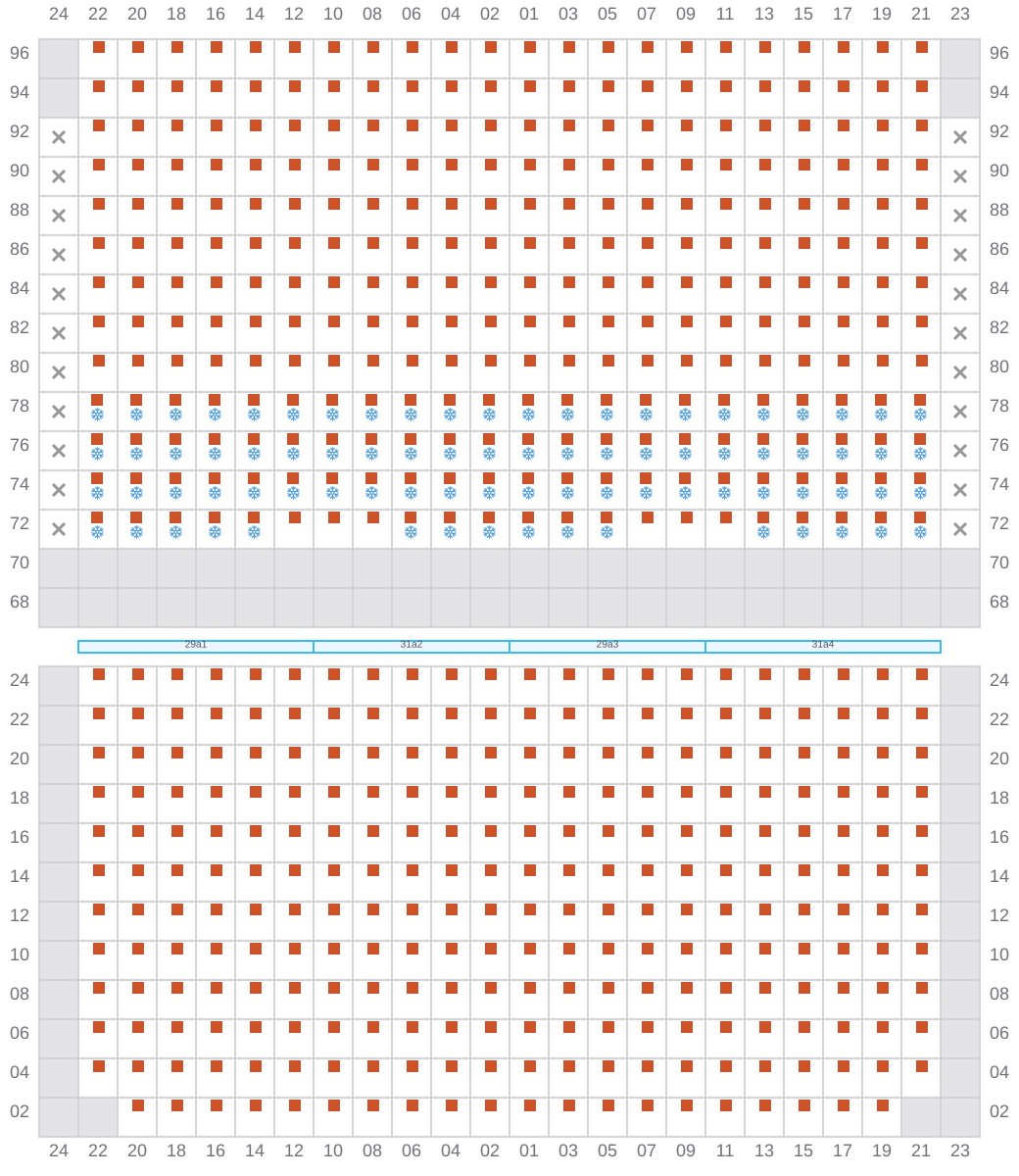

Bay 031 view and slots of HMM SOUTHAMPTON

033 (034)

→
^→ / _?
→

Bay 033 view and slots of HMM SOUTHAMPTON

035

←
^→ / _?
→

Bay 035 view and slots of HMM SOUTHAMPTON

037 (038)

→
^→ / _?
→

Bay 037 view and slots of HMM SOUTHAMPTON

039

←
^→ / _?
→

Bay 039 view and slots of HMM SOUTHAMPTON

041 (042)

→
^→ / _?
→

Bay 041 view and slots of HMM SOUTHAMPTON

043

←
^→ / _?
→

Bay 043 view and slots of HMM SOUTHAMPTON

045 (046)

→
^→ / _?
→

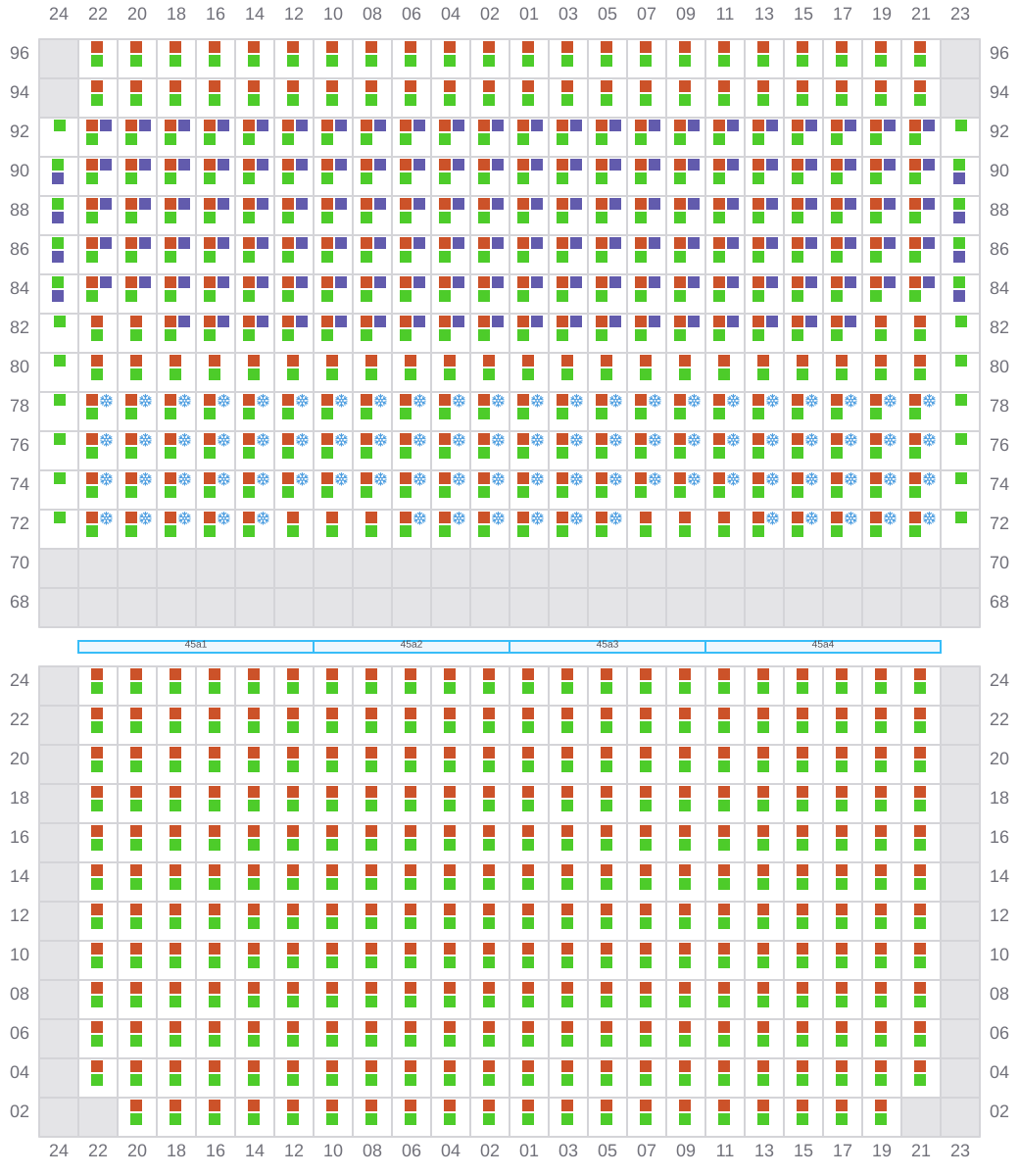

Bay 045 view and slots of HMM SOUTHAMPTON

047

←
^→ / _?
→

Bay 047 view and slots of HMM SOUTHAMPTON

049 (050)

→
^→ / _?
→

Bay 049 view and slots of HMM SOUTHAMPTON

051

←
^→ / _?
→

Bay 051 view and slots of HMM SOUTHAMPTON

053 (054)

→
^→ / _?
→

Bay 053 view and slots of HMM SOUTHAMPTON

055

←
^→ / _?
→

Bay 055 view and slots of HMM SOUTHAMPTON

057 (058)

→
^→ / _?
→

Bay 057 view and slots of HMM SOUTHAMPTON

059

←
^→ / _?
→

Bay 059 view and slots of HMM SOUTHAMPTON

061 (062)

→
^→ / _?
→

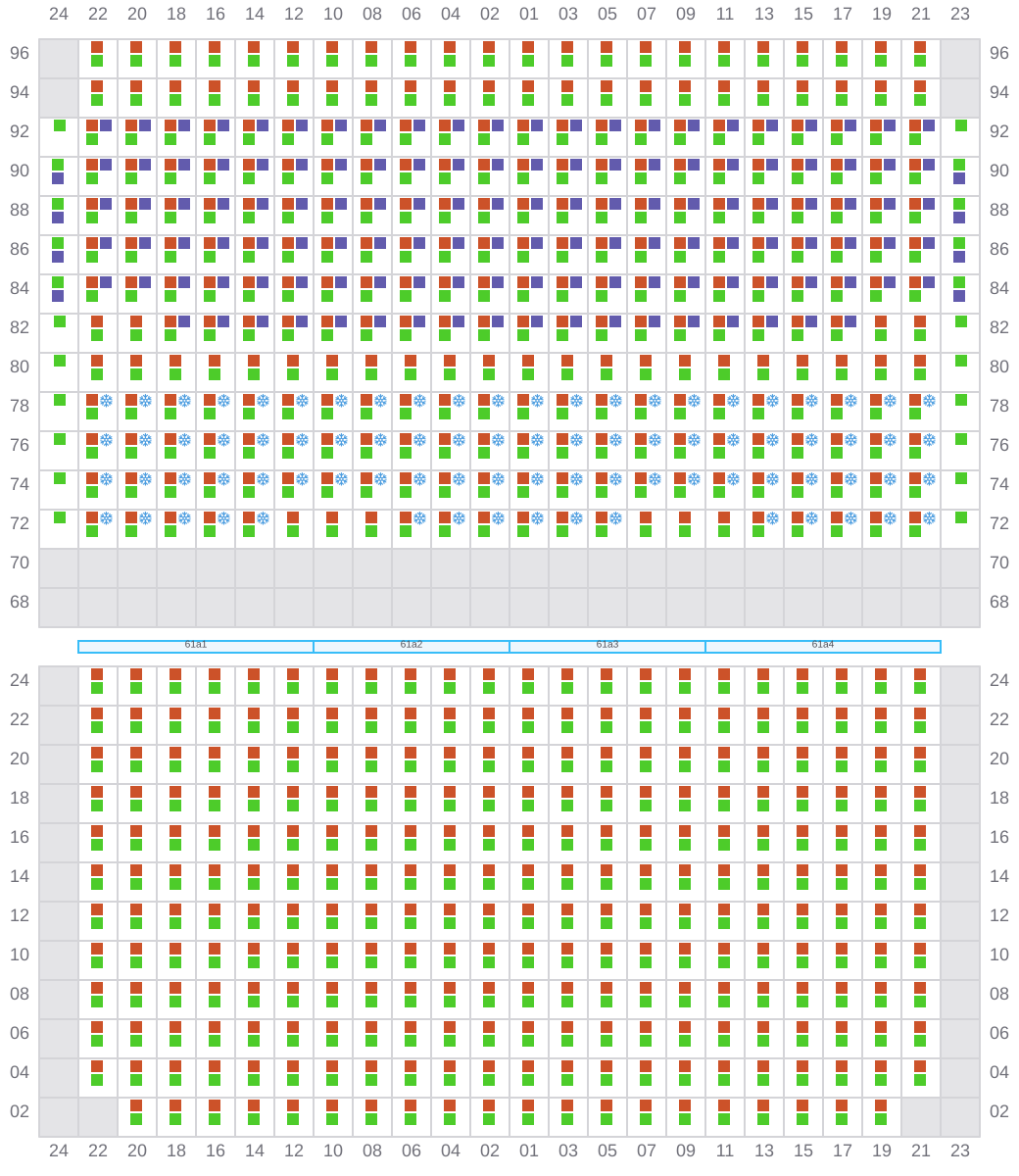

Bay 061 view and slots of HMM SOUTHAMPTON

063

←
^→ / _?
→

Bay 063 view and slots of HMM SOUTHAMPTON

065 (066)

→
^→ / _?
→

Bay 065 view and slots of HMM SOUTHAMPTON

067

←
^→ / _?
→

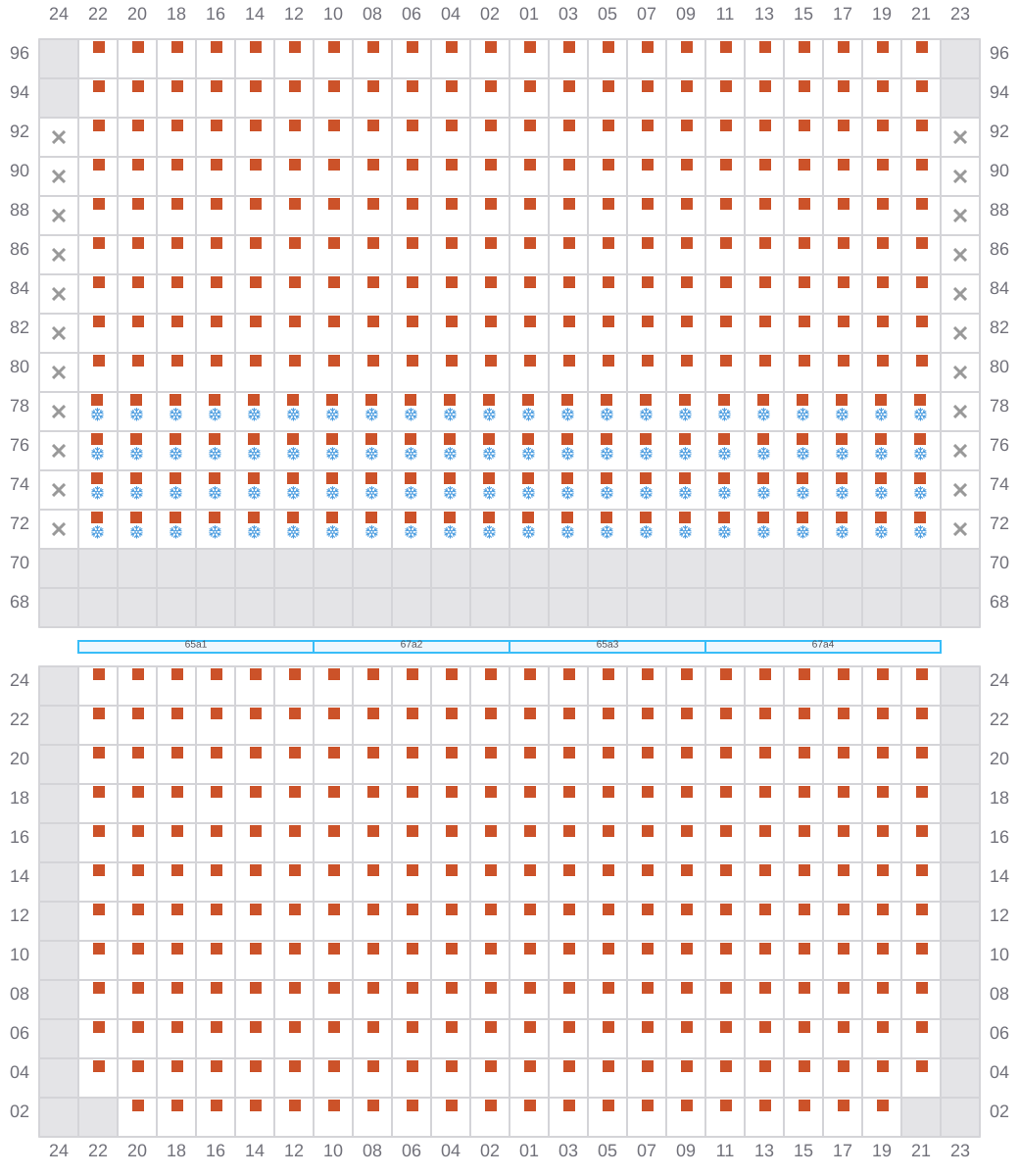

Bay 067 view and slots of HMM SOUTHAMPTON

069 (070)

→
^→ / _?
→

Bay 069 view and slots of HMM SOUTHAMPTON

071

←
^→ / _?
→

Bay 071 view and slots of HMM SOUTHAMPTON

073 (074)

→
^→ / _?
→

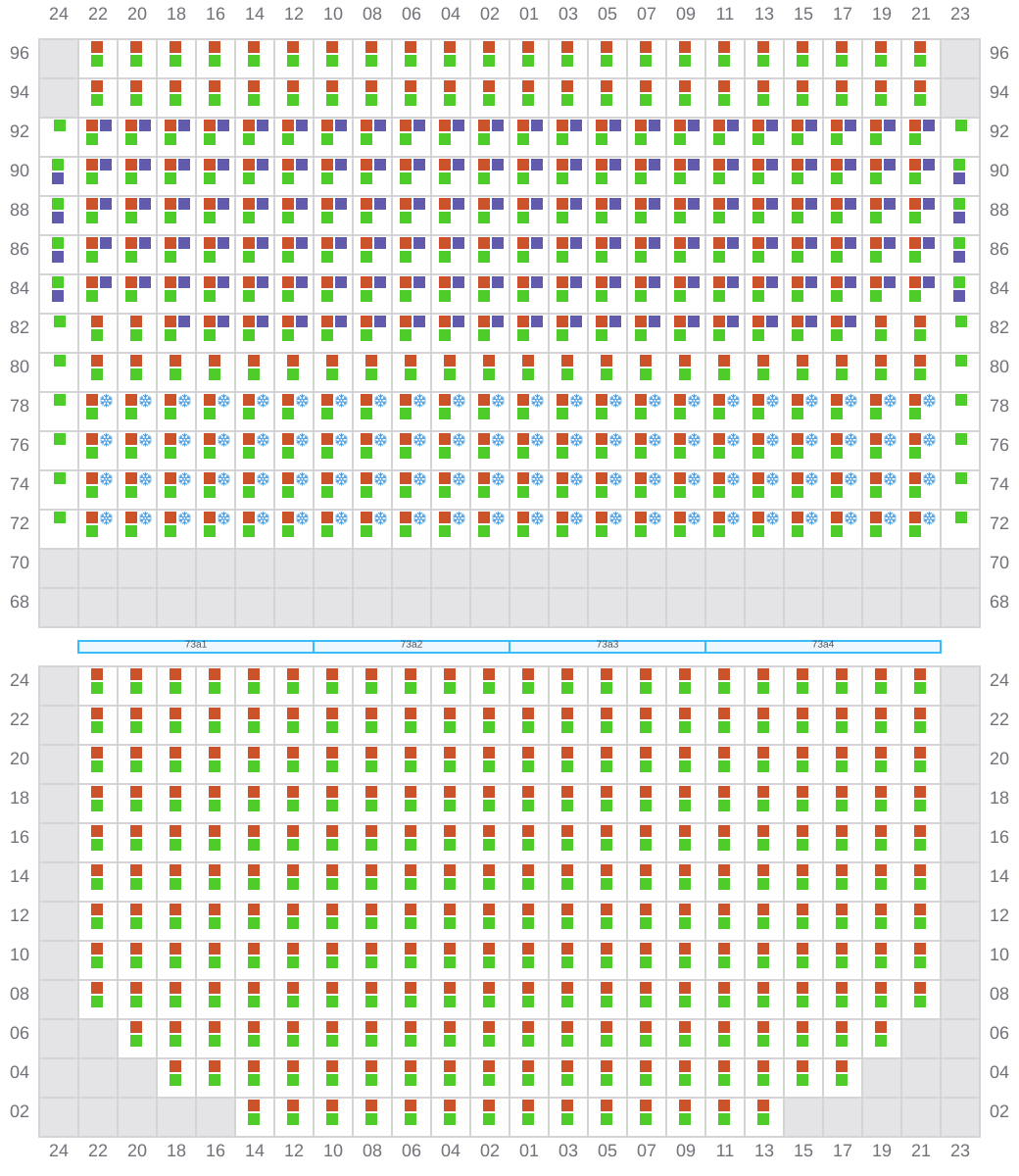

Bay 073 view and slots of HMM SOUTHAMPTON

075

←
^→ / _?
→

Bay 075 view and slots of HMM SOUTHAMPTON

077 (078)

→
^→ / _?
→

Bay 077 view and slots of HMM SOUTHAMPTON

079

←
^→ / _?
→

Bay 079 view and slots of HMM SOUTHAMPTON

081 (082)

→
^→ / _?
→

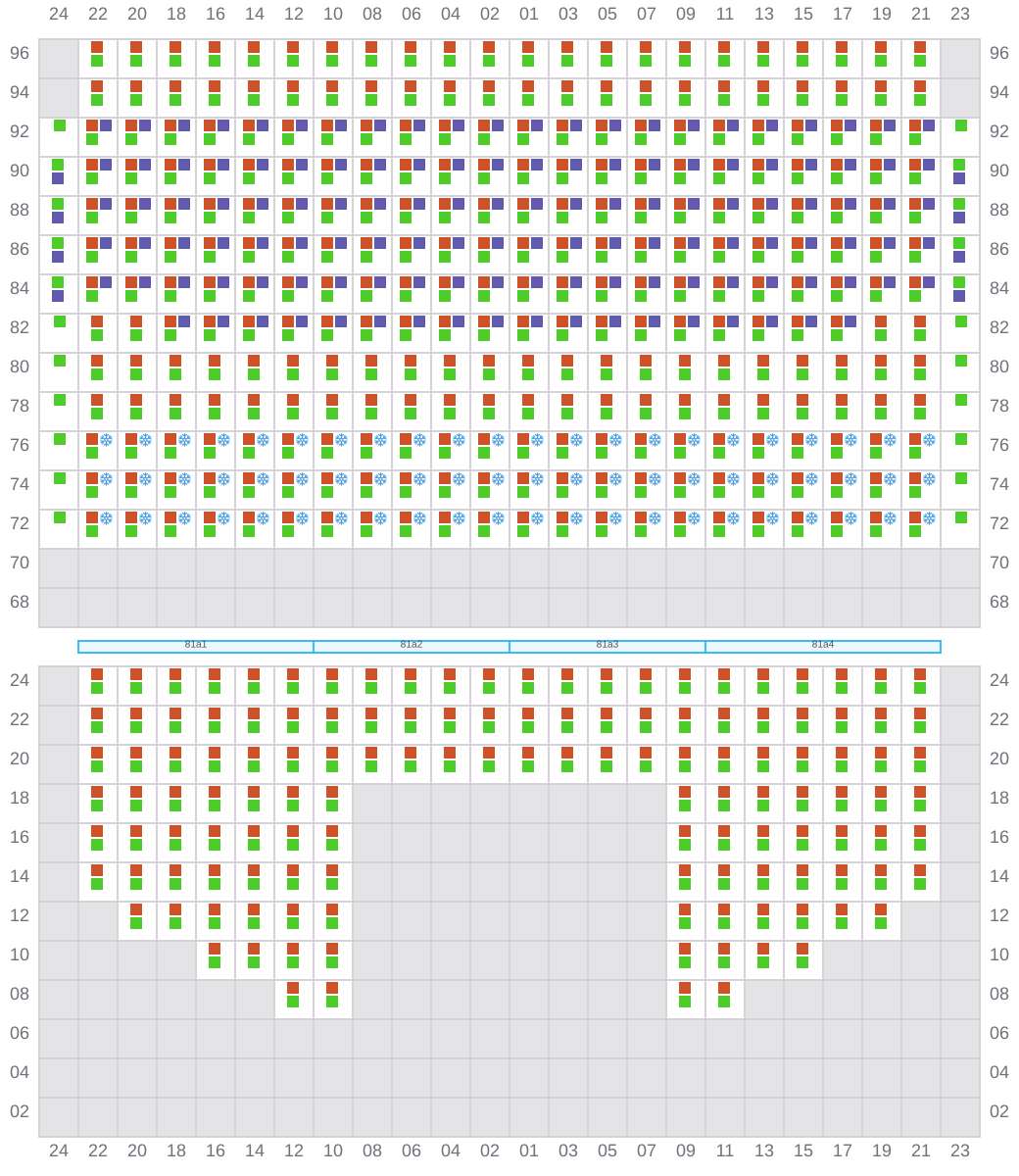

Bay 081 view and slots of HMM SOUTHAMPTON

083

←
^→ / _?
→

Bay 083 view and slots of HMM SOUTHAMPTON

085 (086)

→
^→ / _?
→

Bay 085 view and slots of HMM SOUTHAMPTON

087

←
^→ / _?
→

Bay 087 view and slots of HMM SOUTHAMPTON

089 (090)

→
^→ / _?
→

Bay 089 view and slots of HMM SOUTHAMPTON

091

←
^→ / _?
→

Bay 091 view and slots of HMM SOUTHAMPTON

093 (094)

^→ / _?
^→ / _?
^→ / _?

Bay 093 view and slots of HMM SOUTHAMPTON
