HMM STOCKHOLM
9868352 | D7JP | HMM by *********************** Last update: Thu Feb 13 2025
General Info
Ship Name:HMM STOCKHOLM
IMO Code:9868352
Call Sign:D7JP
Line Operator:HMM
Class Name for Sister Ships:HHST
Year Built:2020
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:093
Max ISO Row:24
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:68
Max Below ISO Tier:24
Min Below ISO Tier:02
Total TEU:23,772
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

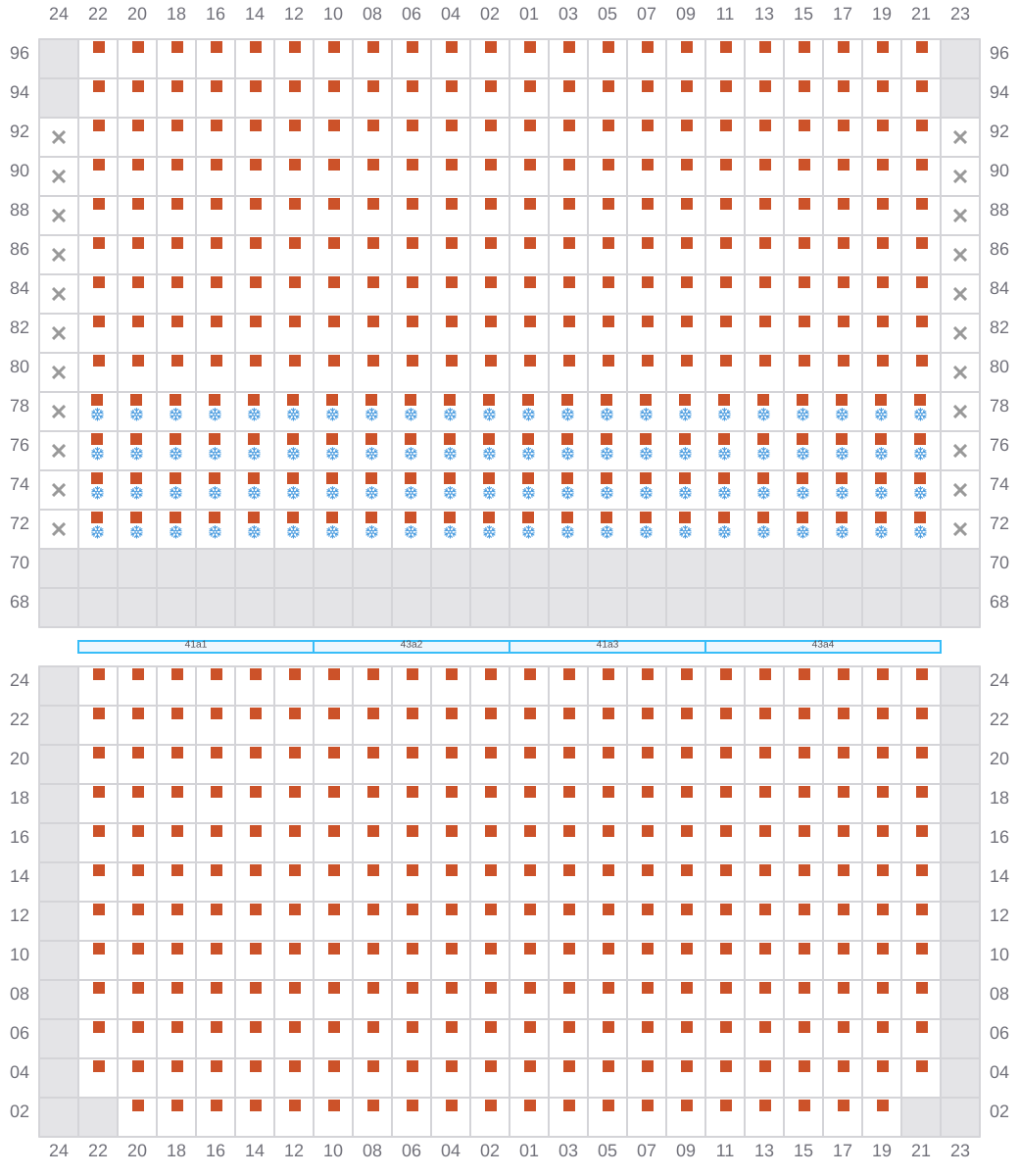

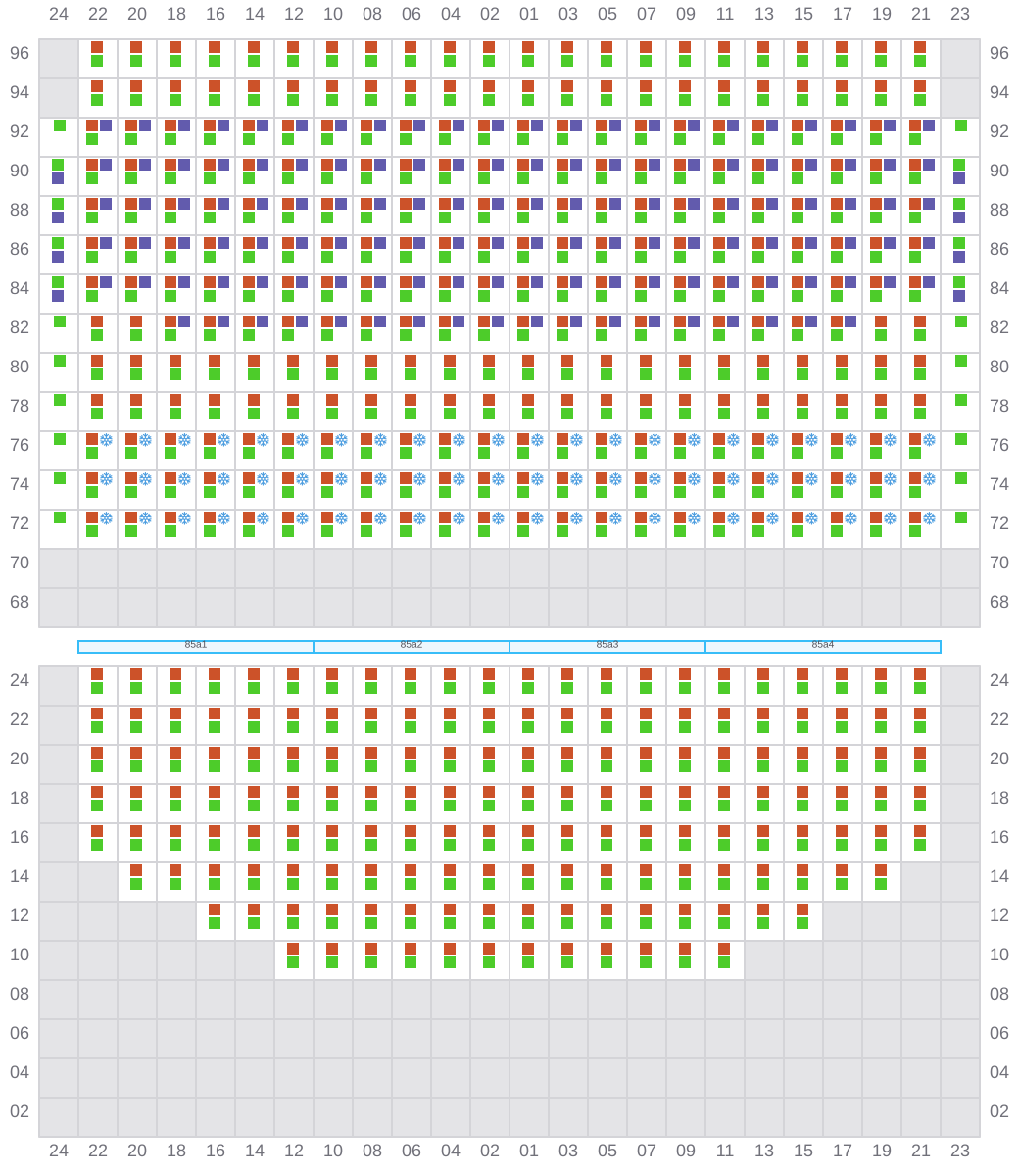

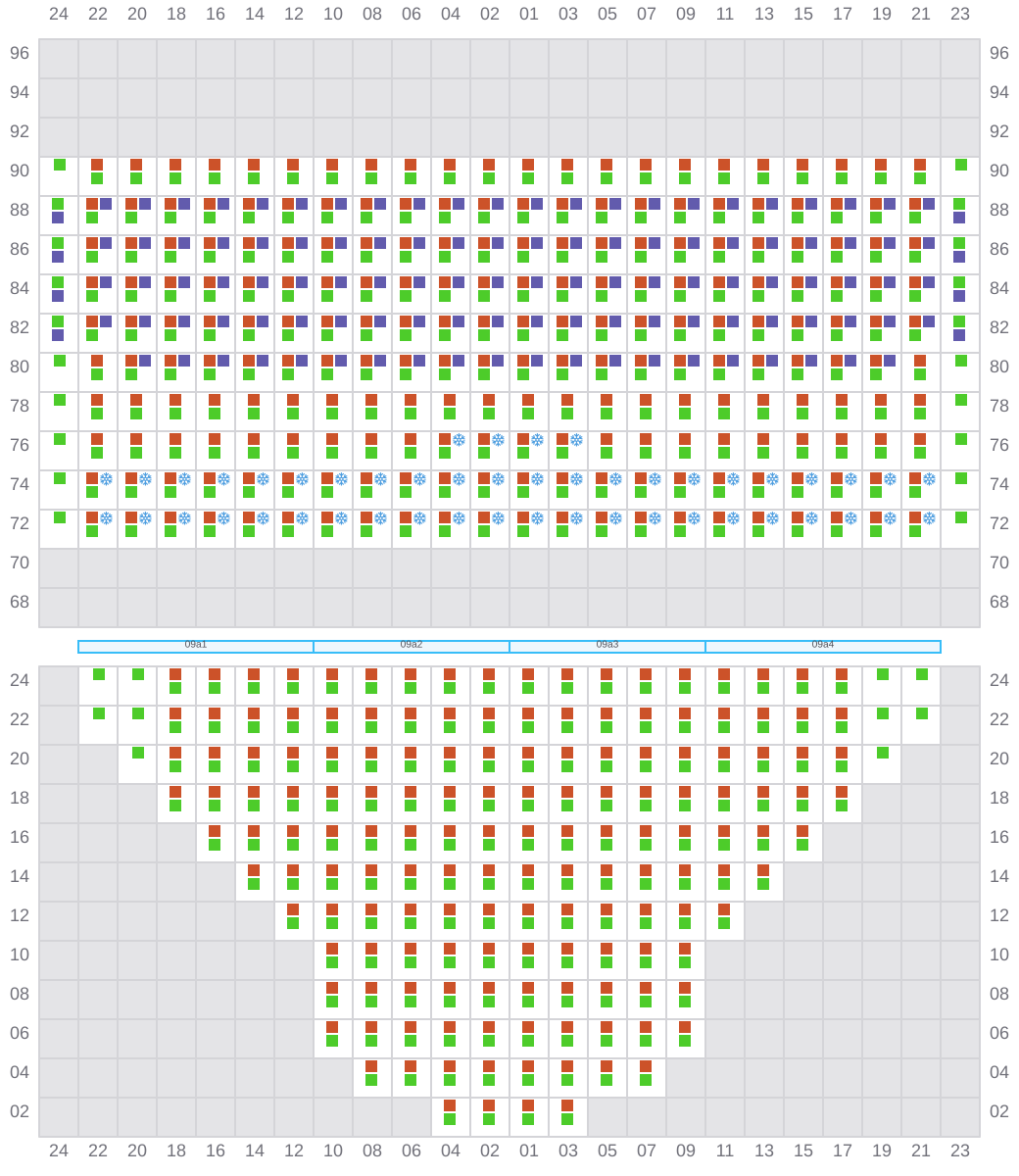

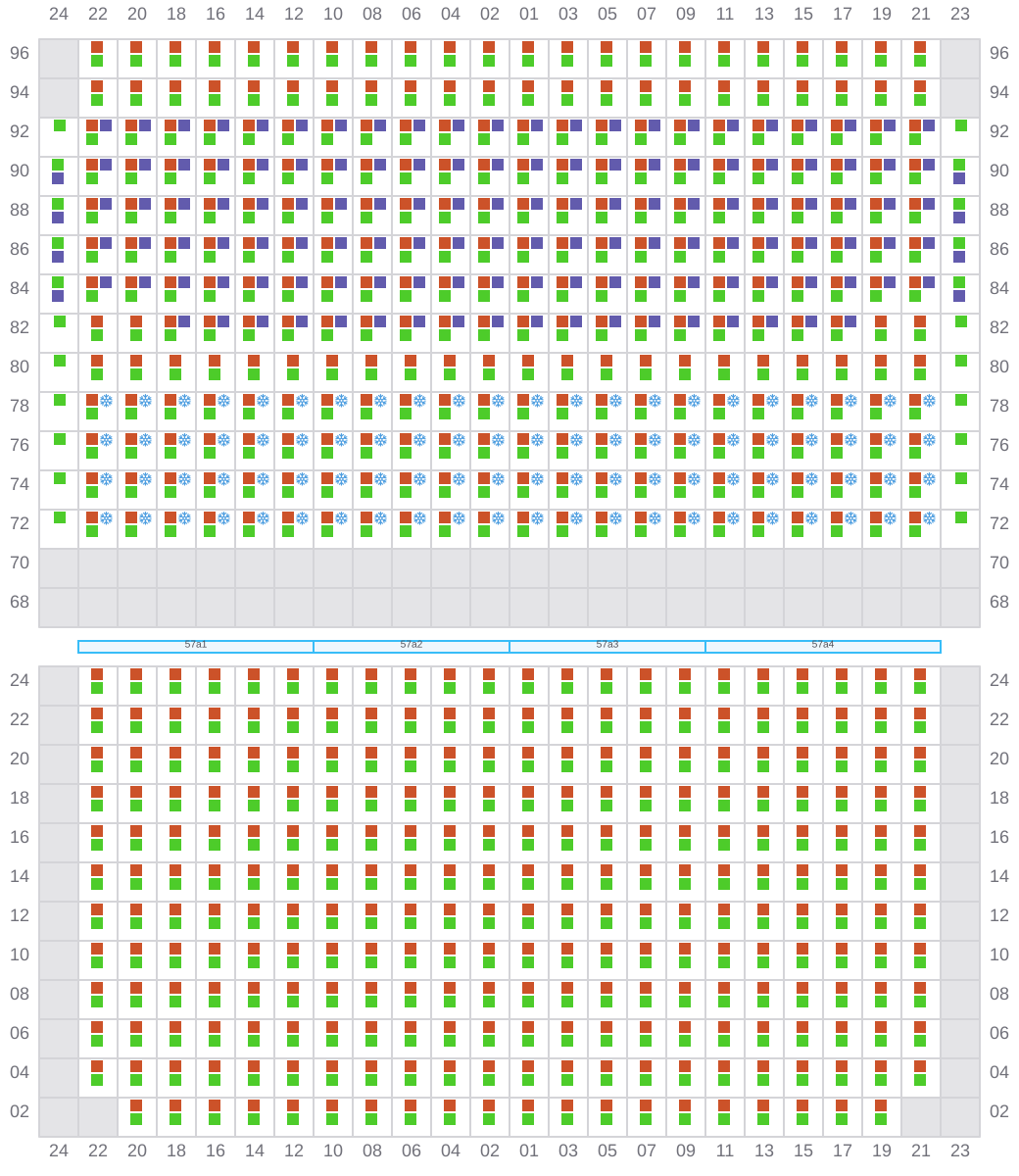

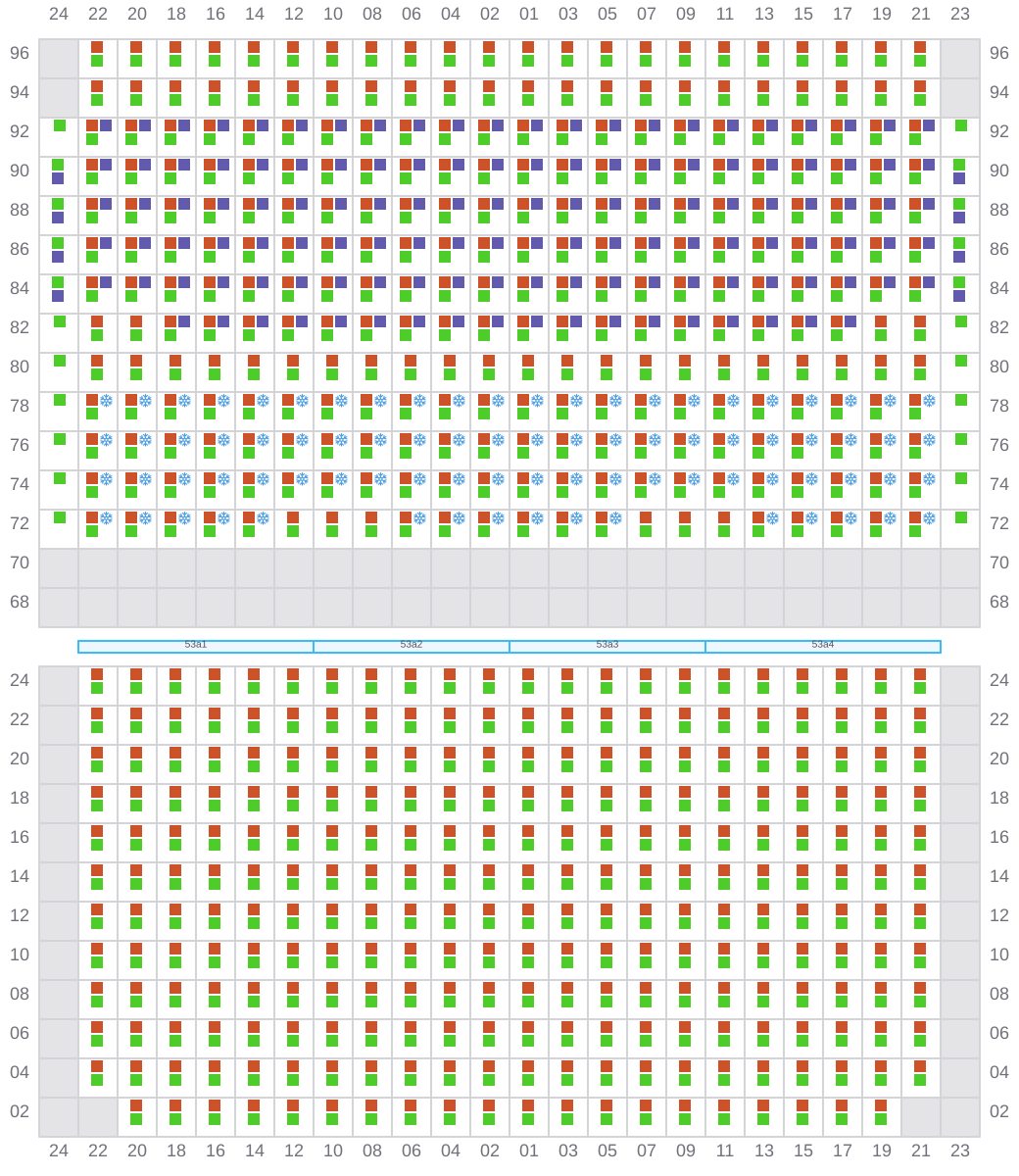

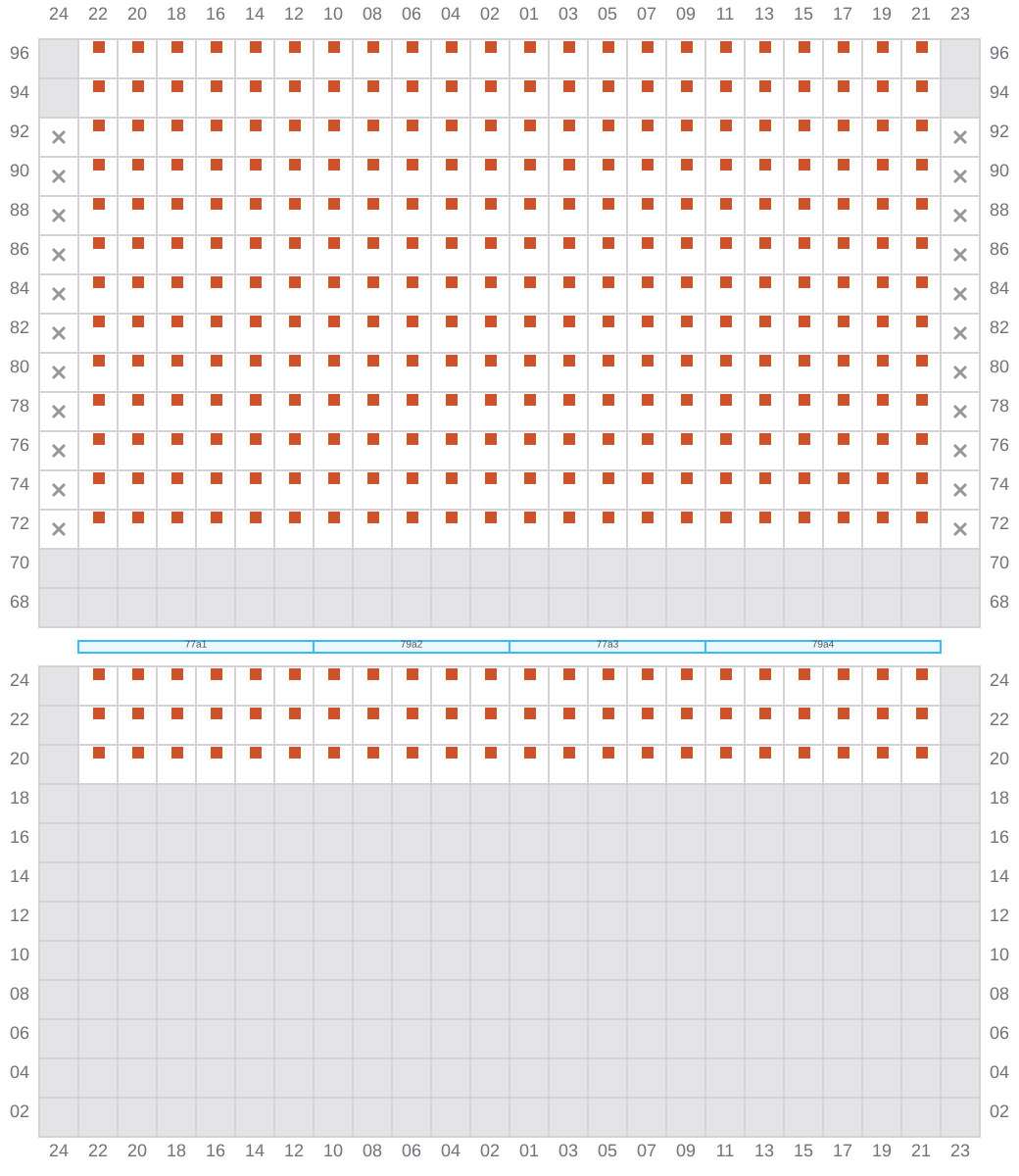

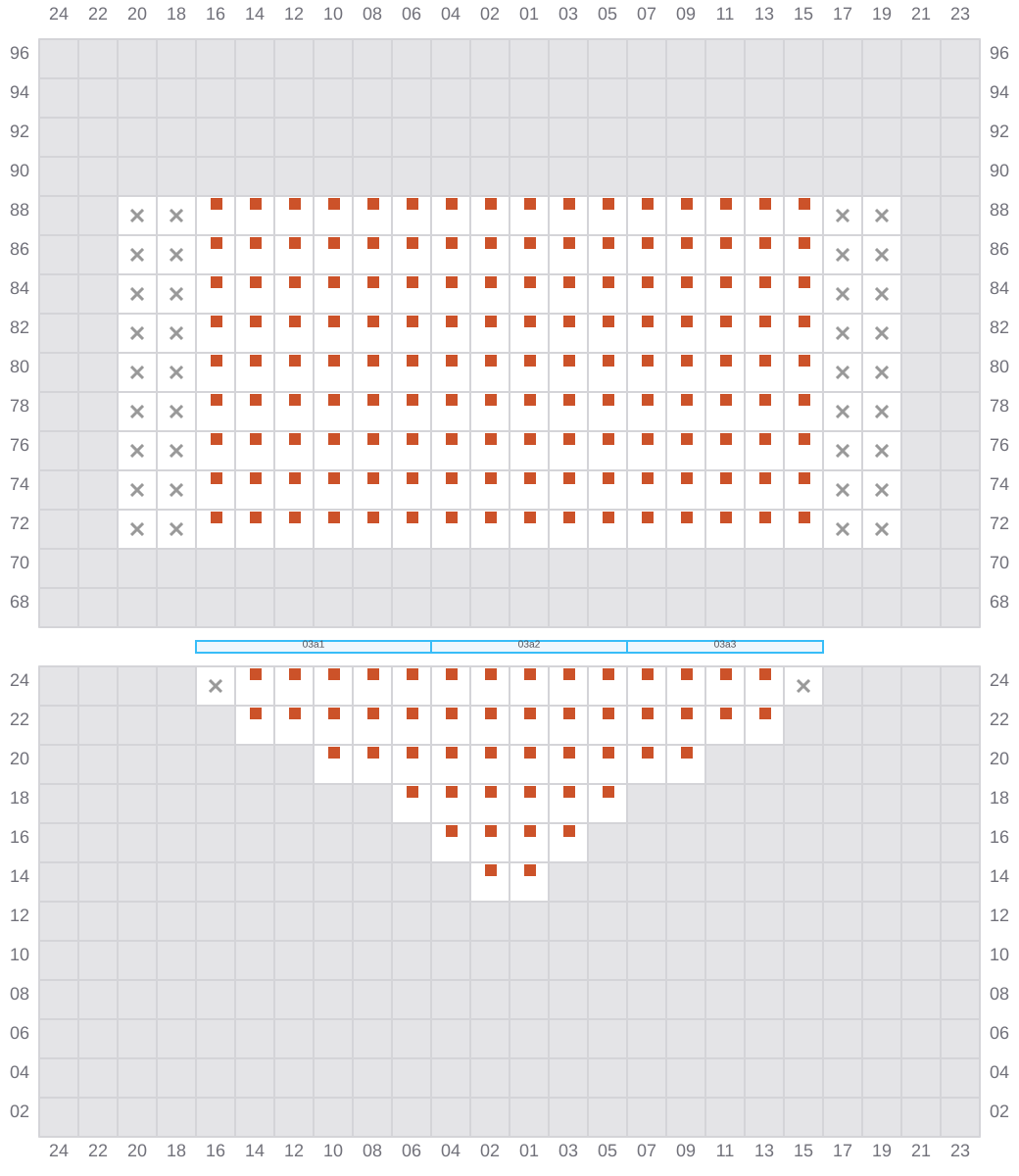

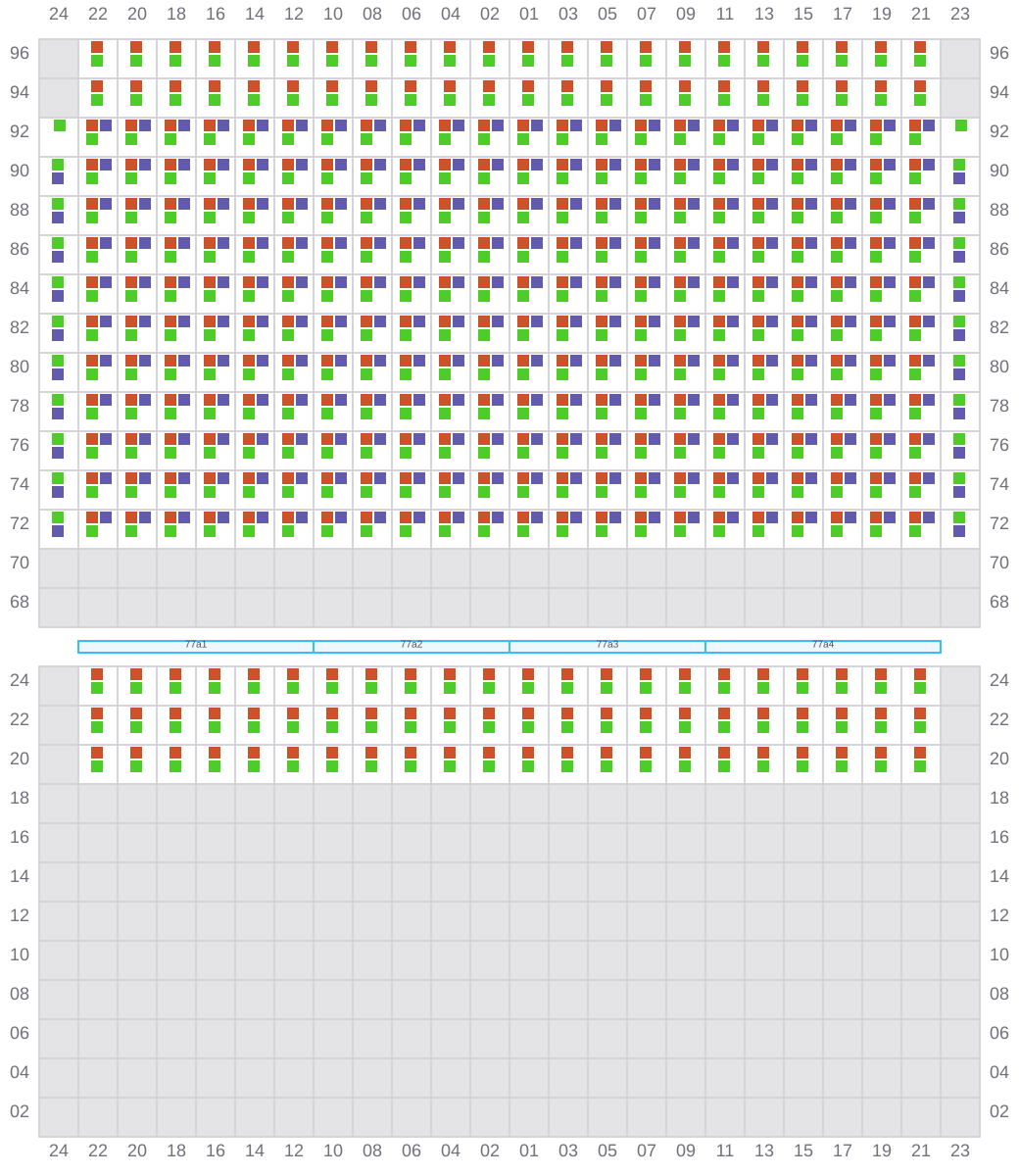

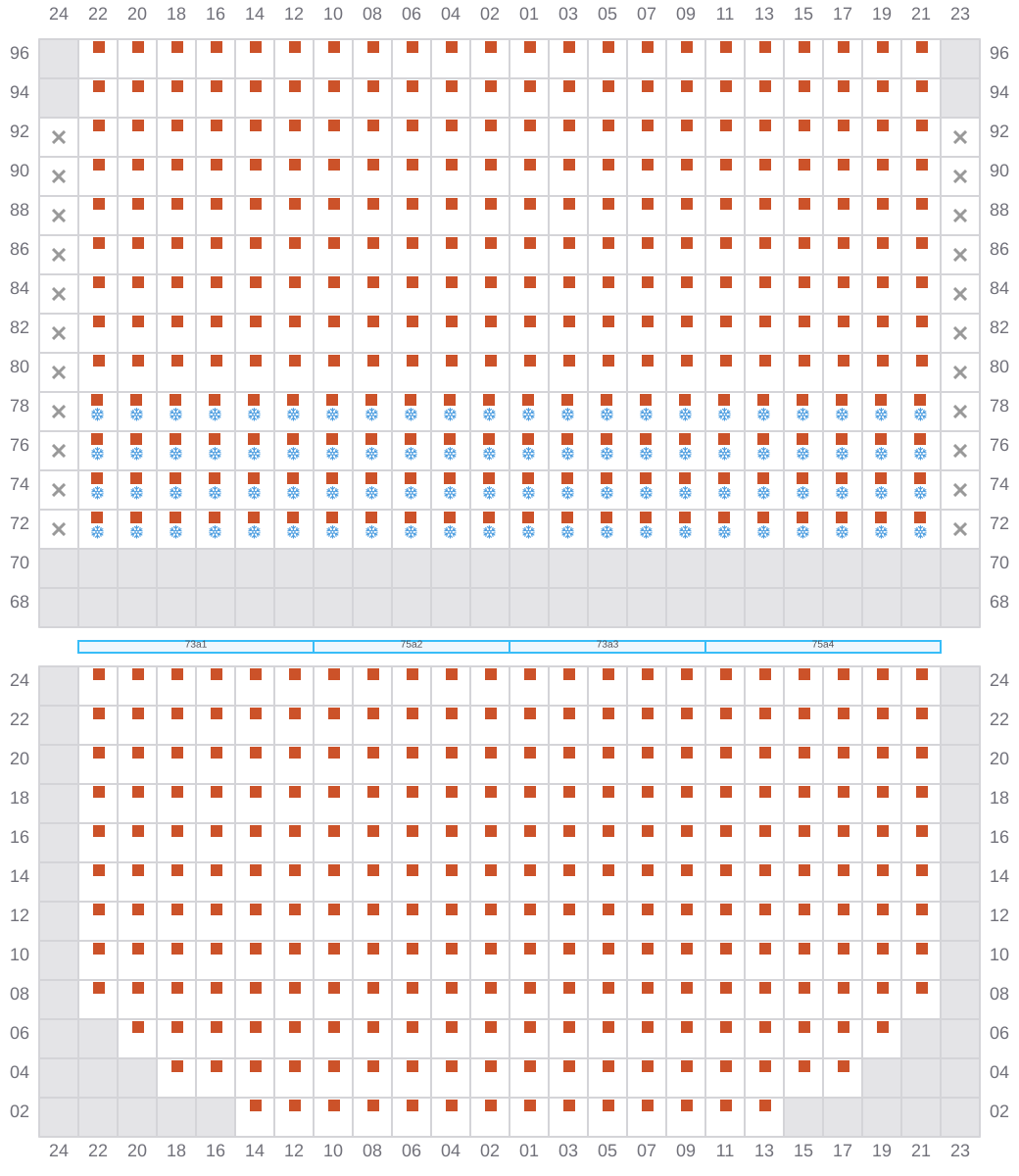

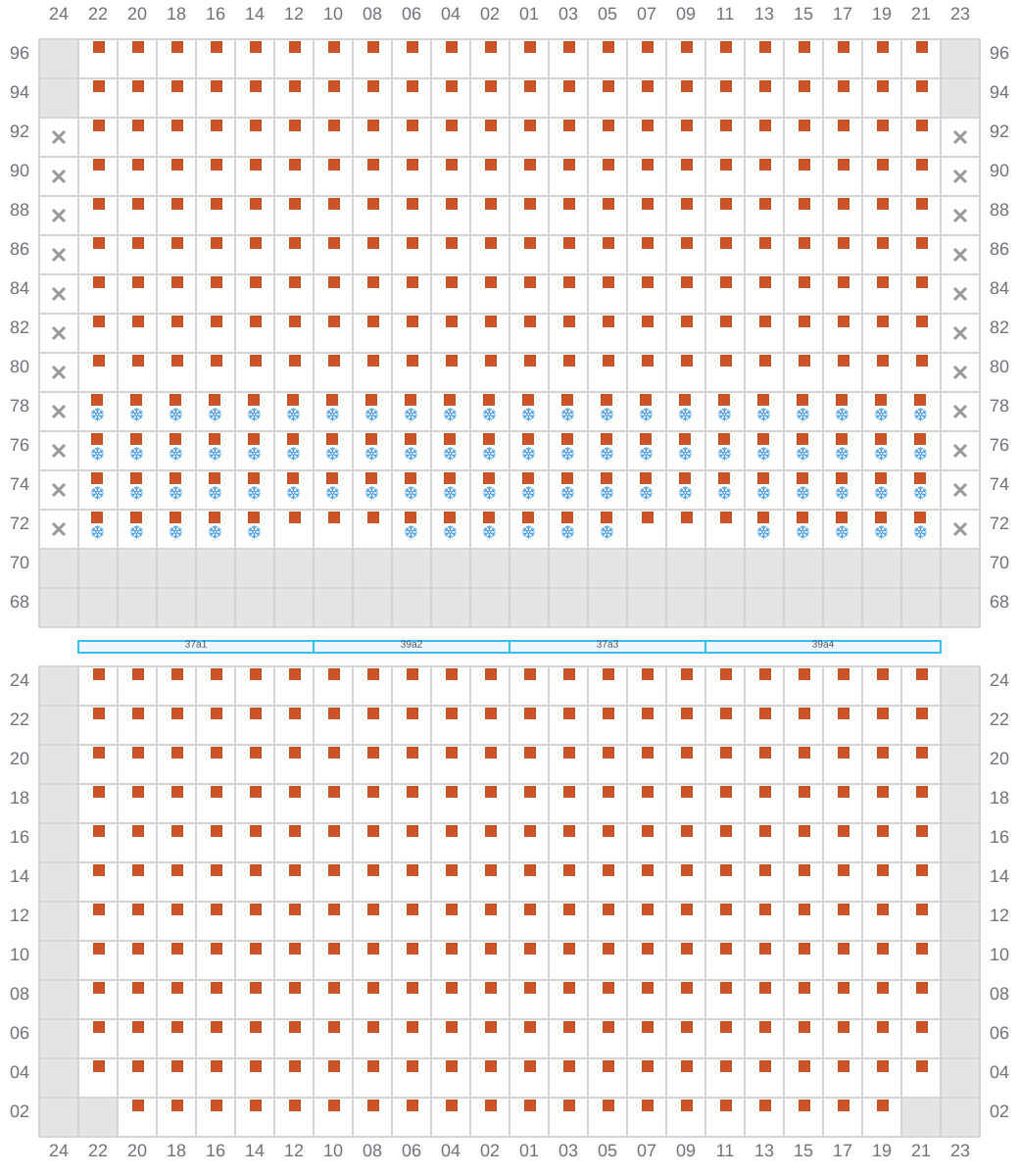

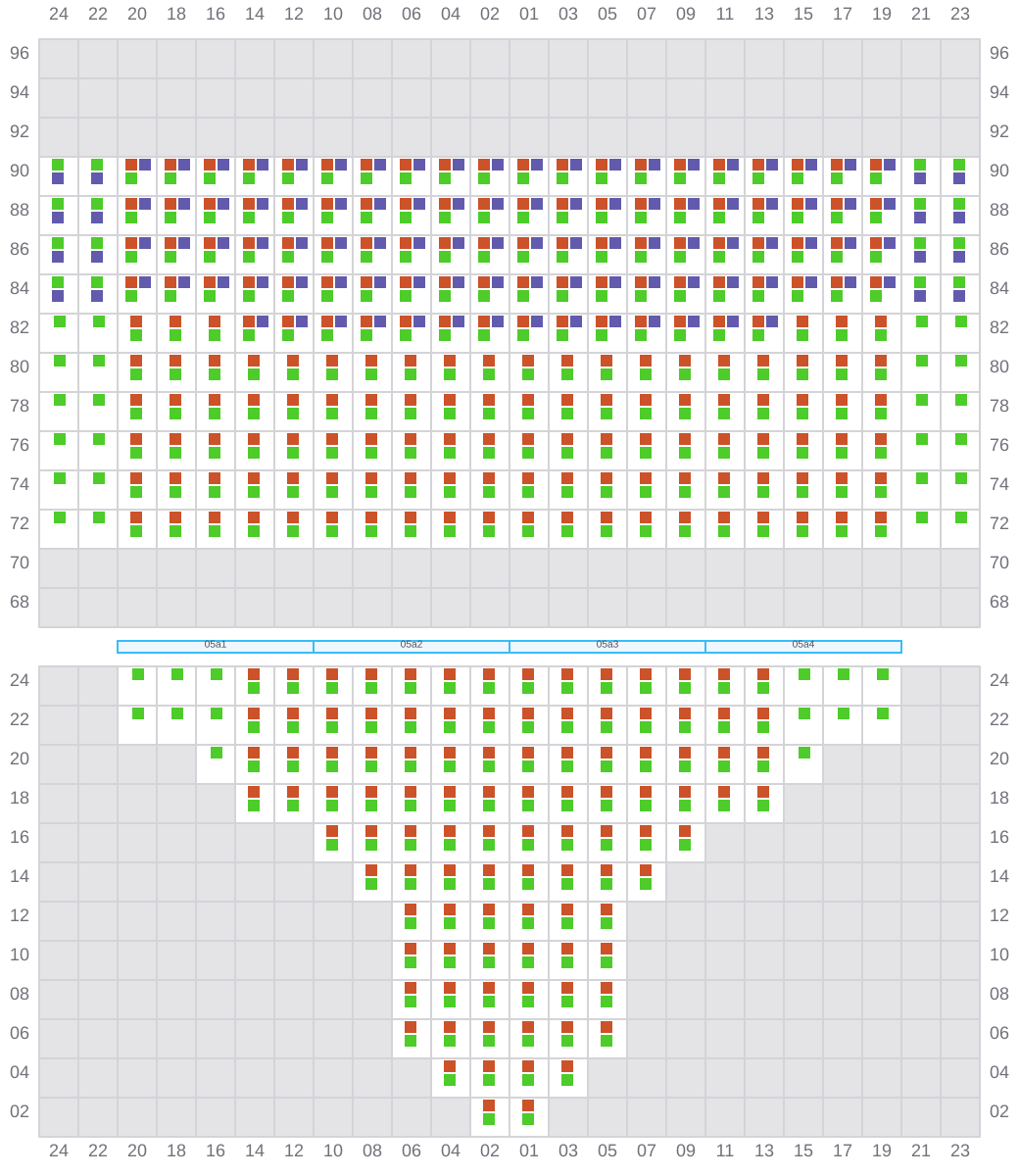

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- →
003
- ←
- →
005 (006)
- →
- →
007
- ←
- →
009 (010)
- →
- → / ?
- →
011
- ←
- →
013 (014)
- →
- → / ?
- →
015
- ←
- → / ?
- →
017 (018)
- →
- → / ?
- →
019
- ←
- → / ?
- →
021 (022)
- →
- → / ?
- →
023
- ←
- → / ?
- →
025 (026)
- →
- → / ?
- →
027
- ←
- → / ?
- →
029 (030)
- →
- → / ?
- →
031
- ←
- → / ?
- →
033 (034)
- →
- → / ?
- →
035
- ←
- → / ?
- →
037 (038)
- →
- → / ?
- →
039
- ←
- → / ?
- →
041 (042)
- →
- → / ?
- →
043
- ←
- → / ?
- →
045 (046)
- →
- → / ?
- →
047
- ←
- → / ?
- →
049 (050)
- →
- → / ?
- →
051
- ←
- → / ?
- →
053 (054)
- →
- → / ?
- →
055
- ←
- → / ?
- →
057 (058)
- →
- → / ?
- →
059
- ←
- → / ?
- →
061 (062)
- →
- → / ?
- →
063
- ←
- → / ?
- →
065 (066)
- →
- → / ?
- →
067
- ←
- → / ?
- →
069 (070)
- →
- → / ?
- →
071
- ←
- → / ?
- →
073 (074)
- →
- → / ?
- →
075
- ←
- → / ?
- →
077 (078)
- →
- → / ?
- →
079
- ←
- → / ?
- →
081 (082)
- →
- → / ?
- →
083
- ←
- → / ?
- →
085 (086)
- →
- → / ?
- →
087
- ←
- → / ?
- →
089 (090)
- →
- → / ?
- →
091
- ←
- → / ?
- →
093 (094)
- → / ?
- → / ?
- → / ?
