HMM VICTORY
9637258 | D7HV | HMM by *********************** Last update: Wed Feb 05 2025

General Info

Ship Name:HMM VICTORY
IMO Code:9637258
Call Sign:D7HV
Line Operator:HMM
Class Name for Sister Ships:HVIC
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,190

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

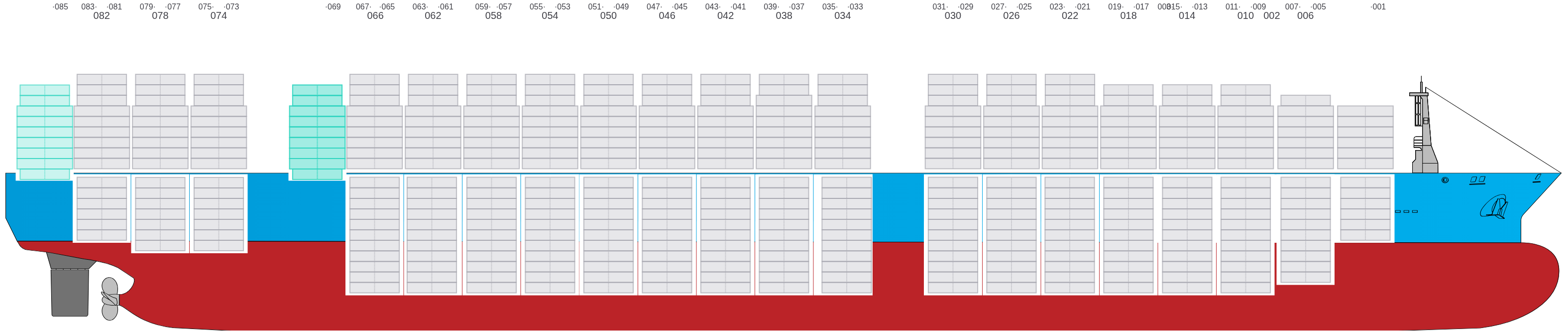

Side View

Side view of HMM VICTORY

Hatch-Covers View

Deck view of HMM VICTORY

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

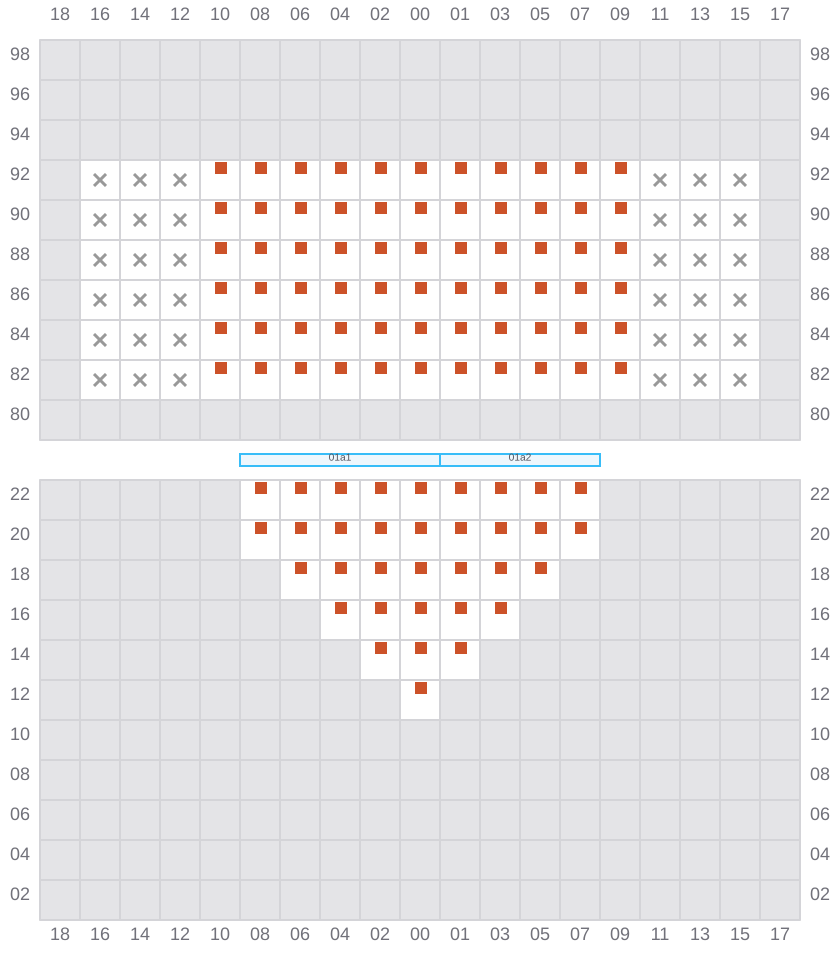

001

  • →
  • →
Bay 001 view and slots of HMM VICTORY

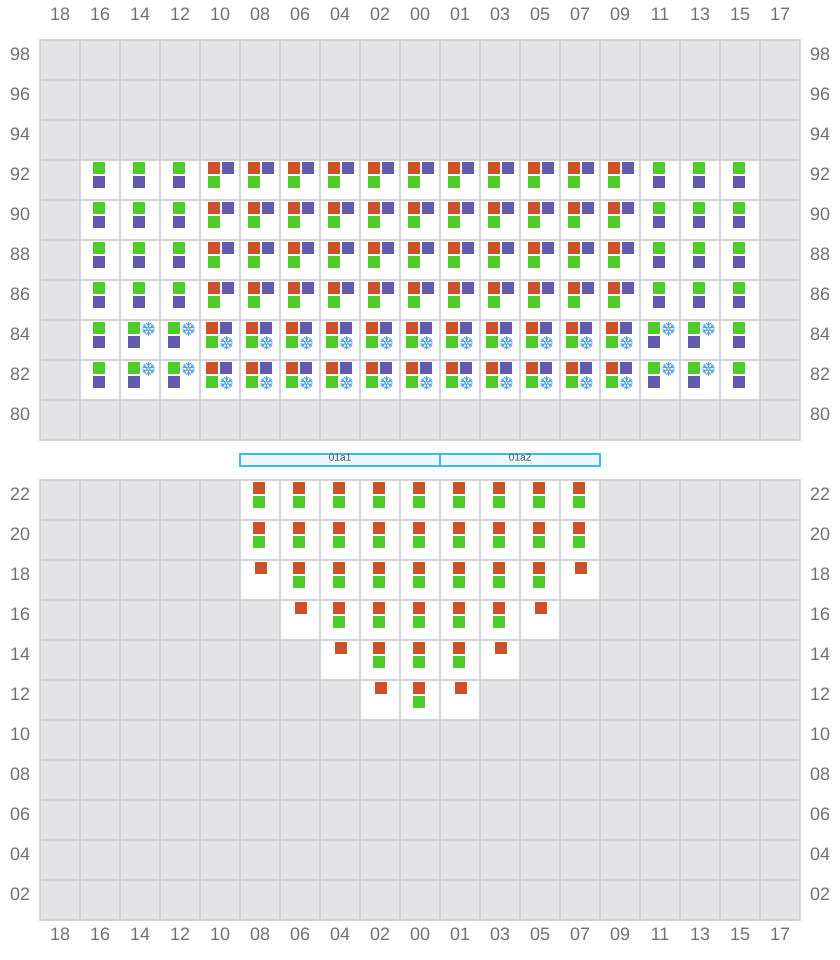

003 (002)

  • ←
  • → / ?
  • →
Bay 003 view and slots of HMM VICTORY

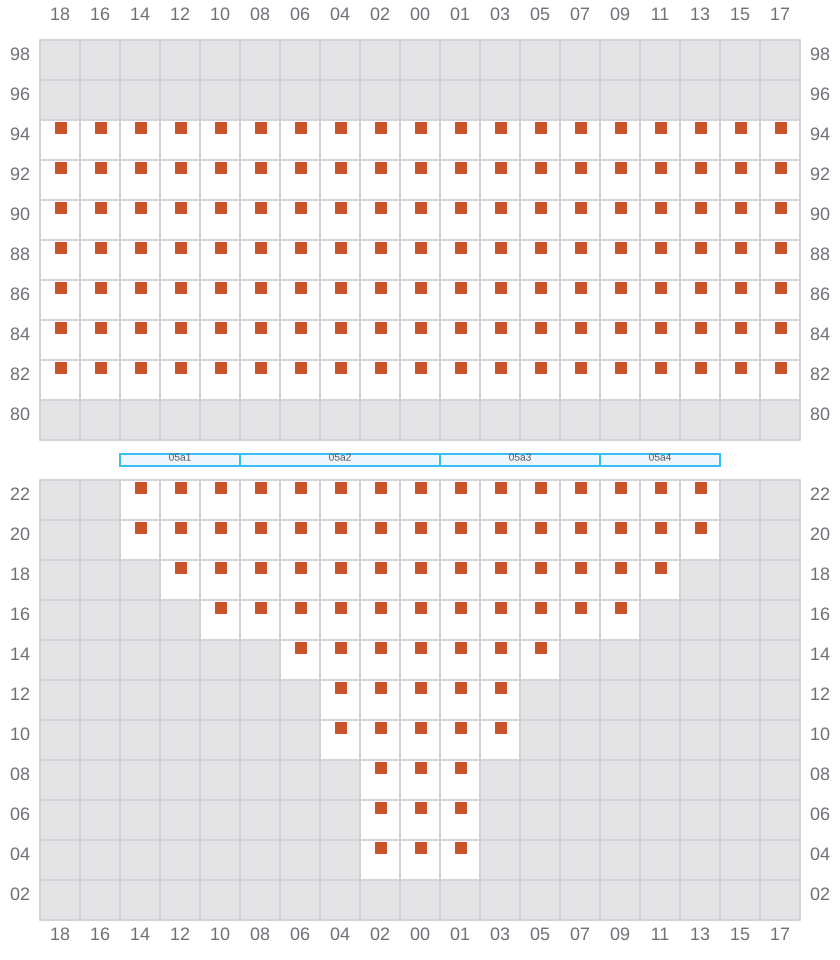

005

  • →
  • ← / ?
  • →
Bay 005 view and slots of HMM VICTORY

007 (006)

  • ←
  • → / ?
  • →
Bay 007 view and slots of HMM VICTORY

009

  • →
  • ← / ?
  • →

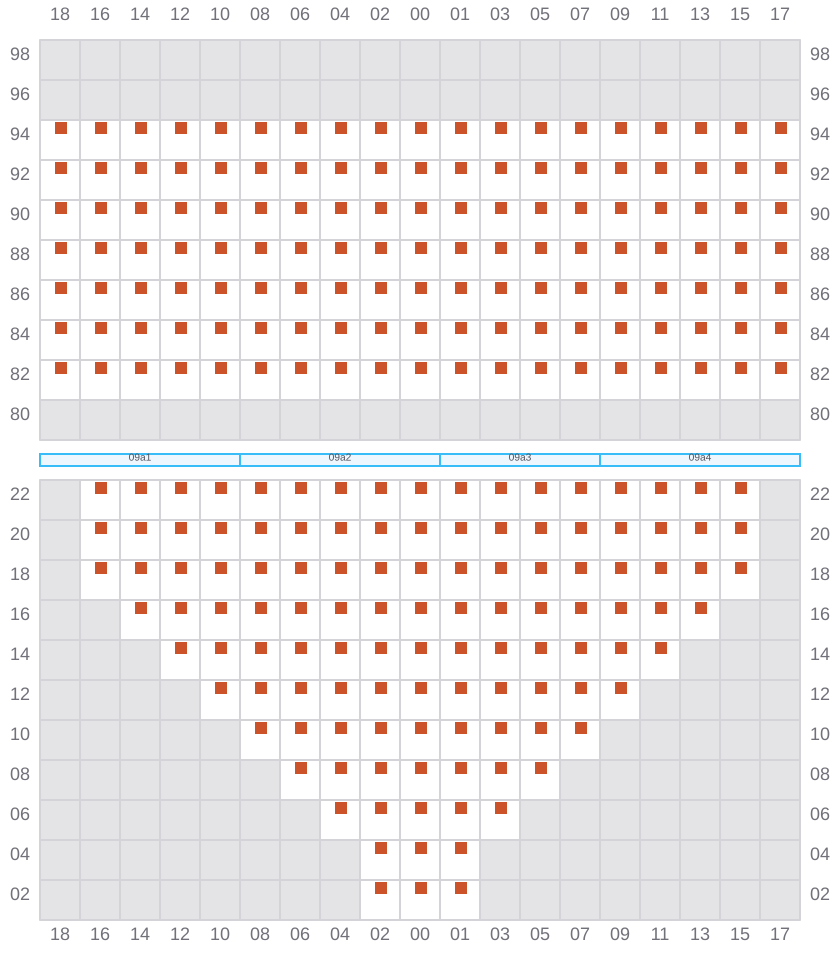

Bay 009 view and slots of HMM VICTORY

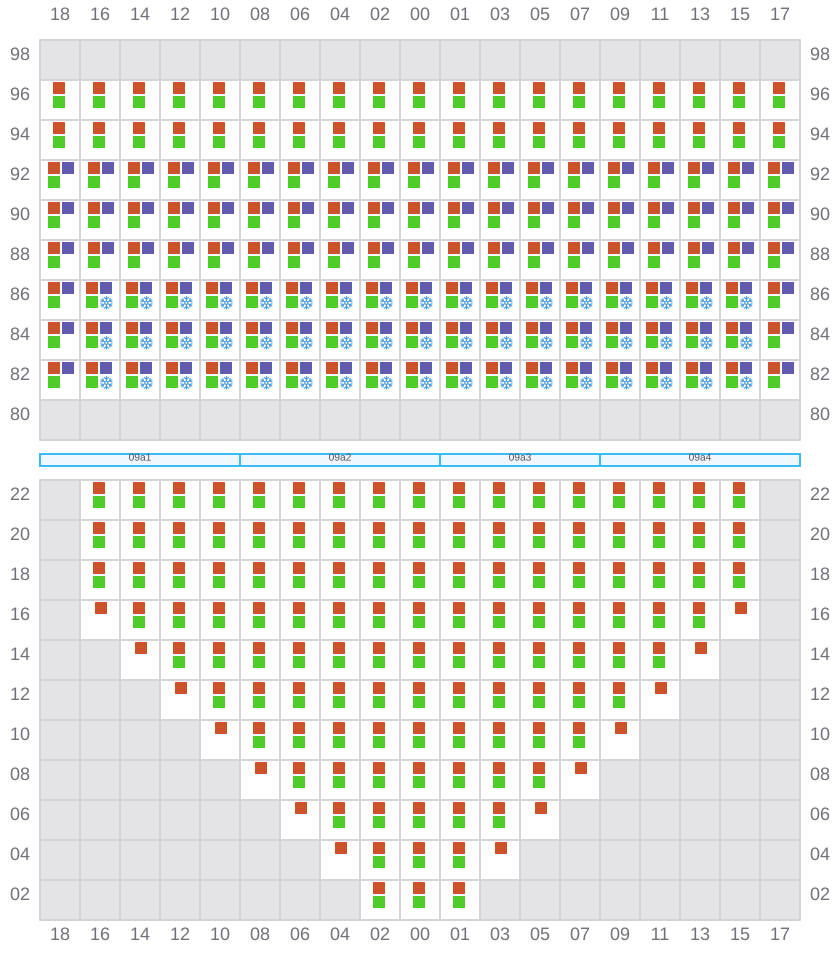

011 (010)

  • ←
  • → / ?
  • →
Bay 011 view and slots of HMM VICTORY

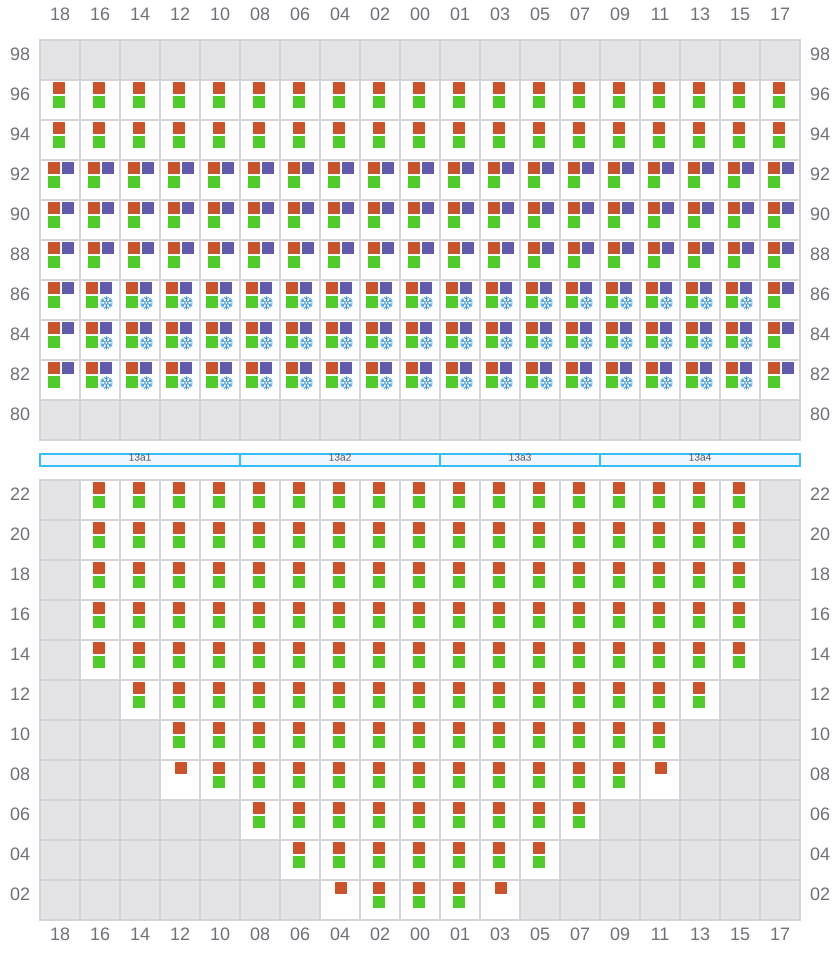

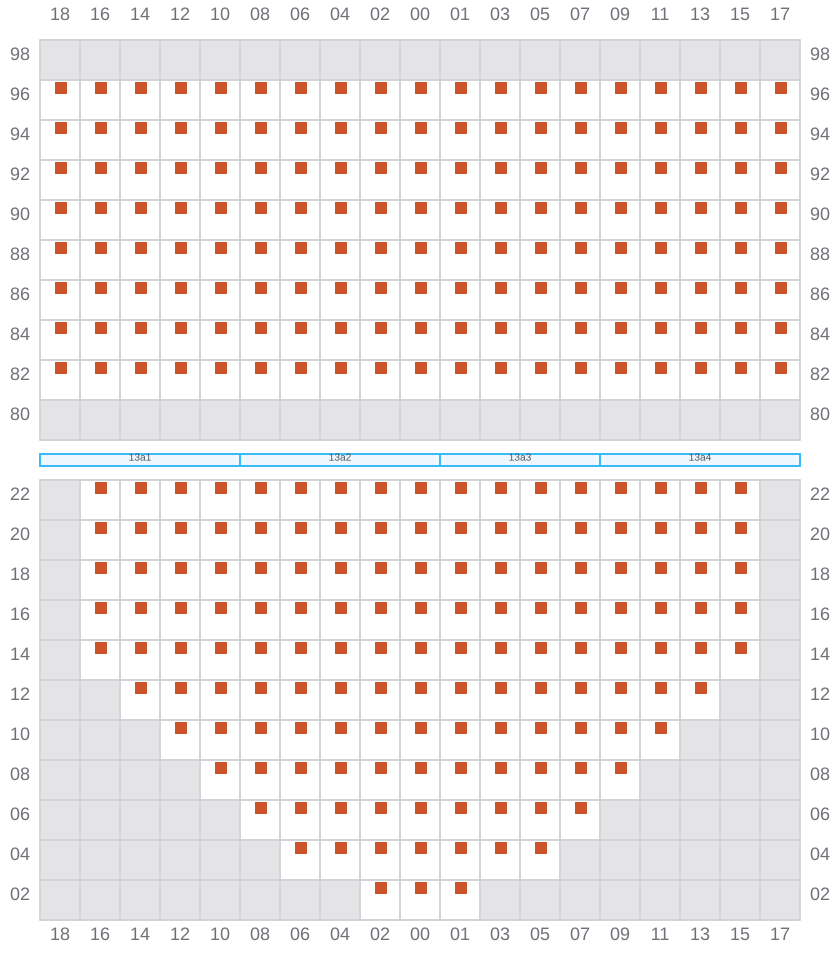

013

  • →
  • ← / ?
  • →
Bay 013 view and slots of HMM VICTORY

015 (014)

  • ←
  • → / ?
  • →
Bay 015 view and slots of HMM VICTORY

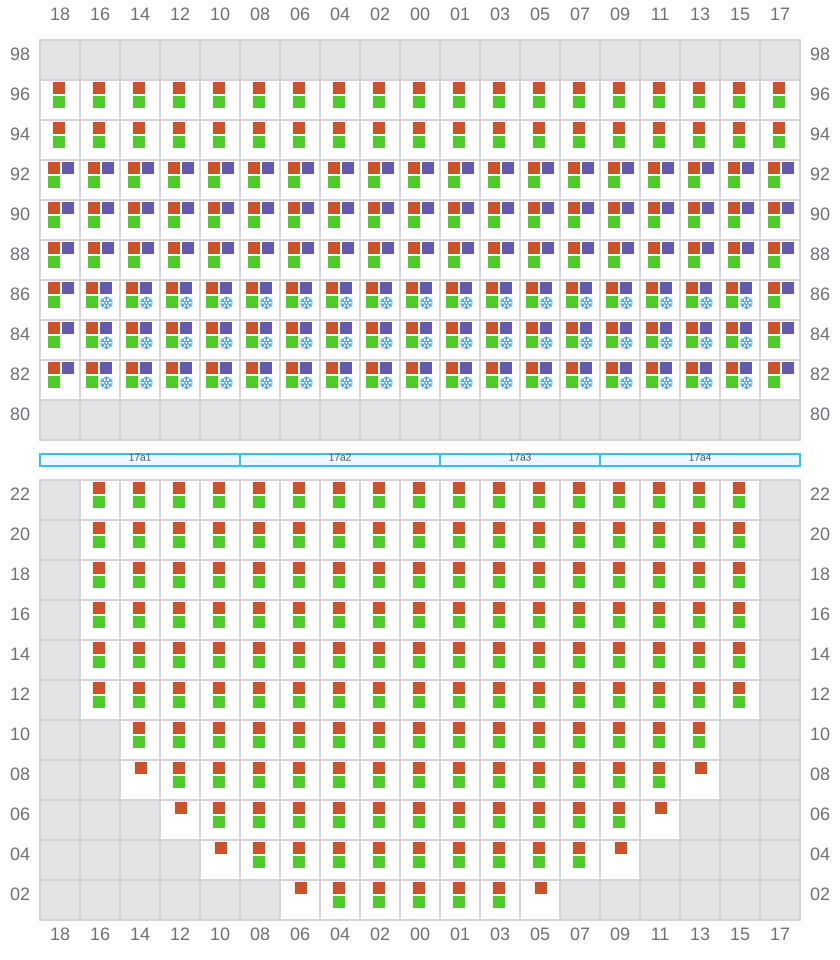

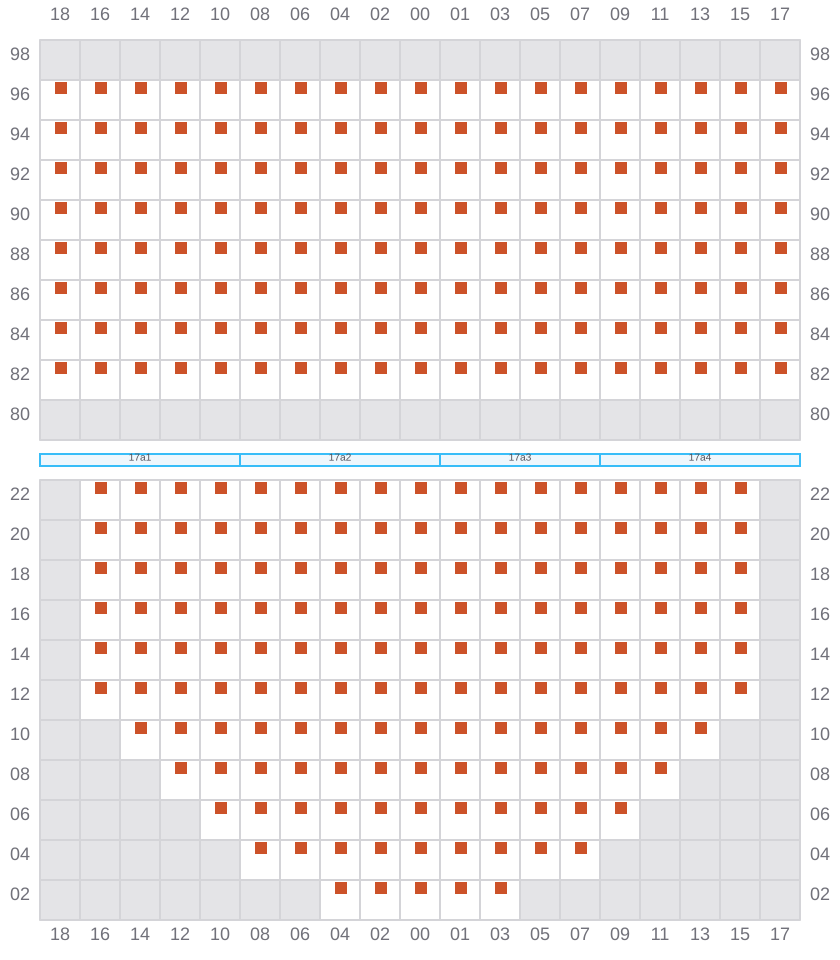

017

  • →
  • ← / ?
  • →
Bay 017 view and slots of HMM VICTORY

019 (018)

  • ←
  • → / ?
  • →
Bay 019 view and slots of HMM VICTORY

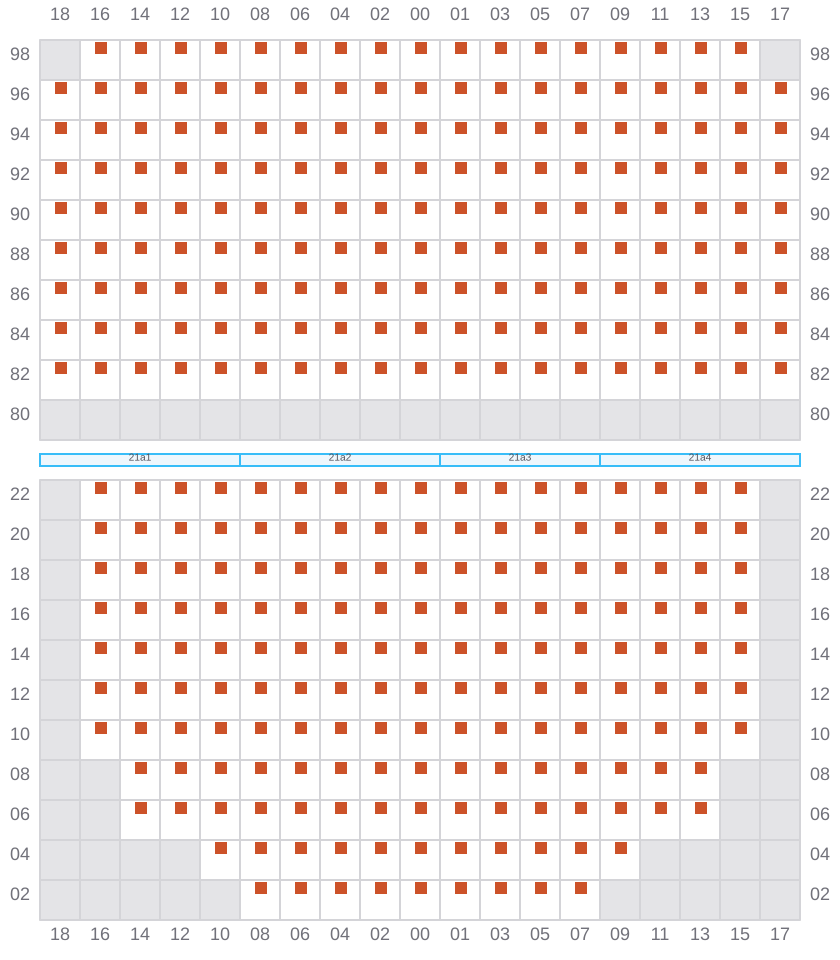

021

  • →
  • ← / ?
  • →
Bay 021 view and slots of HMM VICTORY

023 (022)

  • ←
  • → / ?
  • →
Bay 023 view and slots of HMM VICTORY

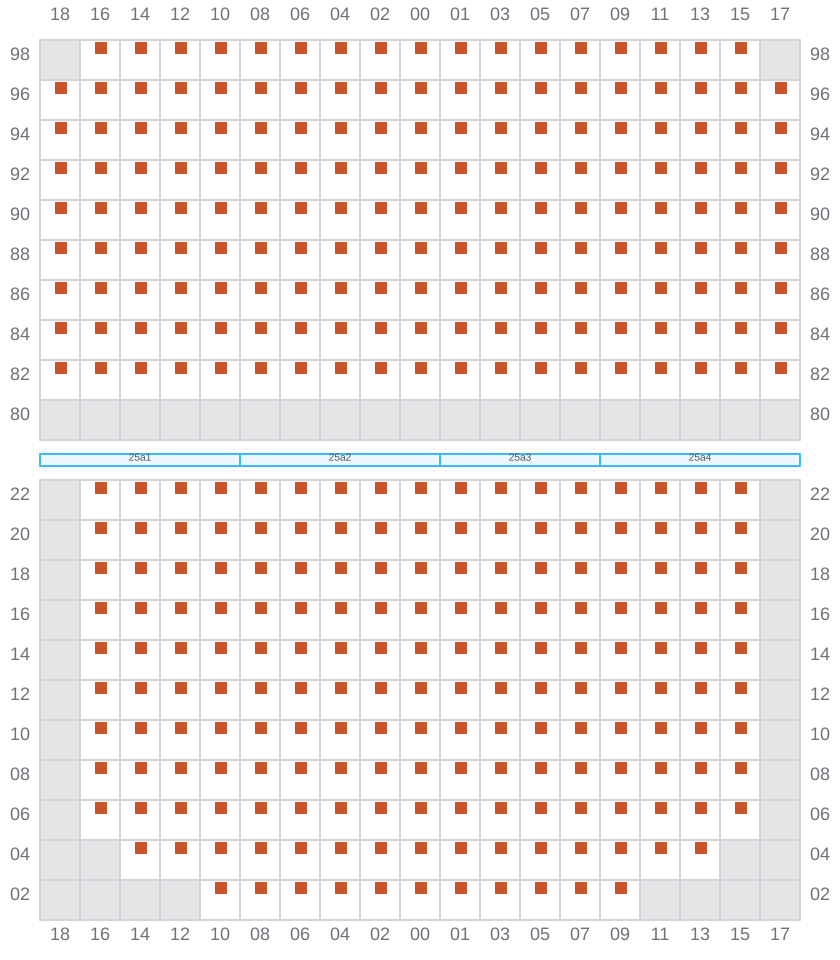

025

  • →
  • ← / ?
  • →
Bay 025 view and slots of HMM VICTORY

027 (026)

  • ←
  • → / ?
  • →
Bay 027 view and slots of HMM VICTORY

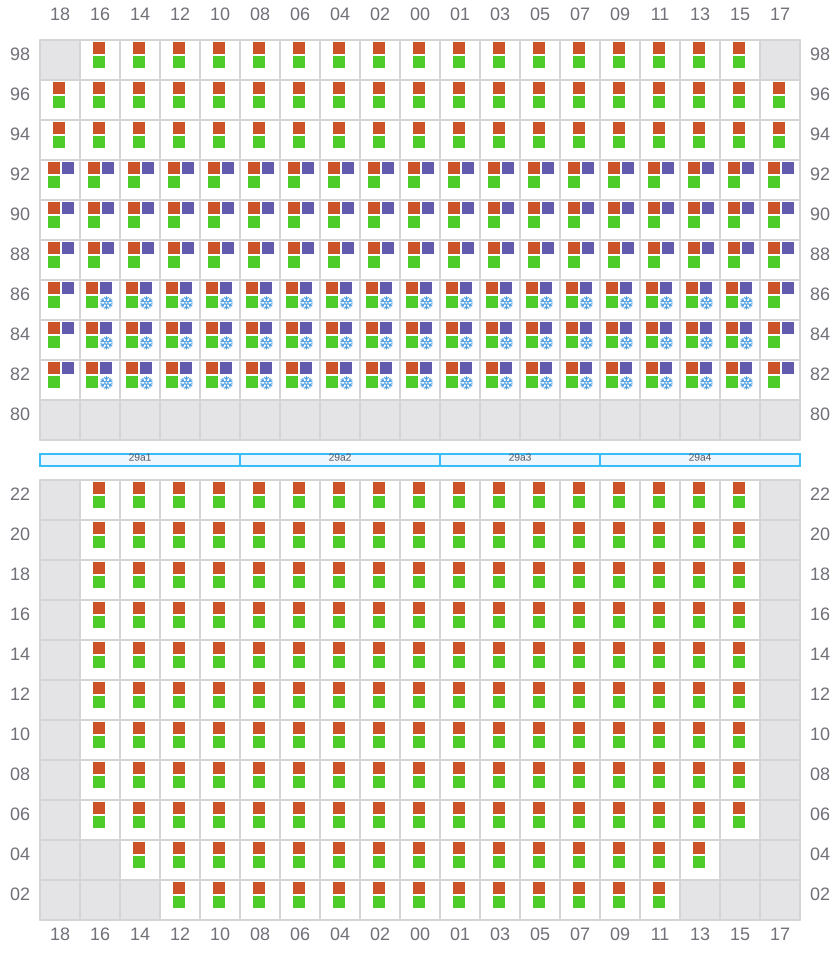

029

  • →
  • →

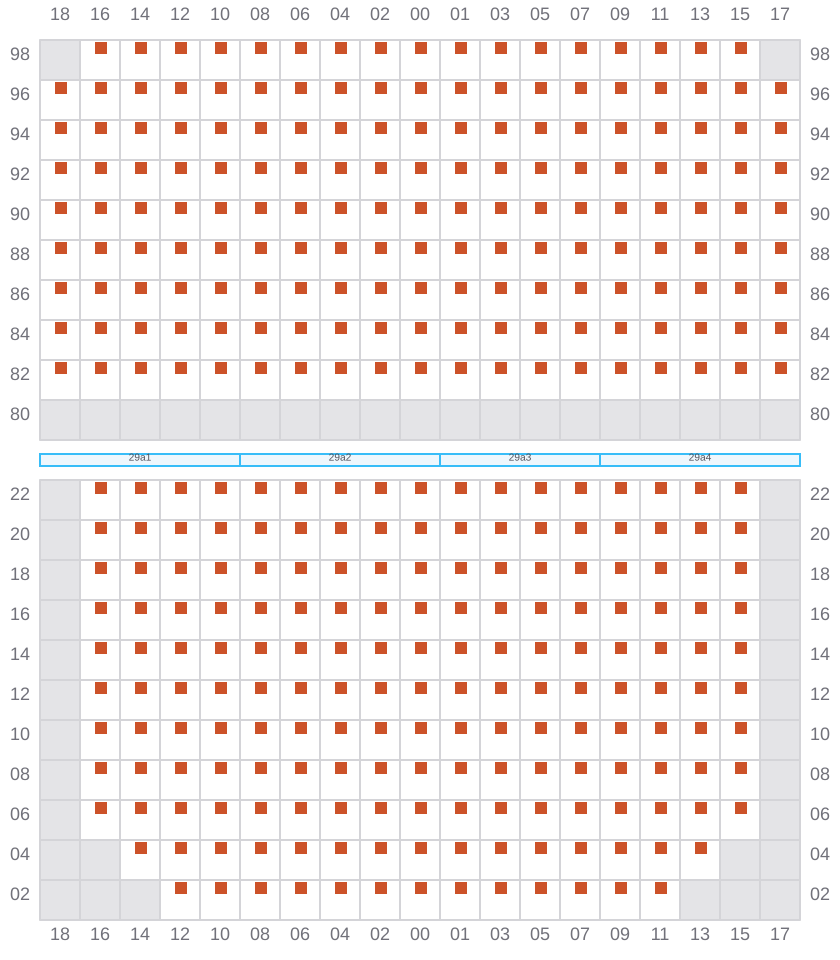

Bay 029 view and slots of HMM VICTORY

031 (030)

  • ←
  • → / ?
  • →
Bay 031 view and slots of HMM VICTORY

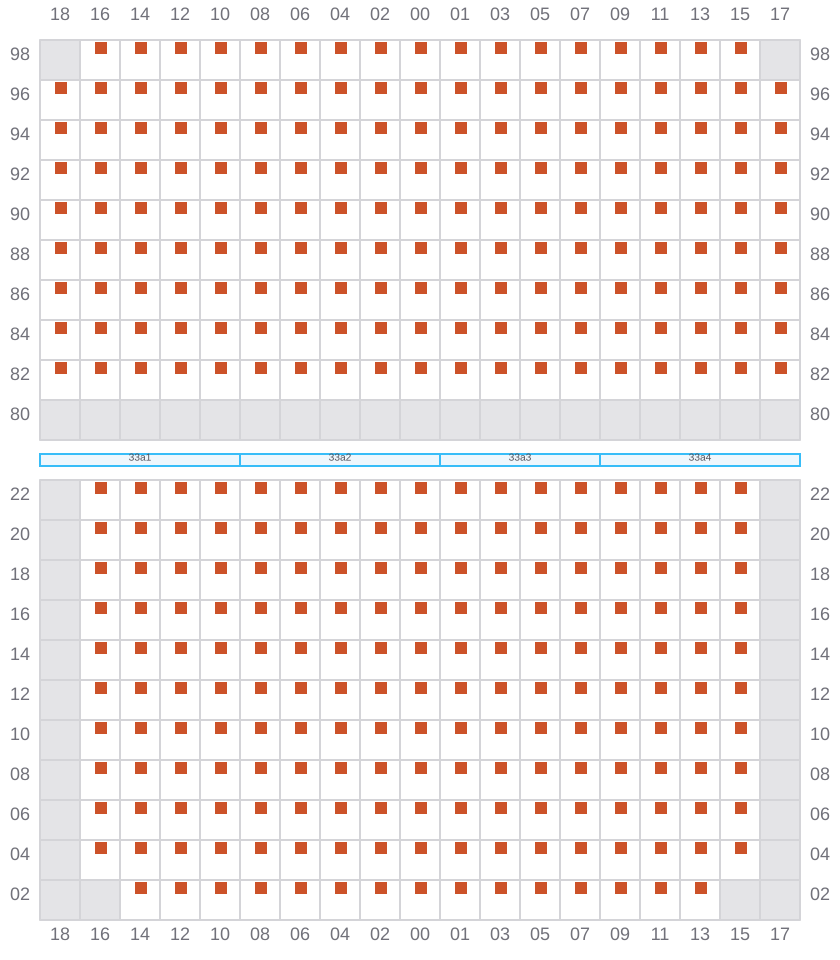

033

  • →
  • ← / ?
  • →
Bay 033 view and slots of HMM VICTORY

035 (034)

  • ←
  • → / ?
  • →
Bay 035 view and slots of HMM VICTORY

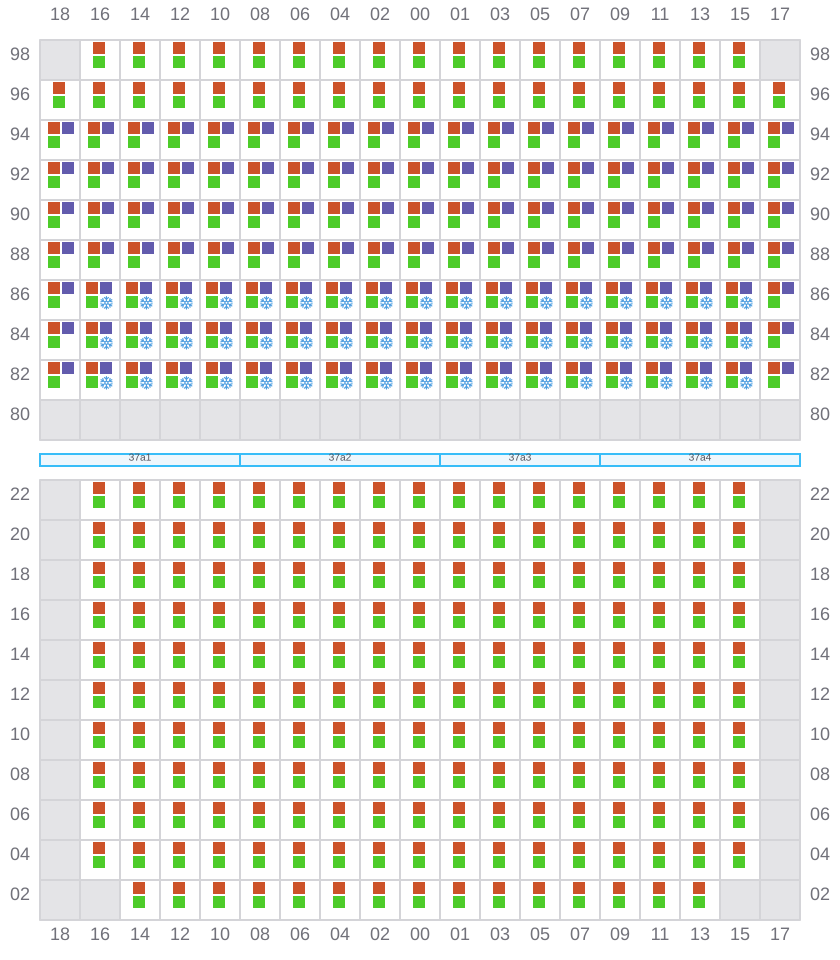

037

  • →
  • ← / ?
  • →
Bay 037 view and slots of HMM VICTORY

039 (038)

  • ←
  • → / ?
  • →

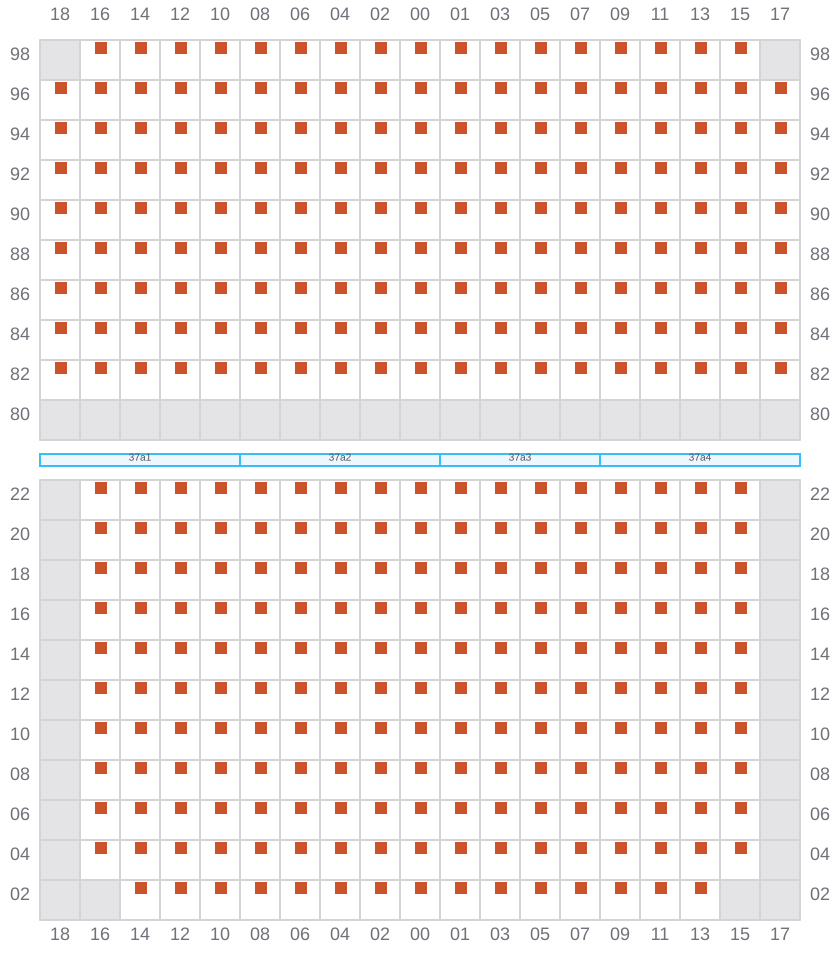

Bay 039 view and slots of HMM VICTORY

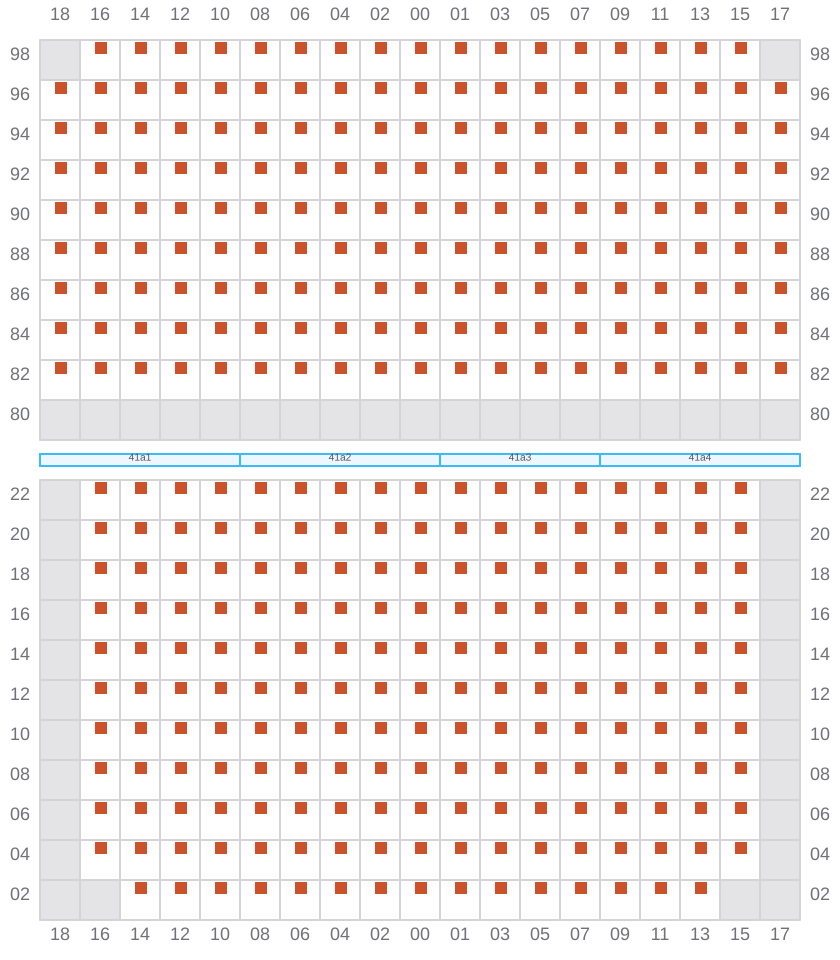

041

  • →
  • ← / ?
  • →
Bay 041 view and slots of HMM VICTORY

043 (042)

  • ←
  • → / ?
  • →
Bay 043 view and slots of HMM VICTORY

045

  • →
  • ← / ?
  • →
Bay 045 view and slots of HMM VICTORY

047 (046)

  • ←
  • → / ?
  • →

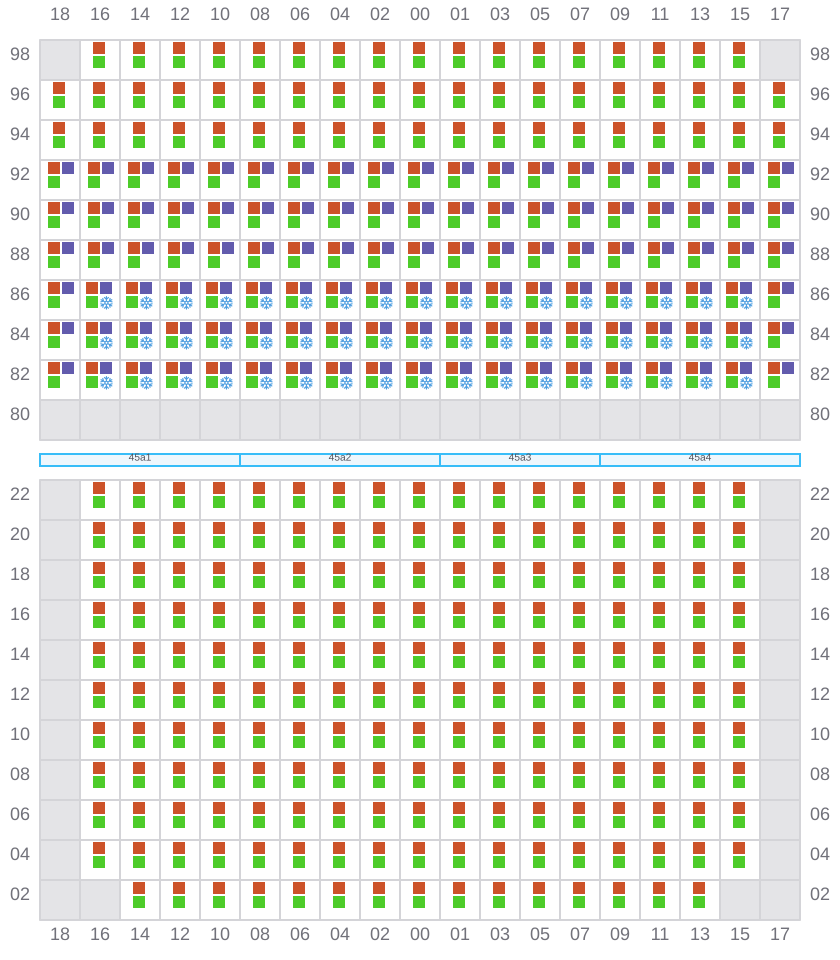

Bay 047 view and slots of HMM VICTORY

049

  • →
  • ← / ?
  • →

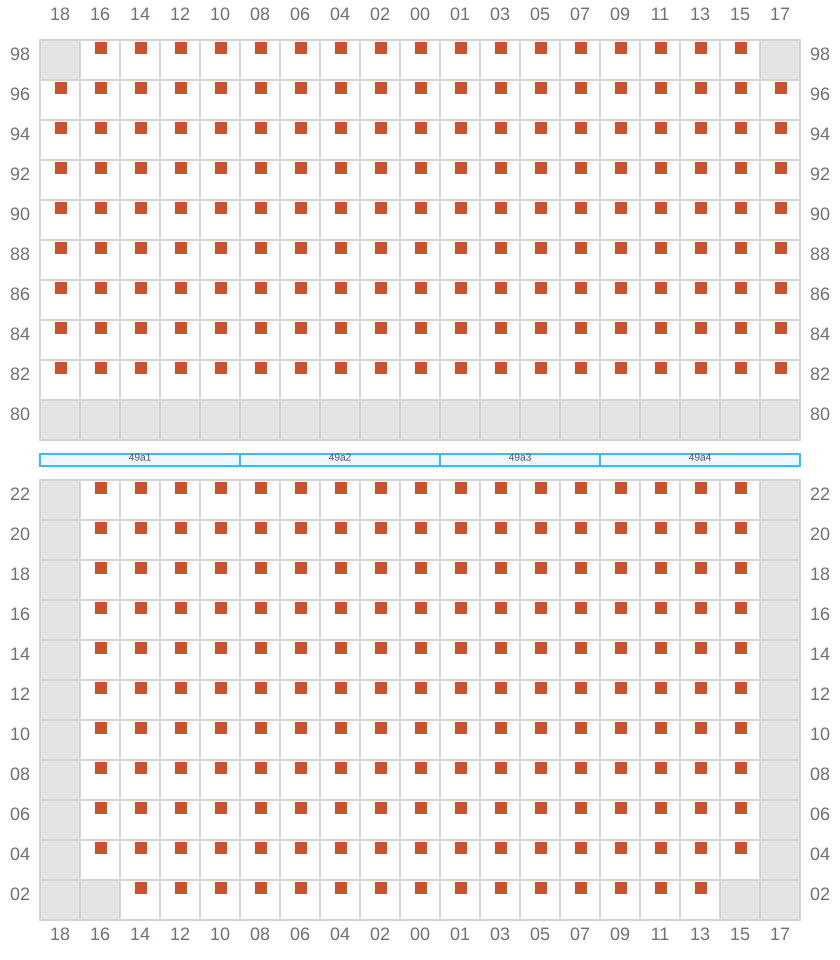

Bay 049 view and slots of HMM VICTORY

051 (050)

  • ←
  • → / ?
  • →
Bay 051 view and slots of HMM VICTORY

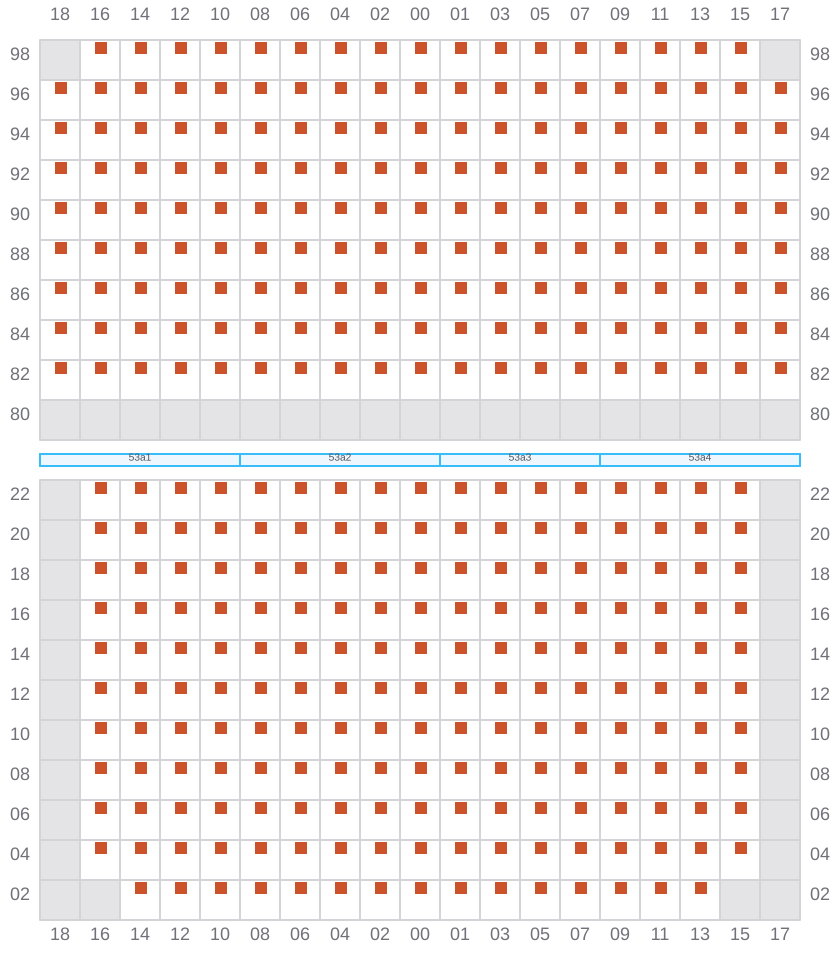

053

  • →
  • ← / ?
  • →
Bay 053 view and slots of HMM VICTORY

055 (054)

  • ←
  • → / ?
  • →
Bay 055 view and slots of HMM VICTORY

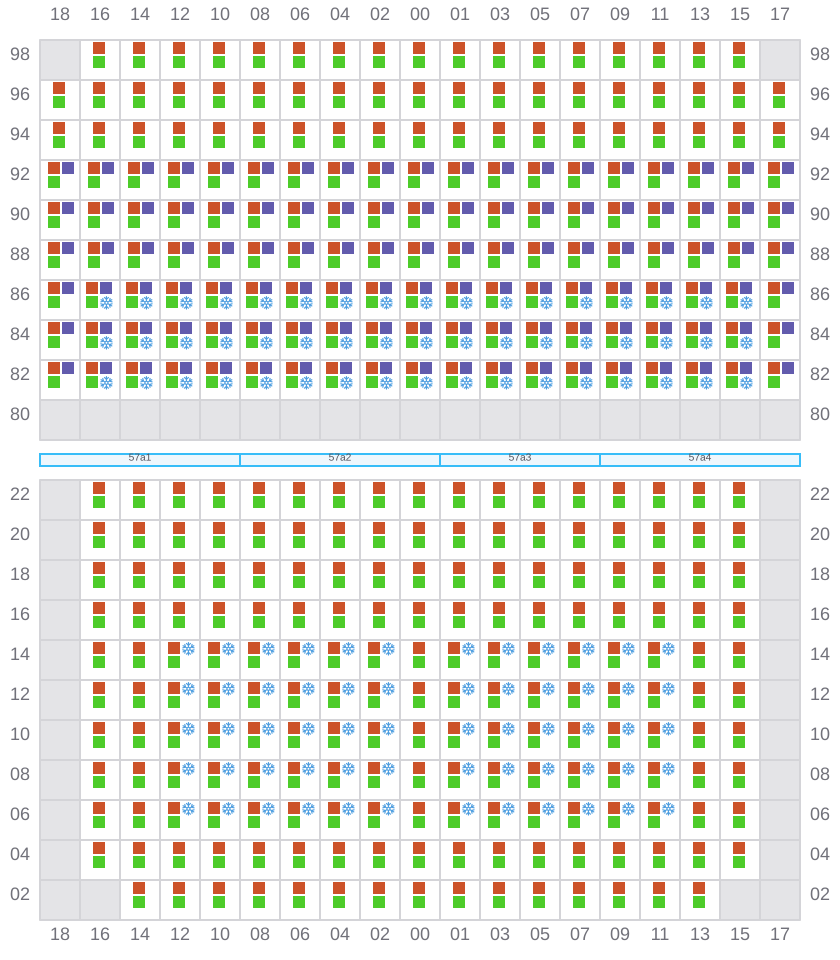

057

  • →
  • ← / ?
  • →

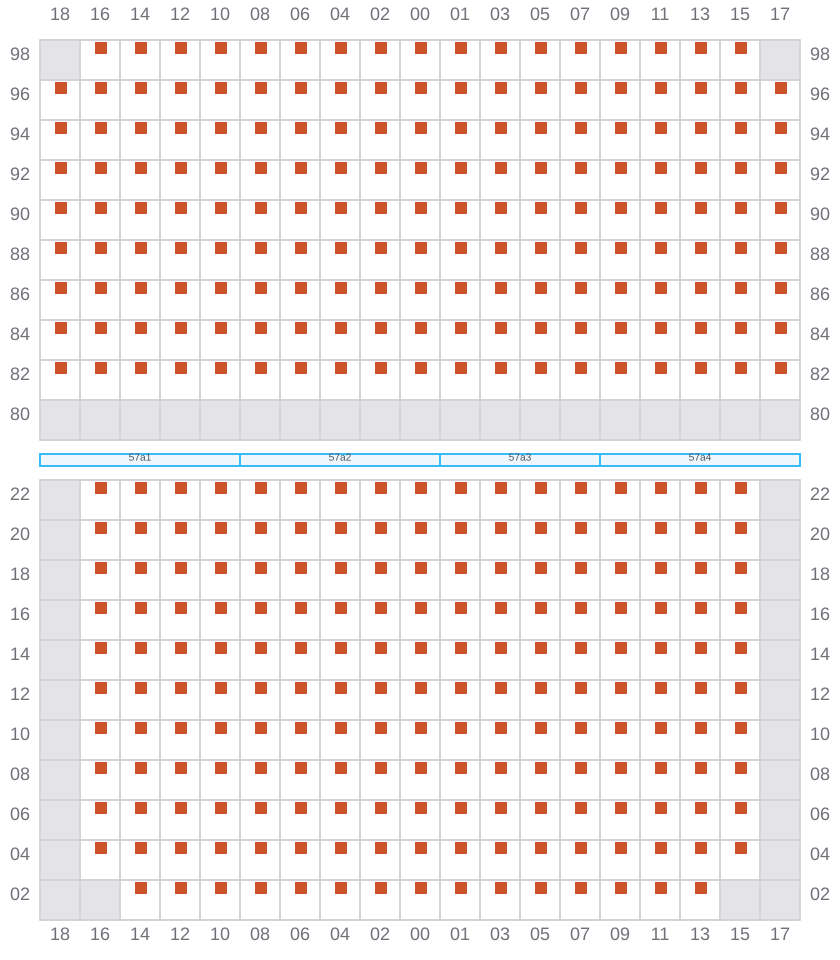

Bay 057 view and slots of HMM VICTORY

059 (058)

  • ←
  • →
  • →
Bay 059 view and slots of HMM VICTORY

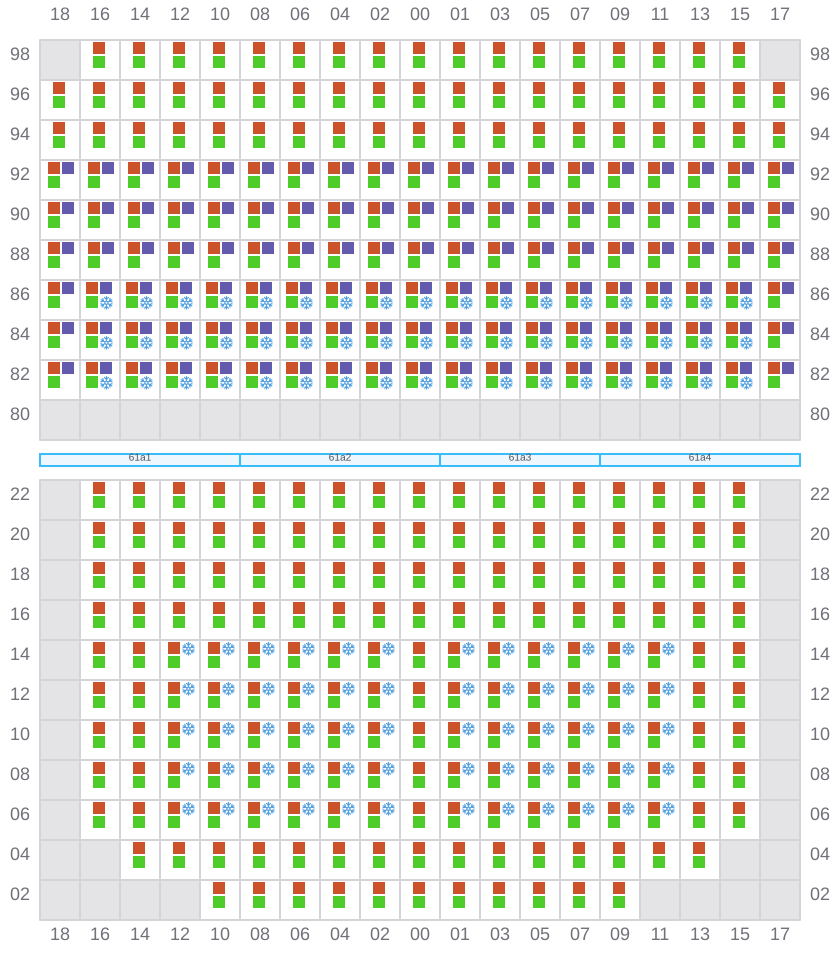

061

  • →
  • ← / ?
  • →

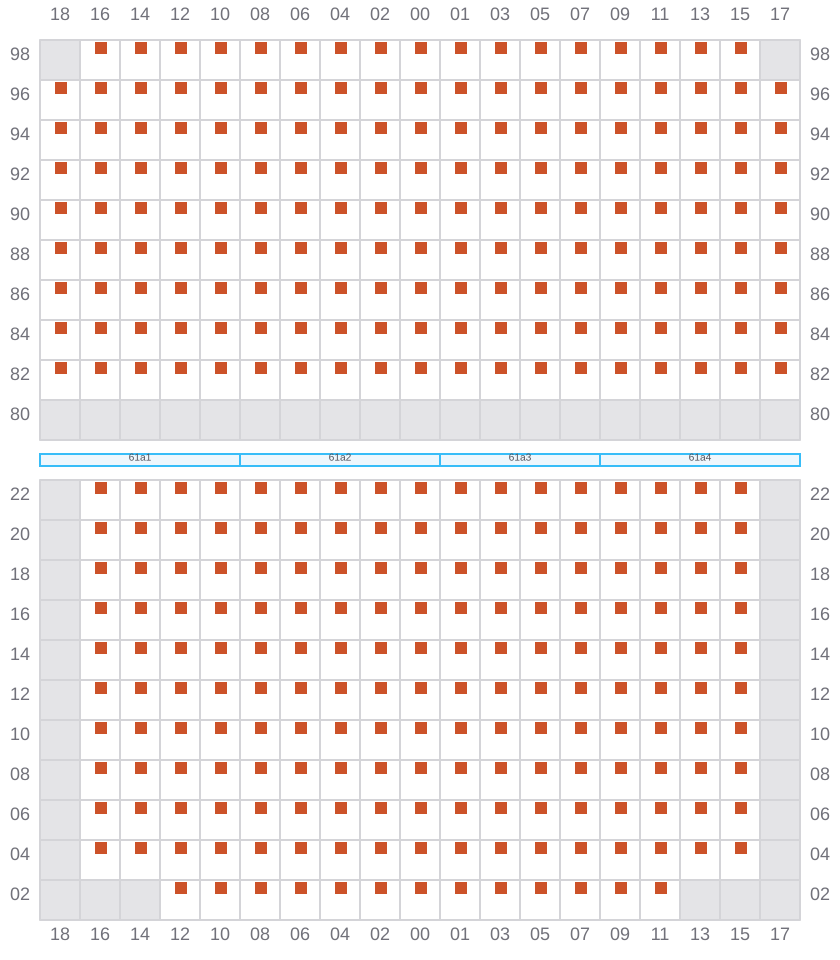

Bay 061 view and slots of HMM VICTORY

063 (062)

  • ←
  • →
  • →
Bay 063 view and slots of HMM VICTORY

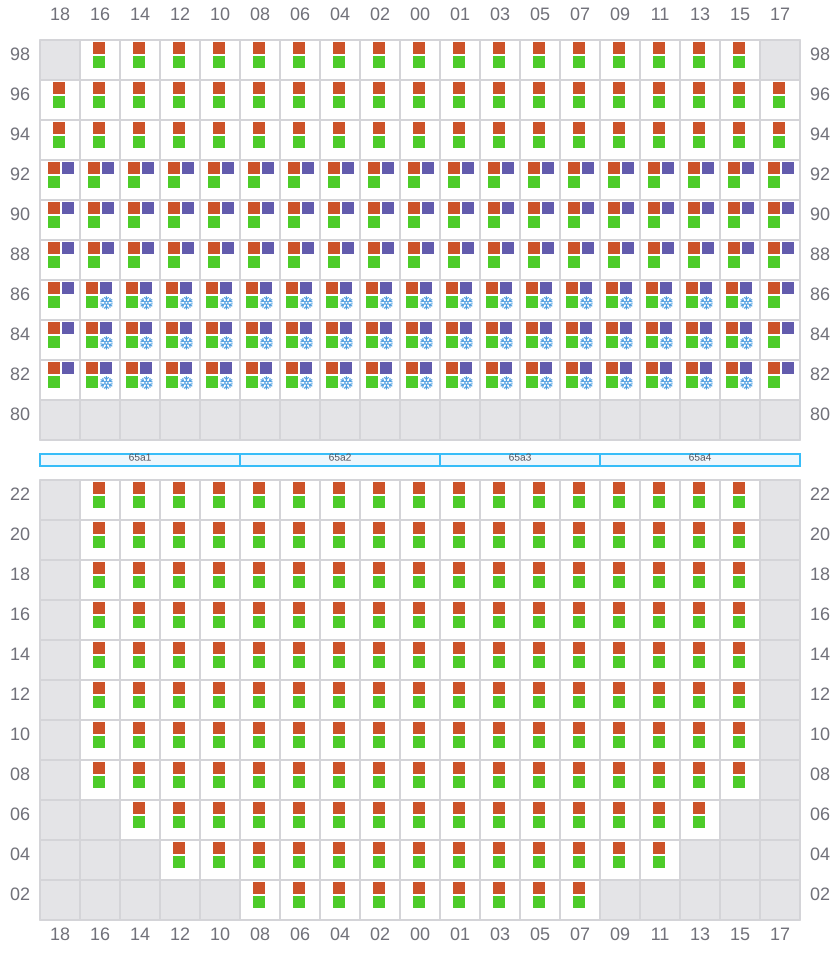

065

  • →
  • ← / ?
  • →

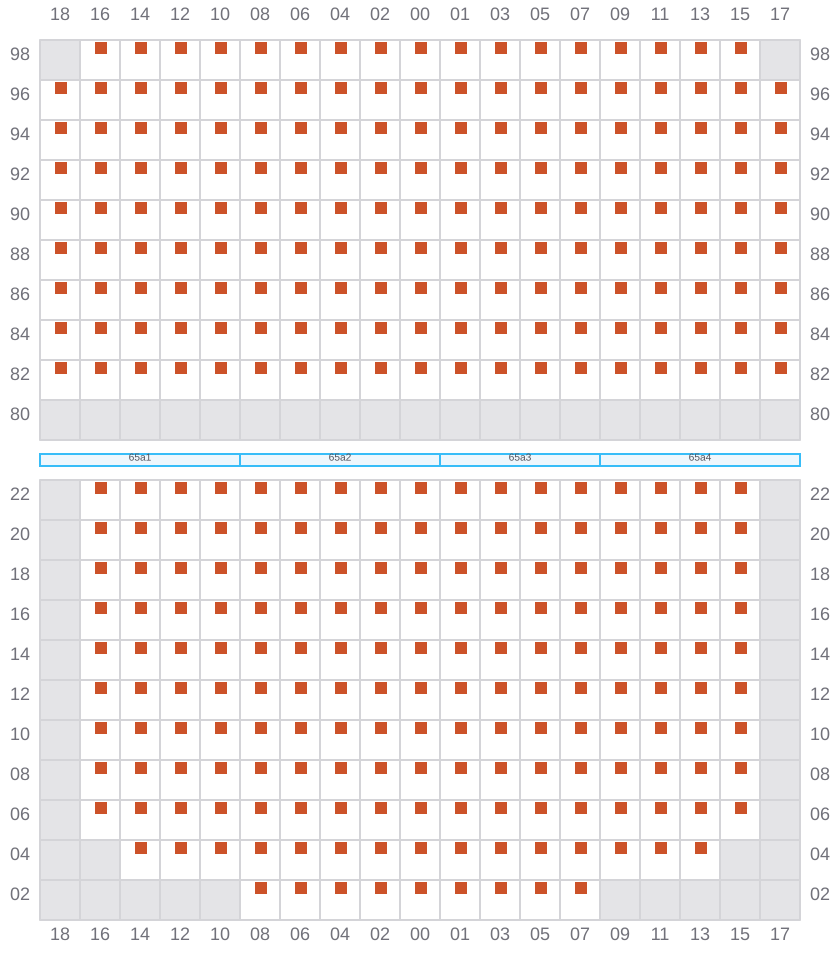

Bay 065 view and slots of HMM VICTORY

067 (066)

  • ←
  • → / ?
  • →
Bay 067 view and slots of HMM VICTORY

069 (070)

  • → / ?
  • → / ?
  • → / ?

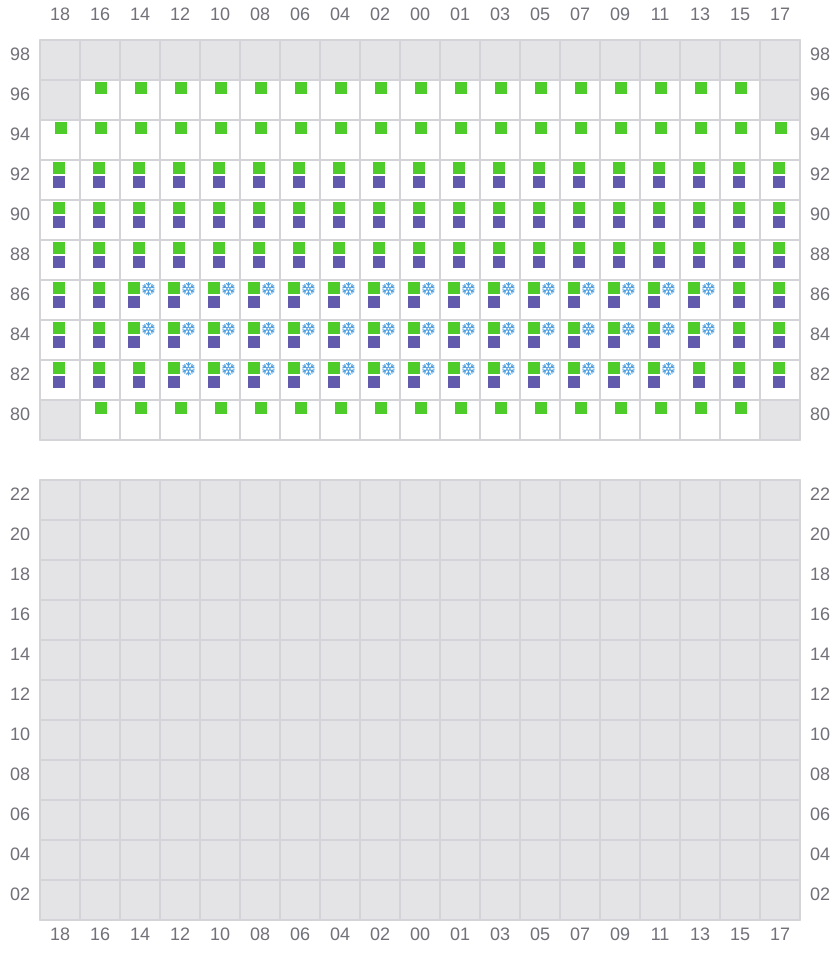

Bay 069 view and slots of HMM VICTORY

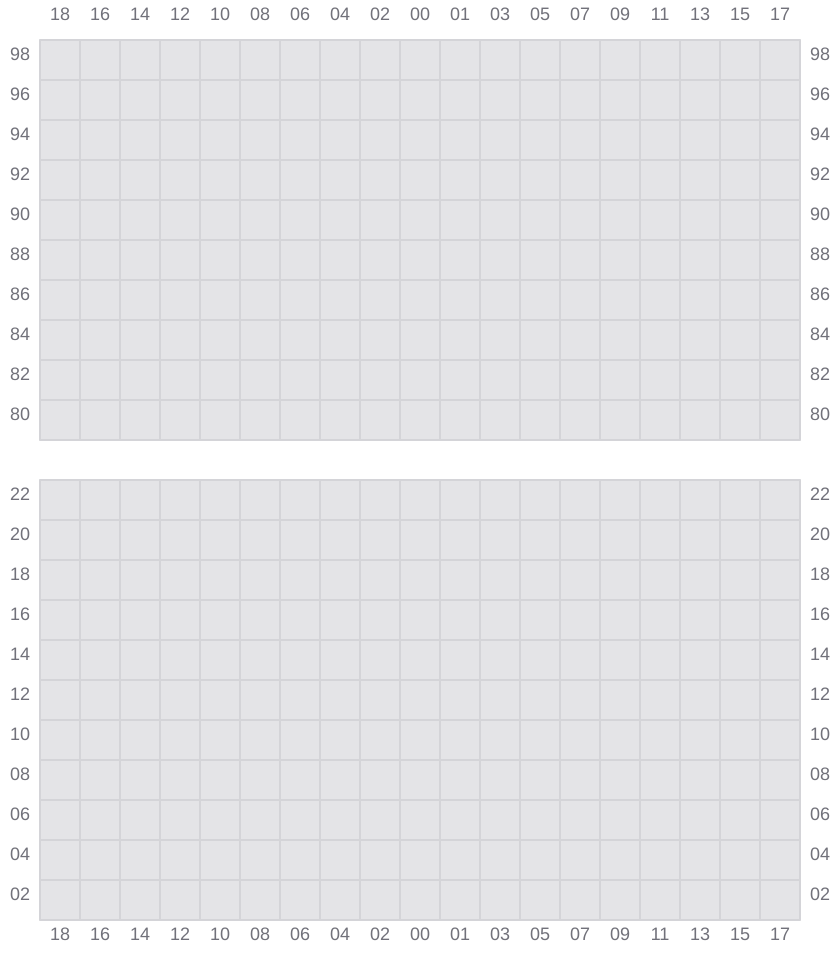

071

Bay 071 view and slots of HMM VICTORY

073

  • →
  • ← / ?
  • →
Bay 073 view and slots of HMM VICTORY

075 (074)

  • ←
  • → / ?
  • →

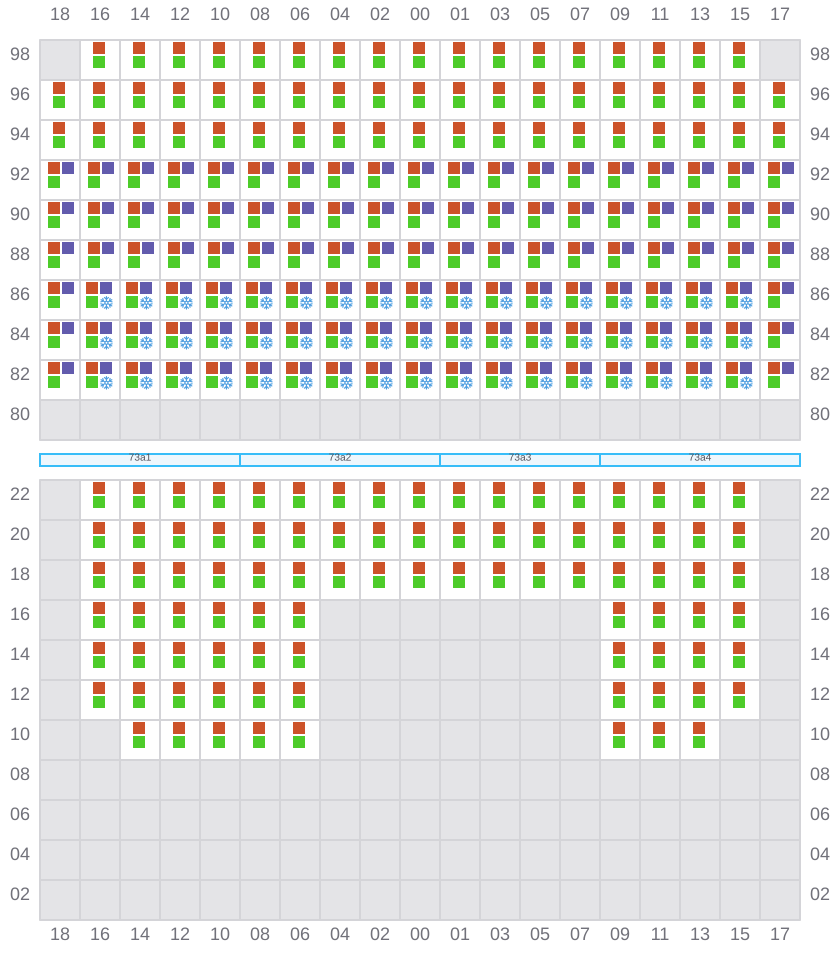

Bay 075 view and slots of HMM VICTORY

077

  • →
  • ← / ?
  • →

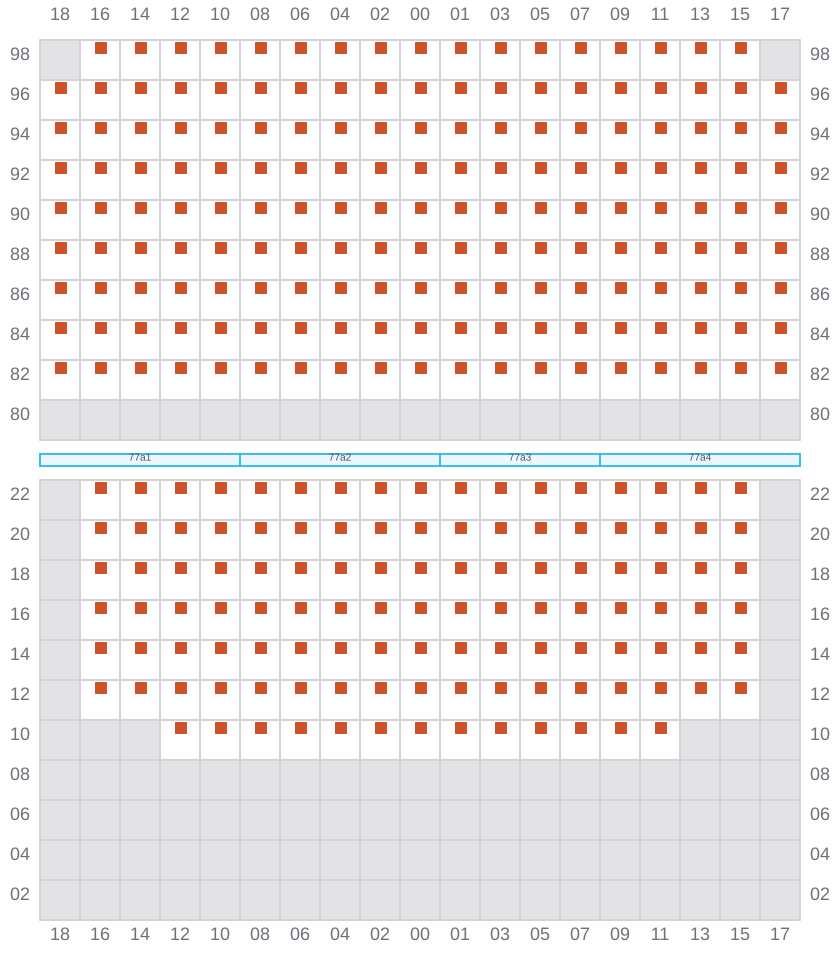

Bay 077 view and slots of HMM VICTORY

079 (078)

  • ←
  • → / ?
  • →

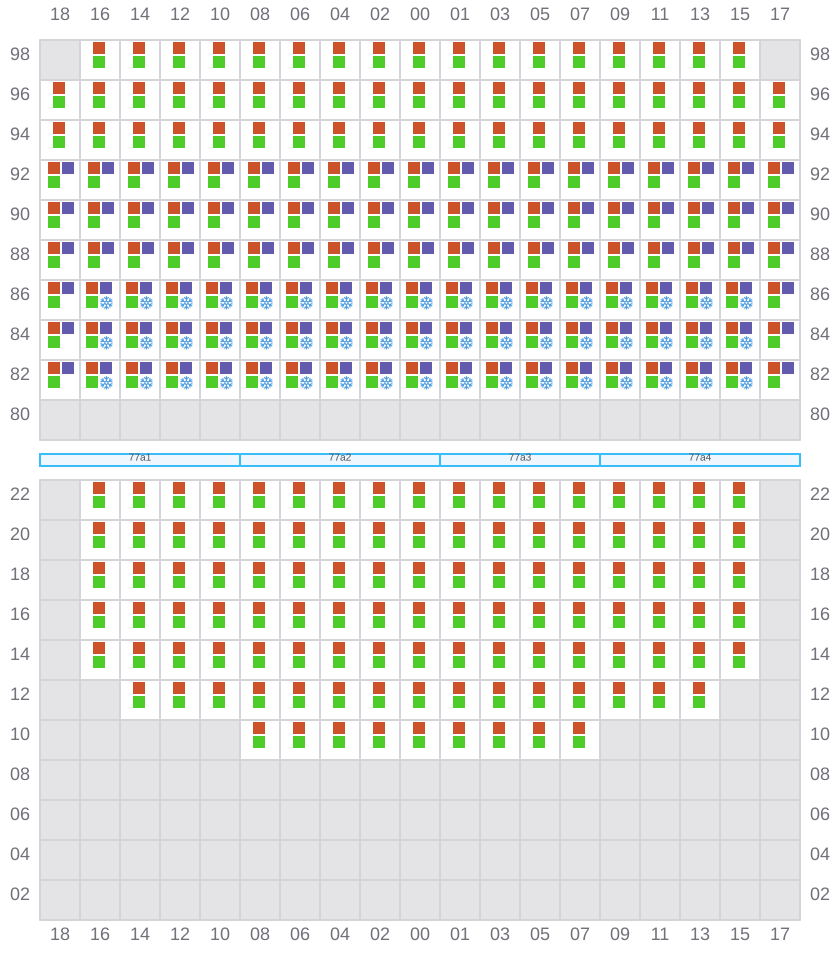

Bay 079 view and slots of HMM VICTORY

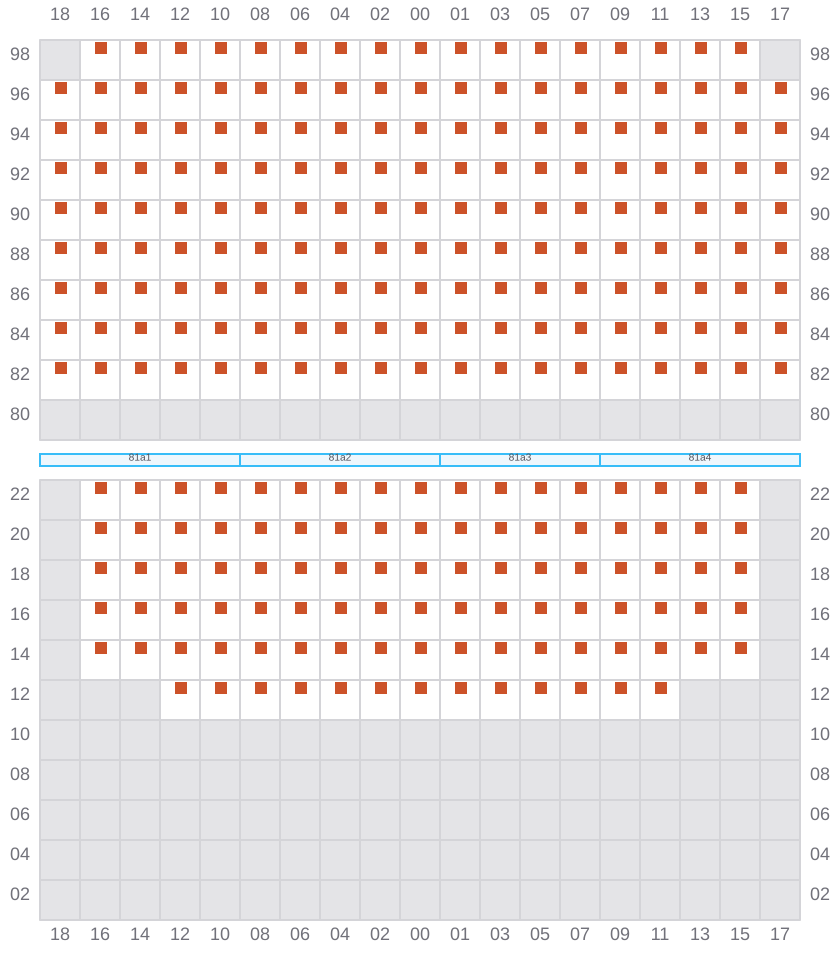

081

  • →
  • ← / ?
  • →
Bay 081 view and slots of HMM VICTORY

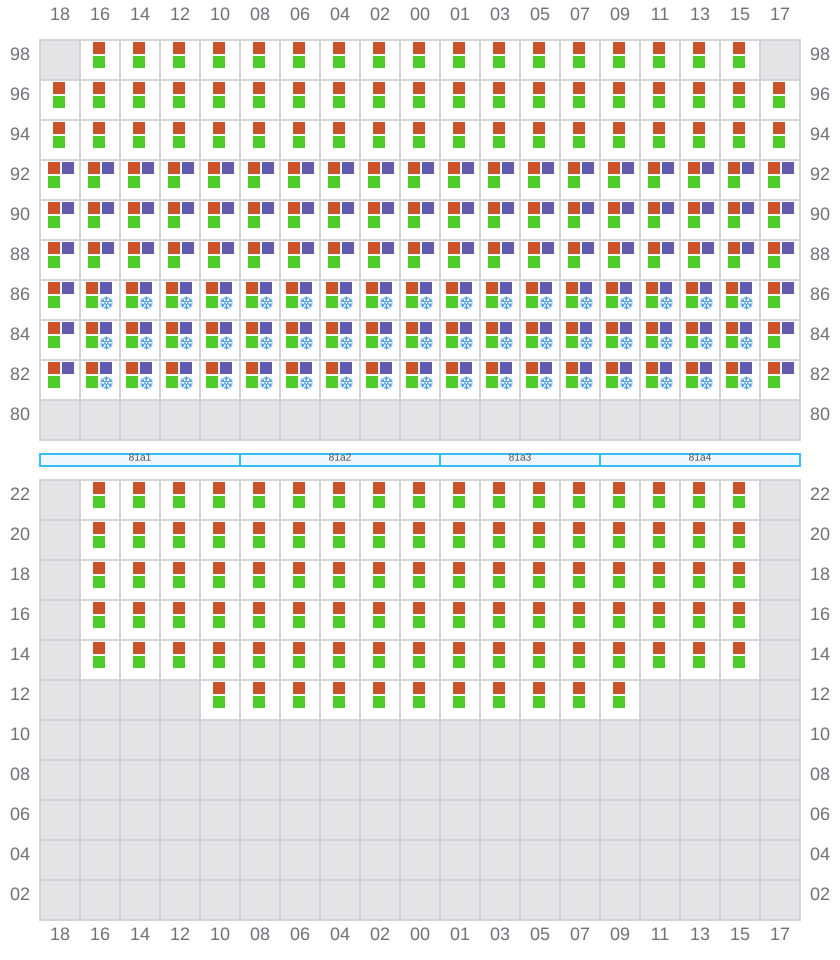

083 (082)

  • ←
  • → / ?
  • →
Bay 083 view and slots of HMM VICTORY

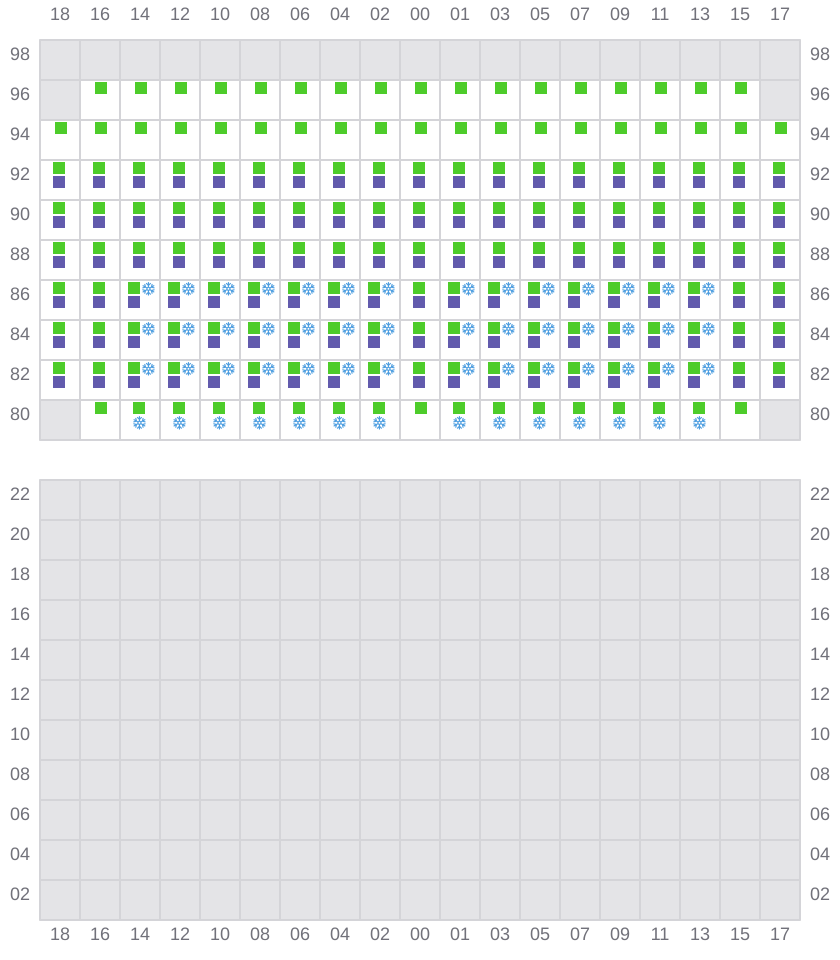

085 (086)

  • → / ?
  • ← / ?
  • → / ?
Bay 085 view and slots of HMM VICTORY
