HOLSATIA
9233856 | 5LBE8 | MSK by ************************** Last update: Sat Jun 24 2023
General Info
Ship Name:HOLSATIA
IMO Code:9233856
Call Sign:5LBE8
Line Operator:MSK
Class Name for Sister Ships:HLT
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):244.80
LOA (Length Overall):260.05
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,253
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

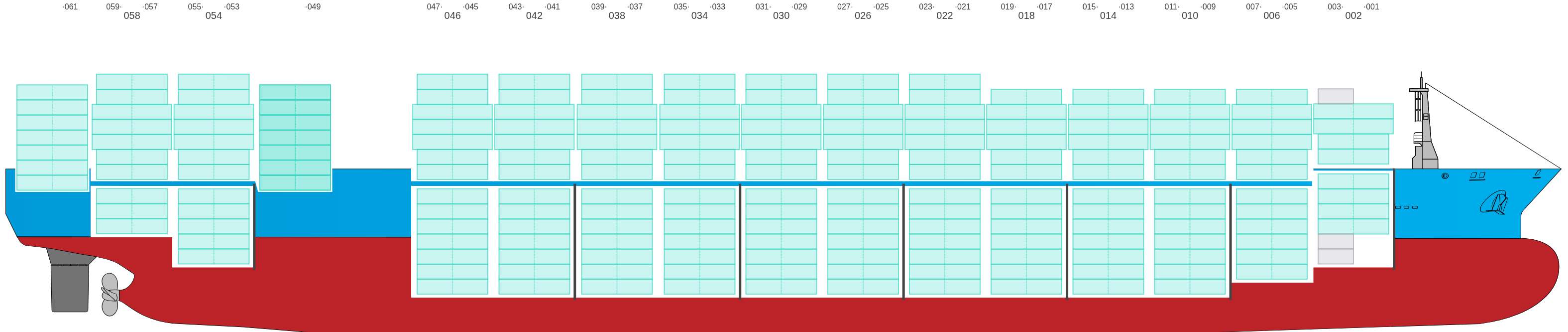

Side View

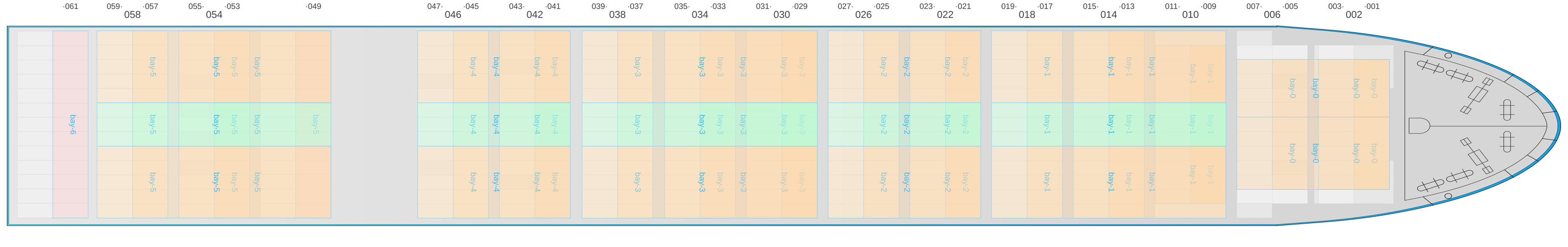

Hatch-Covers View

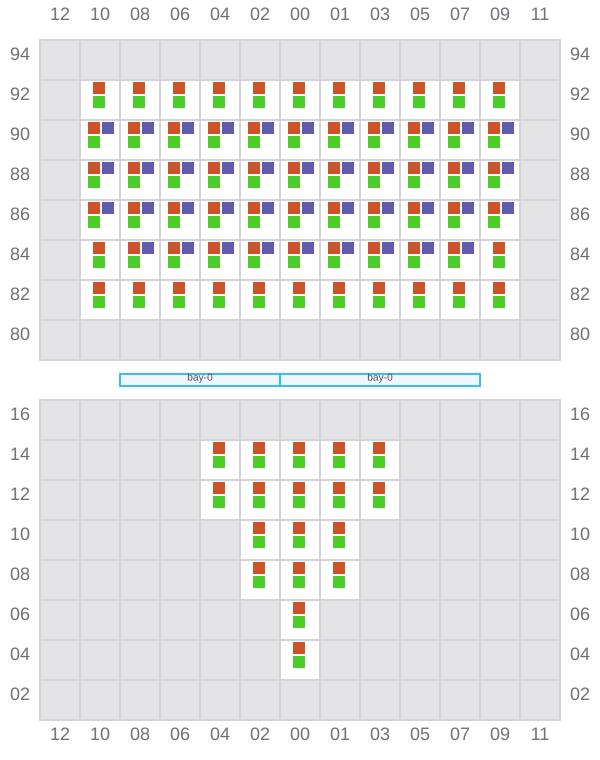

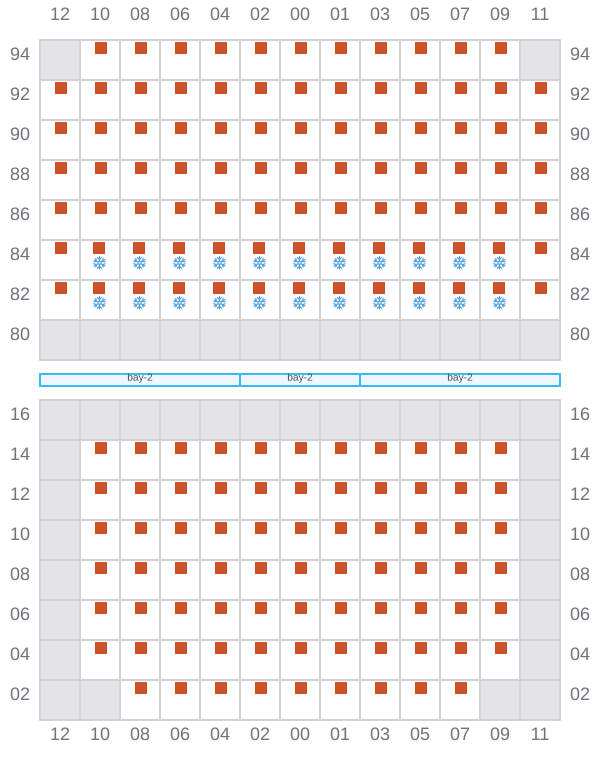

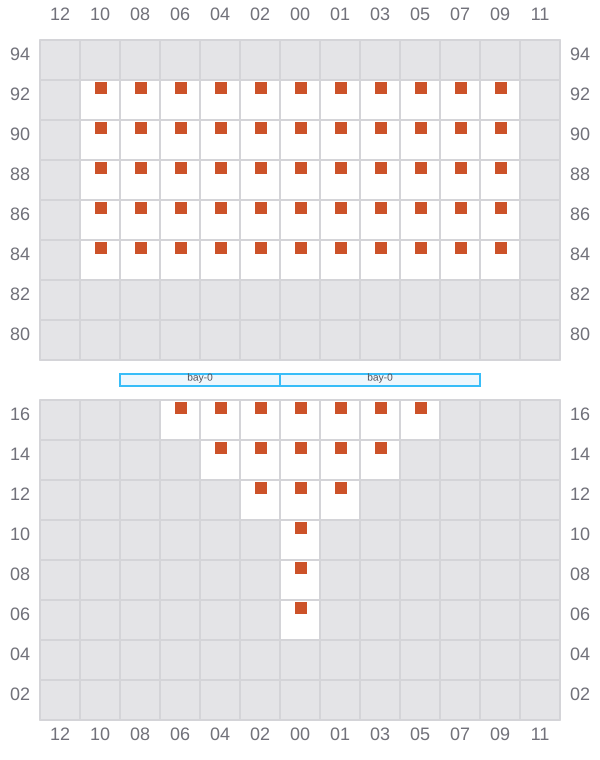

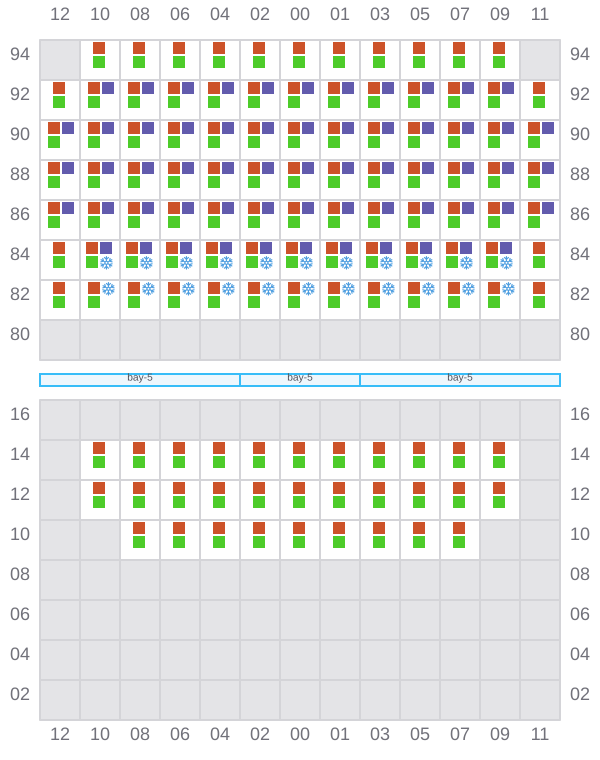

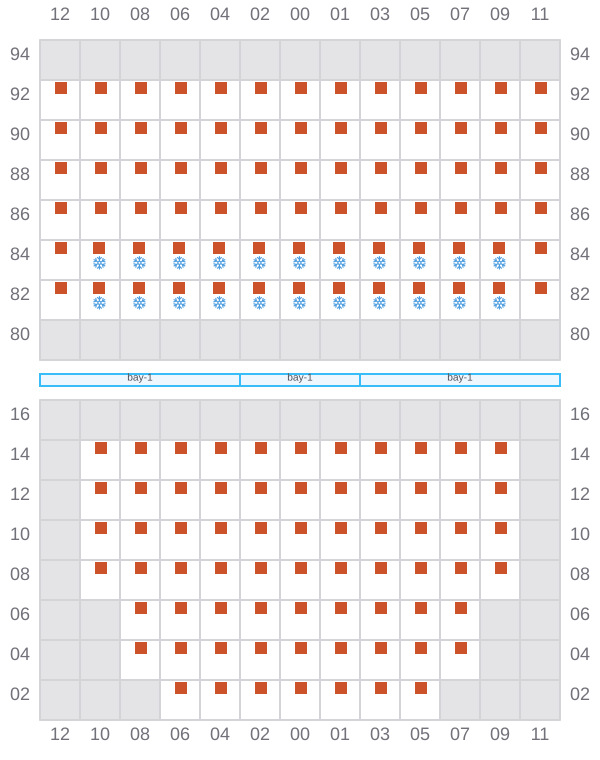

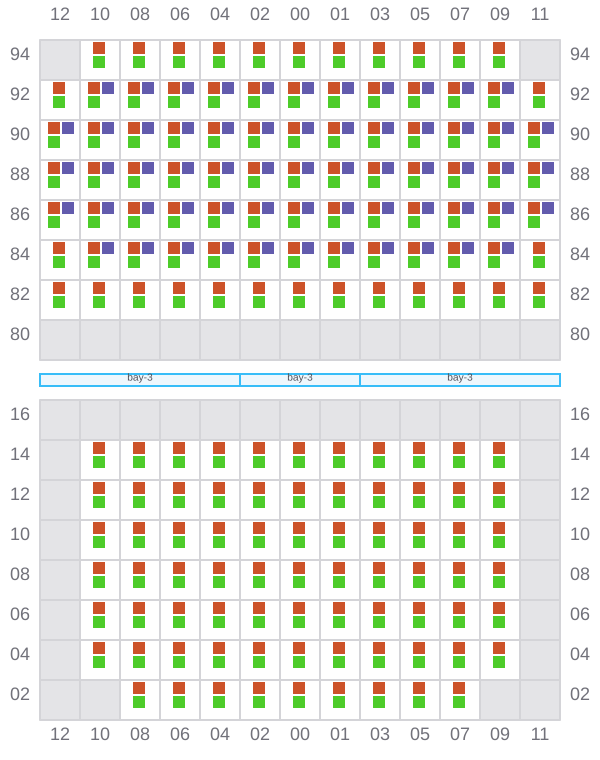

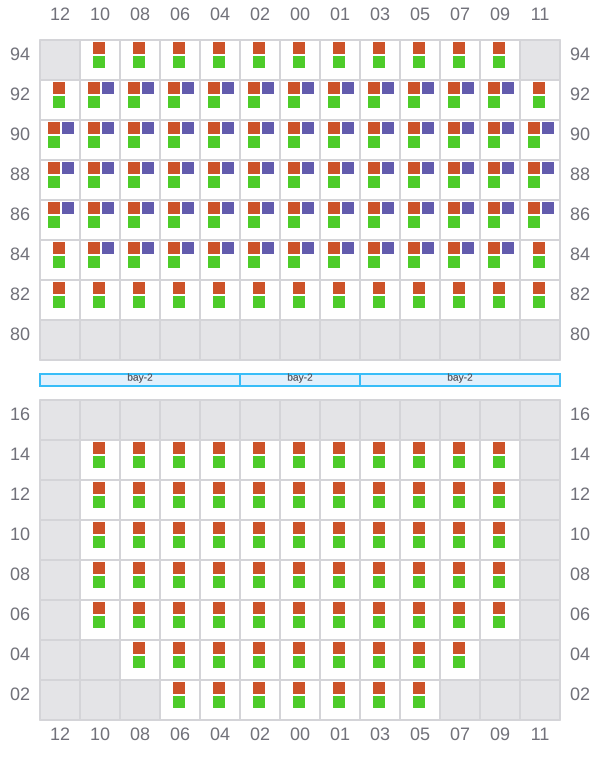

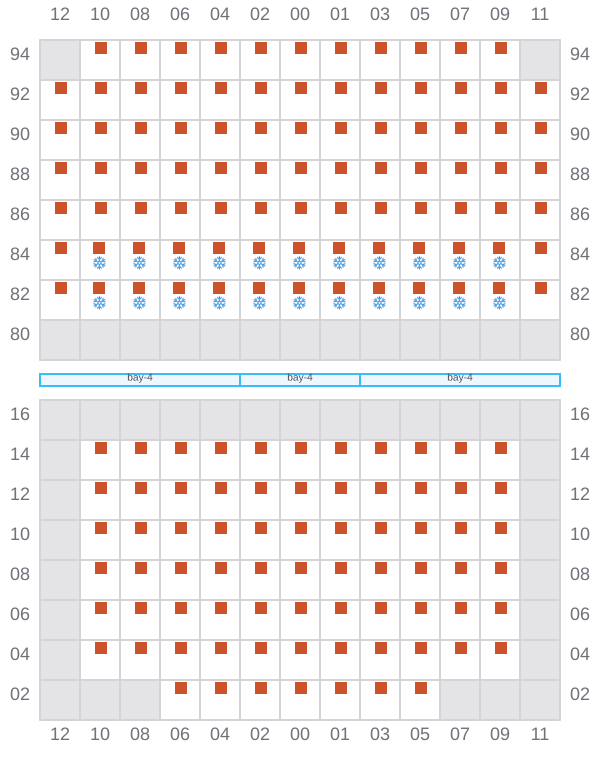

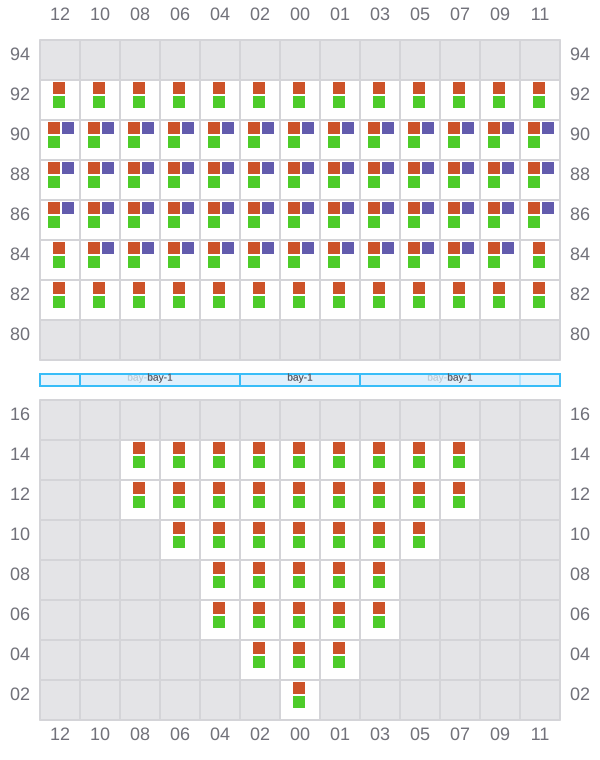

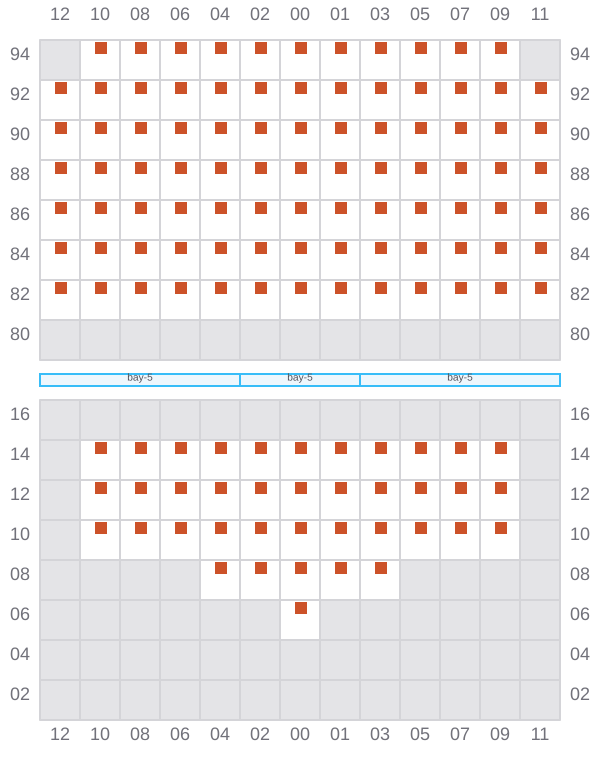

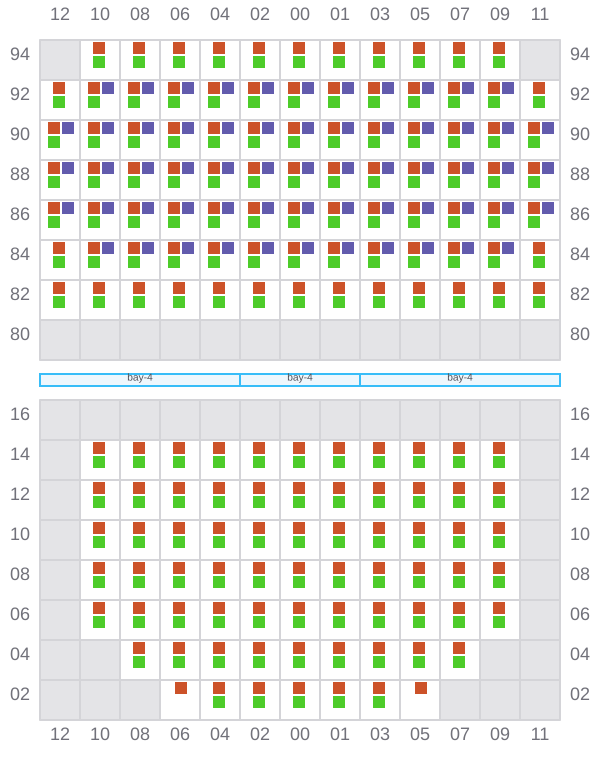

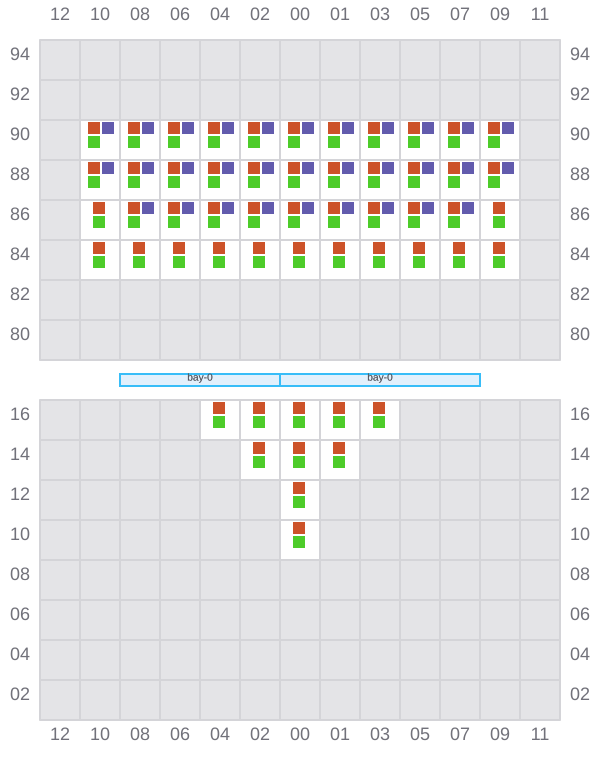

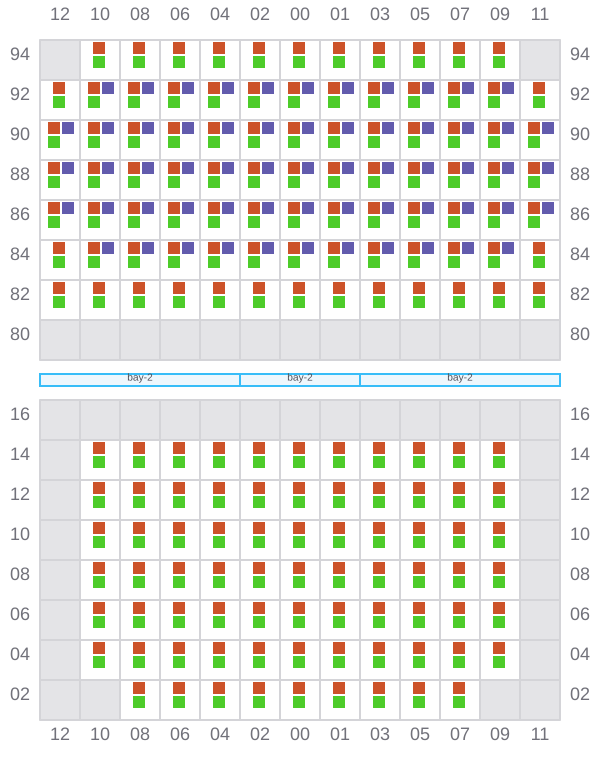

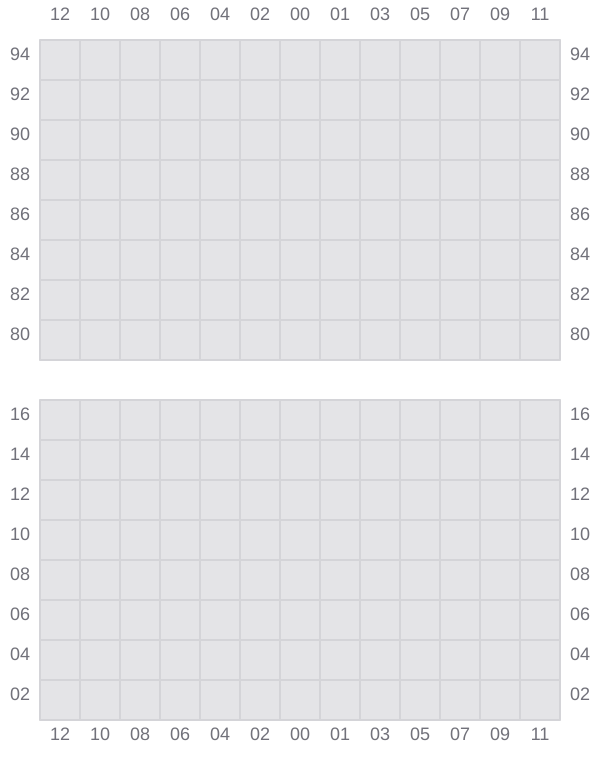

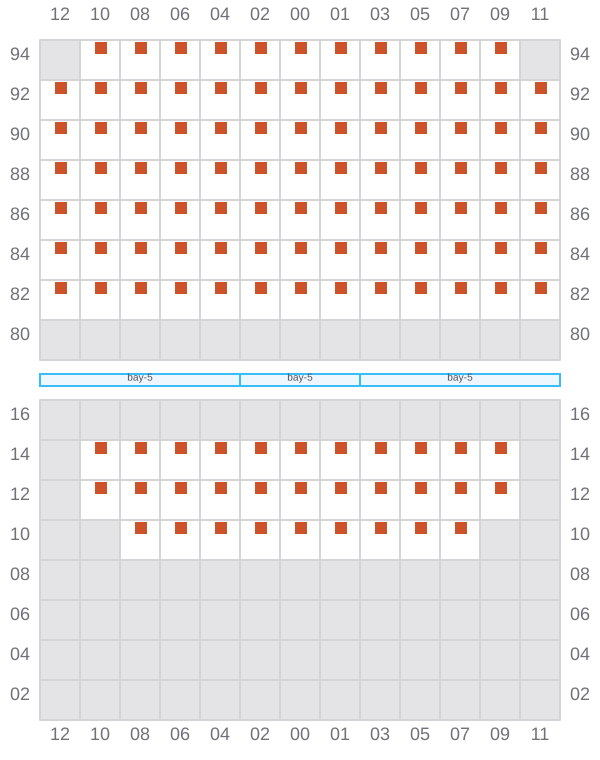

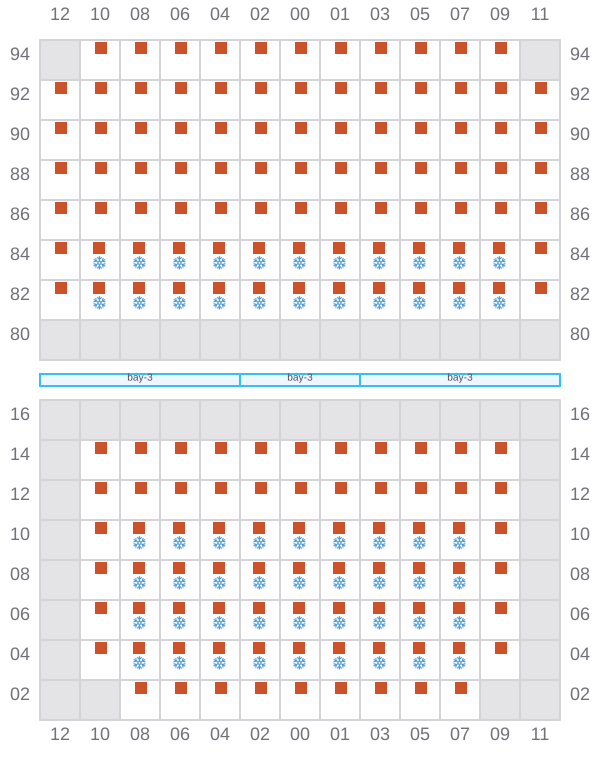

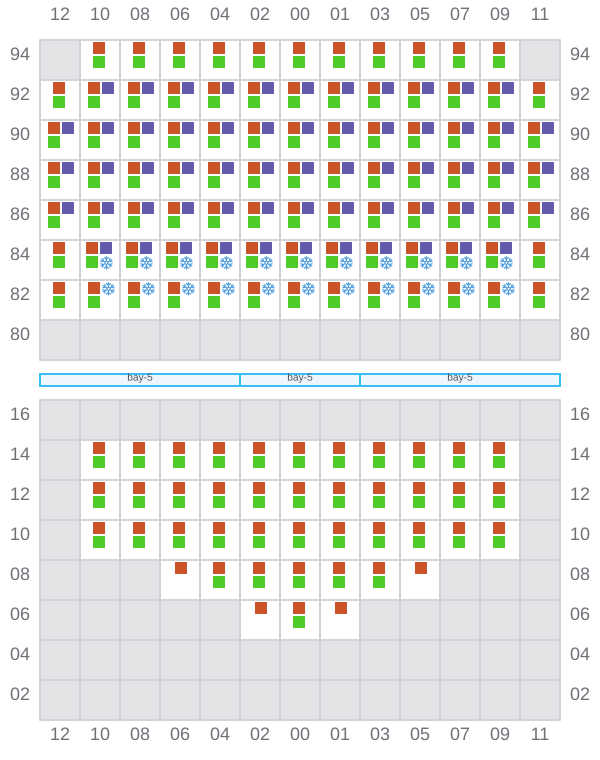

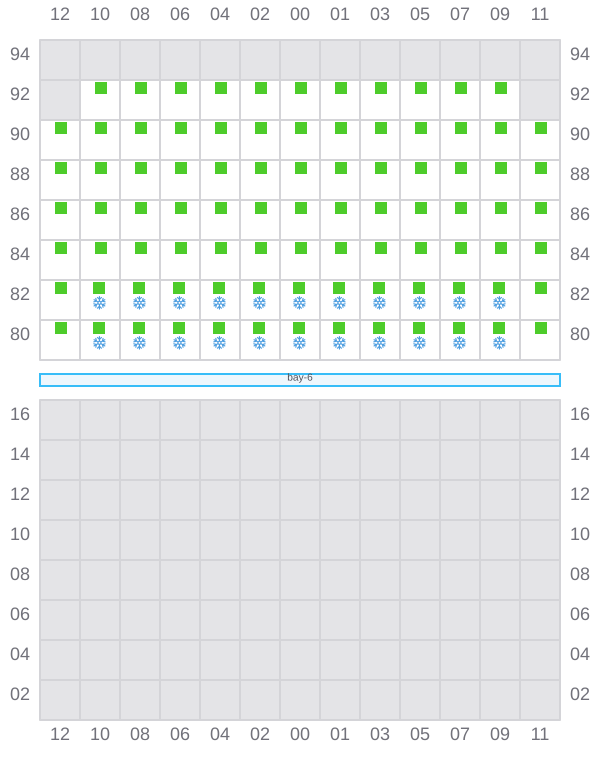

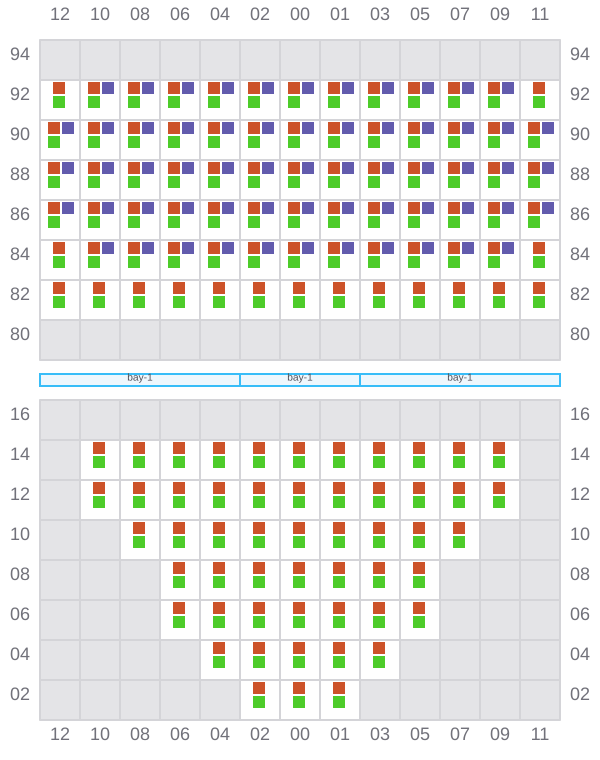

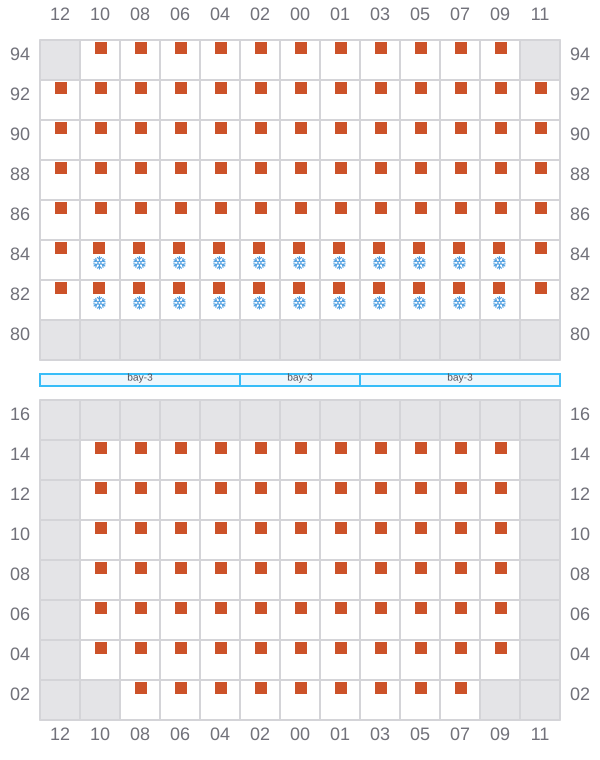

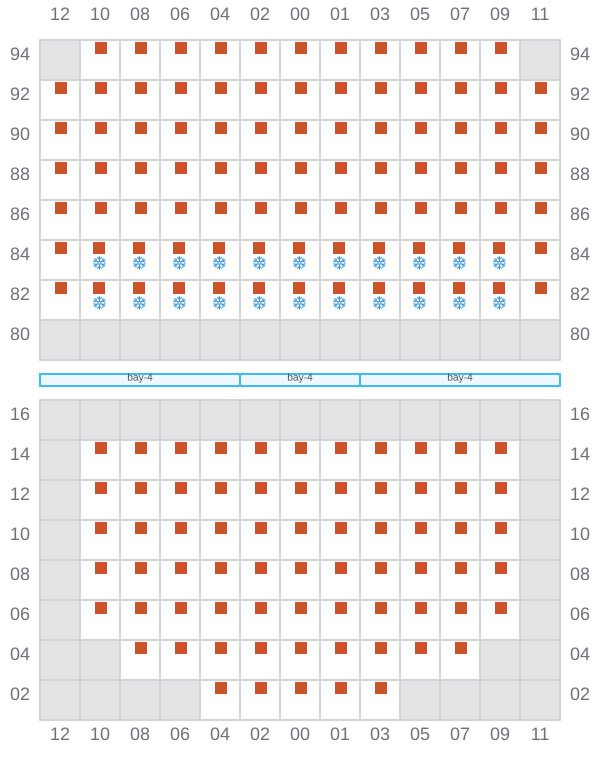

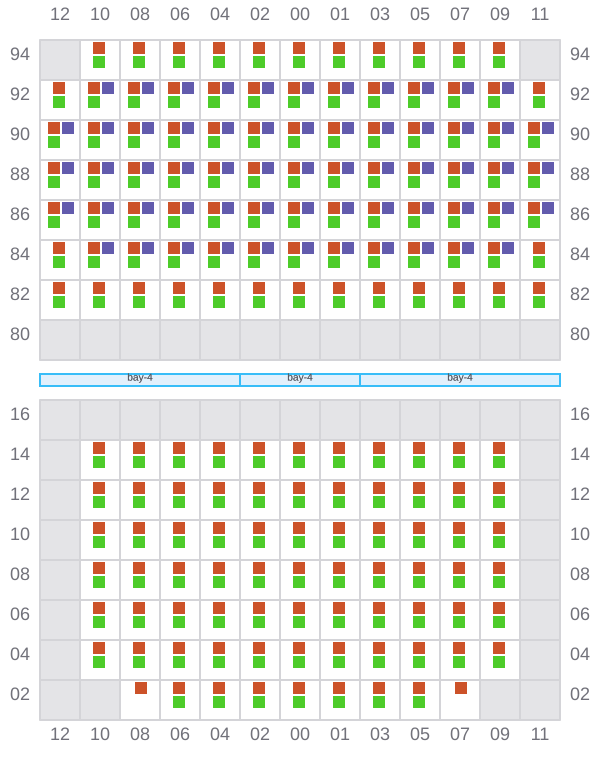

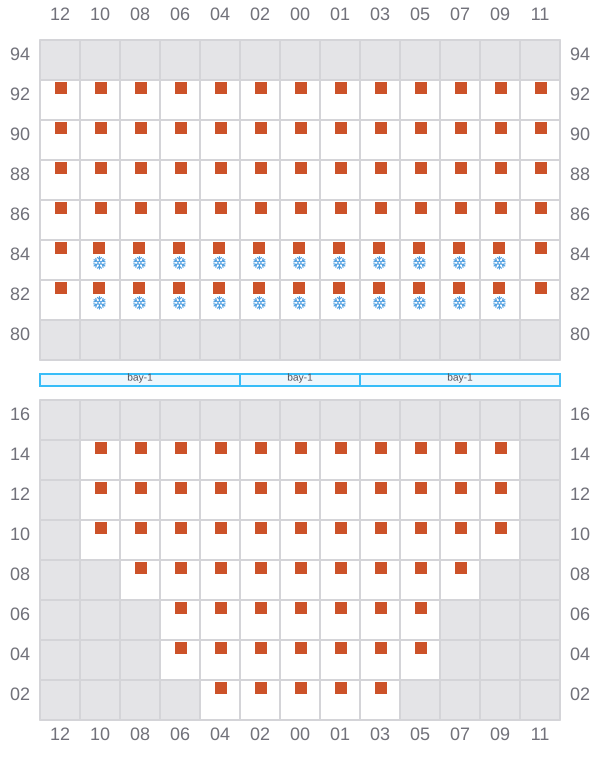

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
- → / ?
009 (010)
- →
011
- ←
- → / ?
013 (014)
- →
015
- ←
- → / ?
017 (018)
- →
019
- ←
- → / ?
021 (022)
- →
023
- ←
- → / ?
025 (026)
- →
027
- ←
- → / ?
029 (030)
- →
031
- ←
- → / ?
033 (034)
- →
035
- ←
- →
037 (038)
- →
039
- ←
- →
041 (042)
- →
043
- ←
- → / ?
045 (046)
- →
047
- ←
- → / ?
049 (050)
- → / ?
- ← / ?
051
053 (054)
- →
- ← / ?
055
- ←
057 (058)
- →
- ← / ?
059
- ←
061 (062)
- → / ?
- ← / ?
