HONG KONG EXPRESS
9501356 | DJAZ2 | HLC by *********************** Last update: Mon Feb 03 2025

General Info

Ship Name:HONG KONG EXPRESS

IMO Code:9501356

Call Sign:DJAZ2

Line Operator:HLC

Class Name for Sister Ships:HKEX

Year Built:2013

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):353.00

LOA (Length Overall):366.50

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:085

Max ISO Row:18

Center Line Row:Yes

Max Above ISO Tier:98

Min Above ISO Tier:82

Max Below ISO Tier:22

Min Below ISO Tier:02

Total TEU:13,169

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

Hatch-Covers View

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

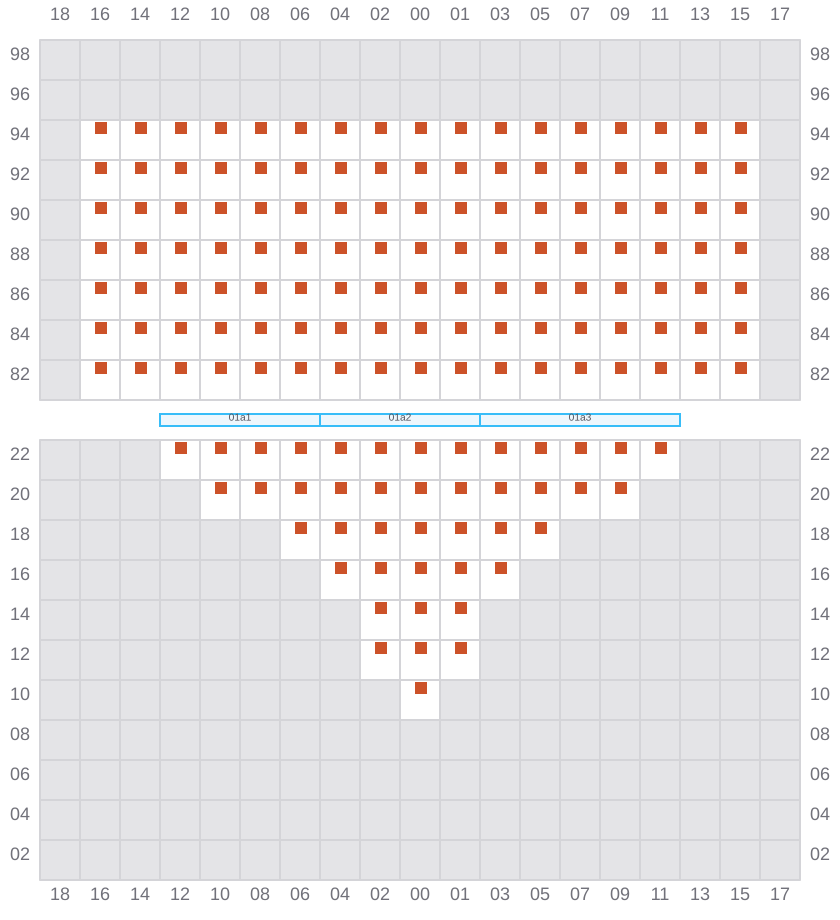

Bay 001 view and slots of HONG KONG EXPRESS

003

Bay 003 view and slots of HONG KONG EXPRESS

005 (006)

→
^→ / _?
→

Bay 005 view and slots of HONG KONG EXPRESS

007

←
^→ / _?
→

Bay 007 view and slots of HONG KONG EXPRESS

009 (010)

→
^→ / _?
→

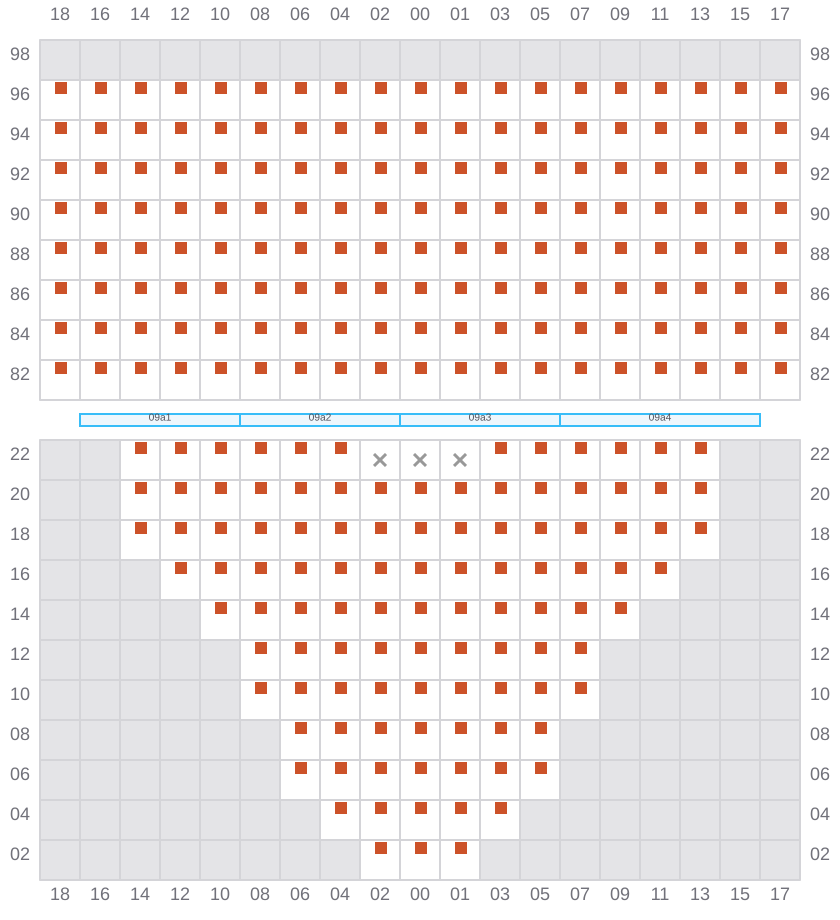

Bay 009 view and slots of HONG KONG EXPRESS

011

←
^→ / _?
→

Bay 011 view and slots of HONG KONG EXPRESS

013 (014)

→
^→ / _?
→

Bay 013 view and slots of HONG KONG EXPRESS

015

←
^→ / _?
→

Bay 015 view and slots of HONG KONG EXPRESS

017 (018)

→
^→ / _?
→

Bay 017 view and slots of HONG KONG EXPRESS

019

←
^→ / _?
→

Bay 019 view and slots of HONG KONG EXPRESS

021 (022)

→
^→ / _?
→

Bay 021 view and slots of HONG KONG EXPRESS

023

←
^→ / _?
→

Bay 023 view and slots of HONG KONG EXPRESS

025 (026)

→
^→ / _?
→

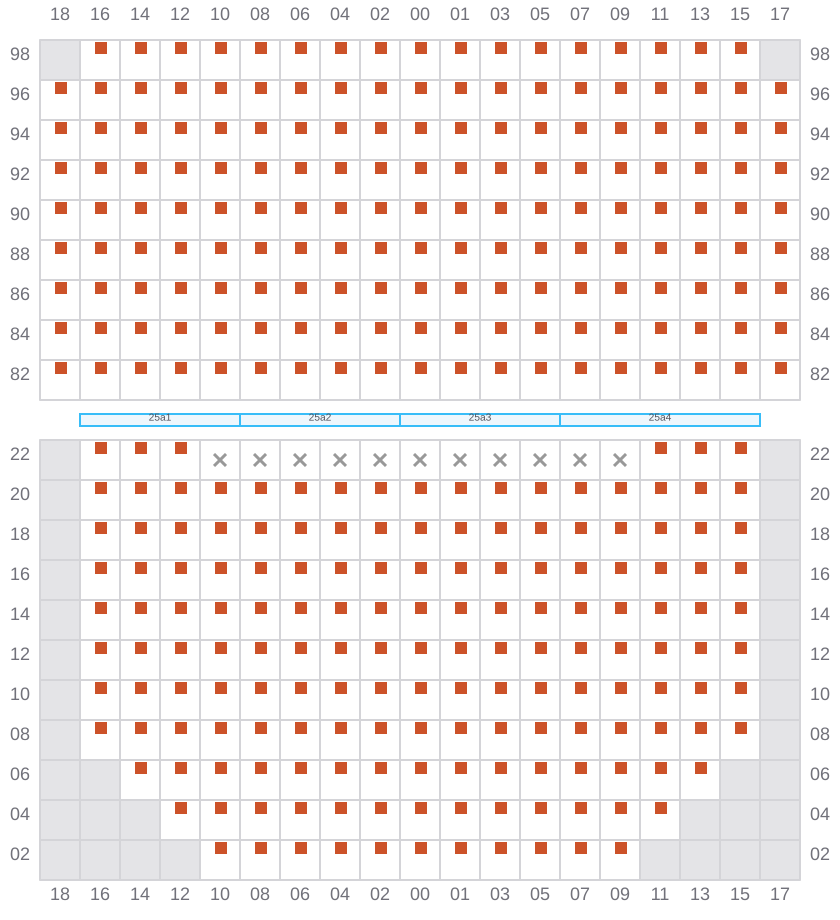

Bay 025 view and slots of HONG KONG EXPRESS

027

←
^→ / _?
→

Bay 027 view and slots of HONG KONG EXPRESS

029 (030)

→
^→ / _?
→

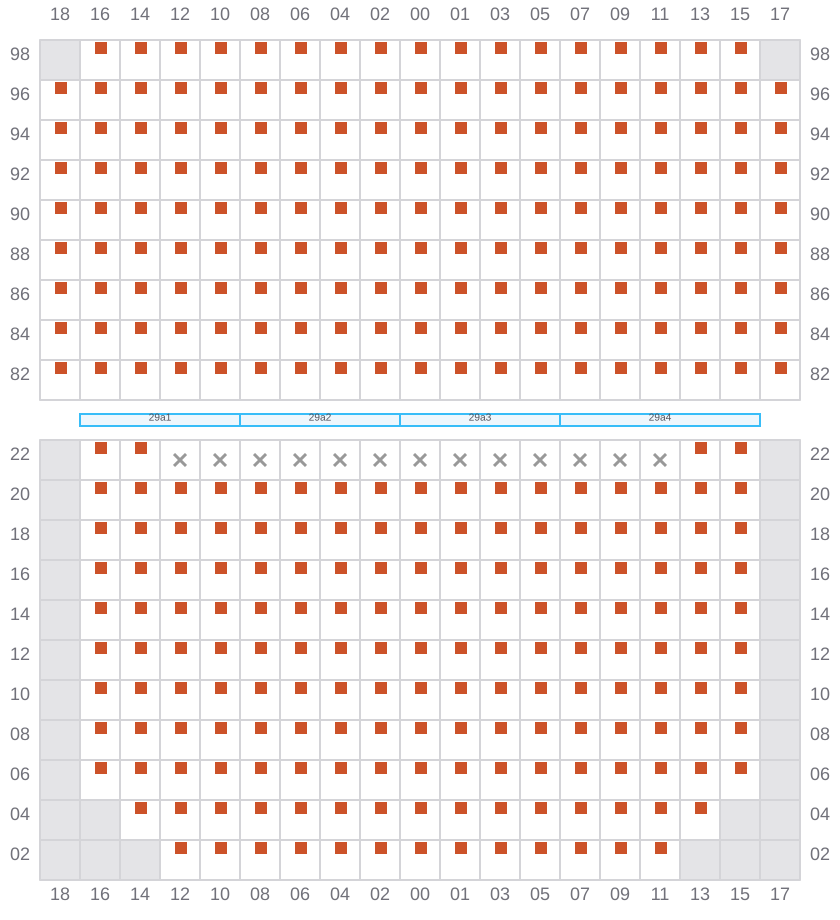

Bay 029 view and slots of HONG KONG EXPRESS

031

←
^→ / _?
→

Bay 031 view and slots of HONG KONG EXPRESS

033 (034)

→
^→ / _?
→

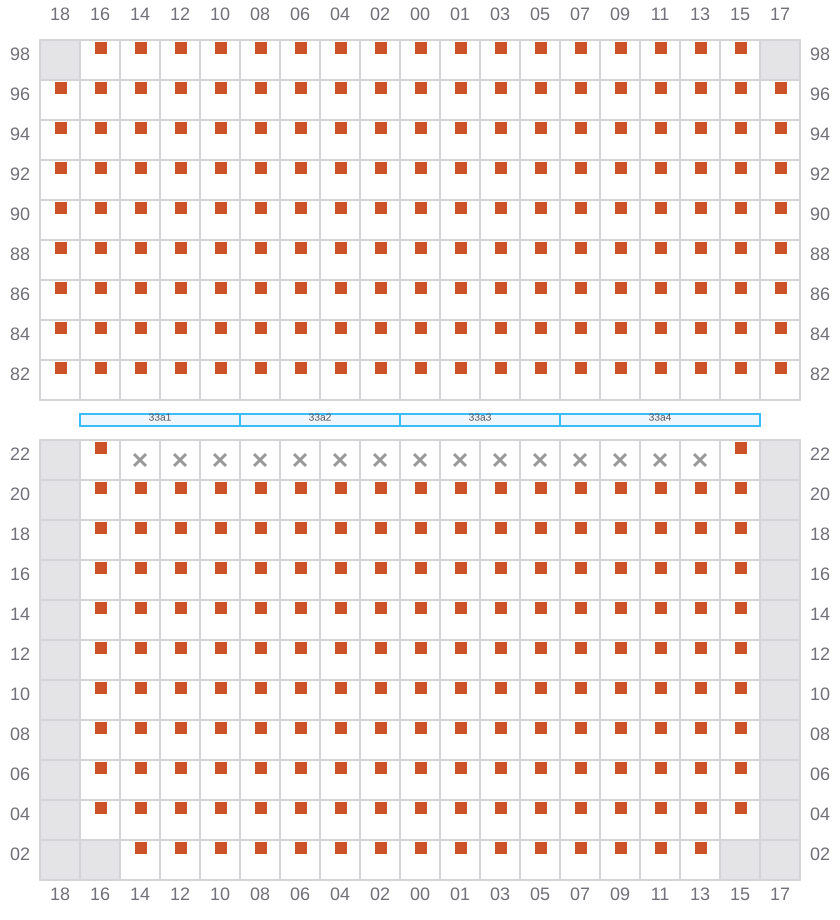

Bay 033 view and slots of HONG KONG EXPRESS

035

←
^→ / _?
→

Bay 035 view and slots of HONG KONG EXPRESS

037 (038)

→
^→ / _?
→

Bay 037 view and slots of HONG KONG EXPRESS

039

←
^→ / _?
→

Bay 039 view and slots of HONG KONG EXPRESS

041 (042)

→
^→ / _?
→

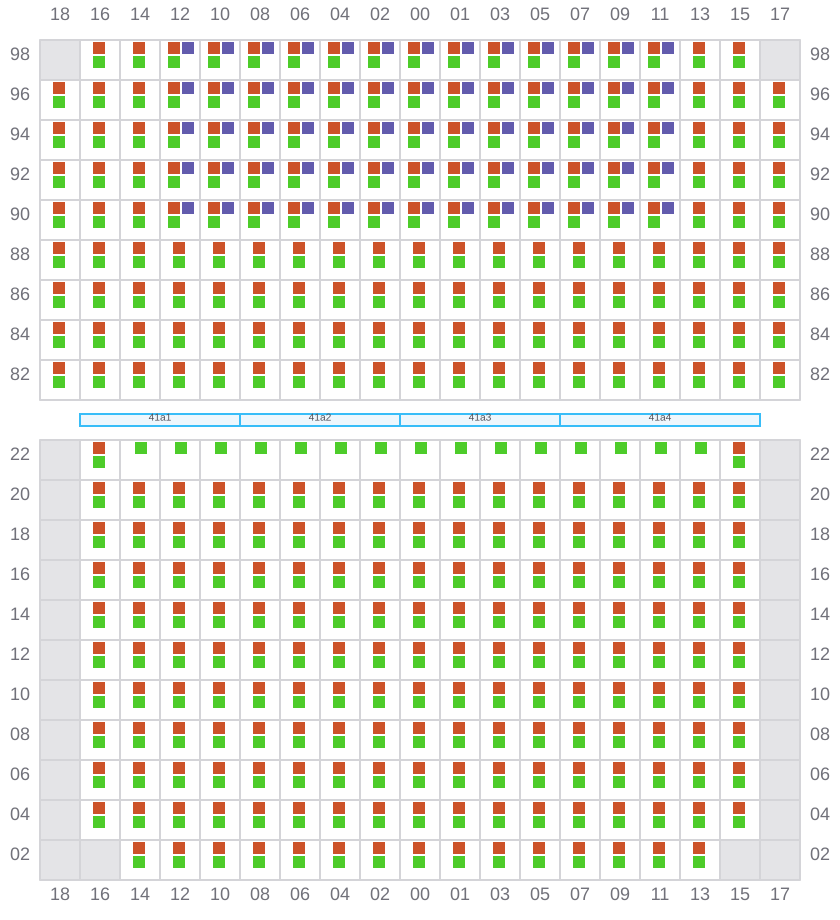

Bay 041 view and slots of HONG KONG EXPRESS

043

←
^→ / _?
→

Bay 043 view and slots of HONG KONG EXPRESS

045 (046)

→
^→ / _?
→

Bay 045 view and slots of HONG KONG EXPRESS

047

←
^→ / _?
→

Bay 047 view and slots of HONG KONG EXPRESS

049 (050)

→
^→ / _?
→

Bay 049 view and slots of HONG KONG EXPRESS

051

←
^→ / _?
→

Bay 051 view and slots of HONG KONG EXPRESS

053 (054)

→
^→ / _?
→

Bay 053 view and slots of HONG KONG EXPRESS

055

←
^→ / _?
→

Bay 055 view and slots of HONG KONG EXPRESS

057 (058)

→
^→ / _?
→

Bay 057 view and slots of HONG KONG EXPRESS

059

←
^→ / _?
→

Bay 059 view and slots of HONG KONG EXPRESS

061 (062)

→
^→ / _?
→

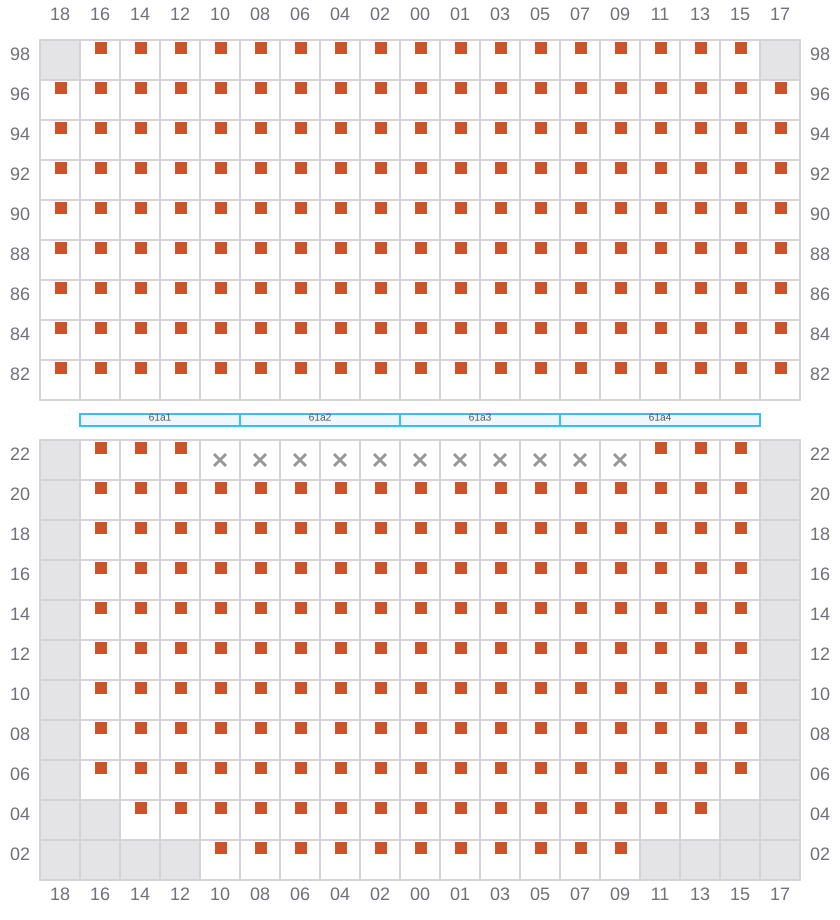

Bay 061 view and slots of HONG KONG EXPRESS

063

←
^→ / _?
→

Bay 063 view and slots of HONG KONG EXPRESS

065 (066)

→
^→ / _?
→

Bay 065 view and slots of HONG KONG EXPRESS

067

←
^→ / _?
→

Bay 067 view and slots of HONG KONG EXPRESS

069 (070)

→
^→ / _?
→

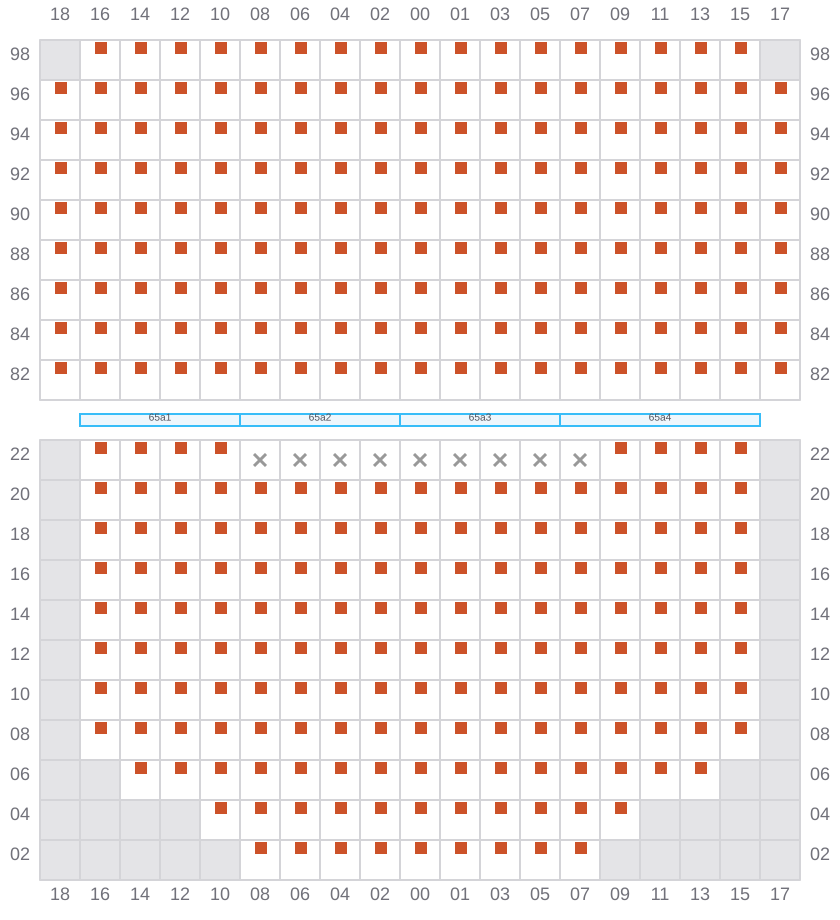

Bay 069 view and slots of HONG KONG EXPRESS

071

←
^→ / _?
→

Bay 071 view and slots of HONG KONG EXPRESS

073 (074)

→
^→ / _?
→

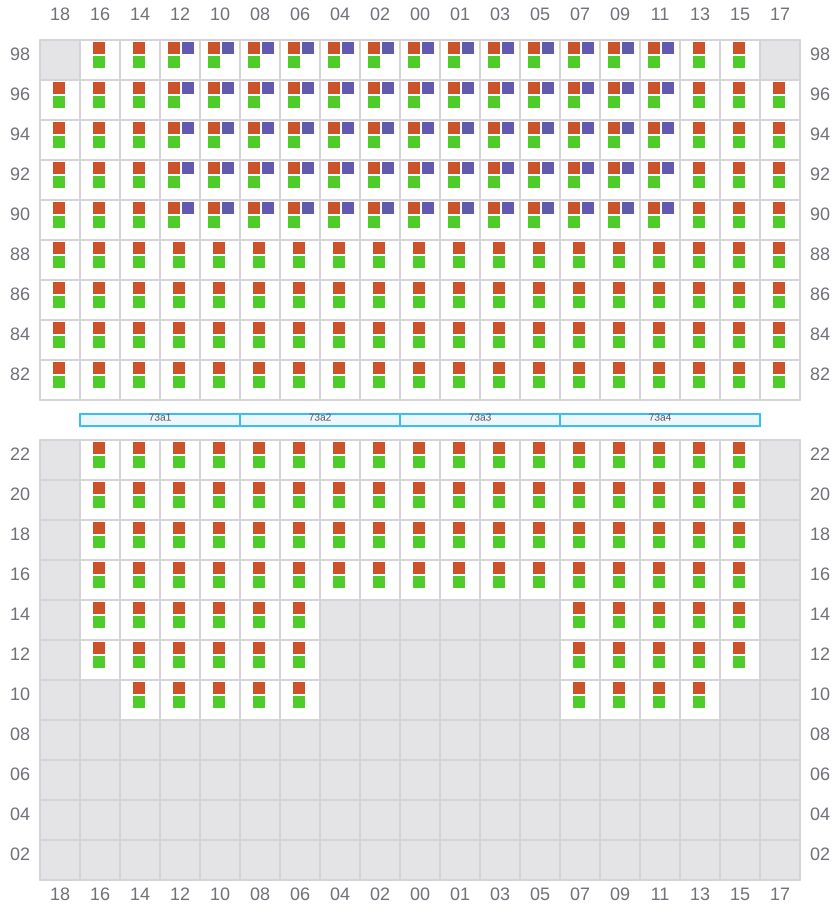

Bay 073 view and slots of HONG KONG EXPRESS

075

←
^→ / _?
→

Bay 075 view and slots of HONG KONG EXPRESS

077 (078)

→
^→ / _?
→

Bay 077 view and slots of HONG KONG EXPRESS

079

←
^→ / _?
→

Bay 079 view and slots of HONG KONG EXPRESS

081 (082)

→
^→ / _?
→

Bay 081 view and slots of HONG KONG EXPRESS

083

←
^→ / _?
→

Bay 083 view and slots of HONG KONG EXPRESS

085 (086)

^→ / _?
^→ / _?

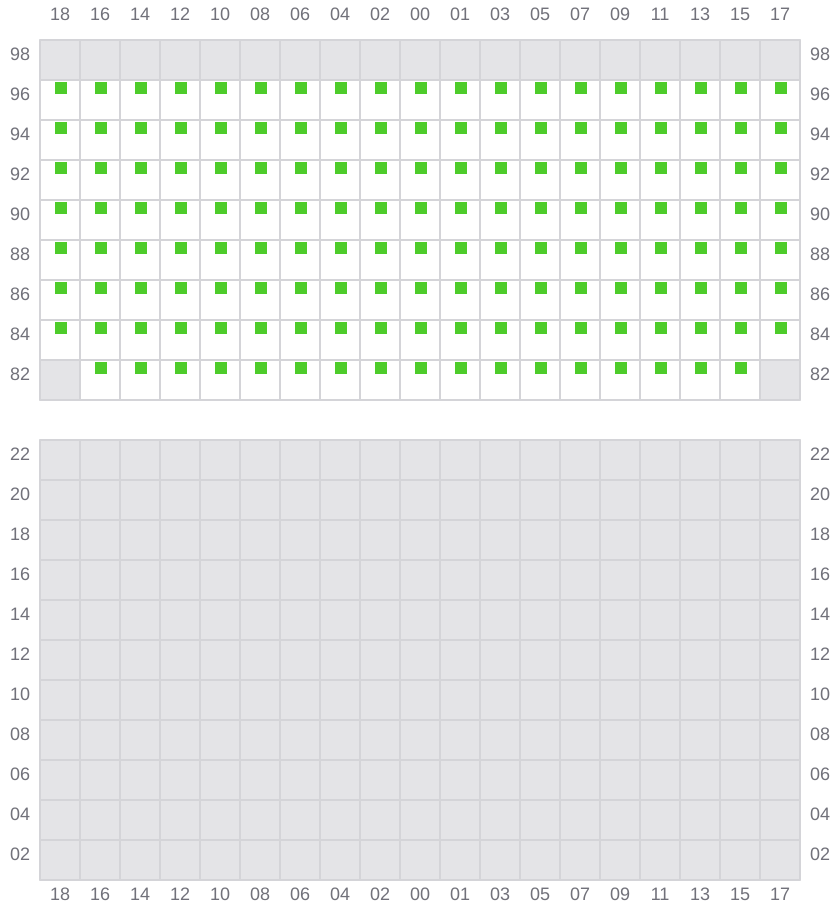

Bay 085 view and slots of HONG KONG EXPRESS
