HONG YUAN 01
9102734 | BIBM3 | MSC by ************************** Last update: Sun Jun 18 2023
General Info
Ship Name:HONG YUAN 01
IMO Code:9102734
Call Sign:BIBM3
Line Operator:MSC
Class Name for Sister Ships:NAT
Year Built:1995
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,666
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

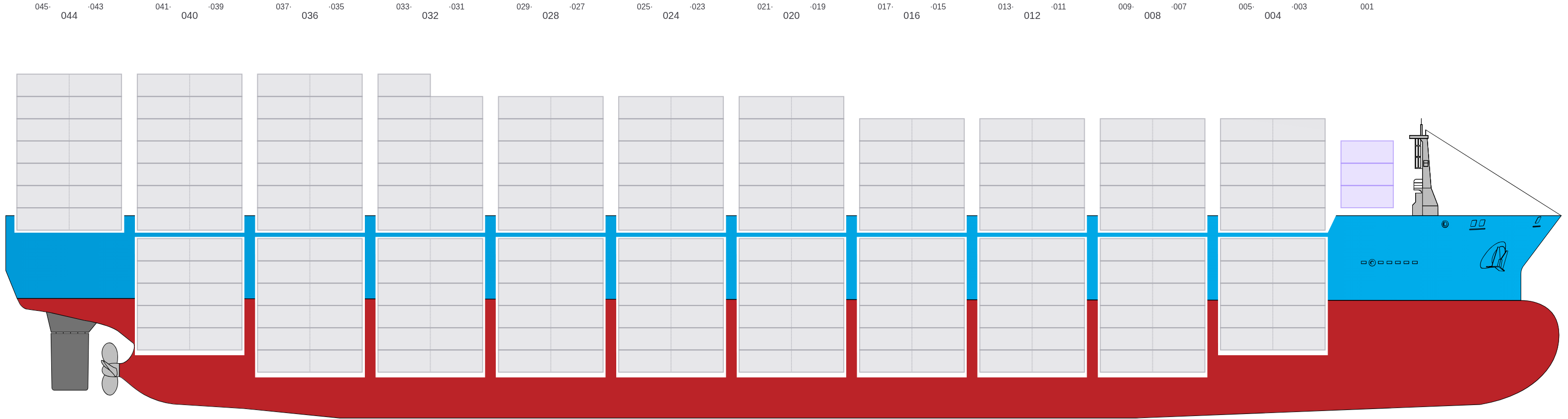

Side View
Hatch-Covers View

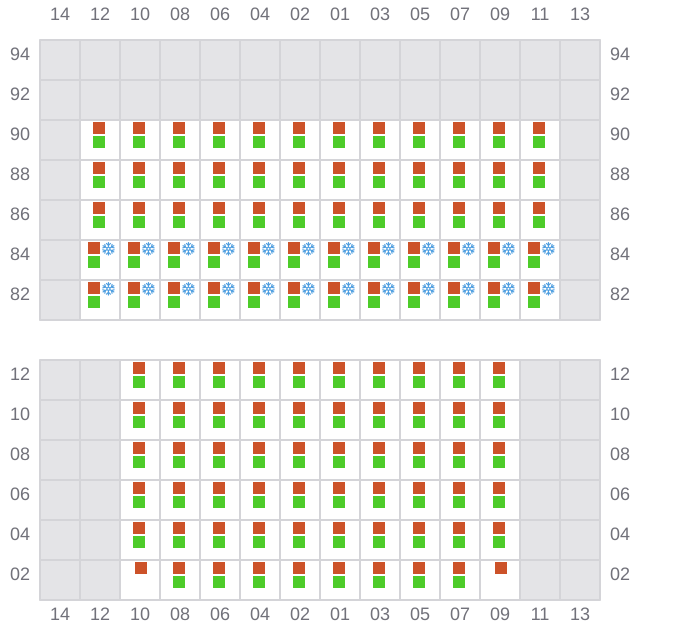

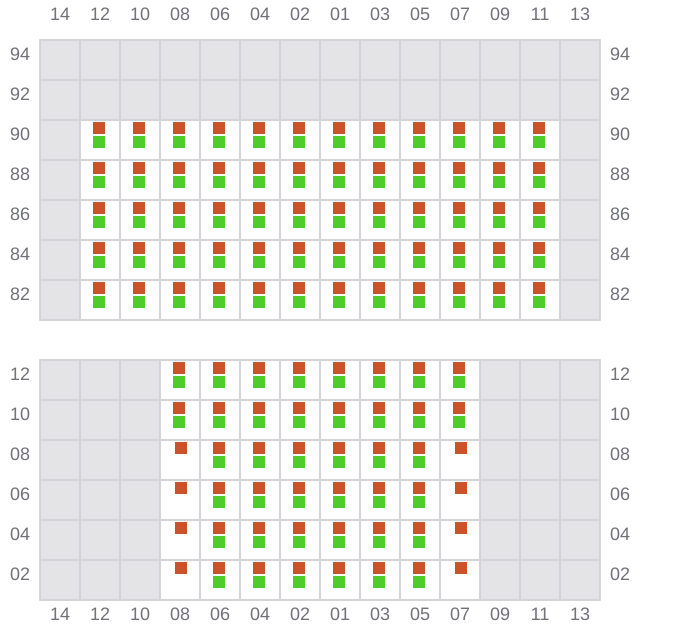

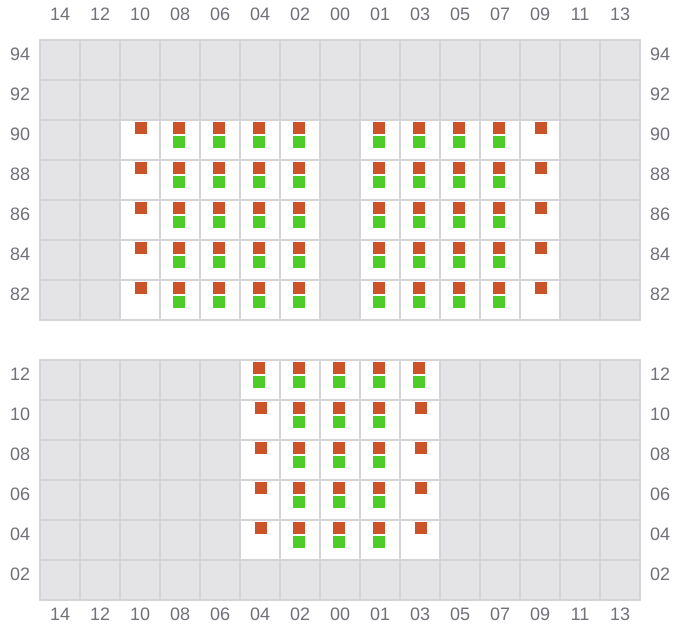

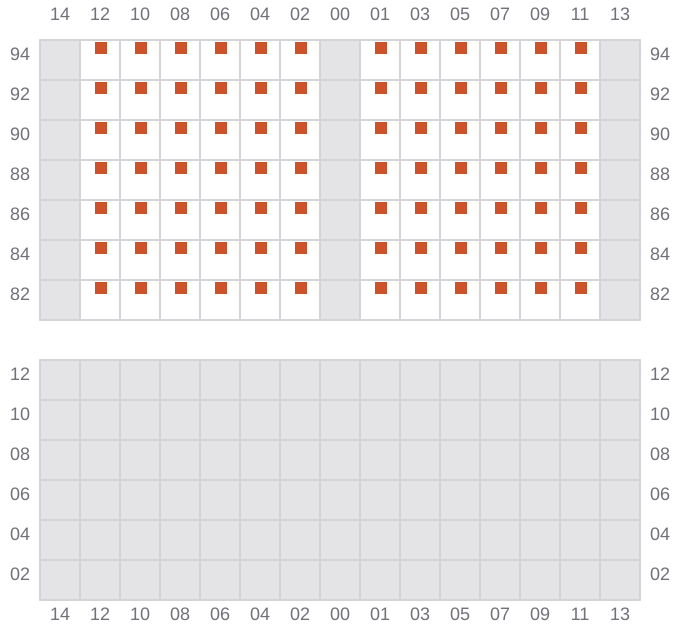

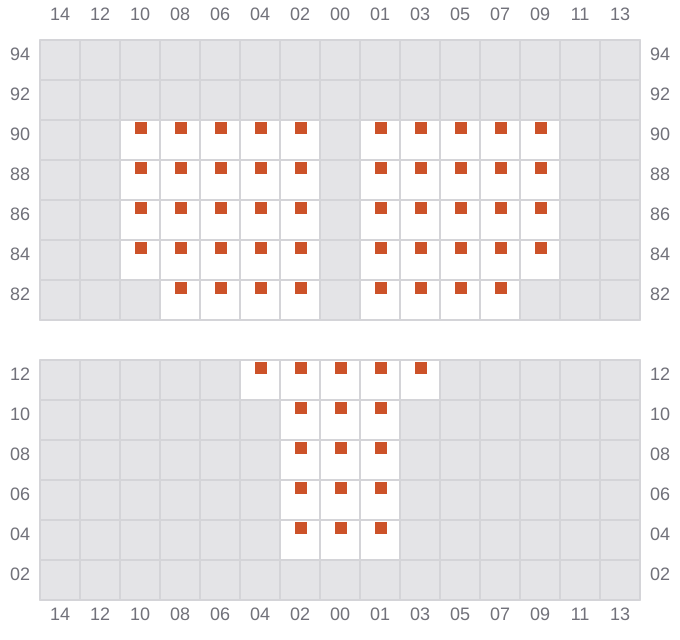

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

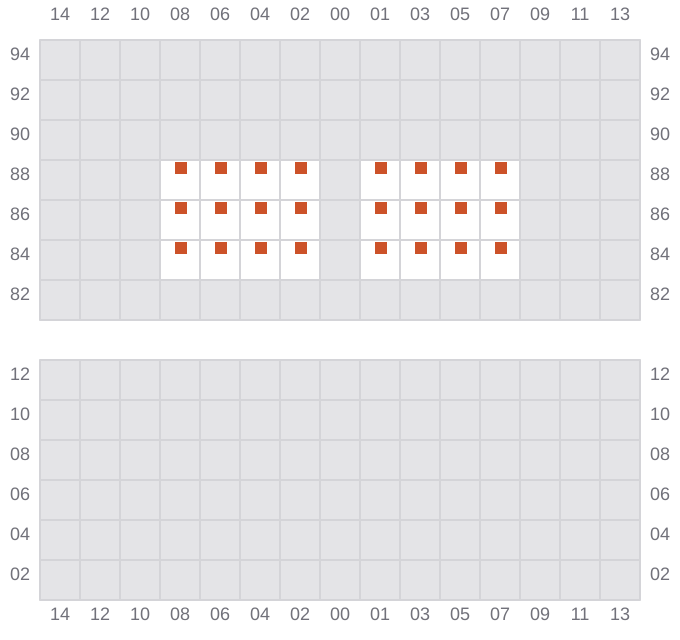

001
003
- →
005 (004)
- ←
007
- →
009 (008)
- ←
011
- →
013 (012)
- ←
015
- →

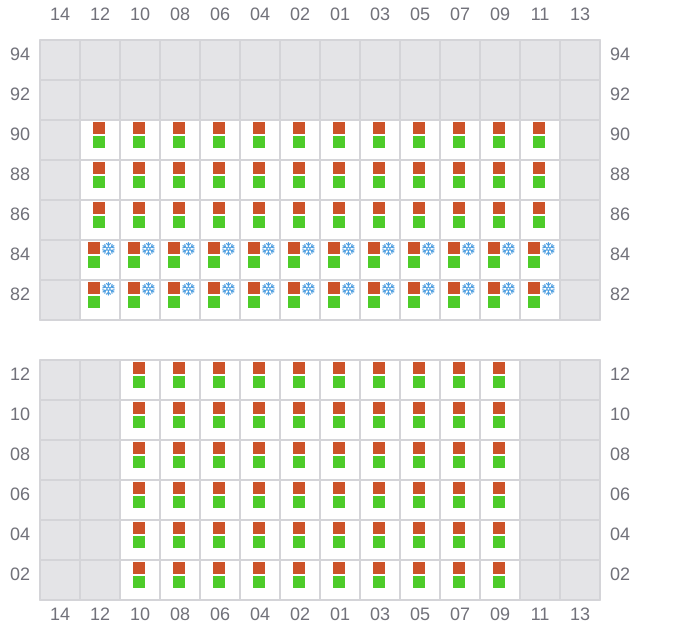

017 (016)
- ←
019
- →
021 (020)
- ←

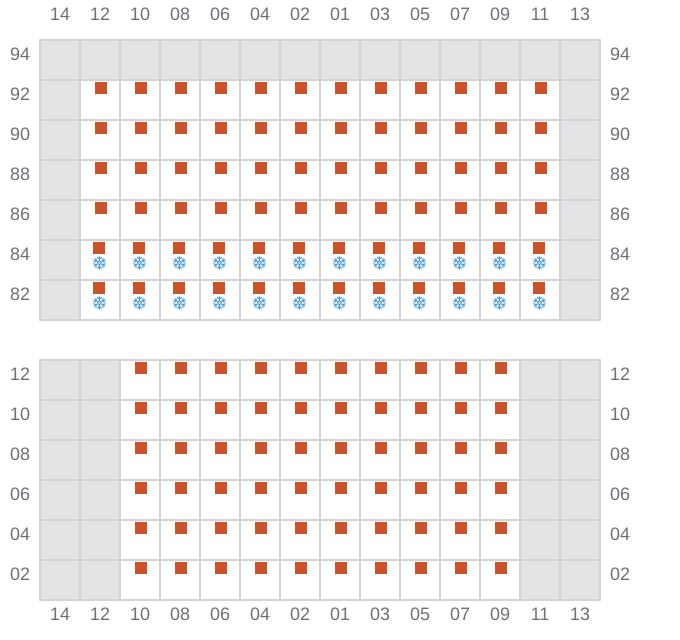

023
- →
025 (024)
- ←
027
- →

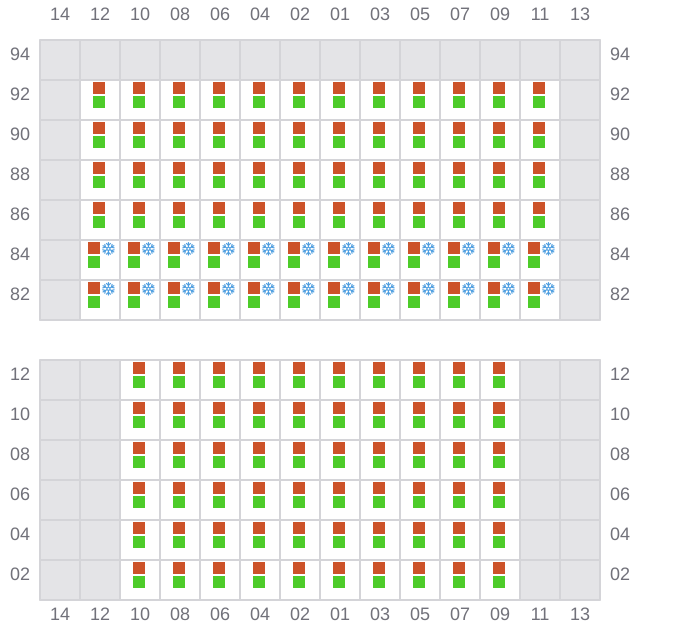

029 (028)
- ←
031
- →
033 (032)
- ←

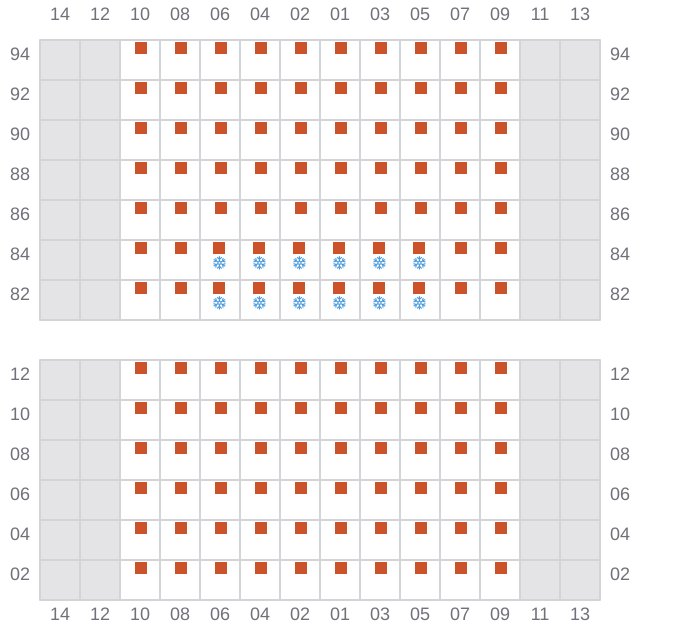

035
- →
037 (036)
- ←
039
- →
041 (040)
- ←
043
- → / ?

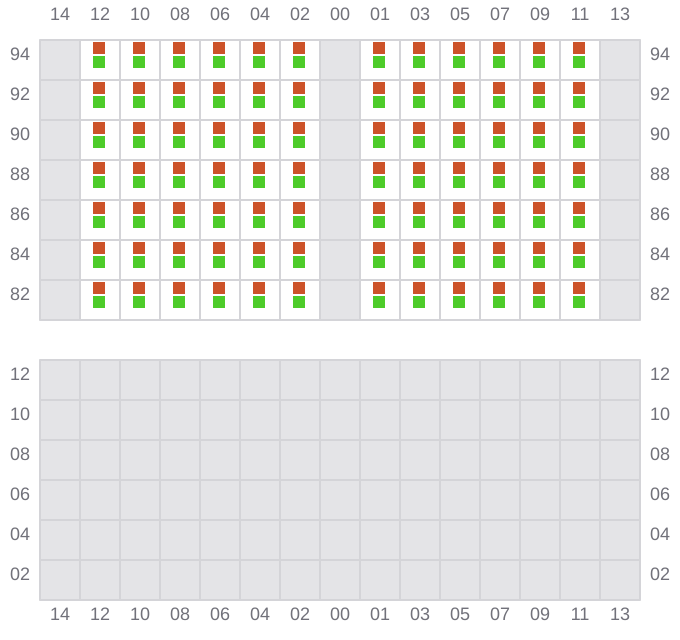

045 (044)
- ← / ?
