HOPE ISLAND
9263320 | V7KU3 | 9263320 by ********* Last update: Wed May 01 2024

General Info

Ship Name:HOPE ISLAND
IMO Code:9263320
Call Sign:V7KU3
Line Operator:9263320
Class Name for Sister Ships:CSAV ITAIM
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,534

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

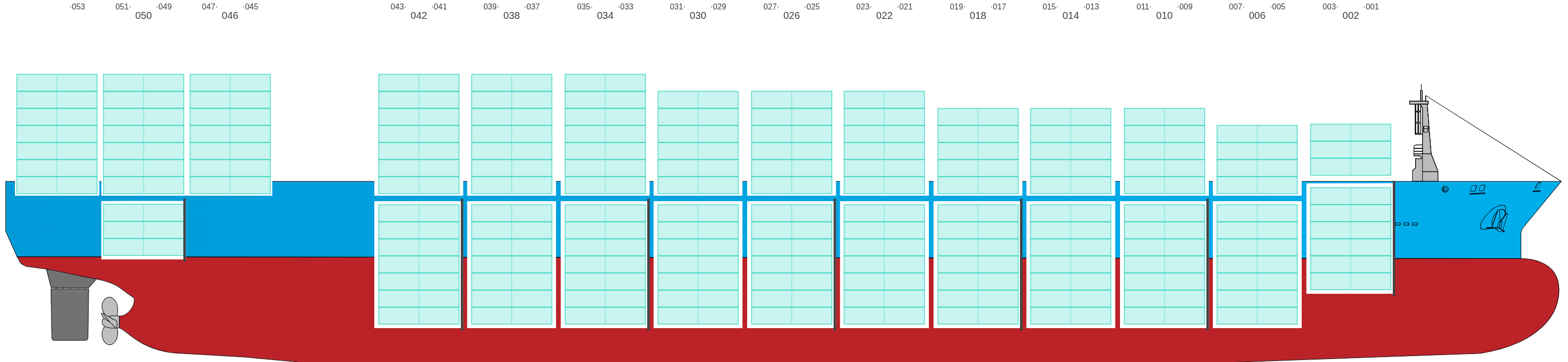

Side View

Side view of HOPE ISLAND

Hatch-Covers View

Deck view of HOPE ISLAND

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

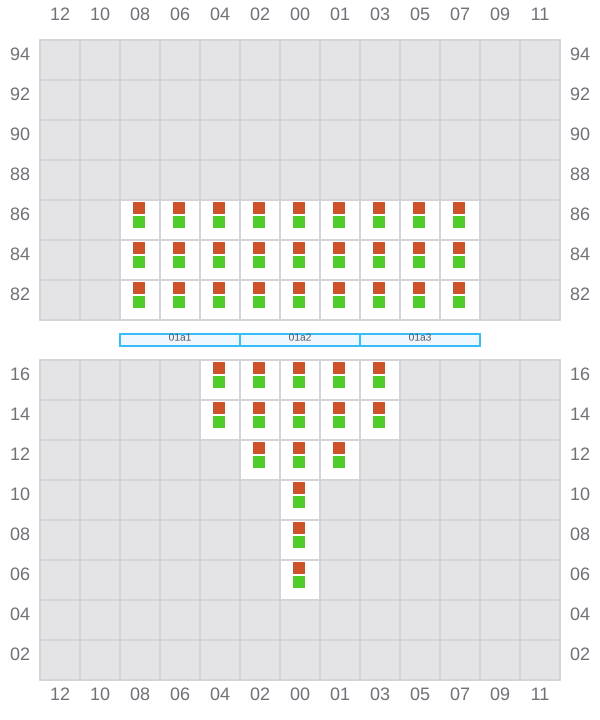

Bay 001 view and slots of HOPE ISLAND

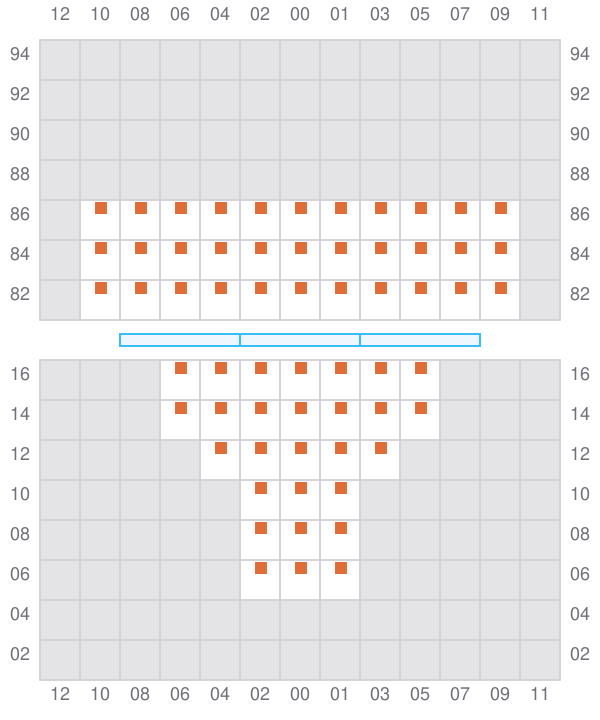

003

Bay 003 view and slots of HOPE ISLAND

005 (006)

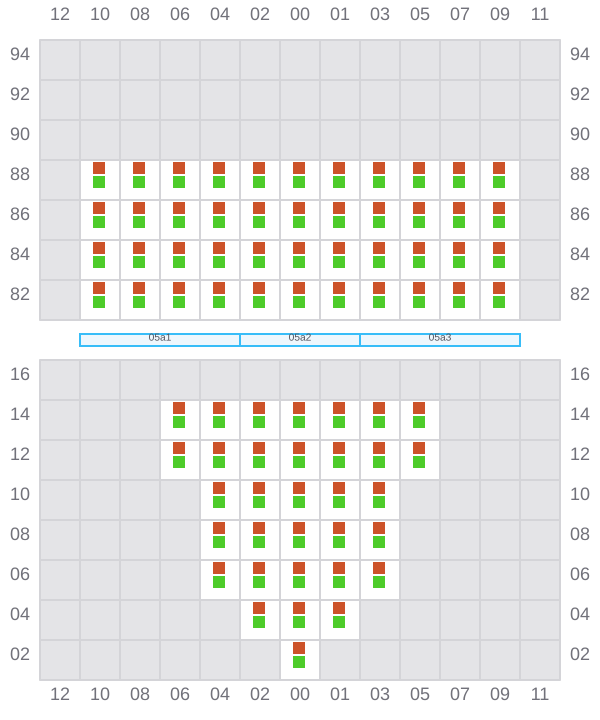

Bay 005 view and slots of HOPE ISLAND

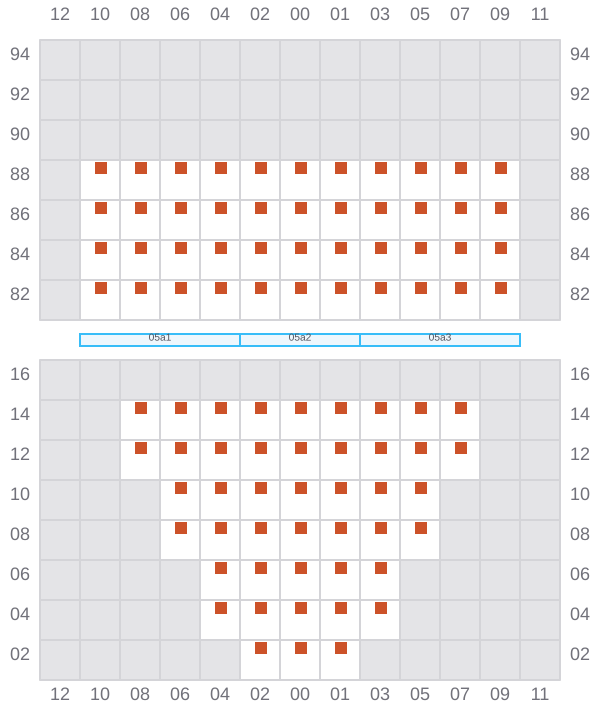

007

Bay 007 view and slots of HOPE ISLAND

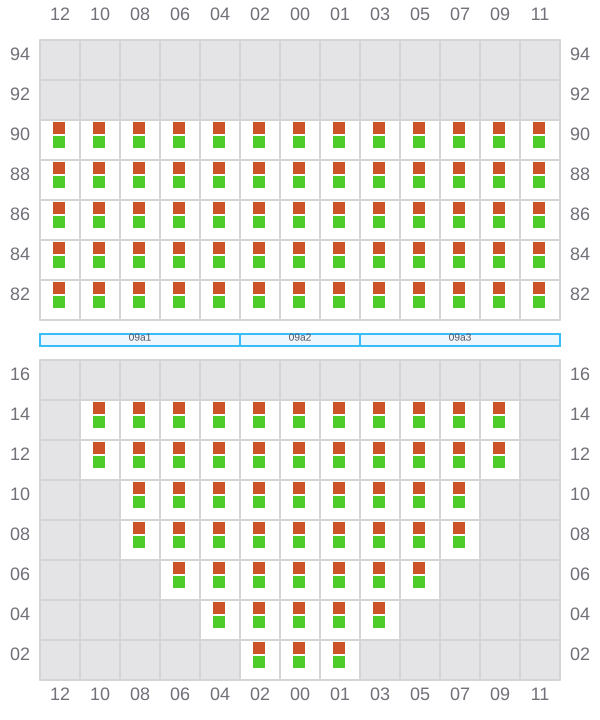

009 (010)

Bay 009 view and slots of HOPE ISLAND

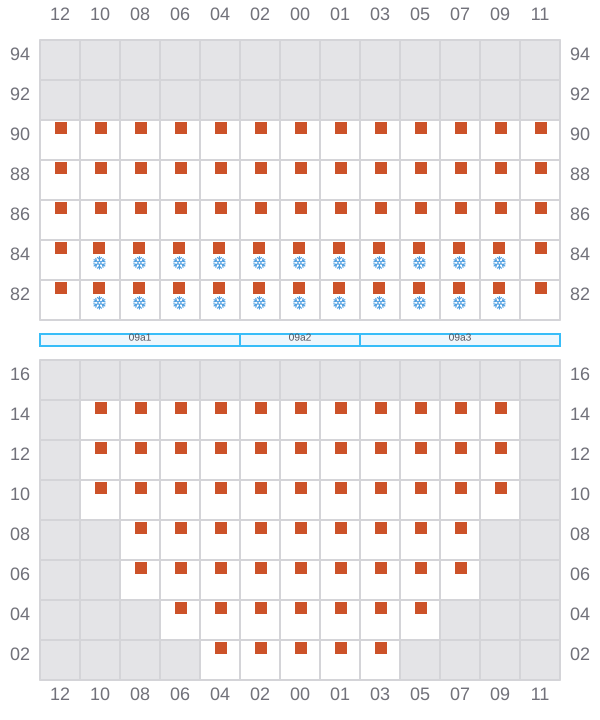

011

  • / ?
Bay 011 view and slots of HOPE ISLAND

013 (014)

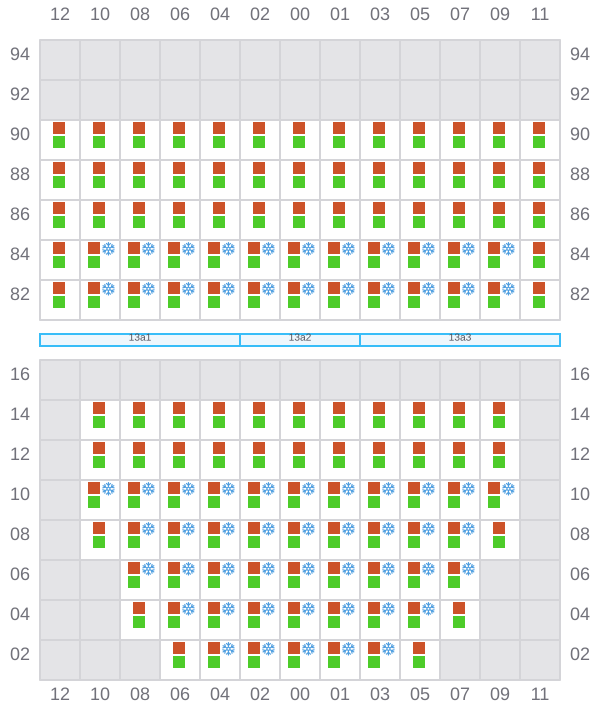

Bay 013 view and slots of HOPE ISLAND

015

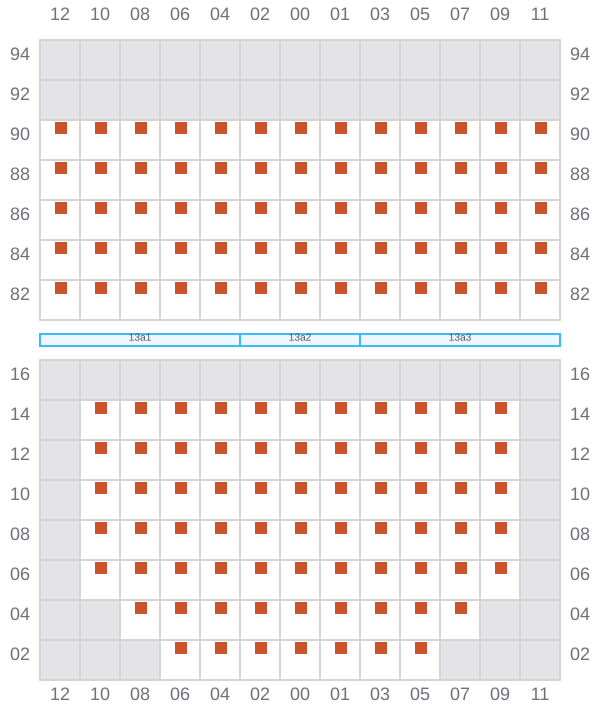

Bay 015 view and slots of HOPE ISLAND

017 (018)

Bay 017 view and slots of HOPE ISLAND

019

  • / ?

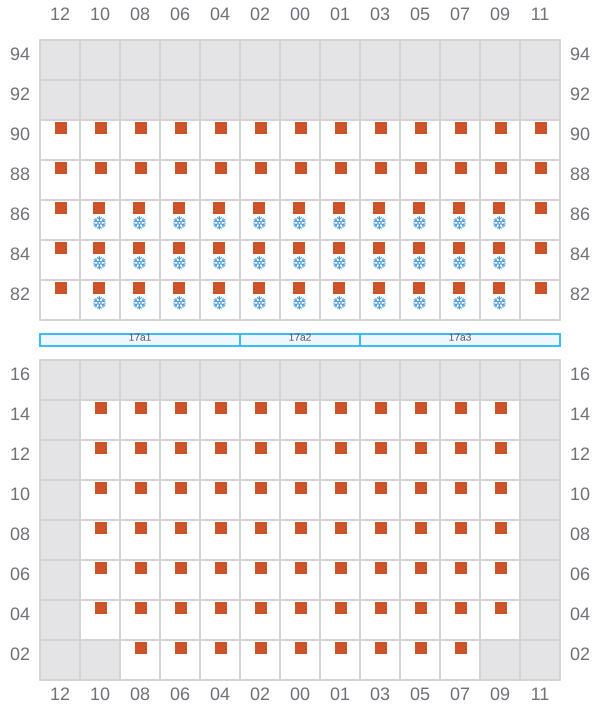

Bay 019 view and slots of HOPE ISLAND

021 (022)

Bay 021 view and slots of HOPE ISLAND

023

Bay 023 view and slots of HOPE ISLAND

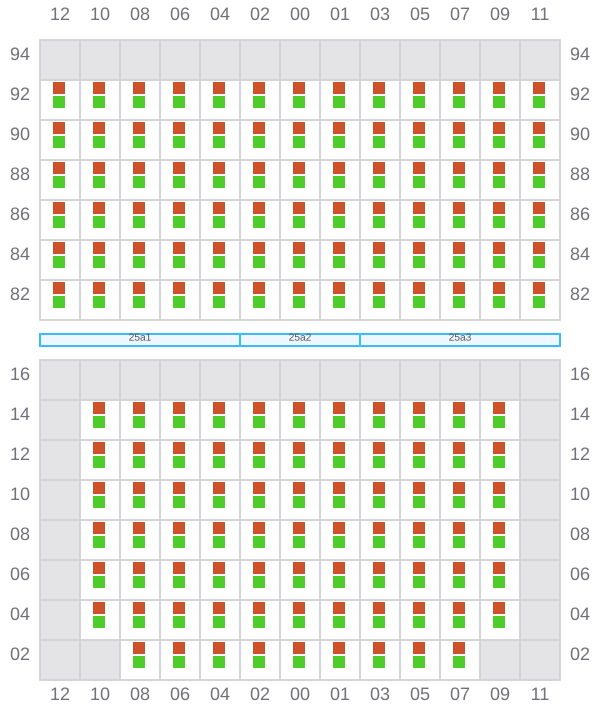

025 (026)

Bay 025 view and slots of HOPE ISLAND

027

  • / ?

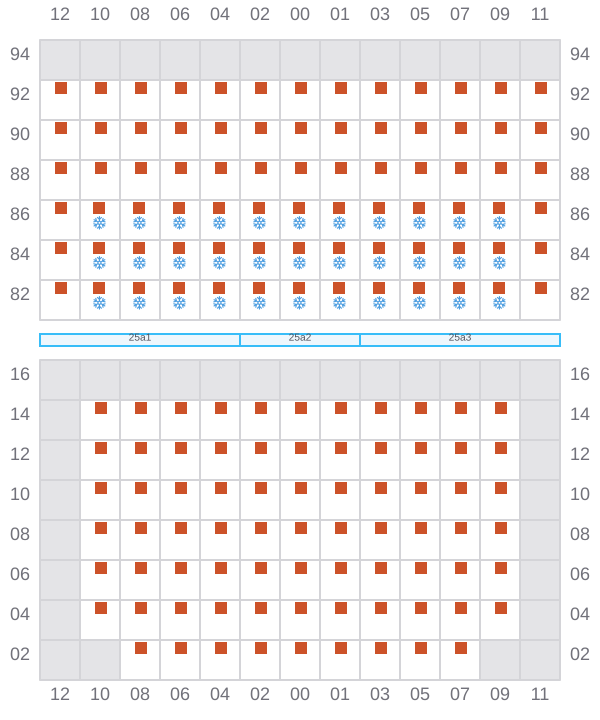

Bay 027 view and slots of HOPE ISLAND

029 (030)

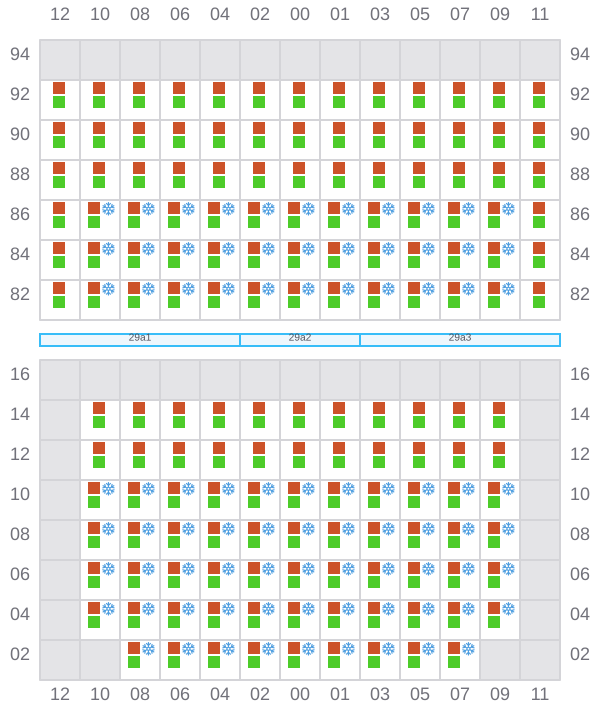

Bay 029 view and slots of HOPE ISLAND

031

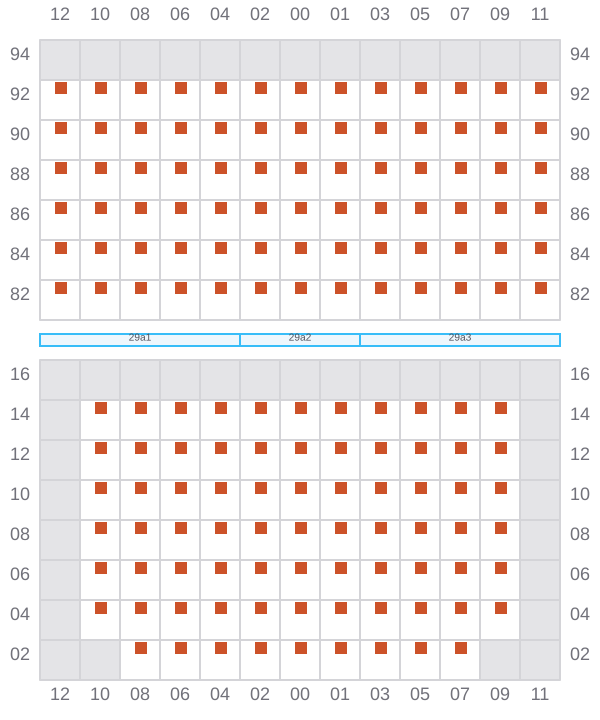

Bay 031 view and slots of HOPE ISLAND

033 (034)

Bay 033 view and slots of HOPE ISLAND

035

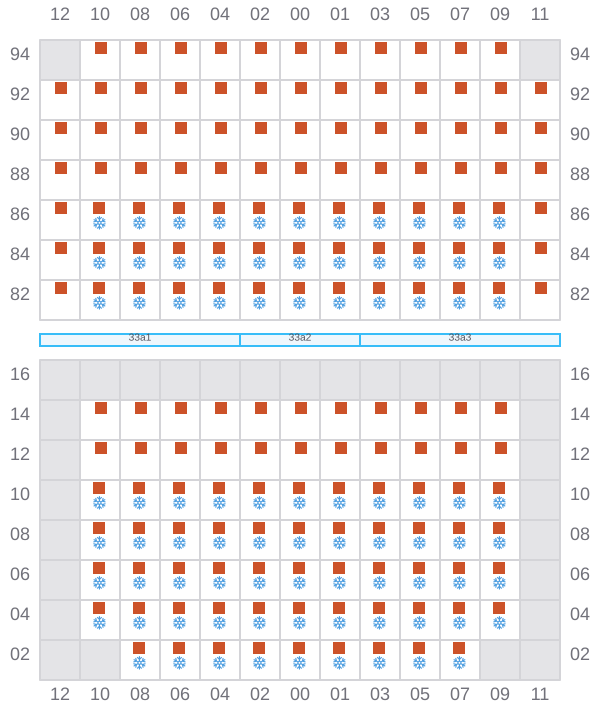

Bay 035 view and slots of HOPE ISLAND

037 (038)

  • / ?

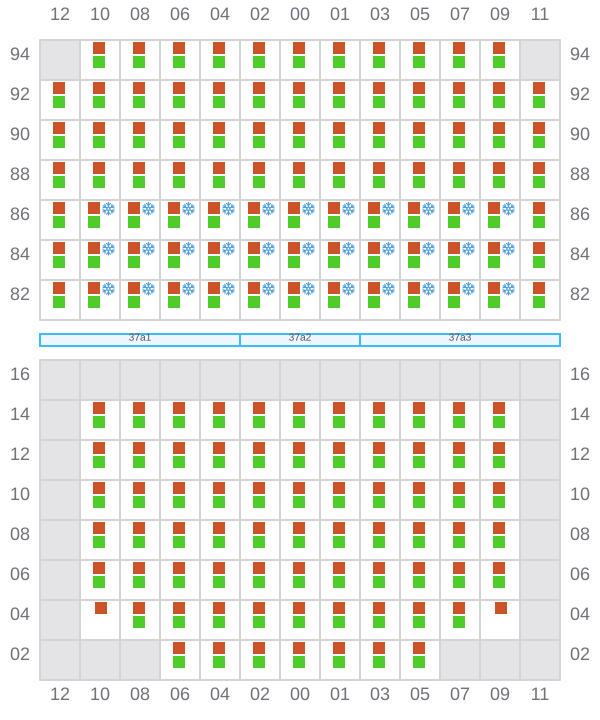

Bay 037 view and slots of HOPE ISLAND

039

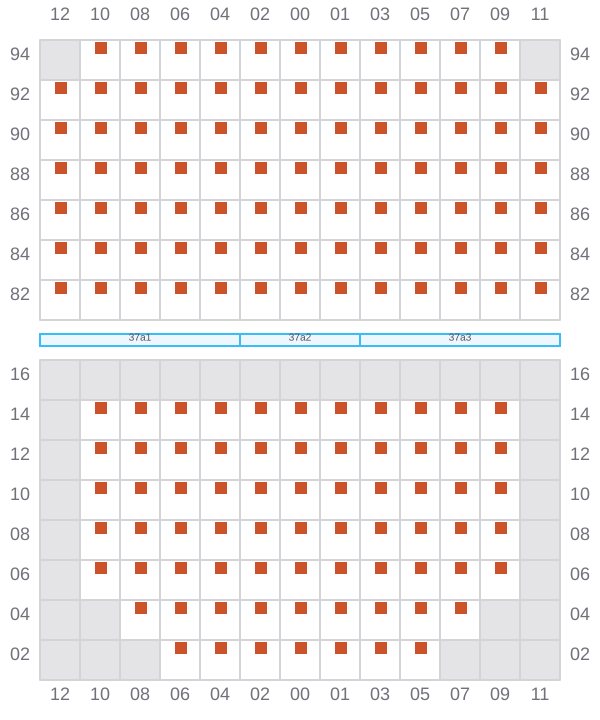

Bay 039 view and slots of HOPE ISLAND

041 (042)

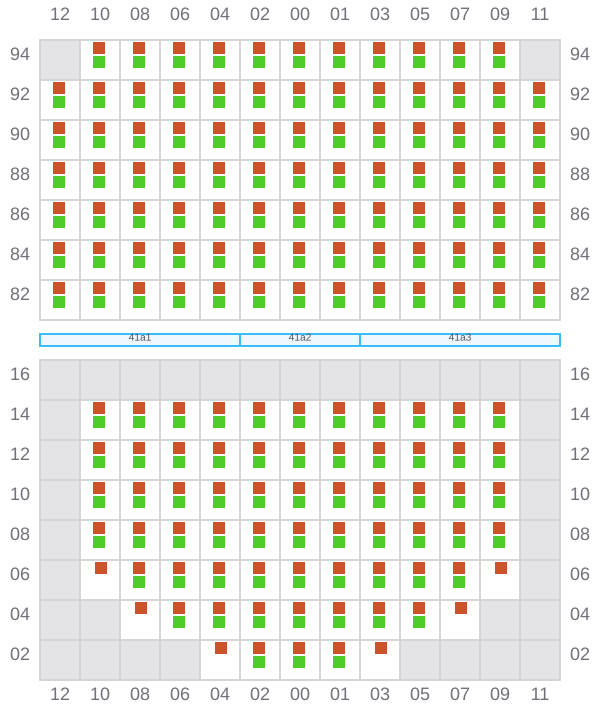

Bay 041 view and slots of HOPE ISLAND

043

  • / ?

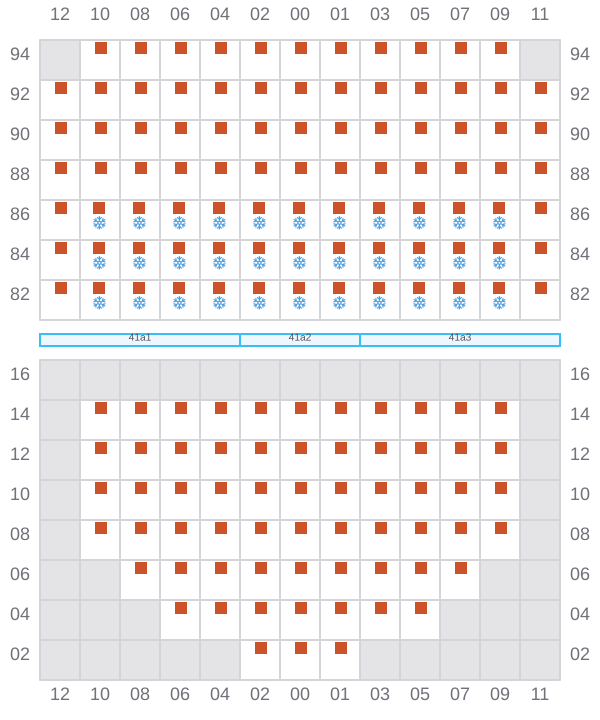

Bay 043 view and slots of HOPE ISLAND

045 (046)

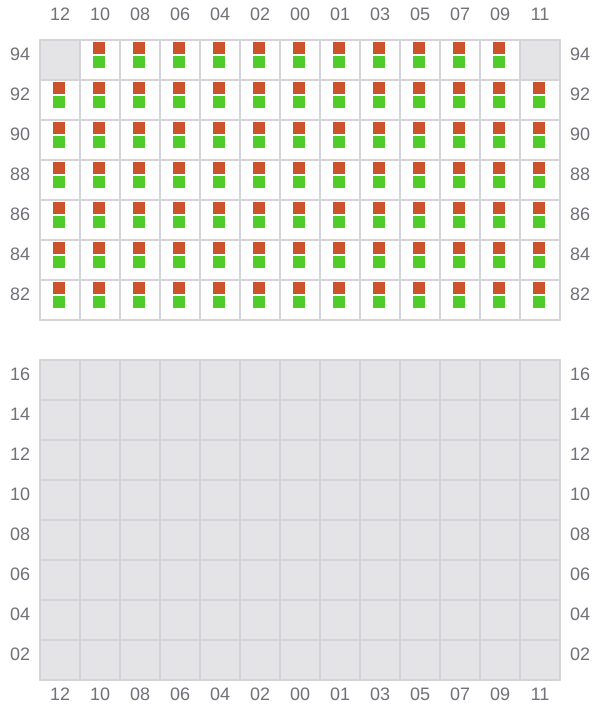

Bay 045 view and slots of HOPE ISLAND

047

  • / ?

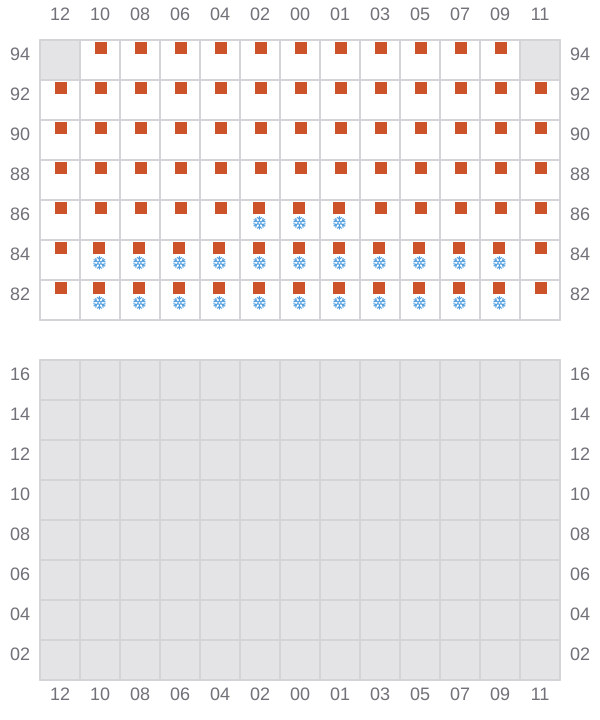

Bay 047 view and slots of HOPE ISLAND

049 (050)

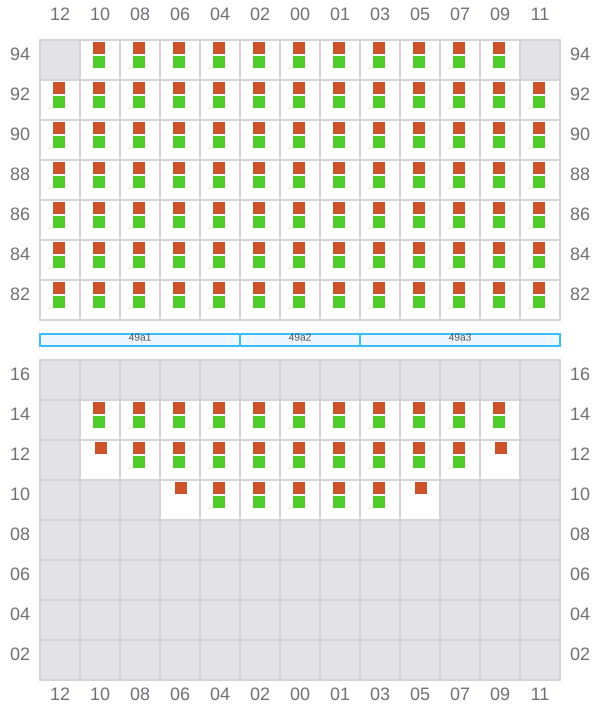

Bay 049 view and slots of HOPE ISLAND

051

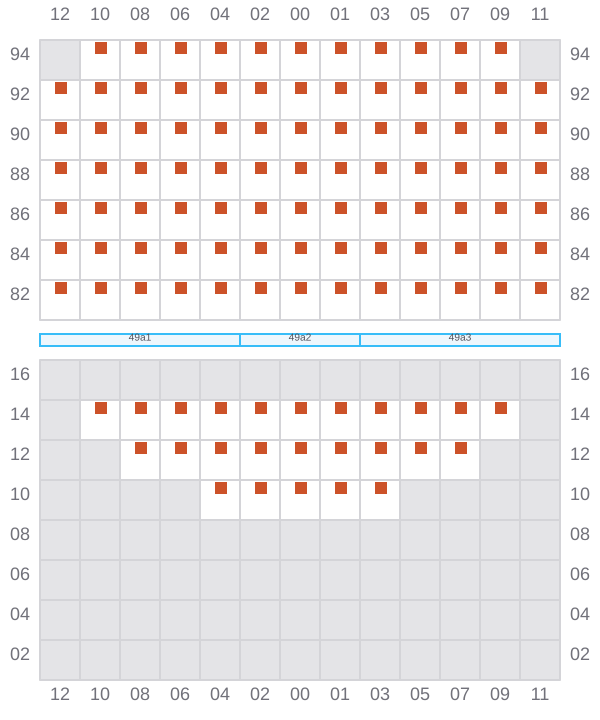

Bay 051 view and slots of HOPE ISLAND

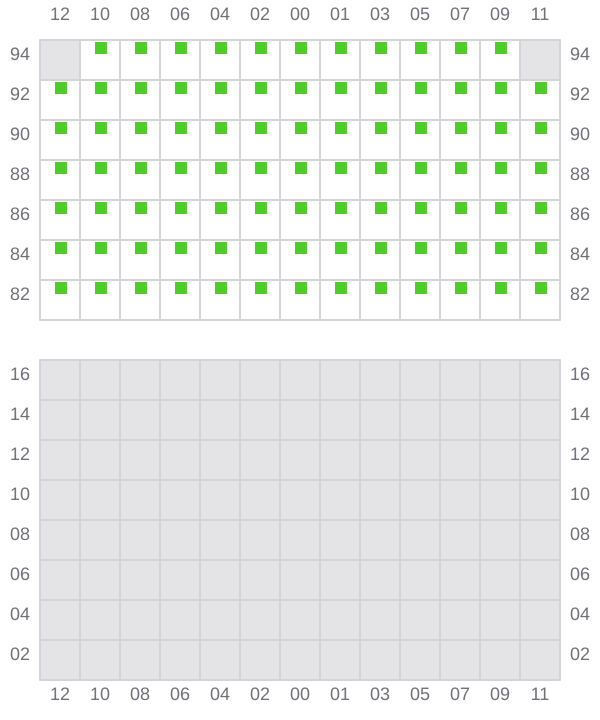

053 (054)

Bay 053 view and slots of HOPE ISLAND
