HR HERA
9175614 | S2BH3 | 9175614 by ********* Last update: Mon May 20 2024

General Info

Ship Name:HR HERA
IMO Code:9175614
Call Sign:S2BH3
Line Operator:9175614
Class Name for Sister Ships:KOTAARIF
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,451

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

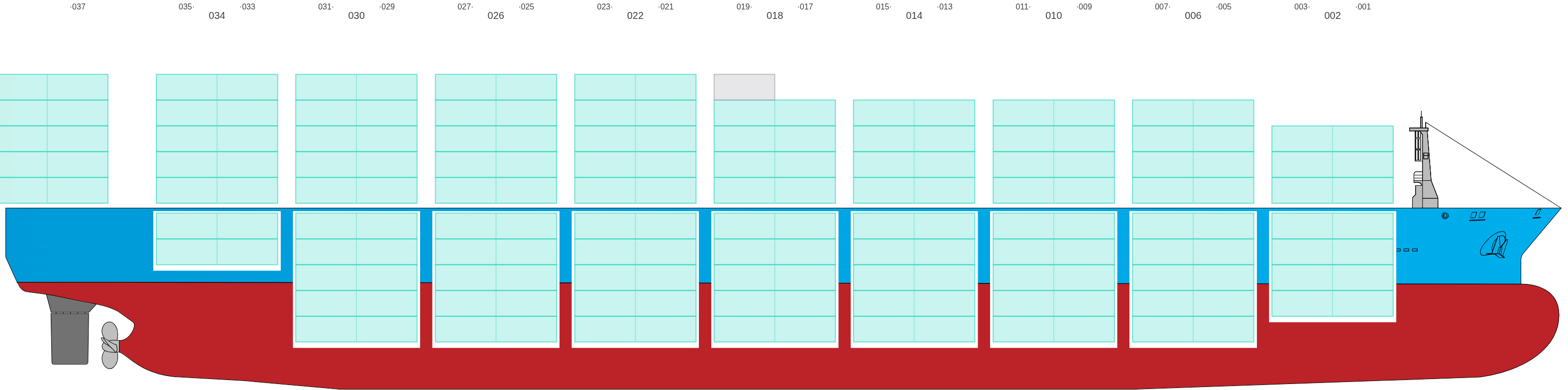

Side View

Side view of HR HERA

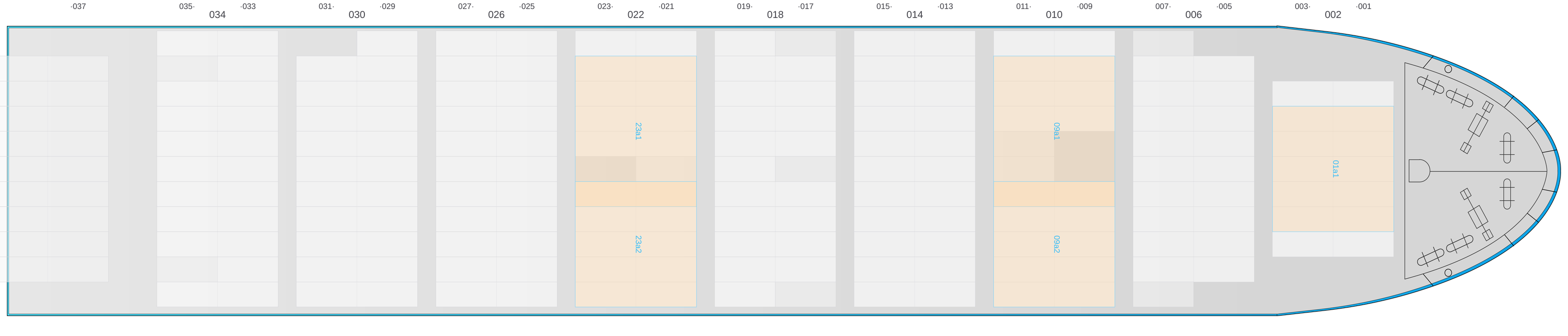

Hatch-Covers View

Deck view of HR HERA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

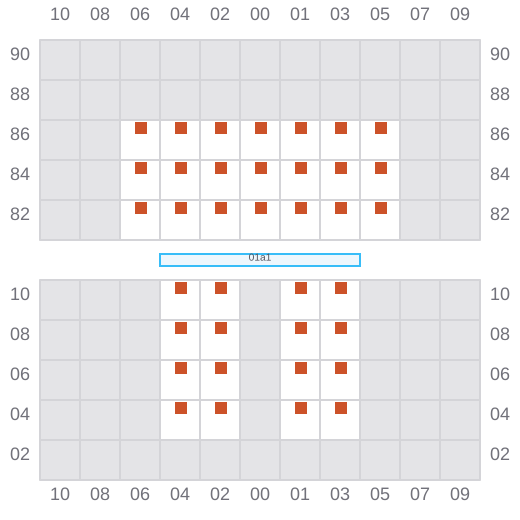

001 (002)

  • →

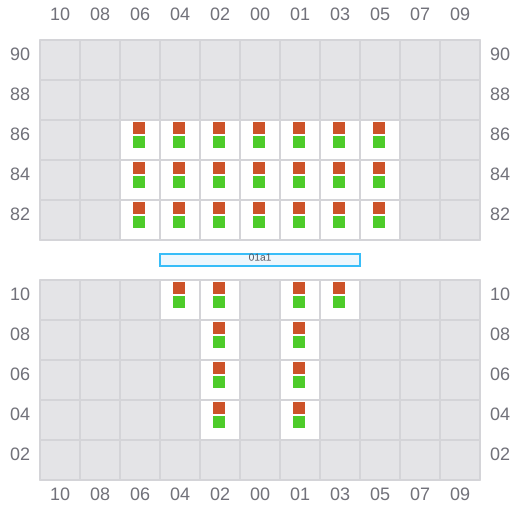

Bay 001 view and slots of HR HERA

003

  • ←
Bay 003 view and slots of HR HERA

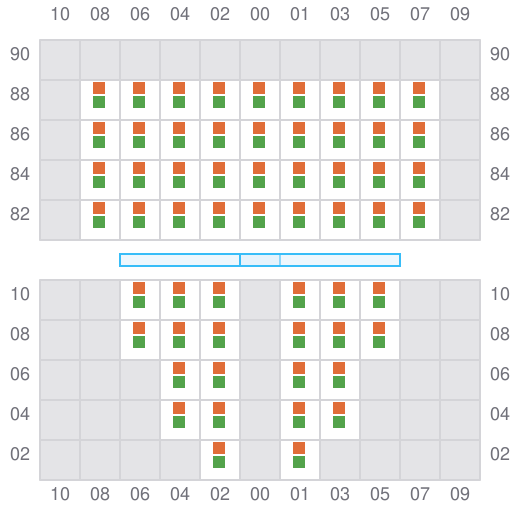

005 (006)

  • →
Bay 005 view and slots of HR HERA

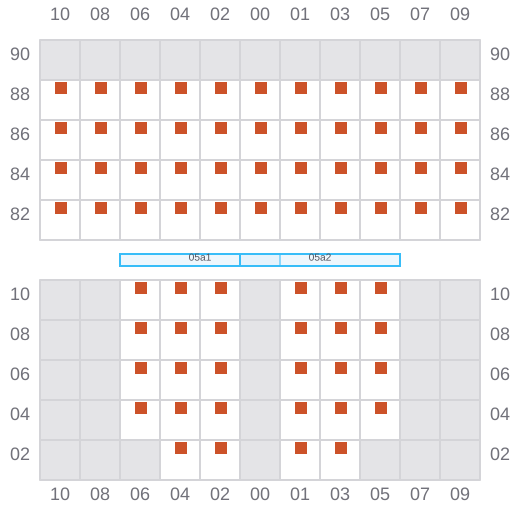

007

  • ←
Bay 007 view and slots of HR HERA

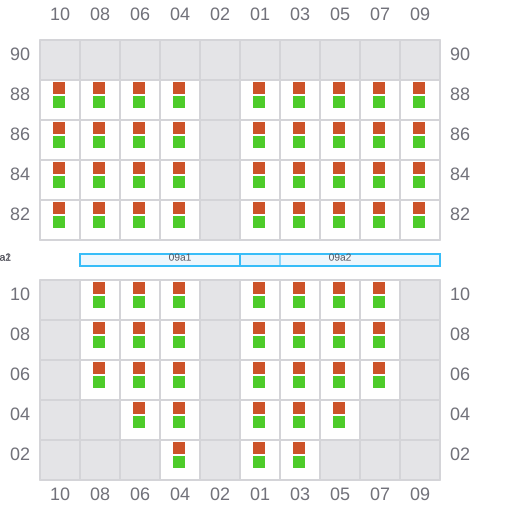

009 (010)

  • →
Bay 009 view and slots of HR HERA

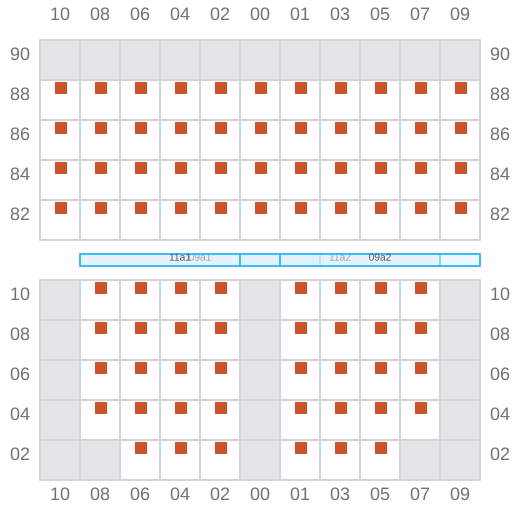

011

  • ←
Bay 011 view and slots of HR HERA

013 (014)

  • →

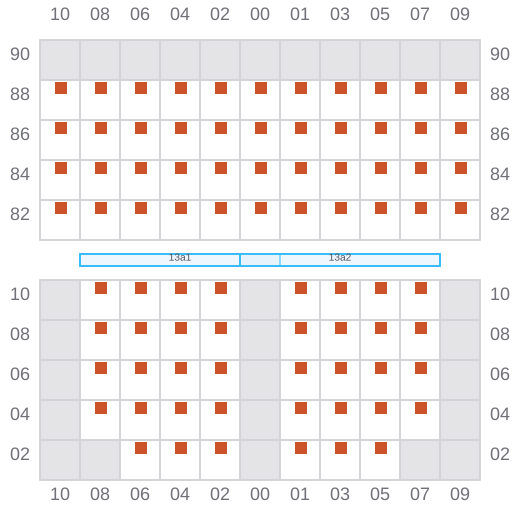

Bay 013 view and slots of HR HERA

015

  • ←
Bay 015 view and slots of HR HERA

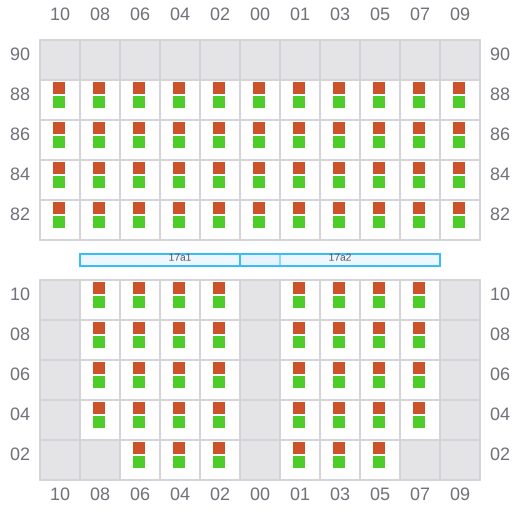

017 (018)

  • →

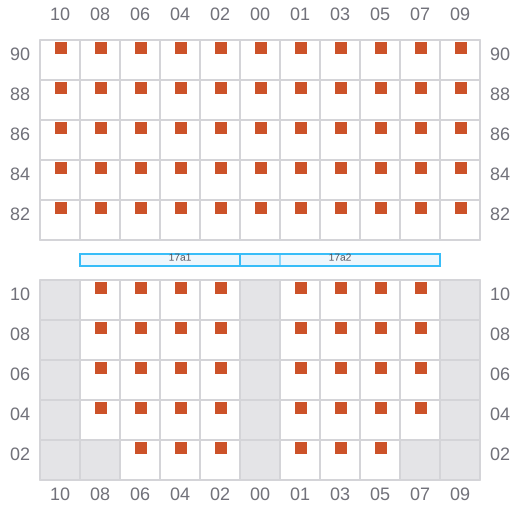

Bay 017 view and slots of HR HERA

019

  • ←
Bay 019 view and slots of HR HERA

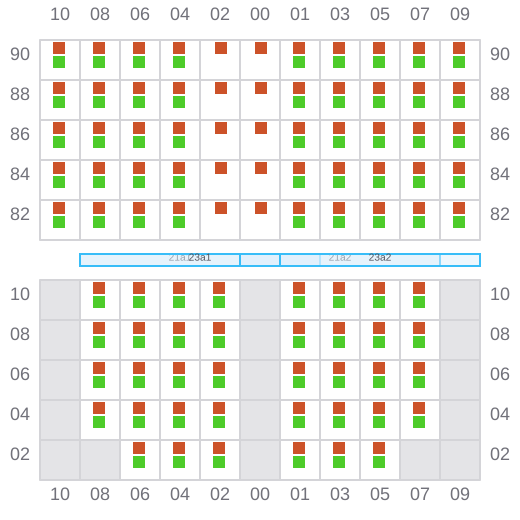

021 (022)

  • →
Bay 021 view and slots of HR HERA

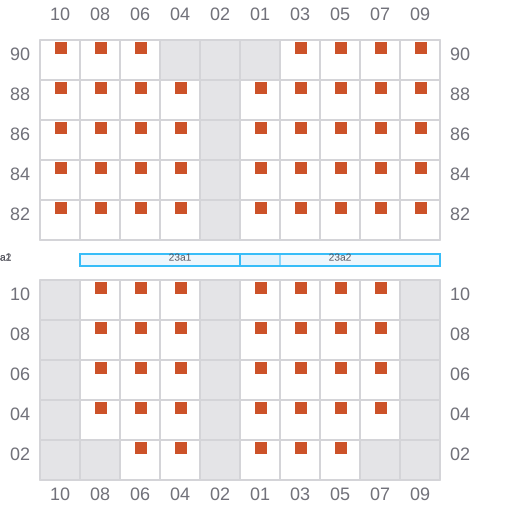

023

  • ←
Bay 023 view and slots of HR HERA

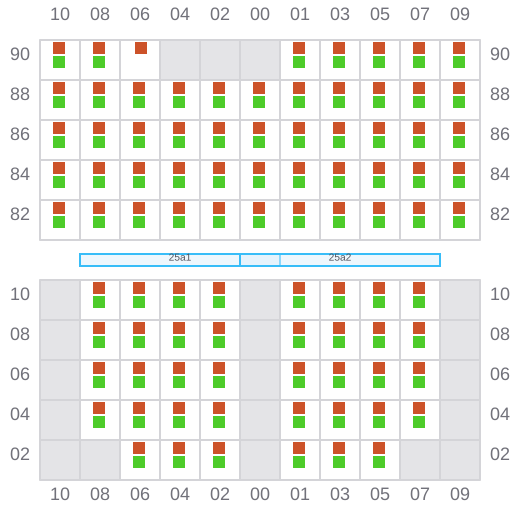

025 (026)

  • →
Bay 025 view and slots of HR HERA

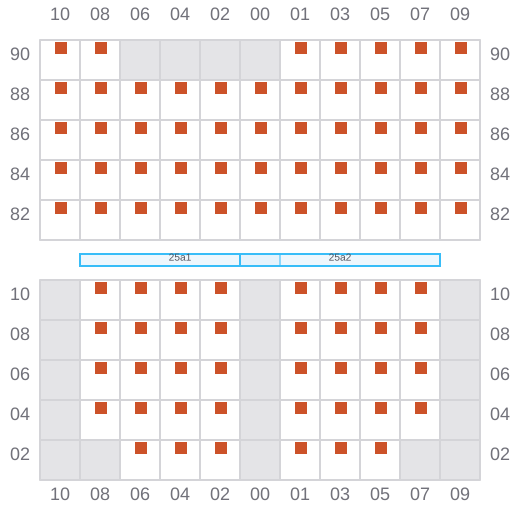

027

  • ←
Bay 027 view and slots of HR HERA

029 (030)

  • →

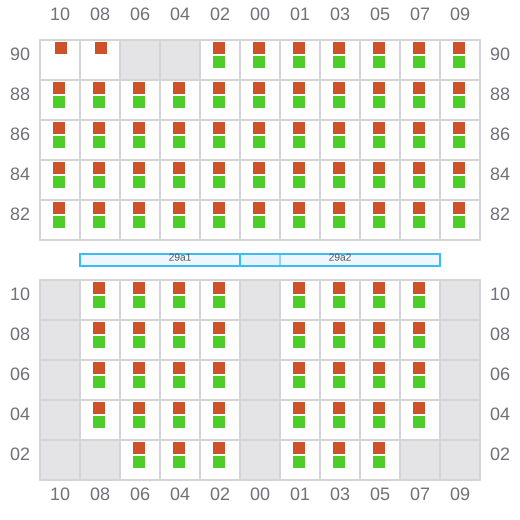

Bay 029 view and slots of HR HERA

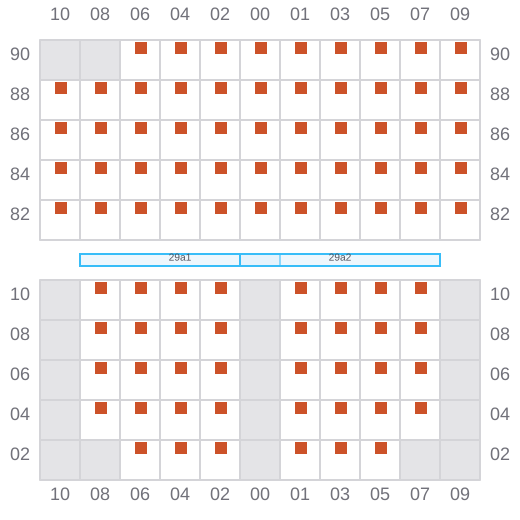

031

  • ←
Bay 031 view and slots of HR HERA

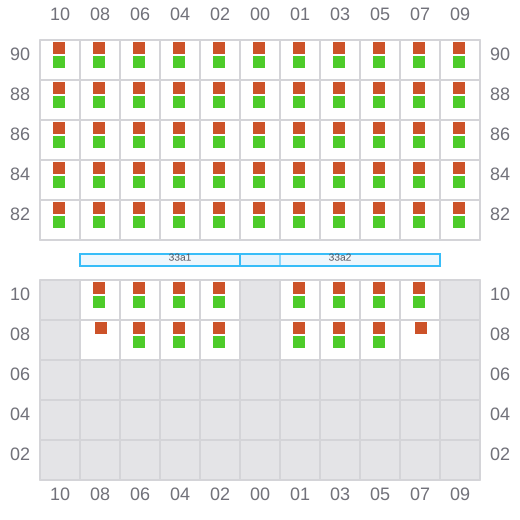

033 (034)

  • →
Bay 033 view and slots of HR HERA

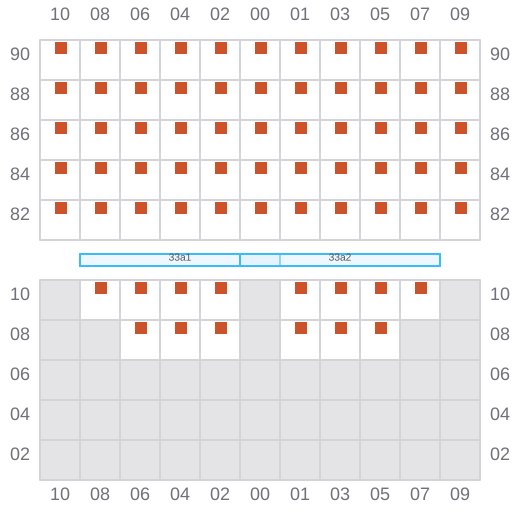

035

  • ←
Bay 035 view and slots of HR HERA

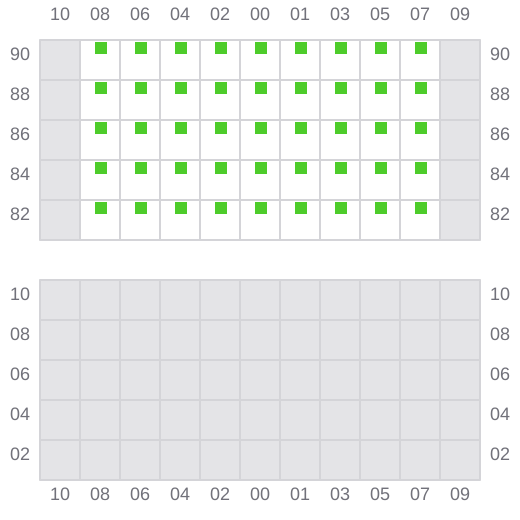

037 (038)

  • → / ?
Bay 037 view and slots of HR HERA
