HR SAHARE
9157399 | S2BE8 | 9157399 by ********* Last update: Wed Jul 03 2024
General Info
Ship Name:HR SAHARE
IMO Code:9157399
Call Sign:S2BE8
Line Operator:9157399
Class Name for Sister Ships:PIL
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:039
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:2,258
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

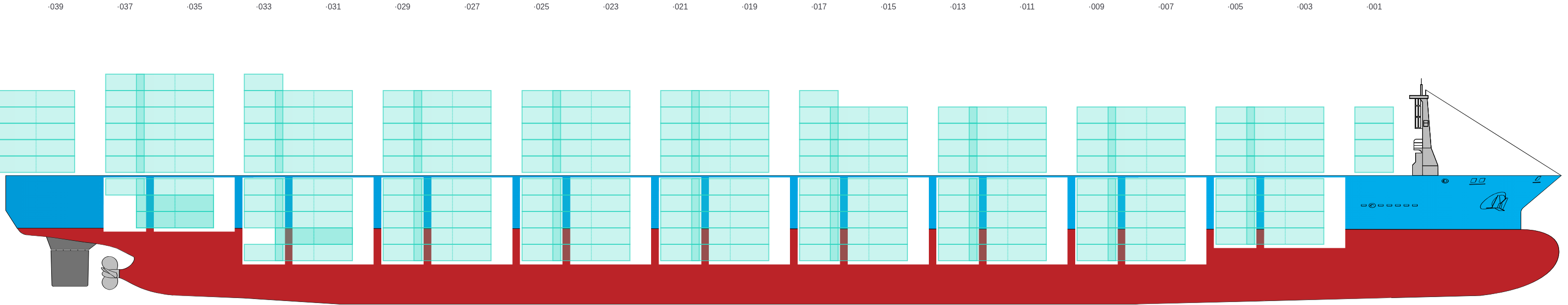

Side View
![Side view of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-sideView.png?v=1720031399236)

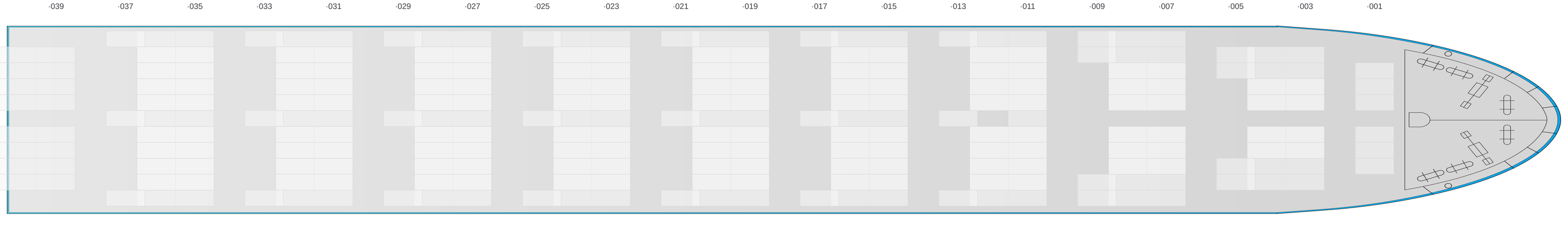

Hatch-Covers View
![Deck view of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-deckView.png?v=1720031399236)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

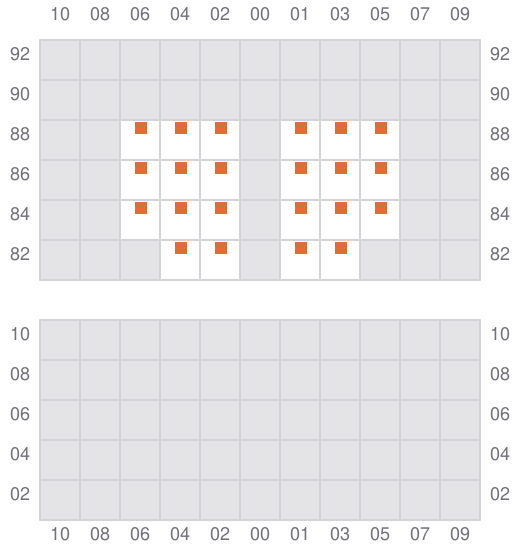

001
- → / ?
![Bay 001 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b001.png?v=1720031399236)
003 (004)
- →
![Bay 003 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b003.png?v=1720031399236)

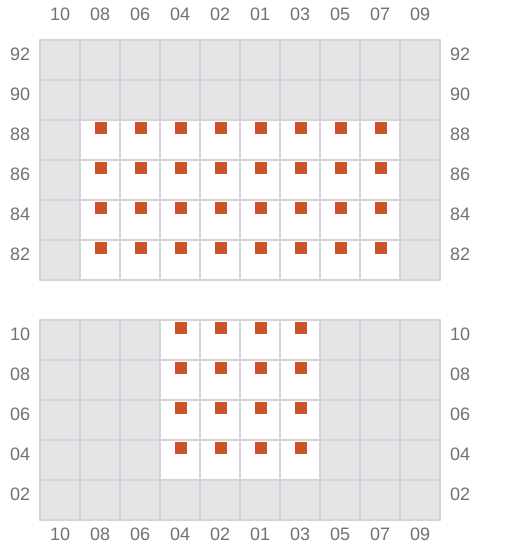

005
- →
![Bay 005 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b005.png?v=1720031399236)

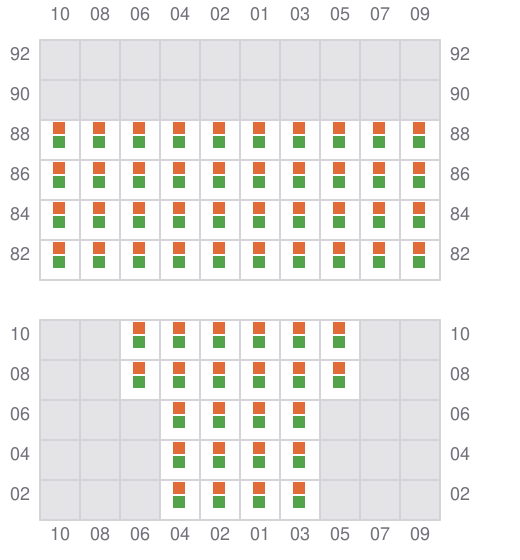

007 (008)
- →
![Bay 007 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b007.png?v=1720031399236)

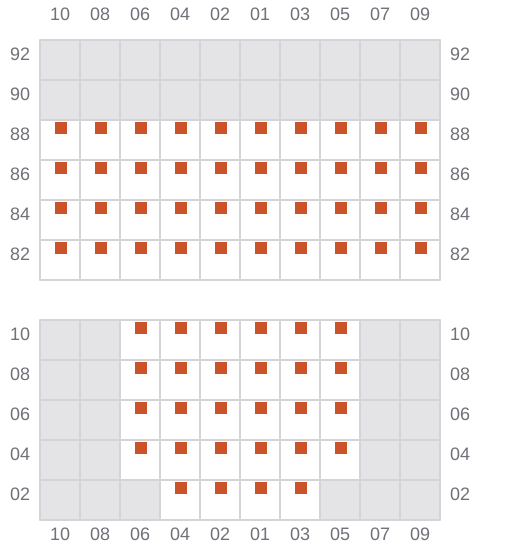

009
- →
![Bay 009 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b009.png?v=1720031399236)

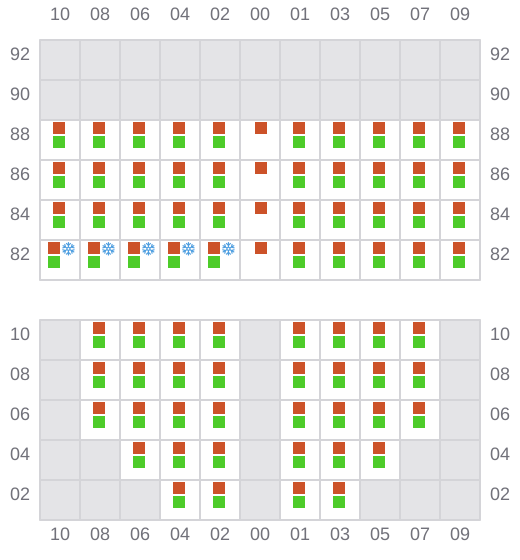

011 (012)
- →
![Bay 011 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b011.png?v=1720031399236)

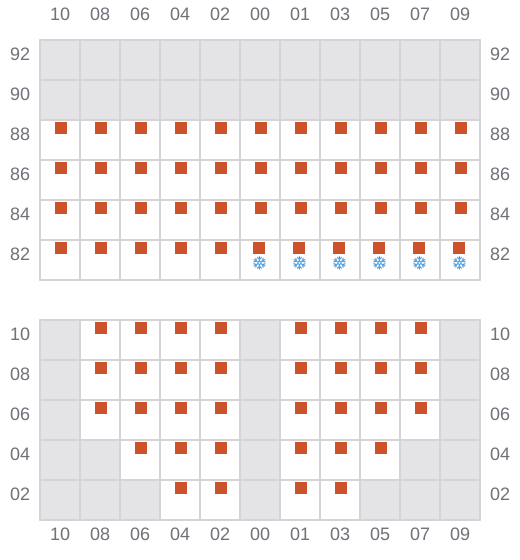

013
- →
![Bay 013 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b013.png?v=1720031399236)

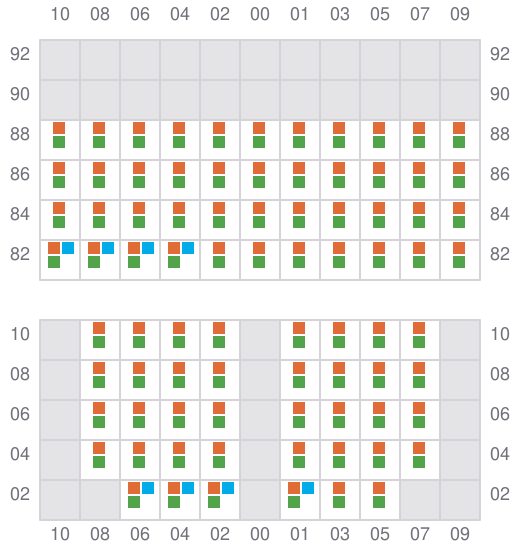

015 (016)
- →
![Bay 015 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b015.png?v=1720031399236)

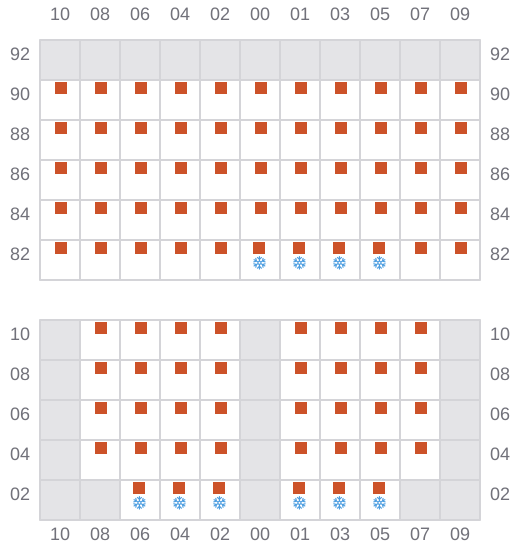

017
- →
![Bay 017 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b017.png?v=1720031399236)

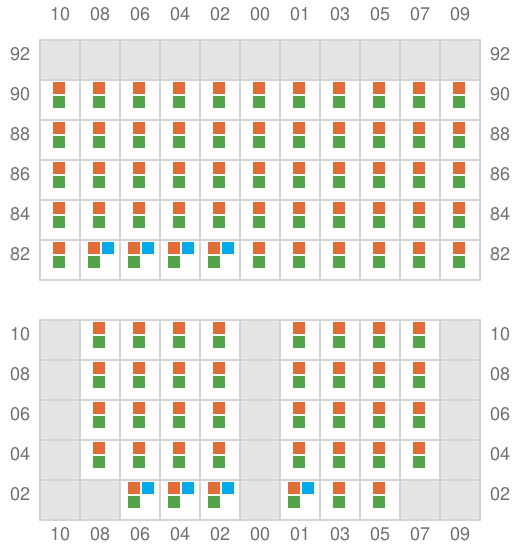

019 (020)
- →
![Bay 019 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b019.png?v=1720031399236)
021
- →
![Bay 021 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b021.png?v=1720031399236)

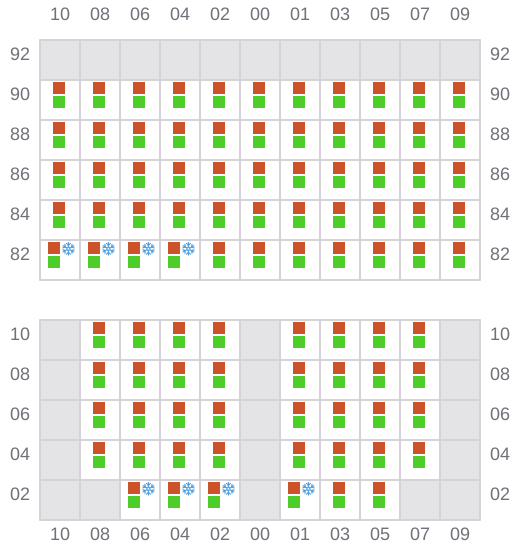

023 (024)
- →
![Bay 023 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b023.png?v=1720031399236)
025
- →
![Bay 025 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b025.png?v=1720031399236)

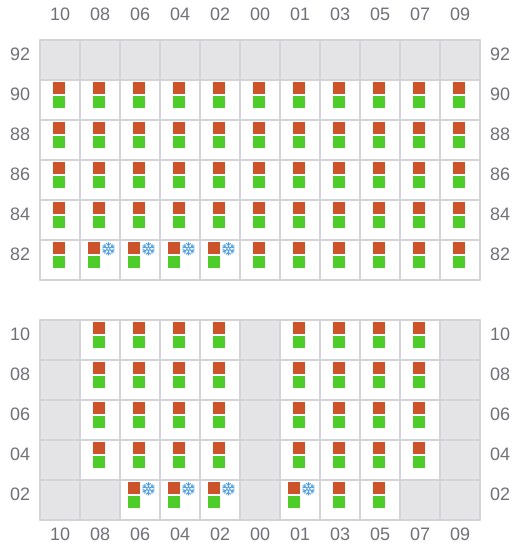

027 (028)
- →
![Bay 027 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b027.png?v=1720031399236)
029
- →
![Bay 029 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b029.png?v=1720031399236)

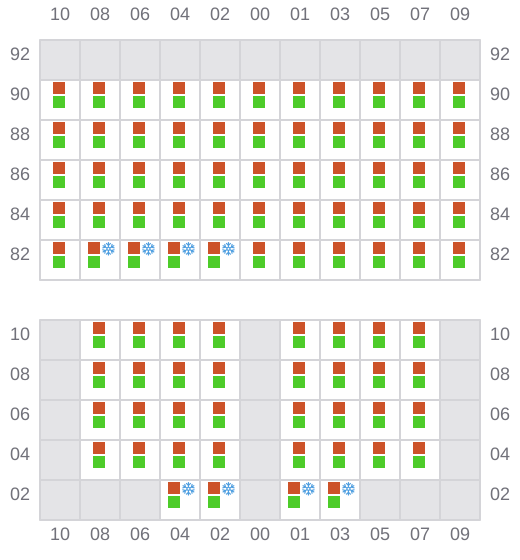

031 (032)
- →
![Bay 031 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b031.png?v=1720031399236)

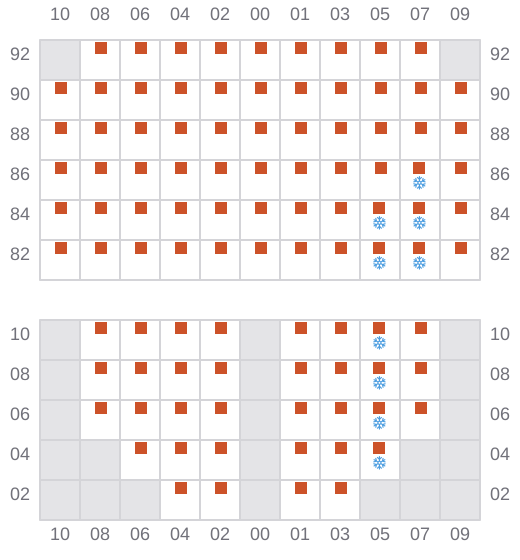

033
- →
![Bay 033 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b033.png?v=1720031399236)

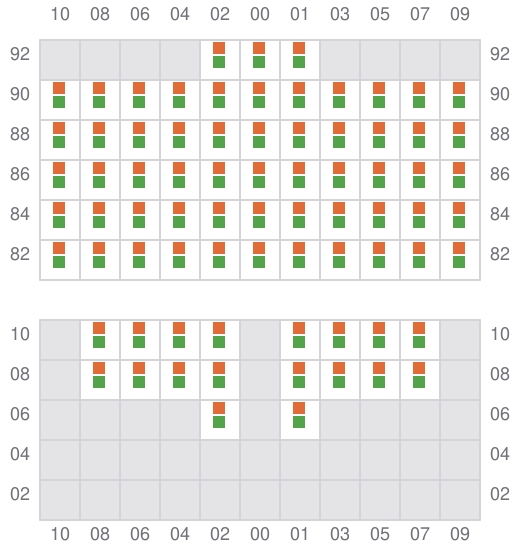

035 (036)
- →
![Bay 035 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b035.png?v=1720031399236)

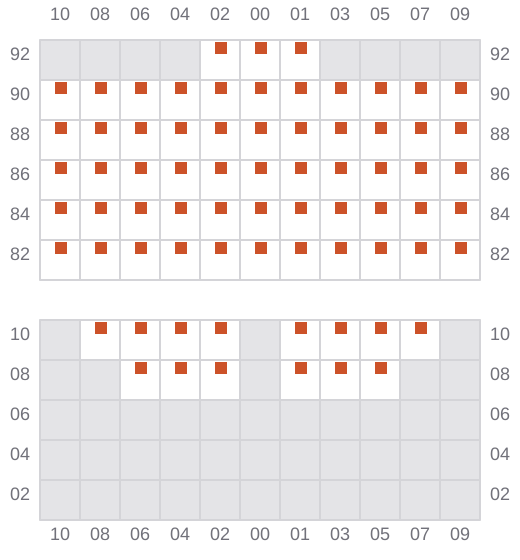

037
- →
![Bay 037 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b037.png?v=1720031399236)

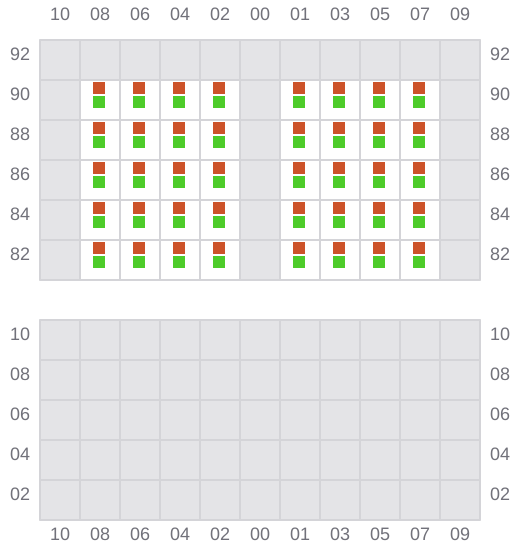

039 (040)
- → / ?
![Bay 039 view and slots of HR SAHARE](/vessel-images/e3d596a2-b1de-4f4c-a4b0-2a8ffdf11e5b-b039.png?v=1720031399236)
