HYUNDAI FORWARD
9330707 | V7PX2 | HMM by *********************** Last update: Thu Jan 23 2025

General Info

Ship Name:HYUNDAI FORWARD
IMO Code:9330707
Call Sign:V7PX2
Line Operator:HMM
Class Name for Sister Ships:HFOW
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:067
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,571

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of HYUNDAI FORWARD

Hatch-Covers View

Deck view of HYUNDAI FORWARD

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

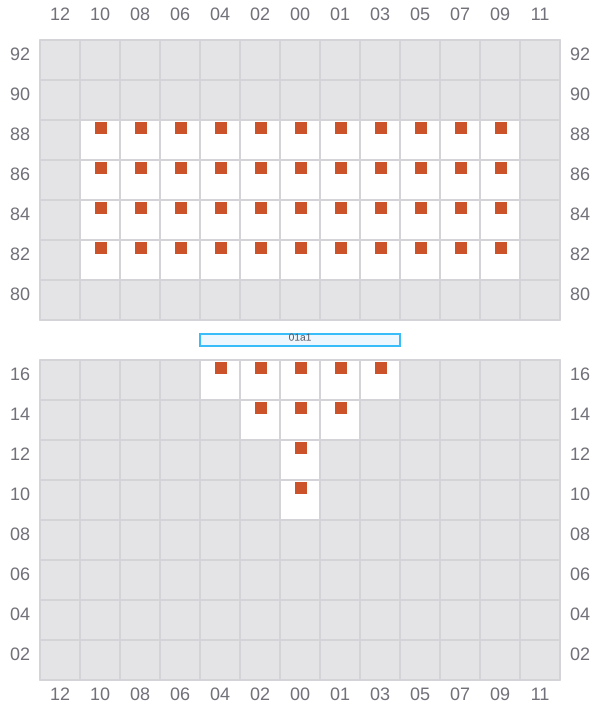

001

  • →
Bay 001 view and slots of HYUNDAI FORWARD

003 (004)

  • →
  • → / ?
  • →
Bay 003 view and slots of HYUNDAI FORWARD

005

  • ←
  • → / ?
  • →
Bay 005 view and slots of HYUNDAI FORWARD

007 (008)

  • →
  • → / ?
  • →
Bay 007 view and slots of HYUNDAI FORWARD

009

  • ←
  • → / ?
  • →
Bay 009 view and slots of HYUNDAI FORWARD

011 (012)

  • →
  • → / ?
  • →
Bay 011 view and slots of HYUNDAI FORWARD

013

  • ←
  • ← / ?
  • →
Bay 013 view and slots of HYUNDAI FORWARD

015 (016)

  • →
  • → / ?
  • →
Bay 015 view and slots of HYUNDAI FORWARD

017

  • ←
  • → / ?
  • →
Bay 017 view and slots of HYUNDAI FORWARD

019 (020)

  • →
  • → / ?
  • →
Bay 019 view and slots of HYUNDAI FORWARD

021

  • ←
  • → / ?
  • →
Bay 021 view and slots of HYUNDAI FORWARD

023 (024)

  • →
  • → / ?
  • →
Bay 023 view and slots of HYUNDAI FORWARD

025

  • ←
  • → / ?
  • →
Bay 025 view and slots of HYUNDAI FORWARD

027 (028)

  • →
  • → / ?
  • →
Bay 027 view and slots of HYUNDAI FORWARD

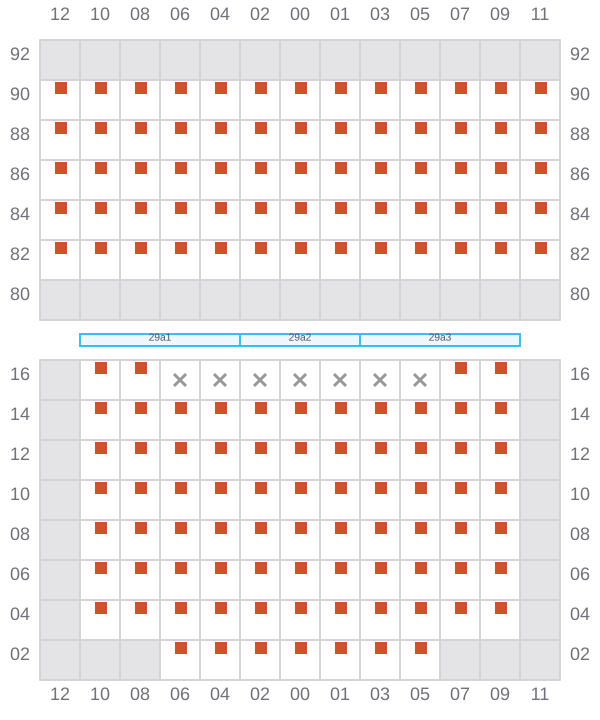

029

  • ←
  • → / ?
  • →
Bay 029 view and slots of HYUNDAI FORWARD

031 (032)

  • →
  • → / ?
  • →
Bay 031 view and slots of HYUNDAI FORWARD

033

  • ←
  • → / ?
  • →
Bay 033 view and slots of HYUNDAI FORWARD

035 (036)

  • →
  • → / ?
  • →
Bay 035 view and slots of HYUNDAI FORWARD

037

  • ←
  • → / ?
  • →
Bay 037 view and slots of HYUNDAI FORWARD

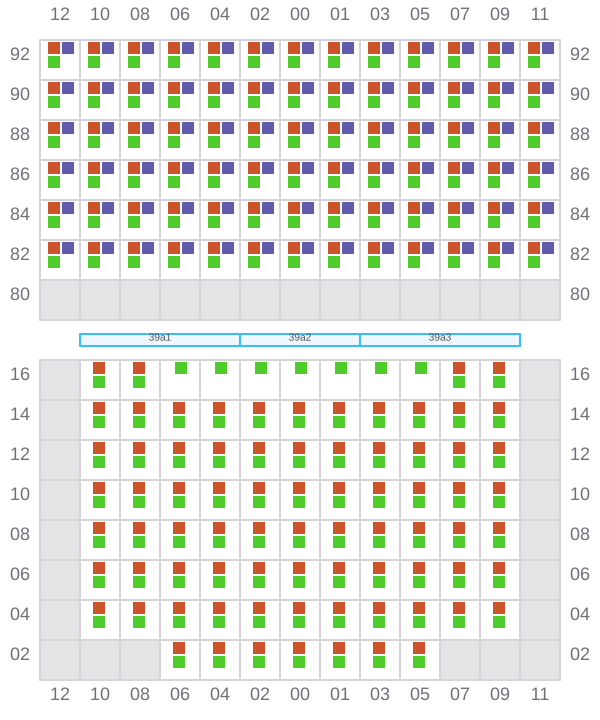

039 (040)

  • →
  • → / ?
  • →
Bay 039 view and slots of HYUNDAI FORWARD

041

  • ←
  • → / ?
  • →
Bay 041 view and slots of HYUNDAI FORWARD

043 (044)

  • →
  • → / ?
  • →
Bay 043 view and slots of HYUNDAI FORWARD

045

  • ←
  • → / ?
  • →
Bay 045 view and slots of HYUNDAI FORWARD

047 (048)

  • →
  • → / ?
  • →
Bay 047 view and slots of HYUNDAI FORWARD

049

  • ←
  • → / ?
  • →
Bay 049 view and slots of HYUNDAI FORWARD

051 (052)

  • →
  • → / ?
  • →
Bay 051 view and slots of HYUNDAI FORWARD

053

  • ←
  • → / ?
  • →
Bay 053 view and slots of HYUNDAI FORWARD

055 (056)

  • →
  • → / ?
  • →
Bay 055 view and slots of HYUNDAI FORWARD

057

  • ←
  • → / ?
  • →
Bay 057 view and slots of HYUNDAI FORWARD

059 (060)

  • →
  • → / ?
  • →
Bay 059 view and slots of HYUNDAI FORWARD

061

  • ←
  • → / ?
  • →
Bay 061 view and slots of HYUNDAI FORWARD

063 (064)

  • →
  • → / ?
  • →
Bay 063 view and slots of HYUNDAI FORWARD

065

  • ←
  • ← / ?
  • →
Bay 065 view and slots of HYUNDAI FORWARD

067 (068)

  • → / ?
  • → / ?
Bay 067 view and slots of HYUNDAI FORWARD
