HYUNDAI GOODWILL
9347607 | D7GW | 93 by ********* Last update: Wed Apr 03 2024
General Info
Ship Name:HYUNDAI GOODWILL
IMO Code:9347607
Call Sign:D7GW
Line Operator:93
Class Name for Sister Ships:APL
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:067
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,727
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-sideView.png?v=1712168984409)
Hatch-Covers View
![Deck view of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-deckView.png?v=1712168984409)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

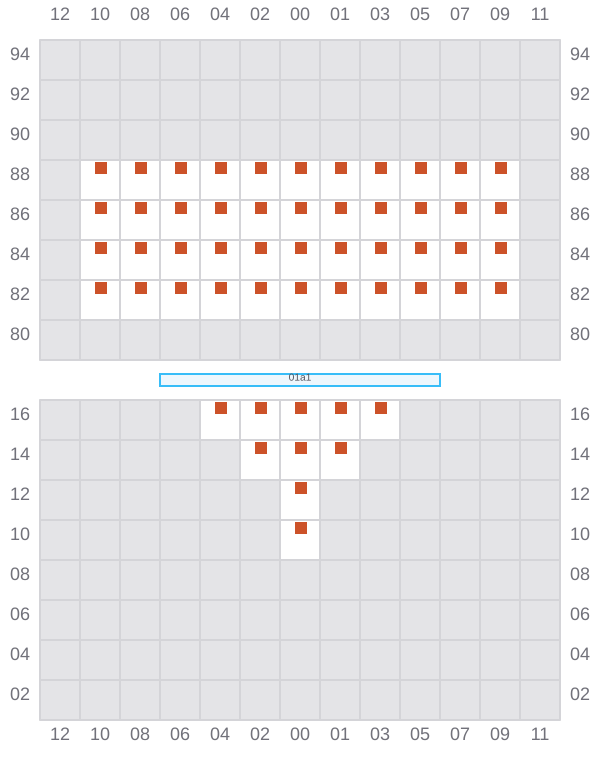

001
![Bay 001 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b001.png?v=1712168984409)

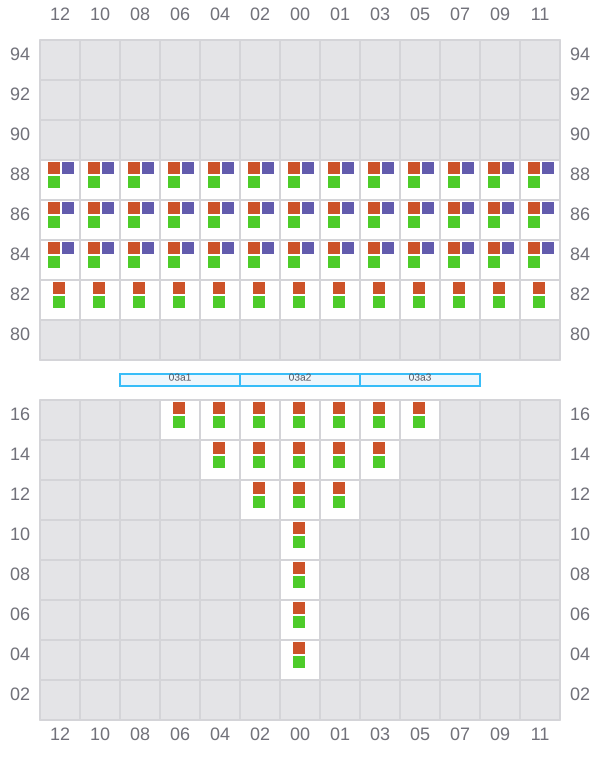

003 (004)
- →
![Bay 003 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b003.png?v=1712168984409)

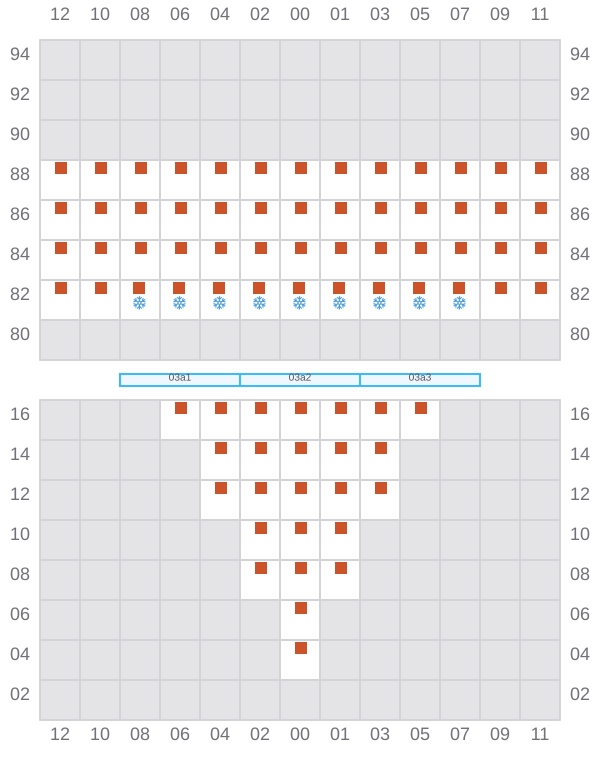

005
- ←
![Bay 005 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b005.png?v=1712168984409)

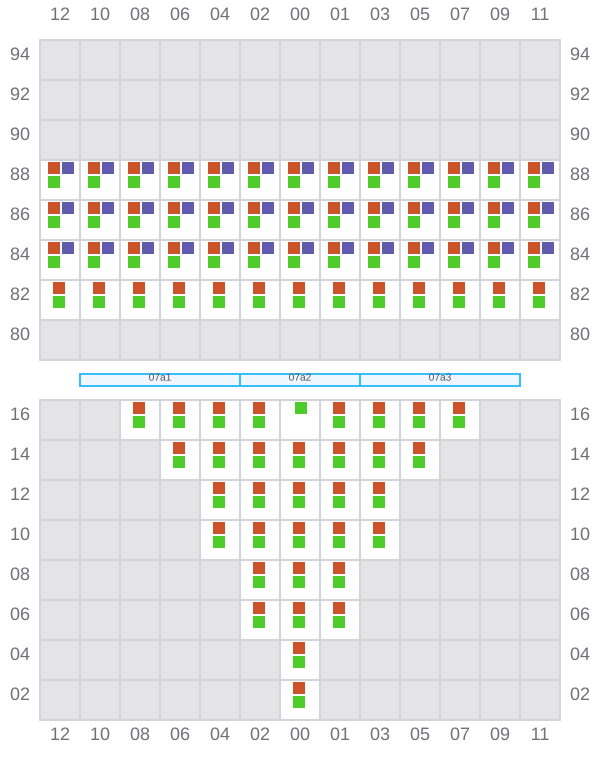

007 (008)
- →
![Bay 007 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b007.png?v=1712168984409)

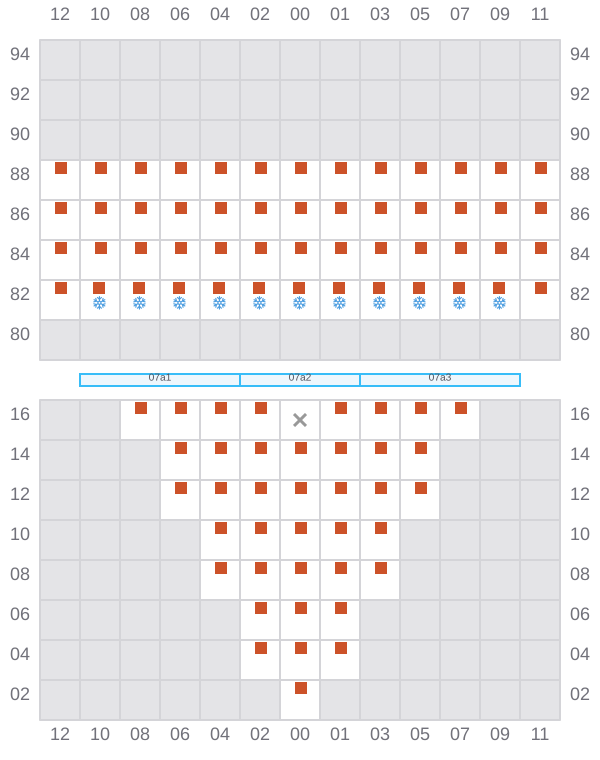

009
- ←
![Bay 009 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b009.png?v=1712168984409)

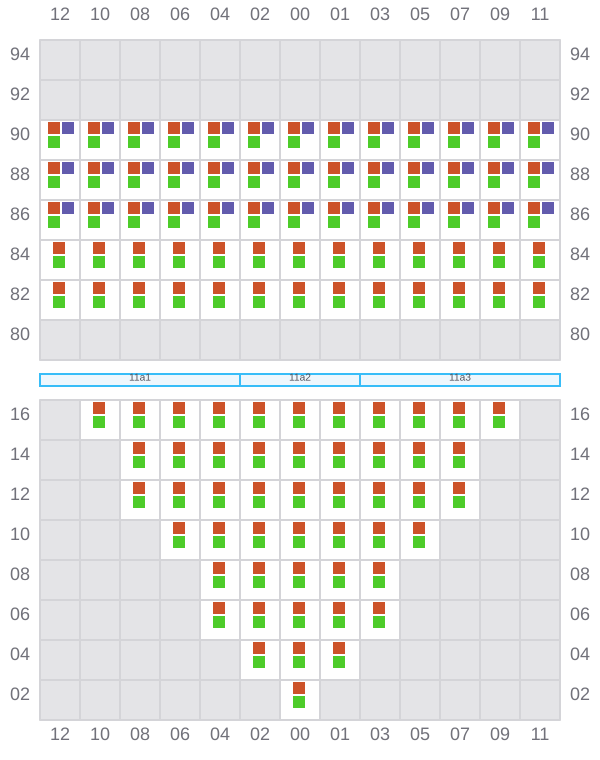

011 (012)
- →
![Bay 011 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b011.png?v=1712168984409)

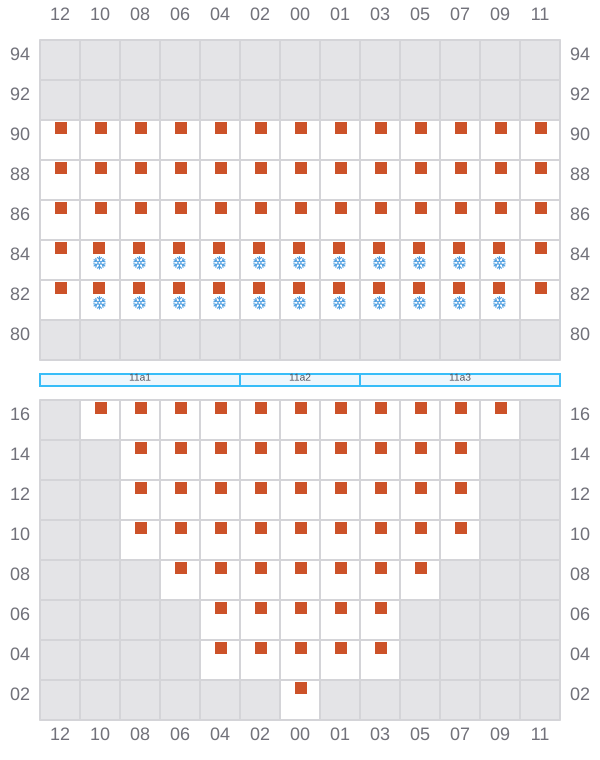

013
- ←
![Bay 013 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b013.png?v=1712168984409)
015 (016)
- →
![Bay 015 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b015.png?v=1712168984409)

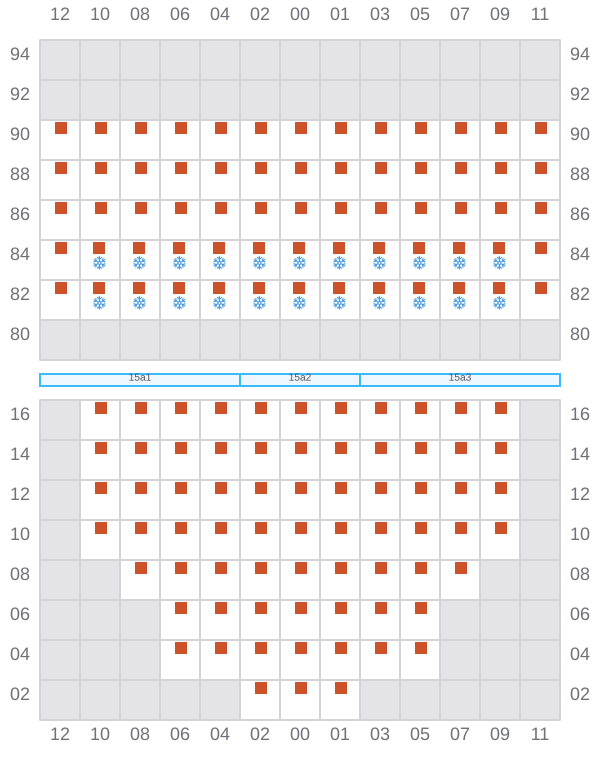

017
- ←
![Bay 017 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b017.png?v=1712168984409)

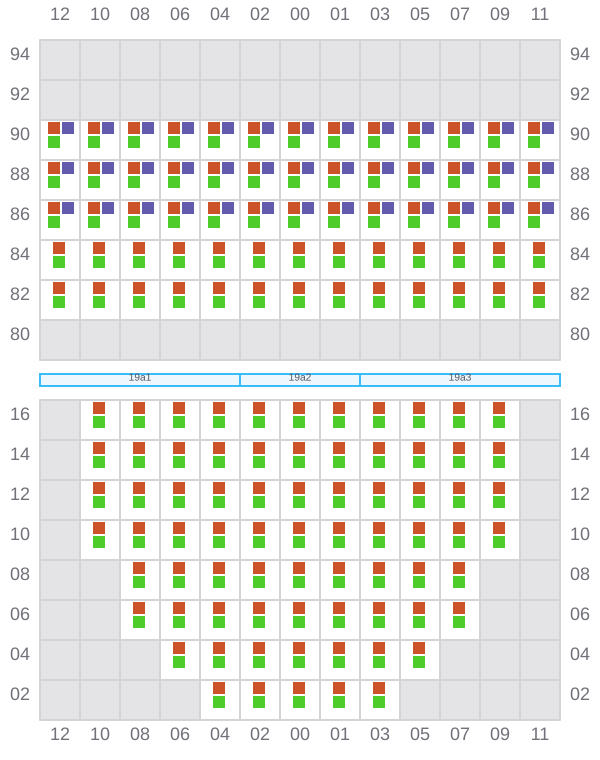

019 (020)
- →
![Bay 019 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b019.png?v=1712168984409)

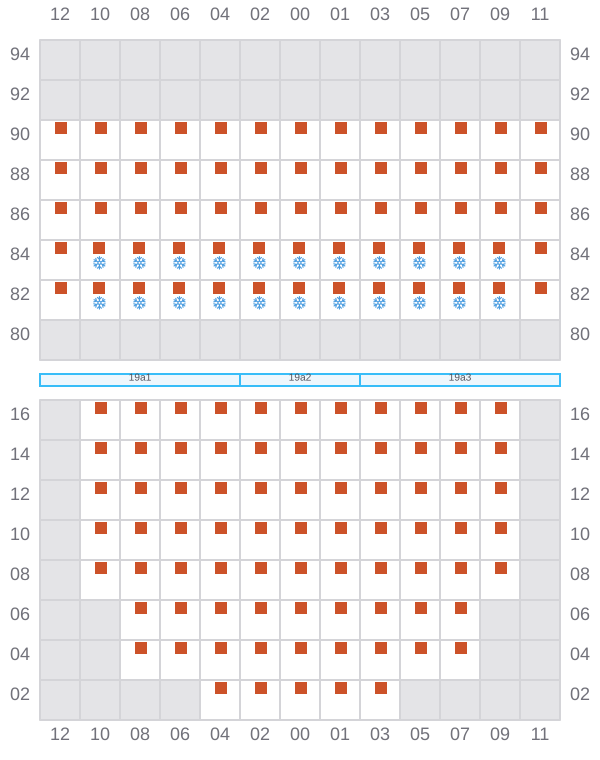

021
- ←
![Bay 021 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b021.png?v=1712168984409)

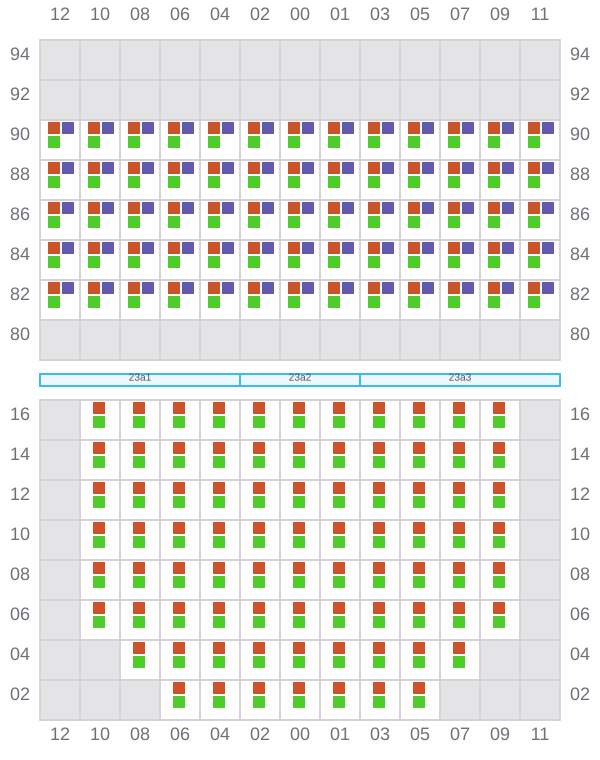

023 (024)
- →
![Bay 023 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b023.png?v=1712168984409)

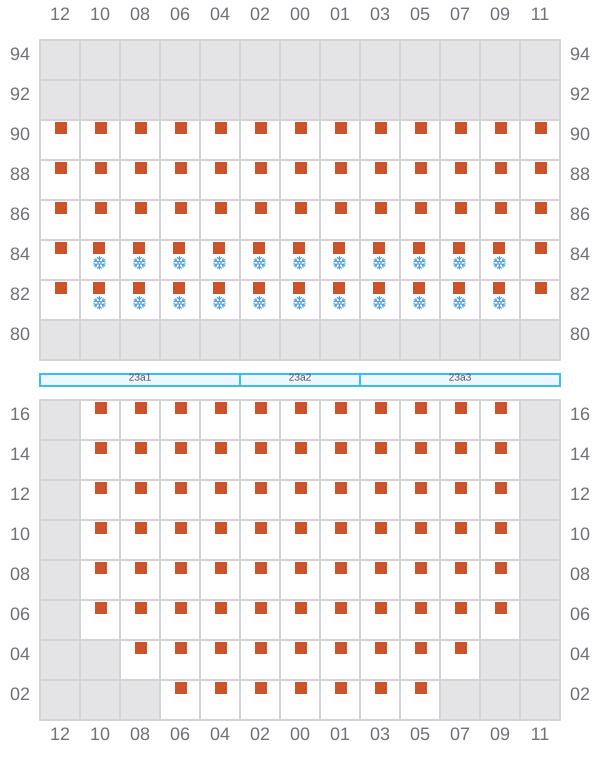

025
- ←
![Bay 025 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b025.png?v=1712168984409)

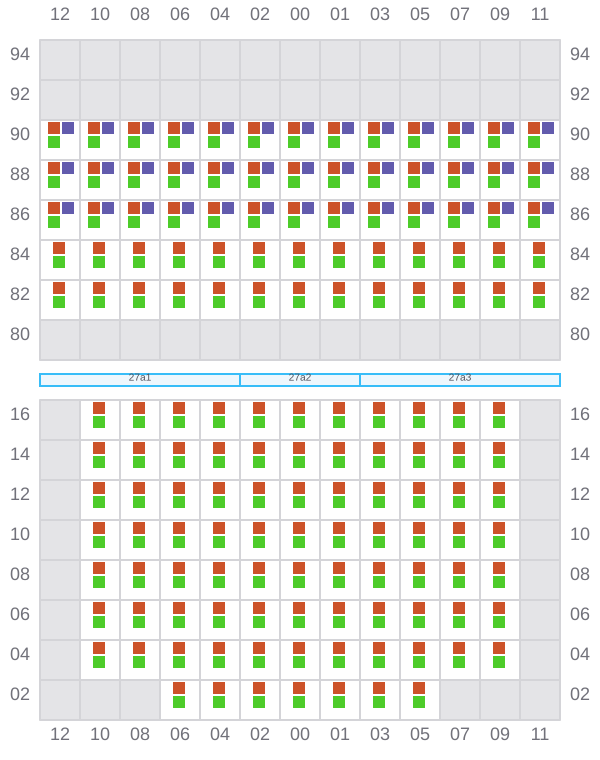

027 (028)
- →
![Bay 027 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b027.png?v=1712168984409)

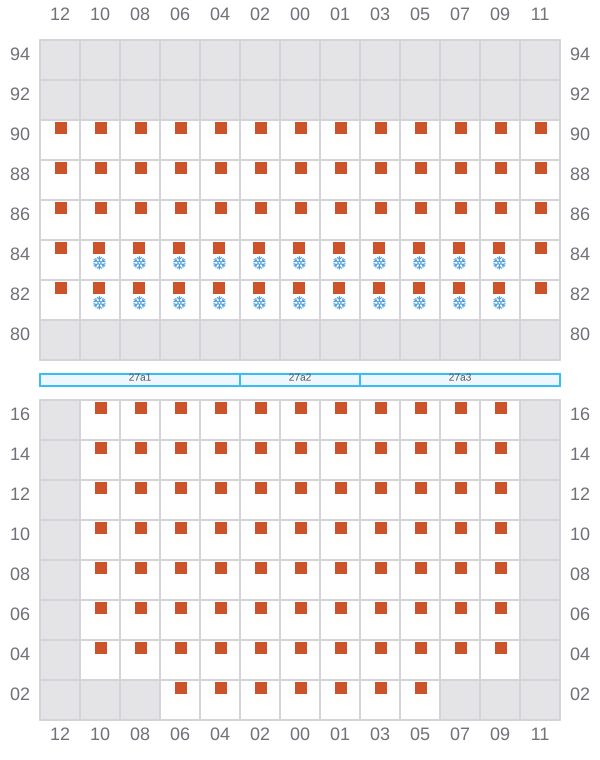

029
- ←
![Bay 029 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b029.png?v=1712168984409)

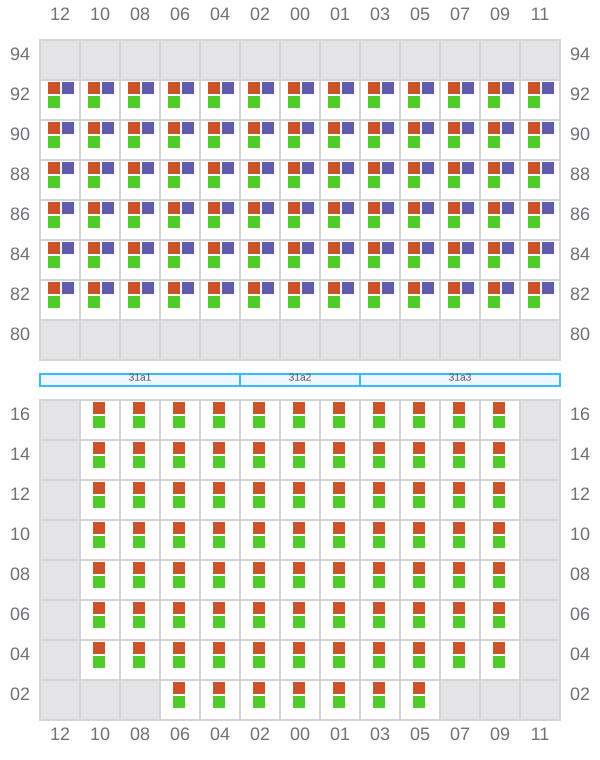

031 (032)
- →
![Bay 031 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b031.png?v=1712168984409)
033
- ←
![Bay 033 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b033.png?v=1712168984409)
035 (036)
- →
![Bay 035 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b035.png?v=1712168984409)
037
- ←
![Bay 037 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b037.png?v=1712168984409)
039 (040)
- →
![Bay 039 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b039.png?v=1712168984409)
041
- ←
![Bay 041 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b041.png?v=1712168984409)

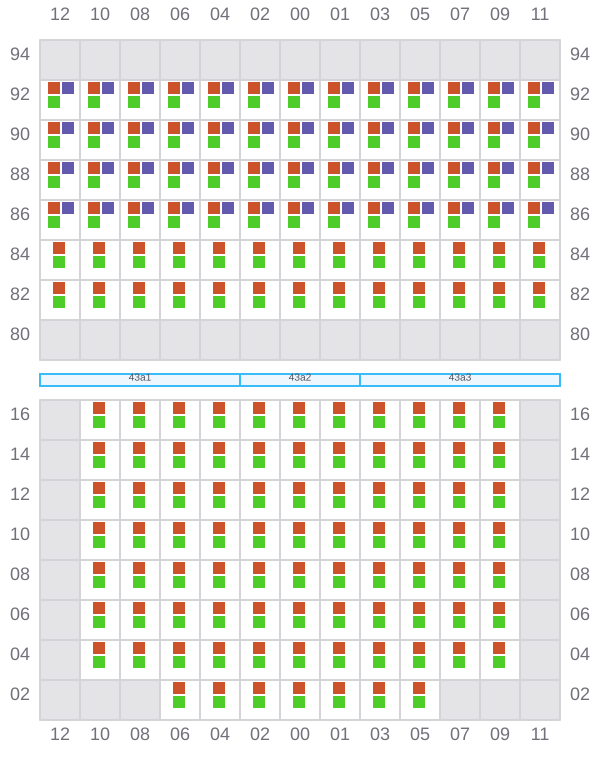

043 (044)
- →
![Bay 043 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b043.png?v=1712168984409)
045
- ←
![Bay 045 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b045.png?v=1712168984409)
047 (048)
- →
![Bay 047 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b047.png?v=1712168984409)

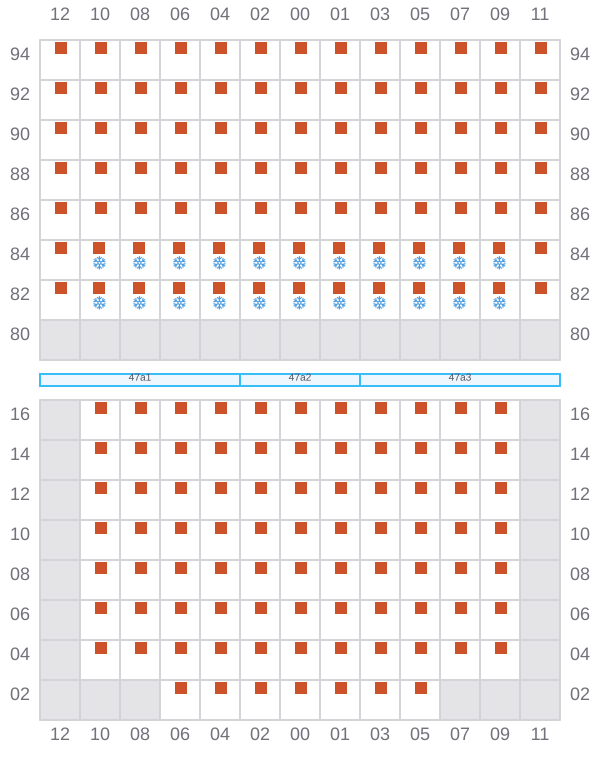

049
- ←
![Bay 049 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b049.png?v=1712168984409)
051 (052)
- →
![Bay 051 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b051.png?v=1712168984409)

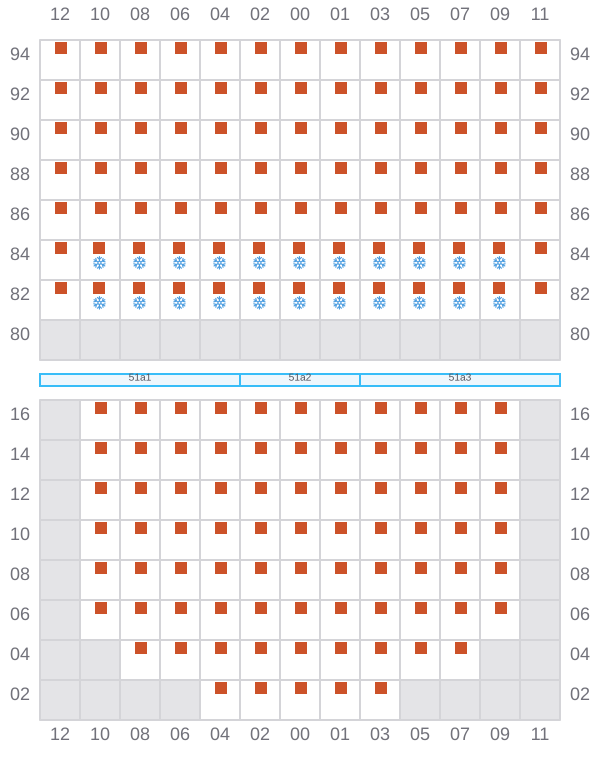

053
- ←
![Bay 053 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b053.png?v=1712168984409)

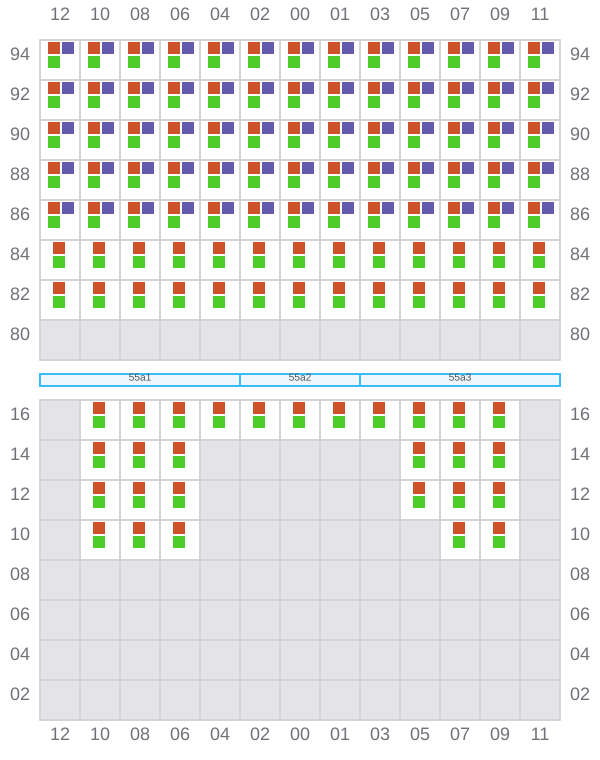

055 (056)
- →
![Bay 055 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b055.png?v=1712168984409)

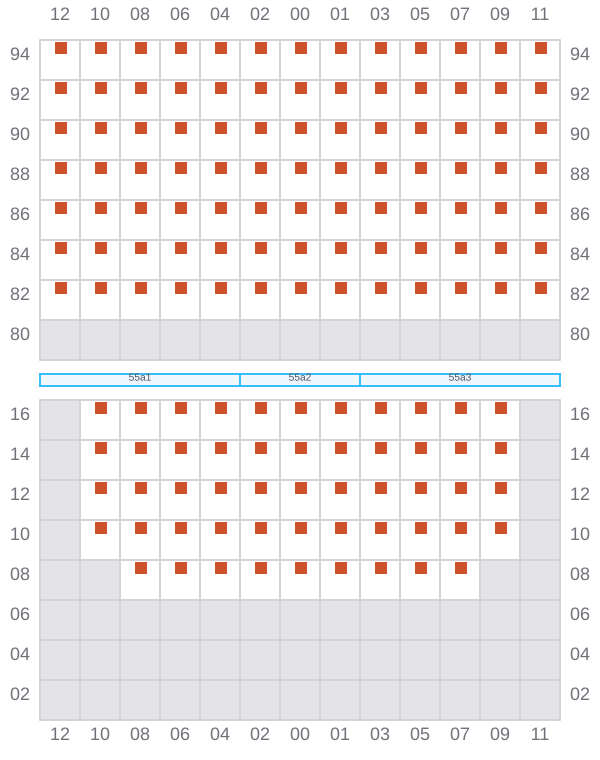

057
- ←
![Bay 057 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b057.png?v=1712168984409)

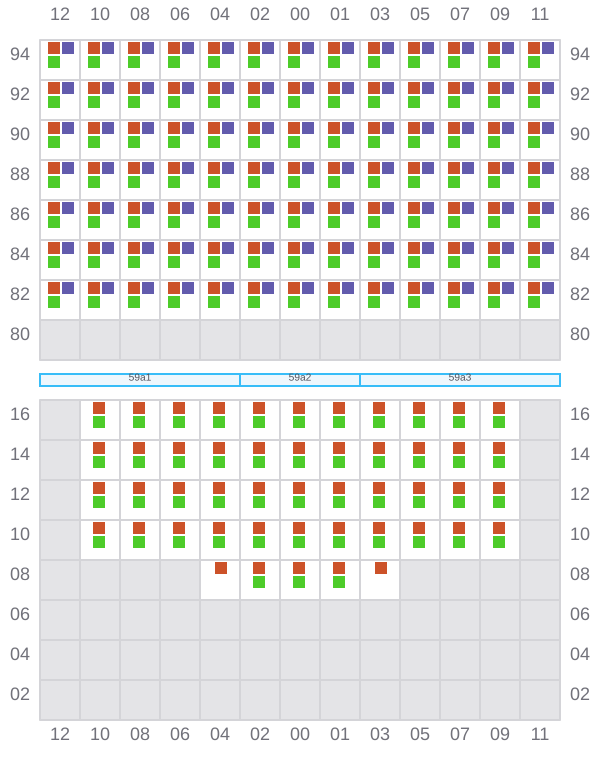

059 (060)
- →
![Bay 059 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b059.png?v=1712168984409)

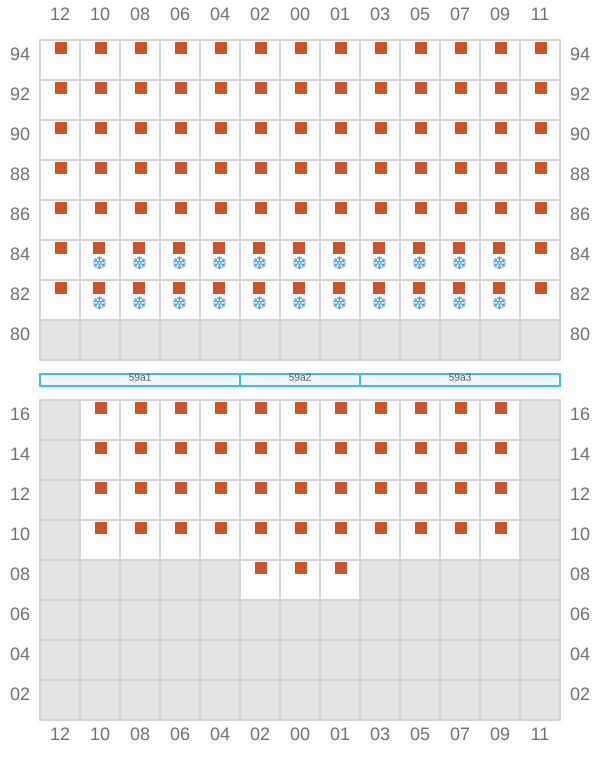

061
- ←
![Bay 061 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b061.png?v=1712168984409)

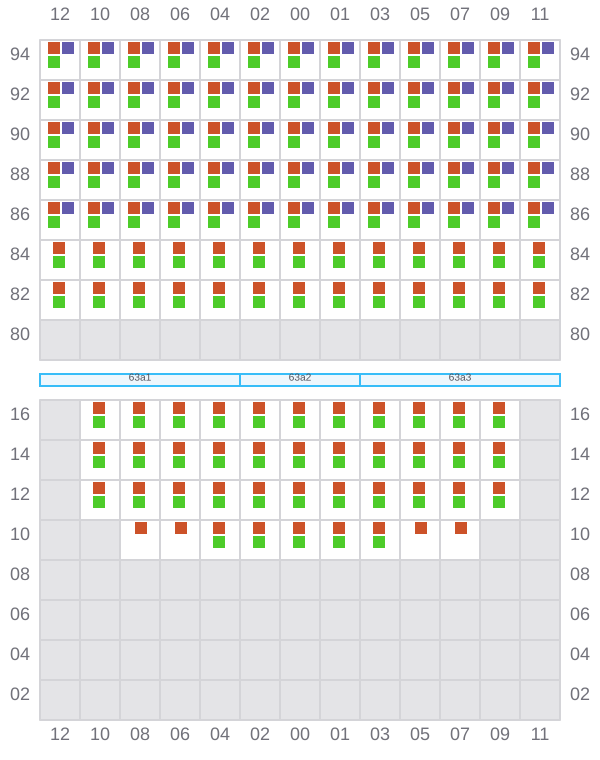

063 (064)
- →
![Bay 063 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b063.png?v=1712168984409)

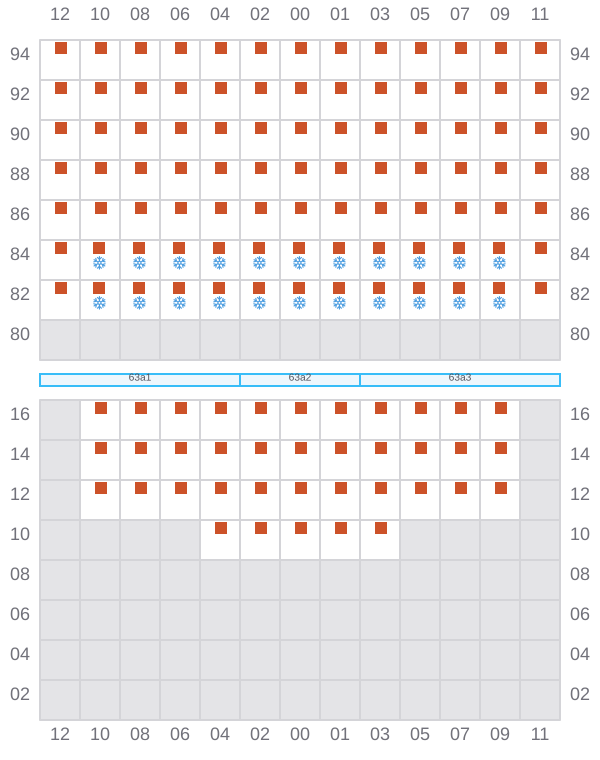

065
- ←
![Bay 065 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b065.png?v=1712168984409)

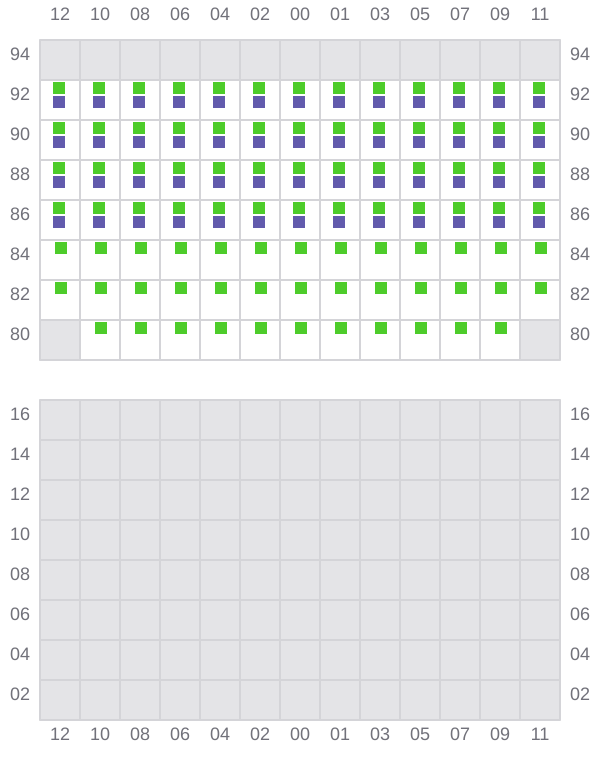

067 (068)
- → / ?
![Bay 067 view and slots of HYUNDAI GOODWILL](/vessel-images/03a4fa6f-36d8-4c5e-9df6-431c2a2cab8d-b067.png?v=1712168984409)
