HYUNDAI NEPTUNE
9725158 | MEDZ7 | MSK by ************* Last update: Mon Jun 26 2023
General Info
Ship Name:HYUNDAI NEPTUNE
IMO Code:9725158
Call Sign:MEDZ7
Line Operator:MSK
Class Name for Sister Ships:SNG
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:10,081
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

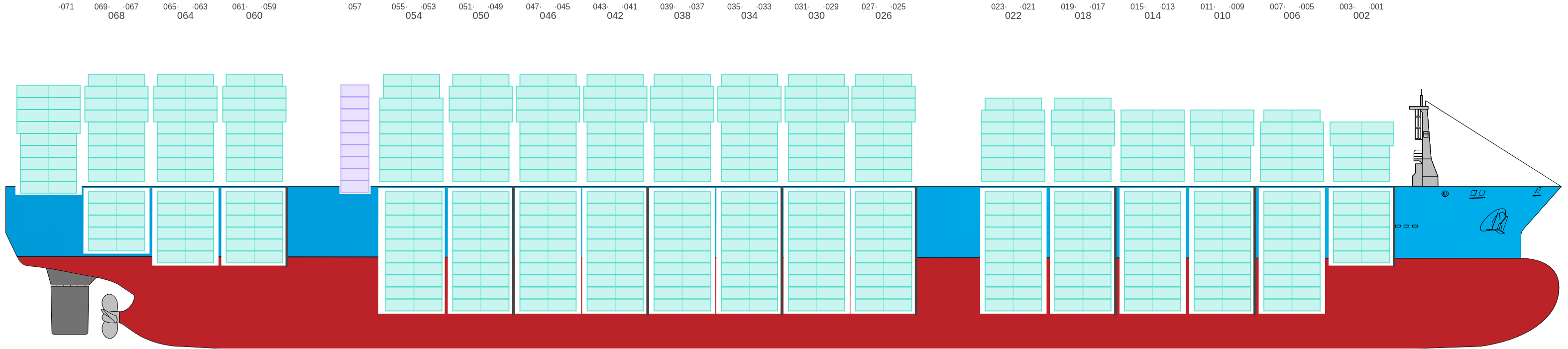

Side View
![Side view of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-sideView.png?v=1687799200627)
Hatch-Covers View
![Deck view of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-deckView.png?v=1687799200627)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

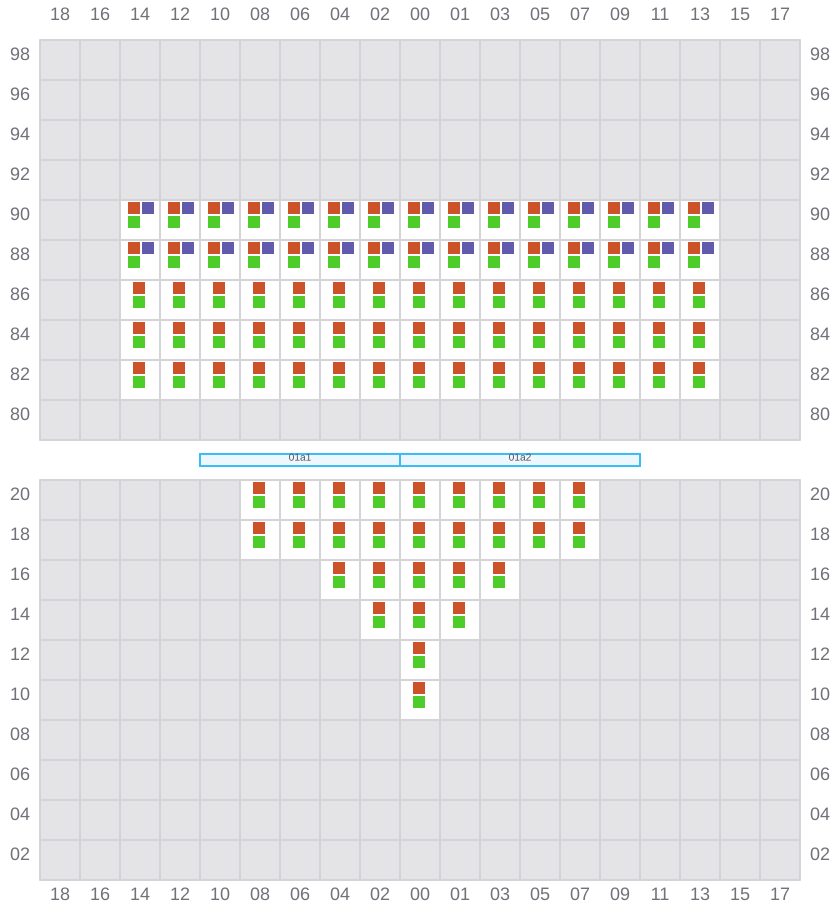

001 (002)
- →
![Bay 001 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b001.png?v=1687799200627)
003
- ←
- → / ?
![Bay 003 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b003.png?v=1687799200627)

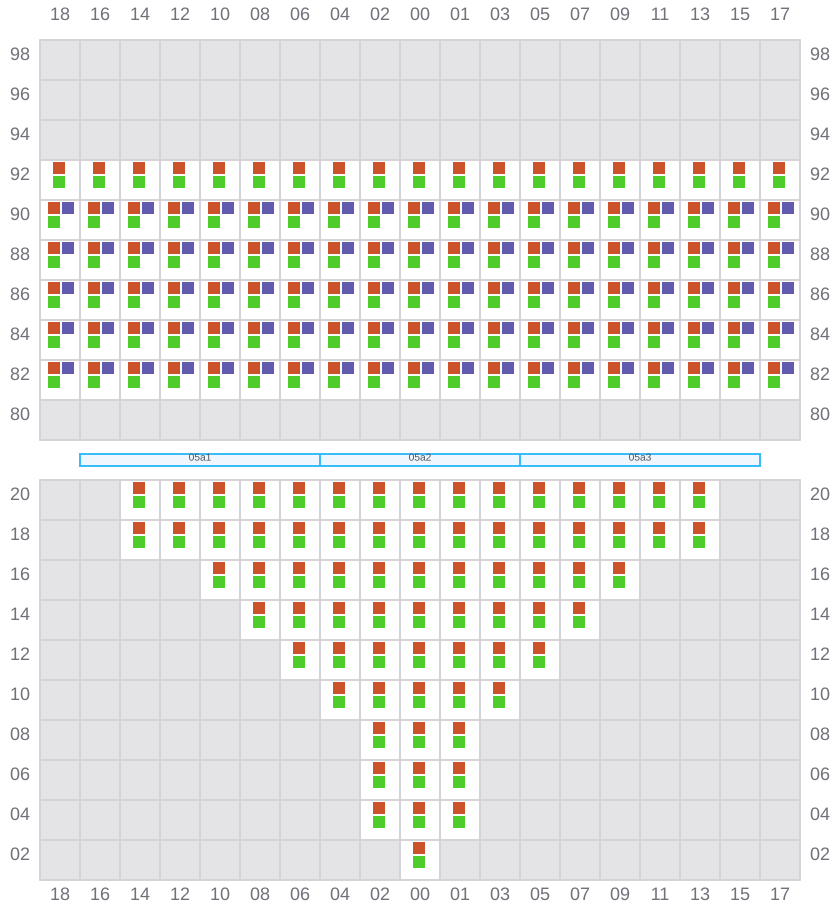

005 (006)
- →
![Bay 005 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b005.png?v=1687799200627)
007
- ←
- → / ?
![Bay 007 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b007.png?v=1687799200627)
009 (010)
- →
![Bay 009 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b009.png?v=1687799200627)
011
- ←
- → / ?
![Bay 011 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b011.png?v=1687799200627)

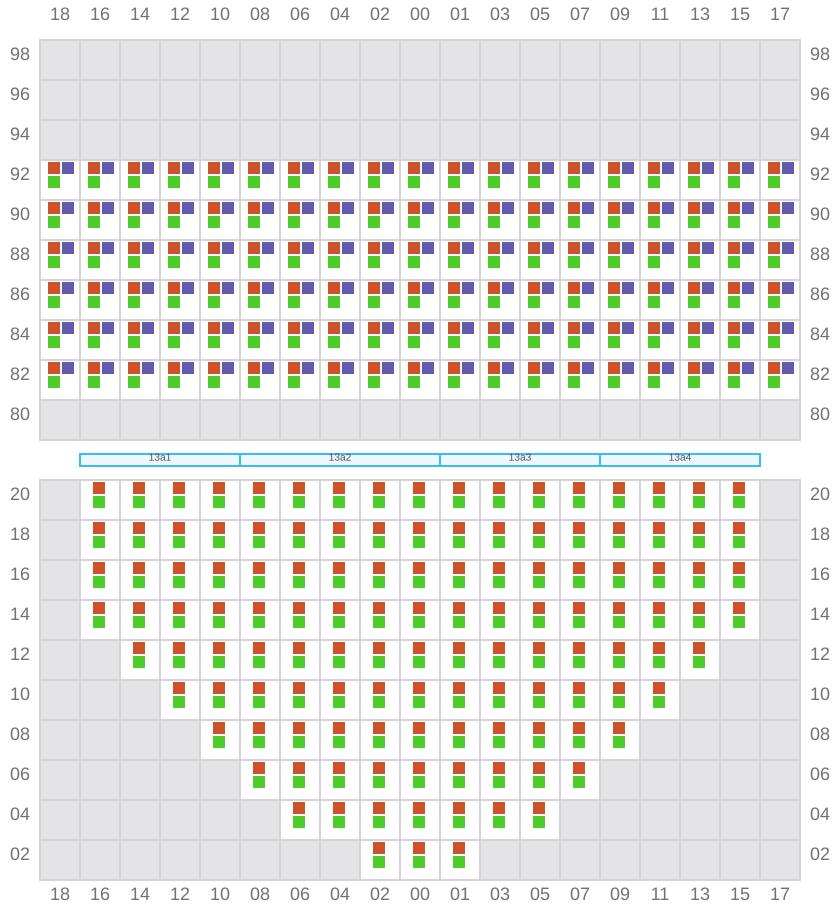

013 (014)
- →
![Bay 013 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b013.png?v=1687799200627)
015
- ←
- → / ?
![Bay 015 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b015.png?v=1687799200627)
017 (018)
- →
![Bay 017 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b017.png?v=1687799200627)
019
- ←
![Bay 019 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b019.png?v=1687799200627)
021 (022)
- →
![Bay 021 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b021.png?v=1687799200627)
023
- ←
![Bay 023 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b023.png?v=1687799200627)

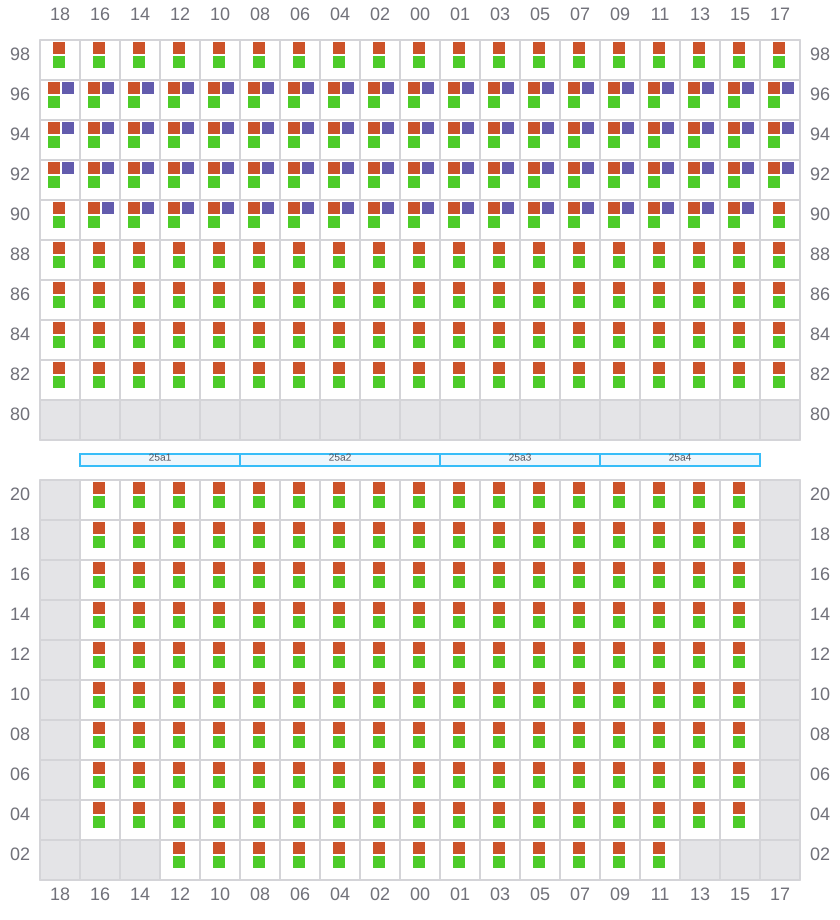

025 (026)
- →
![Bay 025 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b025.png?v=1687799200627)

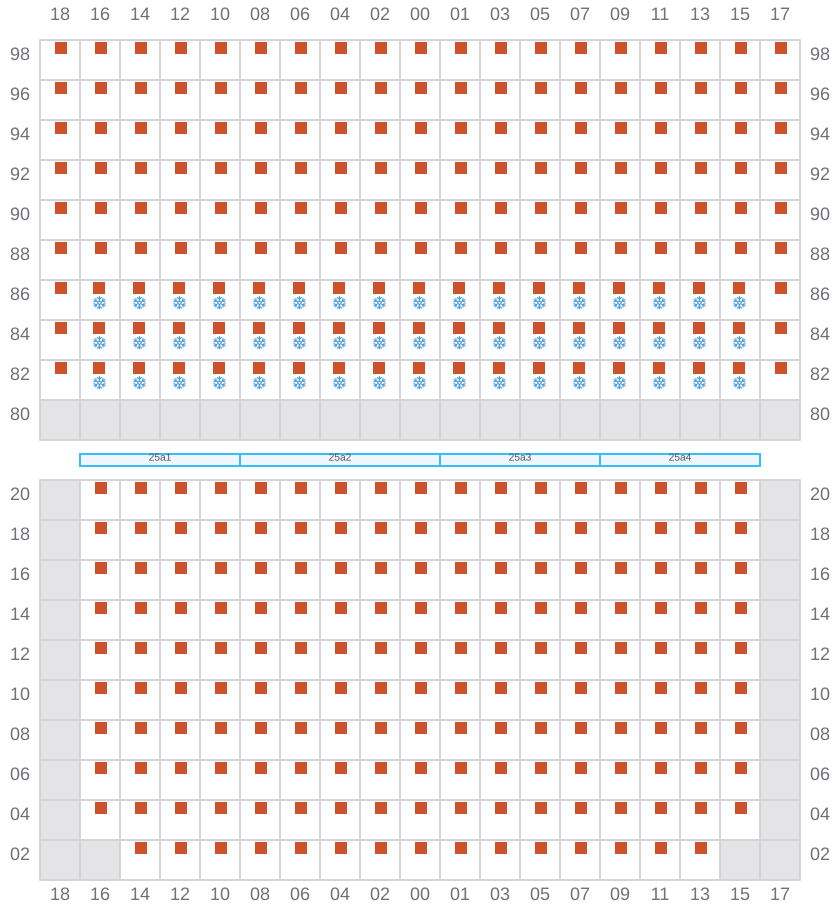

027
- ←
- → / ?
![Bay 027 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b027.png?v=1687799200627)
029 (030)
- →
![Bay 029 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b029.png?v=1687799200627)
031
- ←
- → / ?
![Bay 031 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b031.png?v=1687799200627)
033 (034)
- →
![Bay 033 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b033.png?v=1687799200627)
035
- ←
- → / ?
![Bay 035 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b035.png?v=1687799200627)
037 (038)
- →
![Bay 037 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b037.png?v=1687799200627)
039
- ←
- → / ?
![Bay 039 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b039.png?v=1687799200627)
041 (042)
- →
![Bay 041 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b041.png?v=1687799200627)
043
- ←
- → / ?
![Bay 043 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b043.png?v=1687799200627)

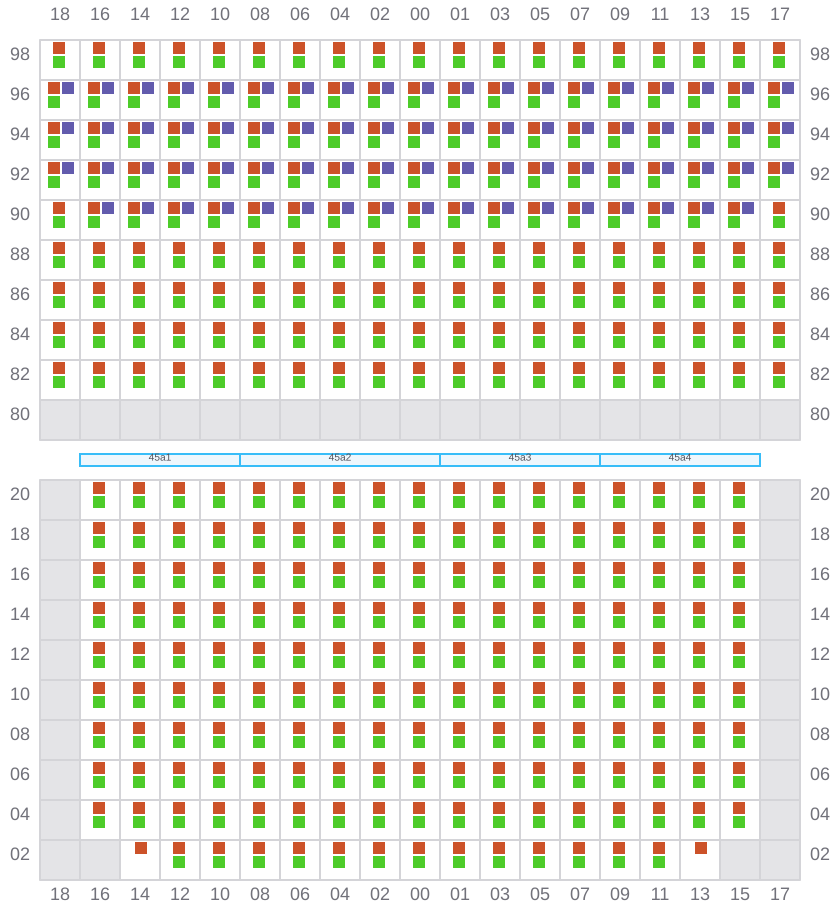

045 (046)
- →
![Bay 045 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b045.png?v=1687799200627)

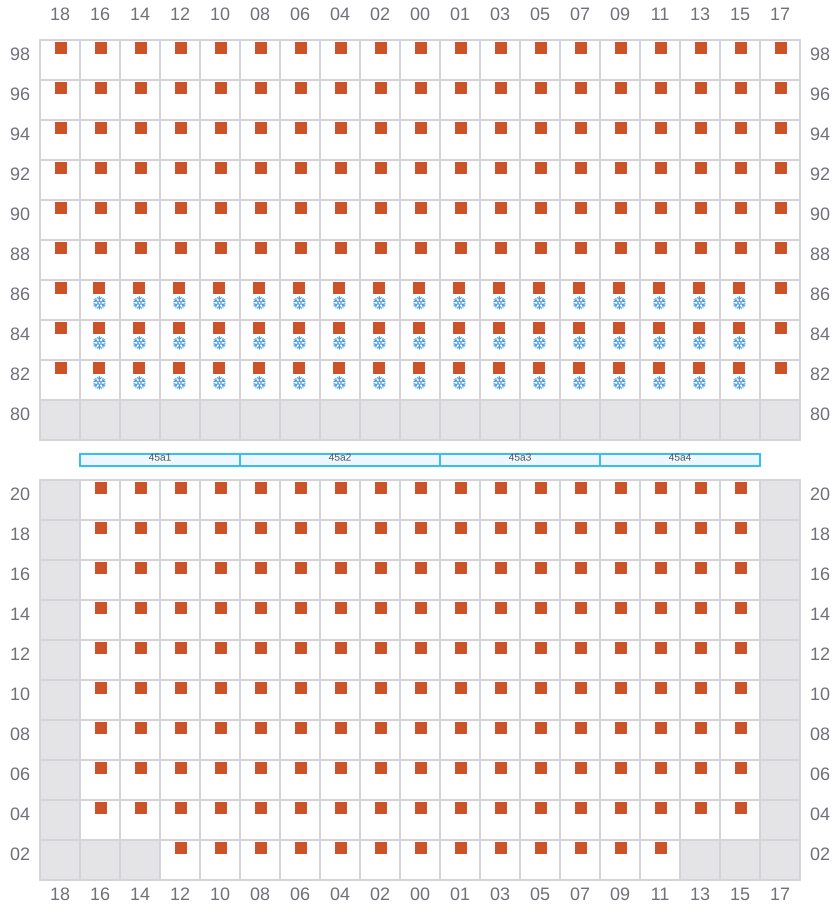

047
- ←
- → / ?
![Bay 047 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b047.png?v=1687799200627)
049 (050)
- →
![Bay 049 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b049.png?v=1687799200627)

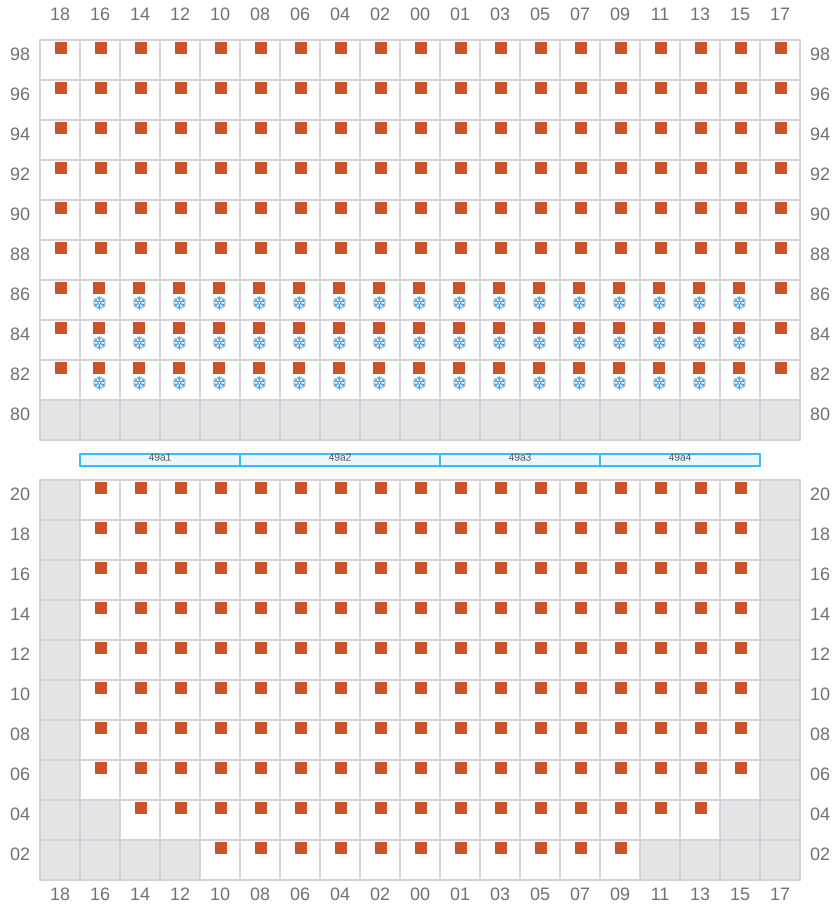

051
- ←
- → / ?
![Bay 051 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b051.png?v=1687799200627)
053 (054)
- →
![Bay 053 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b053.png?v=1687799200627)
055
- ←
- → / ?
![Bay 055 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b055.png?v=1687799200627)
057
![Bay 057 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b057.png?v=1687799200627)
059 (060)
- →
![Bay 059 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b059.png?v=1687799200627)

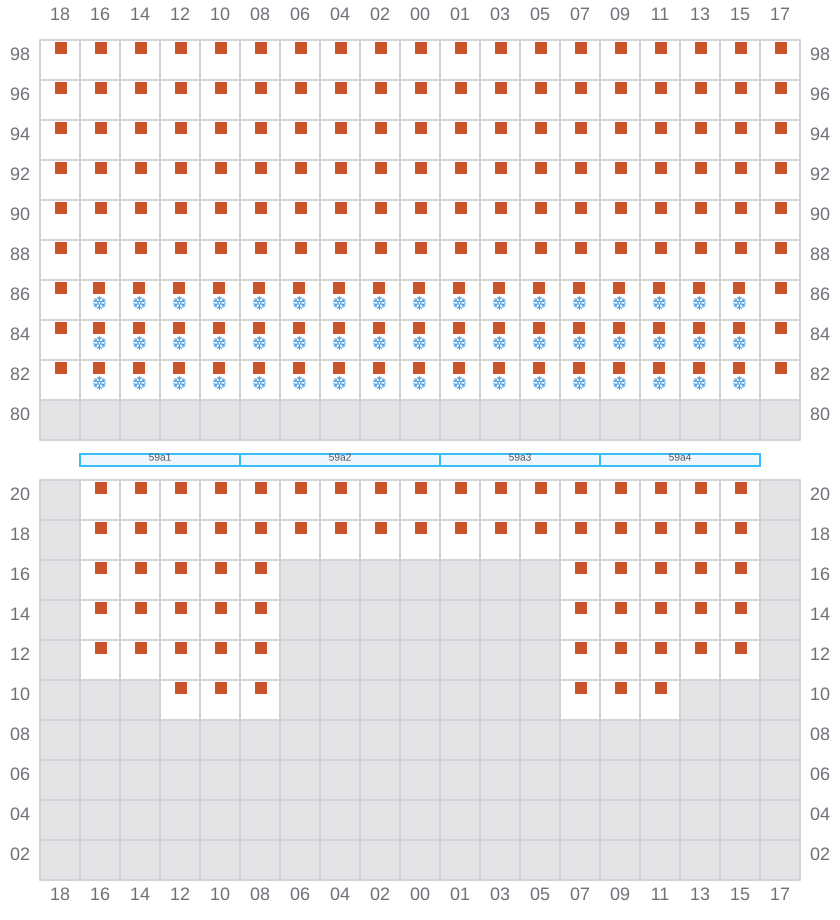

061
- ←
- → / ?
![Bay 061 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b061.png?v=1687799200627)
063 (064)
- →
![Bay 063 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b063.png?v=1687799200627)
065
- ←
- → / ?
![Bay 065 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b065.png?v=1687799200627)
067 (068)
- →
![Bay 067 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b067.png?v=1687799200627)

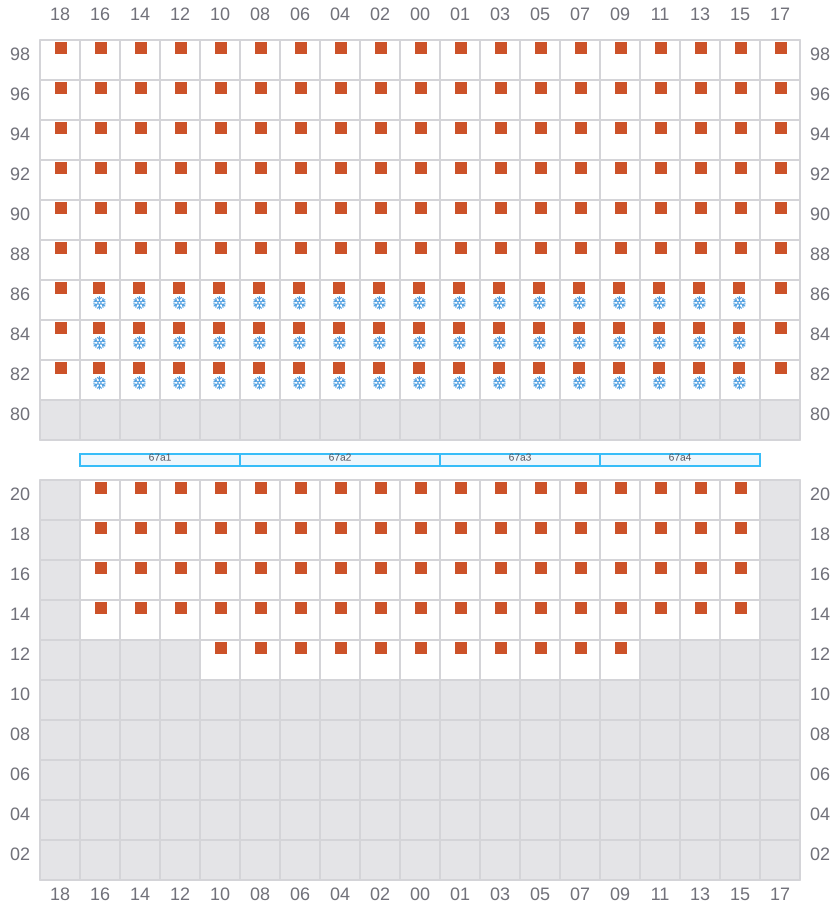

069
- ←
- → / ?
![Bay 069 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b069.png?v=1687799200627)
071 (072)
- → / ?
![Bay 071 view and slots of HYUNDAI NEPTUNE](/vessel-images/aaef0fcb-3d69-4fc0-8afd-4d1470345850-b071.png?v=1687799200627)
