HYUNDAI PARAMOUNT
9625542 | D5DQ8 | HMM by *********************** Last update: Tue Feb 04 2025

General Info

Ship Name:HYUNDAI PARAMOUNT
IMO Code:9625542
Call Sign:D5DQ8
Line Operator:HMM
Class Name for Sister Ships:HHPM
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):242.00
LOA (Length Overall):255.40
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:057
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,071

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of HYUNDAI PARAMOUNT

Hatch-Covers View

Deck view of HYUNDAI PARAMOUNT

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →
  • →
Bay 001 view and slots of HYUNDAI PARAMOUNT

003

  • ←
  • → / ?
  • →
Bay 003 view and slots of HYUNDAI PARAMOUNT

005 (006)

  • →
  • →
Bay 005 view and slots of HYUNDAI PARAMOUNT

007

  • ←
  • → / ?
  • →
Bay 007 view and slots of HYUNDAI PARAMOUNT

009 (010)

  • →
  • →
Bay 009 view and slots of HYUNDAI PARAMOUNT

011

  • ←
  • →
  • →
Bay 011 view and slots of HYUNDAI PARAMOUNT

013 (014)

  • →
  • →
Bay 013 view and slots of HYUNDAI PARAMOUNT

015

  • ←
  • →
  • →
Bay 015 view and slots of HYUNDAI PARAMOUNT

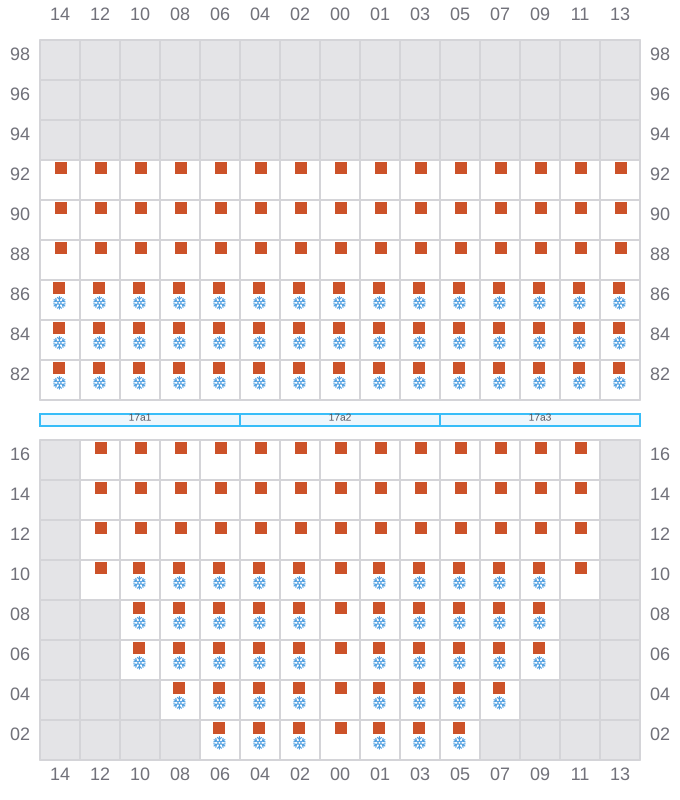

017 (018)

  • →
  • →
Bay 017 view and slots of HYUNDAI PARAMOUNT

019

  • ←
  • →
  • →
Bay 019 view and slots of HYUNDAI PARAMOUNT

021 (022)

  • →
  • →
Bay 021 view and slots of HYUNDAI PARAMOUNT

023

  • ←
  • → / ?
  • →
Bay 023 view and slots of HYUNDAI PARAMOUNT

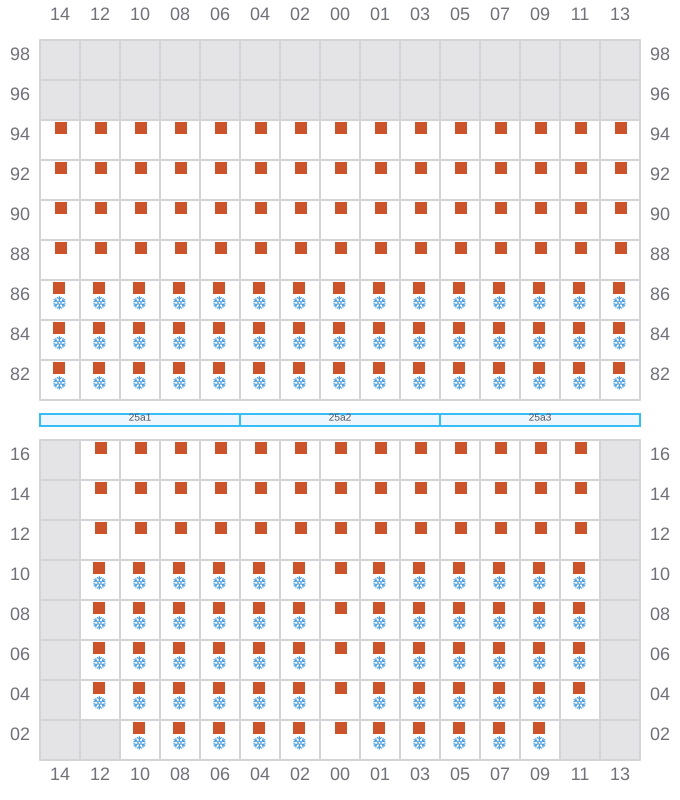

025 (026)

  • →
  • →
Bay 025 view and slots of HYUNDAI PARAMOUNT

027

  • ←
  • →
  • →
Bay 027 view and slots of HYUNDAI PARAMOUNT

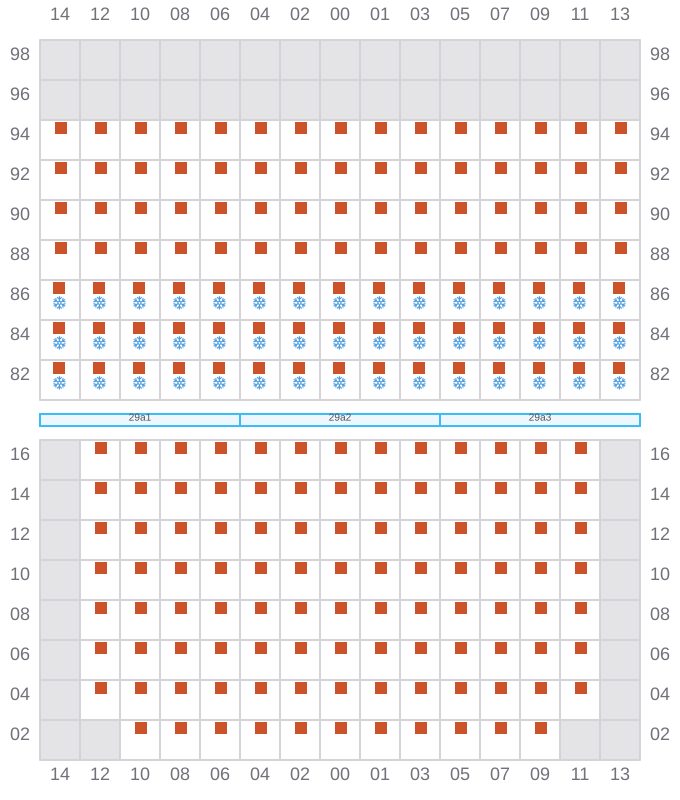

029 (030)

  • →
  • →
Bay 029 view and slots of HYUNDAI PARAMOUNT

031

  • ←
  • → / ?
  • →
Bay 031 view and slots of HYUNDAI PARAMOUNT

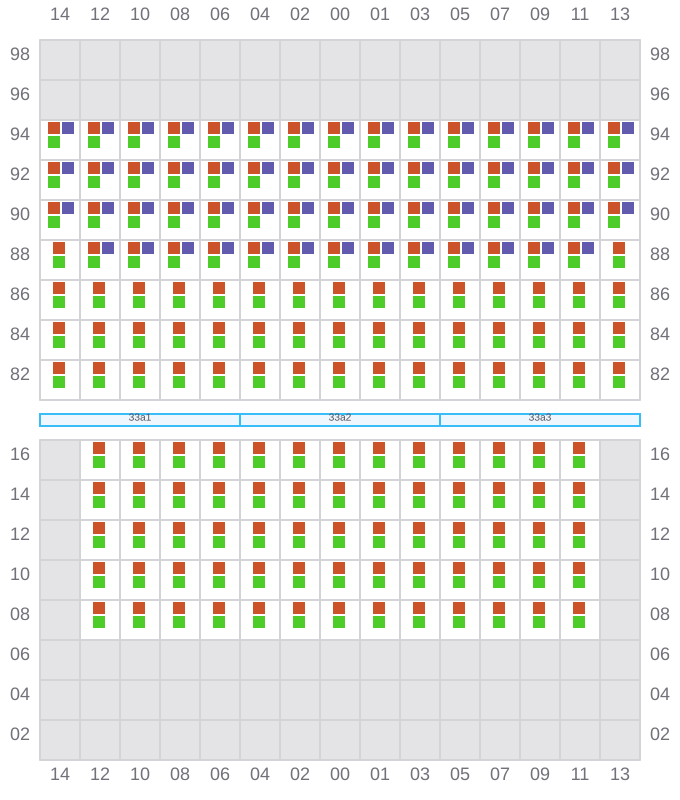

033 (034)

  • →
  • →
Bay 033 view and slots of HYUNDAI PARAMOUNT

035

  • ←
  • → / ?
  • →
Bay 035 view and slots of HYUNDAI PARAMOUNT

037 (038)

  • →
  • →
Bay 037 view and slots of HYUNDAI PARAMOUNT

039

  • ←
  • → / ?
  • →
Bay 039 view and slots of HYUNDAI PARAMOUNT

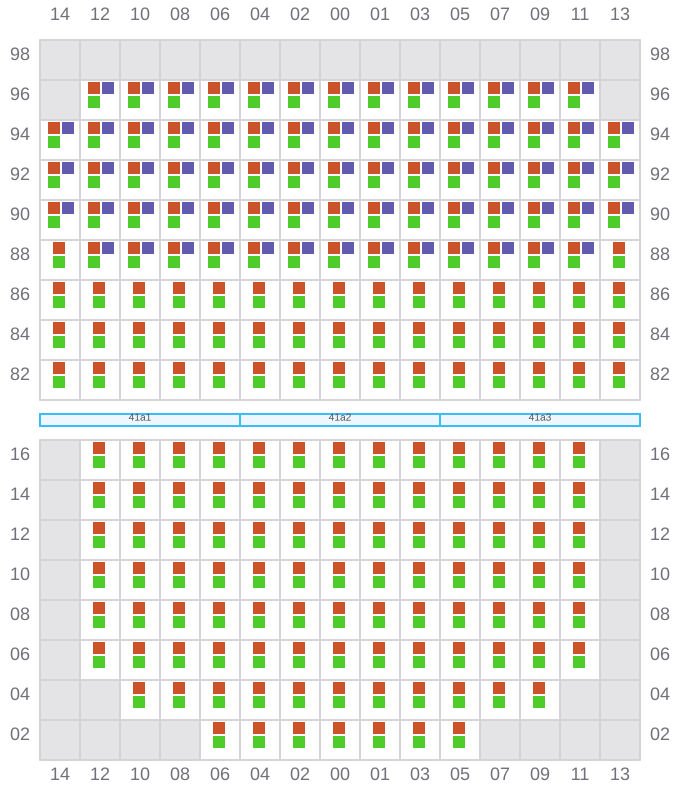

041 (042)

  • →
  • →
Bay 041 view and slots of HYUNDAI PARAMOUNT

043

  • ←
  • →
  • →
Bay 043 view and slots of HYUNDAI PARAMOUNT

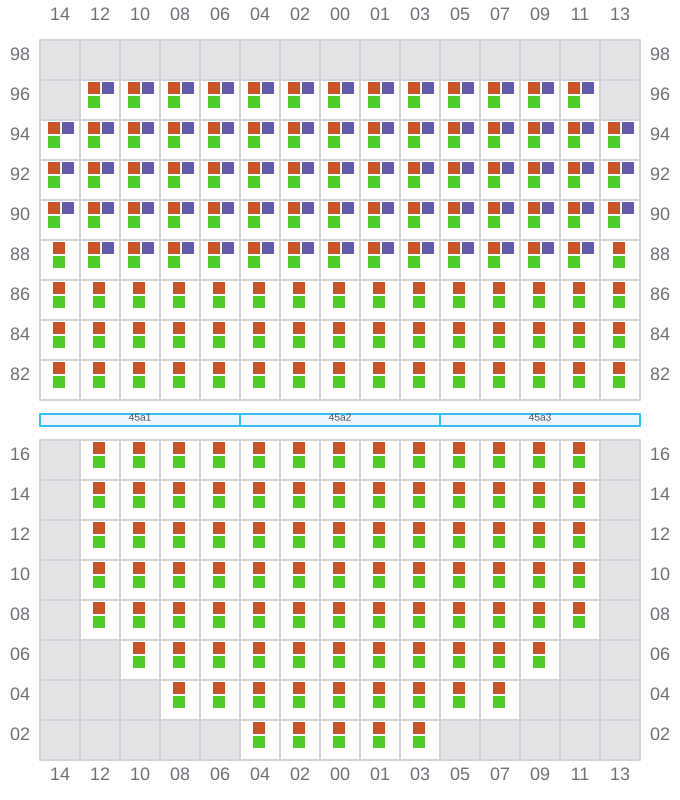

045 (046)

  • →
  • →
Bay 045 view and slots of HYUNDAI PARAMOUNT

047

  • ←
  • → / ?
  • →
Bay 047 view and slots of HYUNDAI PARAMOUNT

049 (050)

  • → / ?
  • ← / ?
  • → / ?
Bay 049 view and slots of HYUNDAI PARAMOUNT

051

Bay 051 view and slots of HYUNDAI PARAMOUNT

053 (054)

  • →
  • →
Bay 053 view and slots of HYUNDAI PARAMOUNT

055

  • ←
  • → / ?
  • →
Bay 055 view and slots of HYUNDAI PARAMOUNT

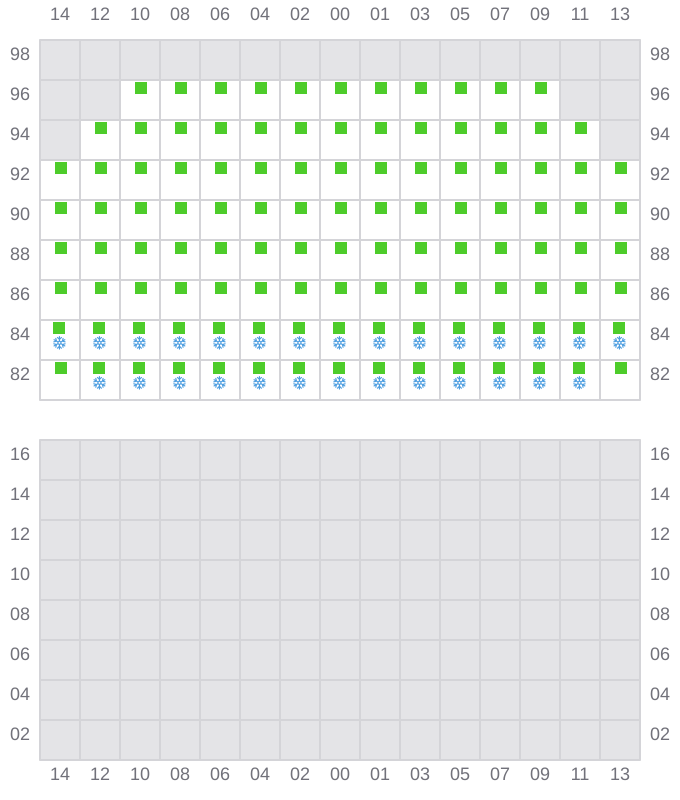

057 (058)

  • → / ?
  • ← / ?
  • → / ?
Bay 057 view and slots of HYUNDAI PARAMOUNT
