HYUNDAI PLUTO
9725160 | MEDZ8 | MAERSK by ************************** Last update: Sun Jun 11 2023
General Info
Ship Name:HYUNDAI PLUTO
IMO Code:9725160
Call Sign:MEDZ8
Line Operator:MAERSK
Class Name for Sister Ships:ZZZ
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:10,072
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View

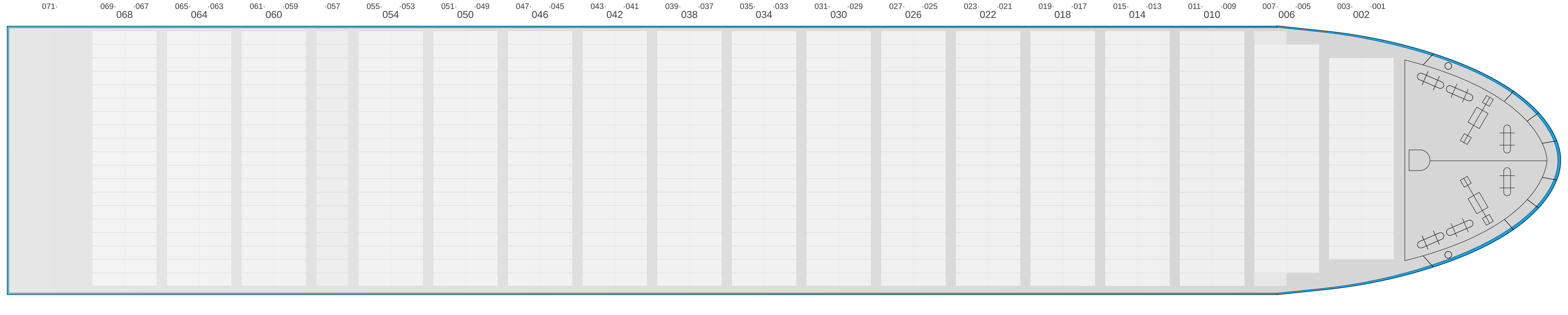

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

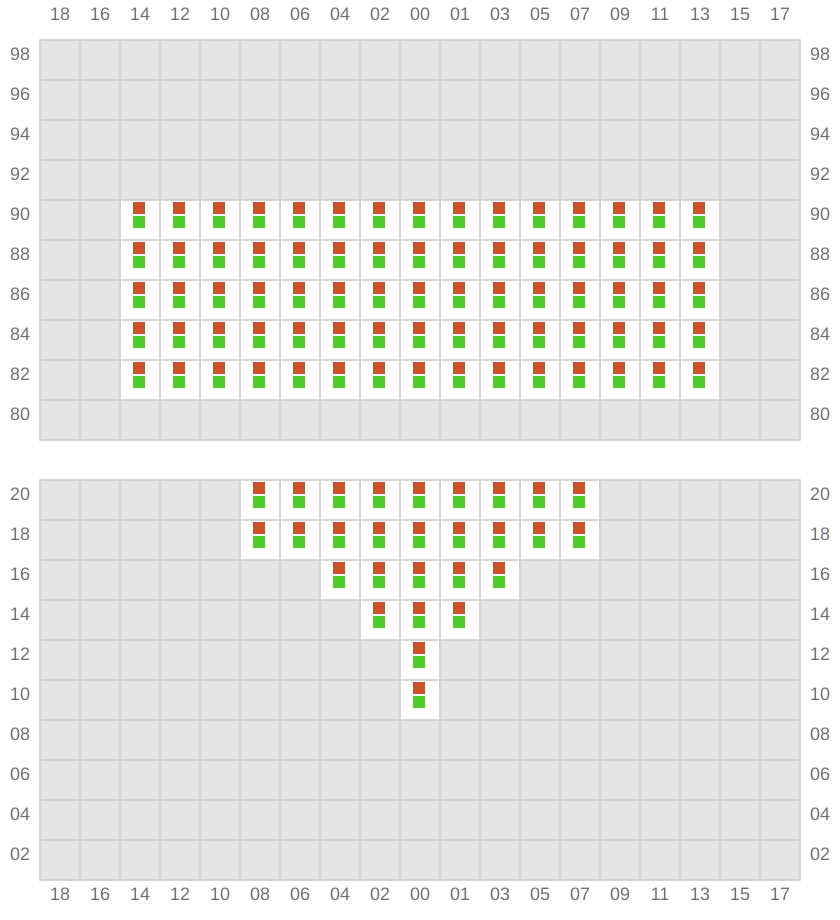

001 (002)
- →

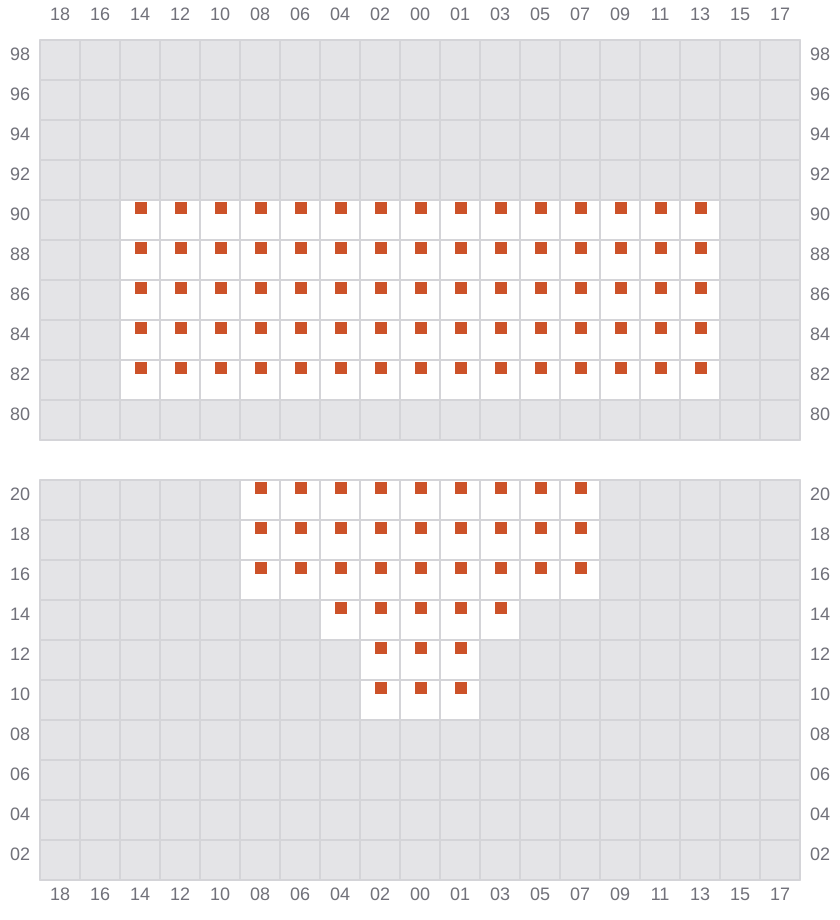

003
- ←

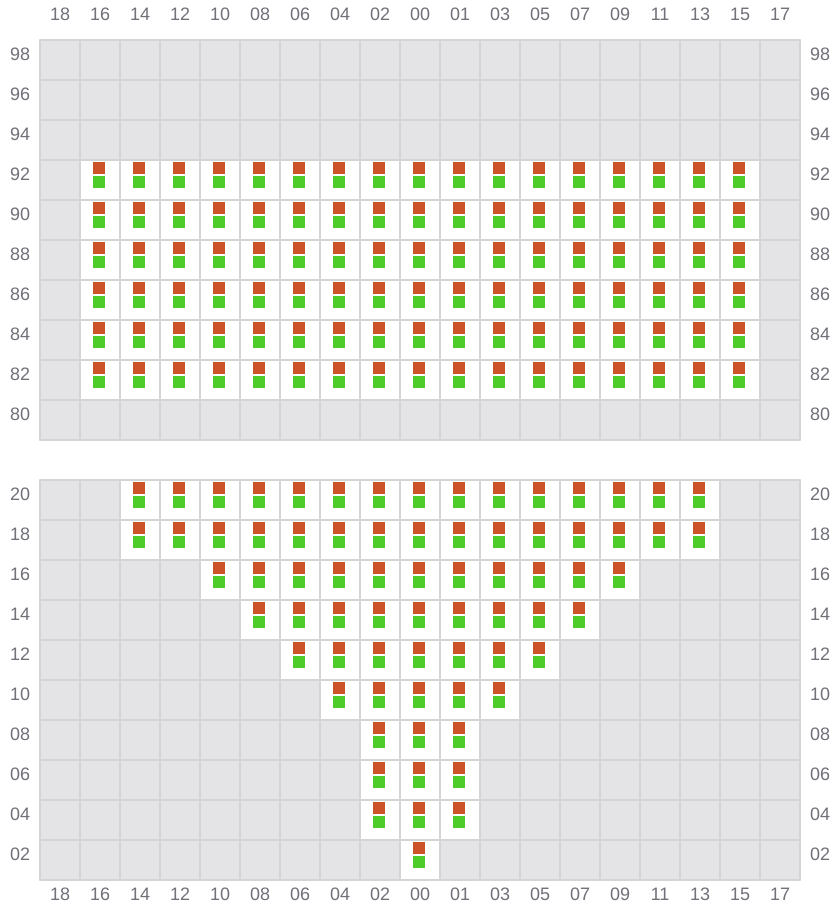

005 (006)
- →

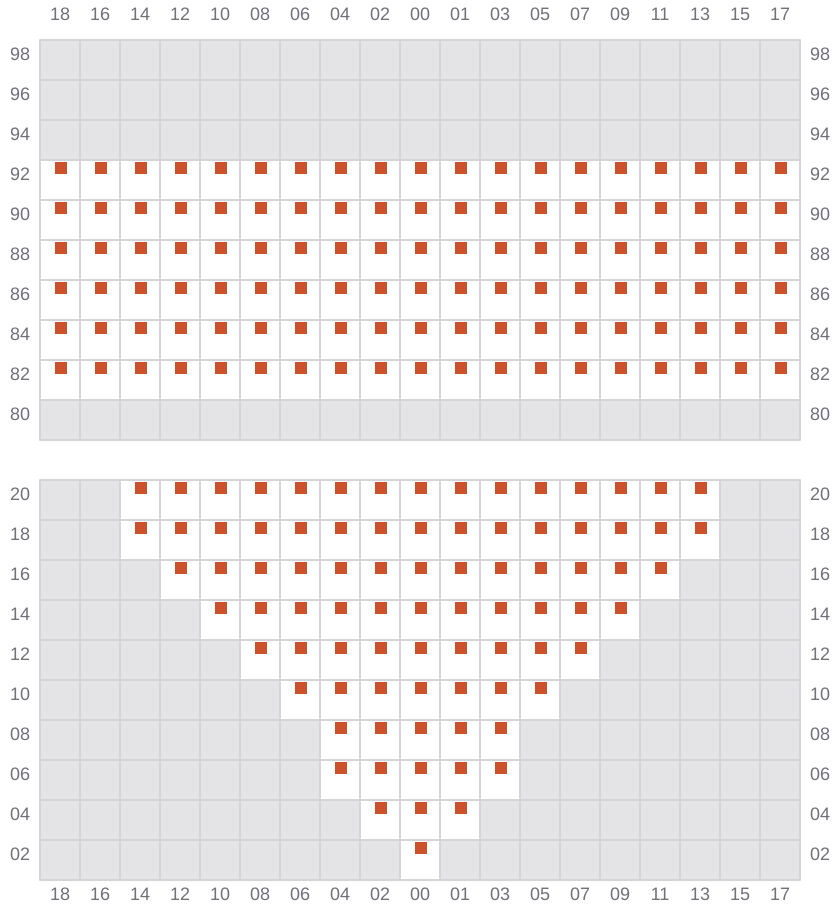

007
- ←
009 (010)
- →
011
- ←
013 (014)
- →

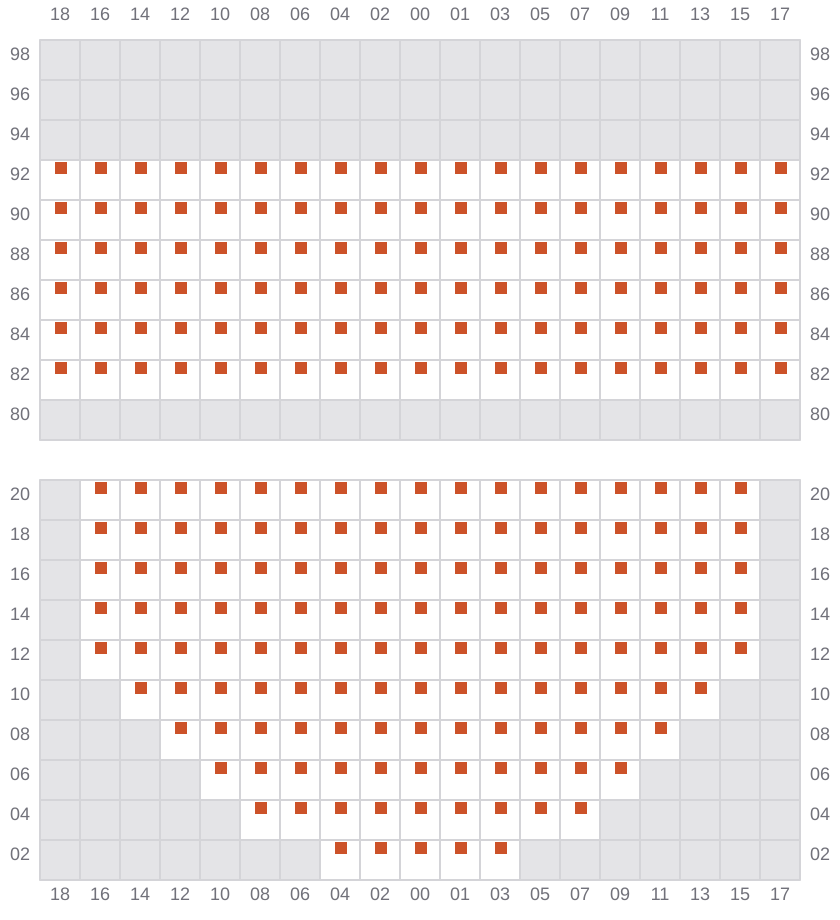

015
- ←

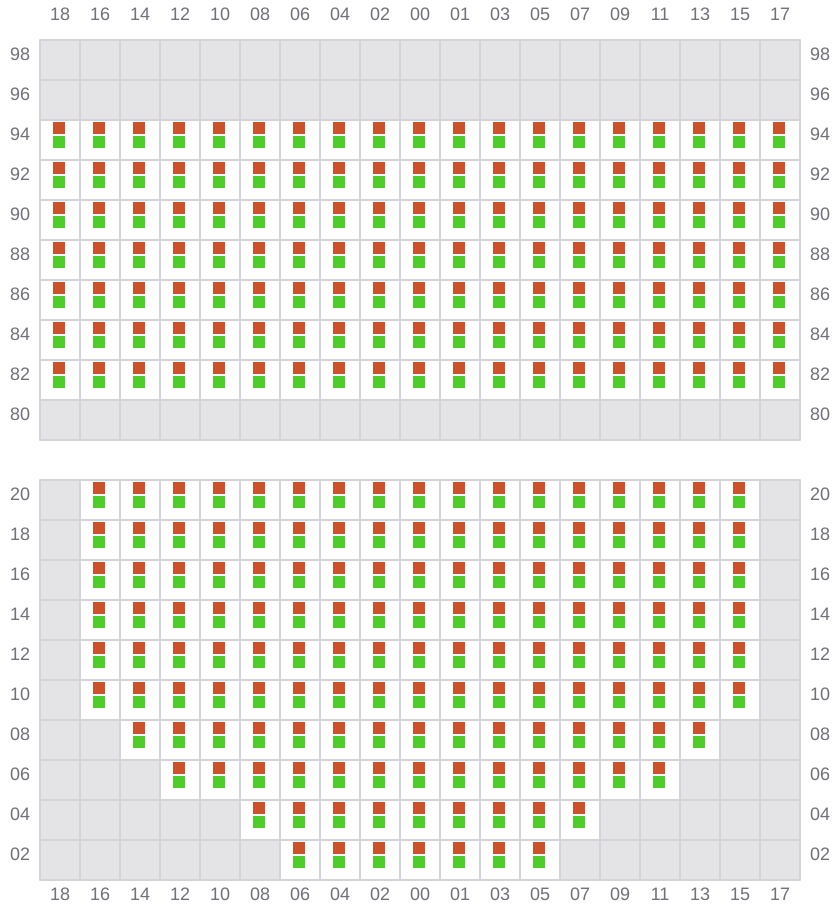

017 (018)
- →

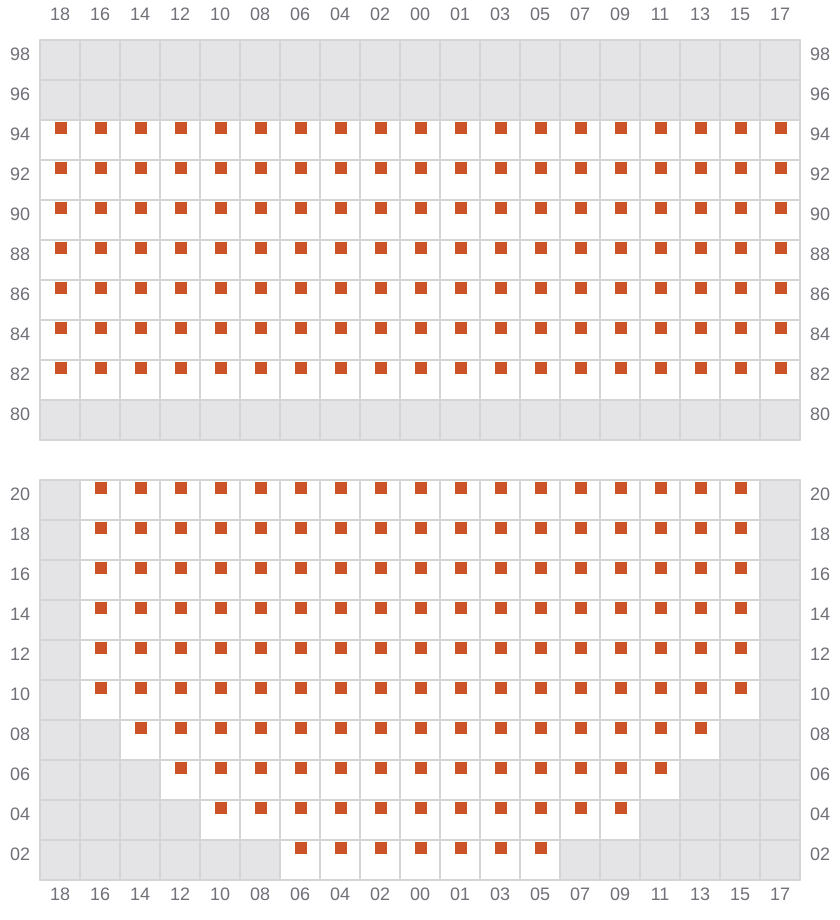

019
- ←
021 (022)
- →

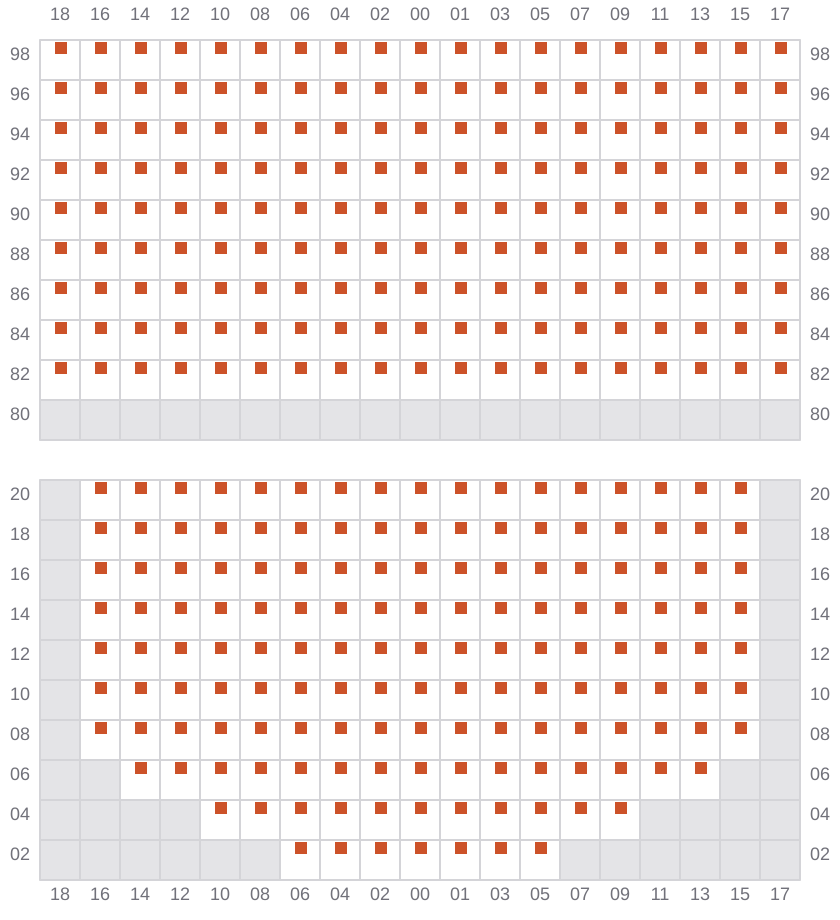

023
- ←
025 (026)
- →

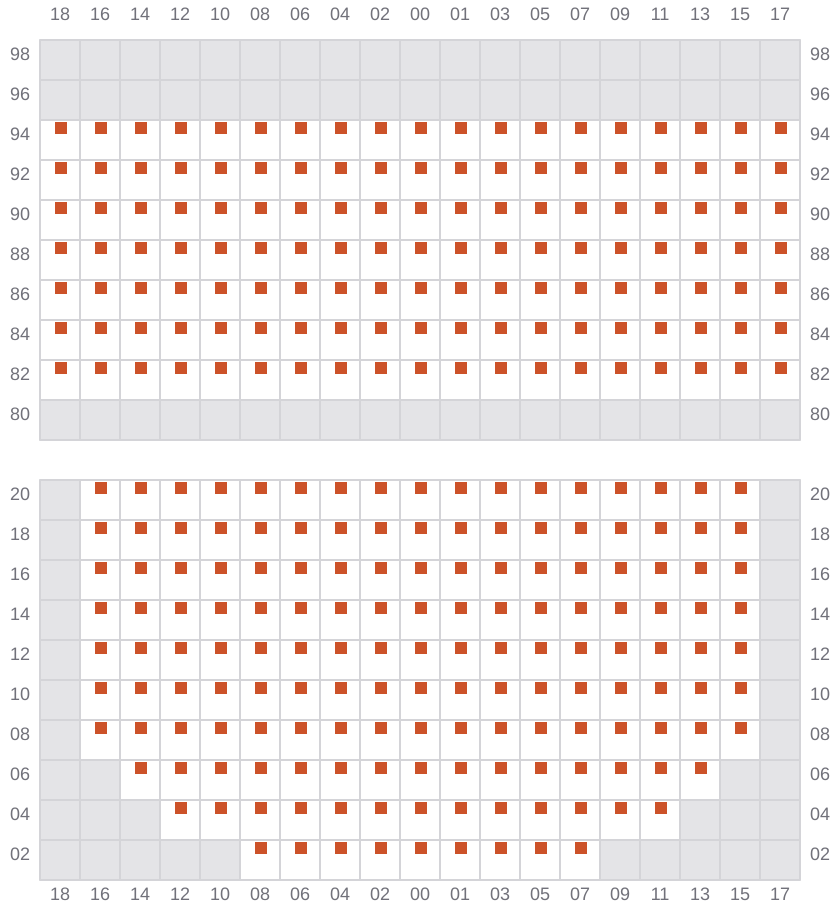

027
- ←

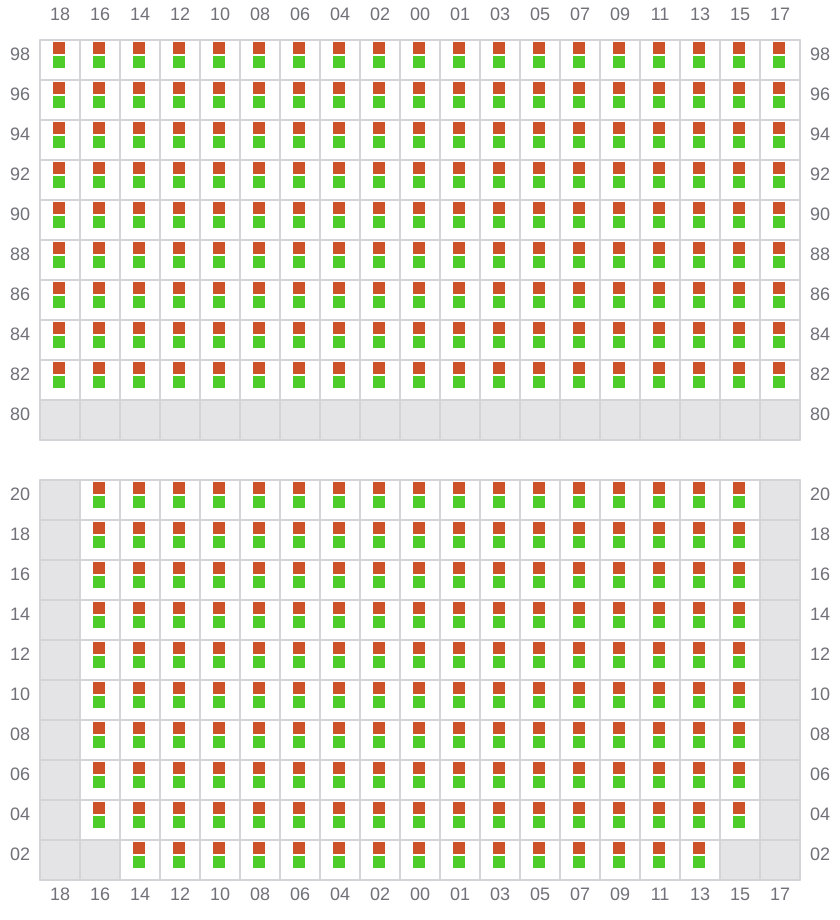

029 (030)
- →

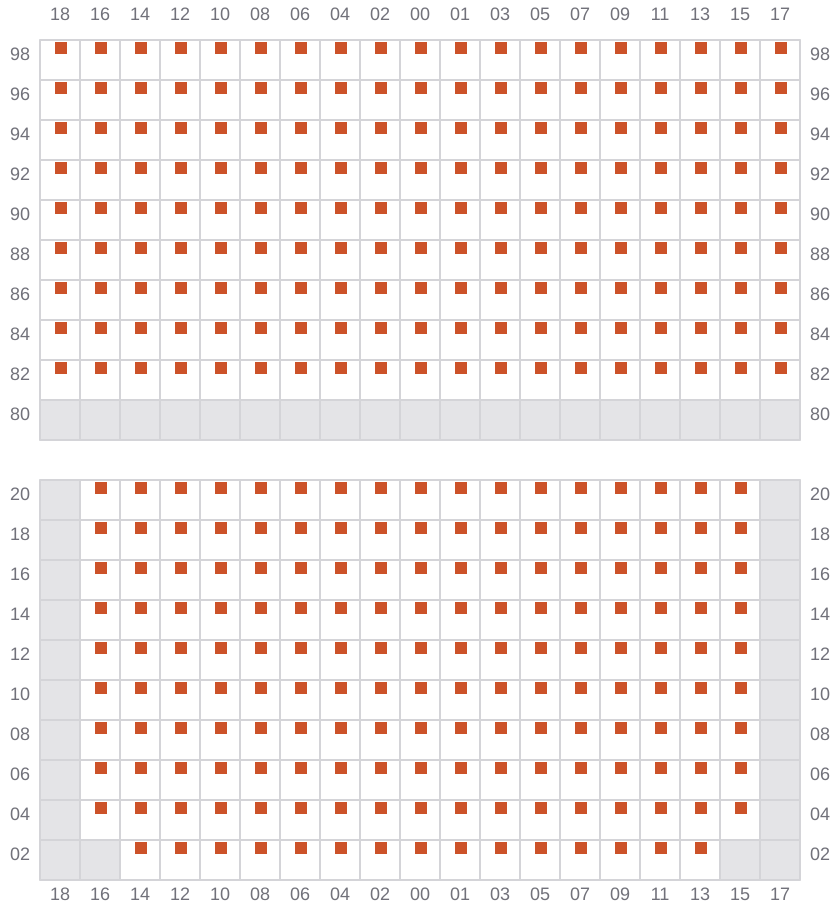

031
- ←
033 (034)
- →
035
- ←
037 (038)
- →
039
- ←
041 (042)
- →
043
- ←
045 (046)
- →

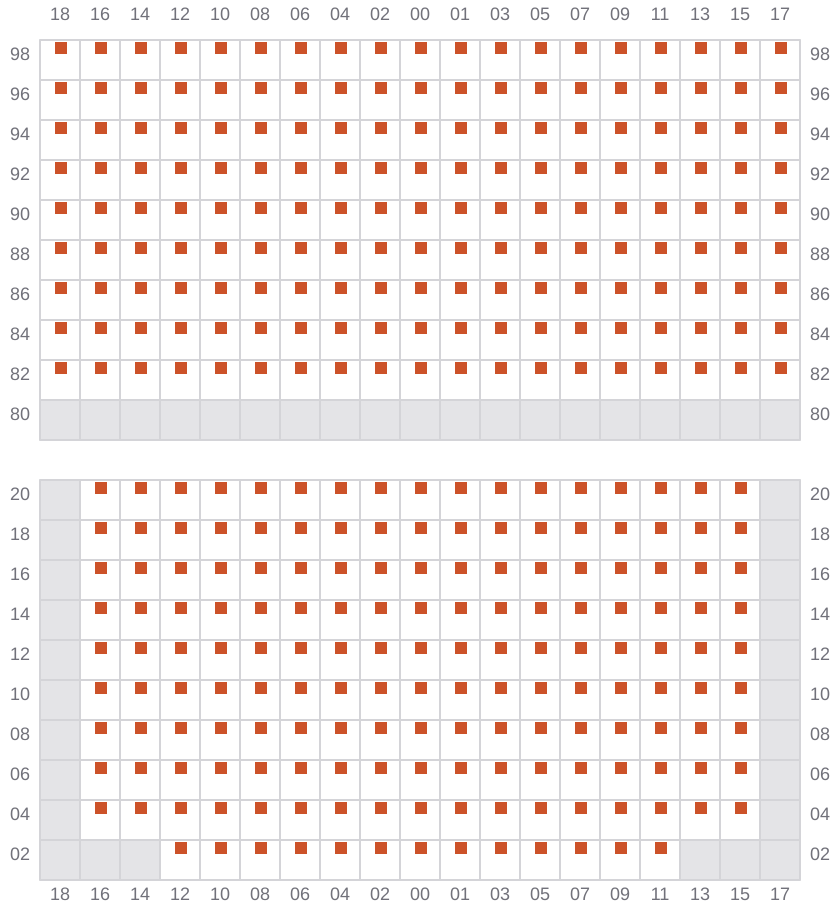

047
- ←

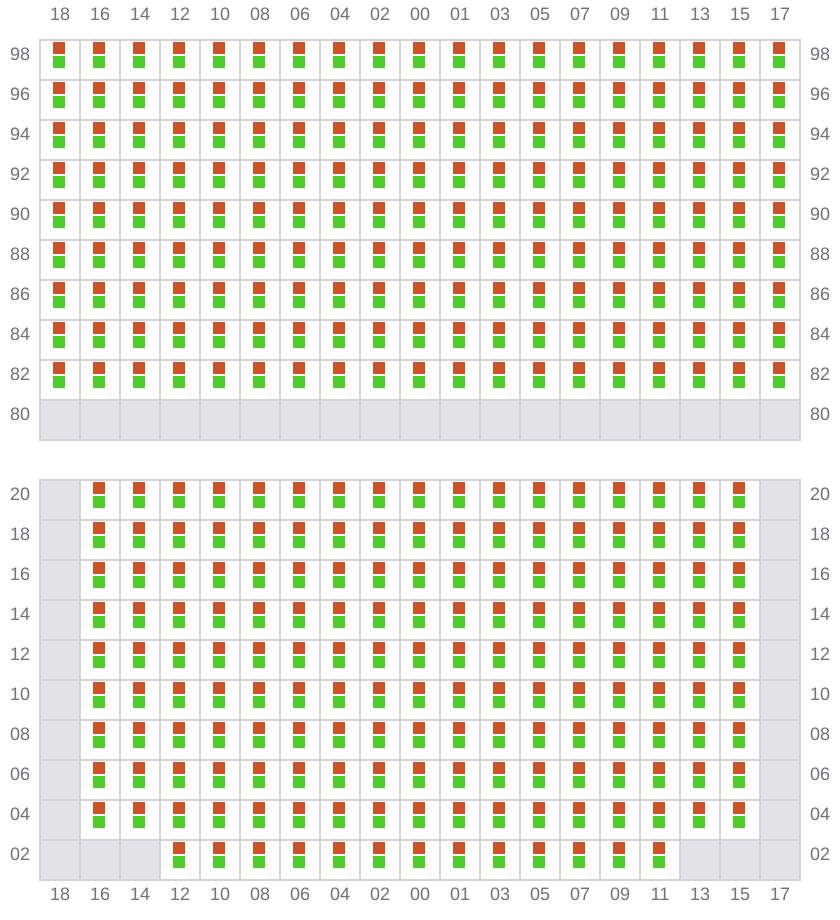

049 (050)
- →
051
- ←

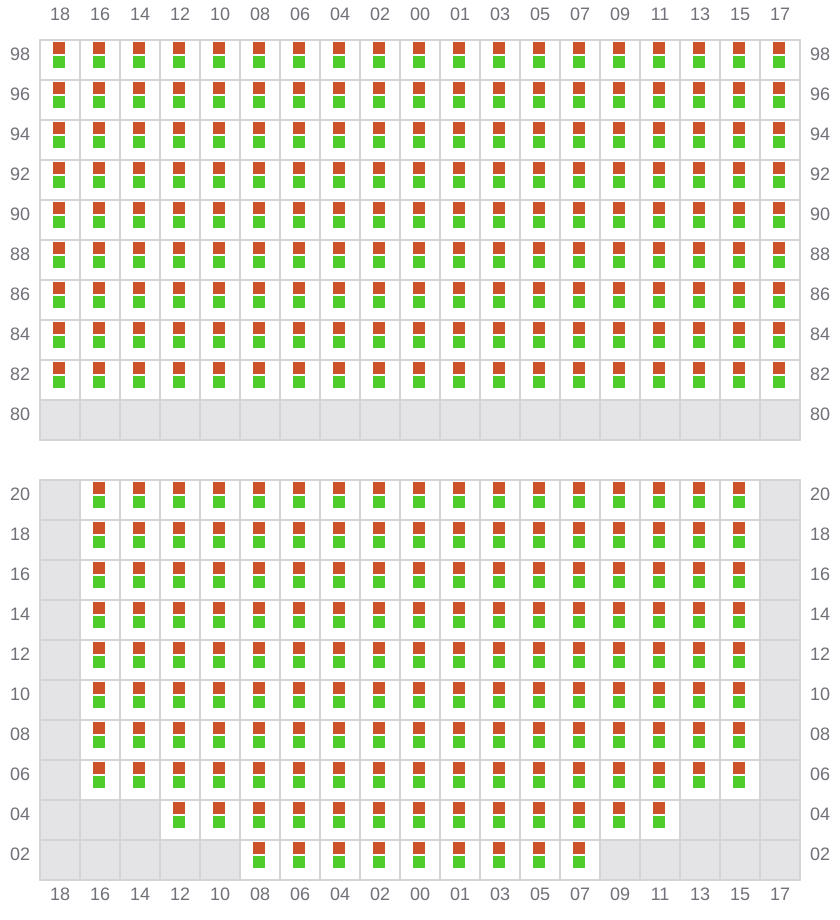

053 (054)
- →
055
- ←

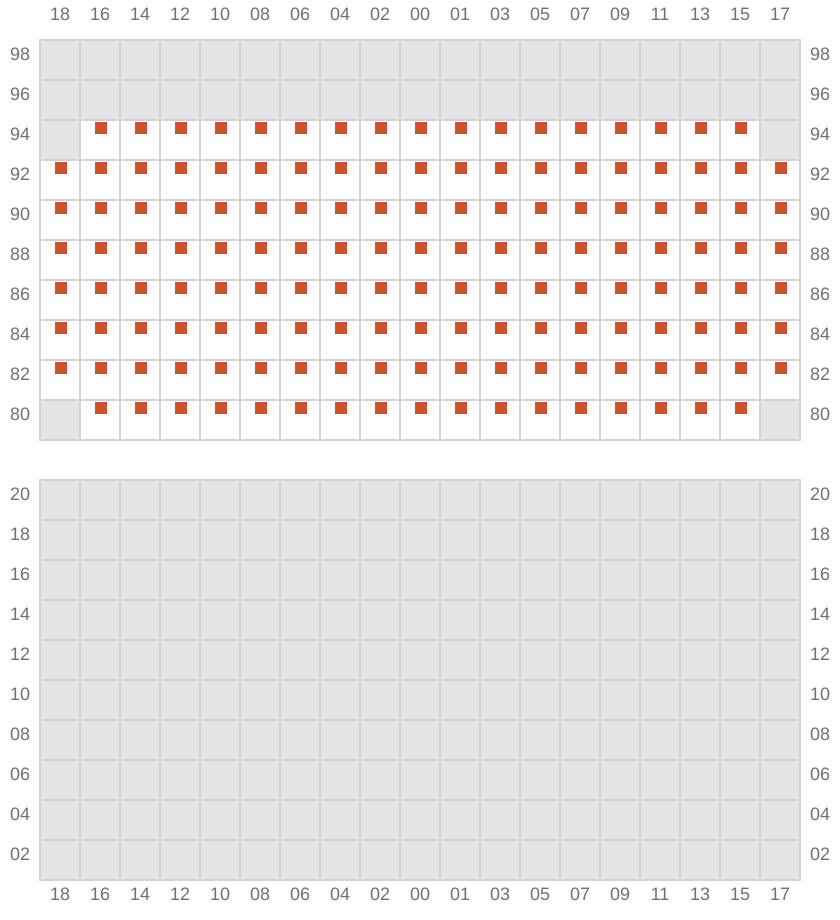

057
- → / ?

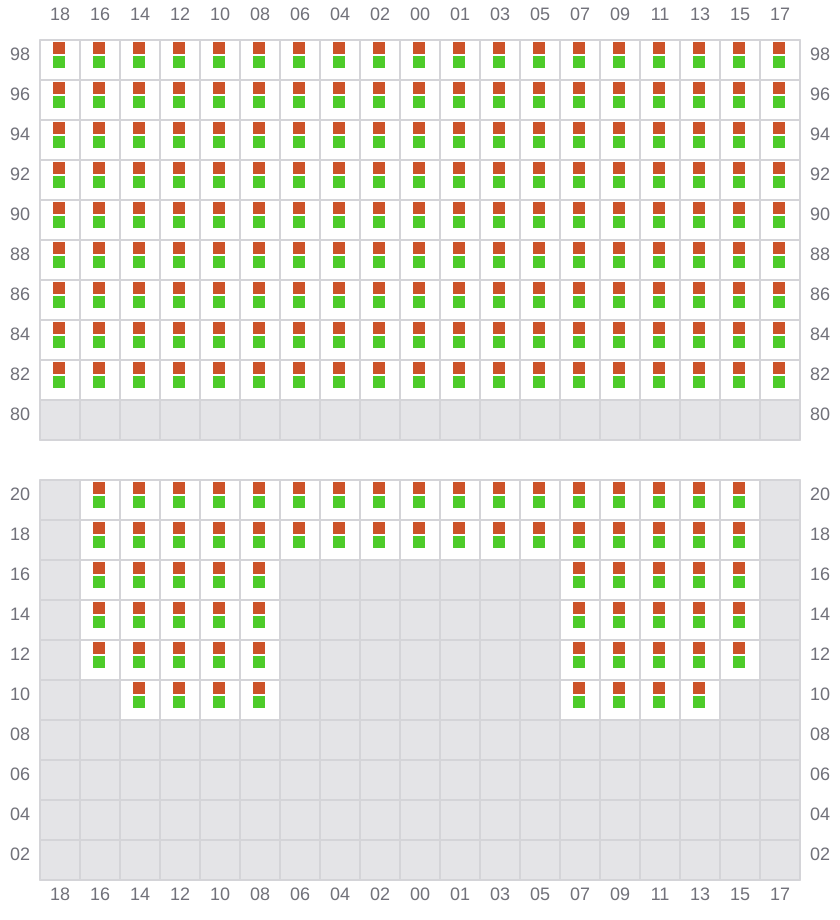

059 (060)
- →
061
- ←

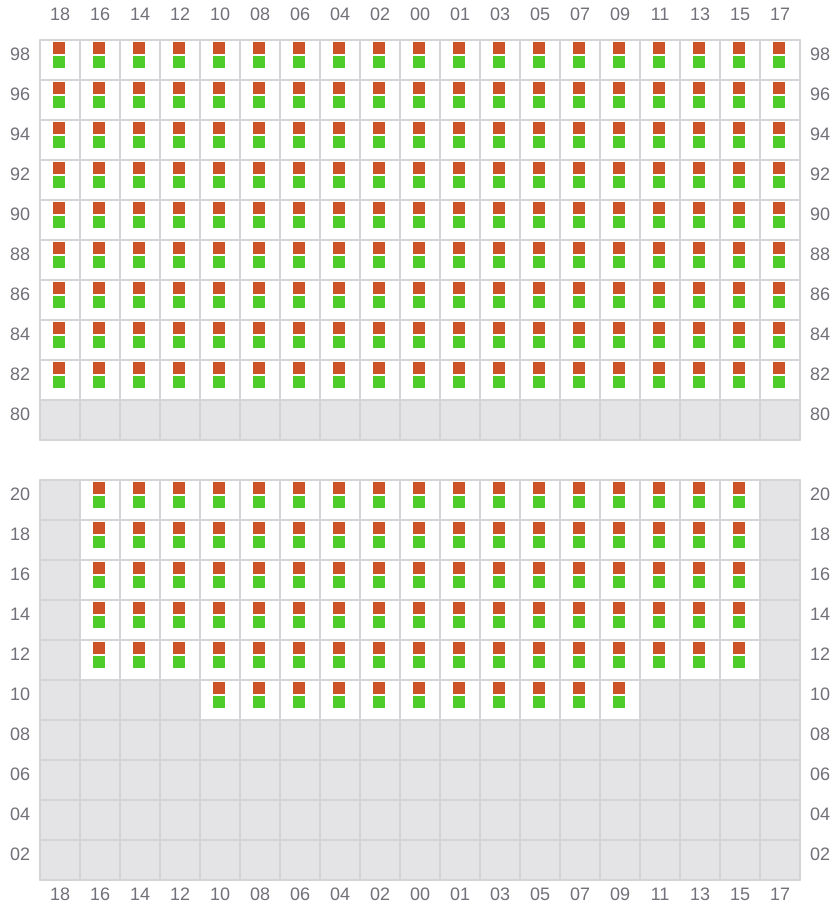

063 (064)
- →

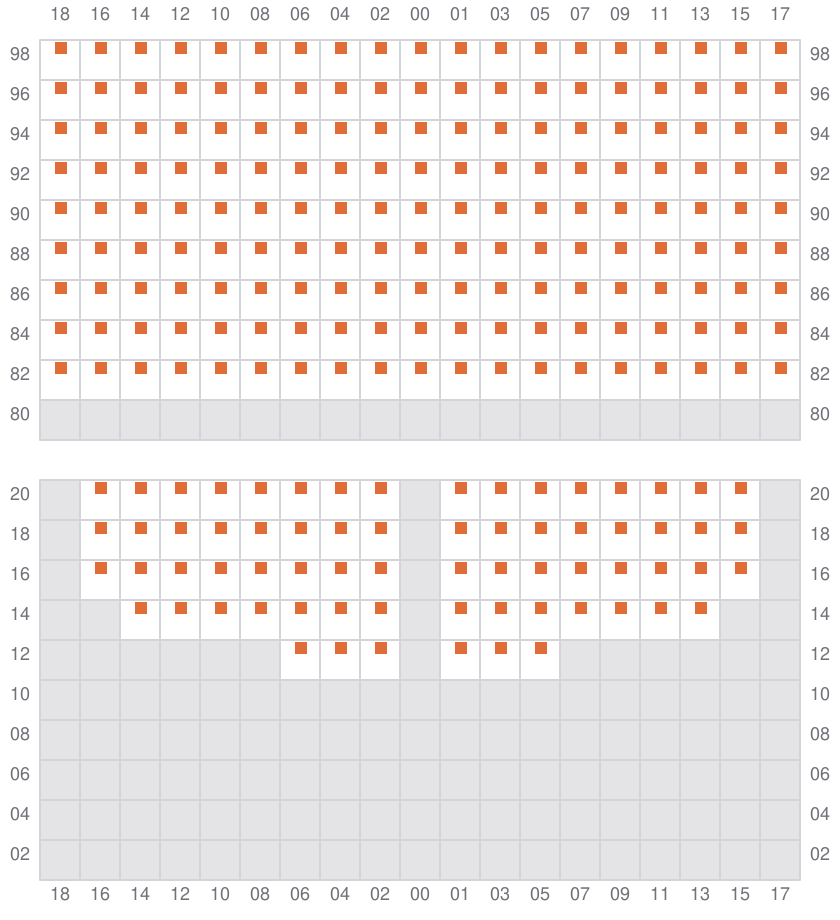

065
- ←
067 (068)
- →

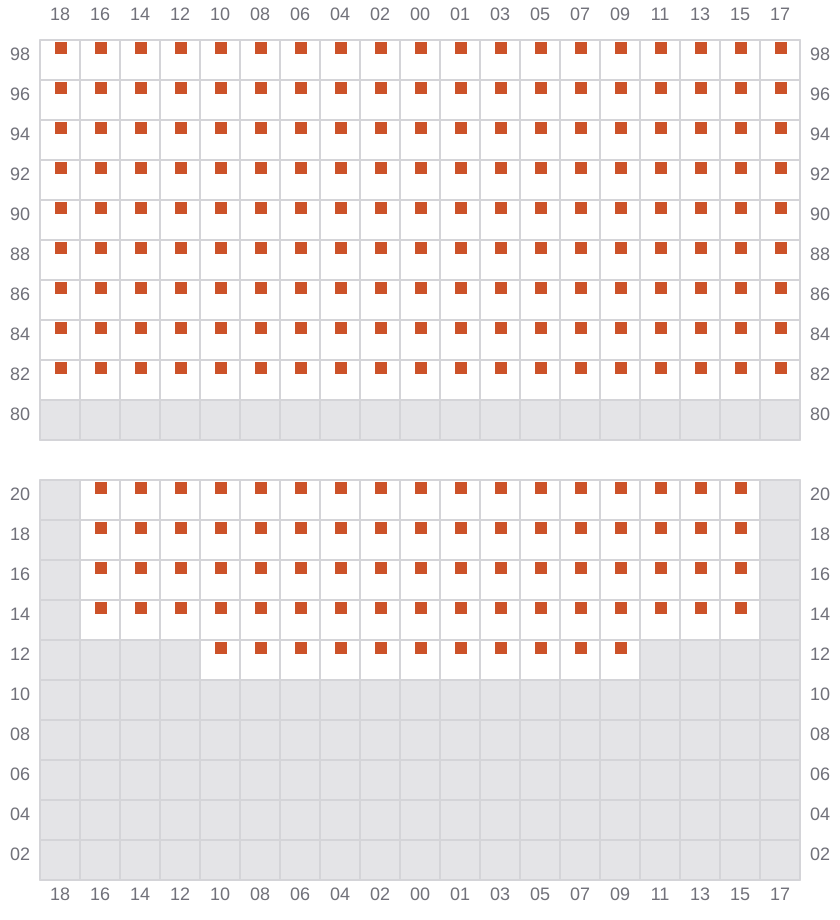

069
- ←
071 (070)
- ← / ?
