HYUNDAI PRESTIGE
9625528 | D5CX8 | HMM by *********************** Last update: Tue Feb 04 2025

General Info

Ship Name:HYUNDAI PRESTIGE
IMO Code:9625528
Call Sign:D5CX8
Line Operator:HMM
Class Name for Sister Ships:HHPR
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):242.00
LOA (Length Overall):255.40
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:059
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,023

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of HYUNDAI PRESTIGE

Hatch-Covers View

Deck view of HYUNDAI PRESTIGE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • →

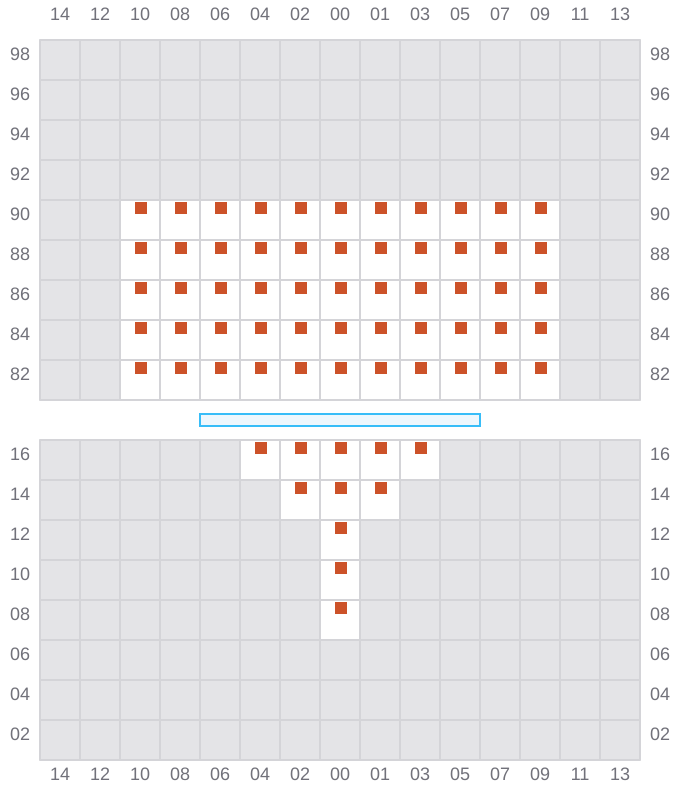

Bay 001 view and slots of HYUNDAI PRESTIGE

003 (002)

  • ←
  • → / ?
  • →

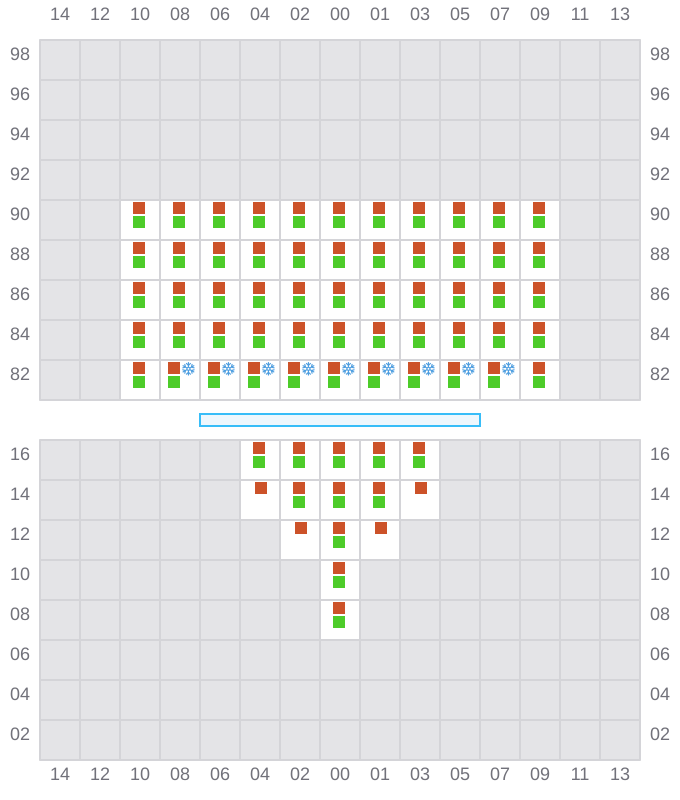

Bay 003 view and slots of HYUNDAI PRESTIGE

005

  • →
  • →

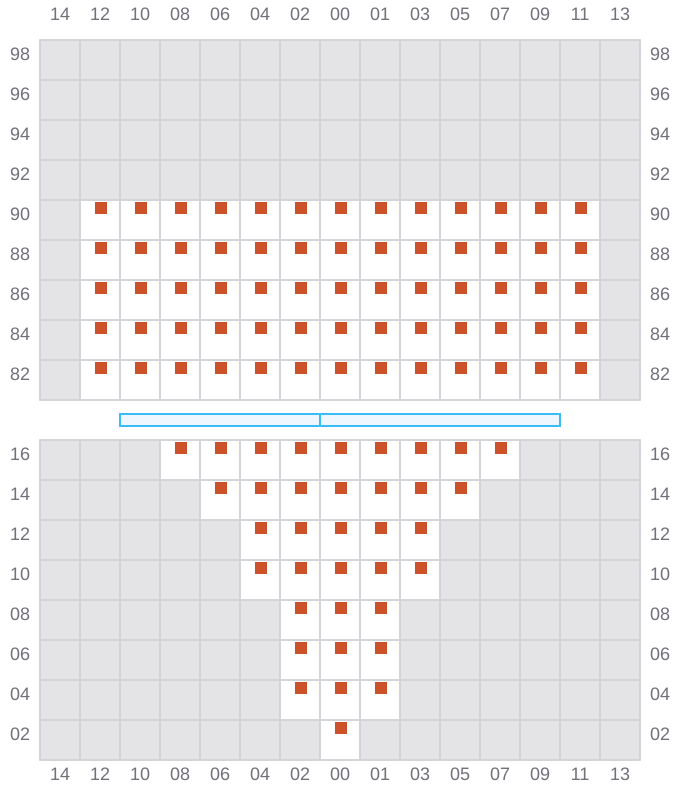

Bay 005 view and slots of HYUNDAI PRESTIGE

007 (006)

  • ←
  • → / ?
  • →

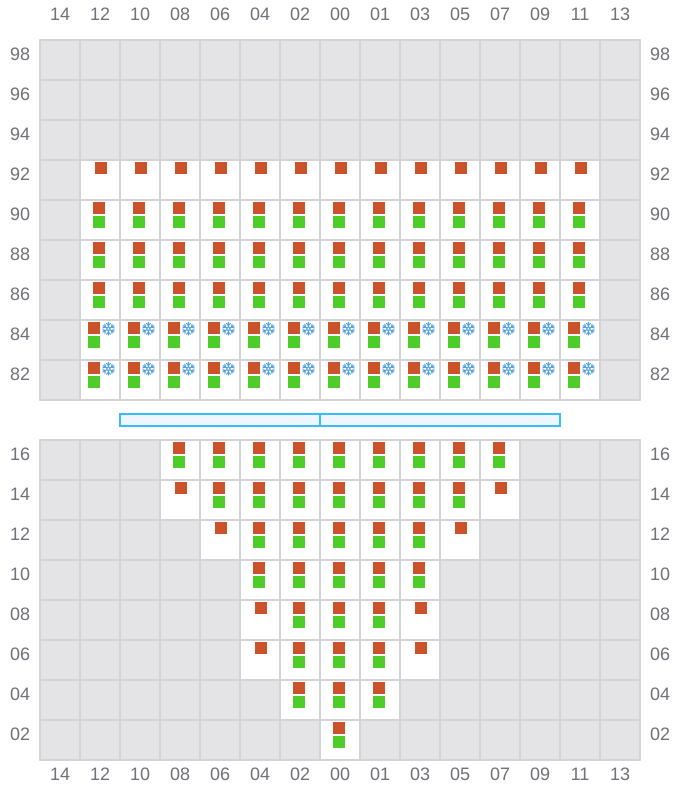

Bay 007 view and slots of HYUNDAI PRESTIGE

009

  • →
  • →

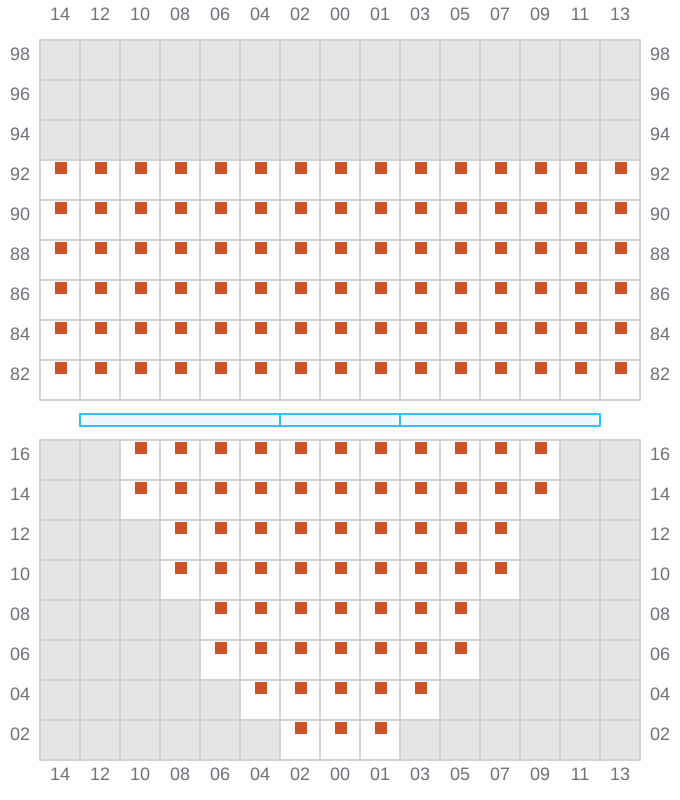

Bay 009 view and slots of HYUNDAI PRESTIGE

011 (010)

  • ←
  • →
  • →

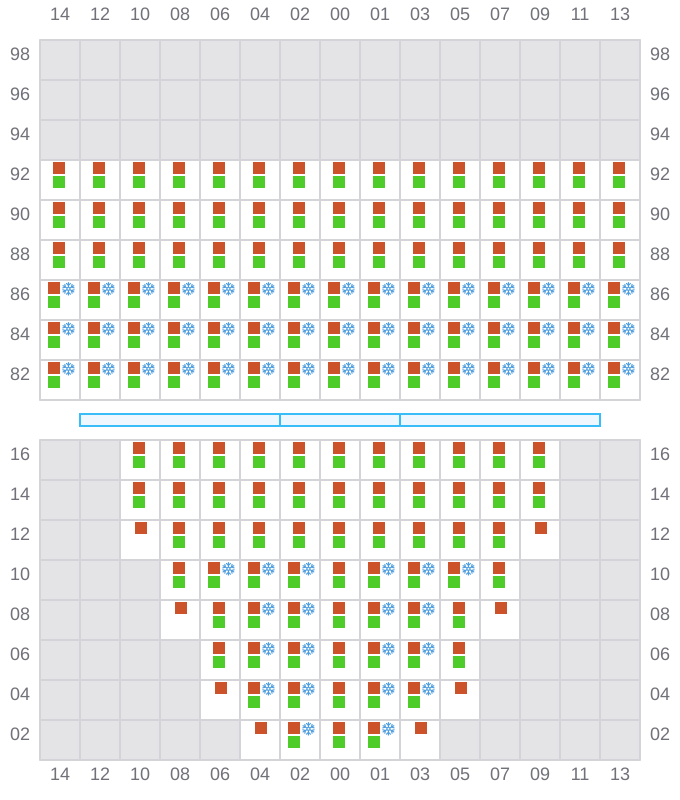

Bay 011 view and slots of HYUNDAI PRESTIGE

013

  • →
  • →

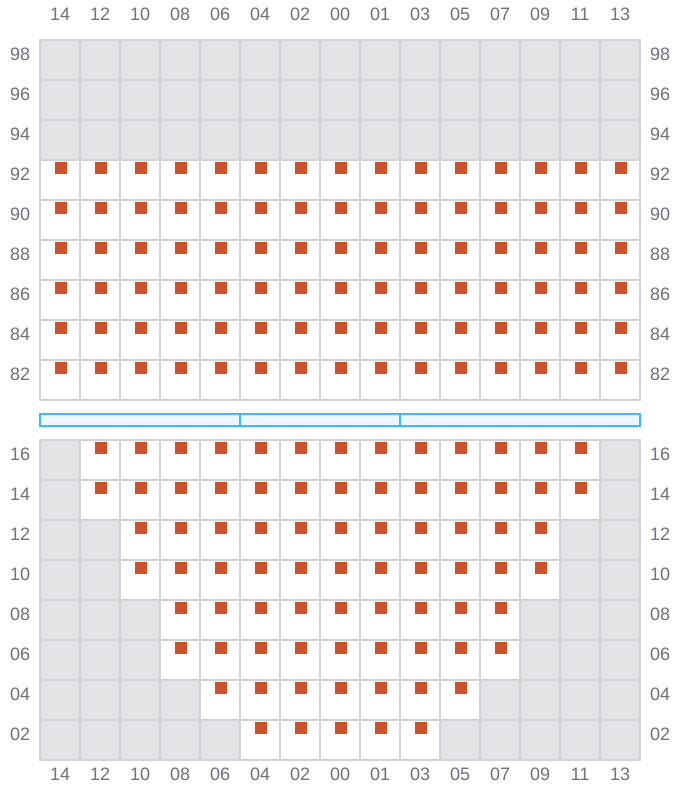

Bay 013 view and slots of HYUNDAI PRESTIGE

015 (014)

  • ←
  • →
  • →

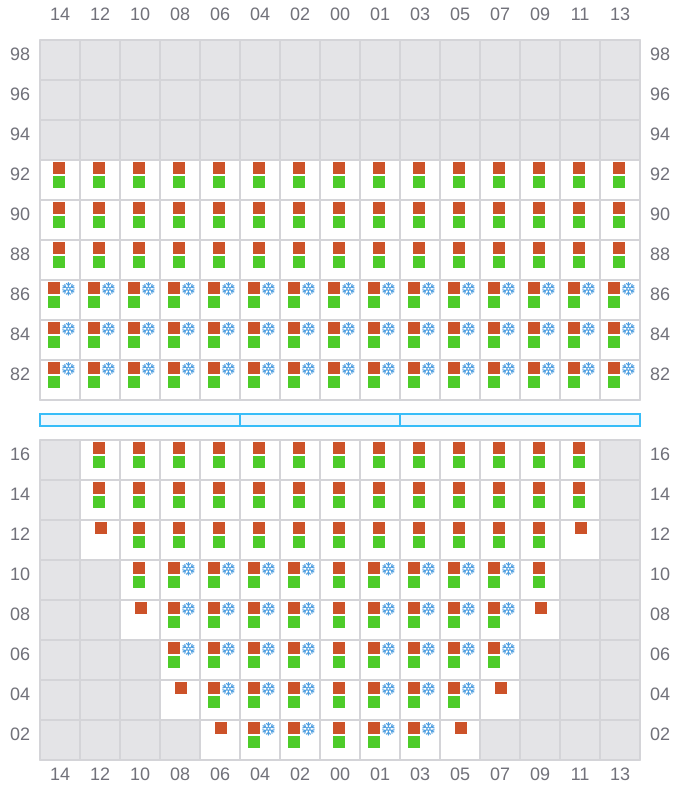

Bay 015 view and slots of HYUNDAI PRESTIGE

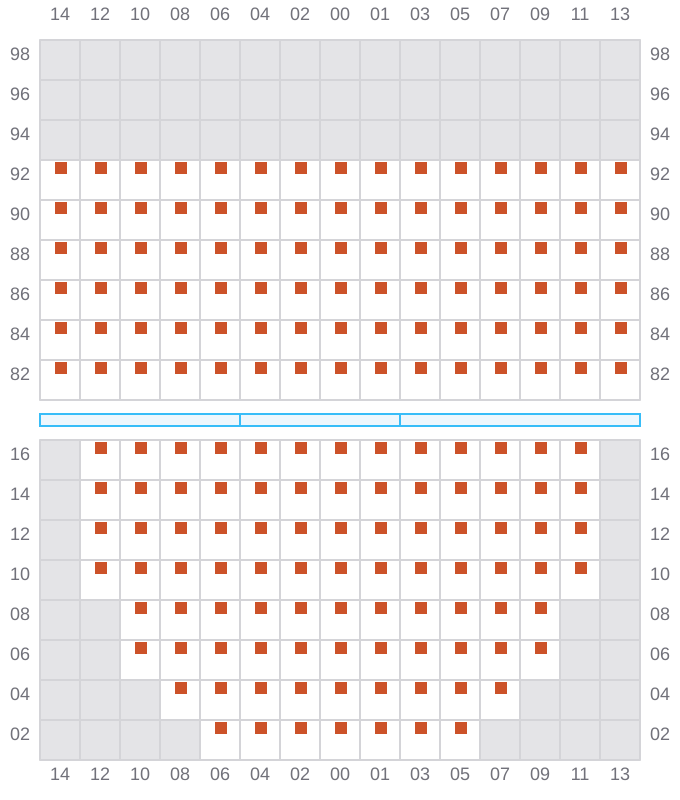

017

  • →
  • →
Bay 017 view and slots of HYUNDAI PRESTIGE

019 (018)

  • ←
  • →
  • →

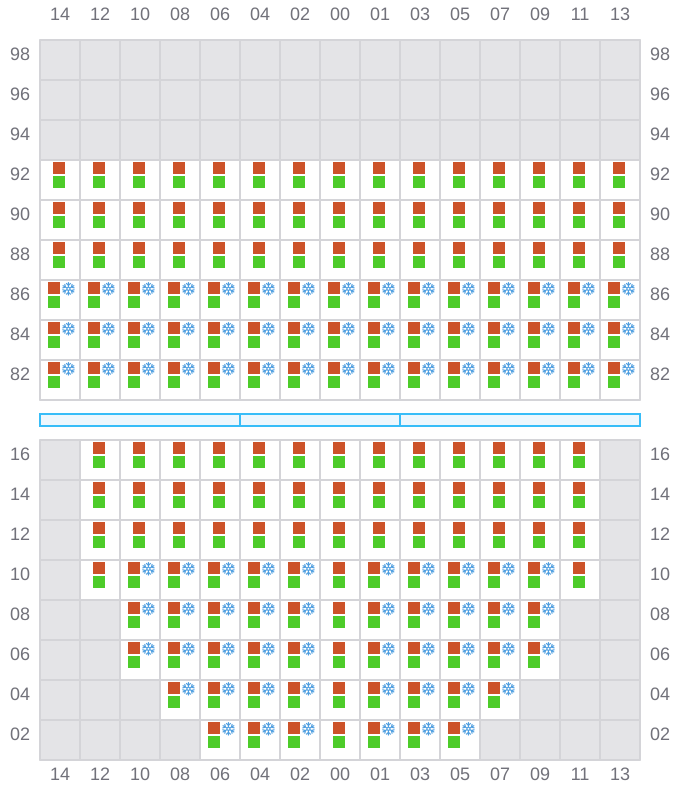

Bay 019 view and slots of HYUNDAI PRESTIGE

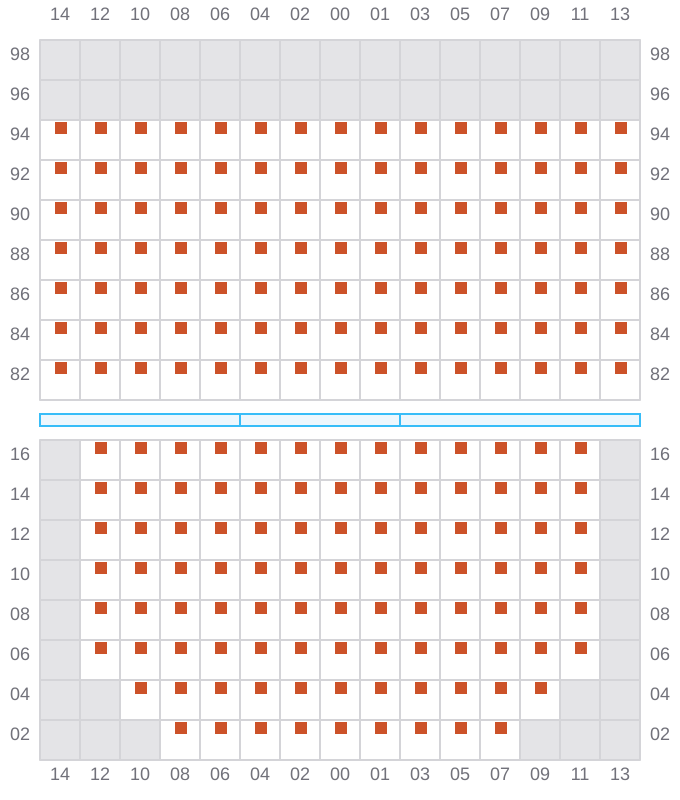

021

  • →
  • →
Bay 021 view and slots of HYUNDAI PRESTIGE

023 (022)

  • ←
  • → / ?
  • →
Bay 023 view and slots of HYUNDAI PRESTIGE

025

  • →
  • →
Bay 025 view and slots of HYUNDAI PRESTIGE

027 (026)

  • ←
  • →
  • →

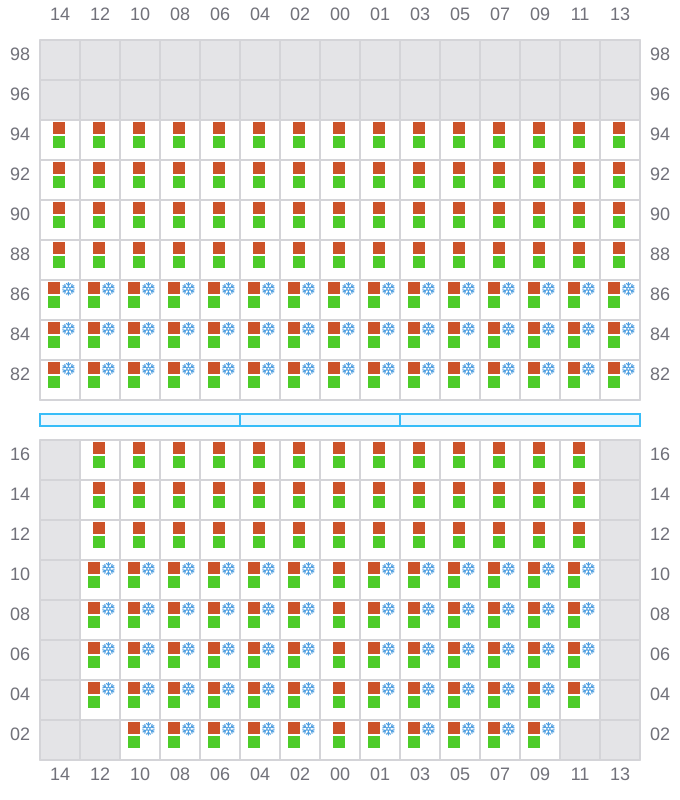

Bay 027 view and slots of HYUNDAI PRESTIGE

029

  • →
  • →

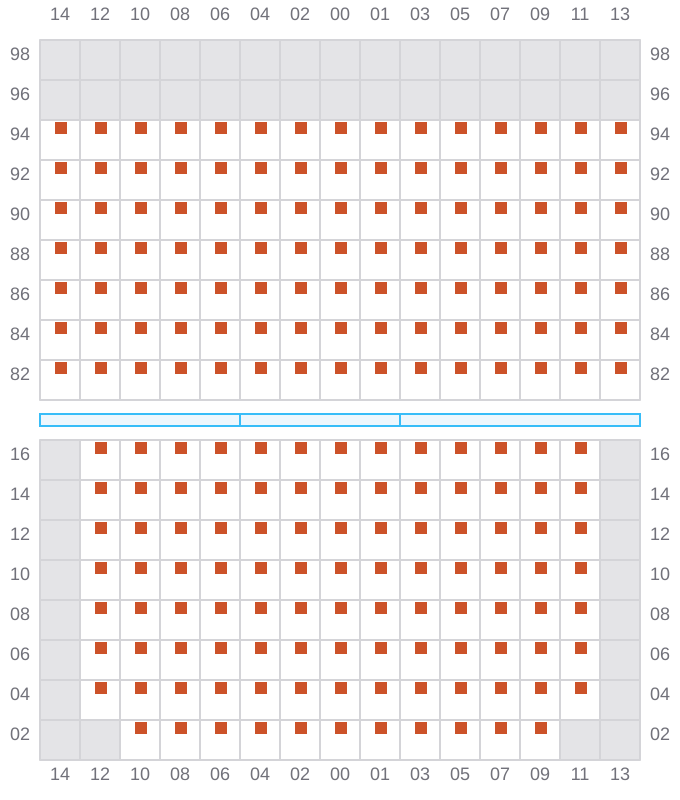

Bay 029 view and slots of HYUNDAI PRESTIGE

031 (030)

  • ←
  • → / ?
  • →

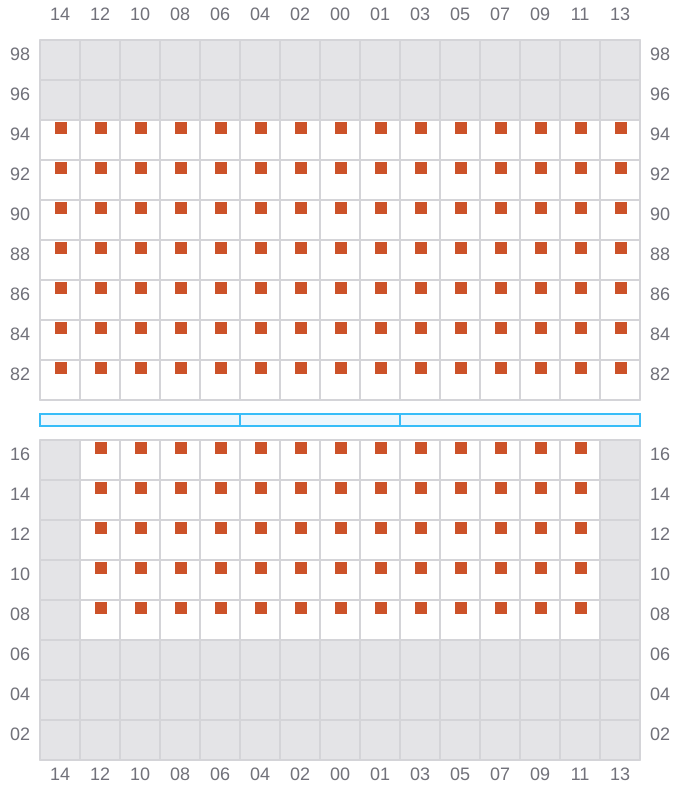

Bay 031 view and slots of HYUNDAI PRESTIGE

033

  • →
  • →

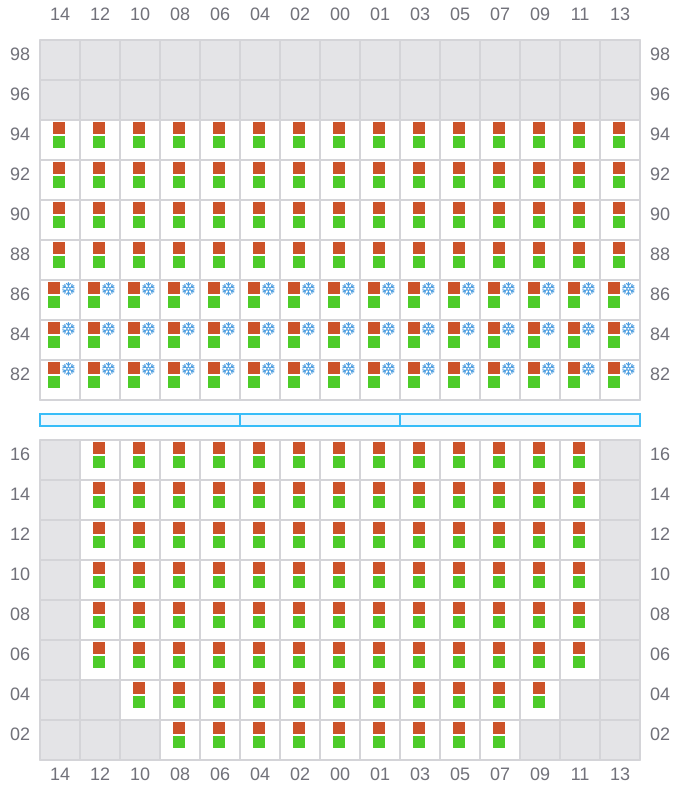

Bay 033 view and slots of HYUNDAI PRESTIGE

035 (034)

  • ←
  • → / ?
  • →
Bay 035 view and slots of HYUNDAI PRESTIGE

037

  • →
  • →

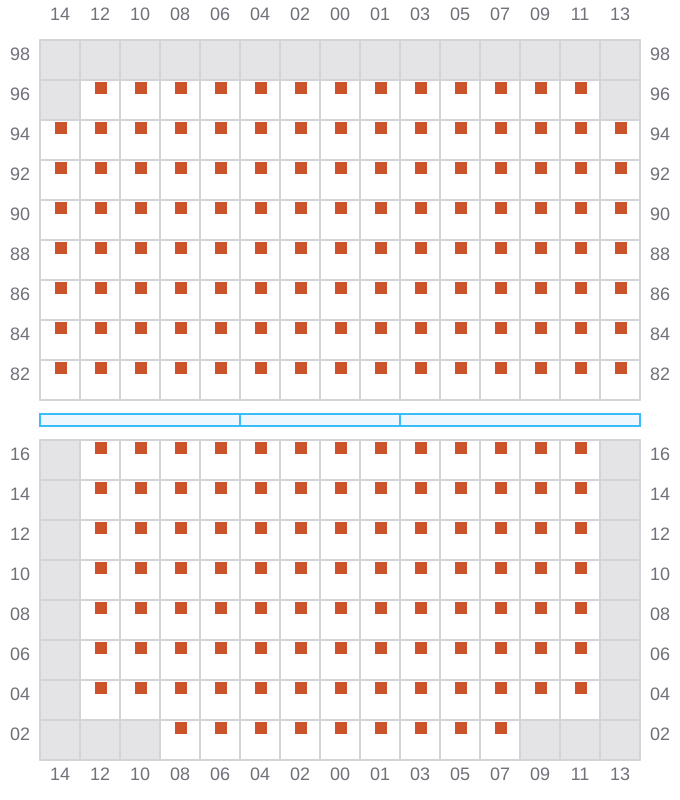

Bay 037 view and slots of HYUNDAI PRESTIGE

039 (038)

  • ←
  • → / ?
  • →

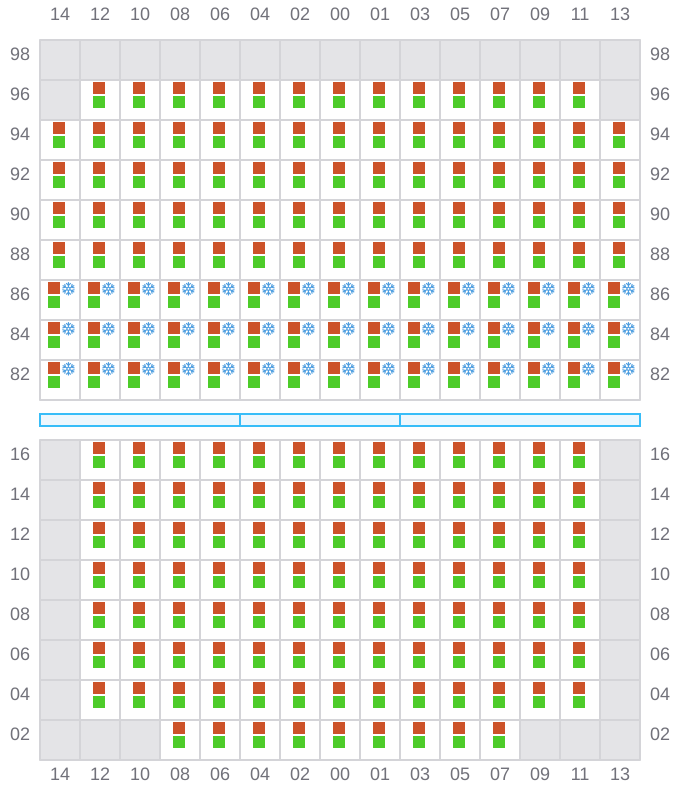

Bay 039 view and slots of HYUNDAI PRESTIGE

041

  • →
  • →

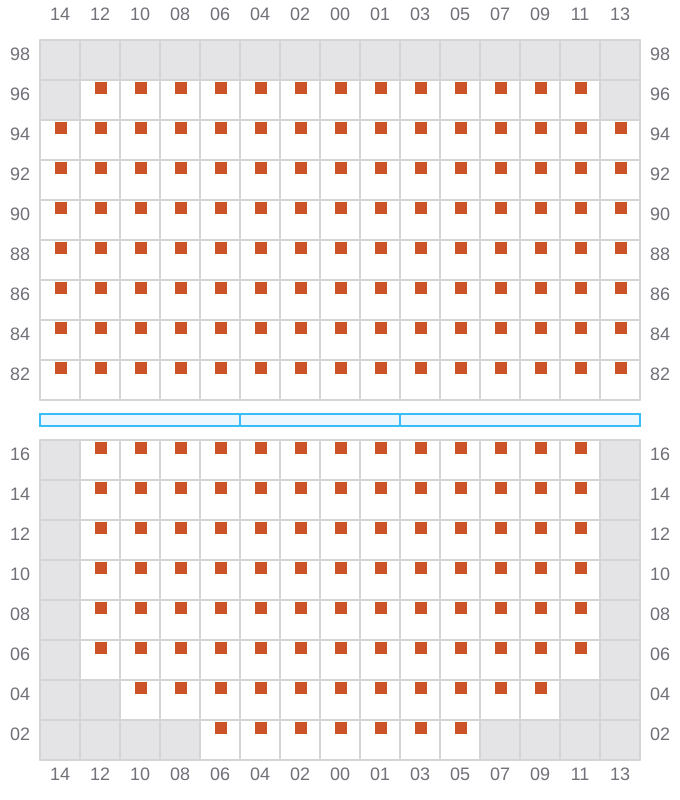

Bay 041 view and slots of HYUNDAI PRESTIGE

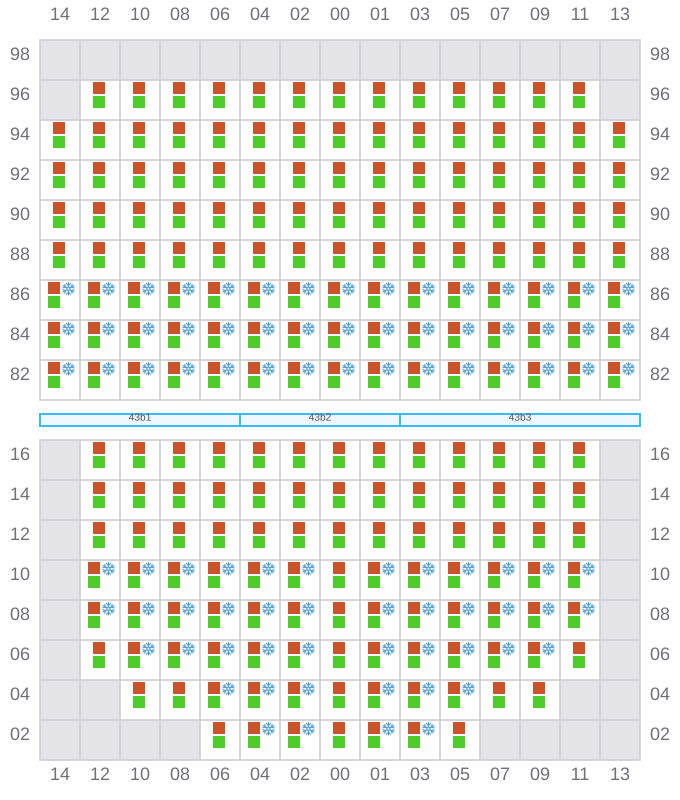

043 (042)

  • ←
  • →
  • →
Bay 043 view and slots of HYUNDAI PRESTIGE

045

  • →
  • →

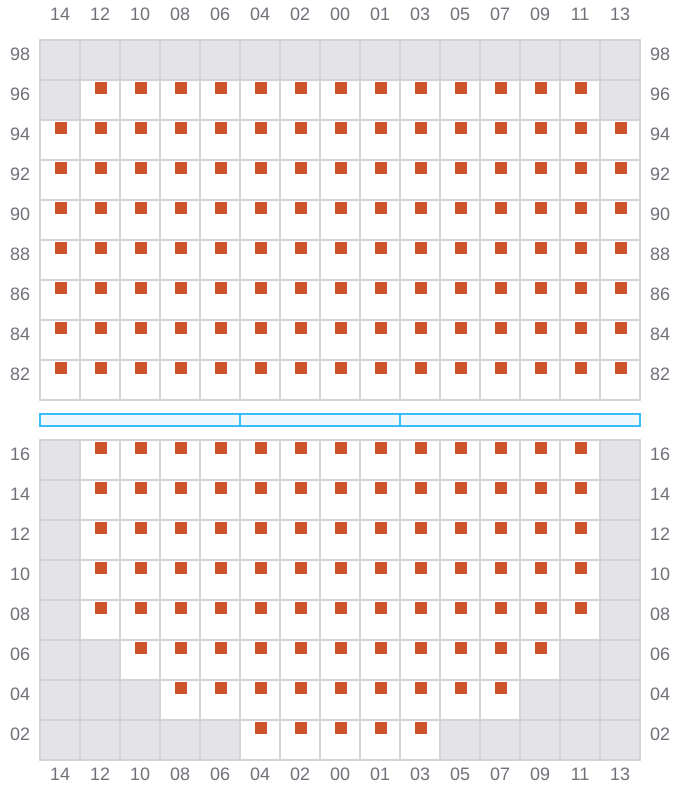

Bay 045 view and slots of HYUNDAI PRESTIGE

047 (046)

  • ←
  • → / ?
  • →

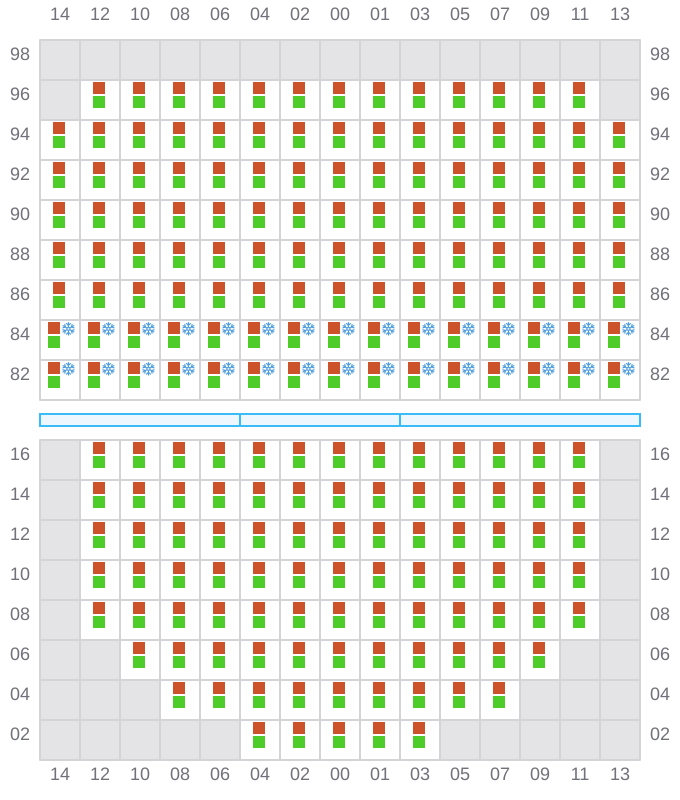

Bay 047 view and slots of HYUNDAI PRESTIGE

049

  • → / ?
  • → / ?
  • → / ?

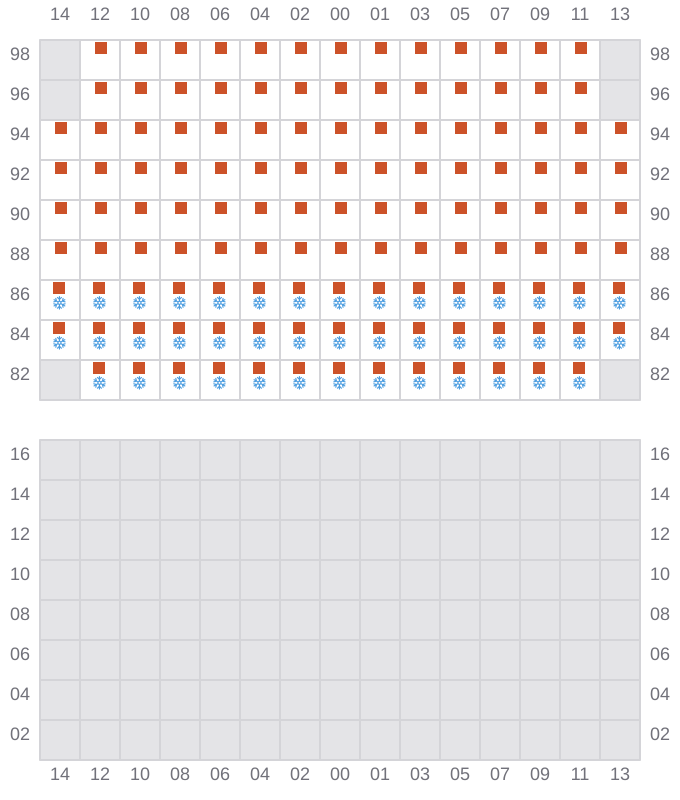

Bay 049 view and slots of HYUNDAI PRESTIGE

051 (050)

  • ← / ?
  • → / ?
  • → / ?

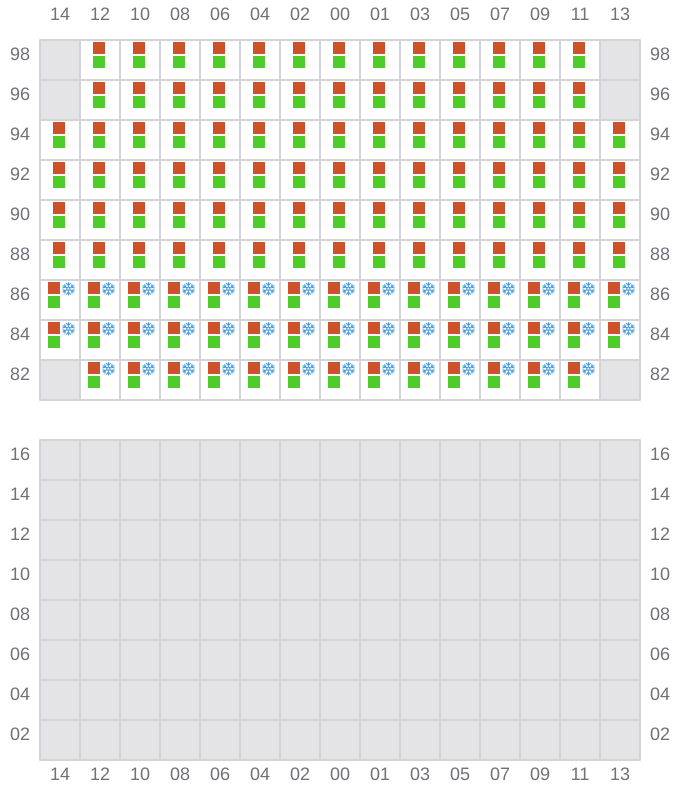

Bay 051 view and slots of HYUNDAI PRESTIGE

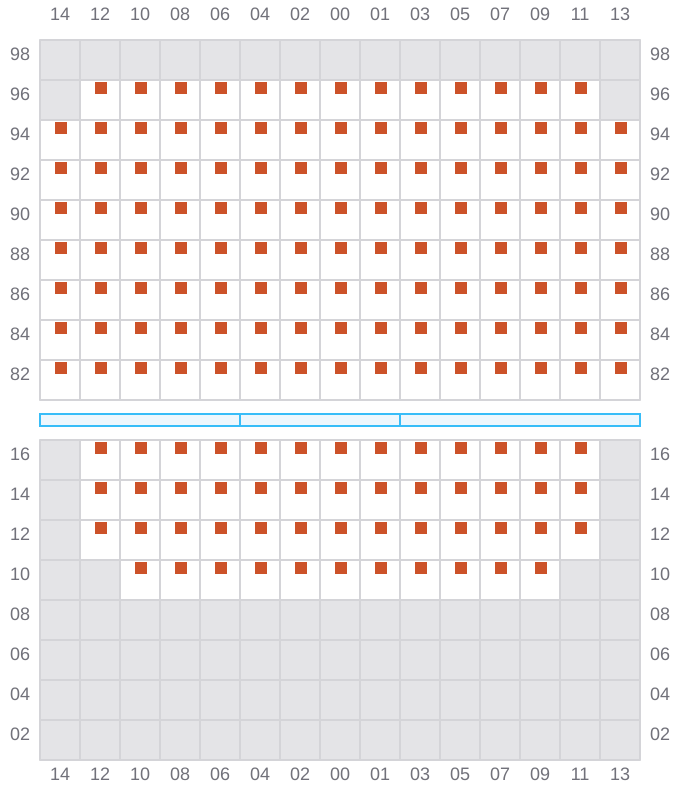

053

  • →
  • →
Bay 053 view and slots of HYUNDAI PRESTIGE

055 (054)

  • ←
  • → / ?
  • →

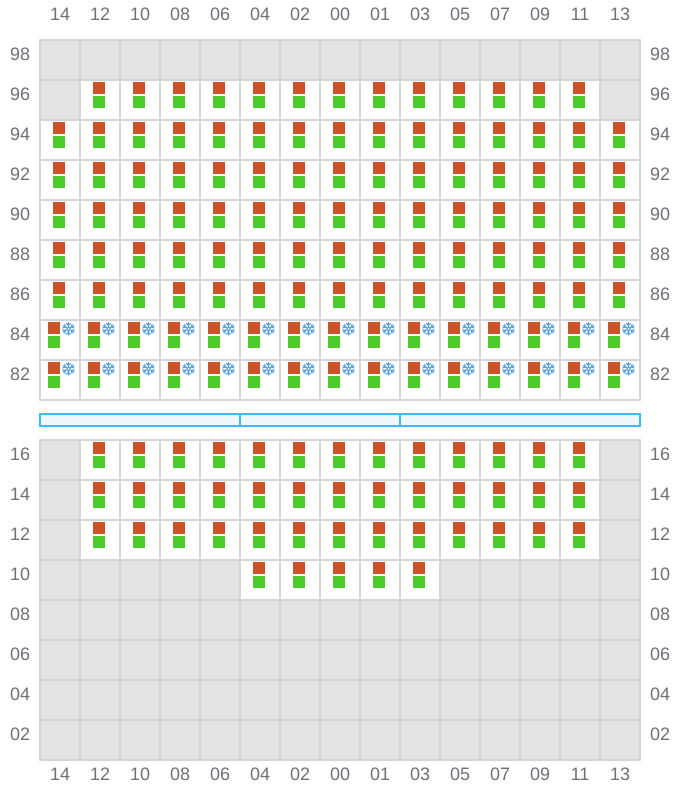

Bay 055 view and slots of HYUNDAI PRESTIGE

057

  • → / ?
  • ← / ?
  • → / ?

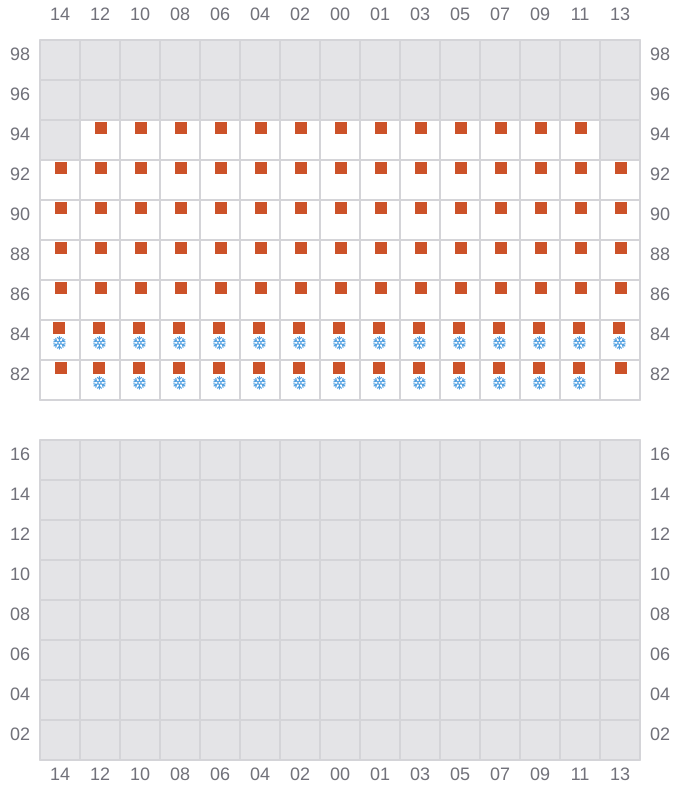

Bay 057 view and slots of HYUNDAI PRESTIGE

059 (058)

  • ← / ?
  • ← / ?
  • → / ?

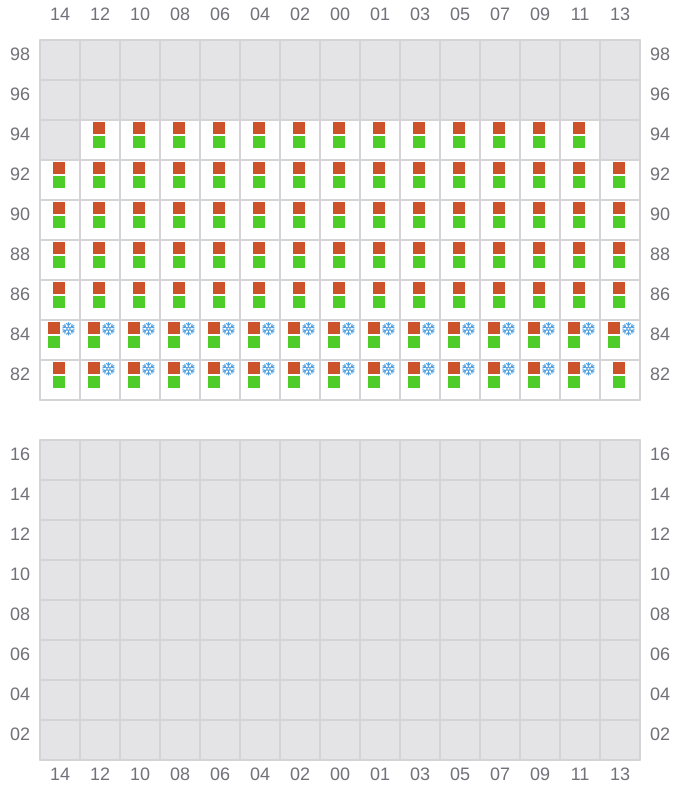

Bay 059 view and slots of HYUNDAI PRESTIGE
