HYUNDAI SHANGHAI
9305647 | 5BZM3 | 9305647 by ********* Last update: Mon May 06 2024

General Info

Ship Name:HYUNDAI SHANGHAI
IMO Code:9305647
Call Sign:5BZM3
Line Operator:9305647
Class Name for Sister Ships:HYUNDAI SHANGHAI
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,755

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

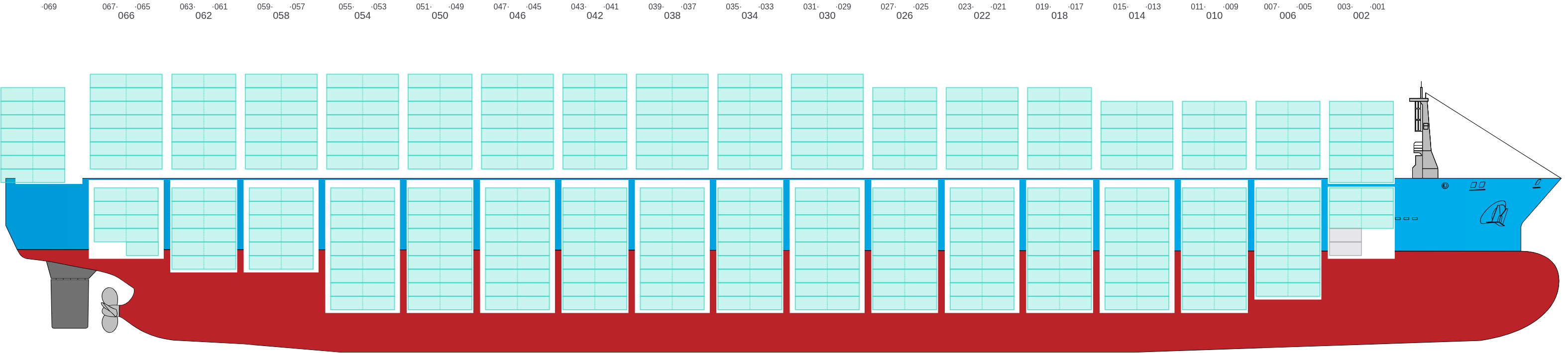

Side view of HYUNDAI SHANGHAI

Hatch-Covers View

Deck view of HYUNDAI SHANGHAI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

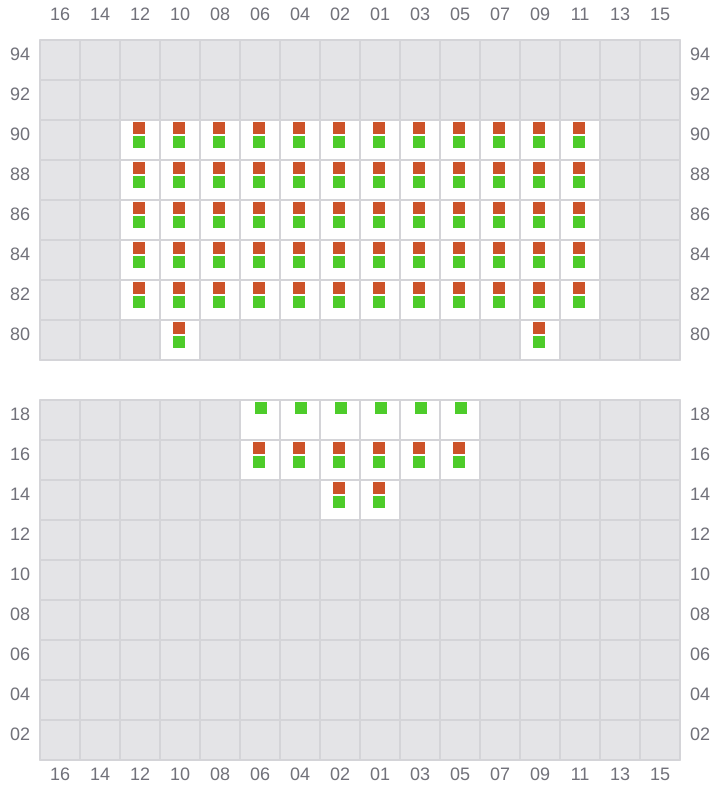

001 (002)

Bay 001 view and slots of HYUNDAI SHANGHAI

003

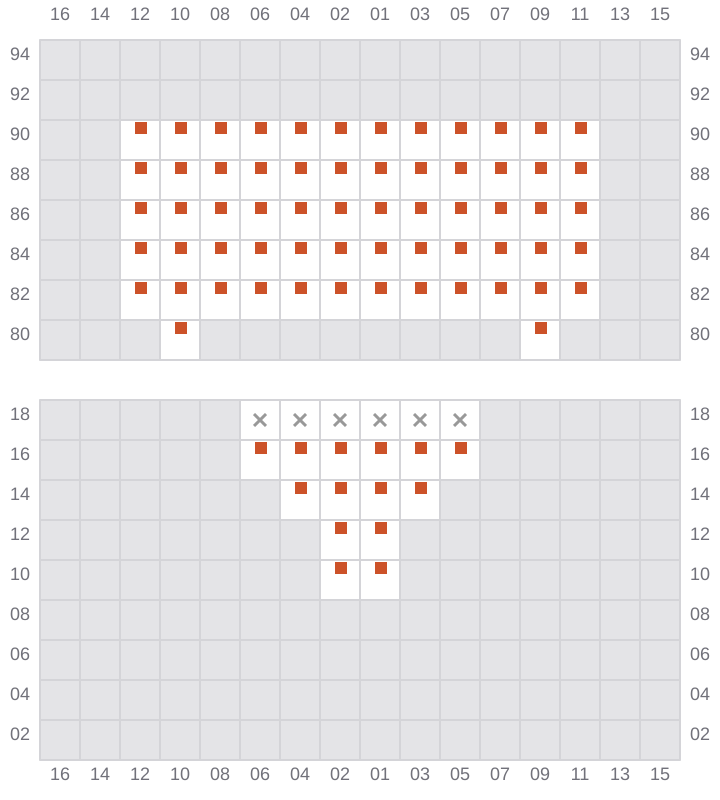

Bay 003 view and slots of HYUNDAI SHANGHAI

005 (006)

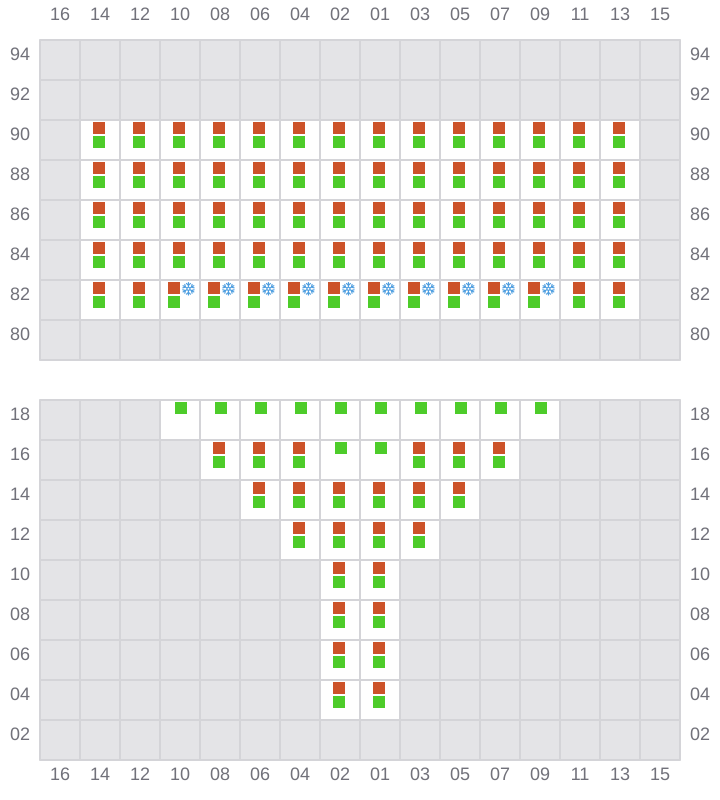

Bay 005 view and slots of HYUNDAI SHANGHAI

007

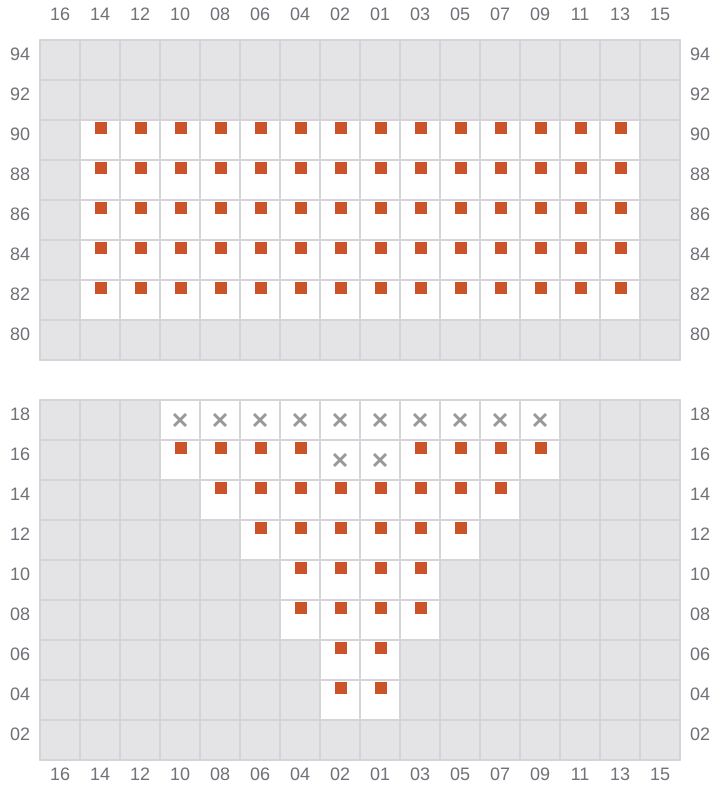

Bay 007 view and slots of HYUNDAI SHANGHAI

009 (010)

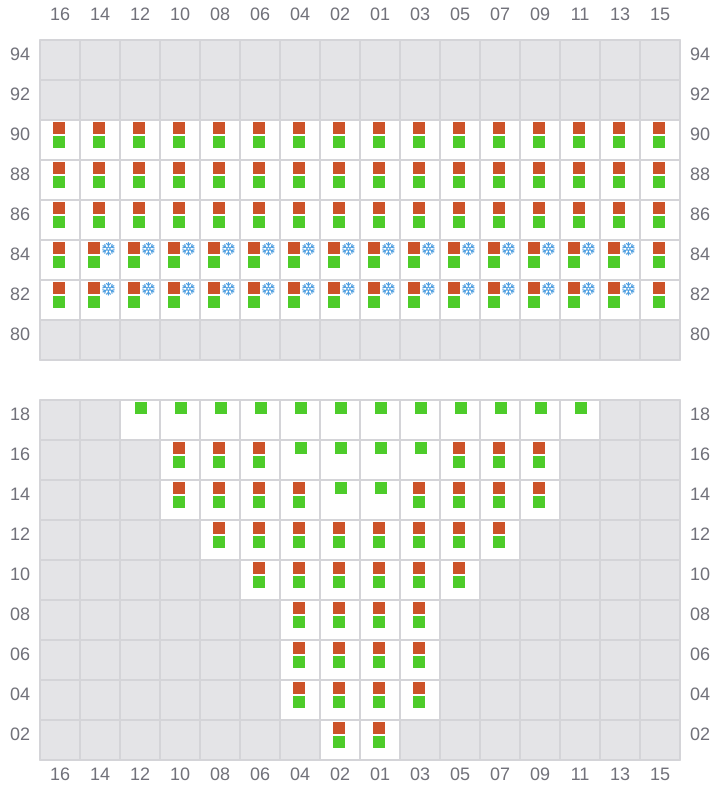

Bay 009 view and slots of HYUNDAI SHANGHAI

011

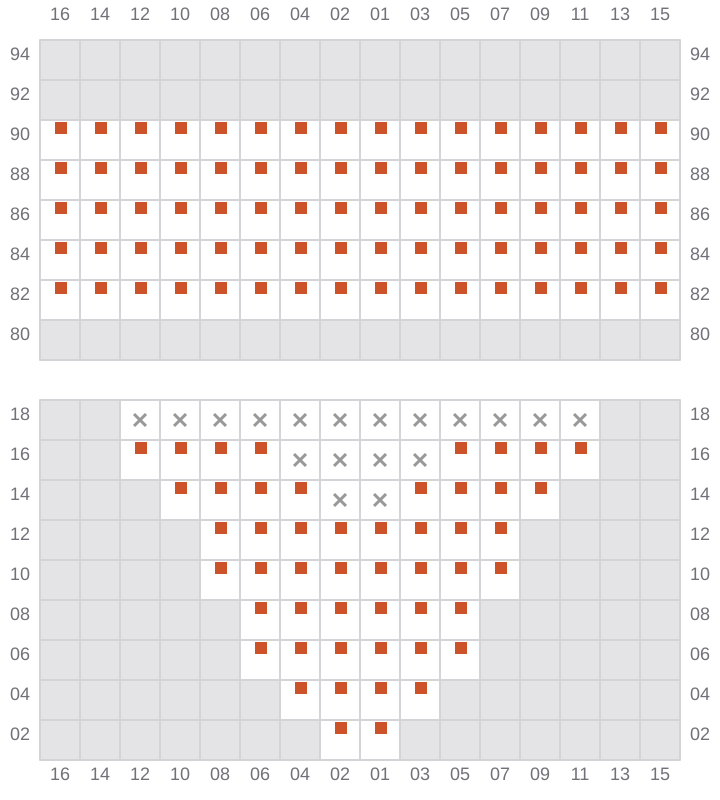

Bay 011 view and slots of HYUNDAI SHANGHAI

013 (014)

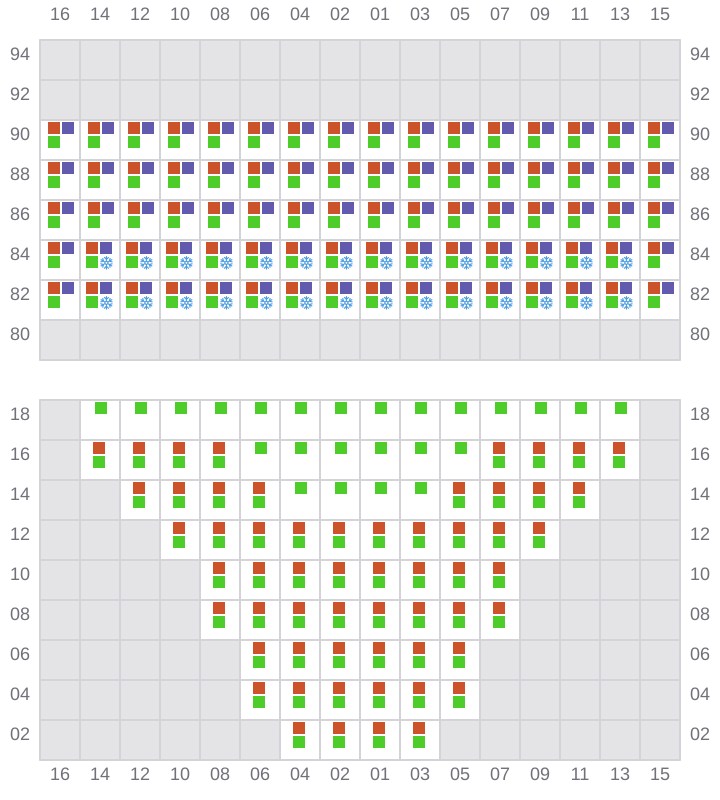

Bay 013 view and slots of HYUNDAI SHANGHAI

015

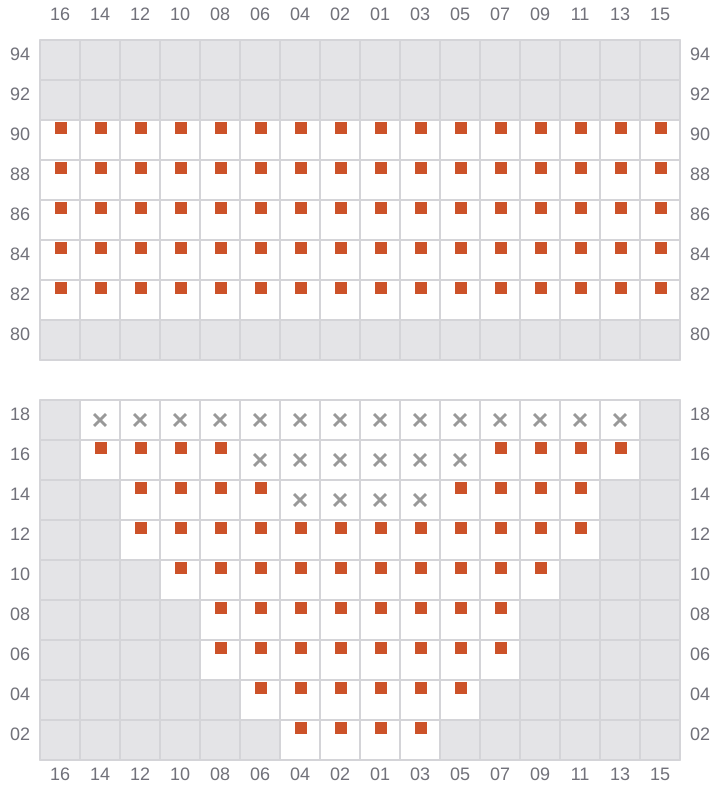

Bay 015 view and slots of HYUNDAI SHANGHAI

017 (018)

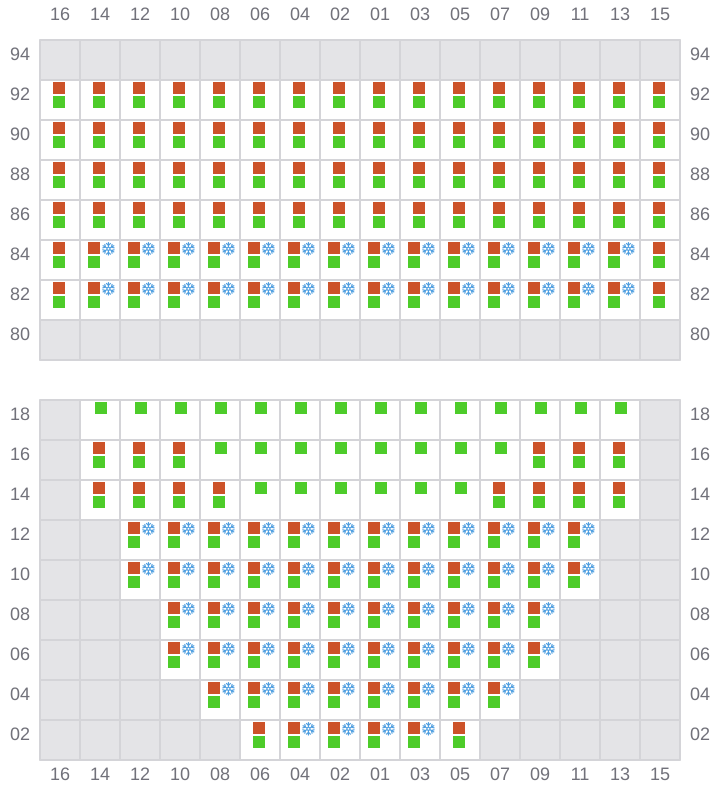

Bay 017 view and slots of HYUNDAI SHANGHAI

019

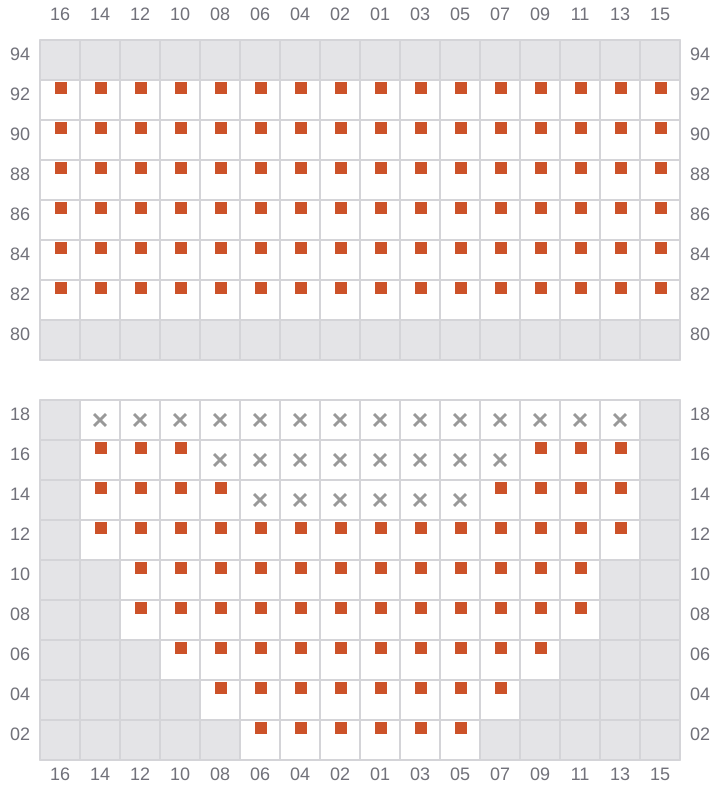

Bay 019 view and slots of HYUNDAI SHANGHAI

021 (022)

Bay 021 view and slots of HYUNDAI SHANGHAI

023

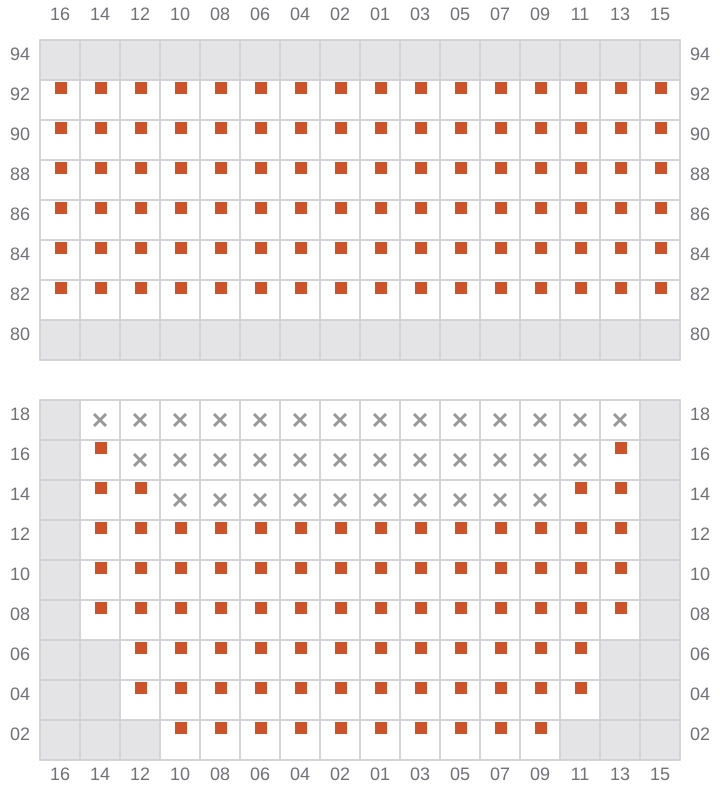

Bay 023 view and slots of HYUNDAI SHANGHAI

025 (026)

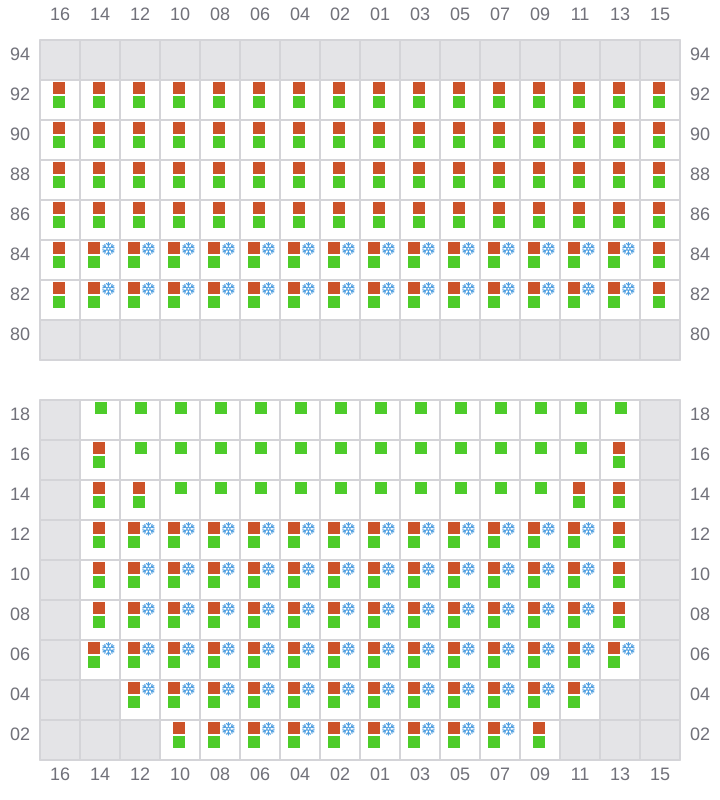

Bay 025 view and slots of HYUNDAI SHANGHAI

027

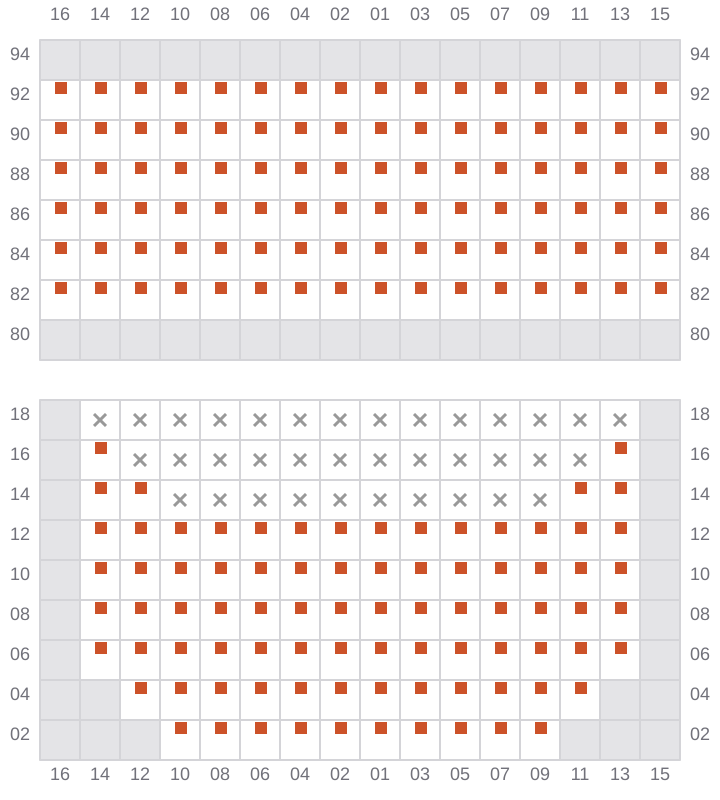

Bay 027 view and slots of HYUNDAI SHANGHAI

029 (030)

Bay 029 view and slots of HYUNDAI SHANGHAI

031

Bay 031 view and slots of HYUNDAI SHANGHAI

033 (034)

Bay 033 view and slots of HYUNDAI SHANGHAI

035

Bay 035 view and slots of HYUNDAI SHANGHAI

037 (038)

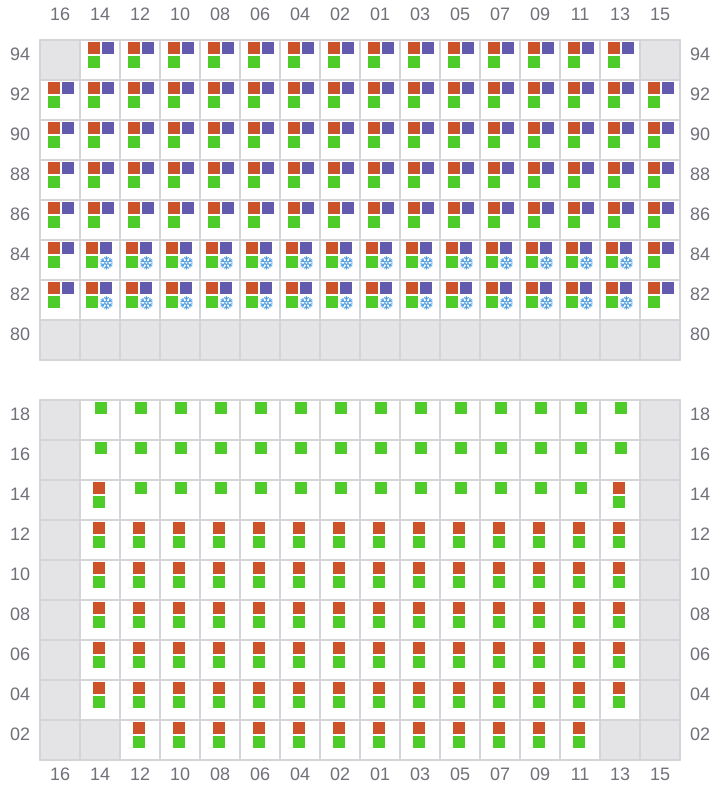

Bay 037 view and slots of HYUNDAI SHANGHAI

039

Bay 039 view and slots of HYUNDAI SHANGHAI

041 (042)

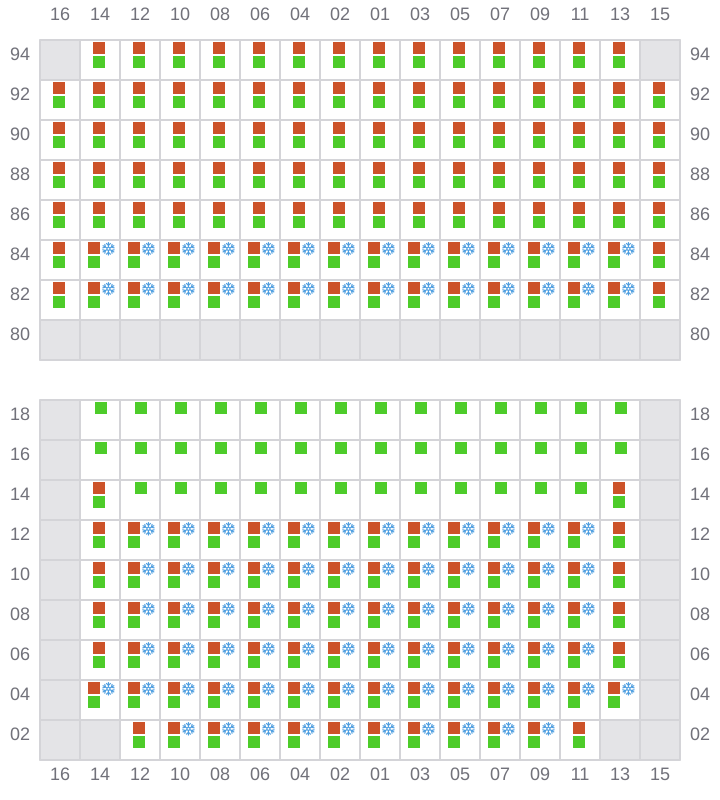

Bay 041 view and slots of HYUNDAI SHANGHAI

043

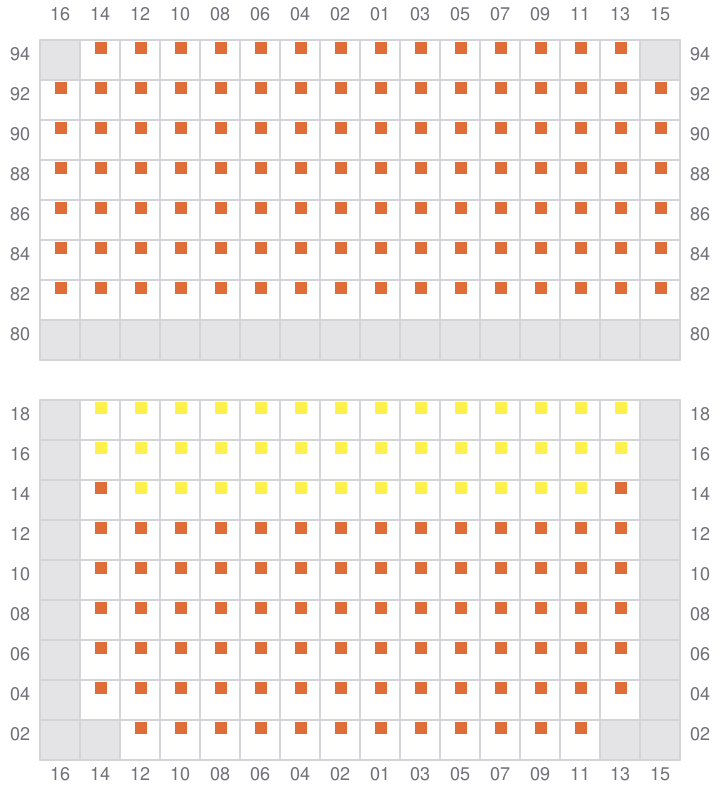

Bay 043 view and slots of HYUNDAI SHANGHAI

045 (046)

Bay 045 view and slots of HYUNDAI SHANGHAI

047

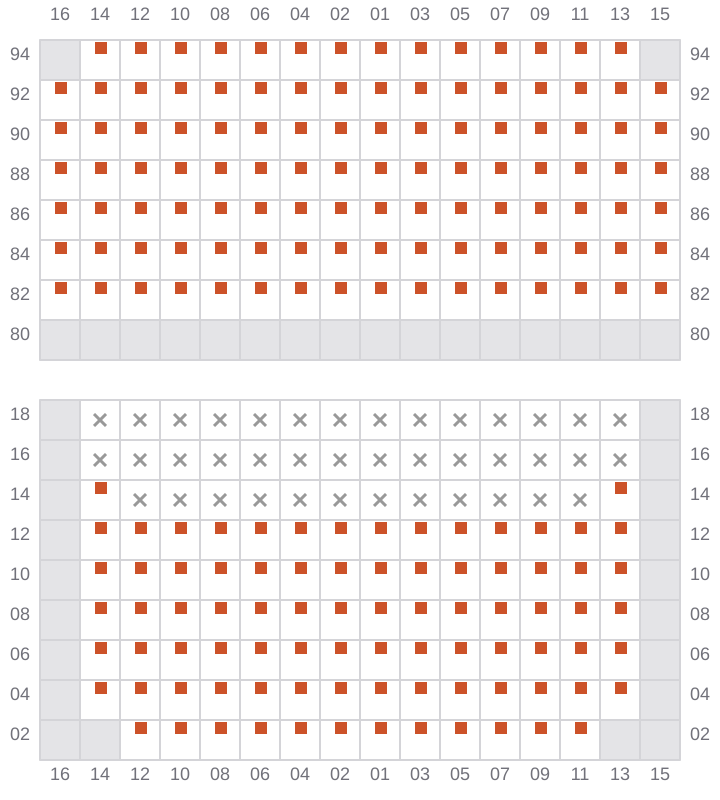

Bay 047 view and slots of HYUNDAI SHANGHAI

049 (050)

Bay 049 view and slots of HYUNDAI SHANGHAI

051

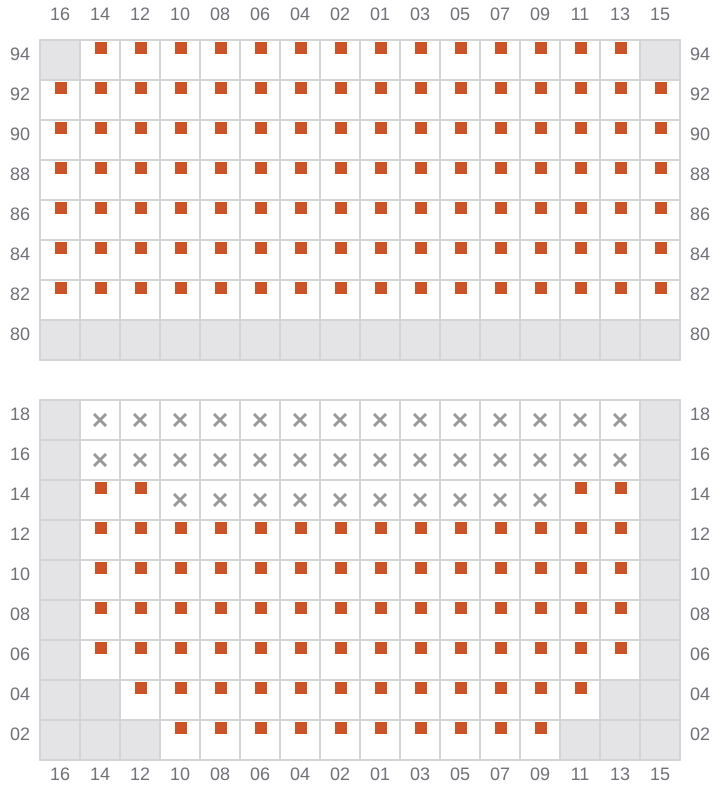

Bay 051 view and slots of HYUNDAI SHANGHAI

053 (054)

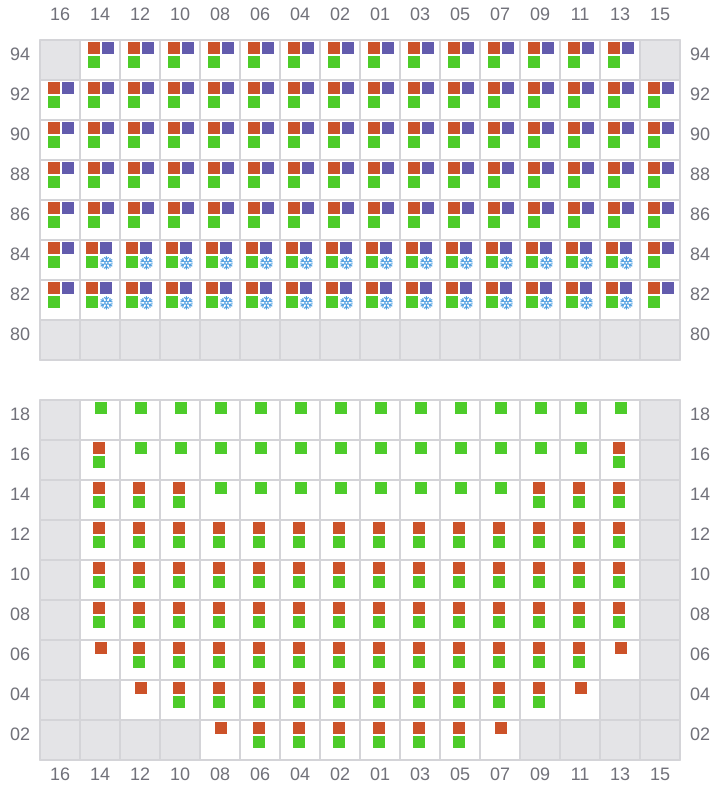

Bay 053 view and slots of HYUNDAI SHANGHAI

055

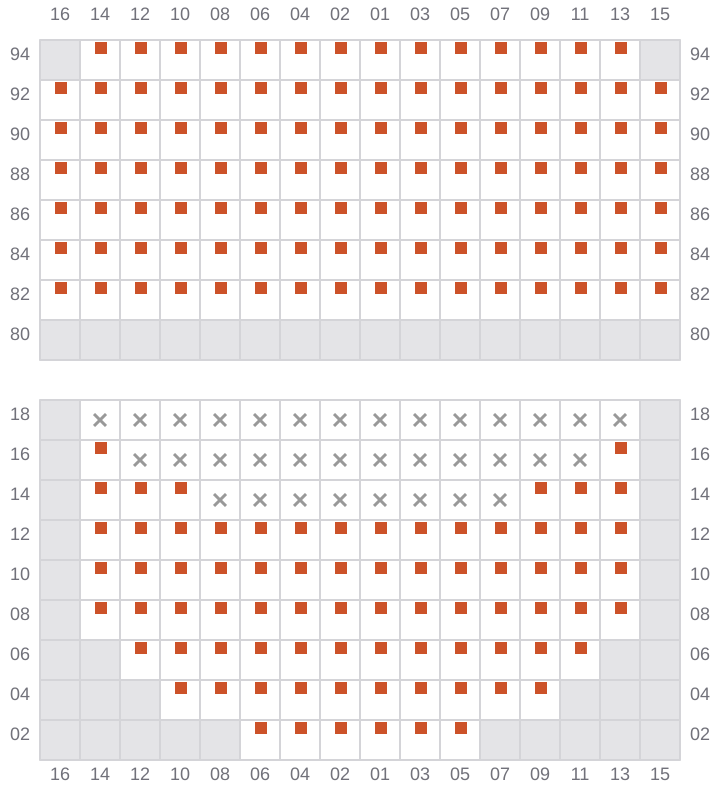

Bay 055 view and slots of HYUNDAI SHANGHAI

057 (058)

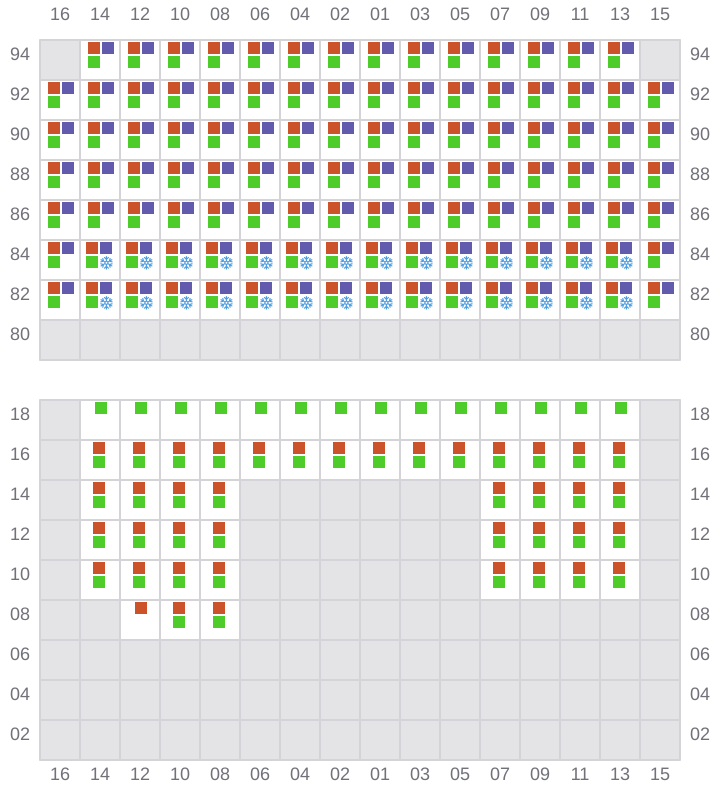

Bay 057 view and slots of HYUNDAI SHANGHAI

059

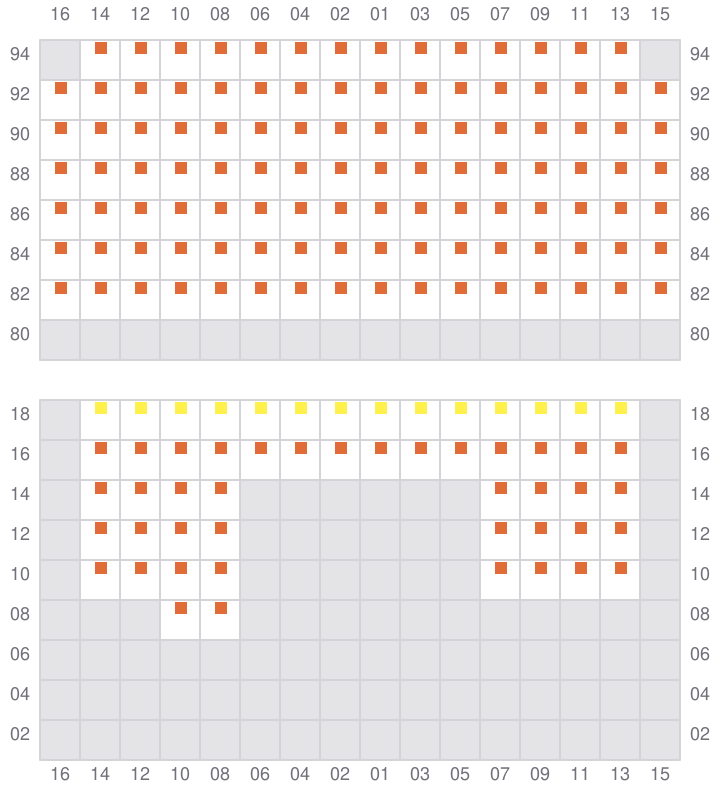

Bay 059 view and slots of HYUNDAI SHANGHAI

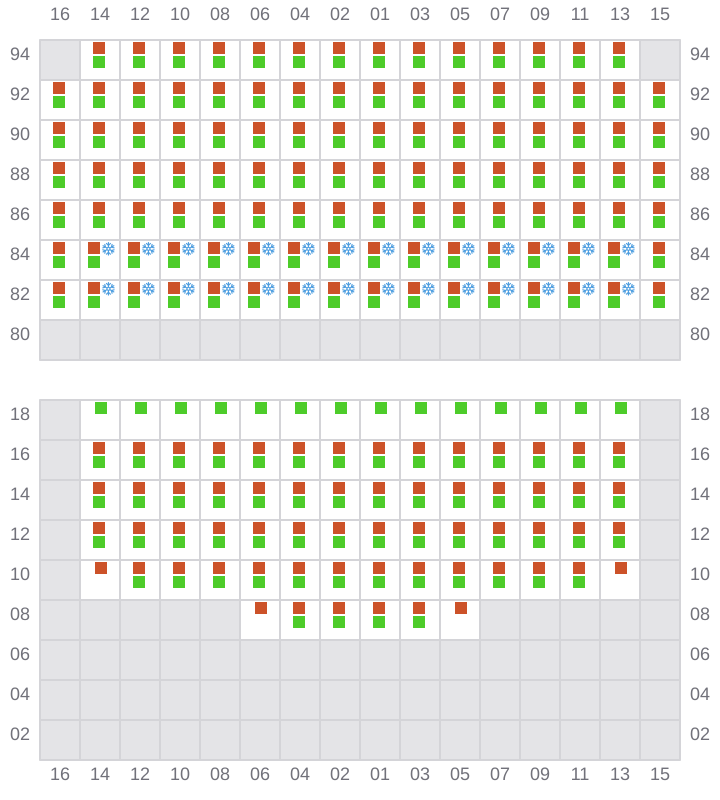

061 (062)

Bay 061 view and slots of HYUNDAI SHANGHAI

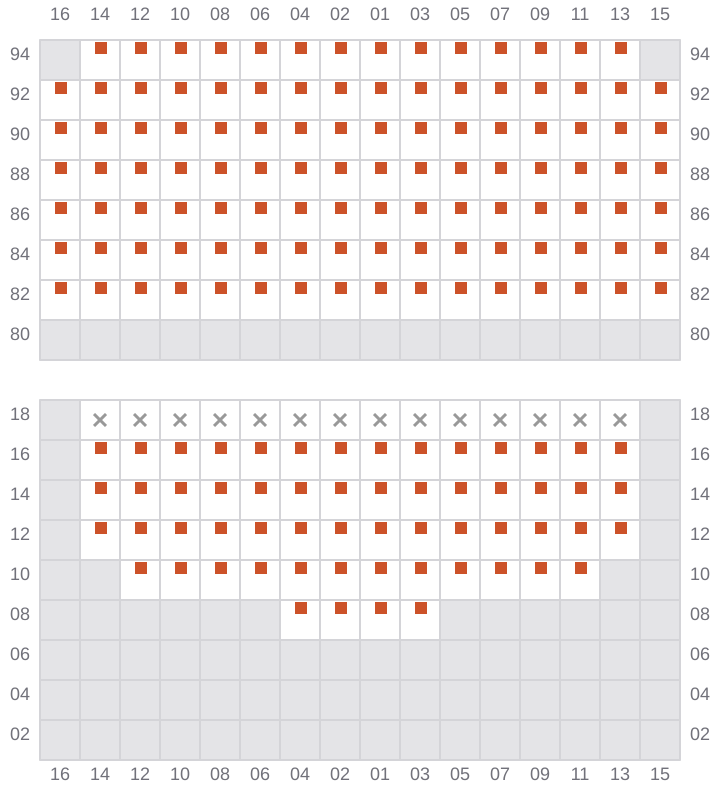

063

Bay 063 view and slots of HYUNDAI SHANGHAI

065 (066)

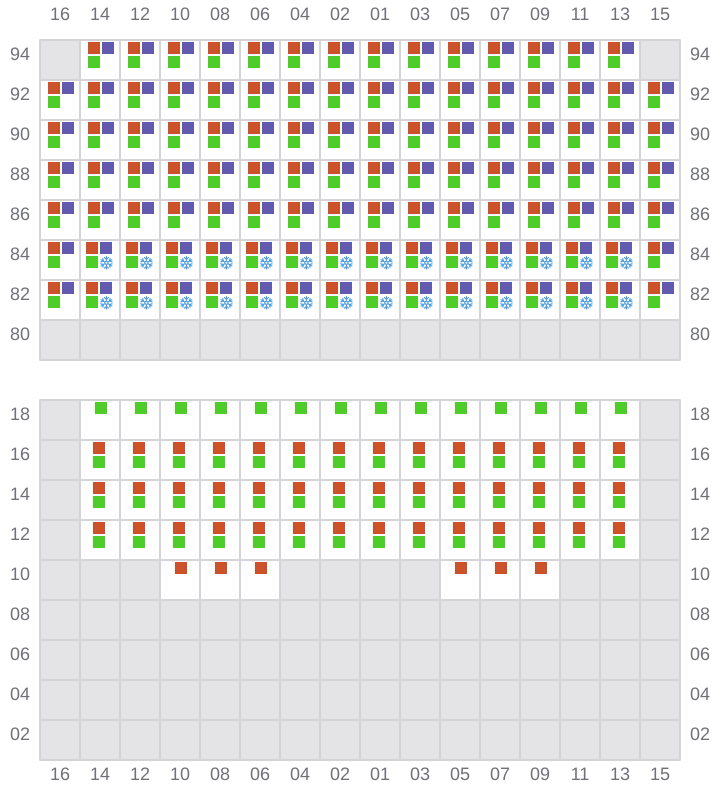

Bay 065 view and slots of HYUNDAI SHANGHAI

067

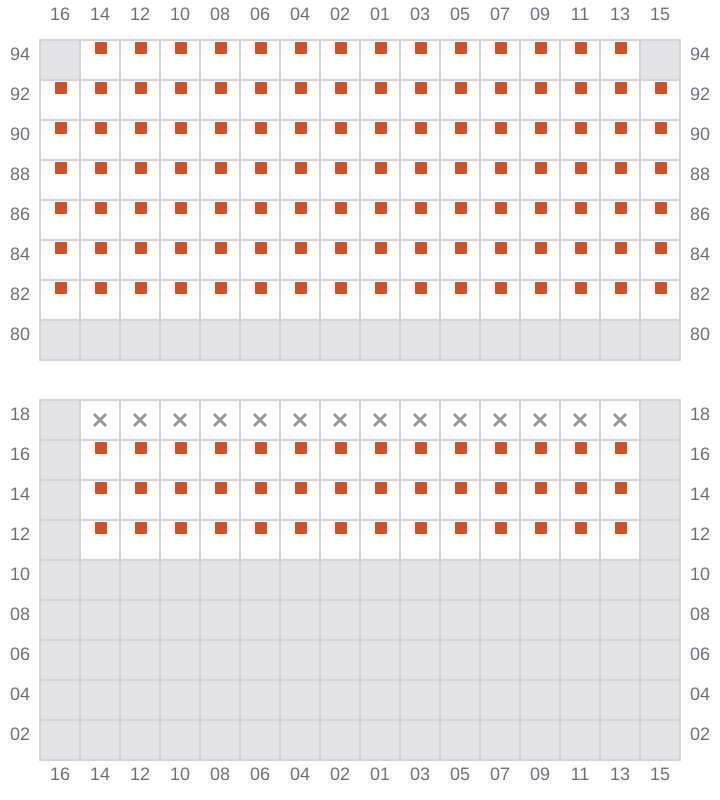

Bay 067 view and slots of HYUNDAI SHANGHAI

069 (070)

Bay 069 view and slots of HYUNDAI SHANGHAI
