HYUNDAI SINGAPORE
9305685 | 5BZP3 | NAVIOS CONTAINERS MANAGEMENT by ************************** Last update: Wed Jan 14 2026

General Info

Ship Name:HYUNDAI SINGAPORE
IMO Code:9305685
Call Sign:5BZP3
Line Operator:NAVIOS CONTAINERS MANAGEMENT
Class Name for Sister Ships:HSP
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):303.83
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-

Size Summary

ISO Bays:071
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,758

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of HYUNDAI SINGAPORE

Hatch-Covers View

Deck view of HYUNDAI SINGAPORE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • ✓

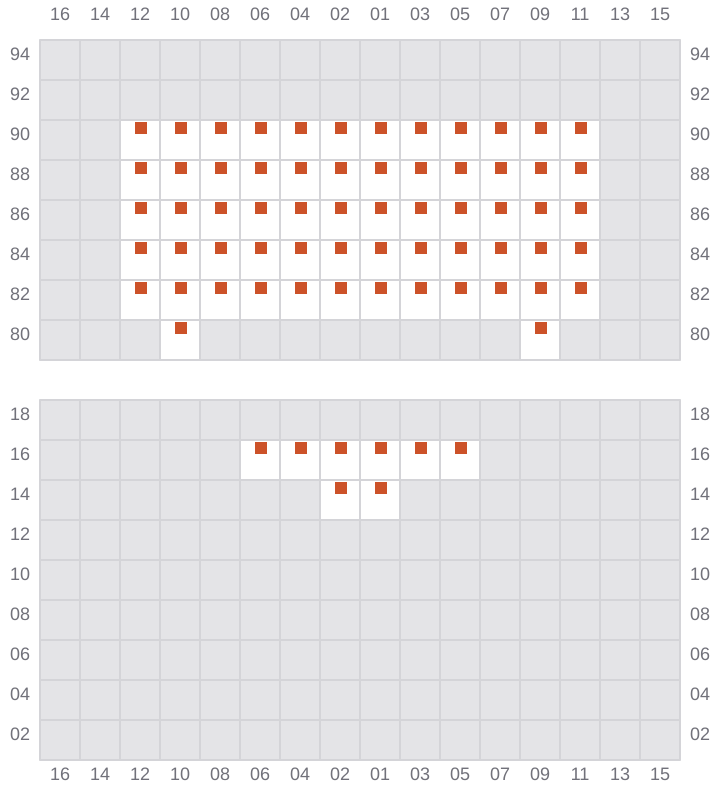

Bay 001 view and slots of HYUNDAI SINGAPORE

003 (002)

  • ←
  • ✓

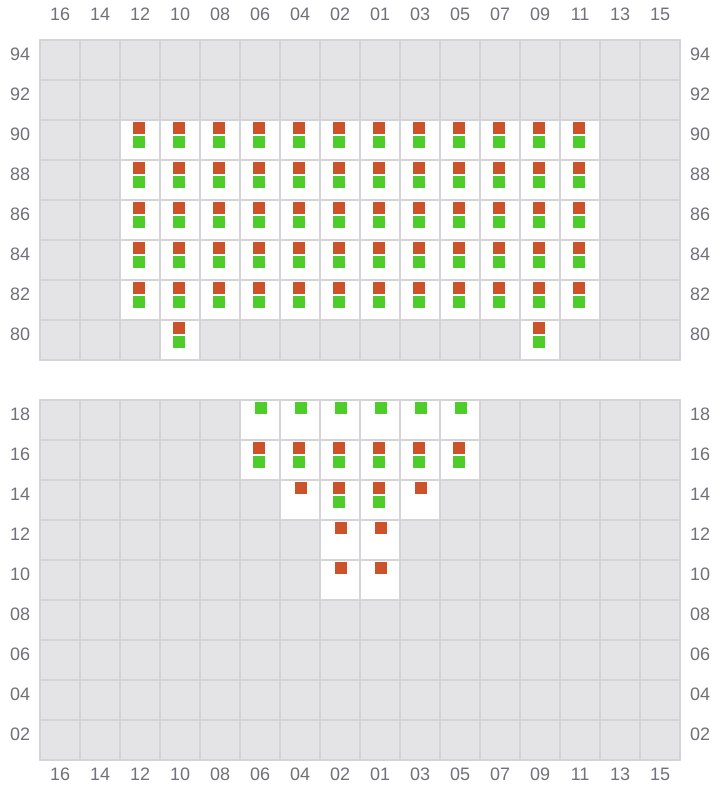

Bay 003 view and slots of HYUNDAI SINGAPORE

005

  • →
  • ✓
Bay 005 view and slots of HYUNDAI SINGAPORE

007 (006)

  • ←
  • ✓

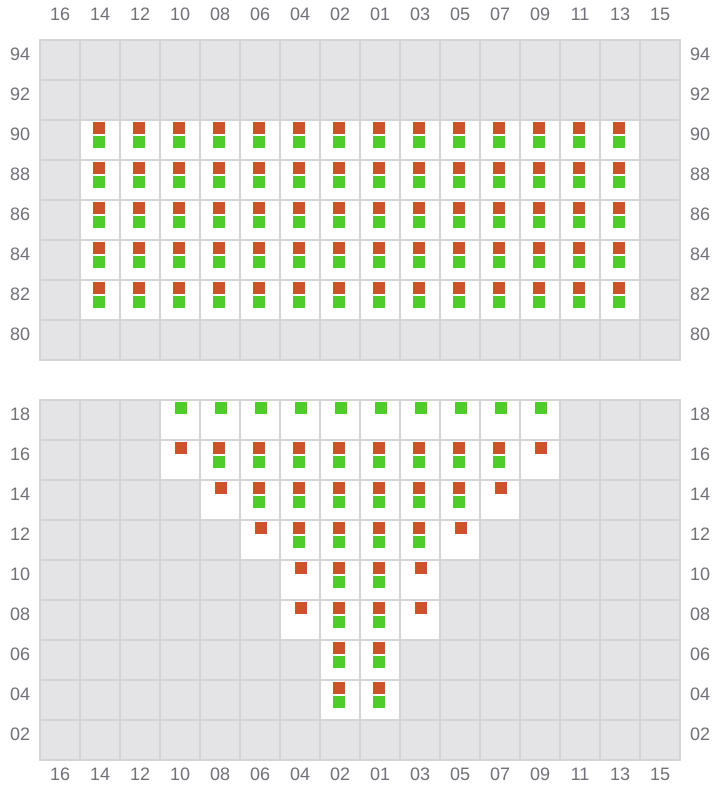

Bay 007 view and slots of HYUNDAI SINGAPORE

009

  • →
  • ✓
Bay 009 view and slots of HYUNDAI SINGAPORE

011 (010)

  • ←
  • ✓
Bay 011 view and slots of HYUNDAI SINGAPORE

013

  • →
  • ✓

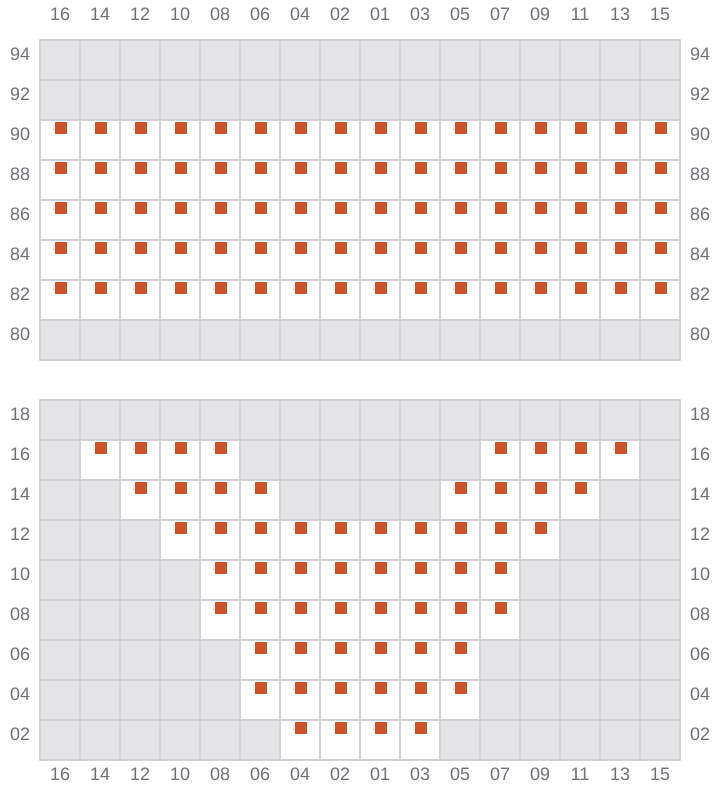

Bay 013 view and slots of HYUNDAI SINGAPORE

015 (014)

  • ←
  • ✓

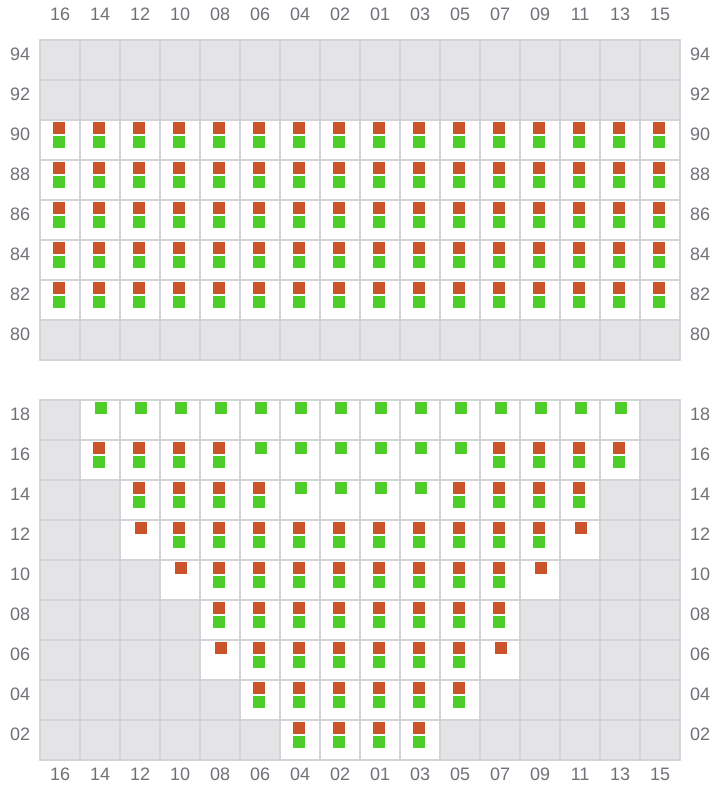

Bay 015 view and slots of HYUNDAI SINGAPORE

017

  • →
  • ✓

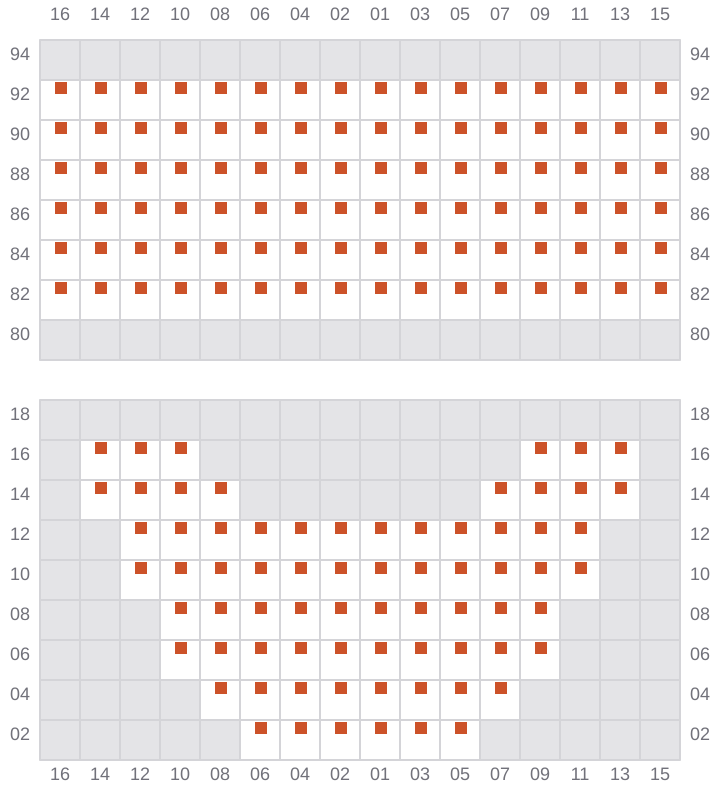

Bay 017 view and slots of HYUNDAI SINGAPORE

019 (018)

  • ←
  • ✓

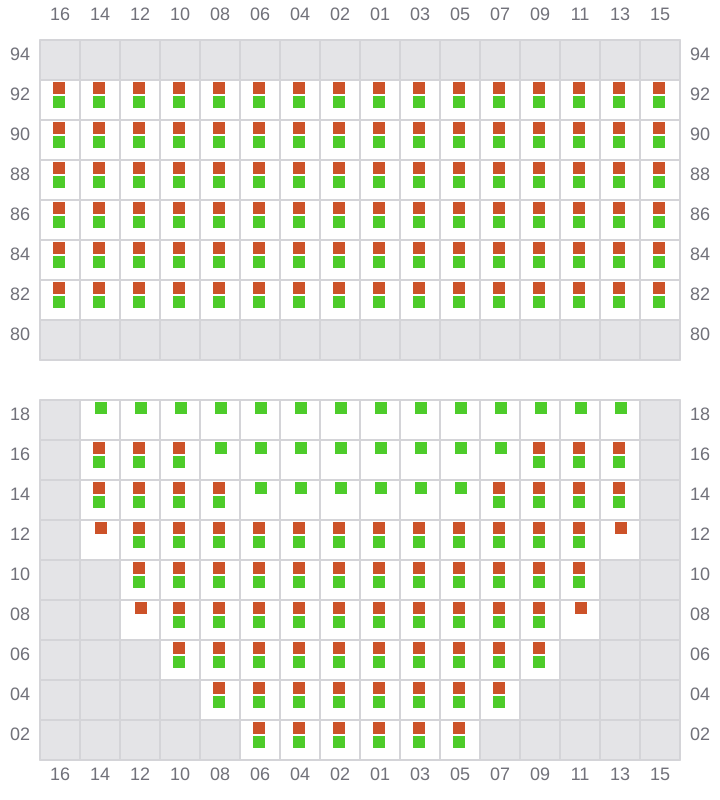

Bay 019 view and slots of HYUNDAI SINGAPORE

021

  • →
  • ✓

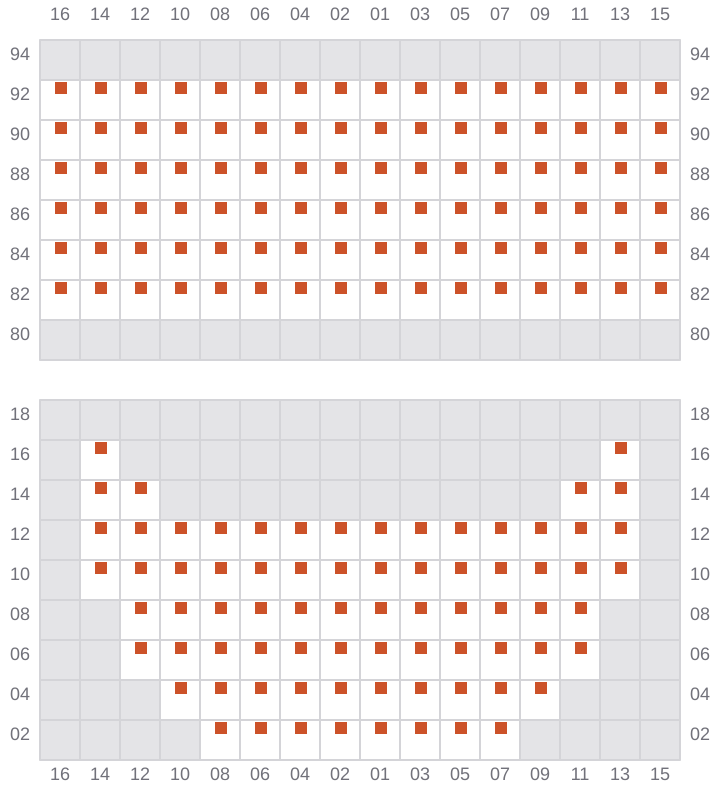

Bay 021 view and slots of HYUNDAI SINGAPORE

023 (022)

  • ←
  • ✓

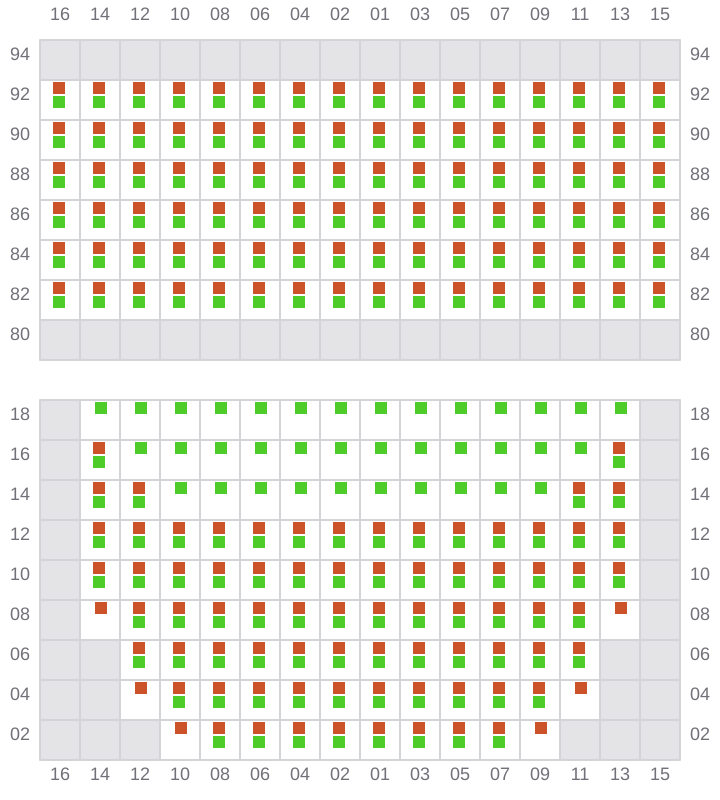

Bay 023 view and slots of HYUNDAI SINGAPORE

025

  • →
  • ✓

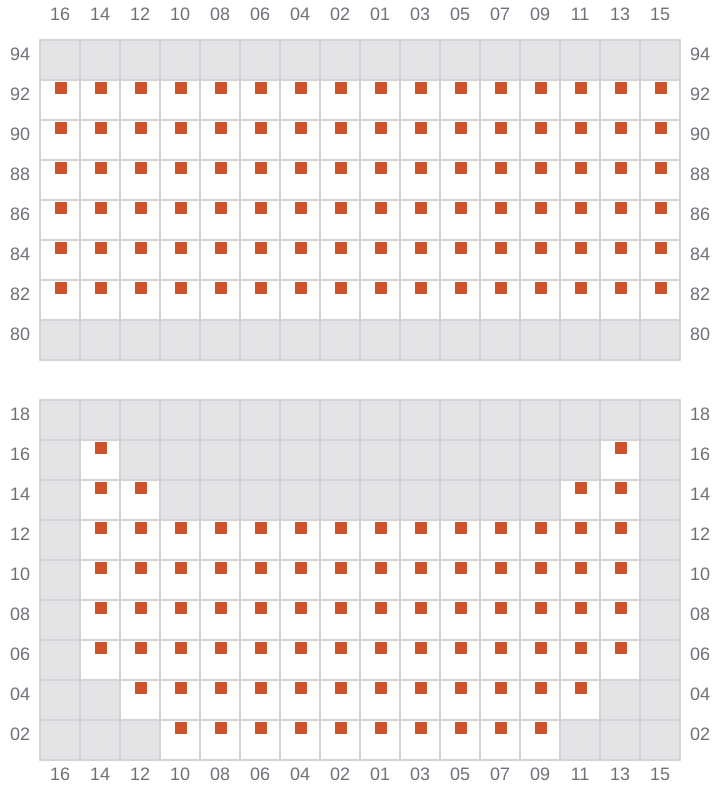

Bay 025 view and slots of HYUNDAI SINGAPORE

027 (026)

  • ←
  • ✓

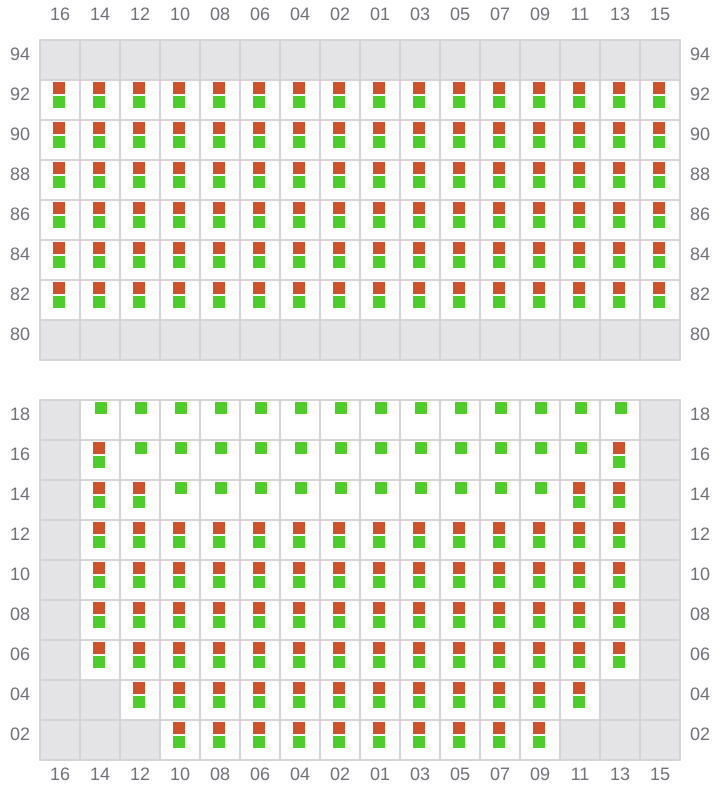

Bay 027 view and slots of HYUNDAI SINGAPORE

029

  • →
  • ✓
Bay 029 view and slots of HYUNDAI SINGAPORE

031 (030)

  • ←
  • ✓

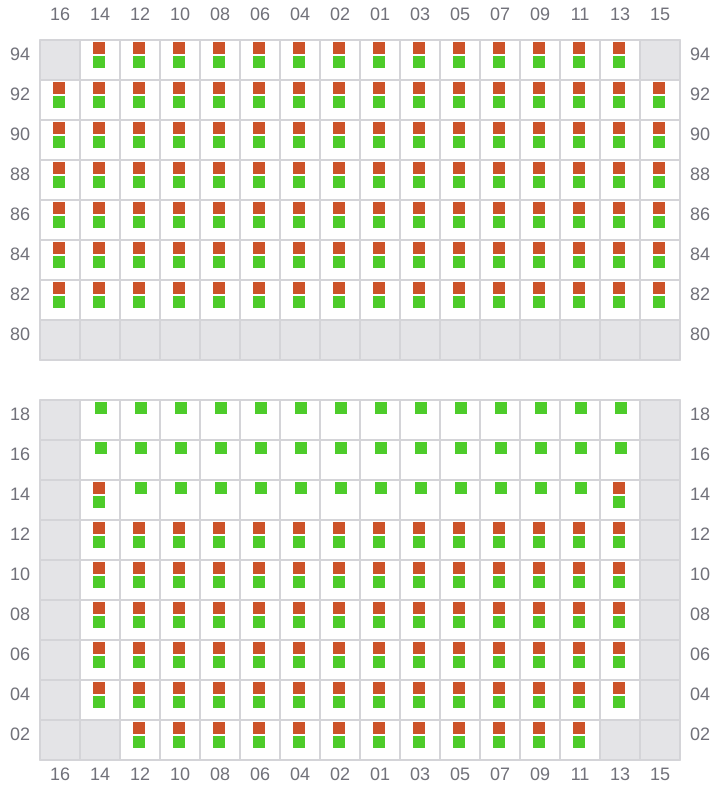

Bay 031 view and slots of HYUNDAI SINGAPORE

033

  • →
  • ✓
Bay 033 view and slots of HYUNDAI SINGAPORE

035 (034)

  • ←
  • ✓
Bay 035 view and slots of HYUNDAI SINGAPORE

037

  • →
  • ✓

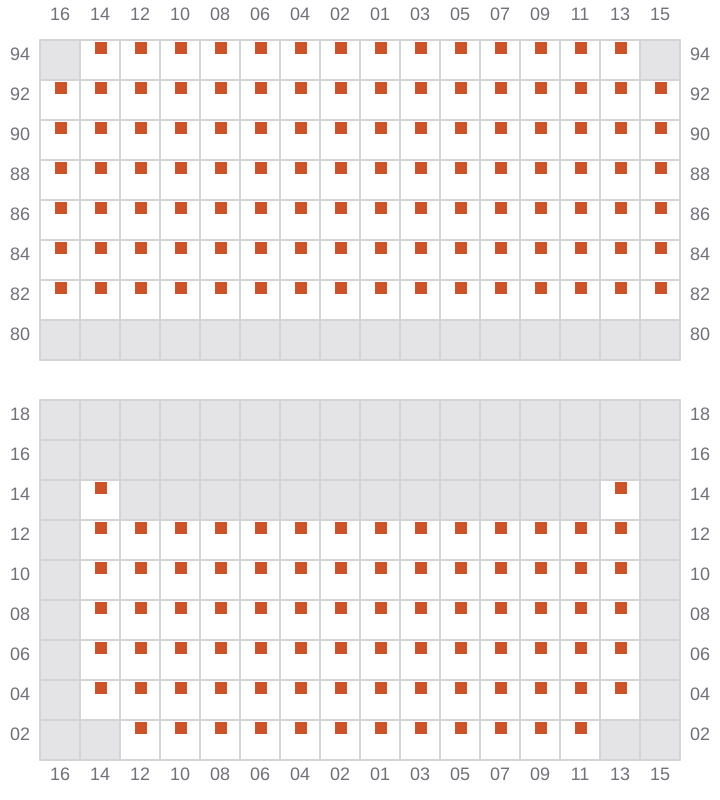

Bay 037 view and slots of HYUNDAI SINGAPORE

039 (038)

  • ←
  • ✓
Bay 039 view and slots of HYUNDAI SINGAPORE

041

  • →
  • ✓
Bay 041 view and slots of HYUNDAI SINGAPORE

043 (042)

  • ←
  • ✓
Bay 043 view and slots of HYUNDAI SINGAPORE

045

  • →
  • ✓

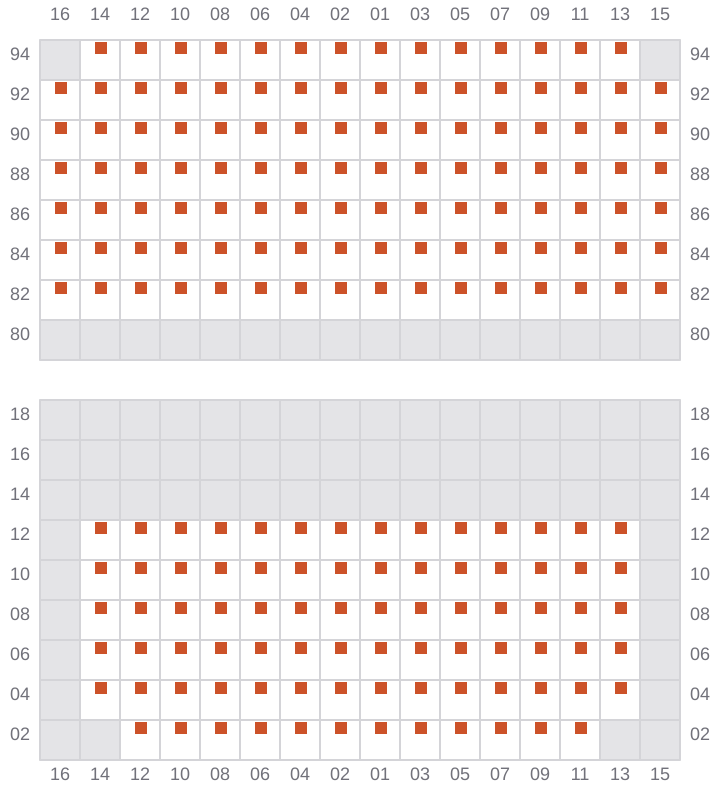

Bay 045 view and slots of HYUNDAI SINGAPORE

047 (046)

  • ←
  • ✓
Bay 047 view and slots of HYUNDAI SINGAPORE

049

  • →
  • ✓
Bay 049 view and slots of HYUNDAI SINGAPORE

051 (050)

  • ←
  • ✓
Bay 051 view and slots of HYUNDAI SINGAPORE

053

  • →
  • ✓
Bay 053 view and slots of HYUNDAI SINGAPORE

055 (054)

  • ←
  • ✓
Bay 055 view and slots of HYUNDAI SINGAPORE

057

  • →
  • ✓
Bay 057 view and slots of HYUNDAI SINGAPORE

059 (058)

  • ←
  • ✓
Bay 059 view and slots of HYUNDAI SINGAPORE

061

  • →
  • ✓

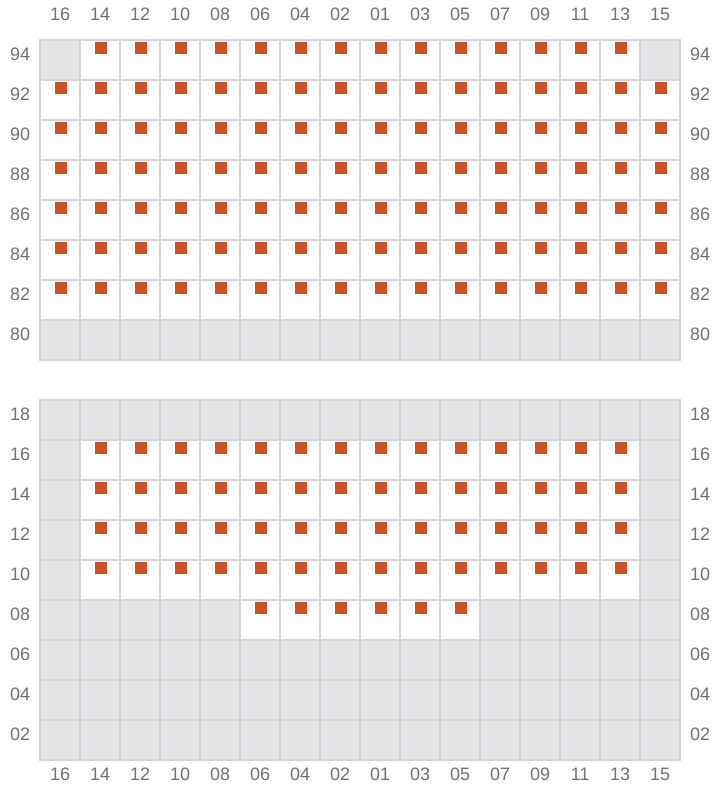

Bay 061 view and slots of HYUNDAI SINGAPORE

063 (062)

  • ←
  • ✓

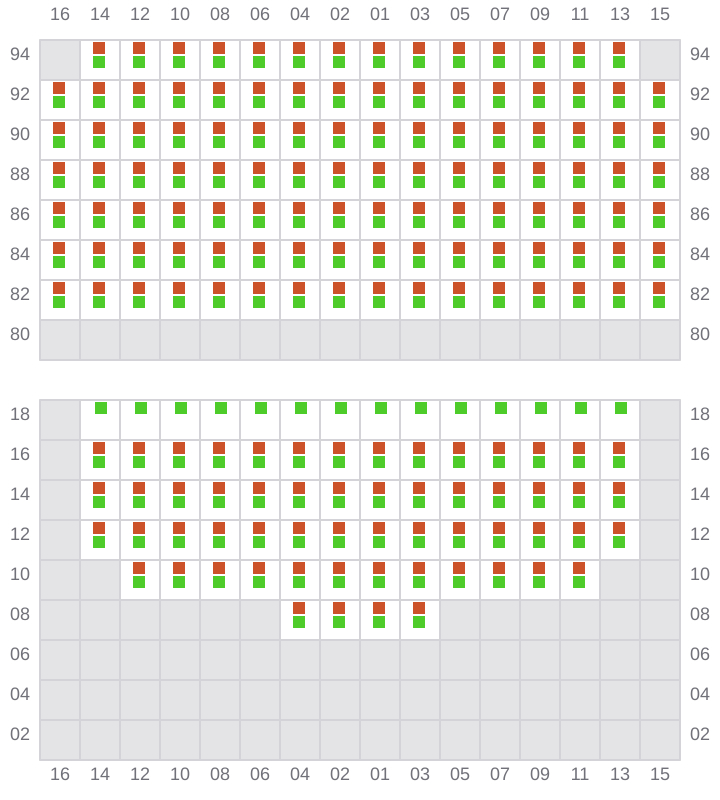

Bay 063 view and slots of HYUNDAI SINGAPORE

065

  • →
  • ✓
Bay 065 view and slots of HYUNDAI SINGAPORE

067 (066)

  • ←
  • ✓

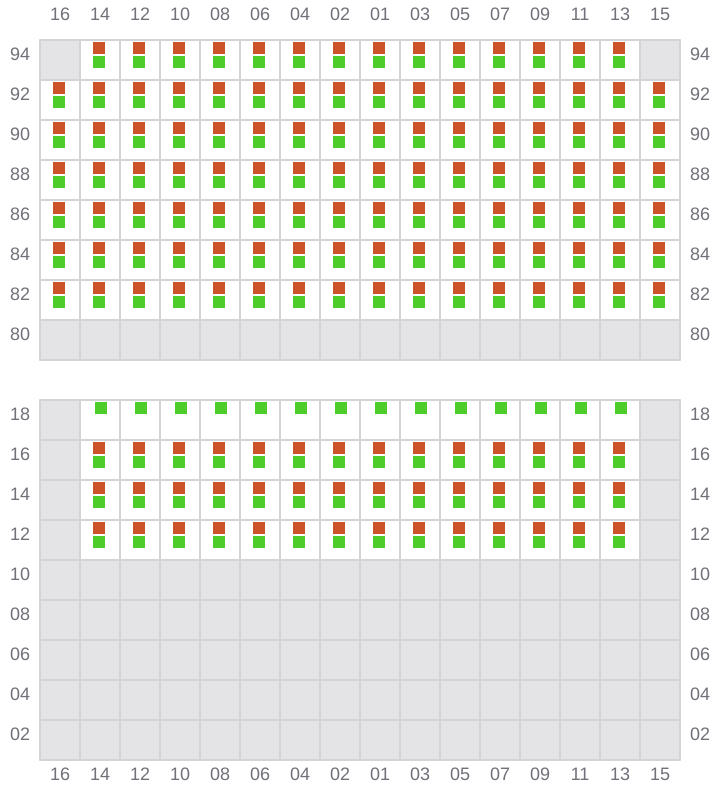

Bay 067 view and slots of HYUNDAI SINGAPORE

069

  • →
  • ? / ?
  • ? / ?
  • ✓

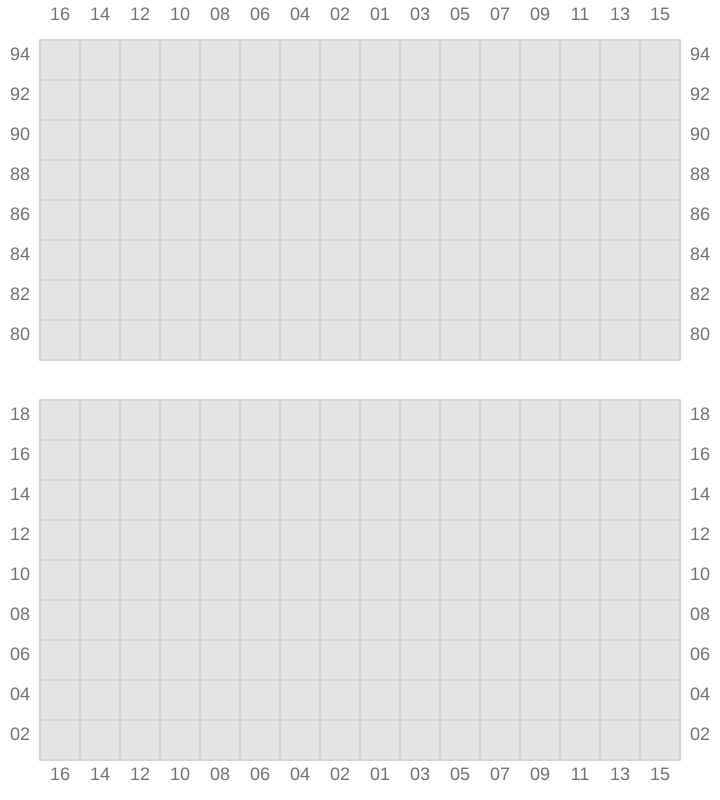

Bay 069 view and slots of HYUNDAI SINGAPORE

071 (070)

  • ←
  • ? / ?
  • ? / ?
  • ✓

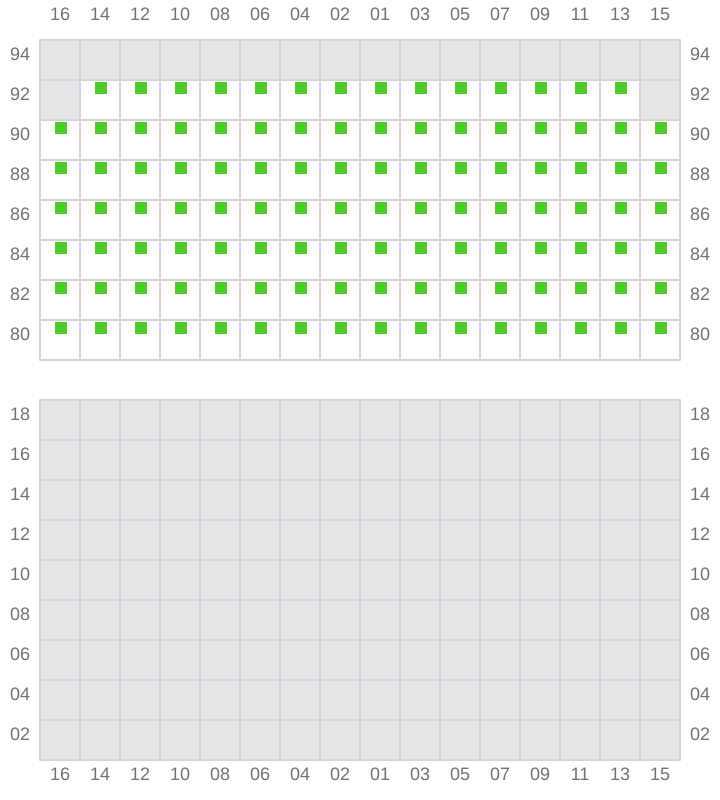

Bay 071 view and slots of HYUNDAI SINGAPORE
