HYUNDAI UNITY
9330719 | V7PX6 | HMM by *********************** Last update: Thu Jan 23 2025
General Info
Ship Name:HYUNDAI UNITY
IMO Code:9330719
Call Sign:V7PX6
Line Operator:HMM
Class Name for Sister Ships:HUNI
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:067
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,571
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

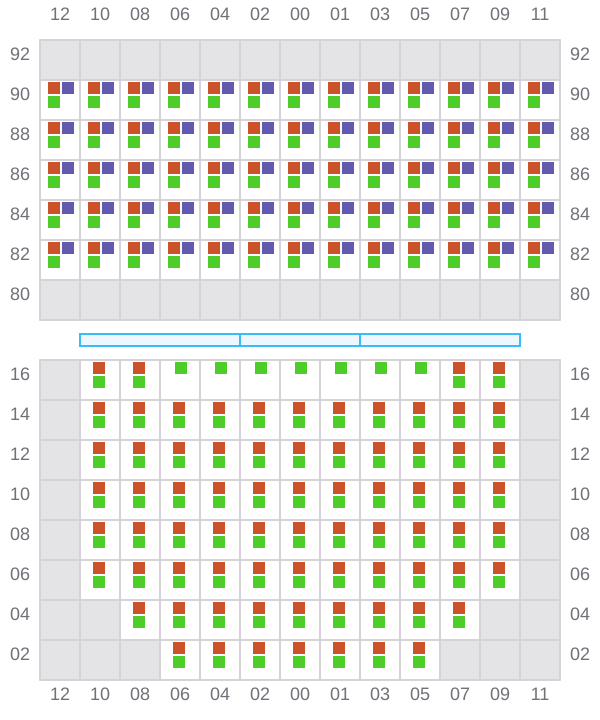

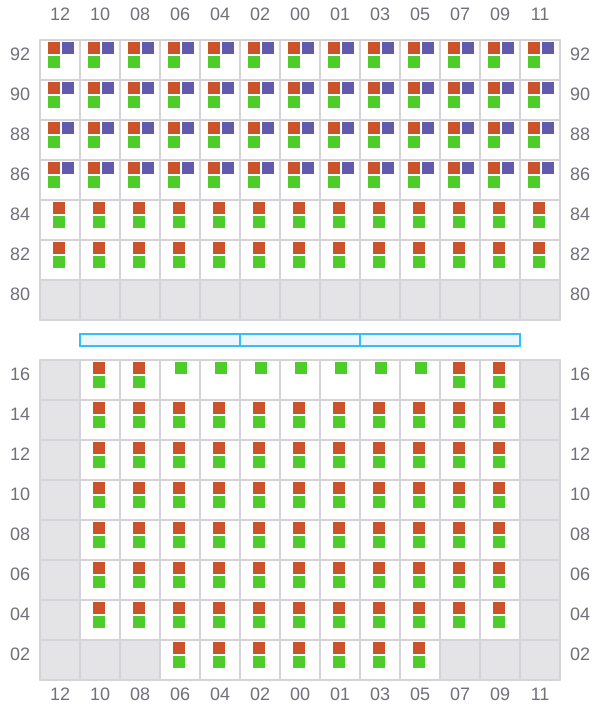

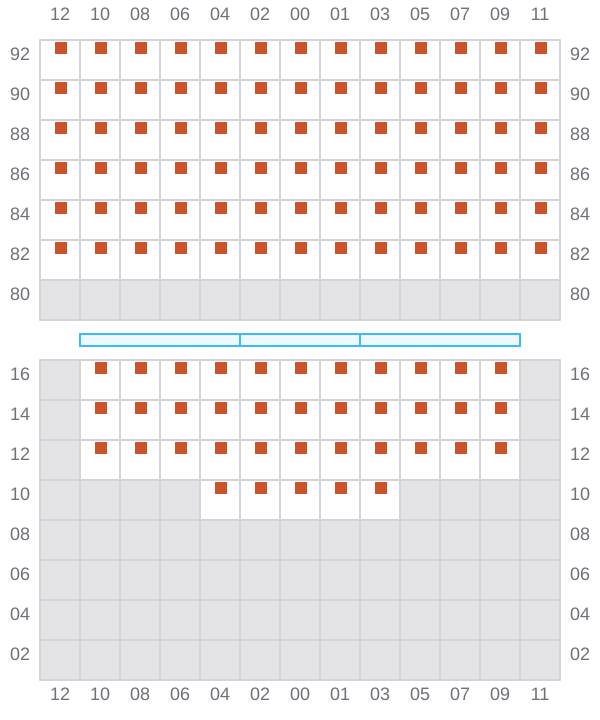

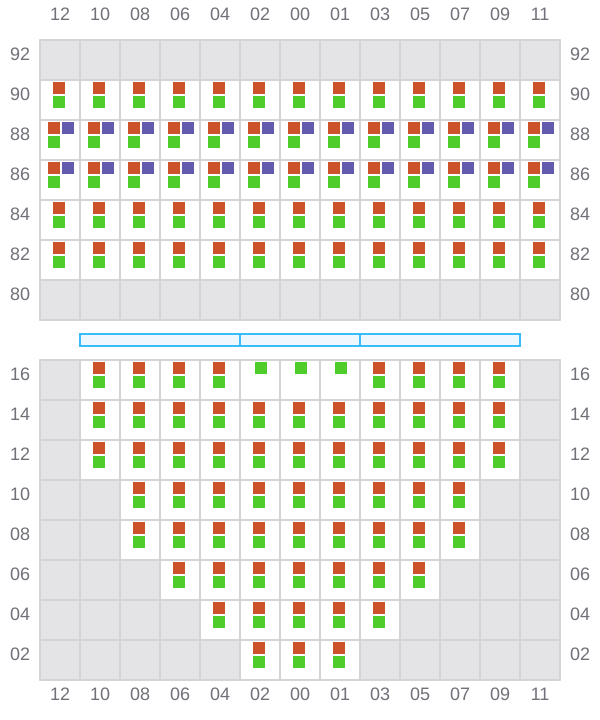

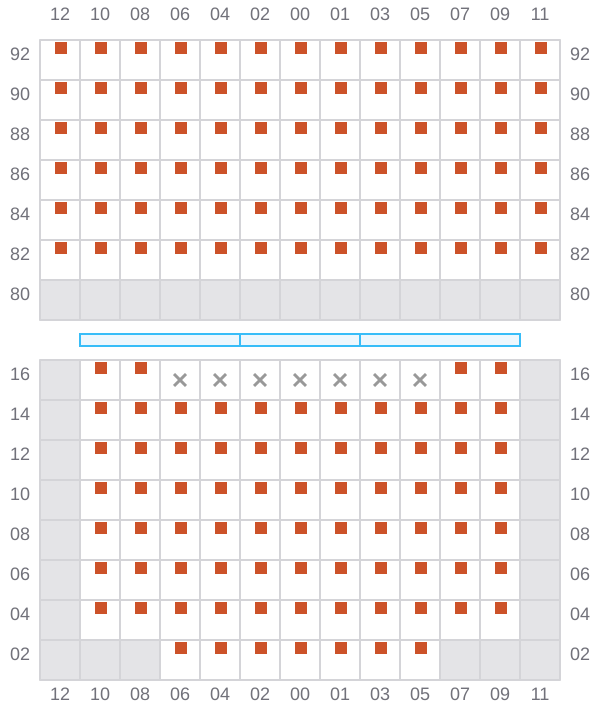

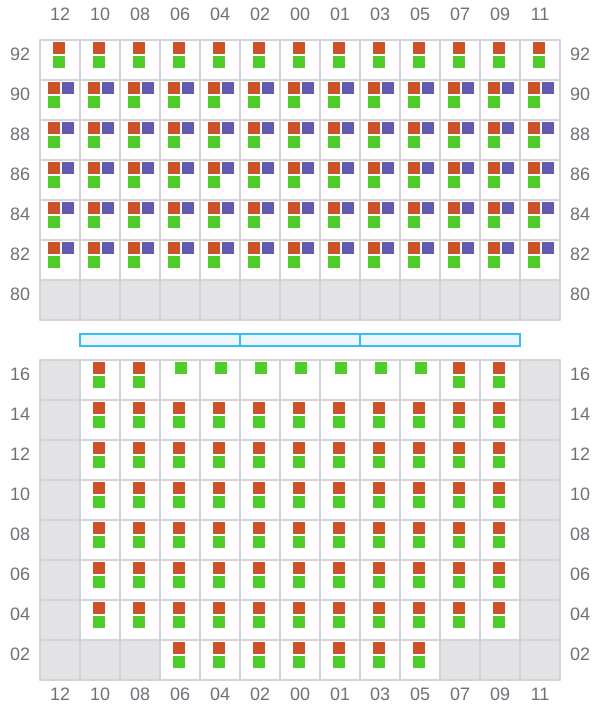

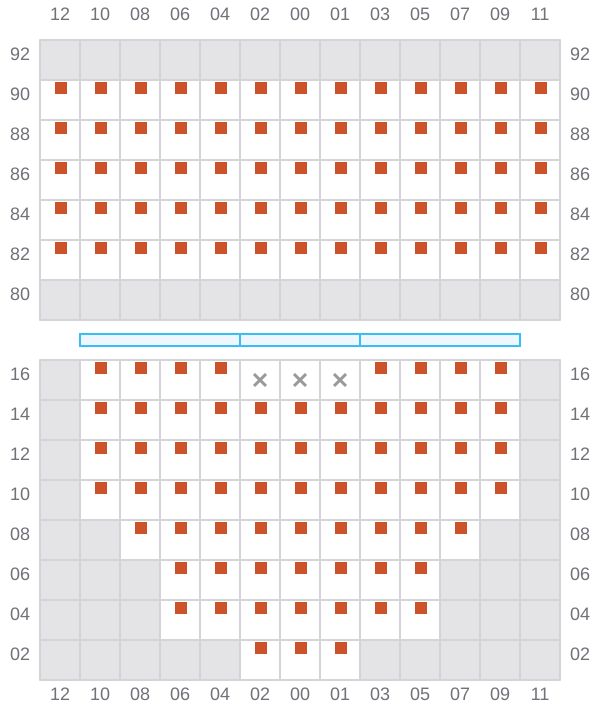

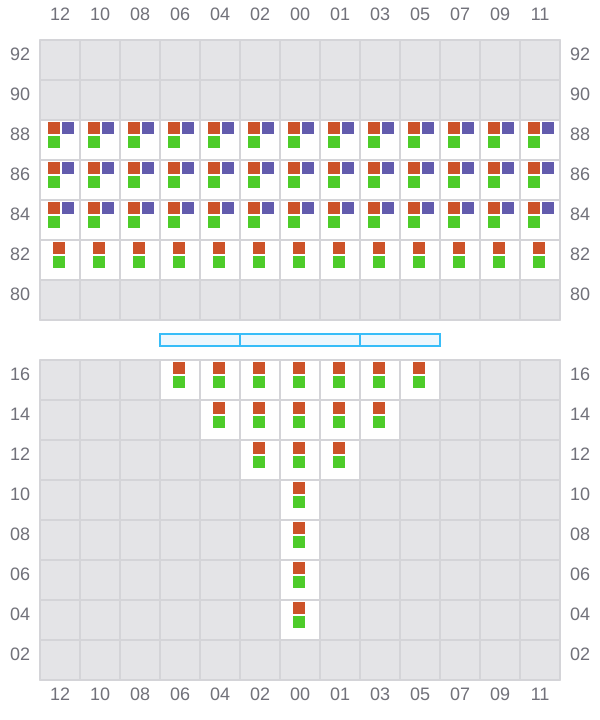

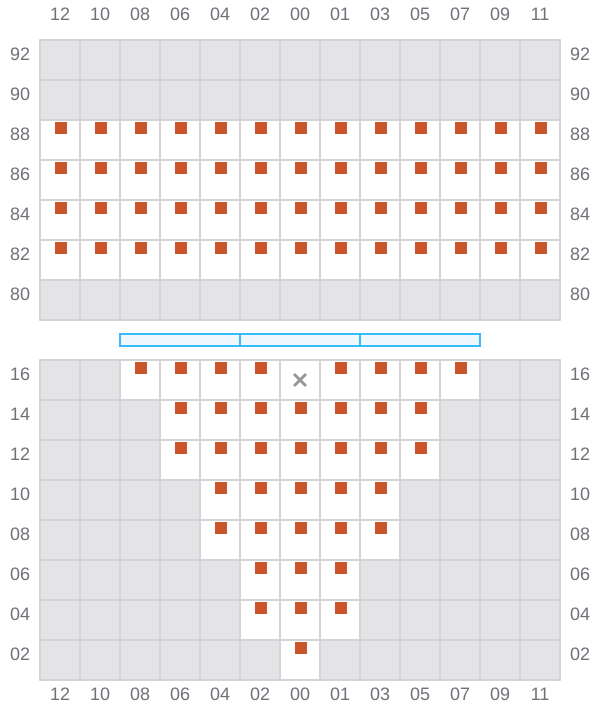

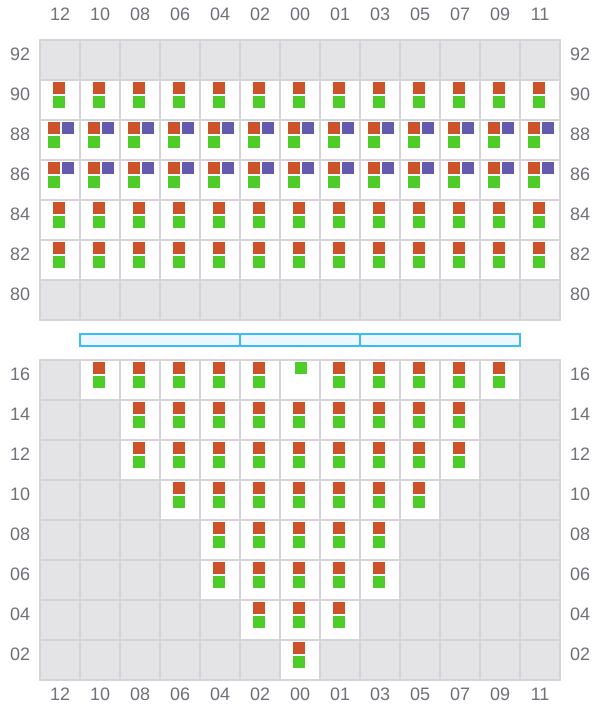

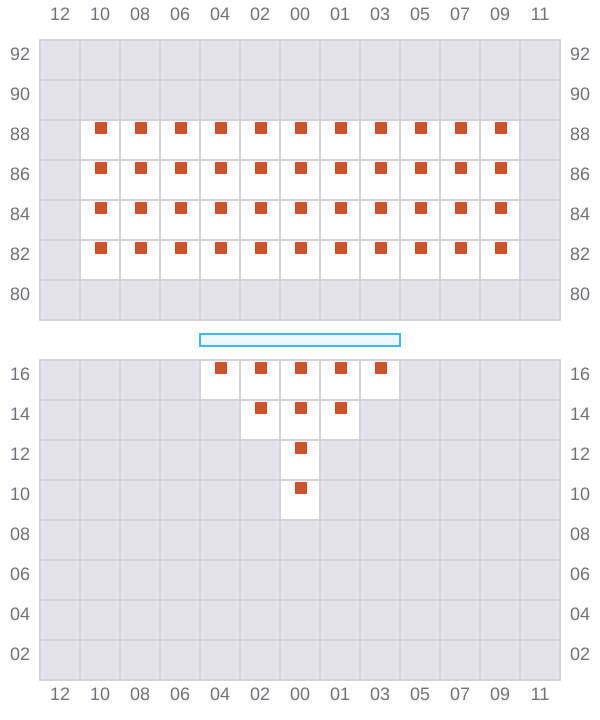

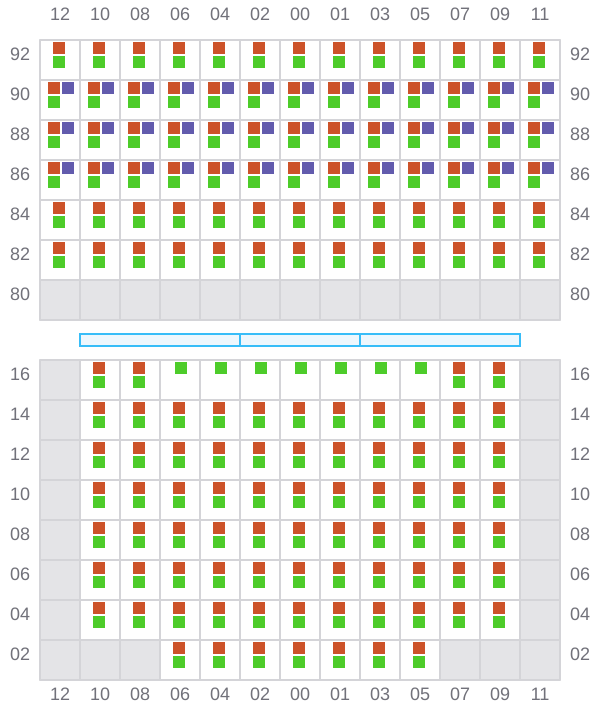

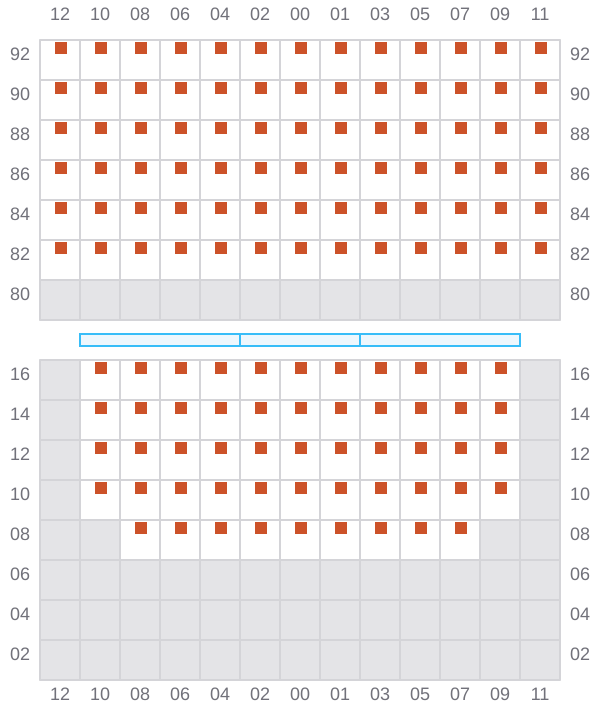

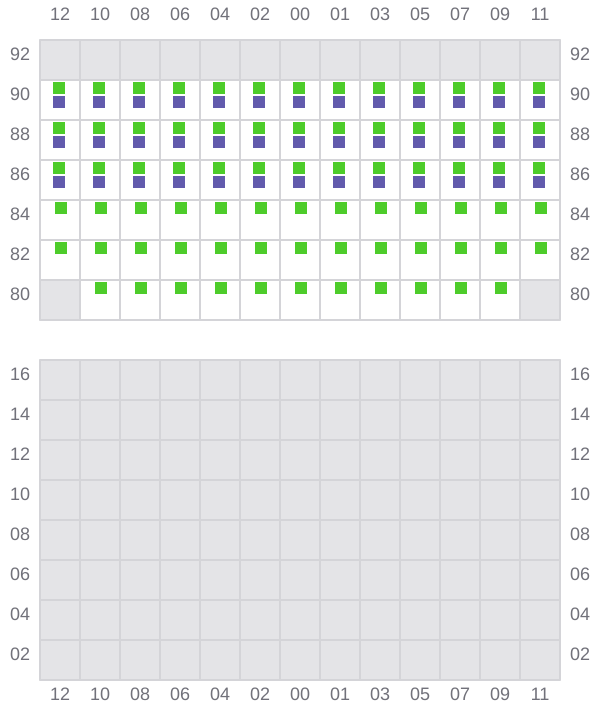

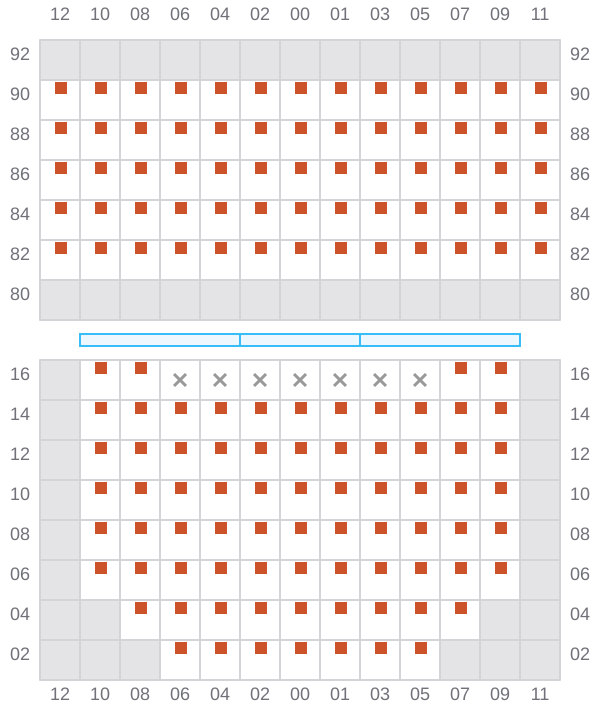

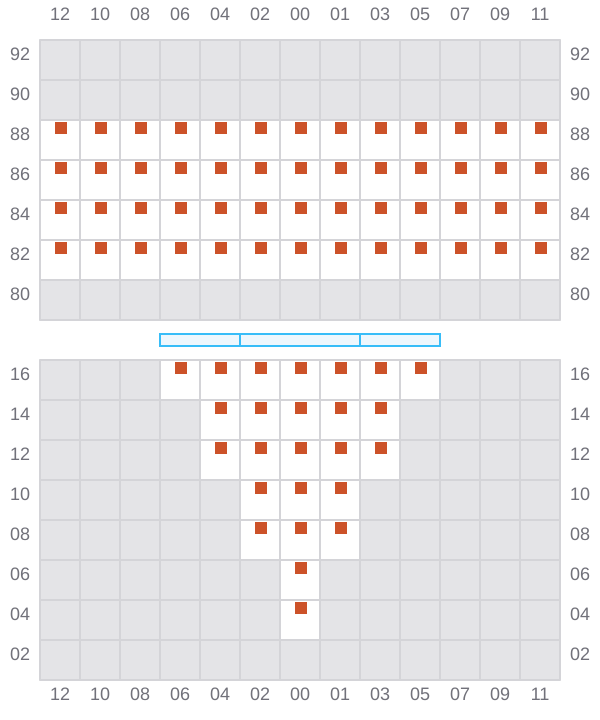

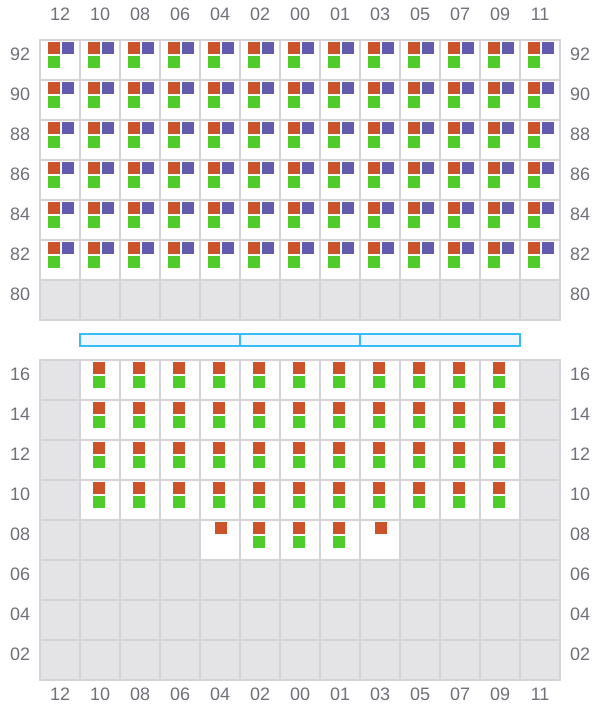

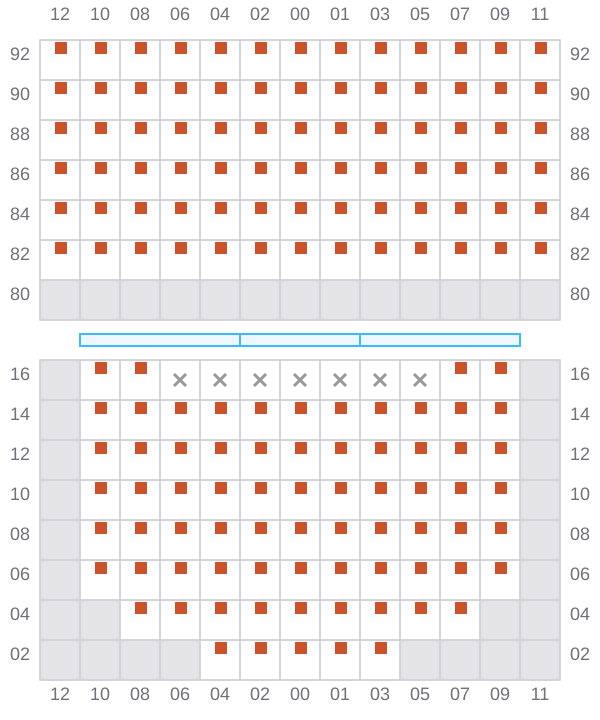

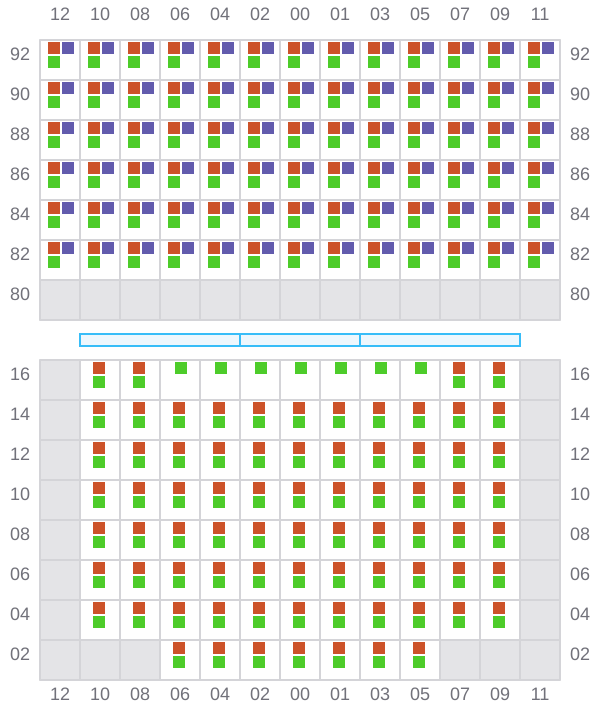

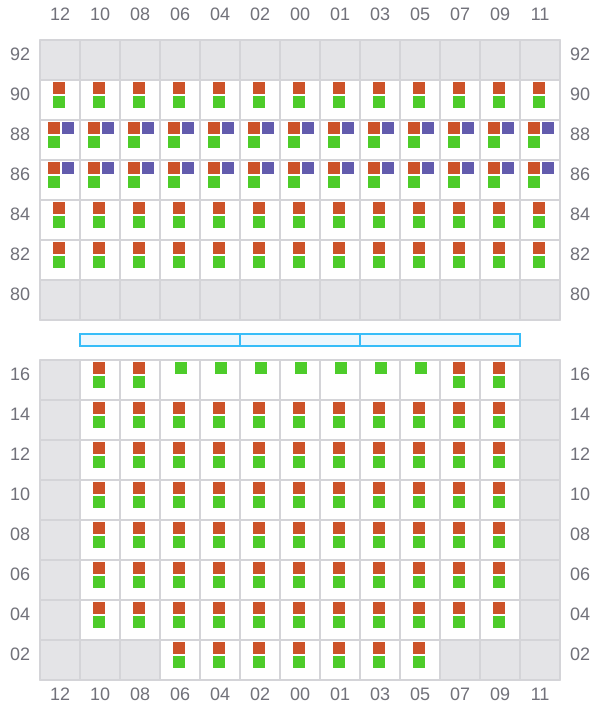

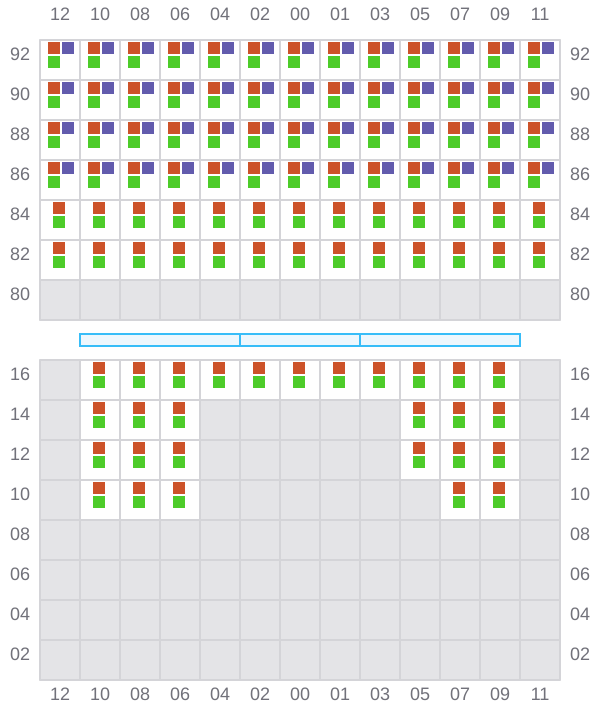

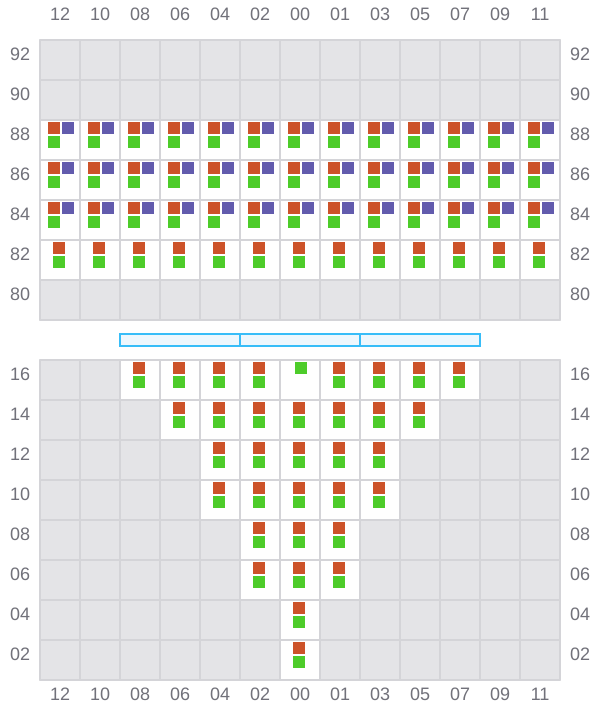

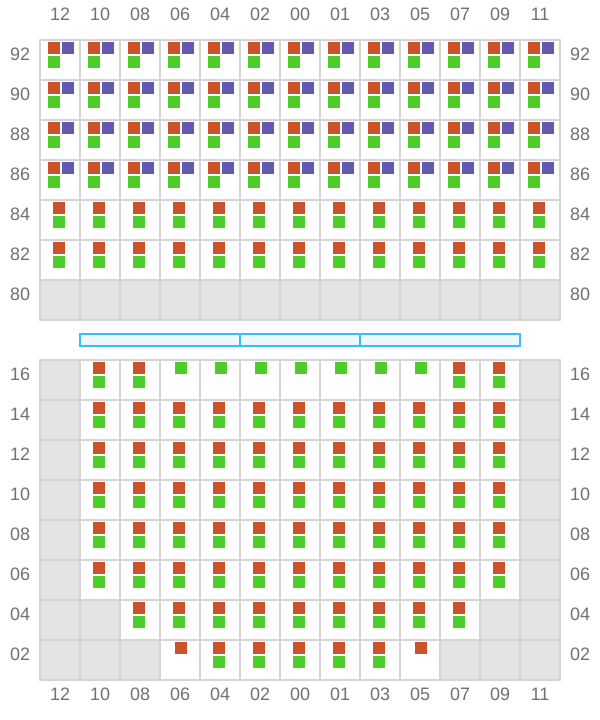

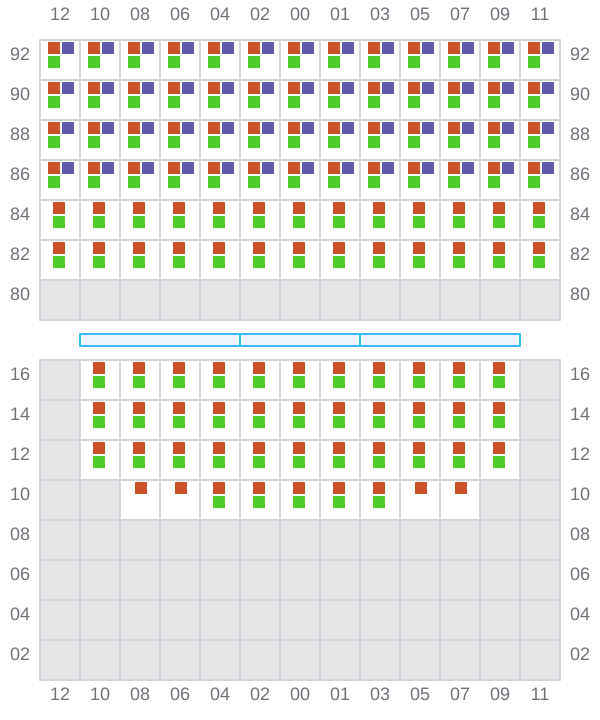

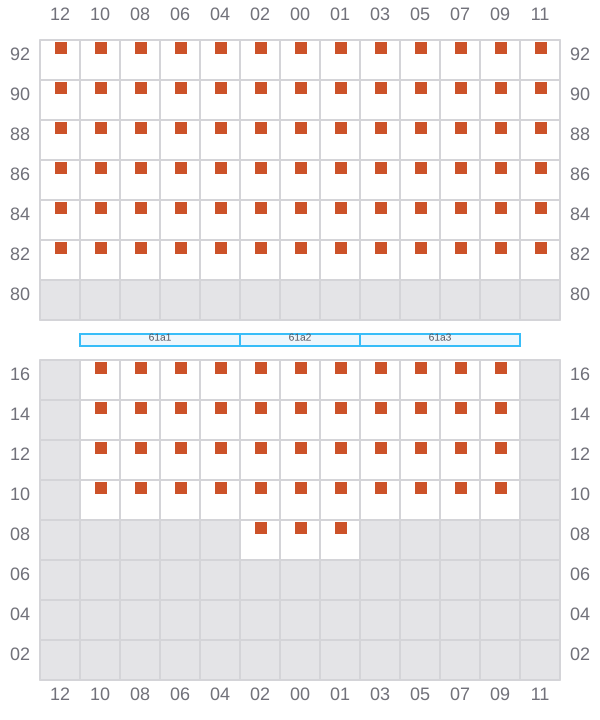

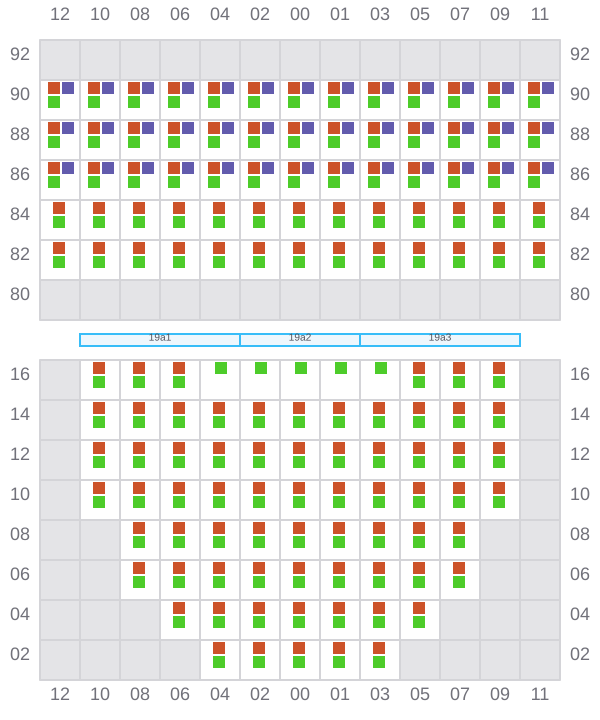

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001
- →
003 (004)
- →
- → / ?
- →
005
- ←
- → / ?
- →
007 (008)
- →
- → / ?
- →
009
- ←
- → / ?
- →
011 (012)
- →
- → / ?
- →
013
- ←
- ← / ?
- →
015 (016)
- →
- → / ?
- →
017
- ←
- → / ?
- →
019 (020)
- →
- → / ?
- →
021
- ←
- → / ?
- →
023 (024)
- →
- → / ?
- →
025
- ←
- → / ?
- →
027 (028)
- →
- → / ?
- →
029
- ←
- → / ?
- →
031 (032)
- →
- → / ?
- →
033
- ←
- → / ?
- →
035 (036)
- →
- → / ?
- →
037
- ←
- → / ?
- →
039 (040)
- →
- → / ?
- →
041
- ←
- → / ?
- →
043 (044)
- →
- → / ?
- →
045
- ←
- → / ?
- →
047 (048)
- →
- → / ?
- →
049
- ←
- → / ?
- →
051 (052)
- →
- → / ?
- →
053
- ←
- → / ?
- →
055 (056)
- →
- → / ?
- →
057
- ←
- → / ?
- →
059 (060)
- →
- → / ?
- →
061
- ←
- → / ?
- →
063 (064)
- →
- → / ?
- →
065
- ←
- ← / ?
- →
067 (068)
- → / ?
- → / ?
