HYUNDAI VOYAGER
9347580 | V7QJ9 | HMM by *********************** Last update: Mon Jan 27 2025

General Info

Ship Name:HYUNDAI VOYAGER
IMO Code:9347580
Call Sign:V7QJ9
Line Operator:HMM
Class Name for Sister Ships:HHVO
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:067
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,562

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of HYUNDAI VOYAGER

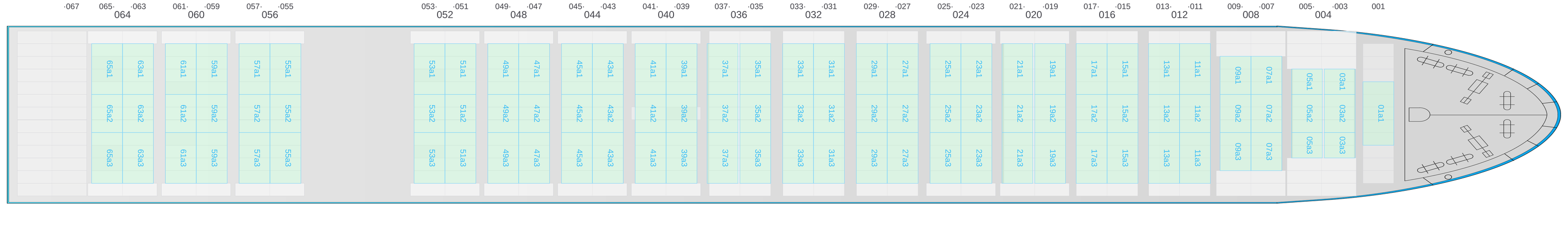

Hatch-Covers View

Deck view of HYUNDAI VOYAGER

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
Bay 001 view and slots of HYUNDAI VOYAGER

003 (004)

  • →
  • → / ?
  • →
Bay 003 view and slots of HYUNDAI VOYAGER

005

  • ←
  • → / ?
  • →
Bay 005 view and slots of HYUNDAI VOYAGER

007 (008)

  • →
  • → / ?
  • →
Bay 007 view and slots of HYUNDAI VOYAGER

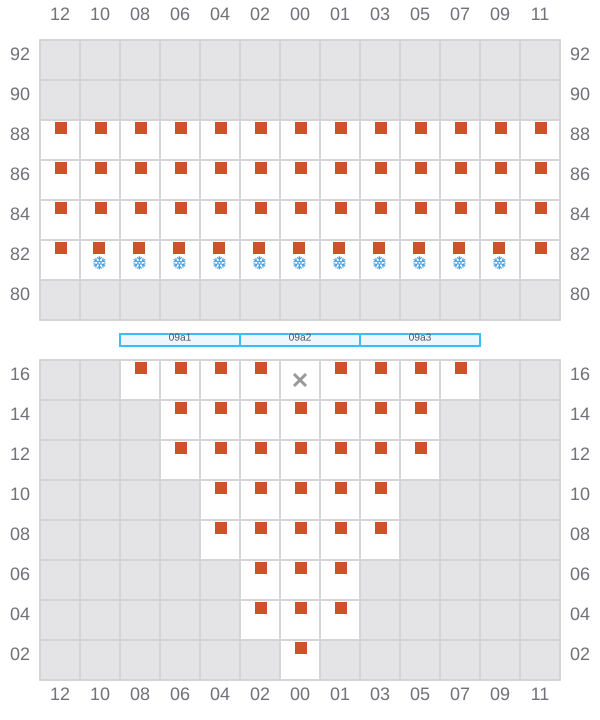

009

  • ←
  • → / ?
  • →
Bay 009 view and slots of HYUNDAI VOYAGER

011 (012)

  • →
  • → / ?
  • →
Bay 011 view and slots of HYUNDAI VOYAGER

013

  • ←
  • ← / ?
  • →
Bay 013 view and slots of HYUNDAI VOYAGER

015 (016)

  • →
  • → / ?
  • →

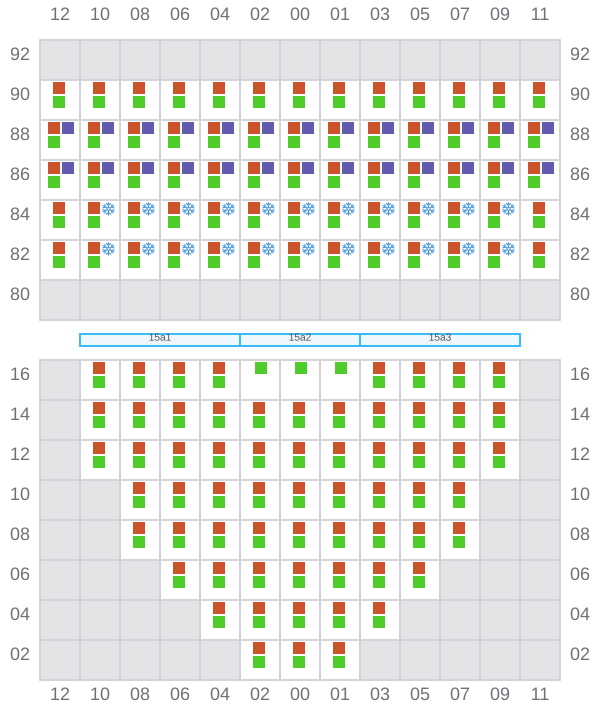

Bay 015 view and slots of HYUNDAI VOYAGER

017

  • ←
  • → / ?
  • →
Bay 017 view and slots of HYUNDAI VOYAGER

019 (020)

  • →
  • → / ?
  • →
Bay 019 view and slots of HYUNDAI VOYAGER

021

  • ←
  • → / ?
  • →
Bay 021 view and slots of HYUNDAI VOYAGER

023 (024)

  • →
  • → / ?
  • →
Bay 023 view and slots of HYUNDAI VOYAGER

025

  • ←
  • → / ?
  • →

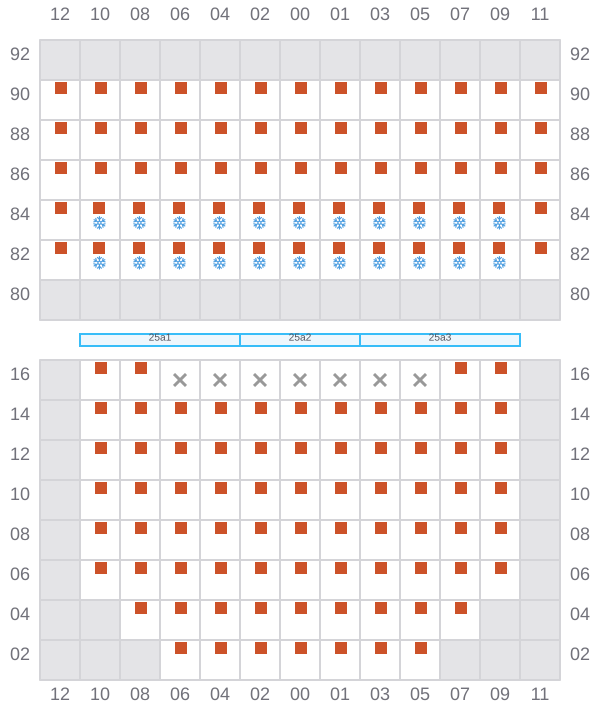

Bay 025 view and slots of HYUNDAI VOYAGER

027 (028)

  • →
  • → / ?
  • →
Bay 027 view and slots of HYUNDAI VOYAGER

029

  • ←
  • → / ?
  • →
Bay 029 view and slots of HYUNDAI VOYAGER

031 (032)

  • →
  • → / ?
  • →

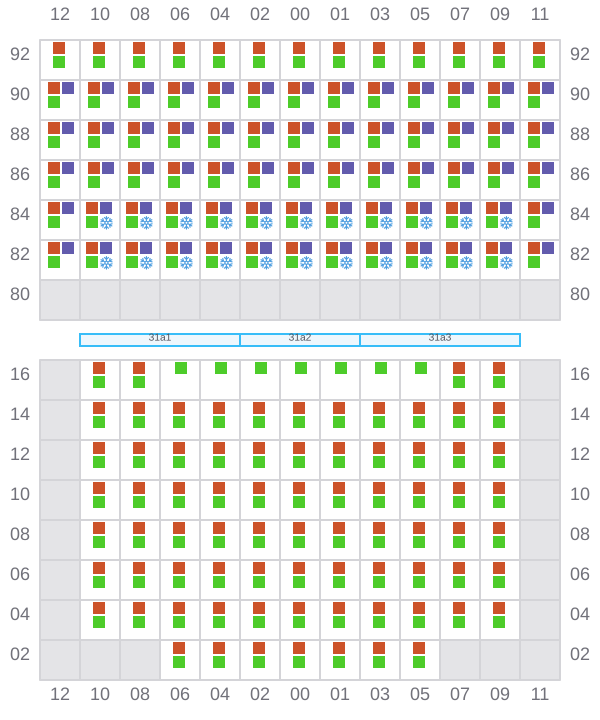

Bay 031 view and slots of HYUNDAI VOYAGER

033

  • ←
  • → / ?
  • →
Bay 033 view and slots of HYUNDAI VOYAGER

035 (036)

  • →
  • → / ?
  • →
Bay 035 view and slots of HYUNDAI VOYAGER

037

  • ←
  • → / ?
  • →

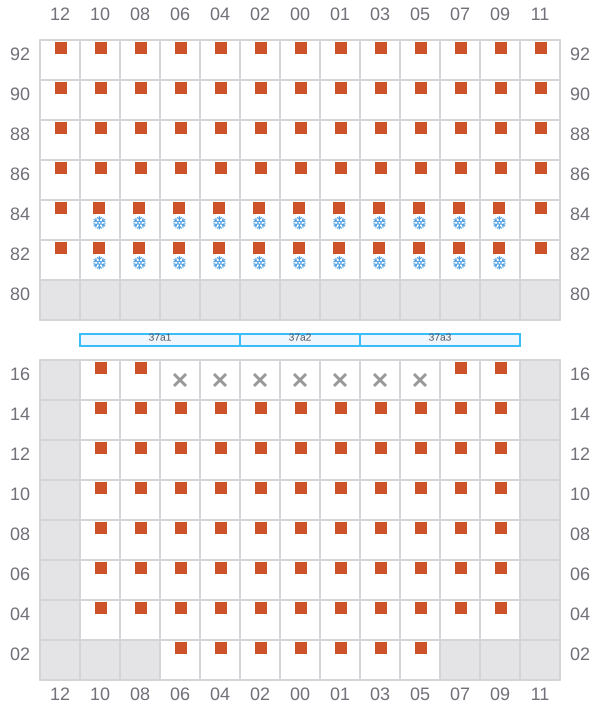

Bay 037 view and slots of HYUNDAI VOYAGER

039 (040)

  • →
  • → / ?
  • →
Bay 039 view and slots of HYUNDAI VOYAGER

041

  • ←
  • → / ?
  • →
Bay 041 view and slots of HYUNDAI VOYAGER

043 (044)

  • →
  • → / ?
  • →

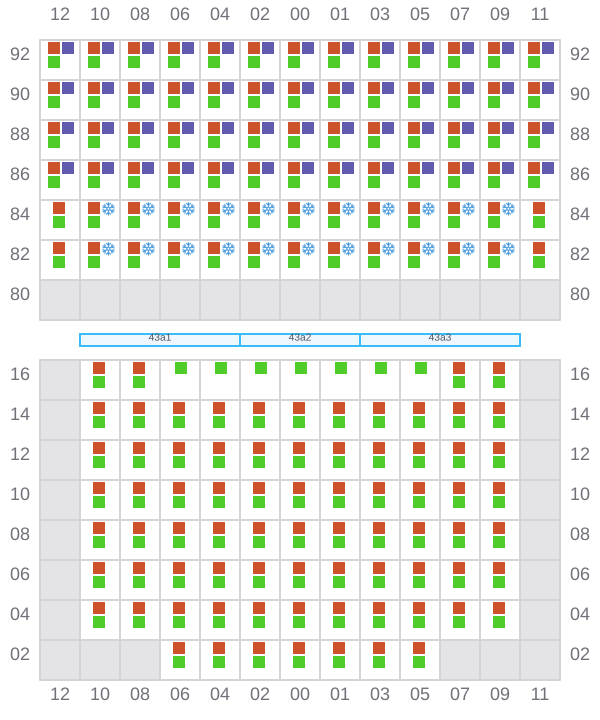

Bay 043 view and slots of HYUNDAI VOYAGER

045

  • ←
  • → / ?
  • →
Bay 045 view and slots of HYUNDAI VOYAGER

047 (048)

  • →
  • → / ?
  • →
Bay 047 view and slots of HYUNDAI VOYAGER

049

  • ←
  • → / ?
  • →

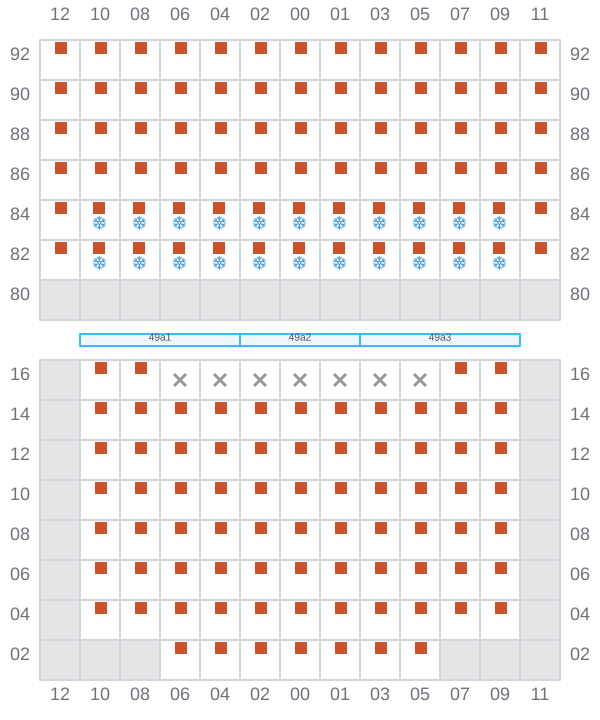

Bay 049 view and slots of HYUNDAI VOYAGER

051 (052)

  • →
  • → / ?
  • →
Bay 051 view and slots of HYUNDAI VOYAGER

053

  • ←
  • → / ?
  • →

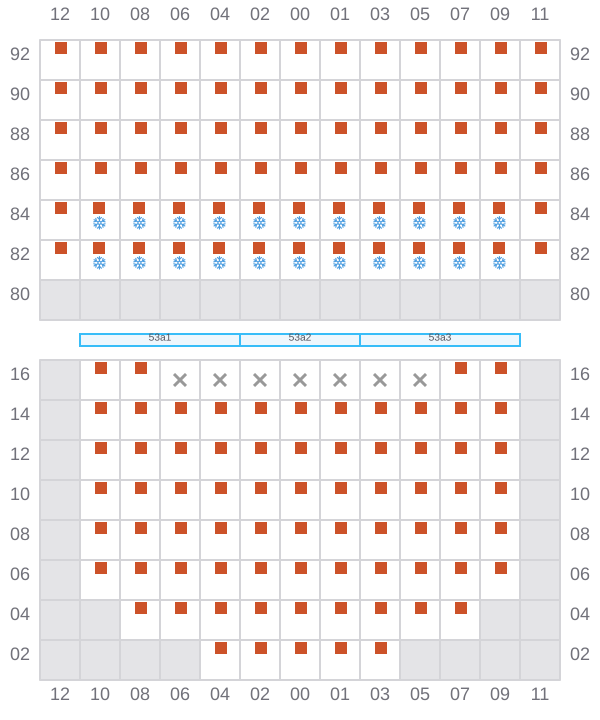

Bay 053 view and slots of HYUNDAI VOYAGER

055 (056)

  • →
  • → / ?
  • →
Bay 055 view and slots of HYUNDAI VOYAGER

057

  • ←
  • → / ?
  • →
Bay 057 view and slots of HYUNDAI VOYAGER

059 (060)

  • →
  • → / ?
  • →
Bay 059 view and slots of HYUNDAI VOYAGER

061

  • ←
  • → / ?
  • →
Bay 061 view and slots of HYUNDAI VOYAGER

063 (064)

  • →
  • → / ?
  • →
Bay 063 view and slots of HYUNDAI VOYAGER

065

  • ←
  • ← / ?
  • →
Bay 065 view and slots of HYUNDAI VOYAGER

067 (068)

  • → / ?
  • → / ?

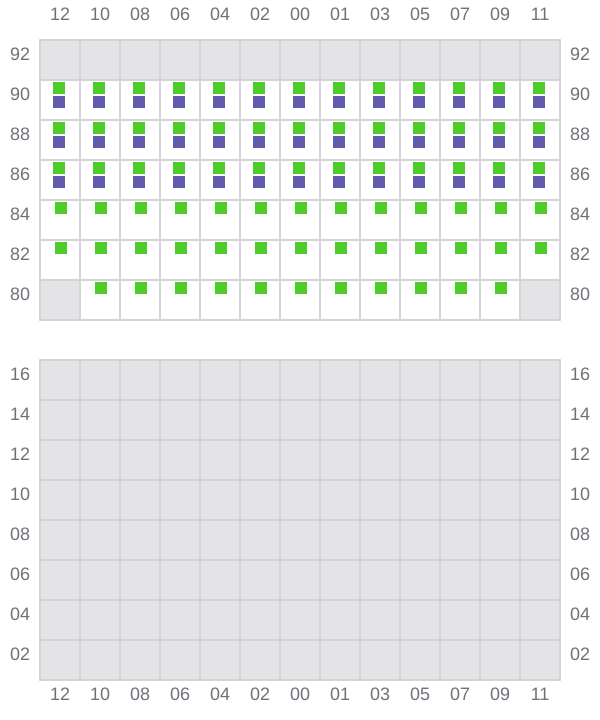

Bay 067 view and slots of HYUNDAI VOYAGER
