IFAMA MAS
9164251 | YDIW2 | 9164251 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:IFAMA MAS
IMO Code:9164251
Call Sign:YDIW2
Line Operator:9164251
Class Name for Sister Ships:013
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):145.77
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,136
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

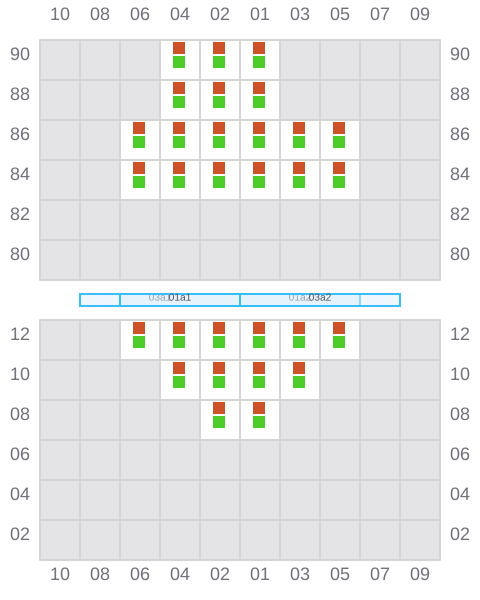

001 (002)
- →

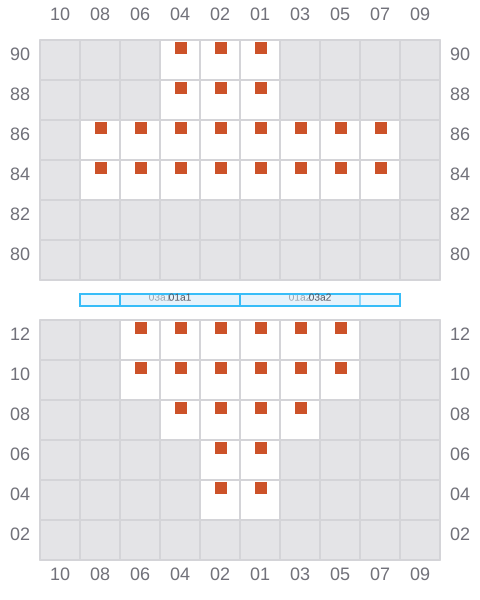

003
- ←

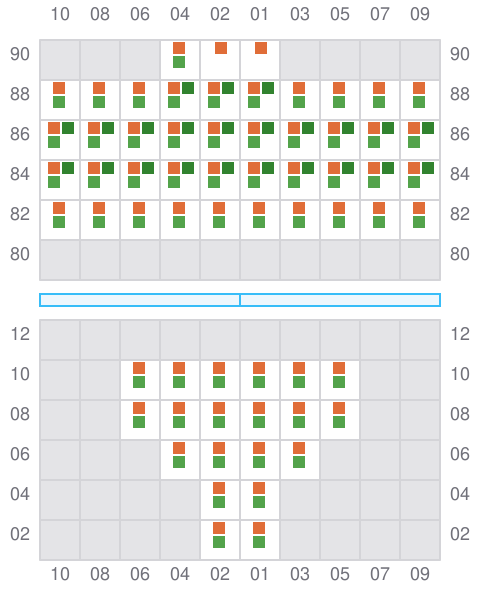

005 (006)
- →

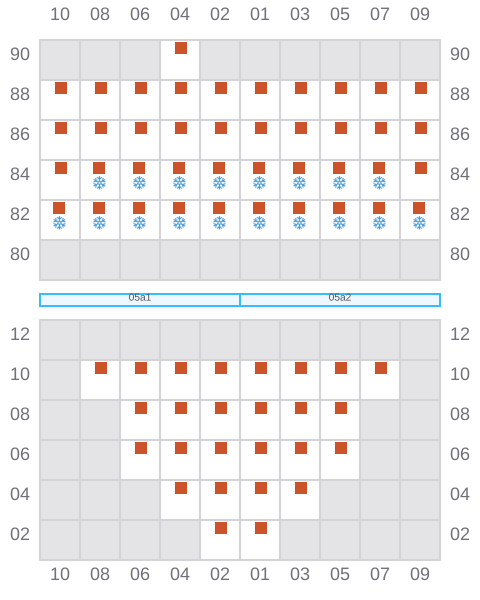

007
- ←
- → / ?

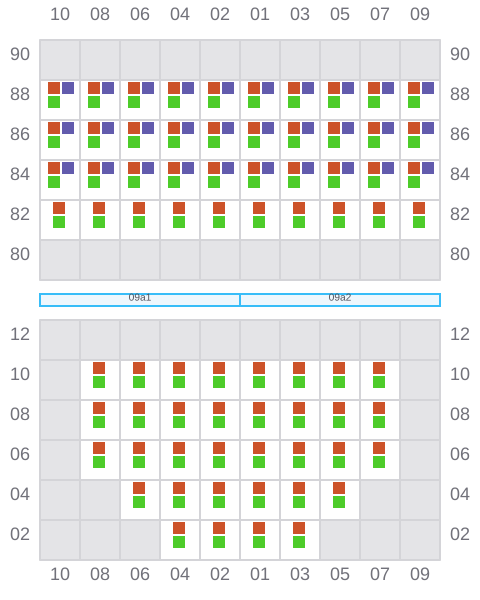

009 (010)
- →

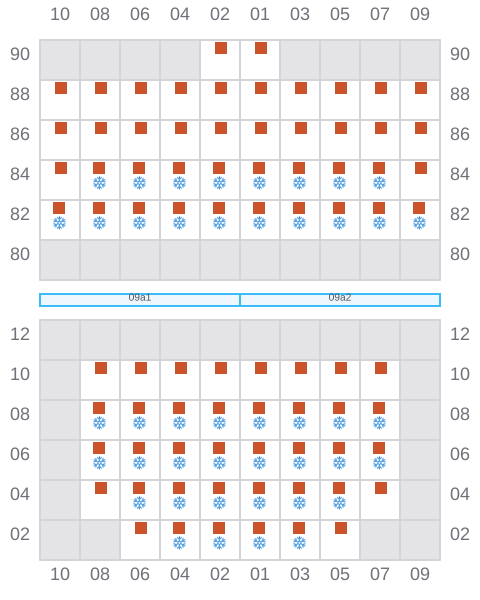

011
- ←
- →

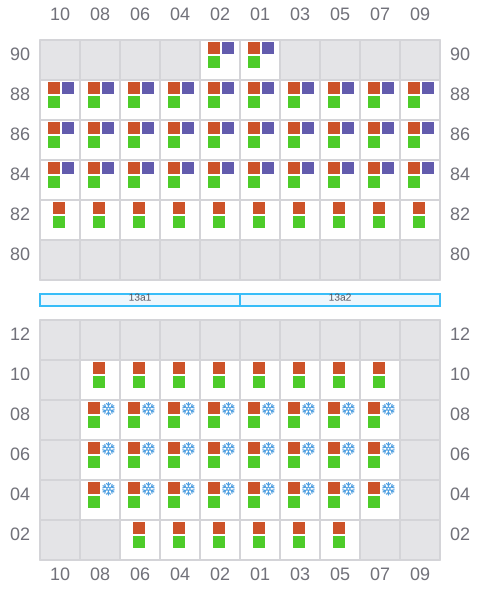

013 (014)
- →
- ? / ←

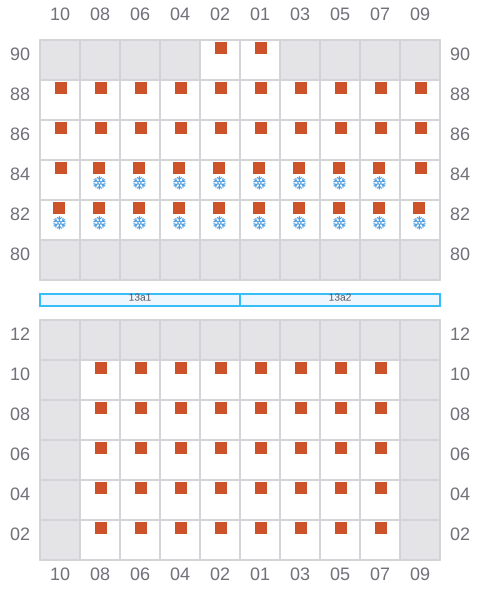

015
- ←
- → / ?
017 (018)
- →

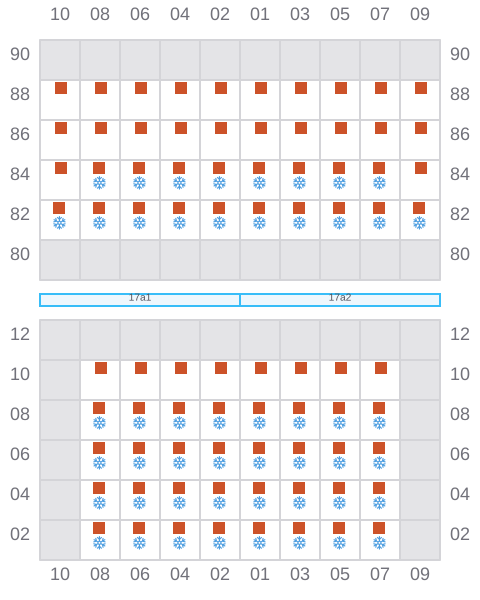

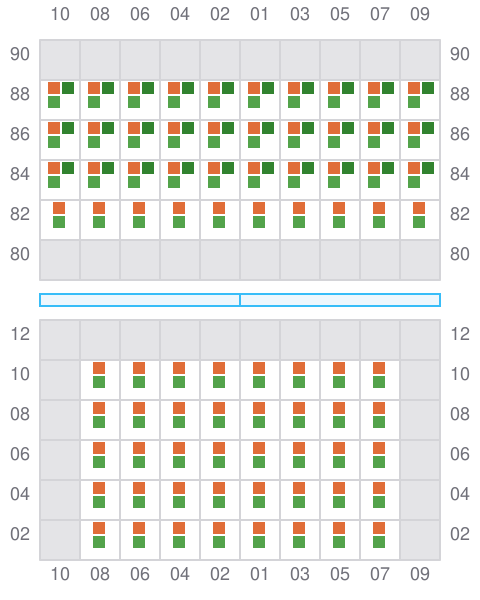

019
- ←
- →

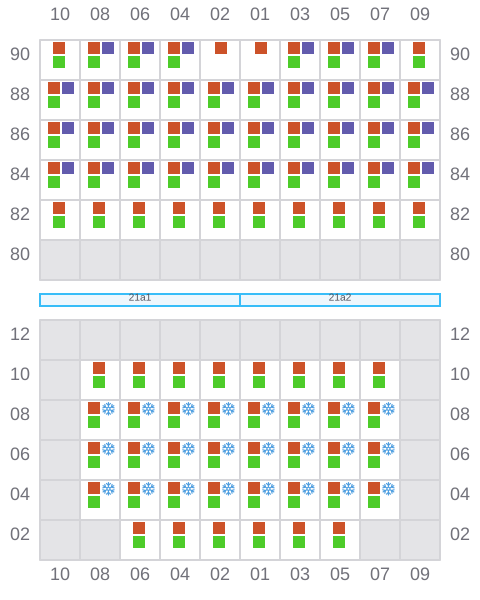

021 (022)
- →
- ? / ←

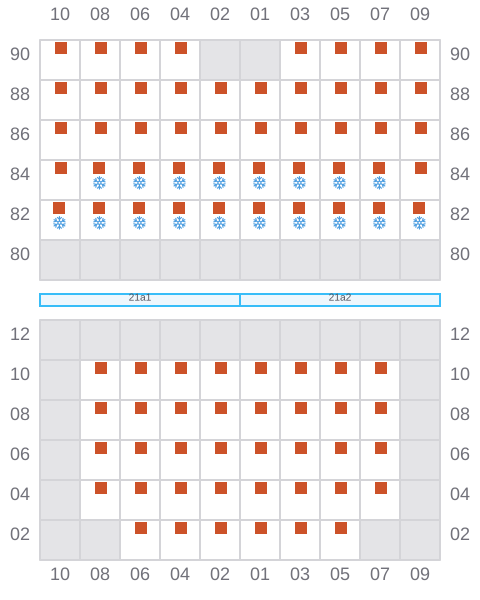

023
- ←
- → / ?

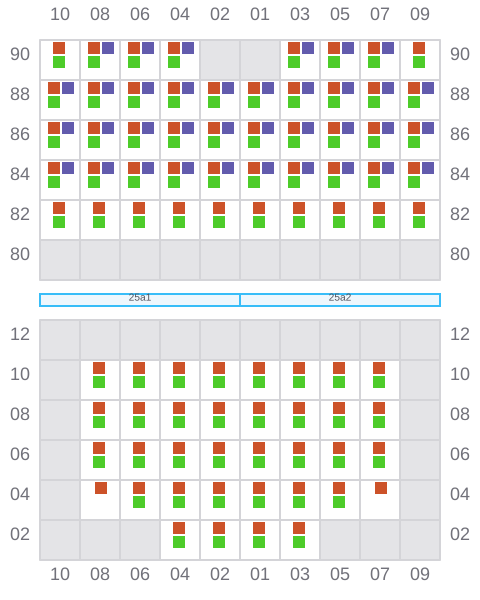

025 (026)
- →

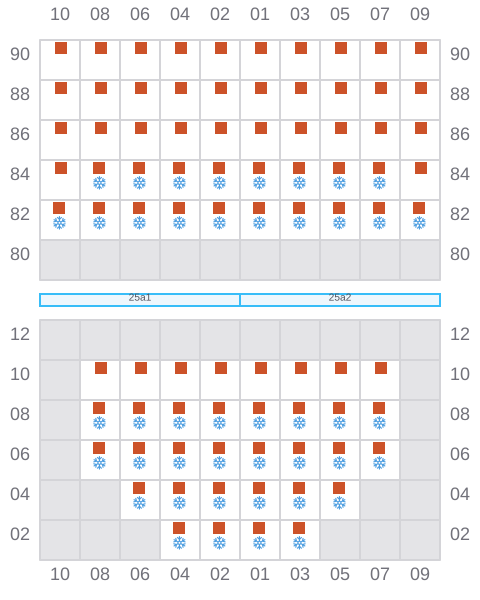

027
- ←
- →
029 (030)
- → / ?
- → / ?

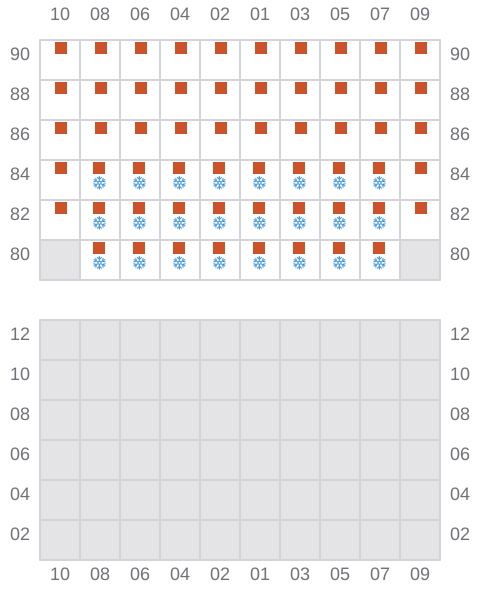

031
- ← / ?
- → / ?
