ILHA DA MADEIRA
9202077 | CQ2172 | 9202077 by ********* Last update: Mon Mar 11 2024
General Info
Ship Name:ILHA DA MADEIRA
IMO Code:9202077
Call Sign:CQ2172
Line Operator:9202077
Class Name for Sister Ships:35Q
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:695
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of ILHA DA MADEIRA](/vessel-images/167ee3bf-03f9-4efd-9ea3-7ff8d47d4621-sideView.png?v=1710182469724)

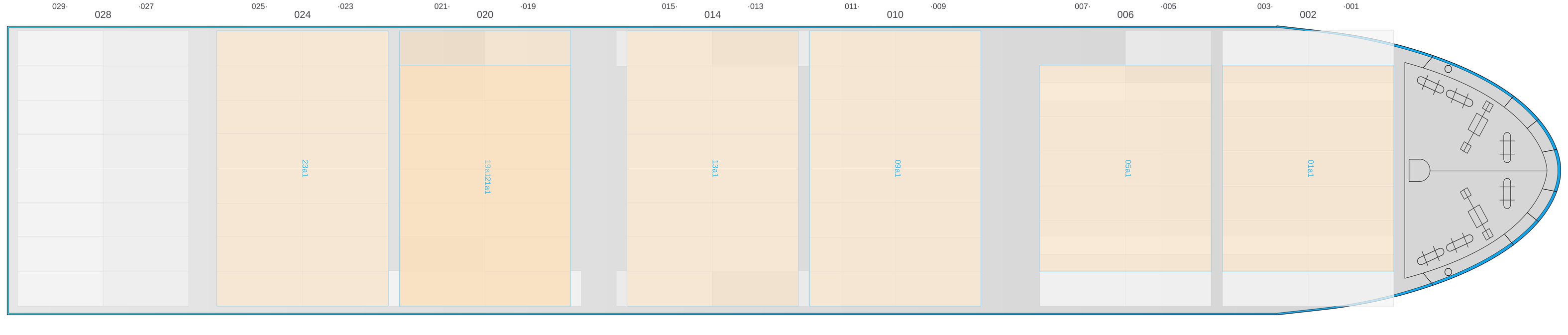

Hatch-Covers View
![Deck view of ILHA DA MADEIRA](/vessel-images/167ee3bf-03f9-4efd-9ea3-7ff8d47d4621-deckView.png?v=1710182469724)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

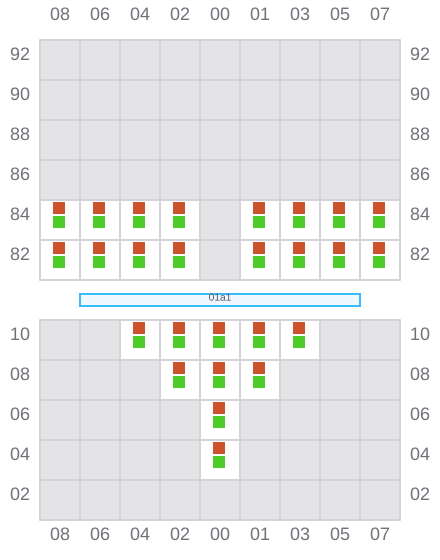

001 (002)
- →
![Bay 001 view and slots of ILHA DA MADEIRA](/vessel-images/167ee3bf-03f9-4efd-9ea3-7ff8d47d4621-b001.png?v=1710182469724)

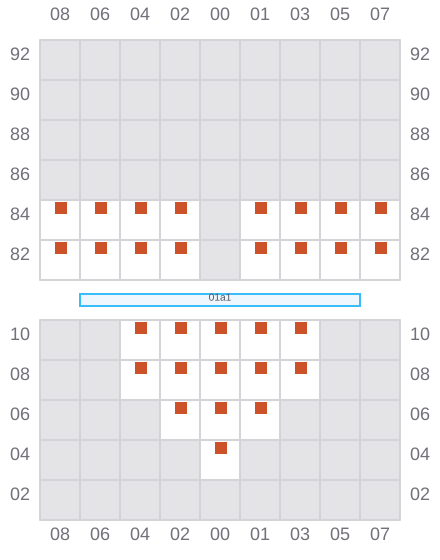

003
- ←
![Bay 003 view and slots of ILHA DA MADEIRA](/vessel-images/167ee3bf-03f9-4efd-9ea3-7ff8d47d4621-b003.png?v=1710182469724)
005 (006)
- →
![Bay 005 view and slots of ILHA DA MADEIRA](/vessel-images/167ee3bf-03f9-4efd-9ea3-7ff8d47d4621-b005.png?v=1710182469724)

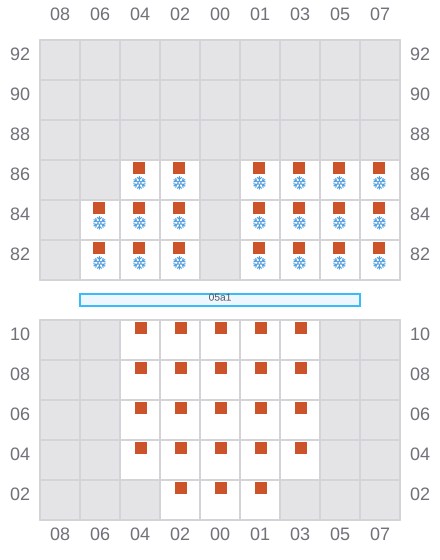

007
- ←
- → / ?
![Bay 007 view and slots of ILHA DA MADEIRA](/vessel-images/167ee3bf-03f9-4efd-9ea3-7ff8d47d4621-b007.png?v=1710182469724)

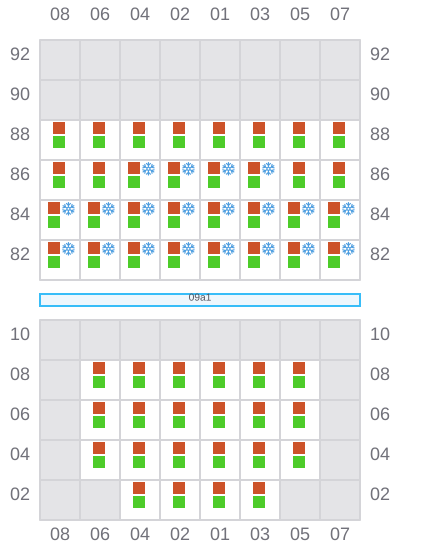

009 (010)
- →
- ← / ?
![Bay 009 view and slots of ILHA DA MADEIRA](/vessel-images/167ee3bf-03f9-4efd-9ea3-7ff8d47d4621-b009.png?v=1710182469724)
011
- ←
![Bay 011 view and slots of ILHA DA MADEIRA](/vessel-images/167ee3bf-03f9-4efd-9ea3-7ff8d47d4621-b011.png?v=1710182469724)

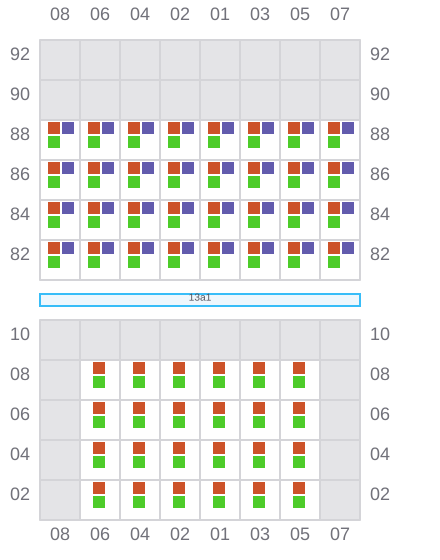

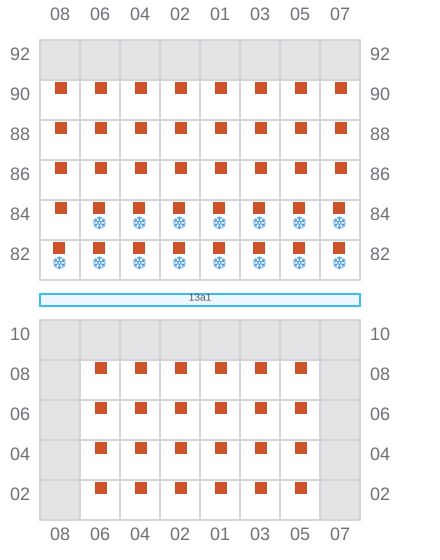

013 (014)
- →
![Bay 013 view and slots of ILHA DA MADEIRA](/vessel-images/167ee3bf-03f9-4efd-9ea3-7ff8d47d4621-b013.png?v=1710182469724)
015
- ←
- → / ?
![Bay 015 view and slots of ILHA DA MADEIRA](/vessel-images/167ee3bf-03f9-4efd-9ea3-7ff8d47d4621-b015.png?v=1710182469724)

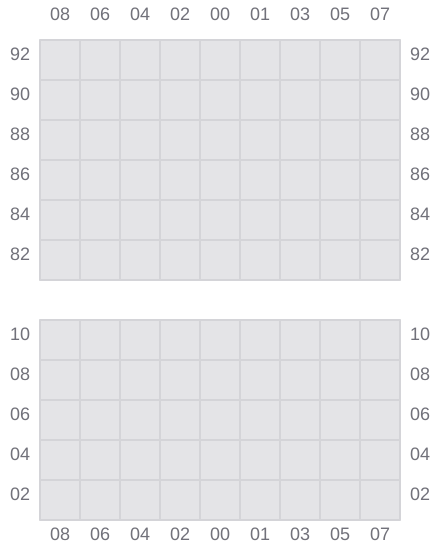

017
![Bay 017 view and slots of ILHA DA MADEIRA](/vessel-images/167ee3bf-03f9-4efd-9ea3-7ff8d47d4621-b017.png?v=1710182469724)

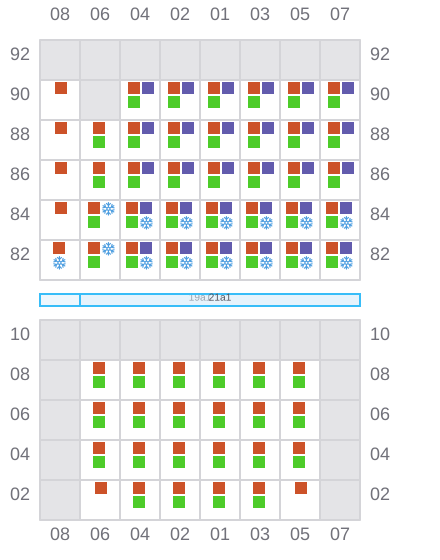

019 (020)
- →
- ← / ?
![Bay 019 view and slots of ILHA DA MADEIRA](/vessel-images/167ee3bf-03f9-4efd-9ea3-7ff8d47d4621-b019.png?v=1710182469724)

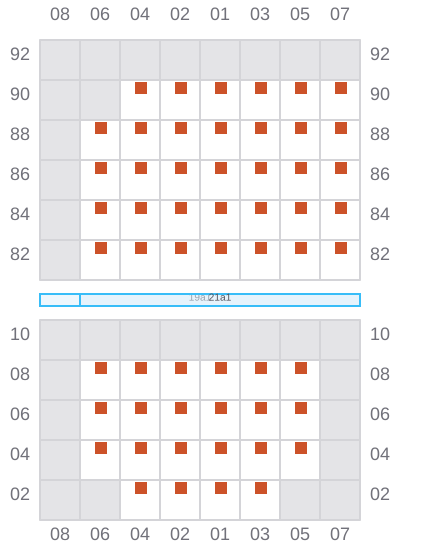

021
- ←
![Bay 021 view and slots of ILHA DA MADEIRA](/vessel-images/167ee3bf-03f9-4efd-9ea3-7ff8d47d4621-b021.png?v=1710182469724)

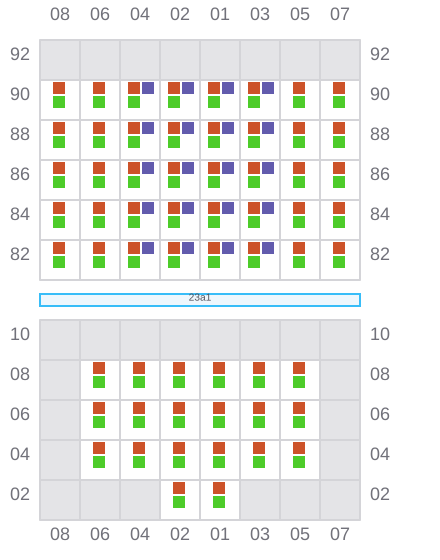

023 (024)
- →
![Bay 023 view and slots of ILHA DA MADEIRA](/vessel-images/167ee3bf-03f9-4efd-9ea3-7ff8d47d4621-b023.png?v=1710182469724)

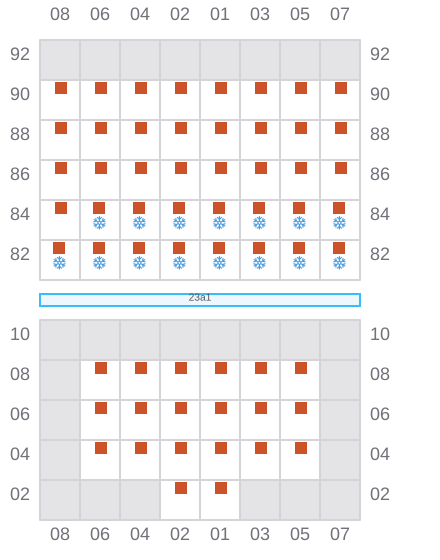

025
- ←
- → / ?
![Bay 025 view and slots of ILHA DA MADEIRA](/vessel-images/167ee3bf-03f9-4efd-9ea3-7ff8d47d4621-b025.png?v=1710182469724)

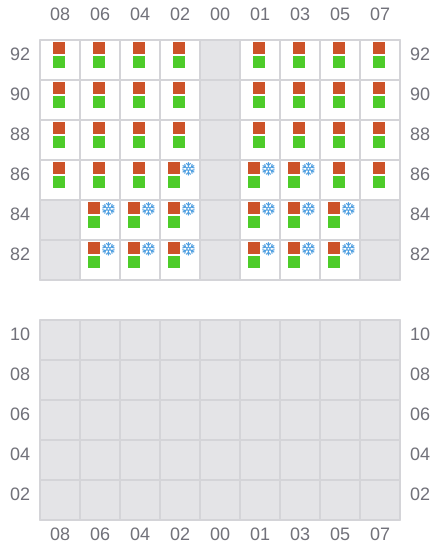

027 (028)
- → / ?
- ← / ?
![Bay 027 view and slots of ILHA DA MADEIRA](/vessel-images/167ee3bf-03f9-4efd-9ea3-7ff8d47d4621-b027.png?v=1710182469724)

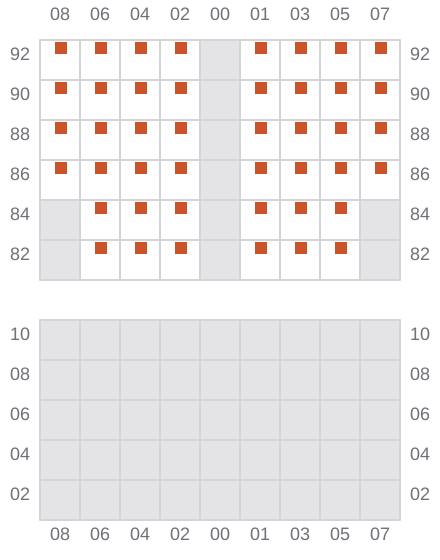

029
- ← / ?
![Bay 029 view and slots of ILHA DA MADEIRA](/vessel-images/167ee3bf-03f9-4efd-9ea3-7ff8d47d4621-b029.png?v=1710182469724)
