INDEPENDENT HORIZON
9334375 | A8OH7 | CHI by ************************** Last update: Fri Jun 30 2023

General Info

Ship Name:INDEPENDENT HORIZON
IMO Code:9334375
Call Sign:A8OH7
Line Operator:CHI
Class Name for Sister Ships:ITJ
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:047
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,116

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

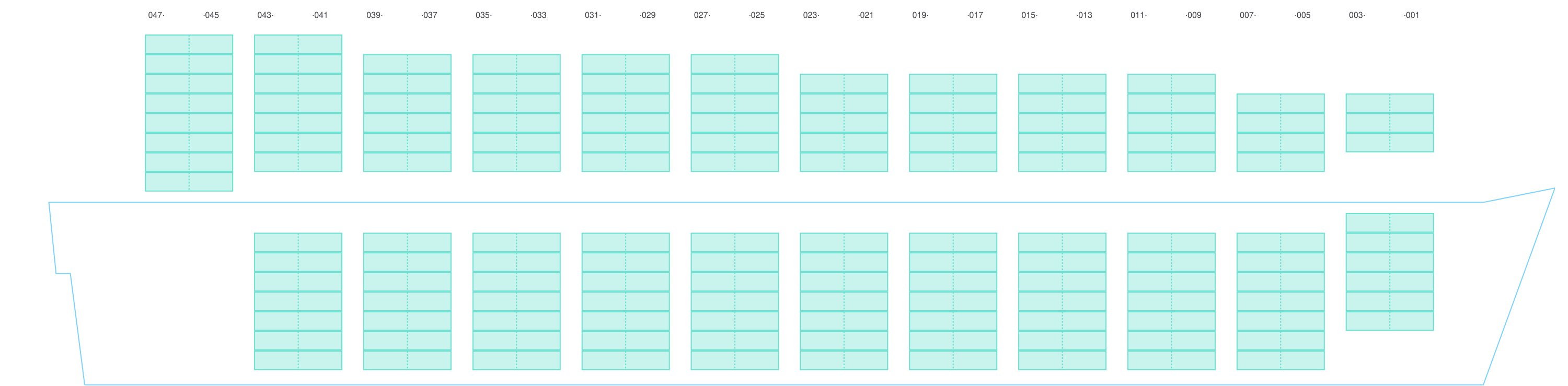

Side View

Side view of INDEPENDENT HORIZON

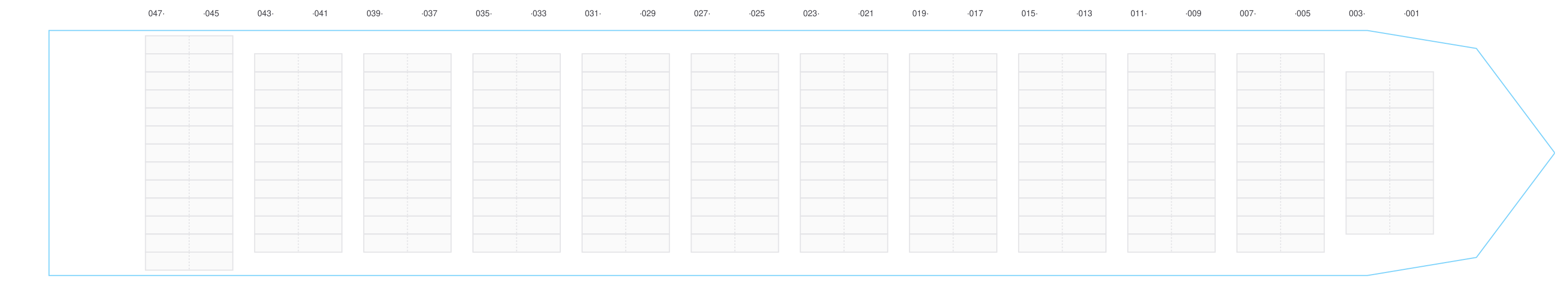

Hatch-Covers View

Deck view of INDEPENDENT HORIZON

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

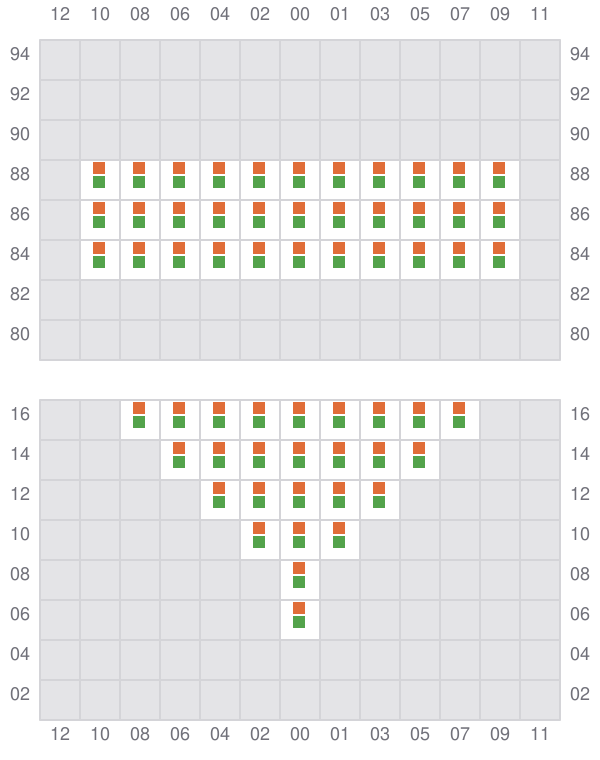

001 (002)

  • →
Bay 001 view and slots of INDEPENDENT HORIZON

003

  • ←

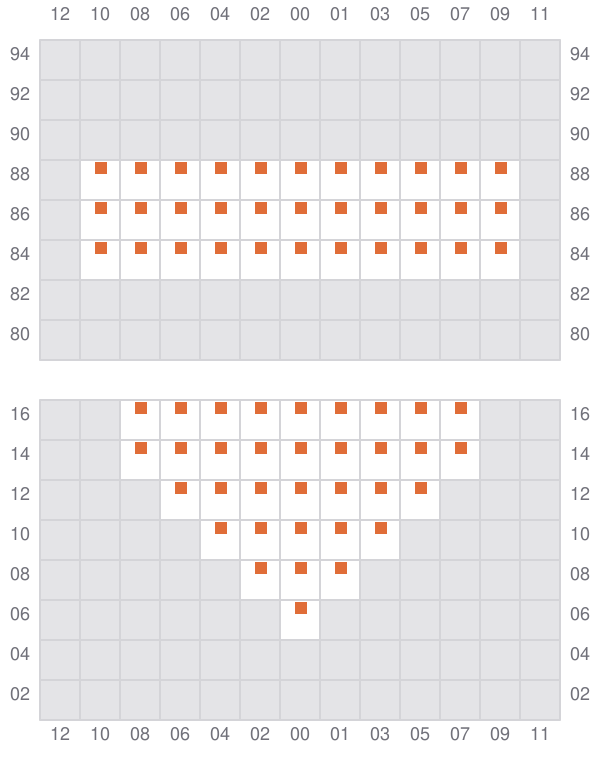

Bay 003 view and slots of INDEPENDENT HORIZON

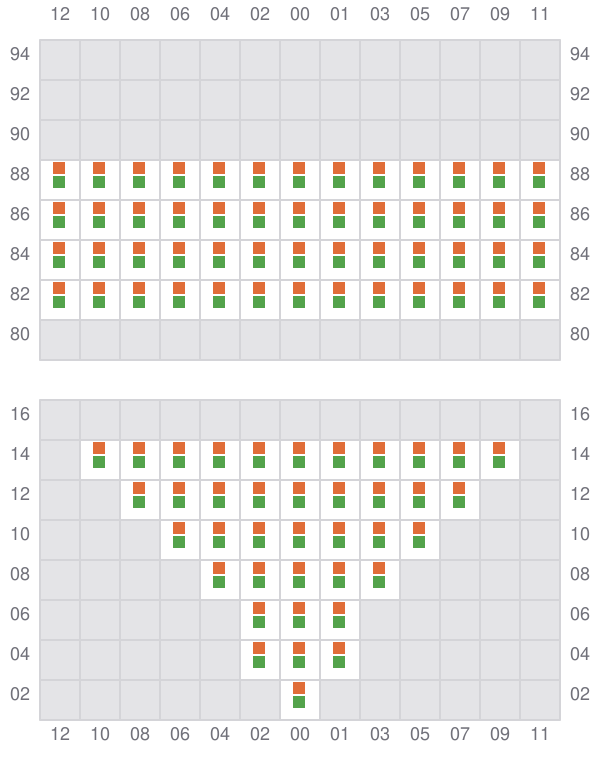

005 (006)

  • →
Bay 005 view and slots of INDEPENDENT HORIZON

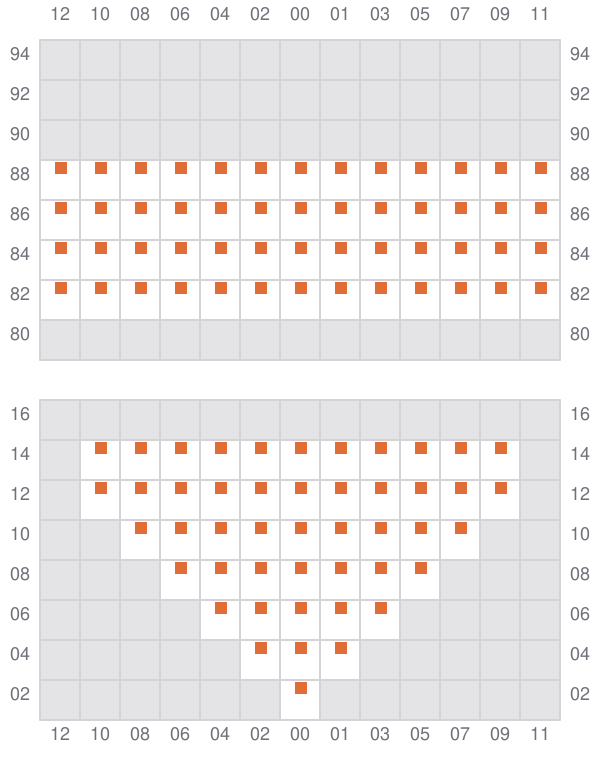

007

  • ←
Bay 007 view and slots of INDEPENDENT HORIZON

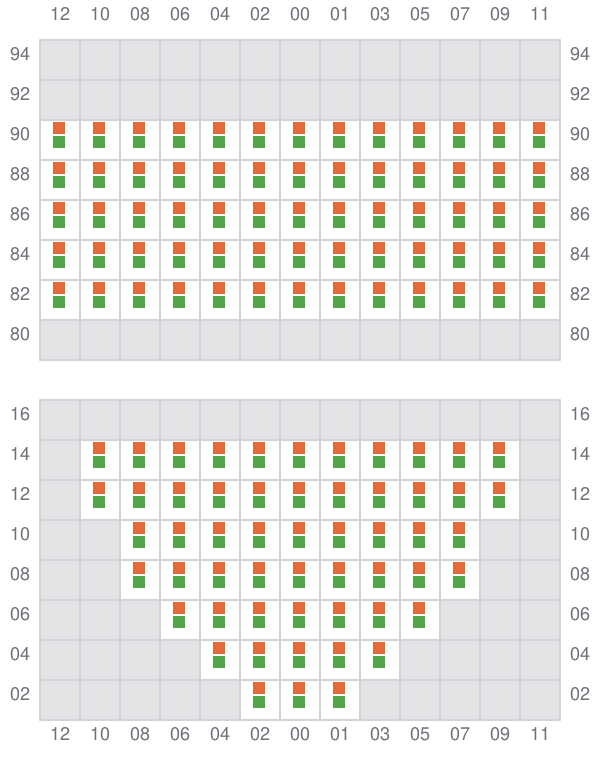

009 (010)

  • →
Bay 009 view and slots of INDEPENDENT HORIZON

011

  • ←

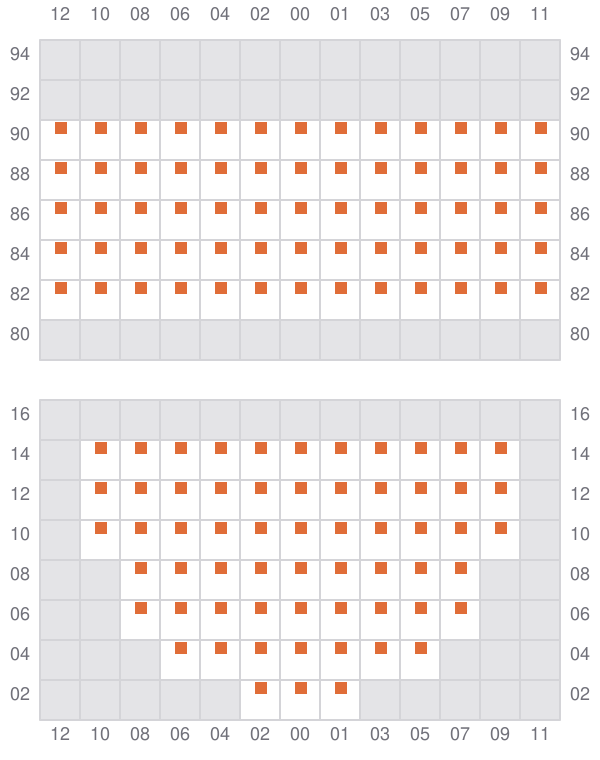

Bay 011 view and slots of INDEPENDENT HORIZON

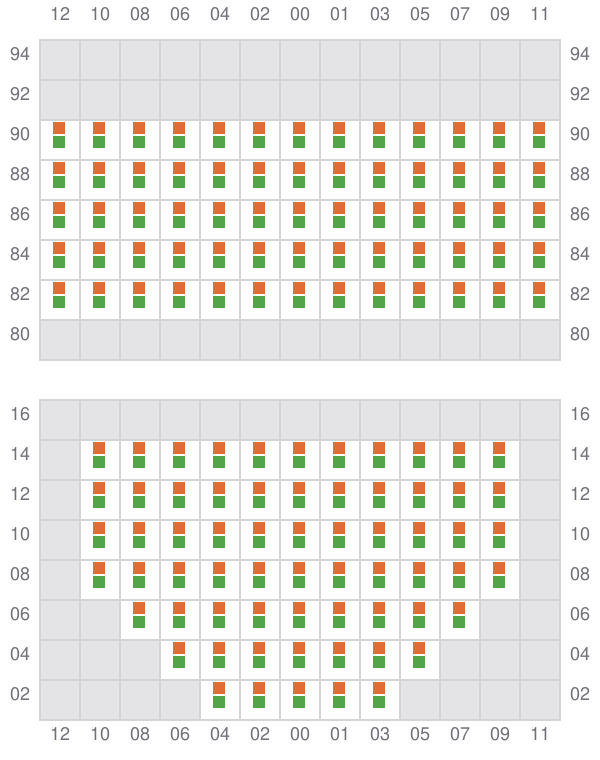

013 (014)

  • →
Bay 013 view and slots of INDEPENDENT HORIZON

015

  • ←

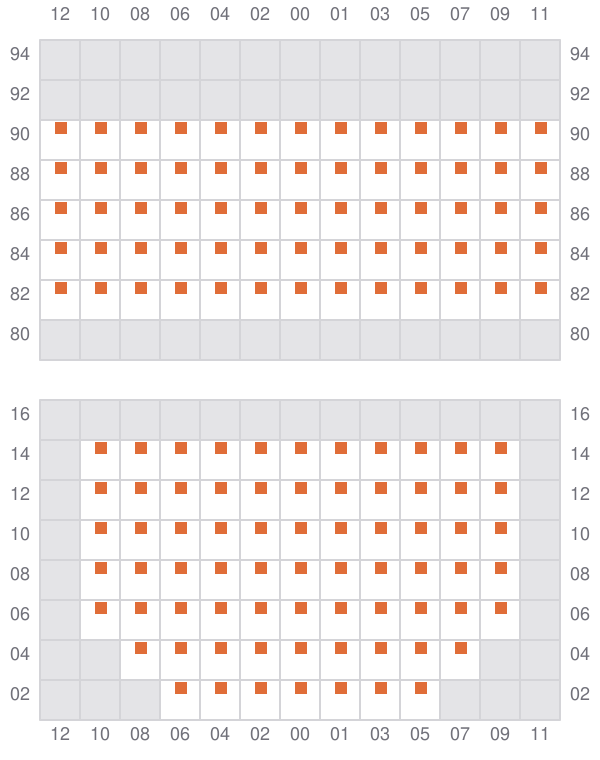

Bay 015 view and slots of INDEPENDENT HORIZON

017 (018)

  • →

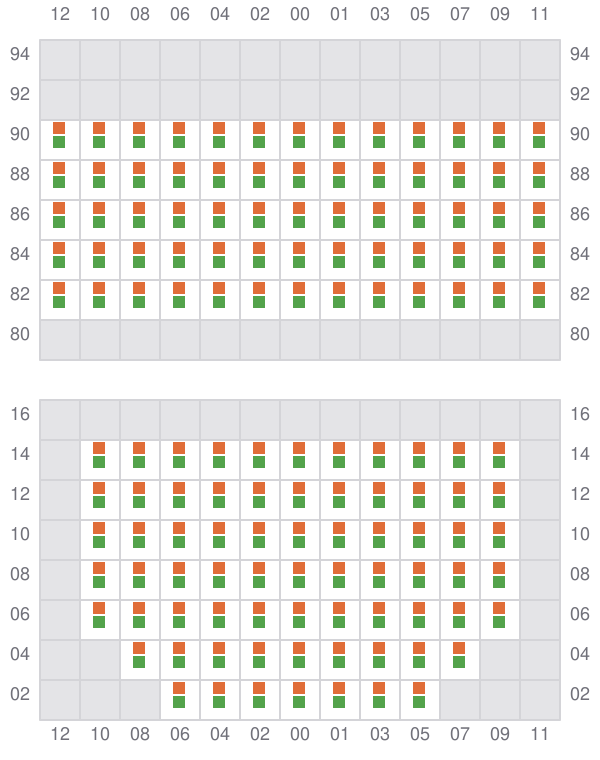

Bay 017 view and slots of INDEPENDENT HORIZON

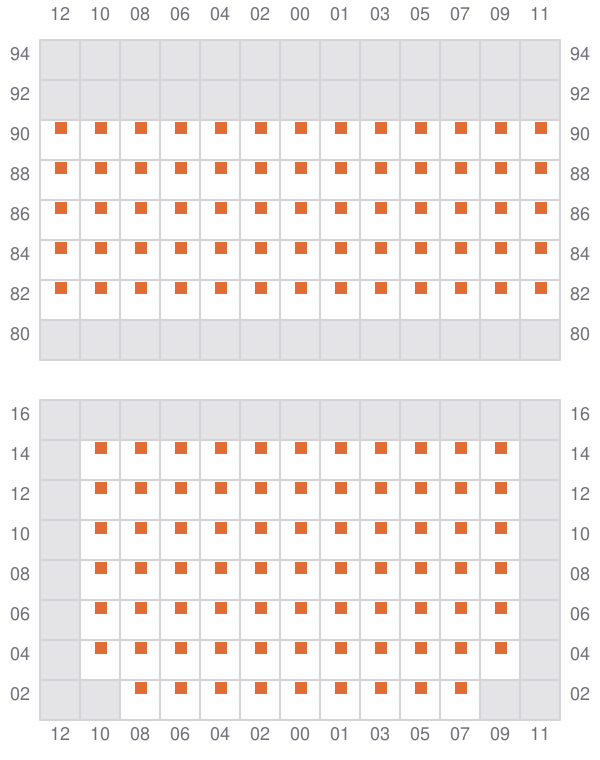

019

  • ←
Bay 019 view and slots of INDEPENDENT HORIZON

021 (022)

  • →

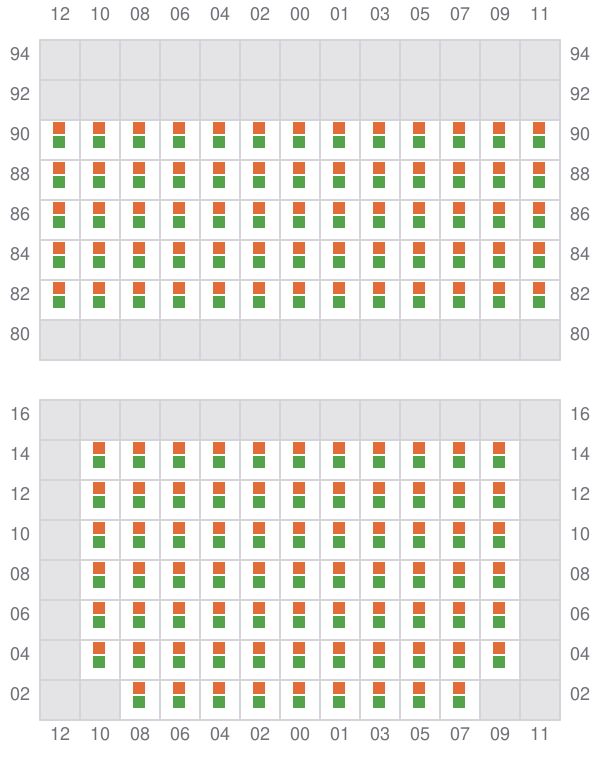

Bay 021 view and slots of INDEPENDENT HORIZON

023

  • ←
Bay 023 view and slots of INDEPENDENT HORIZON

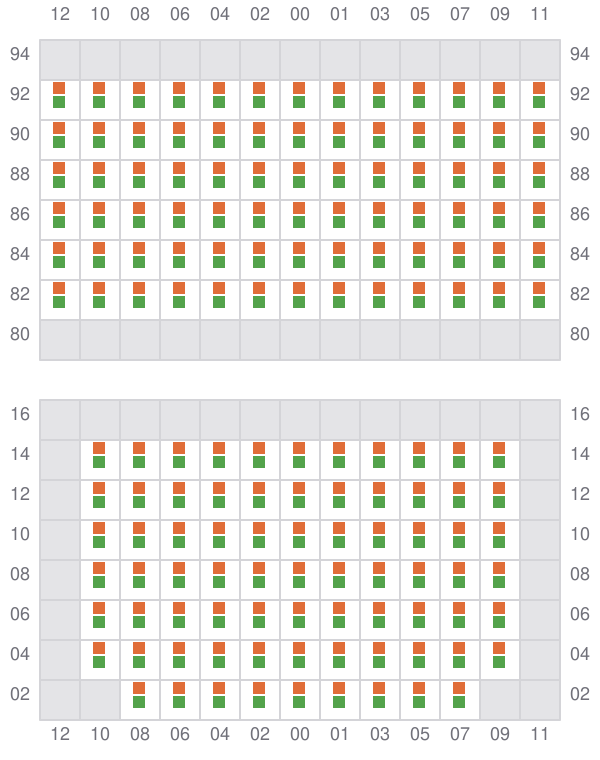

025 (026)

  • →
Bay 025 view and slots of INDEPENDENT HORIZON

027

  • ←
Bay 027 view and slots of INDEPENDENT HORIZON

029 (030)

  • →
Bay 029 view and slots of INDEPENDENT HORIZON

031

  • ←

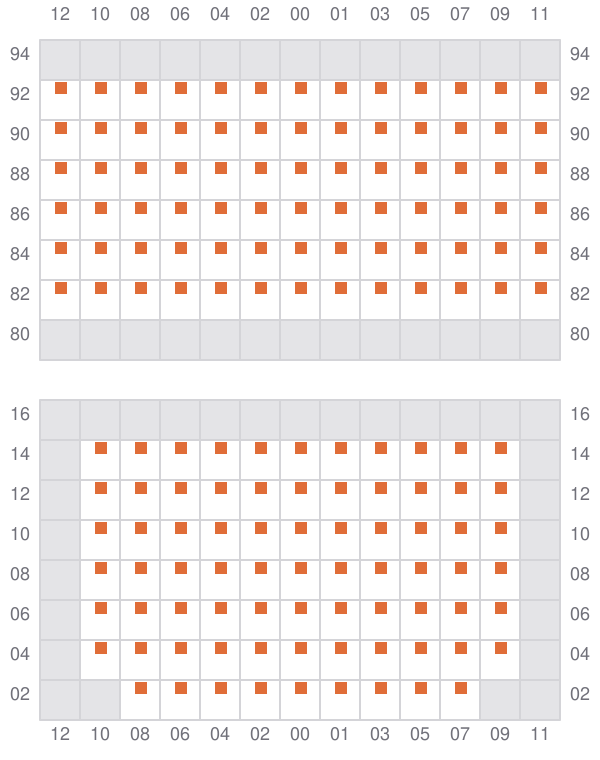

Bay 031 view and slots of INDEPENDENT HORIZON

033 (034)

  • →
Bay 033 view and slots of INDEPENDENT HORIZON

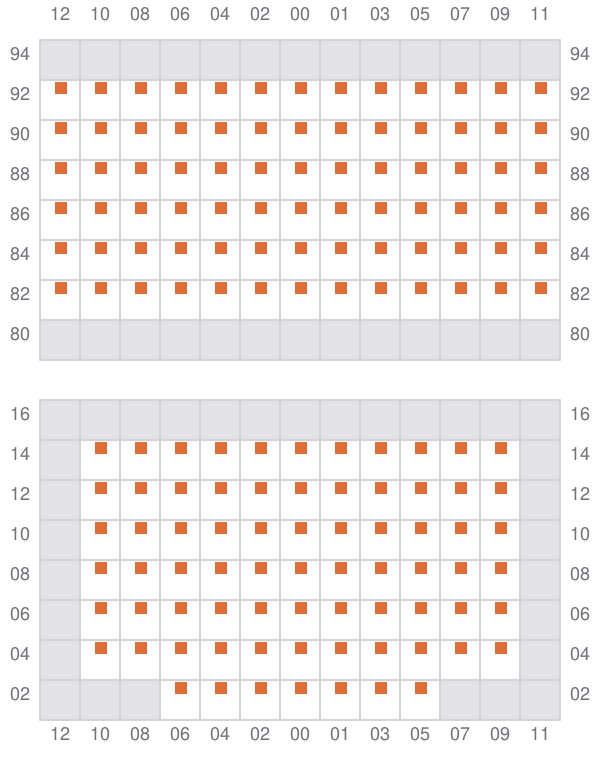

035

  • ←
Bay 035 view and slots of INDEPENDENT HORIZON

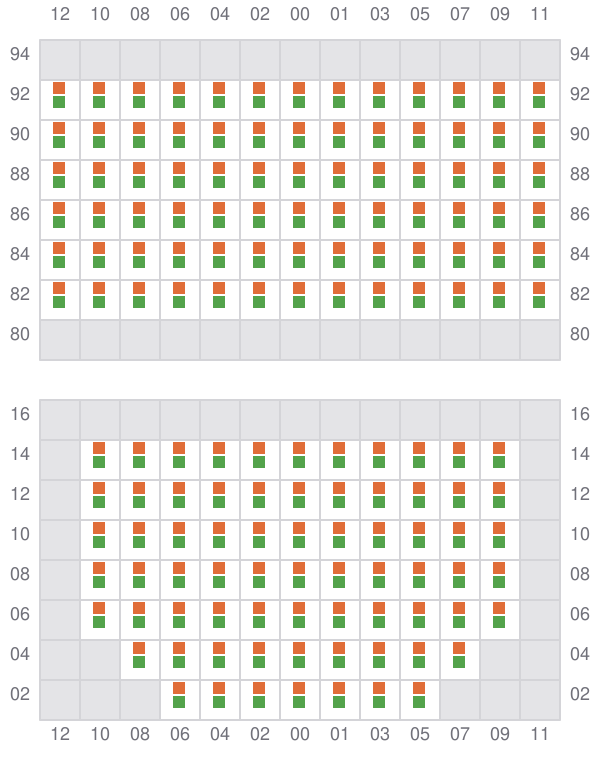

037 (038)

  • →
Bay 037 view and slots of INDEPENDENT HORIZON

039

  • ←

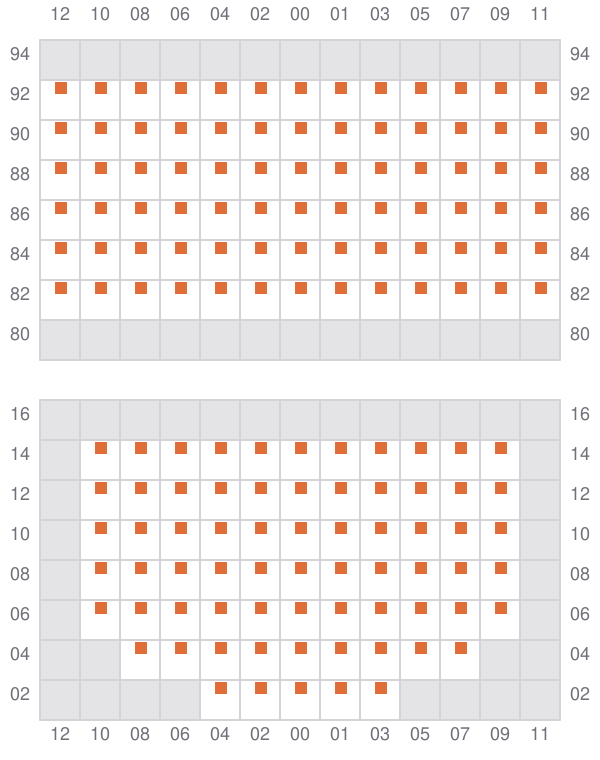

Bay 039 view and slots of INDEPENDENT HORIZON

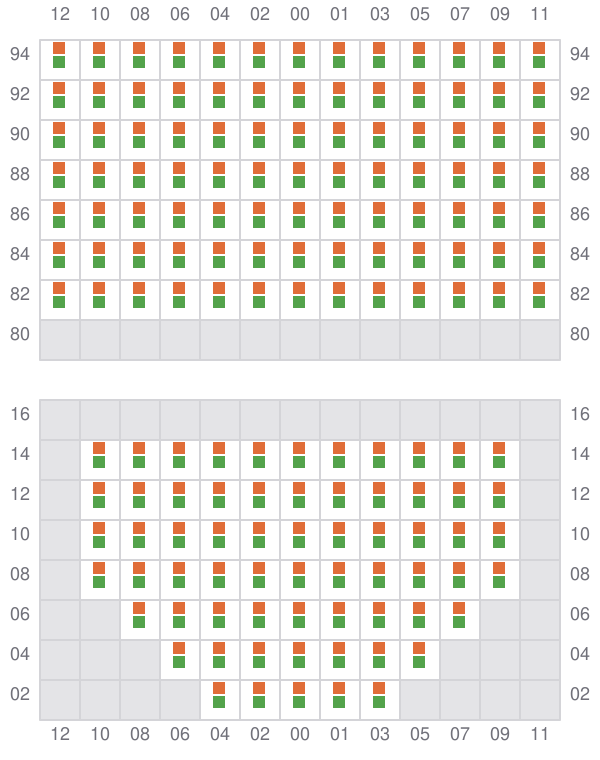

041 (042)

  • →
Bay 041 view and slots of INDEPENDENT HORIZON

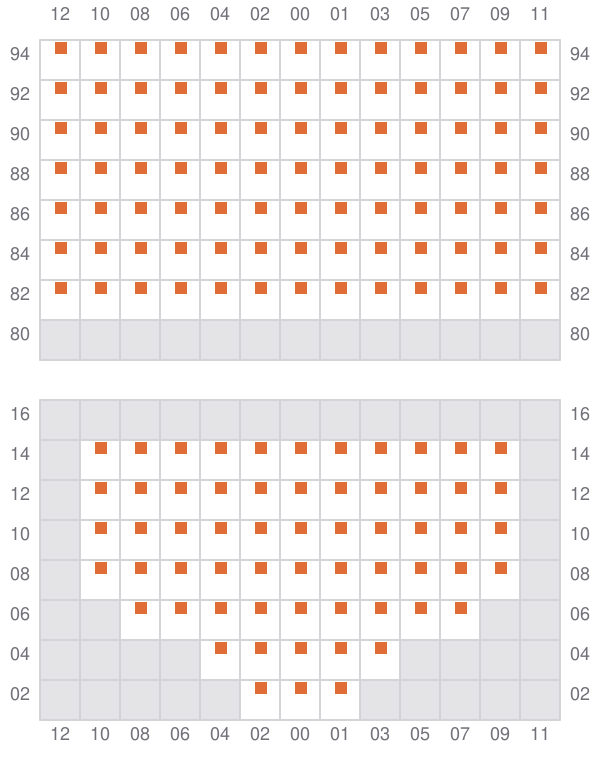

043

  • ←
Bay 043 view and slots of INDEPENDENT HORIZON

045 (046)

  • → / ?

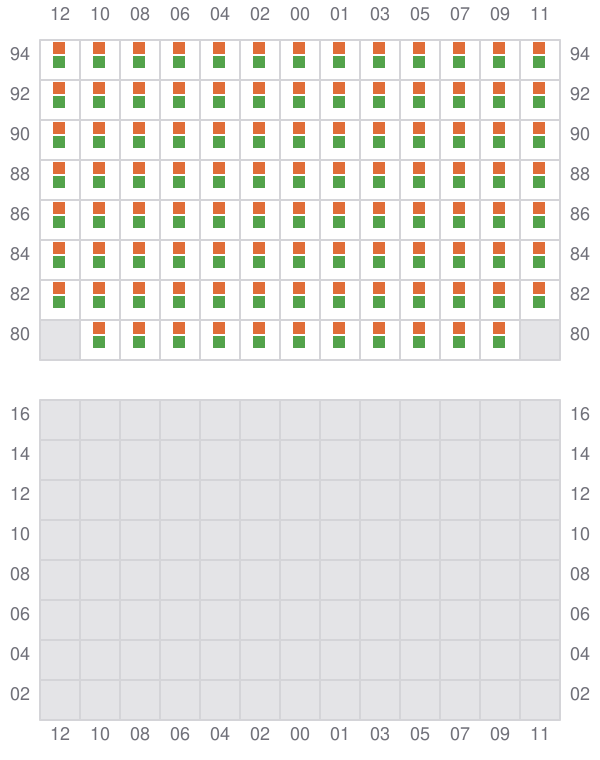

Bay 045 view and slots of INDEPENDENT HORIZON

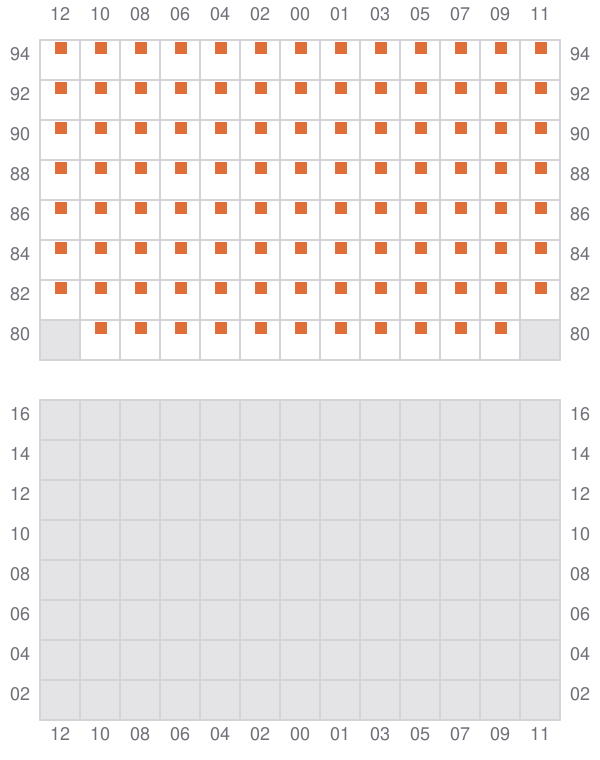

047

  • ← / ?
Bay 047 view and slots of INDEPENDENT HORIZON
