INTER SYDNEY
9169500 | J8B4877 | 9169500 by ********* Last update: Mon Mar 18 2024
General Info
Ship Name:INTER SYDNEY
IMO Code:9169500
Call Sign:J8B4877
Line Operator:9169500
Class Name for Sister Ships:62E
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):232.00
LOA (Length Overall):232.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,353
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

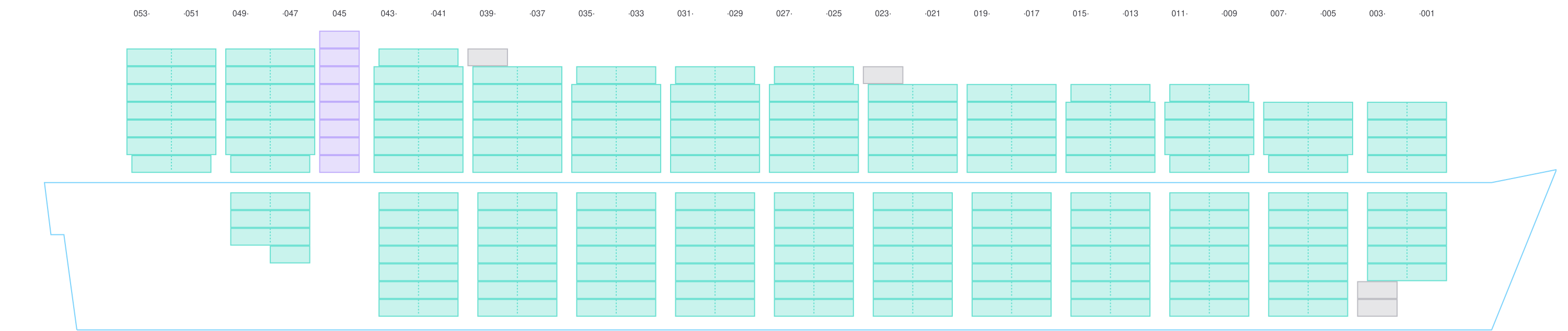

Side View

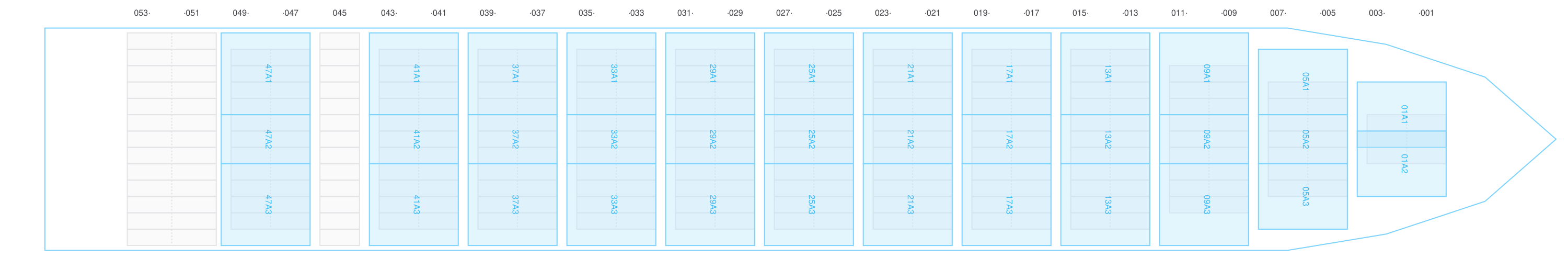

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

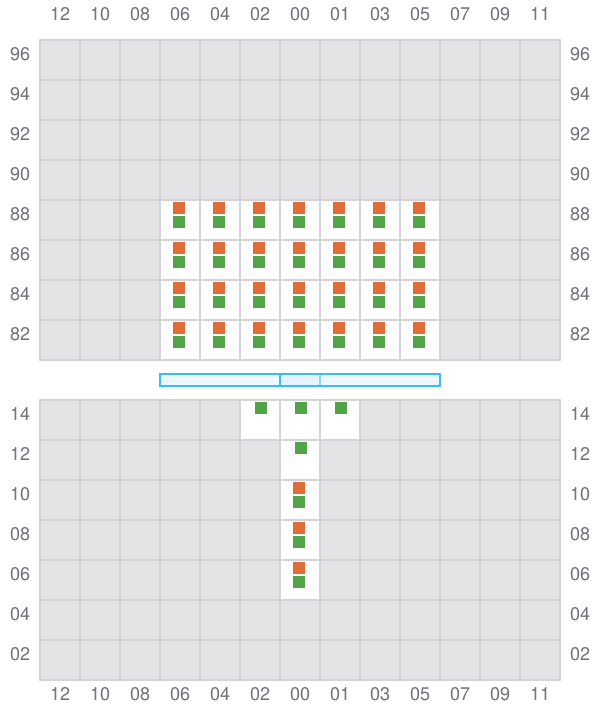

001 (002)
- →

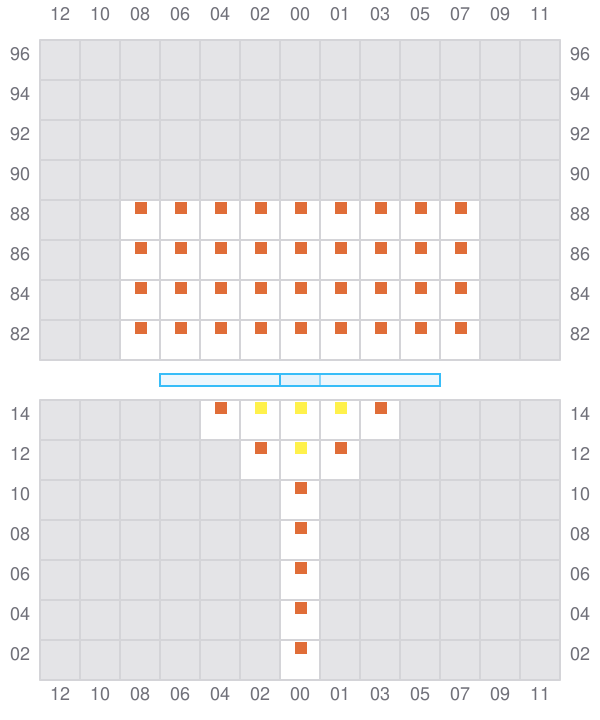

003
- ←

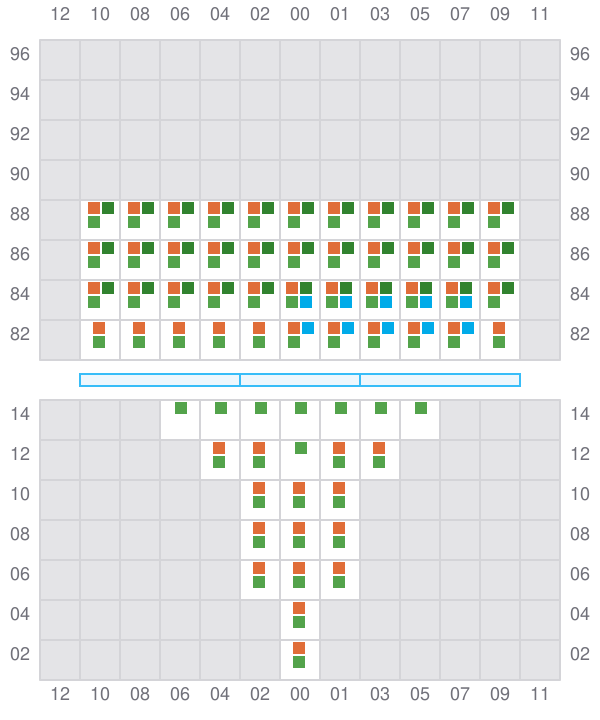

005 (006)
- →
- ← / ?

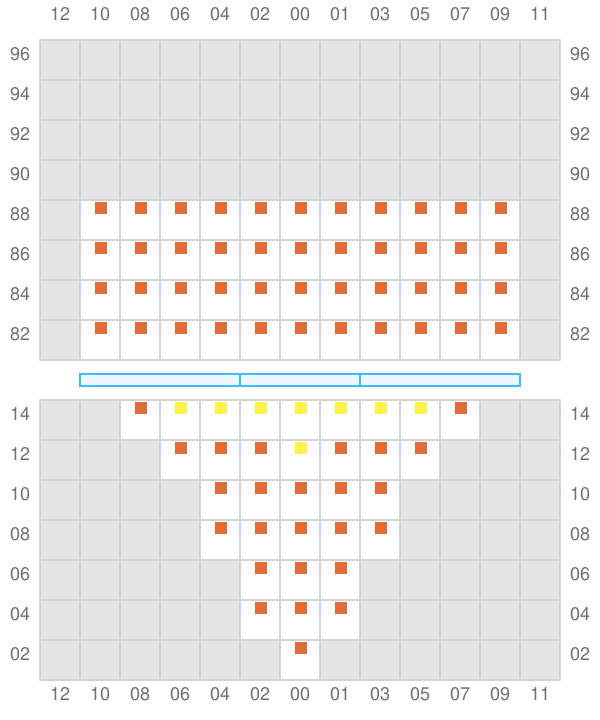

007
- ←

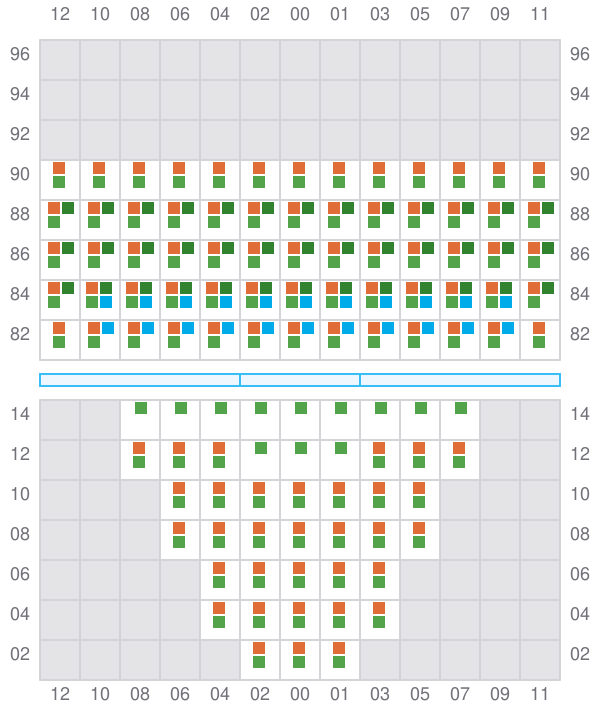

009 (010)
- →
- ← / ?

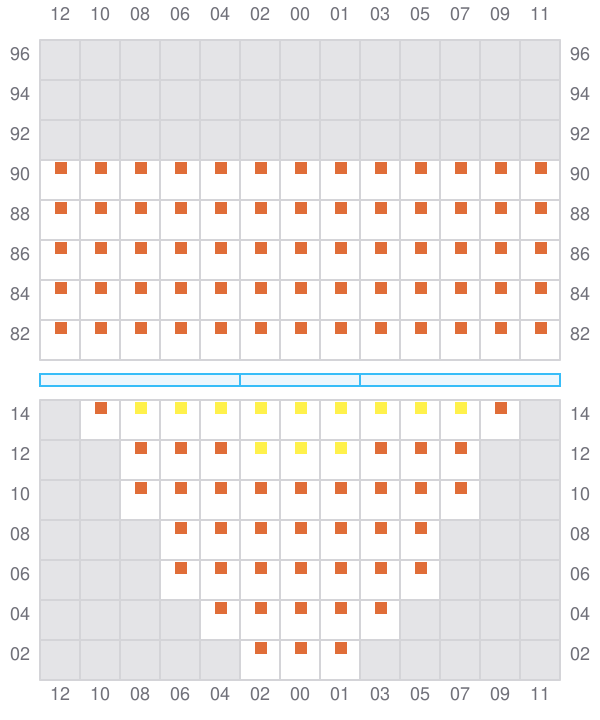

011
- ←

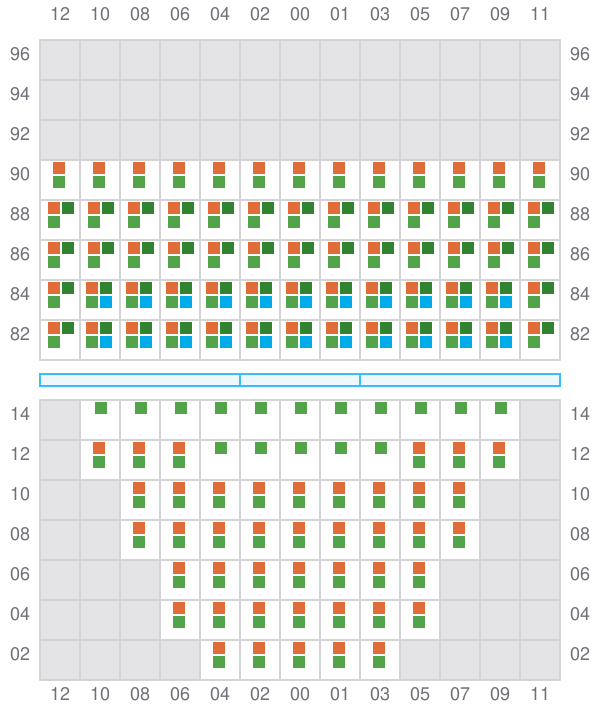

013 (014)
- →
- ← / ?

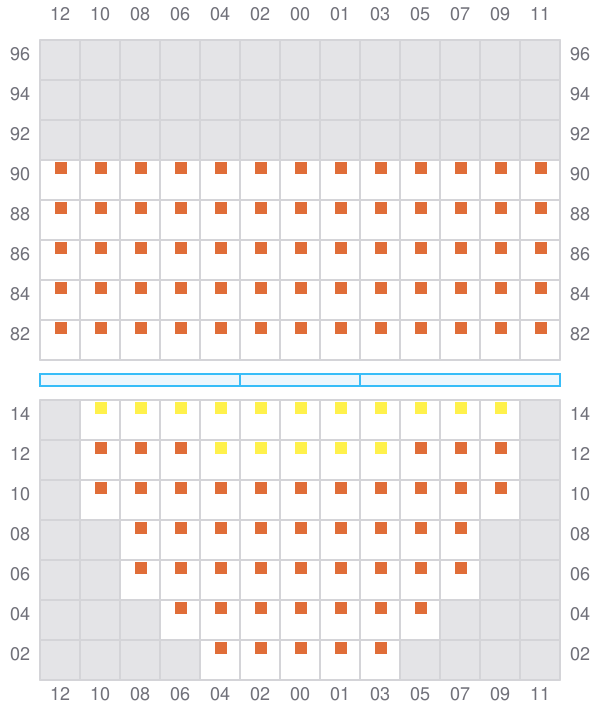

015
- ←

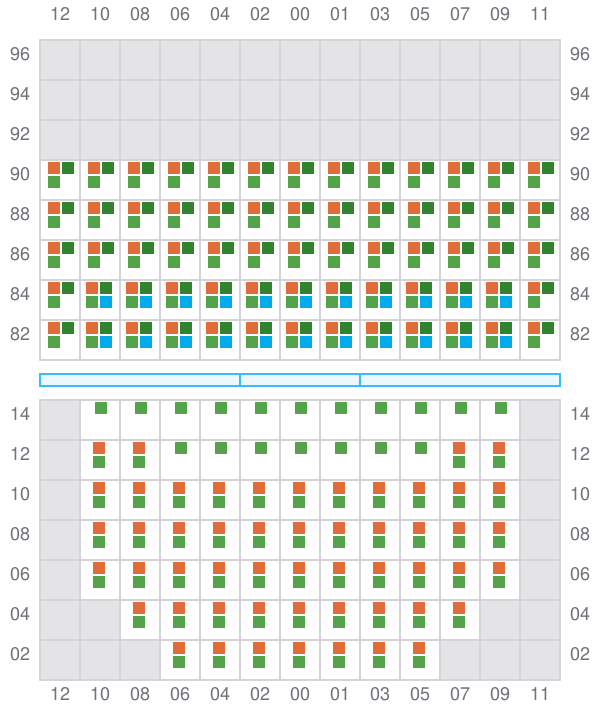

017 (018)
- →
- ← / ?

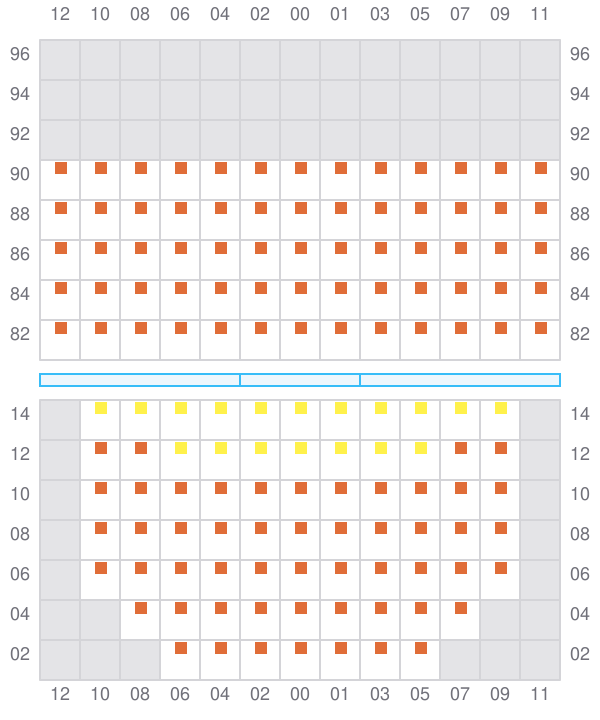

019
- ←

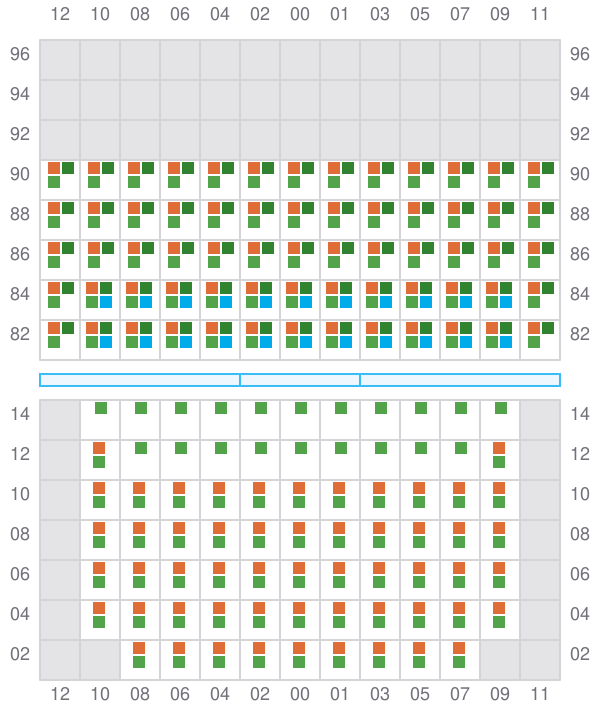

021 (022)
- →
- ← / ?

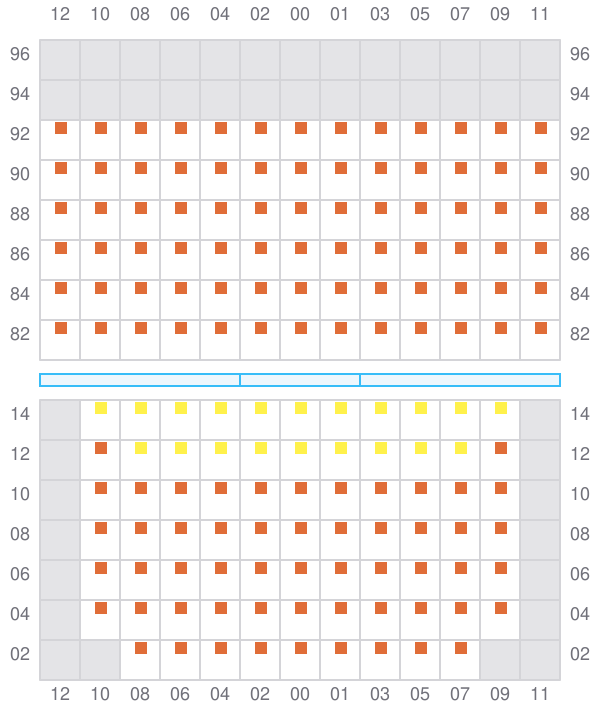

023
- ←

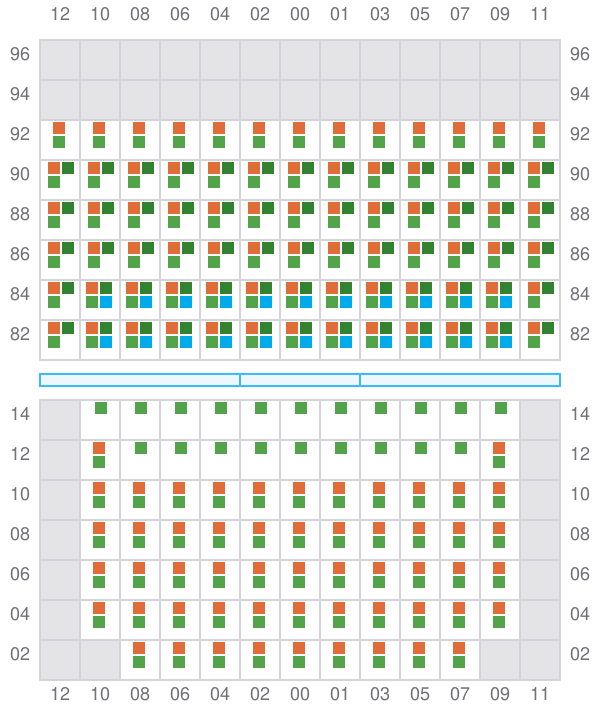

025 (026)
- →
- ← / ?
027
- ←
029 (030)
- →
- ← / ?

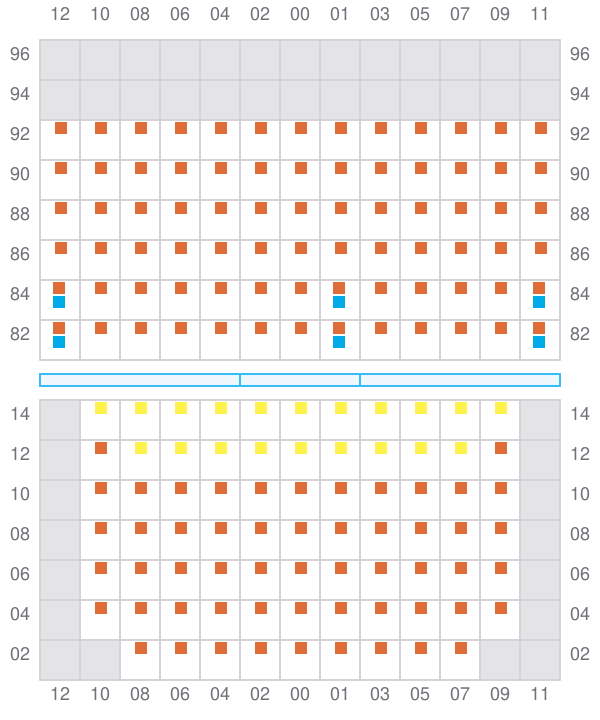

031
- ←
- → / ?

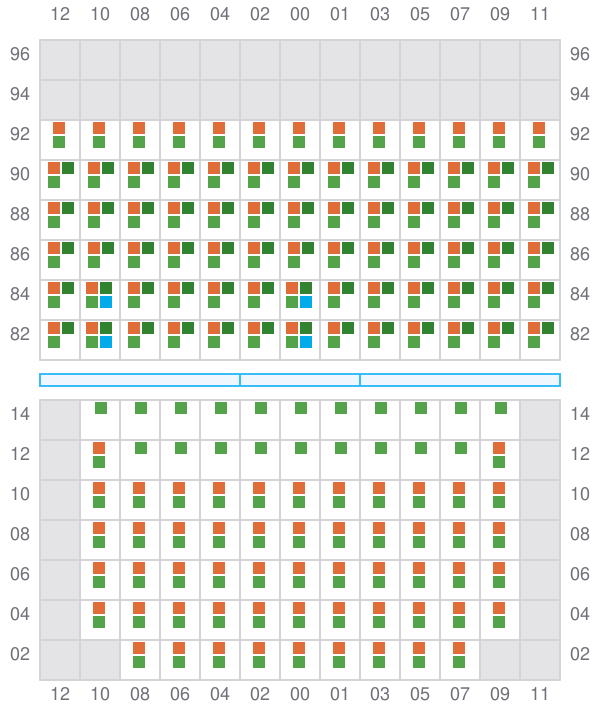

033 (034)
- →
- ← / ?

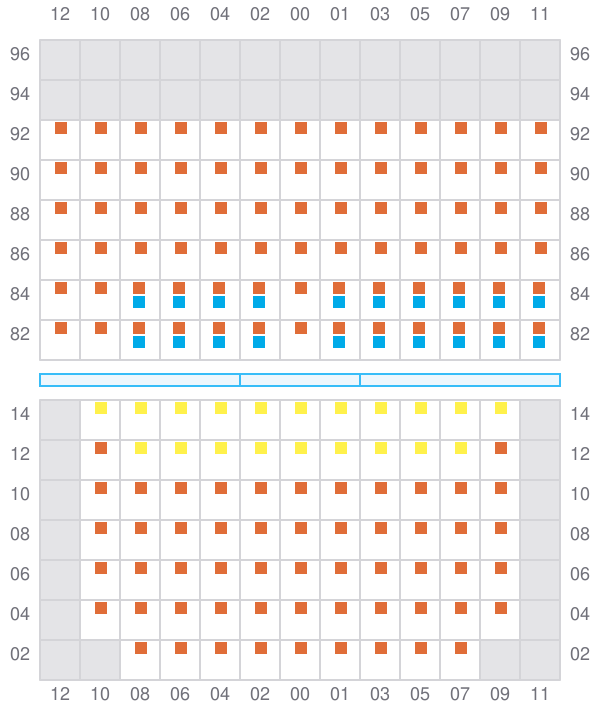

035
- ←
- → / ?

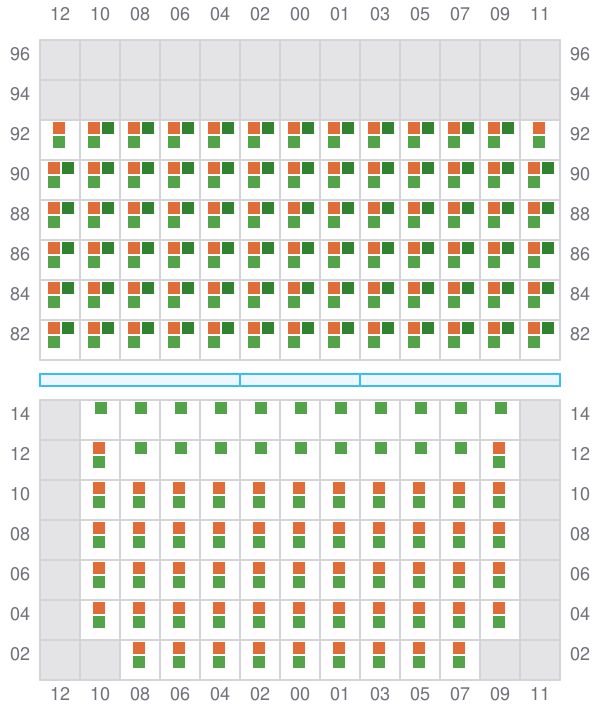

037 (038)
- →
- → / ?

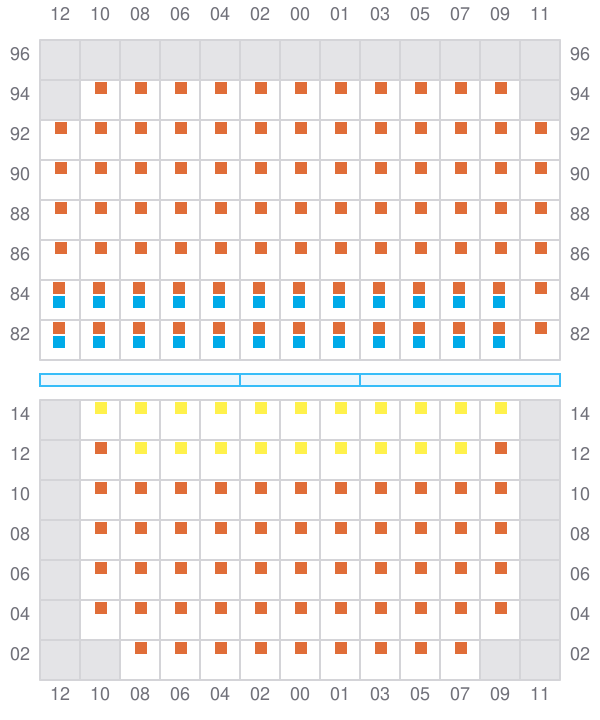

039
- ←
- → / ?

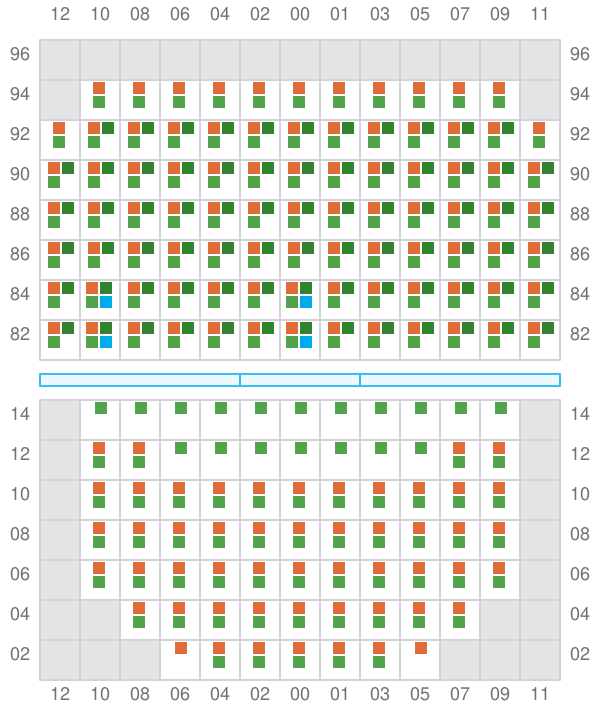

041 (042)
- →
- ← / ?

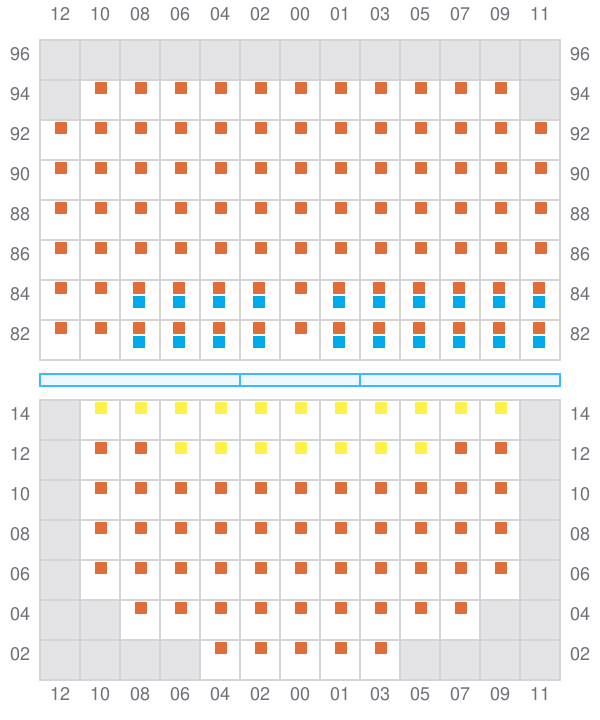

043
- ←
- → / ?

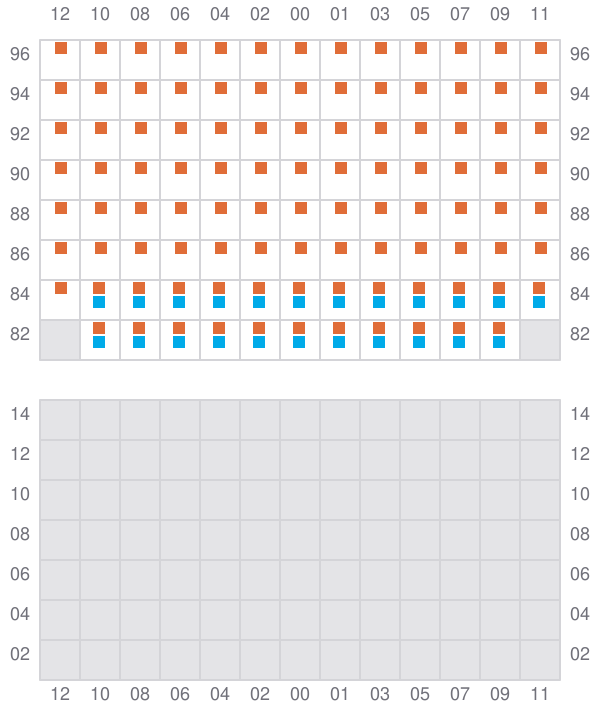

045
- → / ?

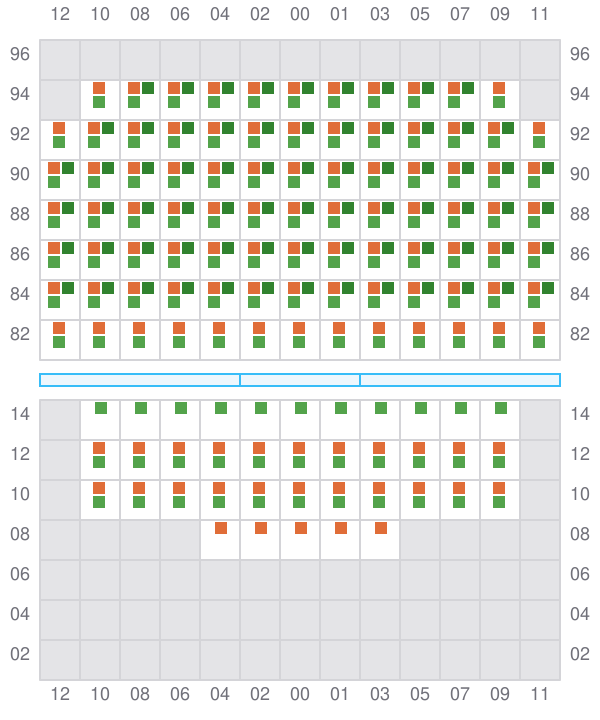

047 (048)
- →

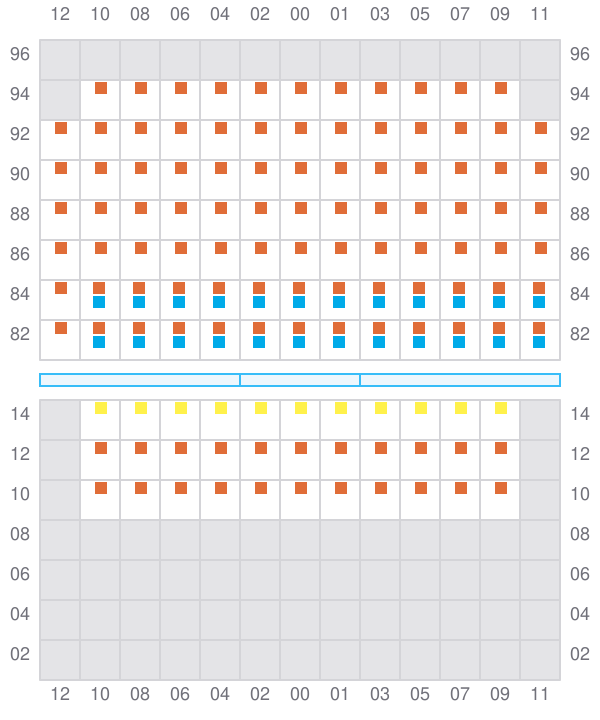

049
- ←
- → / ?

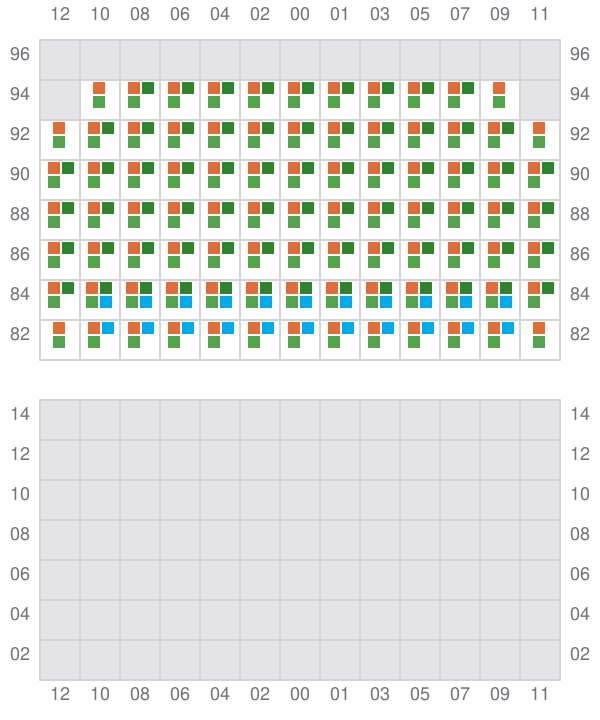

051 (052)
- → / ?
- ← / ?

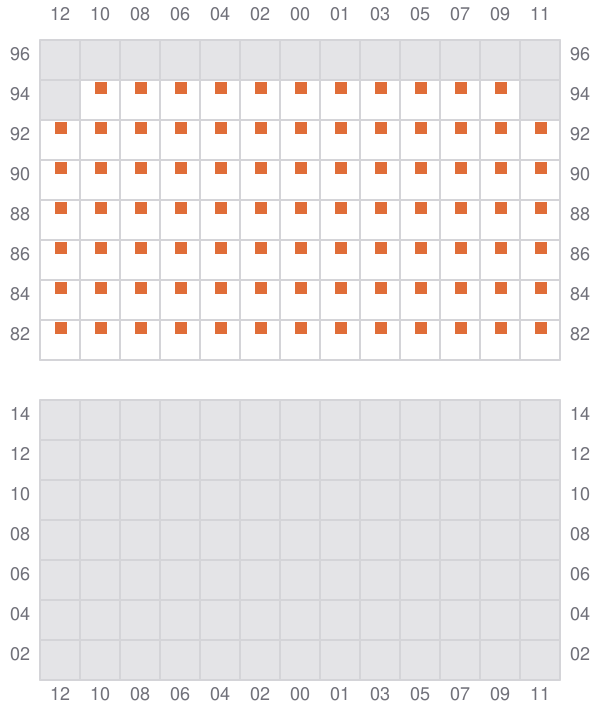

053
- ← / ?
