INTERASIA ACCELERATE
9969912 | 9HA5913 | 9969912 by ********* Last update: Wed May 15 2024

General Info

Ship Name:INTERASIA ACCELERATE
IMO Code:9969912
Call Sign:9HA5913
Line Operator:9969912
Class Name for Sister Ships:AMALIA C
Year Built:2024
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:043
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,432

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

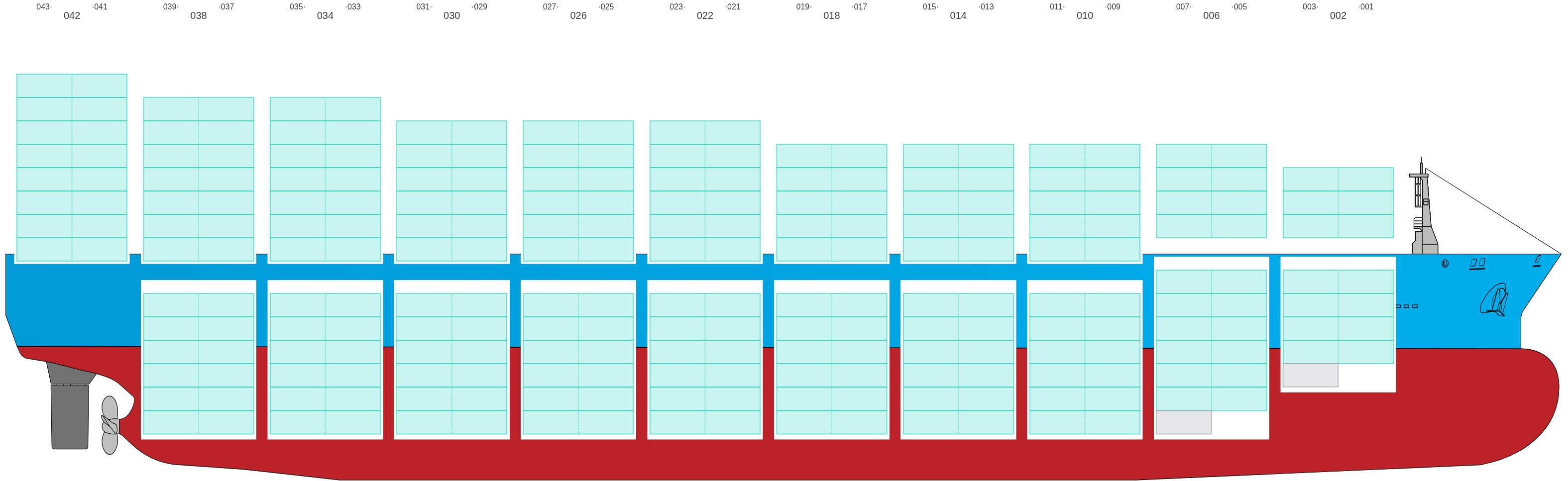

Side View

Side view of INTERASIA ACCELERATE

Hatch-Covers View

Deck view of INTERASIA ACCELERATE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

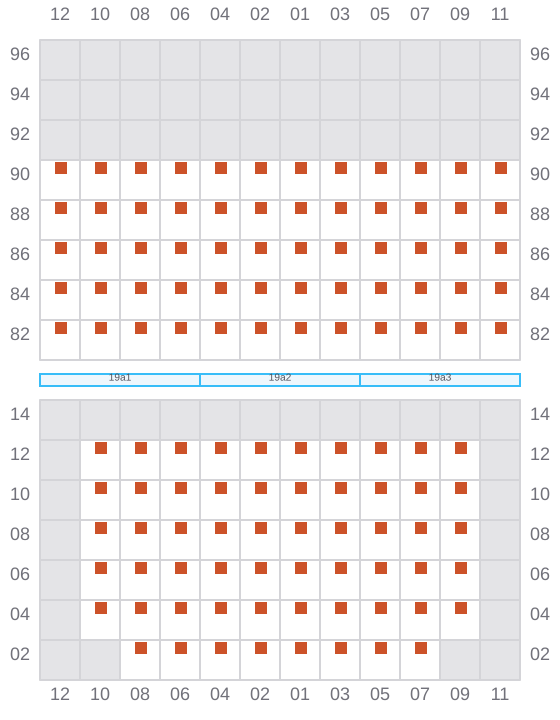

001 (002)

  • →
Bay 001 view and slots of INTERASIA ACCELERATE

003

  • ←
Bay 003 view and slots of INTERASIA ACCELERATE

005 (006)

  • →
Bay 005 view and slots of INTERASIA ACCELERATE

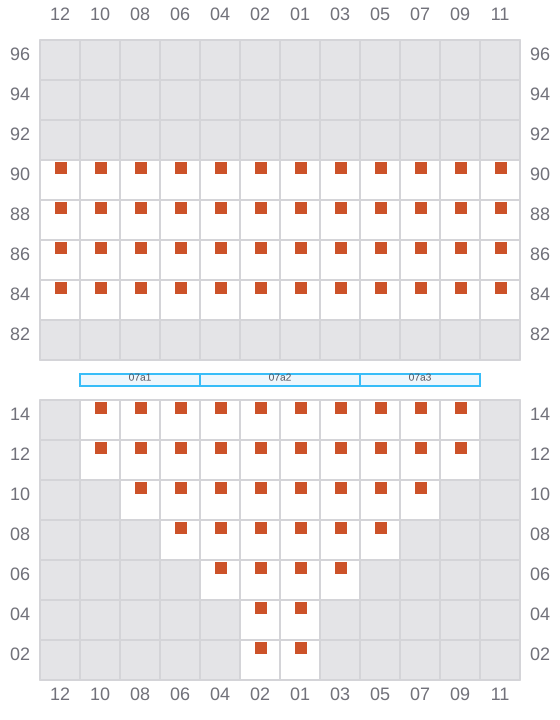

007

  • ←
Bay 007 view and slots of INTERASIA ACCELERATE

009 (010)

  • →
Bay 009 view and slots of INTERASIA ACCELERATE

011

  • ←
Bay 011 view and slots of INTERASIA ACCELERATE

013 (014)

  • →
Bay 013 view and slots of INTERASIA ACCELERATE

015

  • ←
Bay 015 view and slots of INTERASIA ACCELERATE

017 (018)

  • →
Bay 017 view and slots of INTERASIA ACCELERATE

019

  • ←
Bay 019 view and slots of INTERASIA ACCELERATE

021 (022)

  • →
Bay 021 view and slots of INTERASIA ACCELERATE

023

  • ←
Bay 023 view and slots of INTERASIA ACCELERATE

025 (026)

  • →
Bay 025 view and slots of INTERASIA ACCELERATE

027

  • ←
Bay 027 view and slots of INTERASIA ACCELERATE

029 (030)

  • →
Bay 029 view and slots of INTERASIA ACCELERATE

031

  • ←
Bay 031 view and slots of INTERASIA ACCELERATE

033 (034)

  • →
Bay 033 view and slots of INTERASIA ACCELERATE

035

  • ←
Bay 035 view and slots of INTERASIA ACCELERATE

037 (038)

  • →
Bay 037 view and slots of INTERASIA ACCELERATE

039

  • ←
Bay 039 view and slots of INTERASIA ACCELERATE

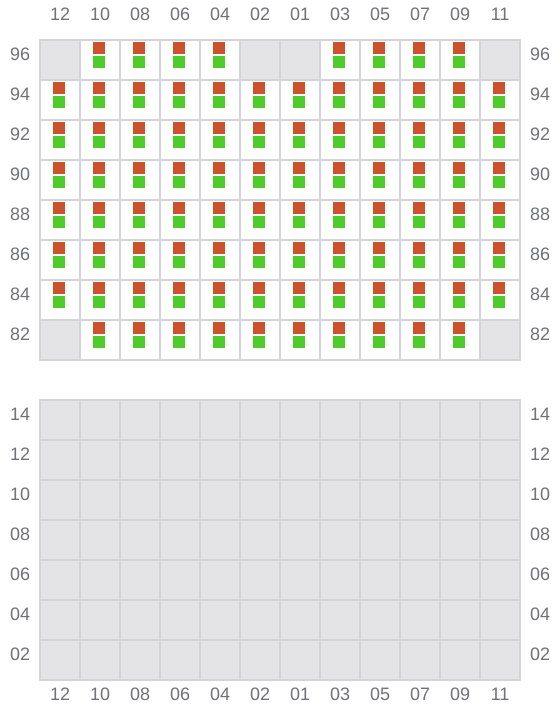

041 (042)

  • → / ?
Bay 041 view and slots of INTERASIA ACCELERATE

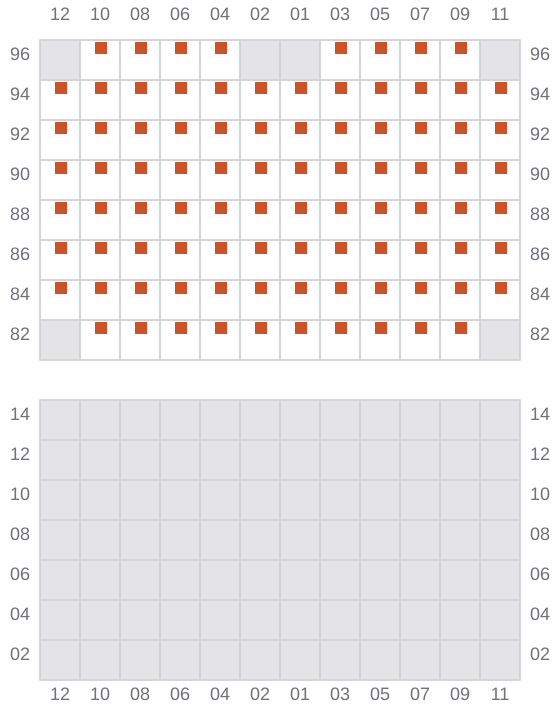

043

  • ← / ?
Bay 043 view and slots of INTERASIA ACCELERATE
