INTERSEA TRAVELER
9377561 | T8A4404 | 9377561 by ********* Last update: Wed Jun 12 2024

General Info

Ship Name:INTERSEA TRAVELER
IMO Code:9377561
Call Sign:T8A4404
Line Operator:9377561
Class Name for Sister Ships:EMC
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,712

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

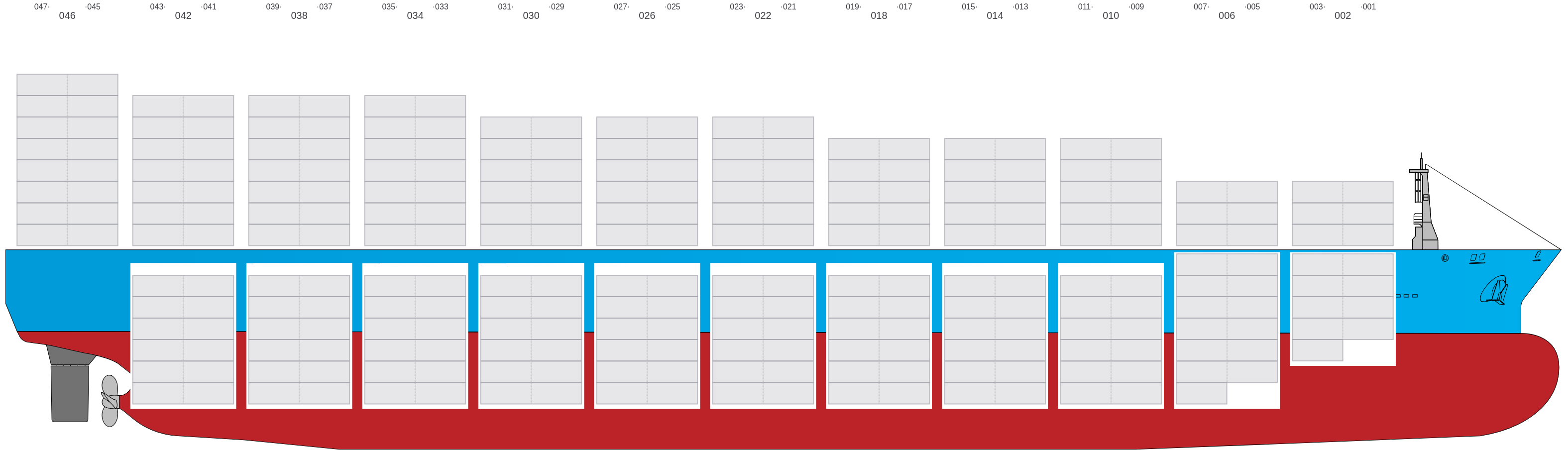

Side view of INTERSEA TRAVELER

Hatch-Covers View

Deck view of INTERSEA TRAVELER

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

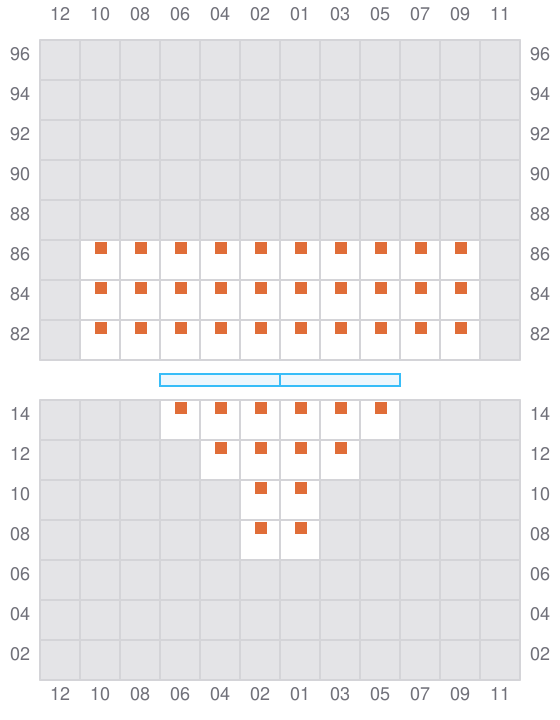

Bay 001 view and slots of INTERSEA TRAVELER

003 (002)

  • ←

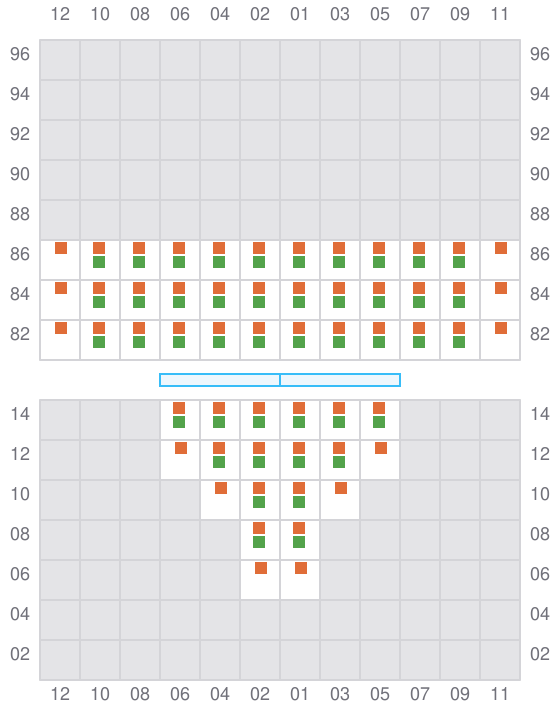

Bay 003 view and slots of INTERSEA TRAVELER

005

  • →
Bay 005 view and slots of INTERSEA TRAVELER

007 (006)

  • ←

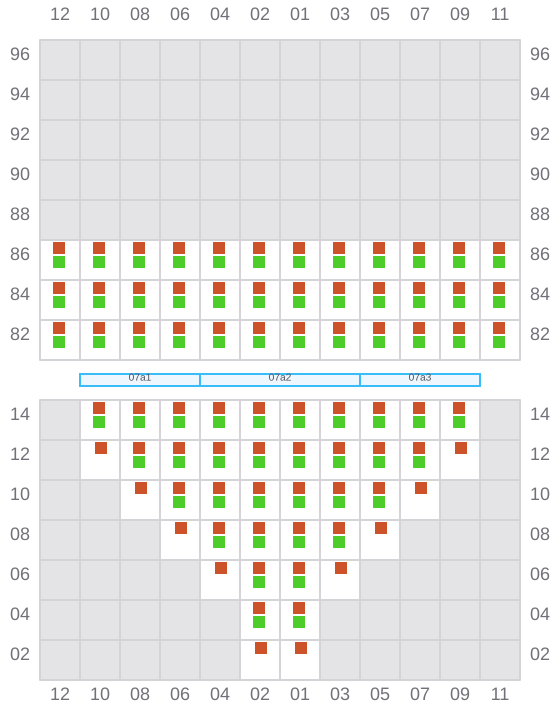

Bay 007 view and slots of INTERSEA TRAVELER

009

  • →

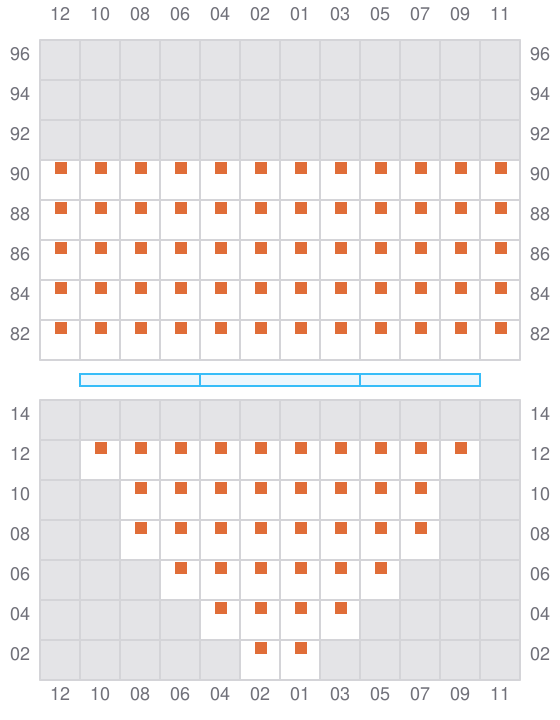

Bay 009 view and slots of INTERSEA TRAVELER

011 (010)

  • ←

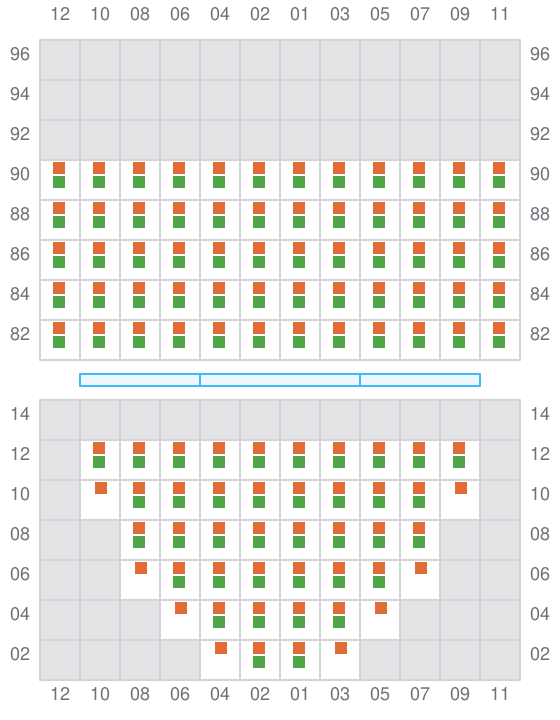

Bay 011 view and slots of INTERSEA TRAVELER

013

  • →

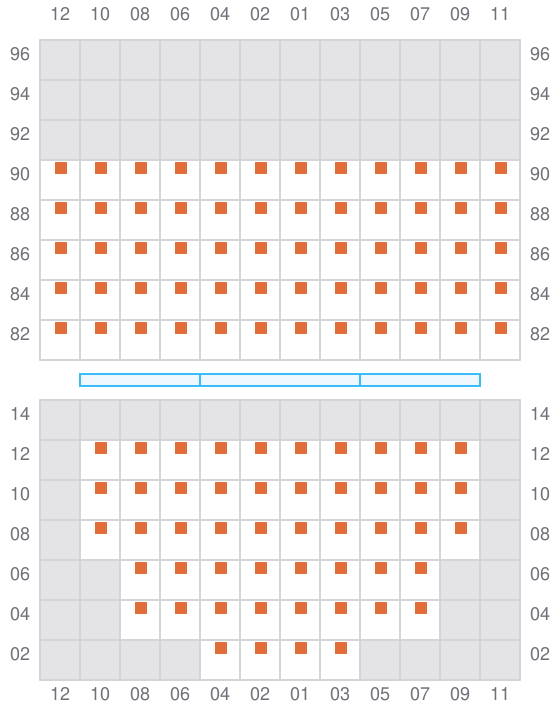

Bay 013 view and slots of INTERSEA TRAVELER

015 (014)

  • ←

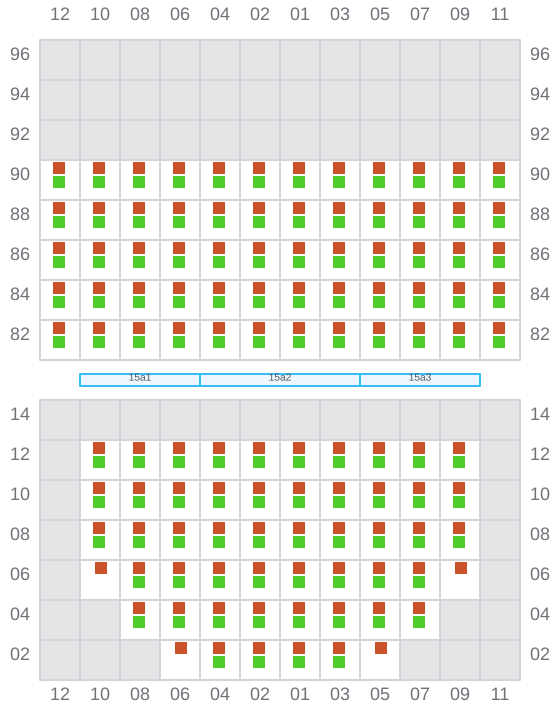

Bay 015 view and slots of INTERSEA TRAVELER

017

  • →

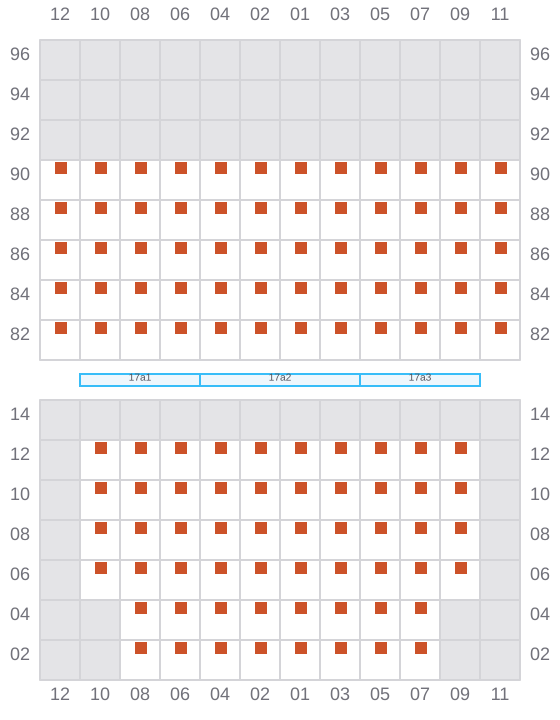

Bay 017 view and slots of INTERSEA TRAVELER

019 (018)

  • ←

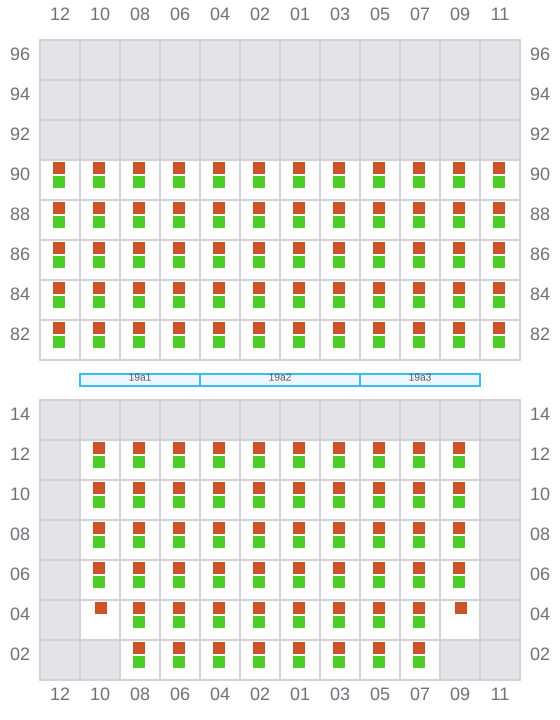

Bay 019 view and slots of INTERSEA TRAVELER

021

  • →
Bay 021 view and slots of INTERSEA TRAVELER

023 (022)

  • ←
Bay 023 view and slots of INTERSEA TRAVELER

025

  • →

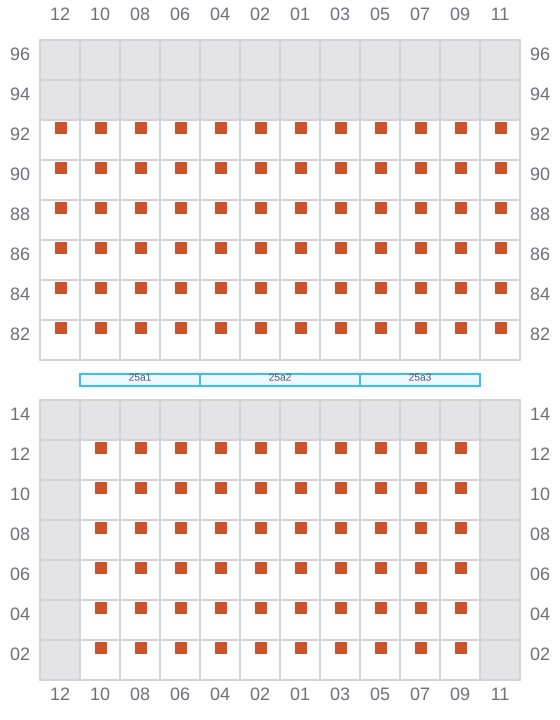

Bay 025 view and slots of INTERSEA TRAVELER

027 (026)

  • ←
Bay 027 view and slots of INTERSEA TRAVELER

029

  • →

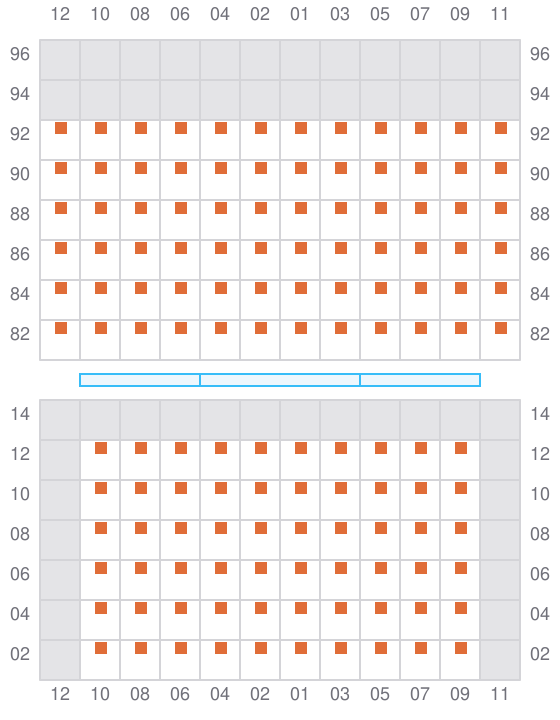

Bay 029 view and slots of INTERSEA TRAVELER

031 (030)

  • ←
Bay 031 view and slots of INTERSEA TRAVELER

033

  • →

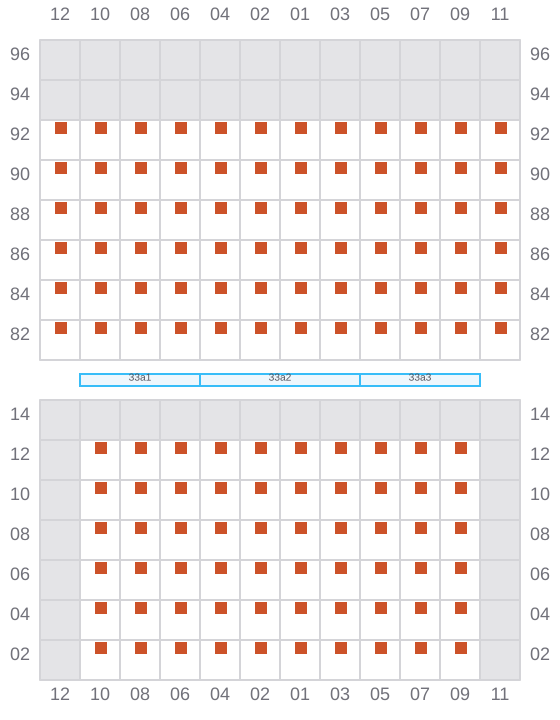

Bay 033 view and slots of INTERSEA TRAVELER

035 (034)

  • ←

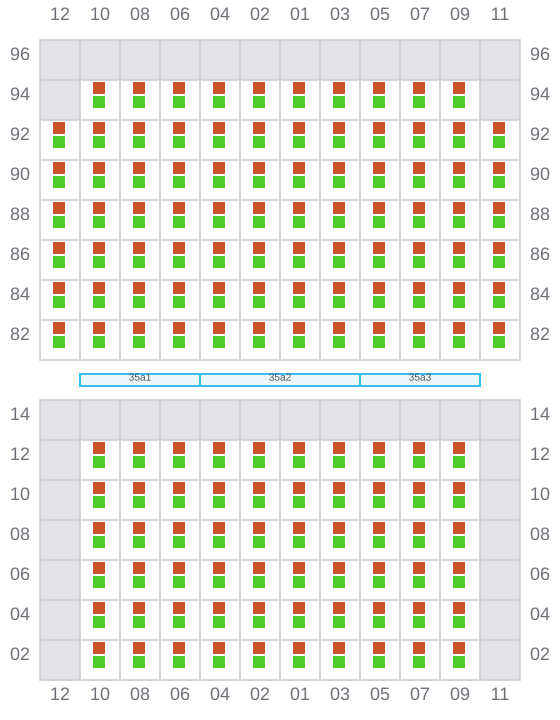

Bay 035 view and slots of INTERSEA TRAVELER

037

  • →

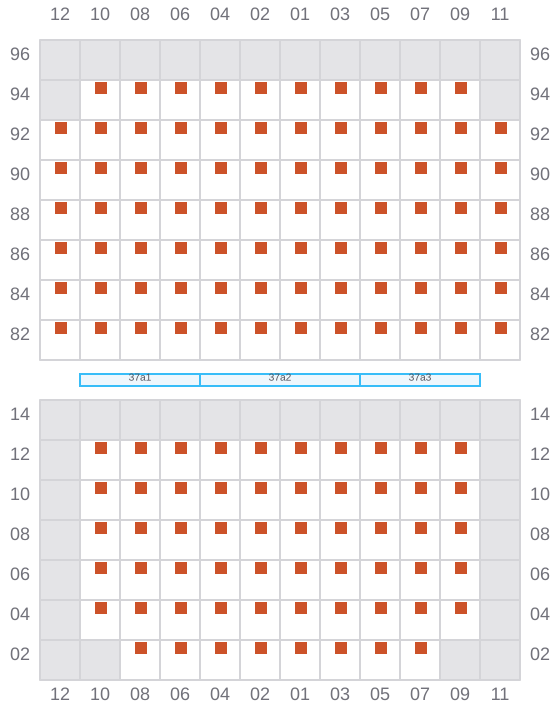

Bay 037 view and slots of INTERSEA TRAVELER

039 (038)

  • ←

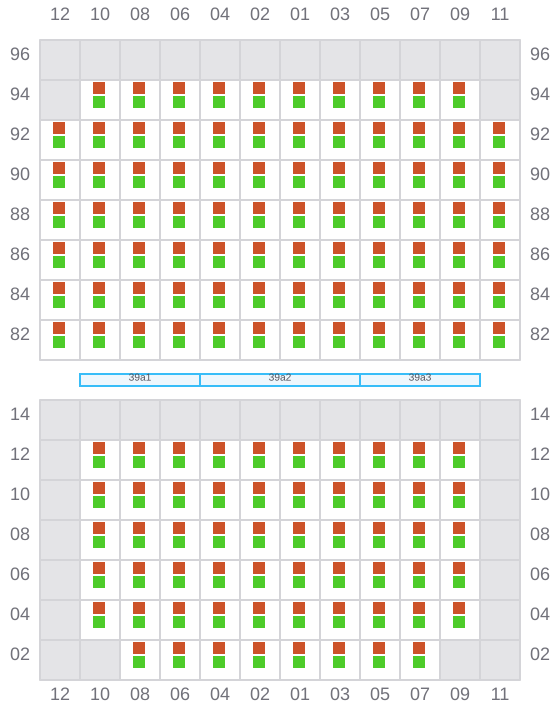

Bay 039 view and slots of INTERSEA TRAVELER

041

  • →
Bay 041 view and slots of INTERSEA TRAVELER

043 (042)

  • ←

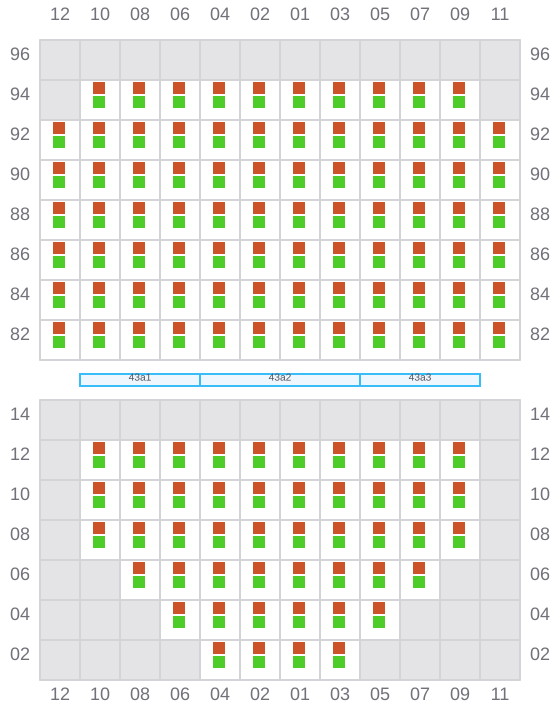

Bay 043 view and slots of INTERSEA TRAVELER

045

  • → / ?

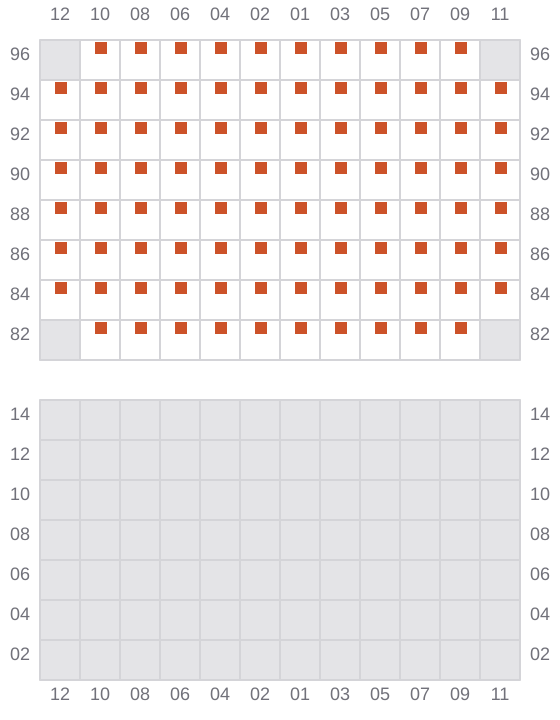

Bay 045 view and slots of INTERSEA TRAVELER

047 (046)

  • ← / ?

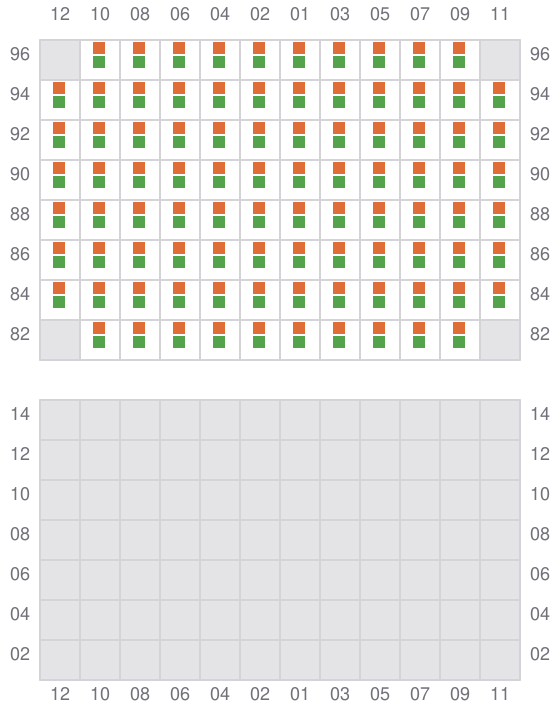

Bay 047 view and slots of INTERSEA TRAVELER
