IRAN SHAHED
9184691 | EPA2492 | 9184691 by ********* Last update: Wed Jul 17 2024
General Info
Ship Name:IRAN SHAHED
IMO Code:9184691
Call Sign:EPA2492
Line Operator:9184691
Class Name for Sister Ships:VAL
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:019
Max ISO Row:06
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:04
Min Below ISO Tier:02
Total TEU:286
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

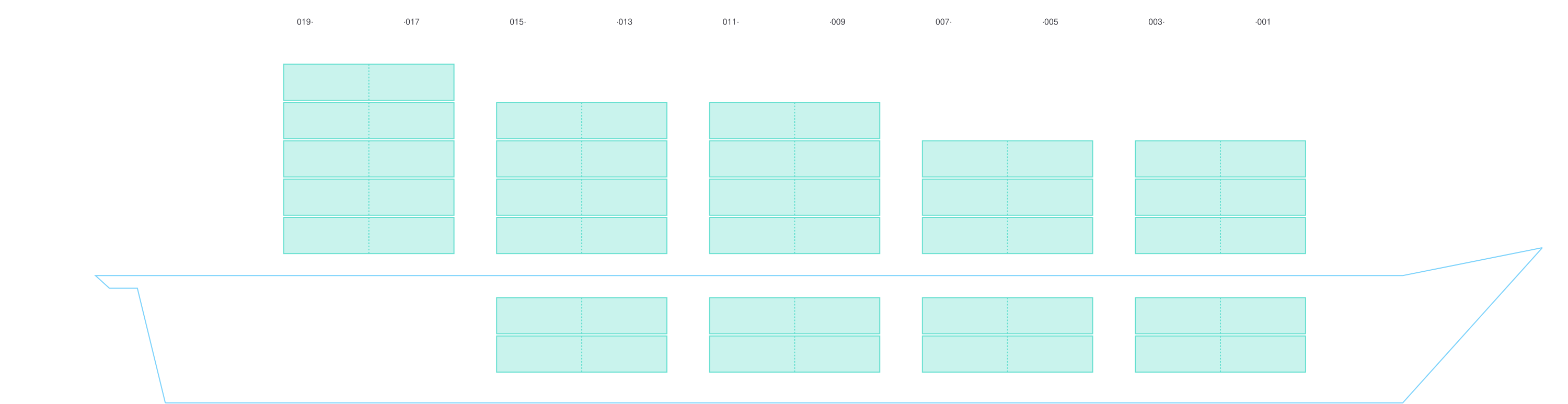

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

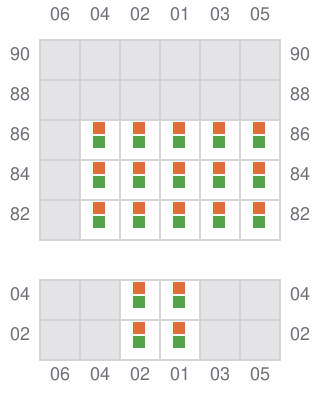

001 (002)
- →

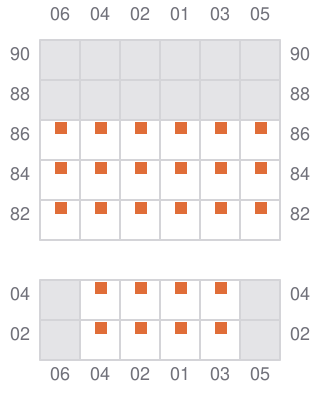

003
- ←

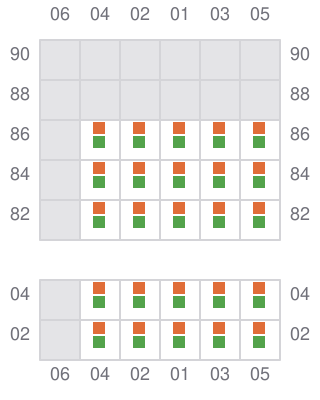

005 (006)
- →

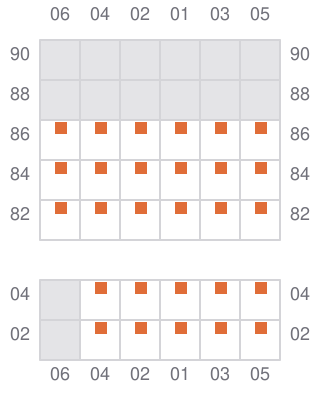

007
- ←

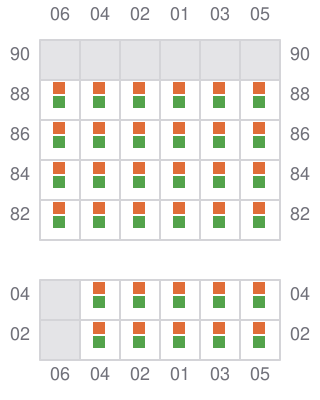

009 (010)
- →
011
- ←

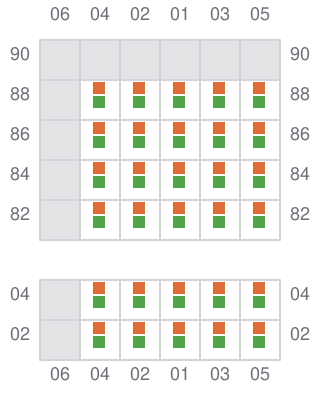

013 (014)
- →

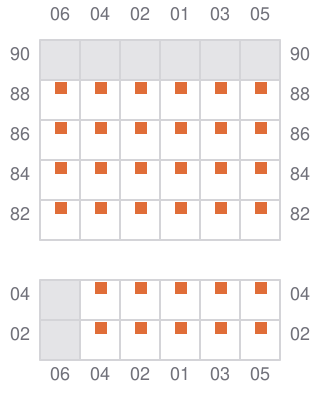

015
- ←

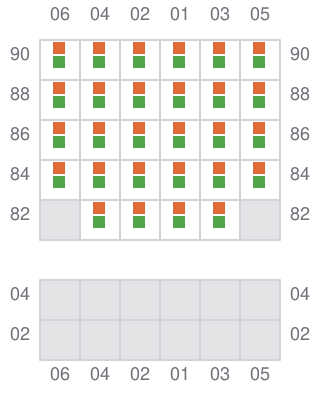

017 (018)
- → / ?

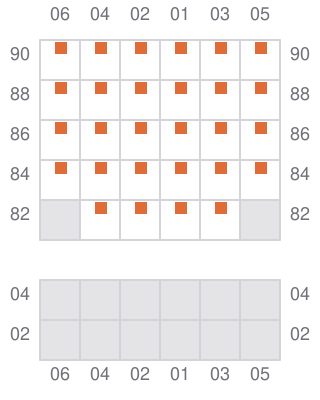

019
- ← / ?
