IRENES REMEDY
9315850 | A8WG3 | 9315850 by ********* Last update: Thu Mar 21 2024
General Info
Ship Name:IRENES REMEDY
IMO Code:9315850
Call Sign:A8WG3
Line Operator:9315850
Class Name for Sister Ships:20Y
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,904
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

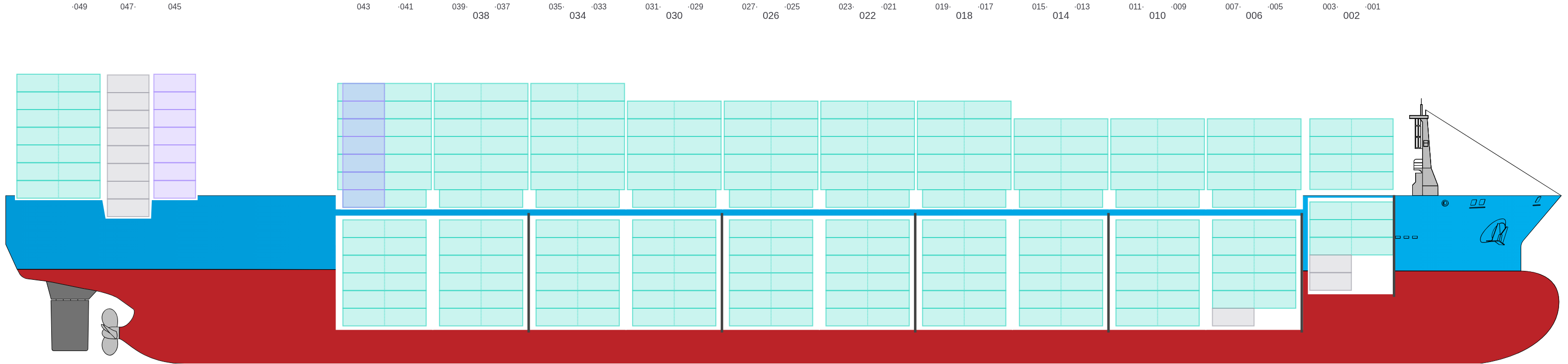

Side View
![Side view of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-sideView.png?v=1711044933805)
Hatch-Covers View
![Deck view of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-deckView.png?v=1711044933805)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

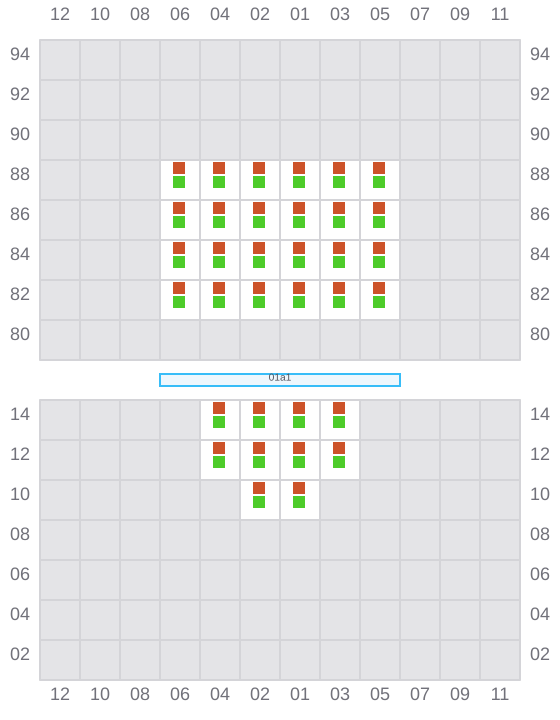

001 (002)
- →
![Bay 001 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b001.png?v=1711044933805)

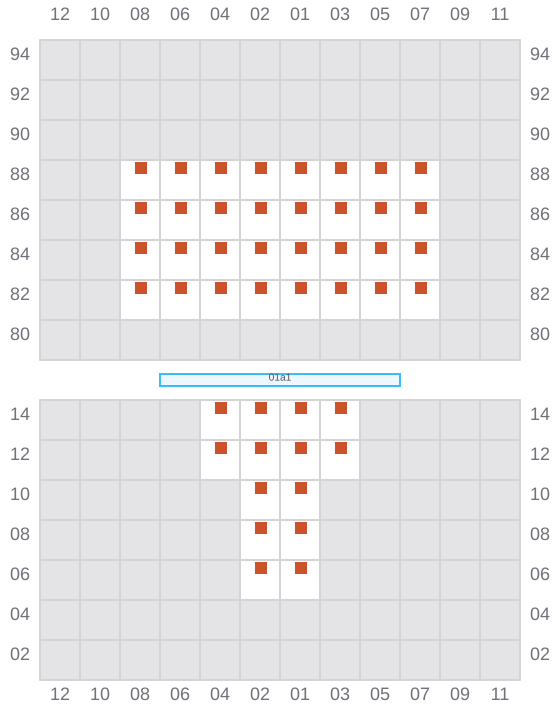

003
- ←
![Bay 003 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b003.png?v=1711044933805)

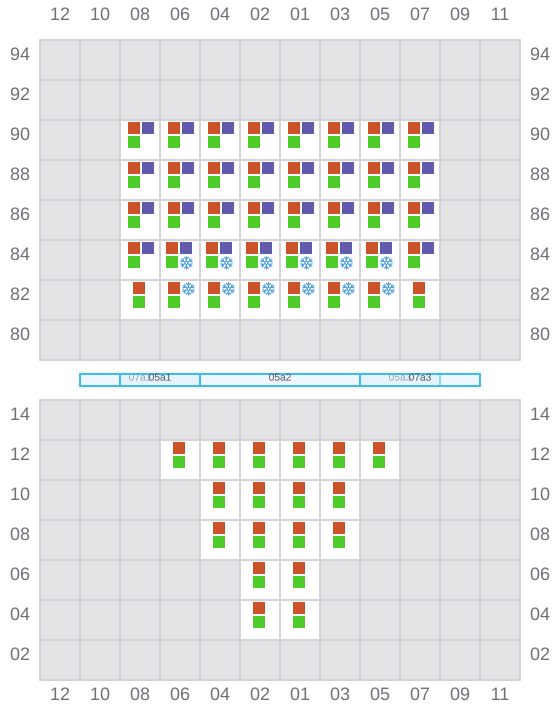

005 (006)
- →
- ← / ?
![Bay 005 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b005.png?v=1711044933805)

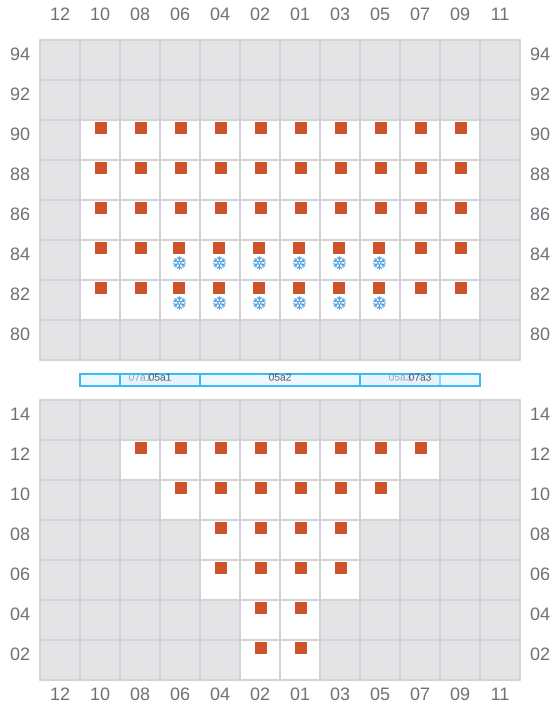

007
- ←
- → / ?
![Bay 007 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b007.png?v=1711044933805)

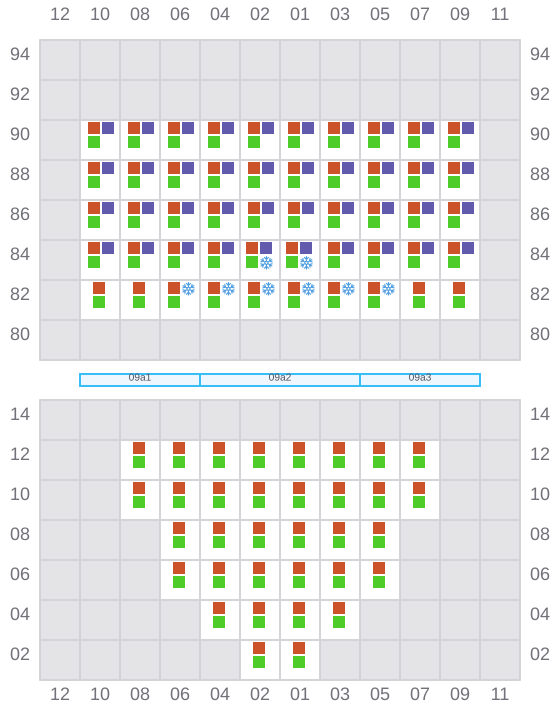

009 (010)
- →
- ← / ?
![Bay 009 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b009.png?v=1711044933805)

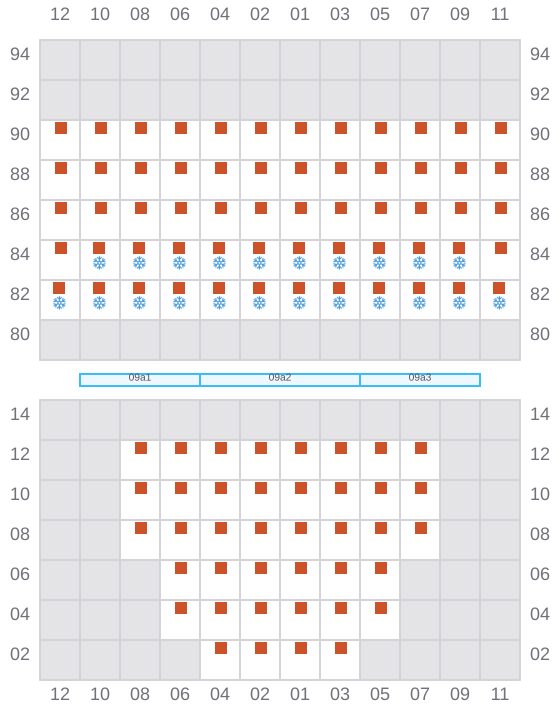

011
- ←
- → / ?
![Bay 011 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b011.png?v=1711044933805)

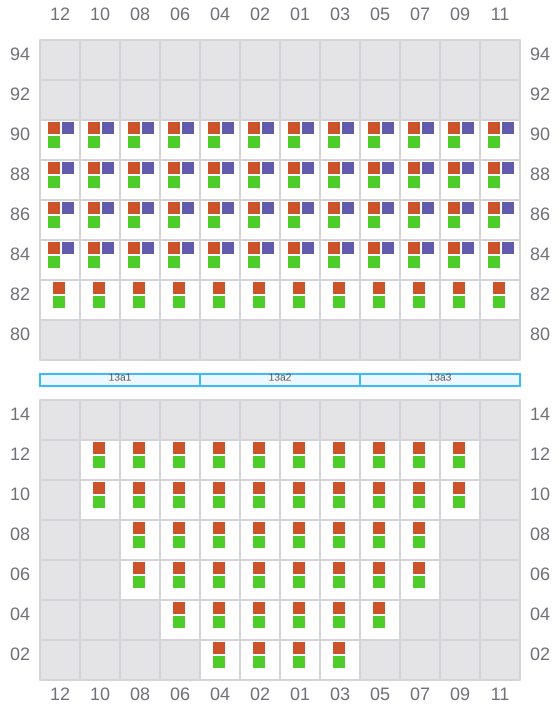

013 (014)
- →
- → / ?
![Bay 013 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b013.png?v=1711044933805)

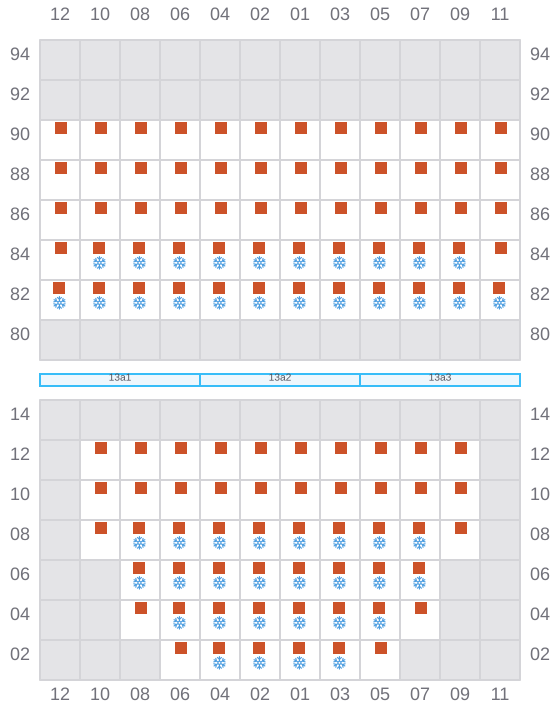

015
- ←
- →
![Bay 015 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b015.png?v=1711044933805)

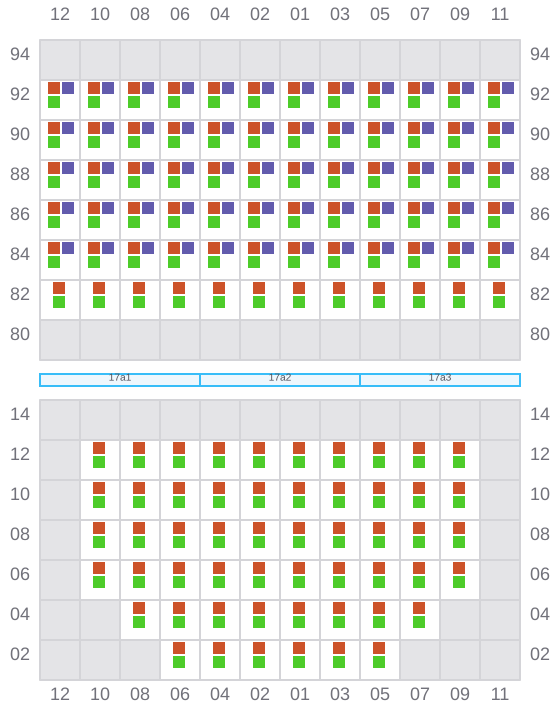

017 (018)
- →
![Bay 017 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b017.png?v=1711044933805)

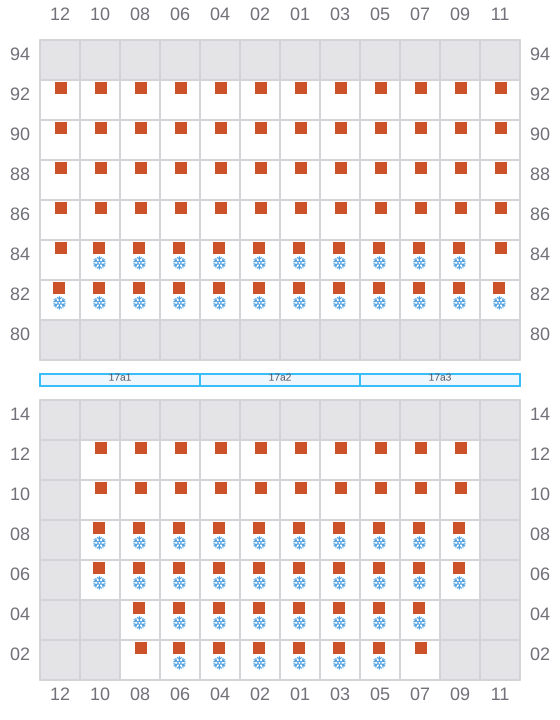

019
- ←
- →
![Bay 019 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b019.png?v=1711044933805)

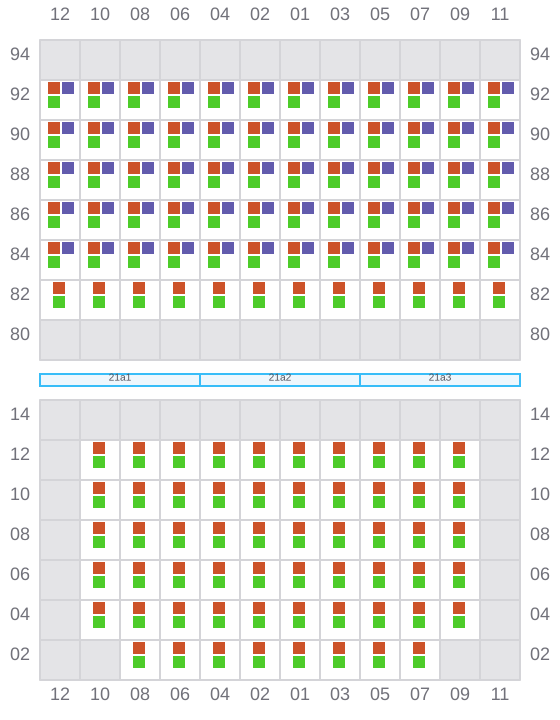

021 (022)
- →
![Bay 021 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b021.png?v=1711044933805)

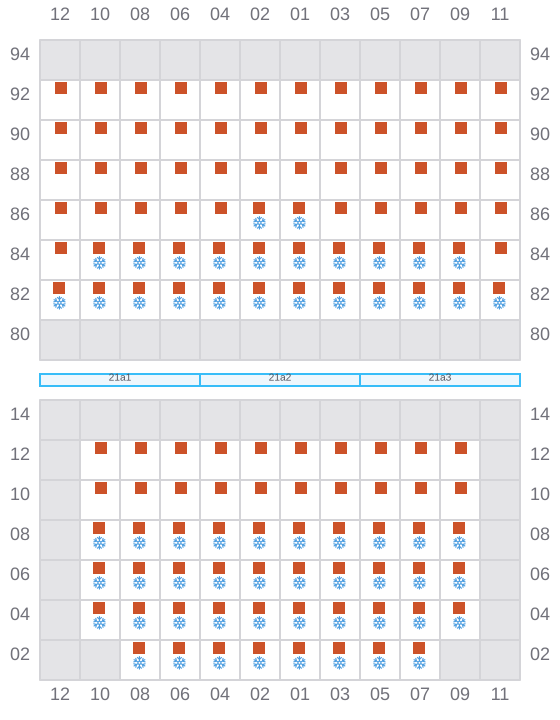

023
- ←
- →
![Bay 023 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b023.png?v=1711044933805)
025 (026)
- →
![Bay 025 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b025.png?v=1711044933805)

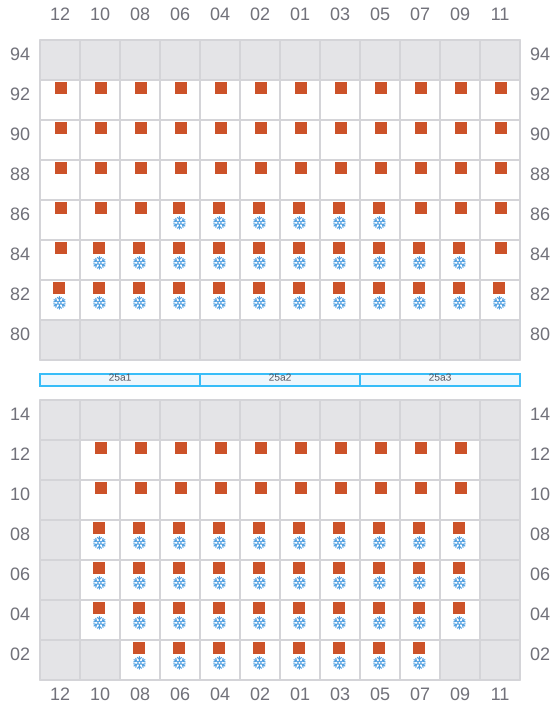

027
- ←
- →
![Bay 027 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b027.png?v=1711044933805)
029 (030)
- →
![Bay 029 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b029.png?v=1711044933805)
031
- ←
- →
![Bay 031 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b031.png?v=1711044933805)
033 (034)
- →
![Bay 033 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b033.png?v=1711044933805)
035
- ←
- → / ?
![Bay 035 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b035.png?v=1711044933805)

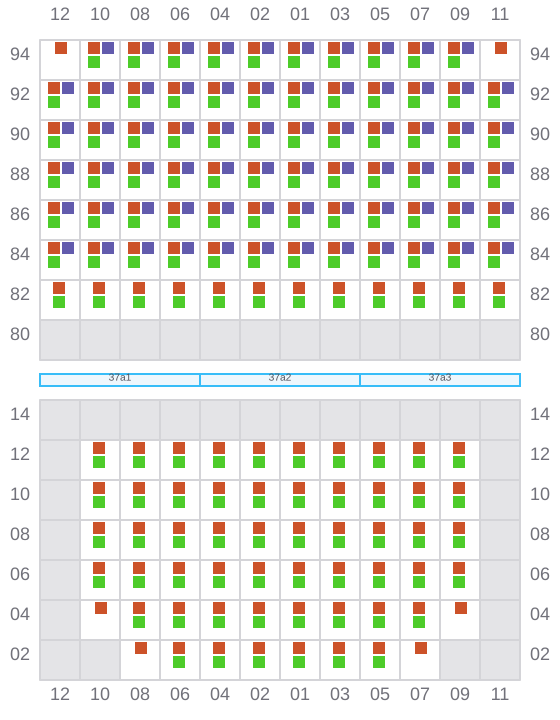

037 (038)
- →
![Bay 037 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b037.png?v=1711044933805)
039
- ←
- →
![Bay 039 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b039.png?v=1711044933805)

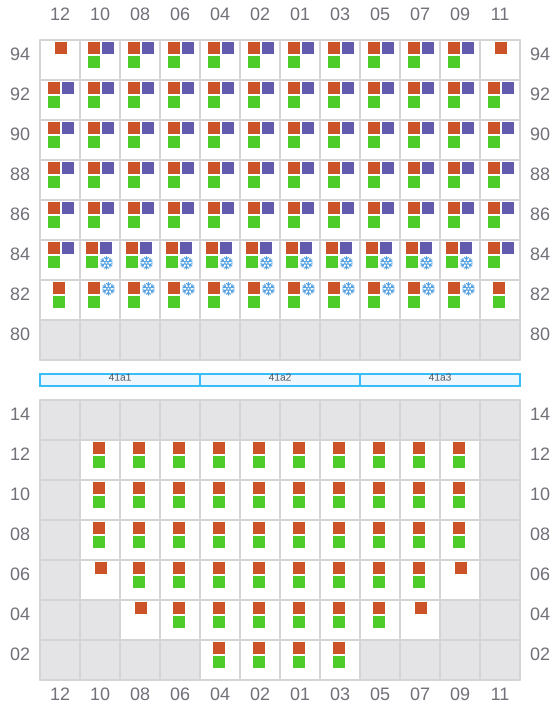

041 (042)
- →
- ← / ?
![Bay 041 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b041.png?v=1711044933805)

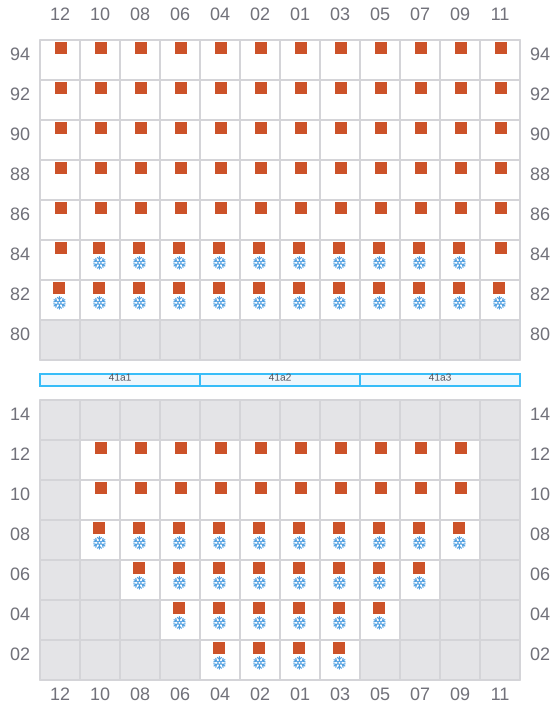

043
- ? / ←
- →
![Bay 043 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b043.png?v=1711044933805)

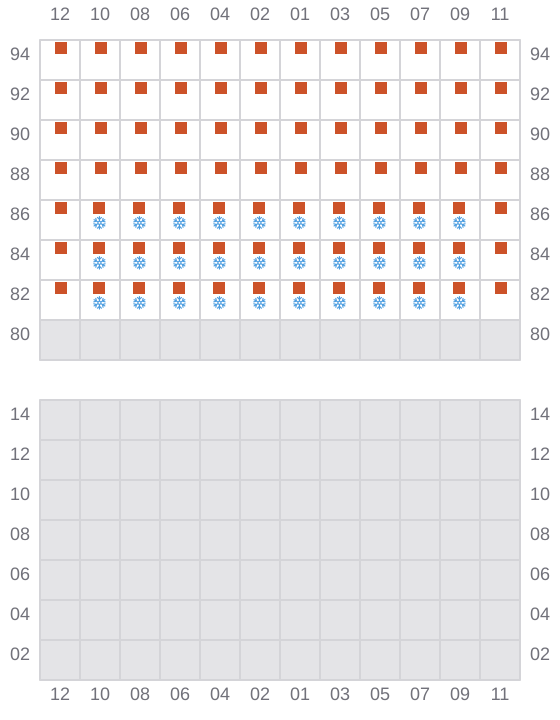

045
- ← / ?
![Bay 045 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b045.png?v=1711044933805)

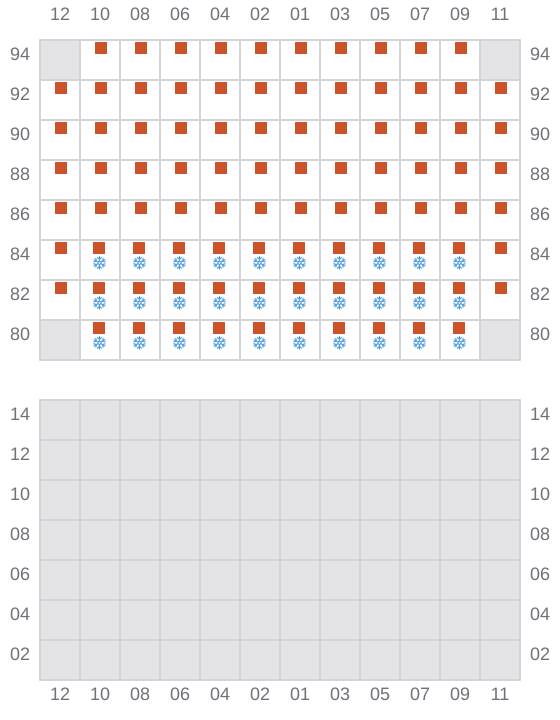

047
- ← / ?
- → / ?
![Bay 047 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b047.png?v=1711044933805)

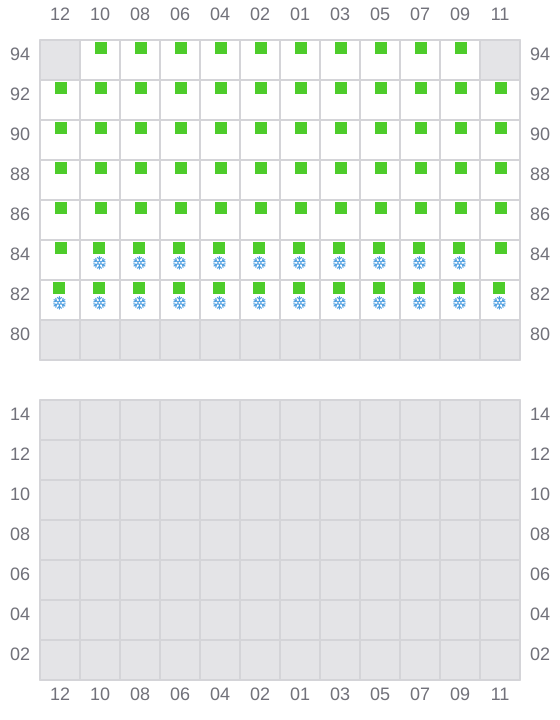

049 (050)
- → / ?
- ← / ?
![Bay 049 view and slots of IRENES REMEDY](/vessel-images/357c6d5f-0089-4a63-b32d-6a2465cea3b3-b049.png?v=1711044933805)
