ITAL USODIMARE
9196979 | IBPO | 9196979 by ********* Last update: Thu Jun 06 2024
General Info
Ship Name:ITAL USODIMARE
IMO Code:9196979
Call Sign:IBPO
Line Operator:9196979
Class Name for Sister Ships:ITAL USODIMARE
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:067
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,732
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

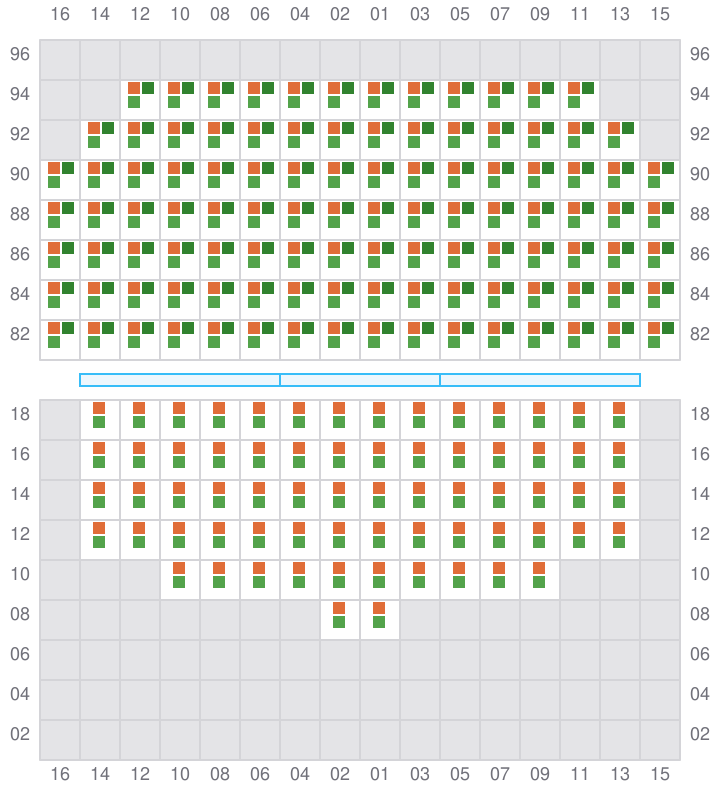

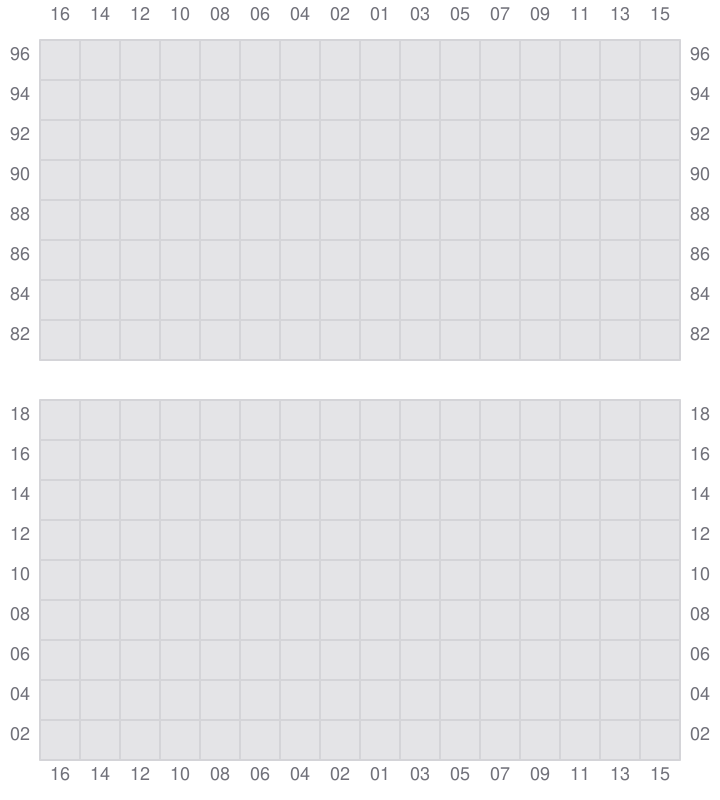

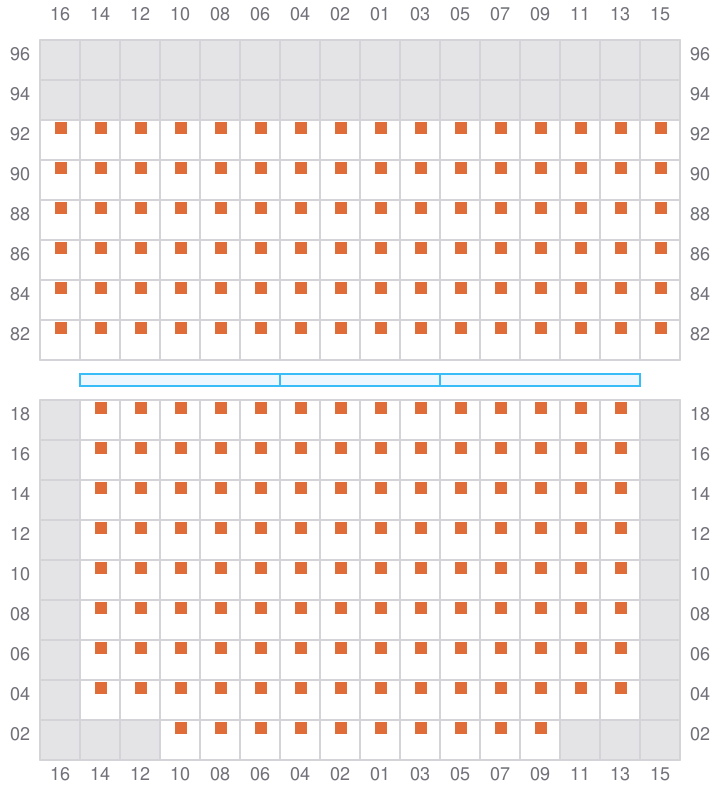

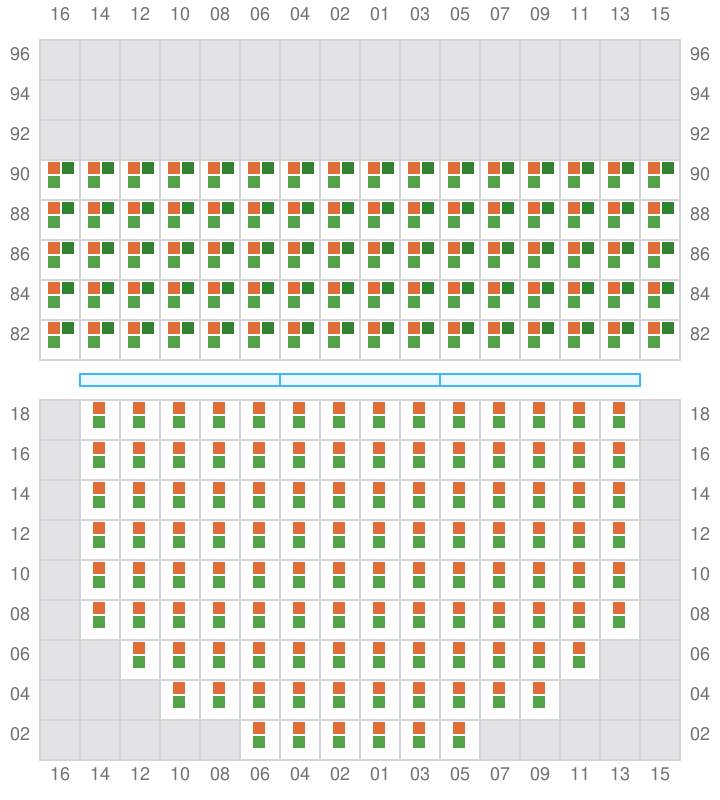

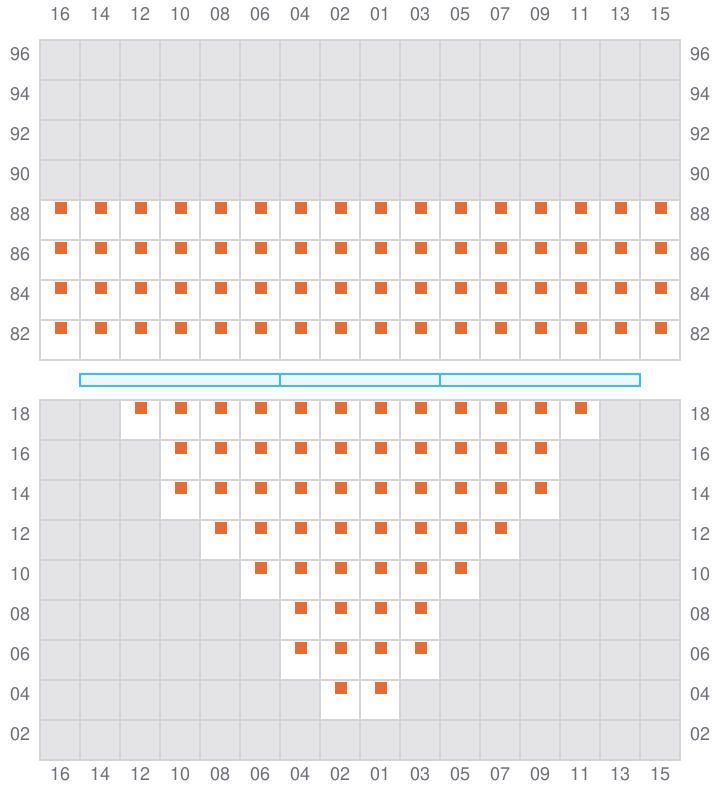

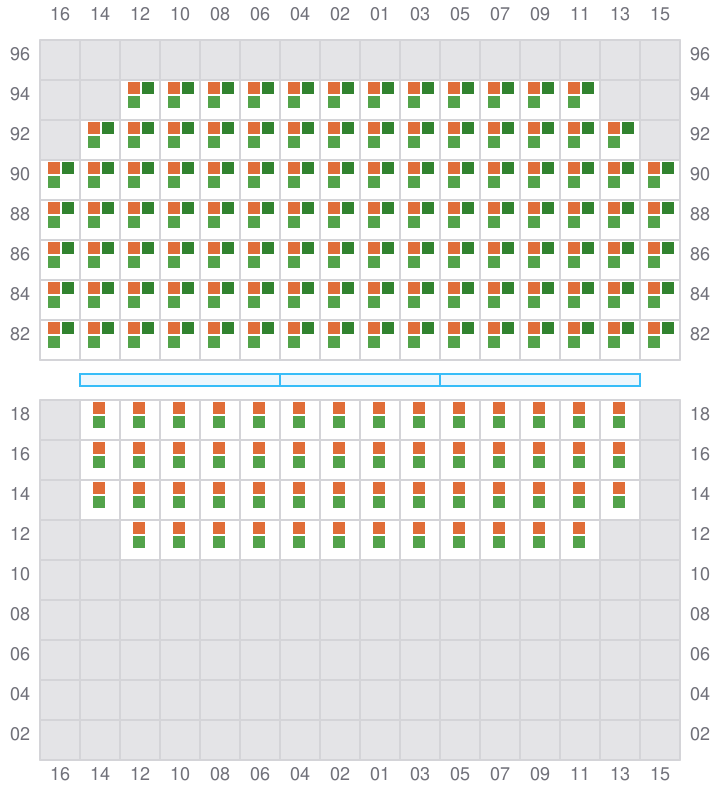

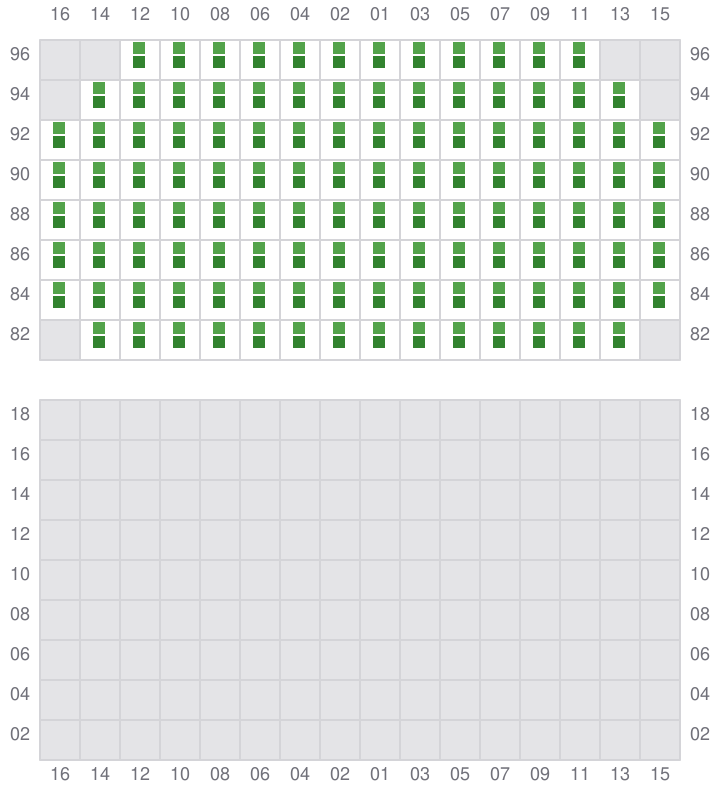

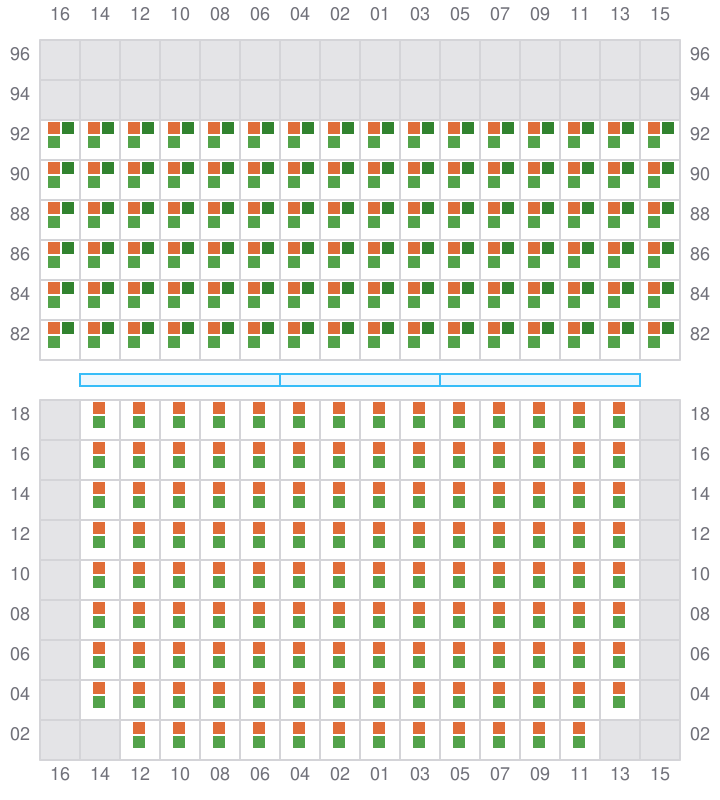

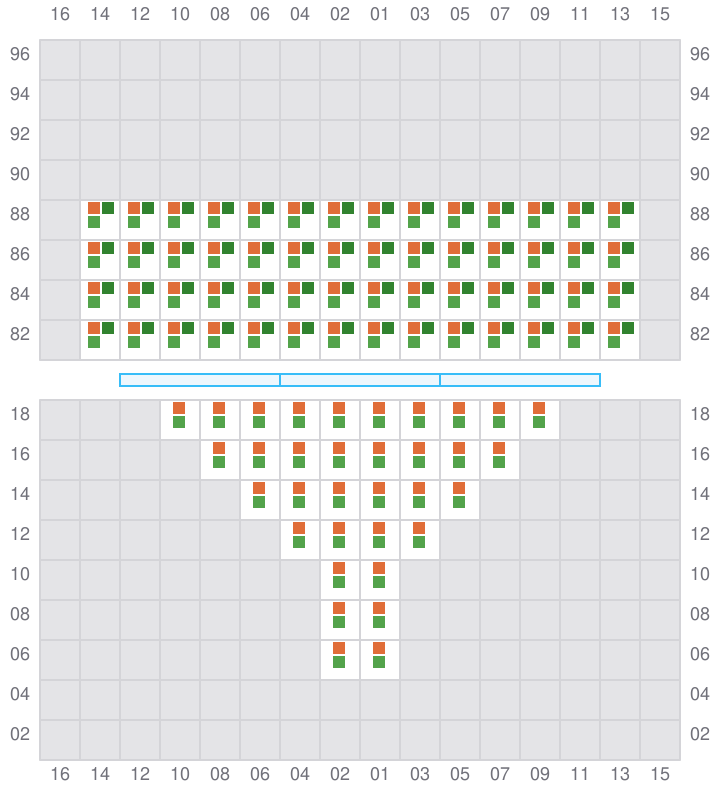

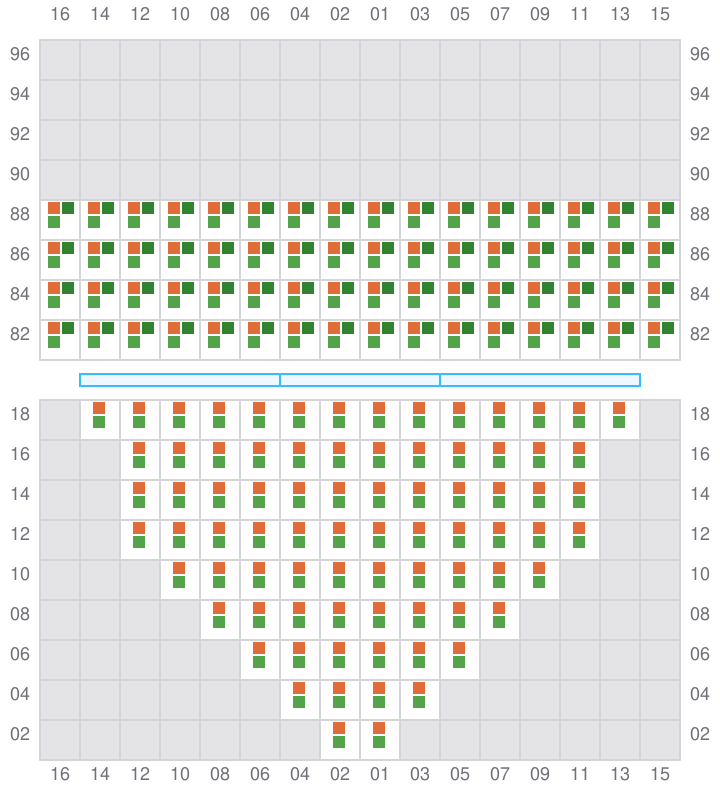

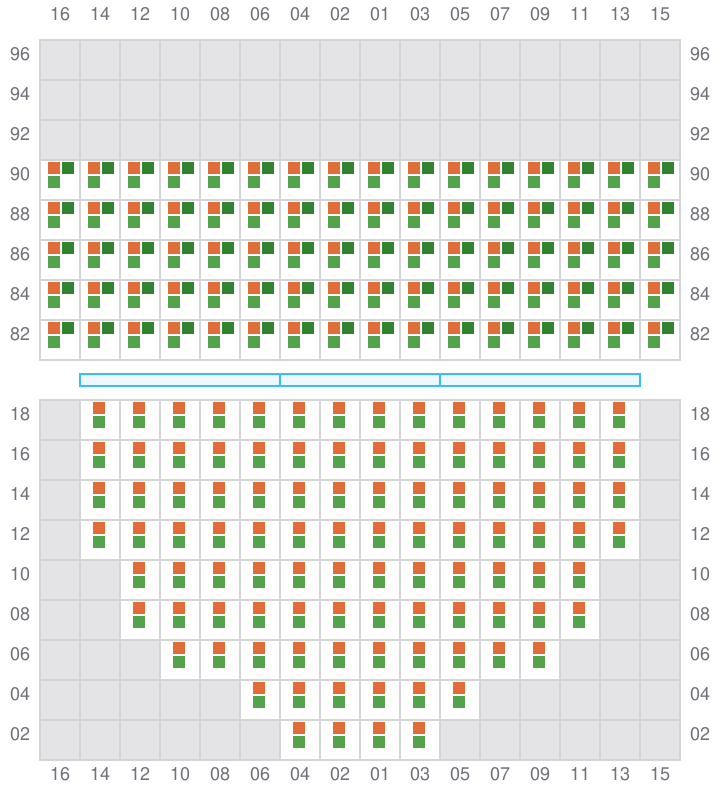

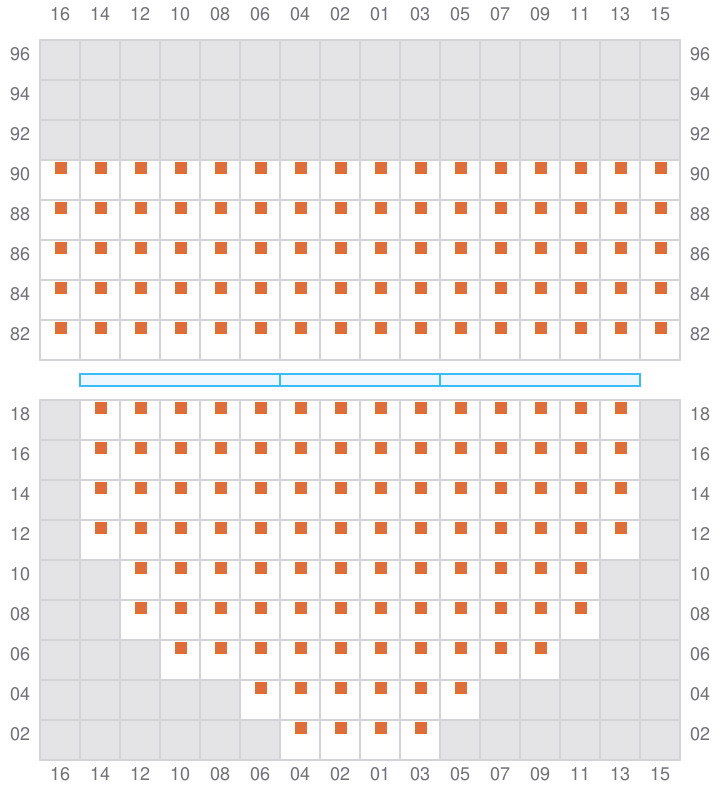

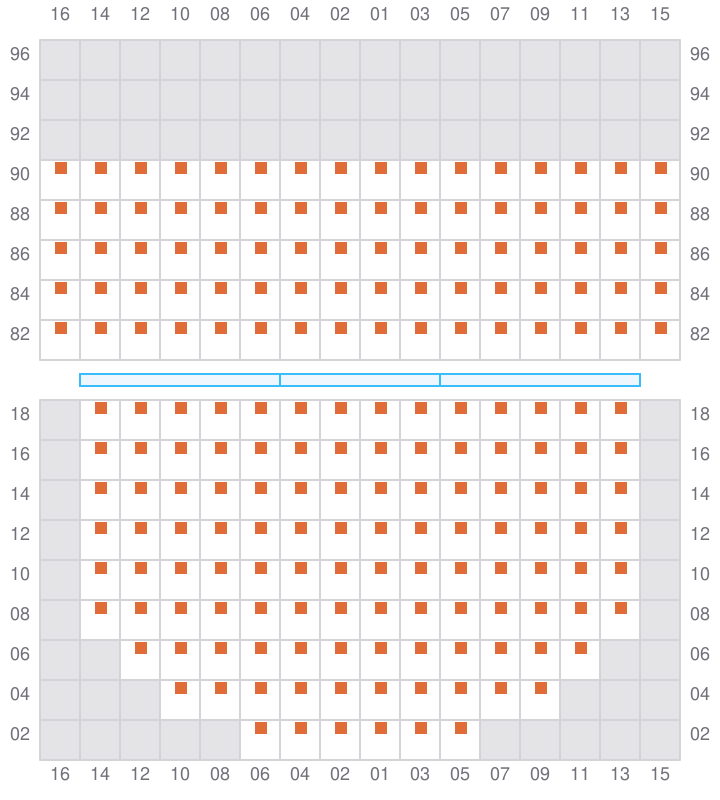

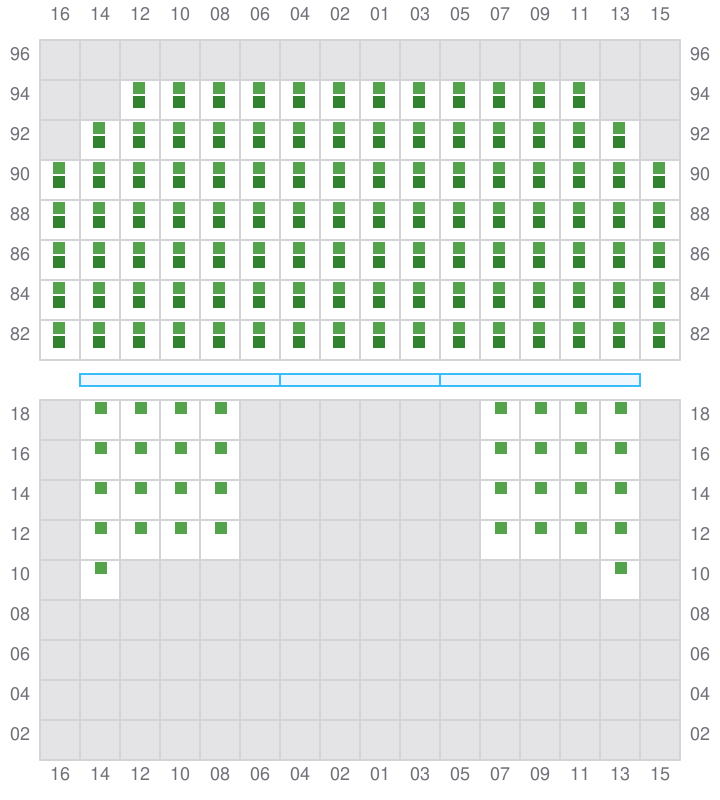

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

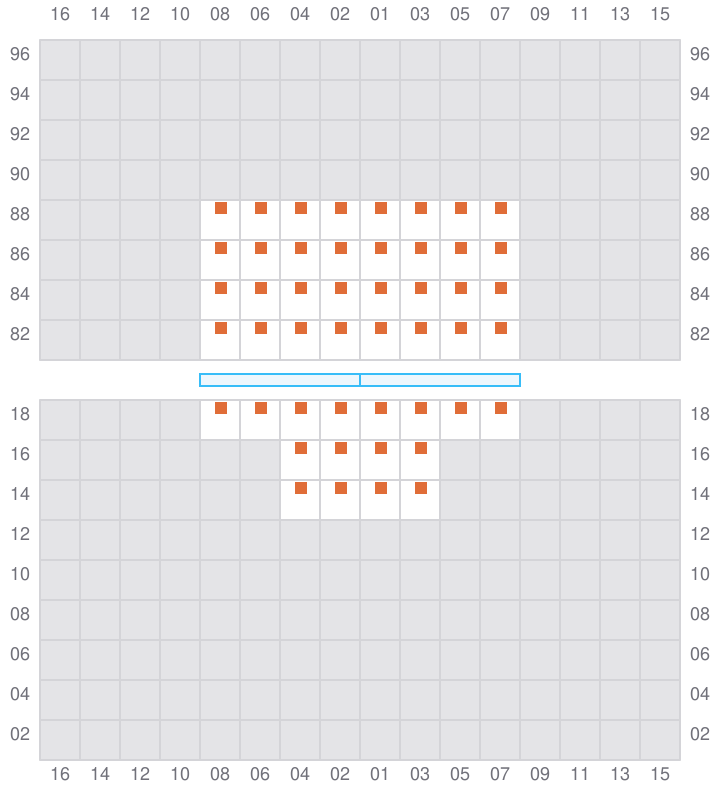

001
- →

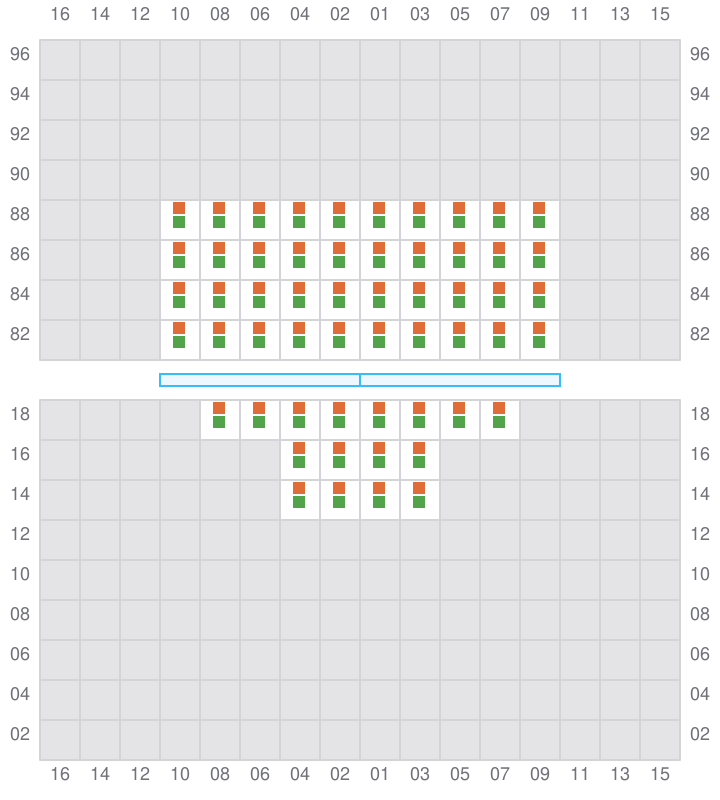

003 (002)
- ←
005
- →
007 (006)
- ←
009
- →
011 (010)
- ←

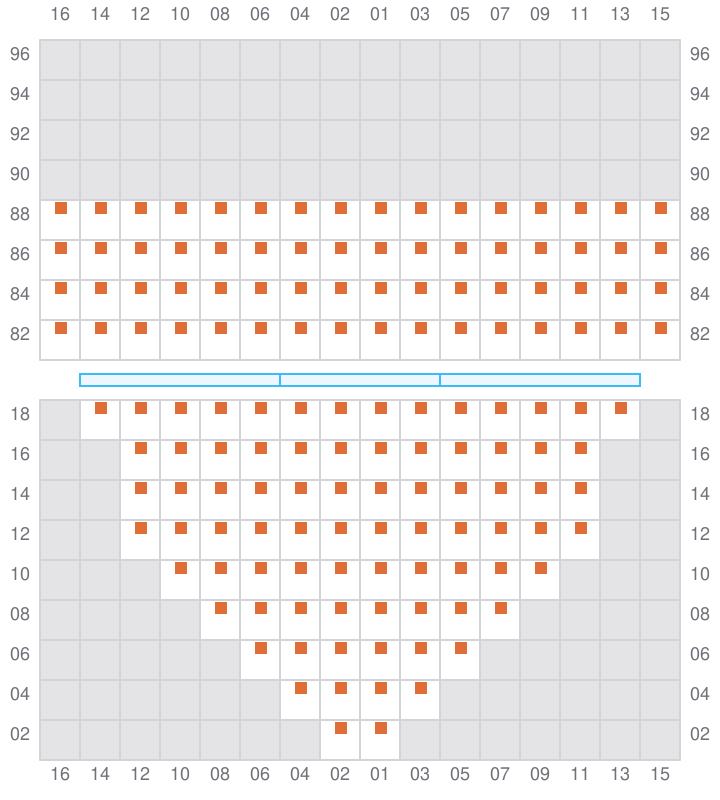

013
- →
015 (014)
- ←
017
- →
019 (018)
- ←
021
- →
023 (022)
- ←
025
- →
027 (026)
- ←

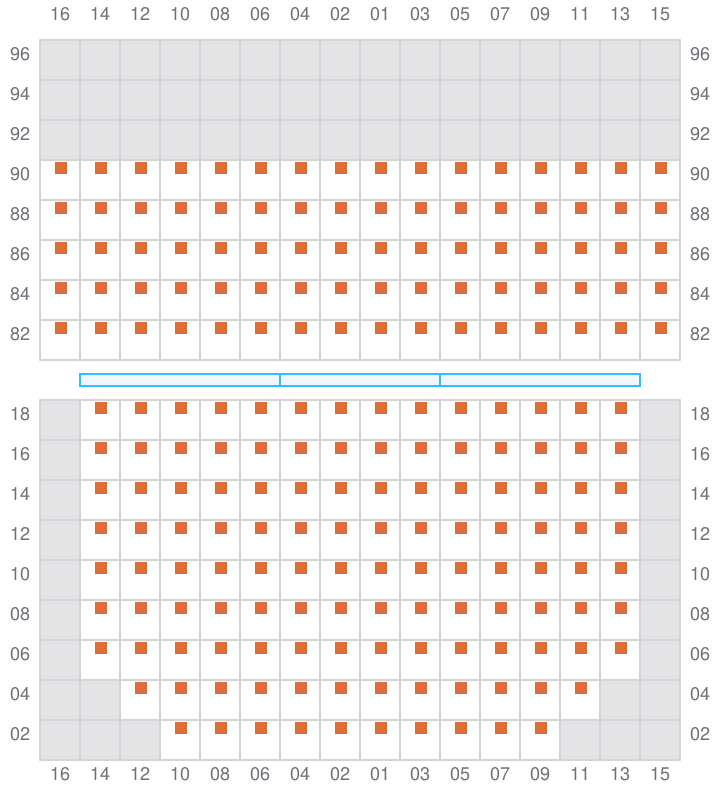

029
- →

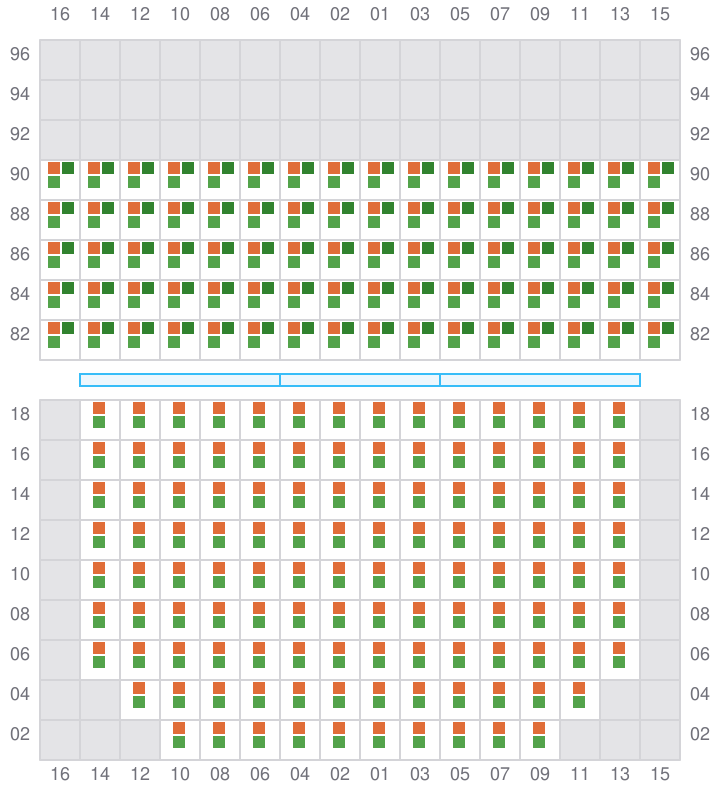

031 (030)
- ←
033
- →
035 (034)
- ←
037
- →
039 (038)
- ←
041
- →
043 (042)
- ←
045
- →
047 (046)
- ←
049

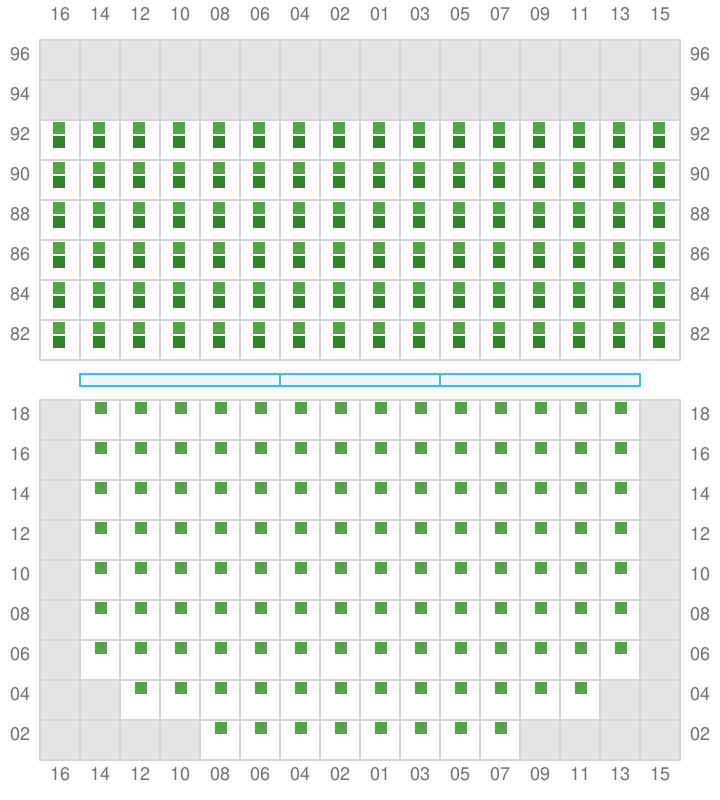

051 (050)
- ←
053
055 (054)
- ←
057
- →
059 (058)
- ←
061
- →
063 (062)
- ←
065
067 (066)
- ← / ?
