ITAL USODIMARE
9196979 | IBPO | ITAL by ********* Last update: Tue Jul 30 2024

General Info

Ship Name:ITAL USODIMARE
IMO Code:9196979
Call Sign:IBPO
Line Operator:ITAL
Class Name for Sister Ships:LLT
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):268.00
LOA (Length Overall):285.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:067
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,076

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

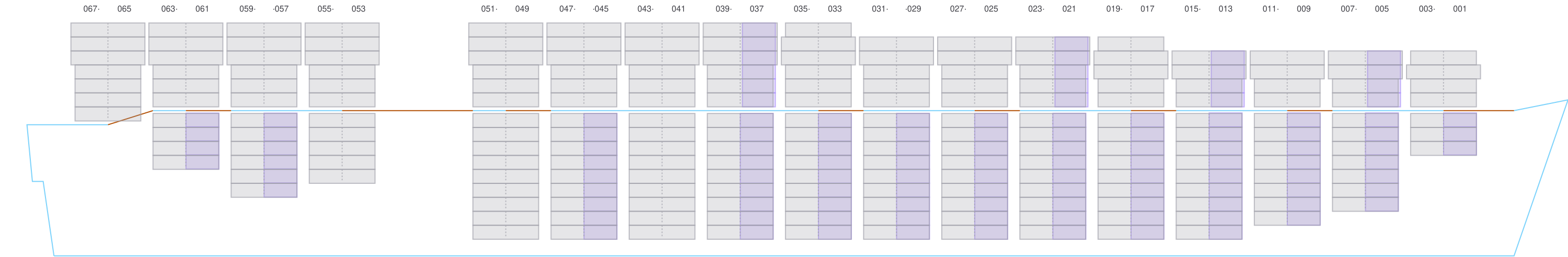

Side view of ITAL USODIMARE

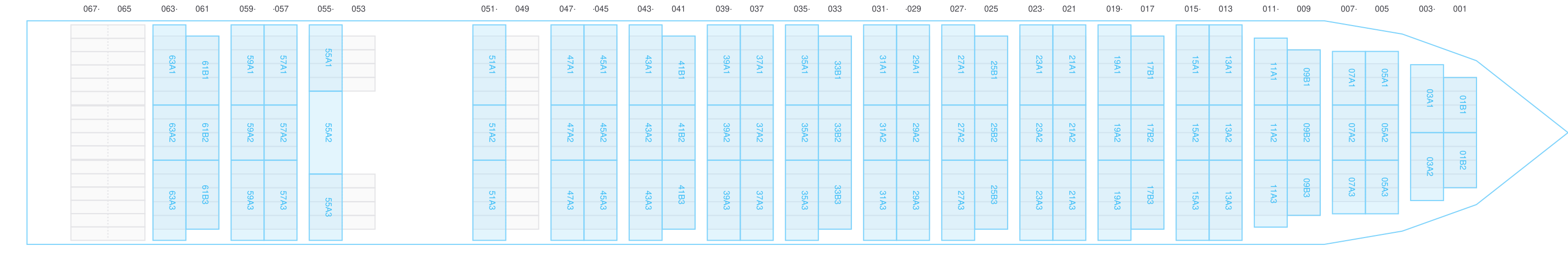

Hatch-Covers View

Deck view of ITAL USODIMARE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • ? / →

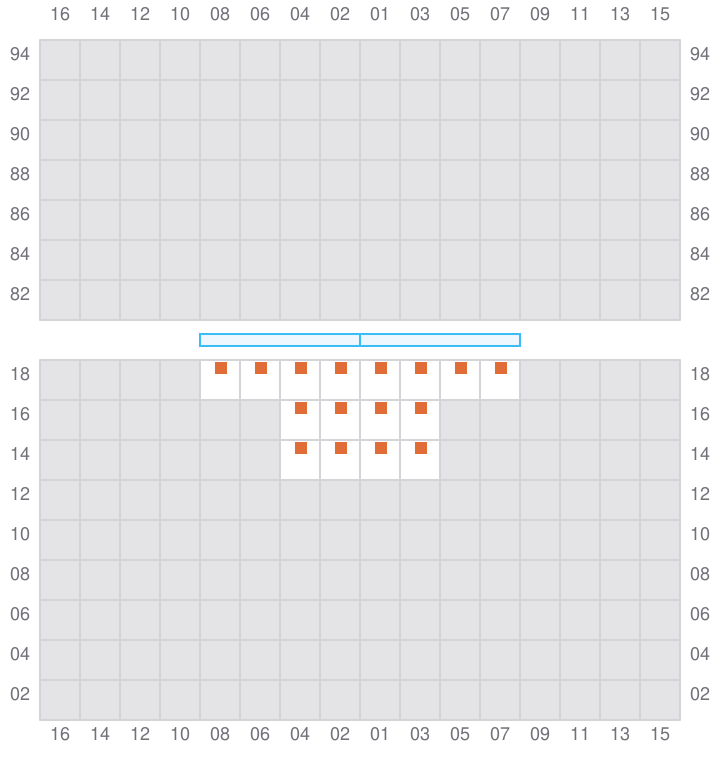

Bay 001 view and slots of ITAL USODIMARE

003 (002)

  • ←
  • →

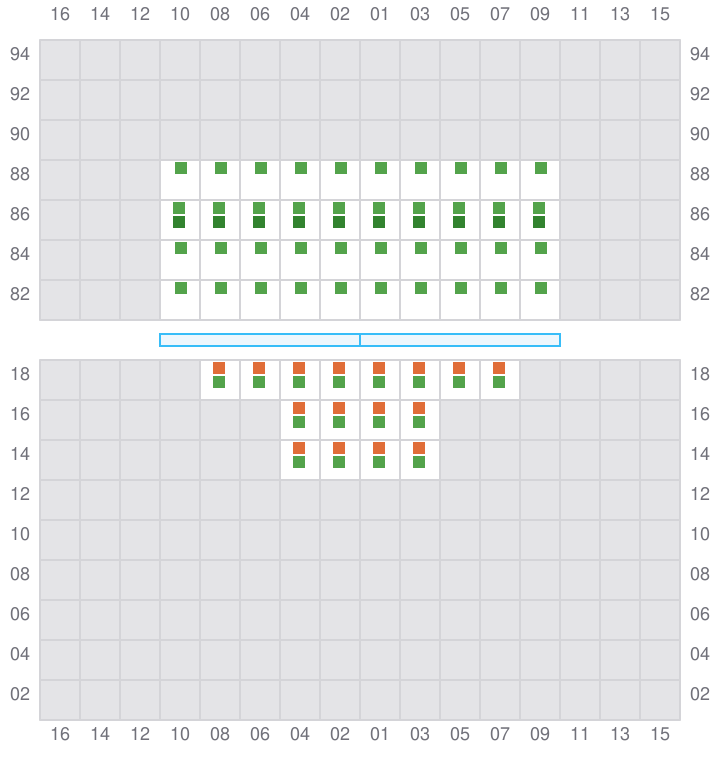

Bay 003 view and slots of ITAL USODIMARE

005

  • →

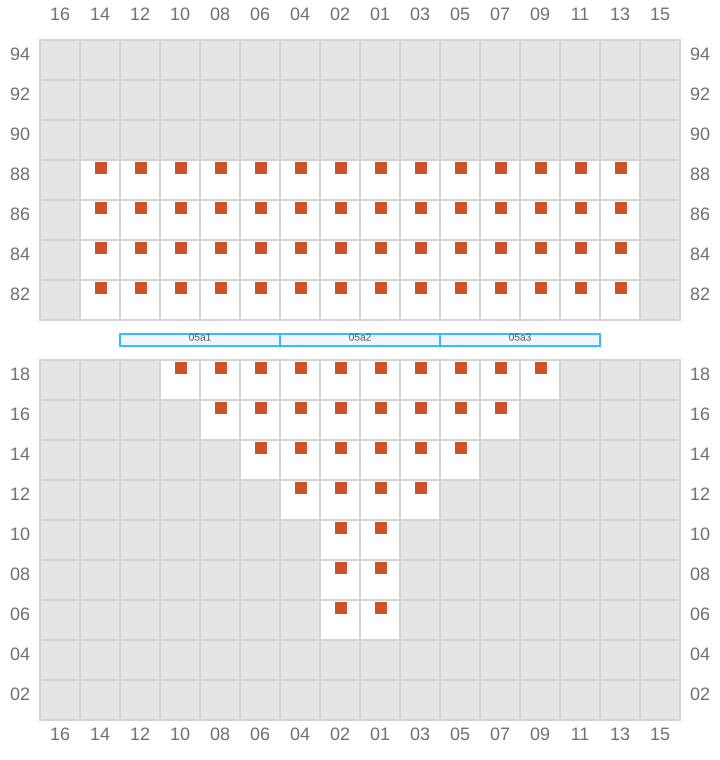

Bay 005 view and slots of ITAL USODIMARE

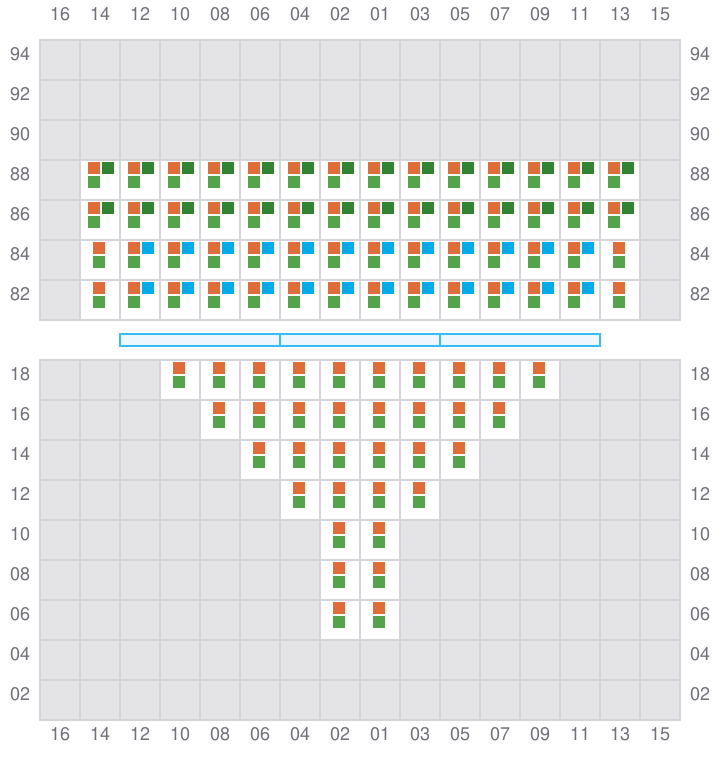

007 (006)

  • ←
  • → / ?
  • →
Bay 007 view and slots of ITAL USODIMARE

009

  • ? / →

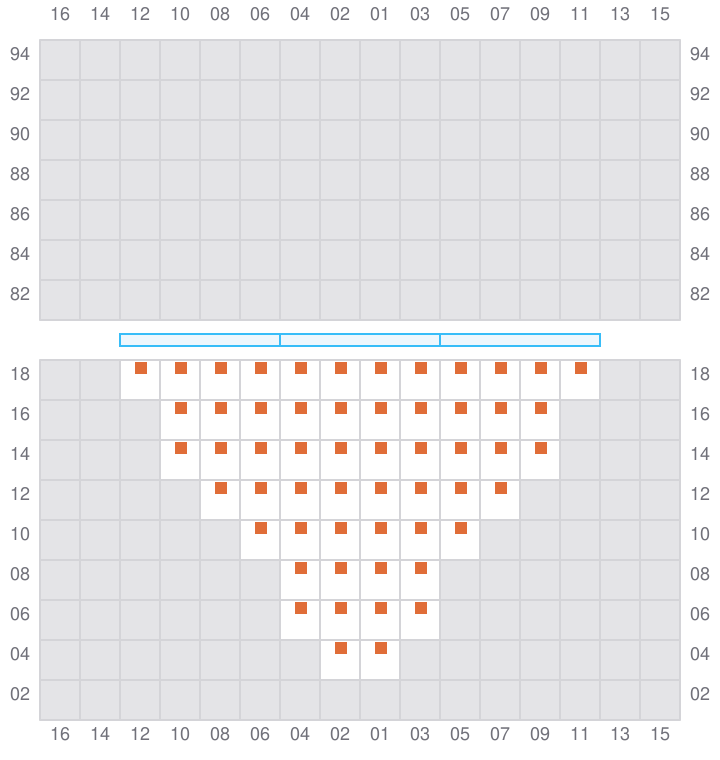

Bay 009 view and slots of ITAL USODIMARE

011 (010)

  • ←
  • → / ?
  • →

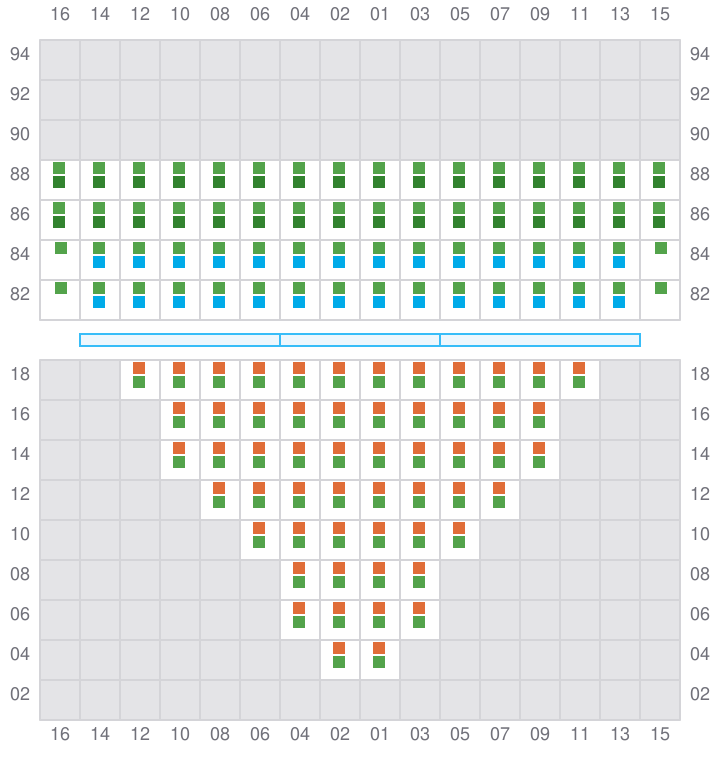

Bay 011 view and slots of ITAL USODIMARE

013

  • →

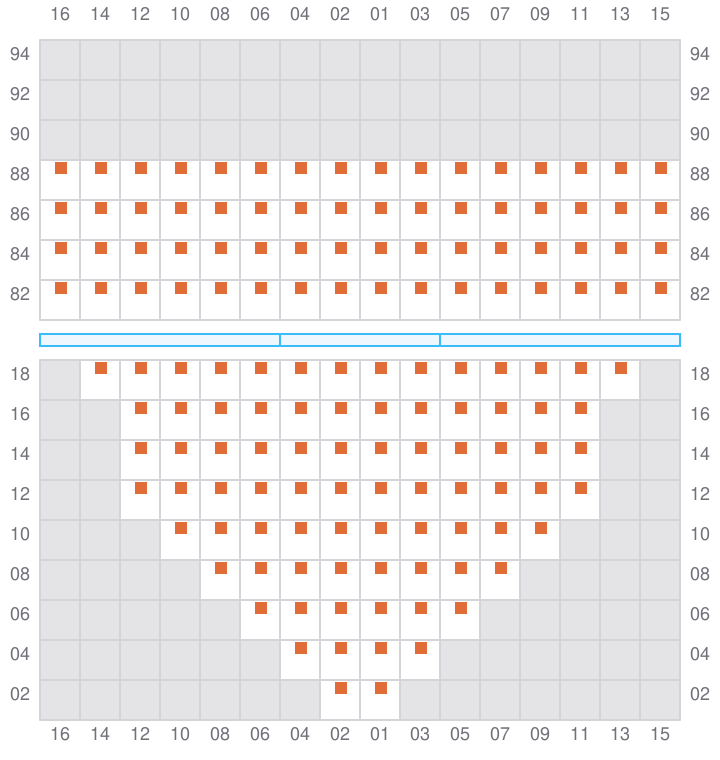

Bay 013 view and slots of ITAL USODIMARE

015 (014)

  • ←
  • → / ?
  • →

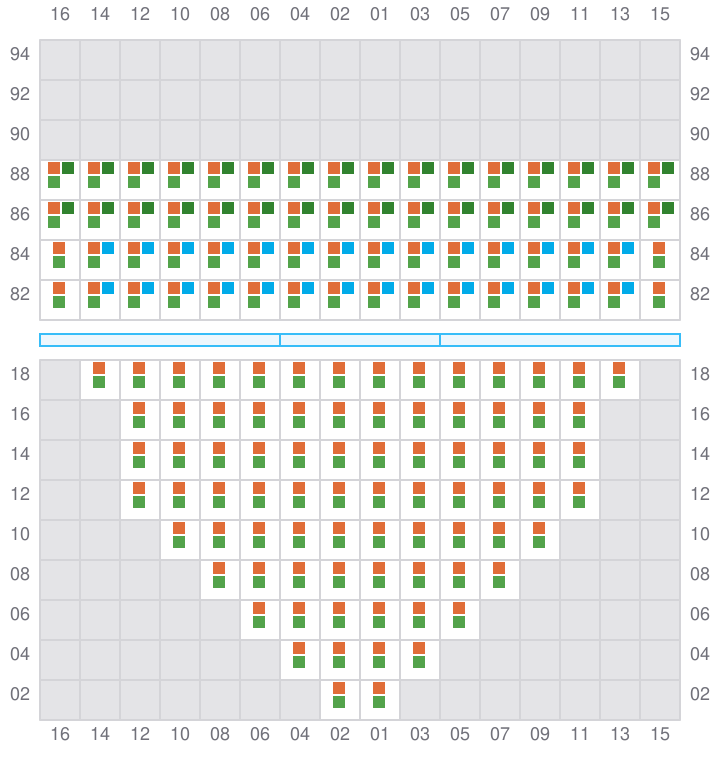

Bay 015 view and slots of ITAL USODIMARE

017

  • ? / →

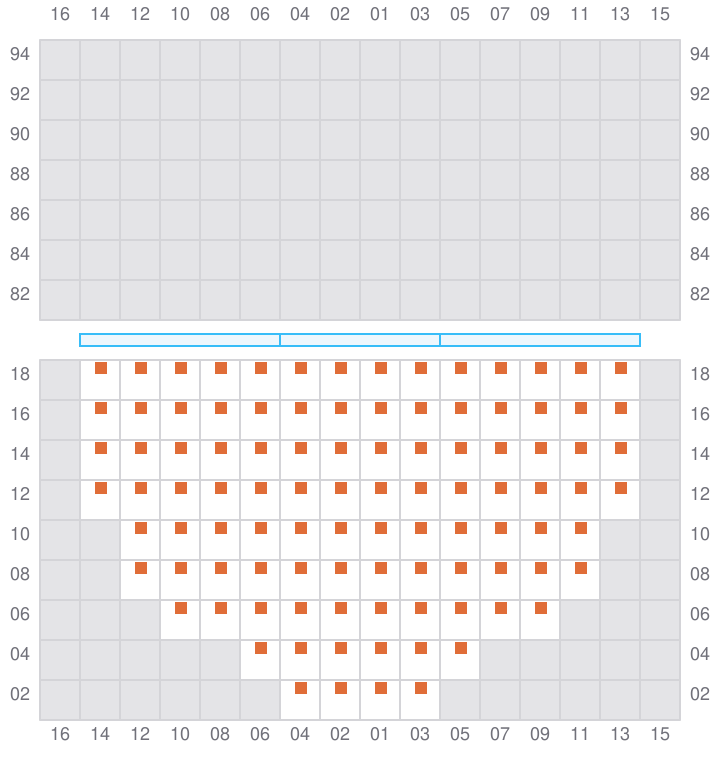

Bay 017 view and slots of ITAL USODIMARE

019 (018)

  • ←
  • → / ?
  • →

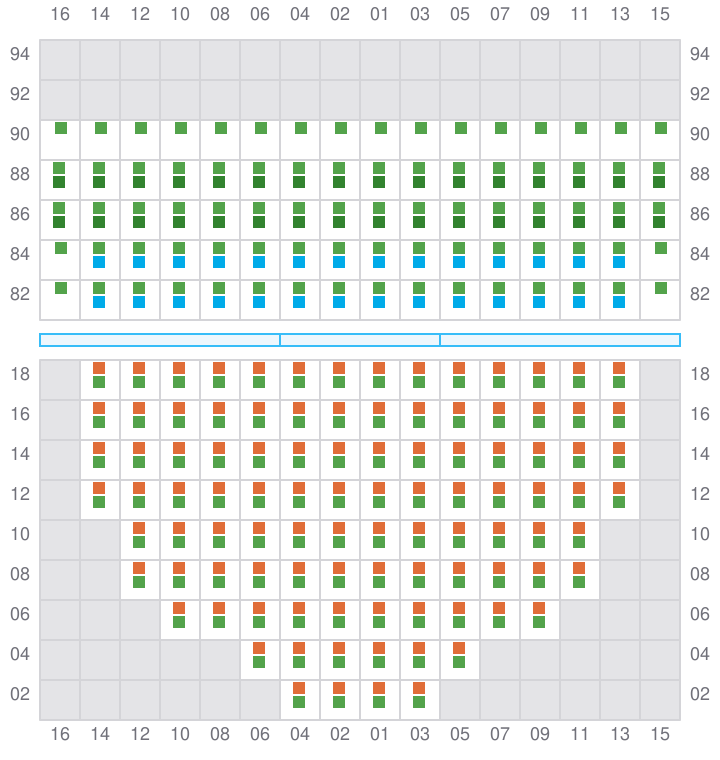

Bay 019 view and slots of ITAL USODIMARE

021

  • →

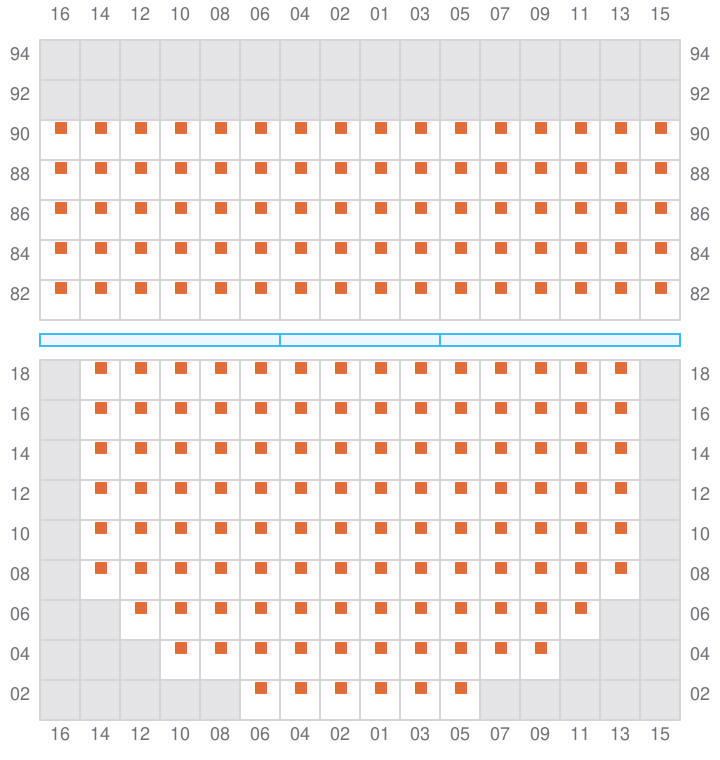

Bay 021 view and slots of ITAL USODIMARE

023 (022)

  • ←
  • → / ?
  • →

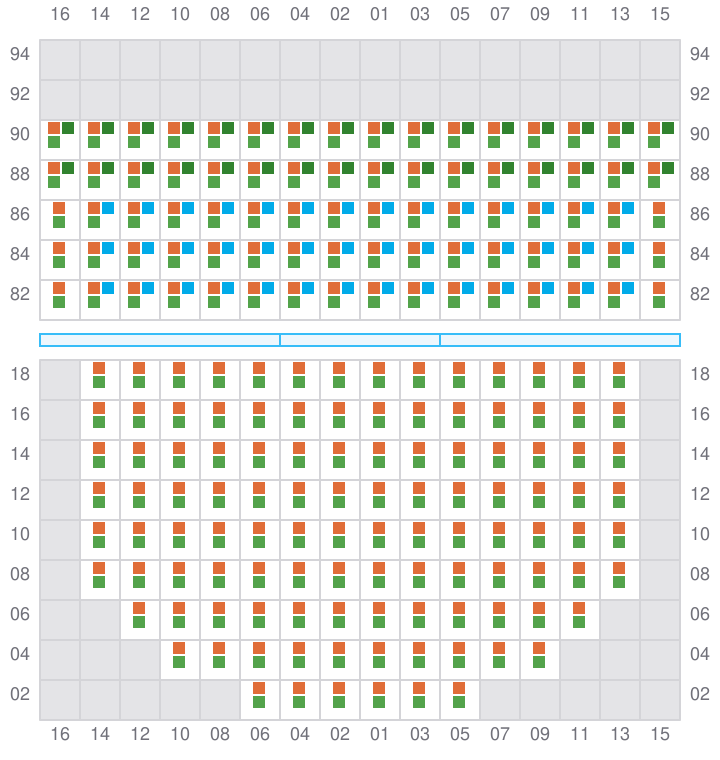

Bay 023 view and slots of ITAL USODIMARE

025

  • ? / →

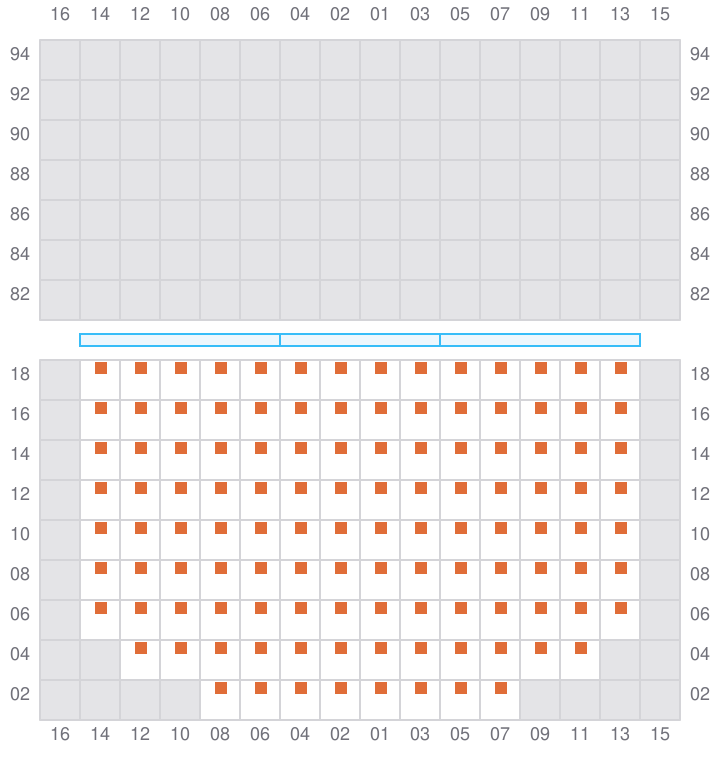

Bay 025 view and slots of ITAL USODIMARE

027 (026)

  • ←
  • →
  • →

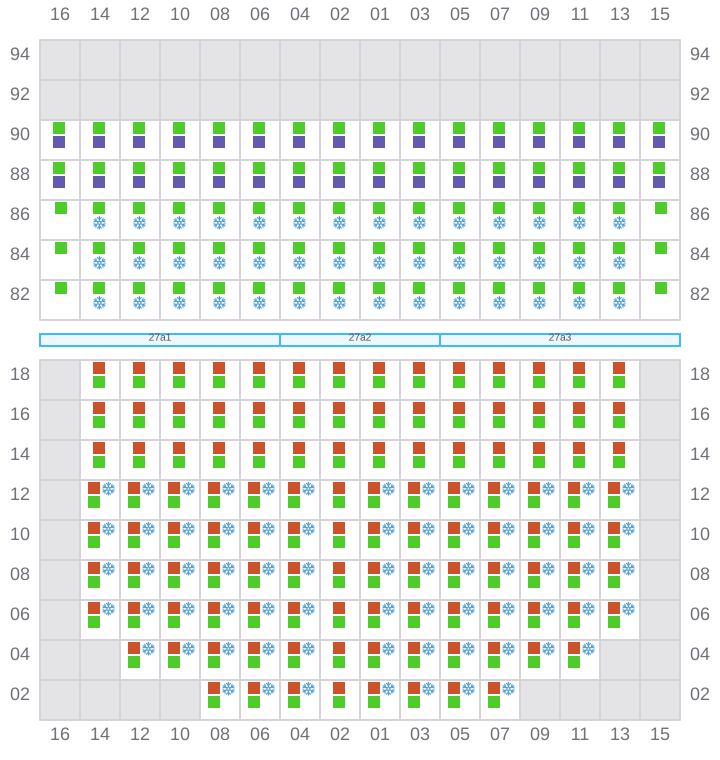

Bay 027 view and slots of ITAL USODIMARE

029

  • → / ?
  • →

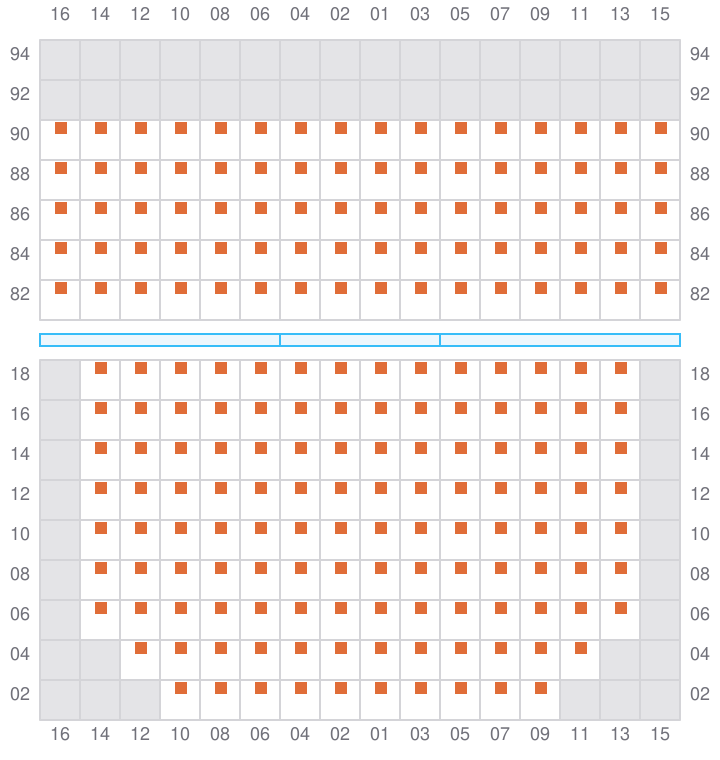

Bay 029 view and slots of ITAL USODIMARE

031 (030)

  • ←
  • → / ?
  • →

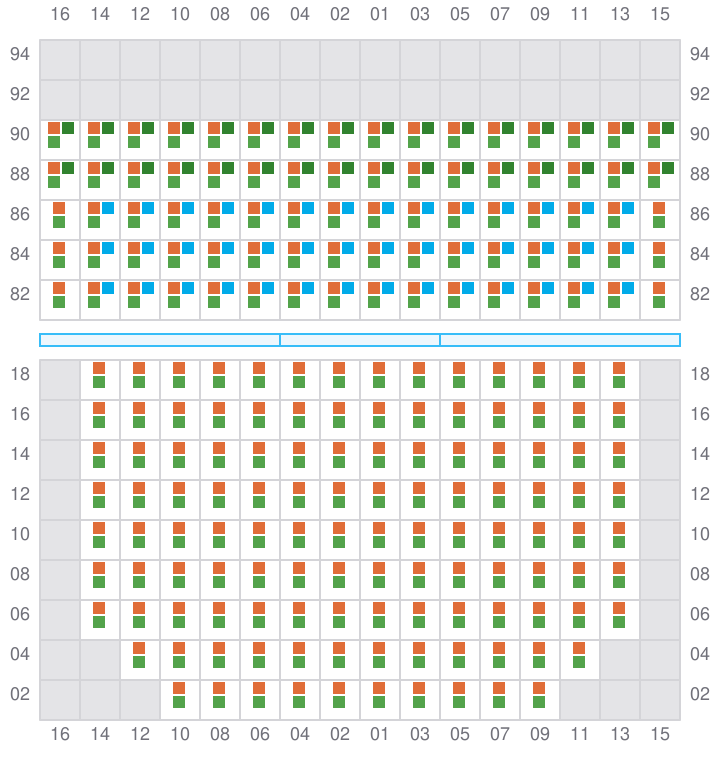

Bay 031 view and slots of ITAL USODIMARE

033

  • ? / →
Bay 033 view and slots of ITAL USODIMARE

035 (034)

  • ←
  • → / ?
  • →

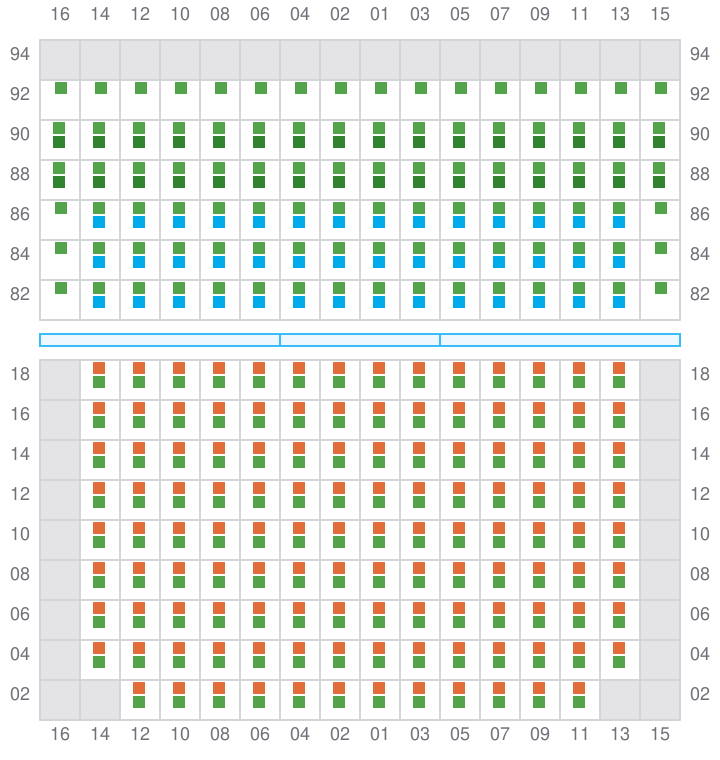

Bay 035 view and slots of ITAL USODIMARE

037

  • →

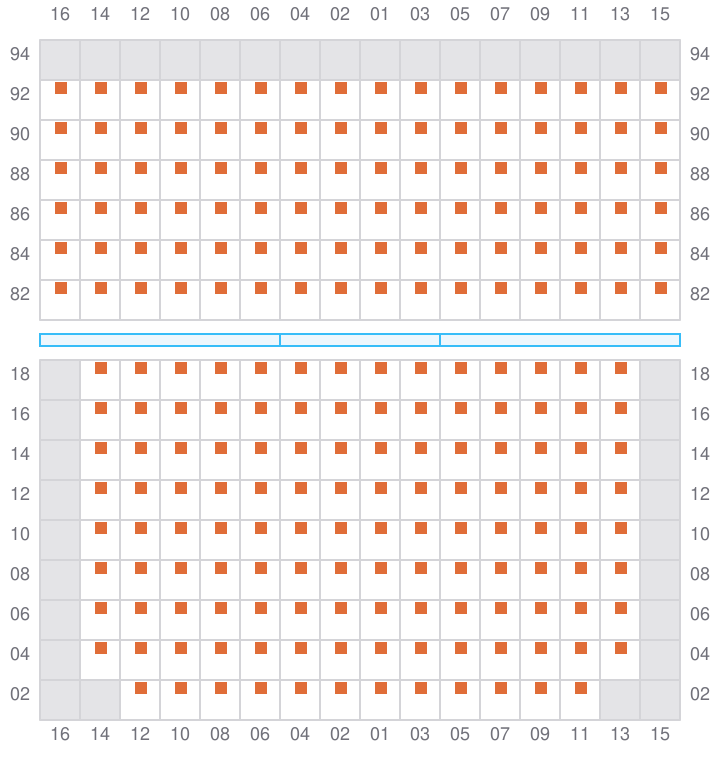

Bay 037 view and slots of ITAL USODIMARE

039 (038)

  • ←
  • → / ?
  • →

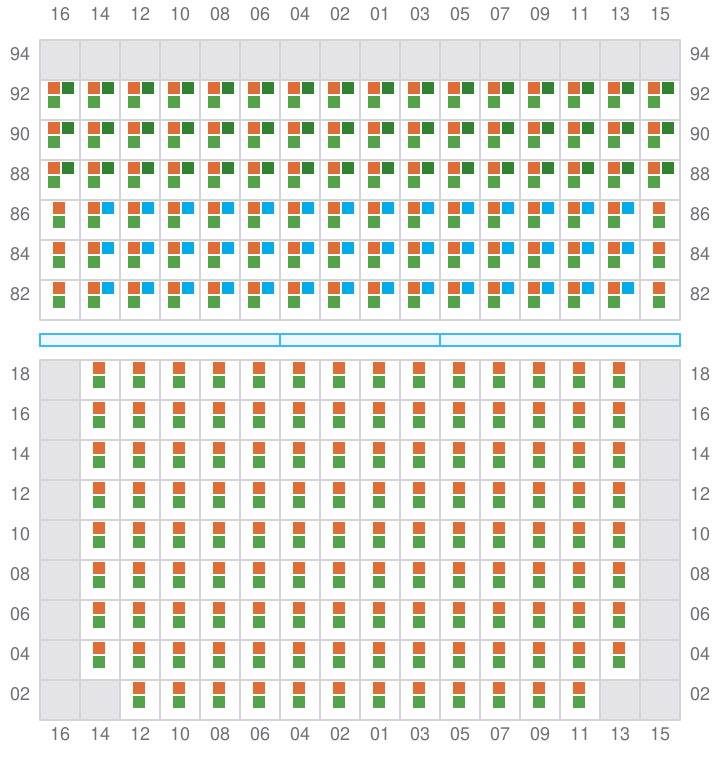

Bay 039 view and slots of ITAL USODIMARE

041

  • ? / →
  • ? / →

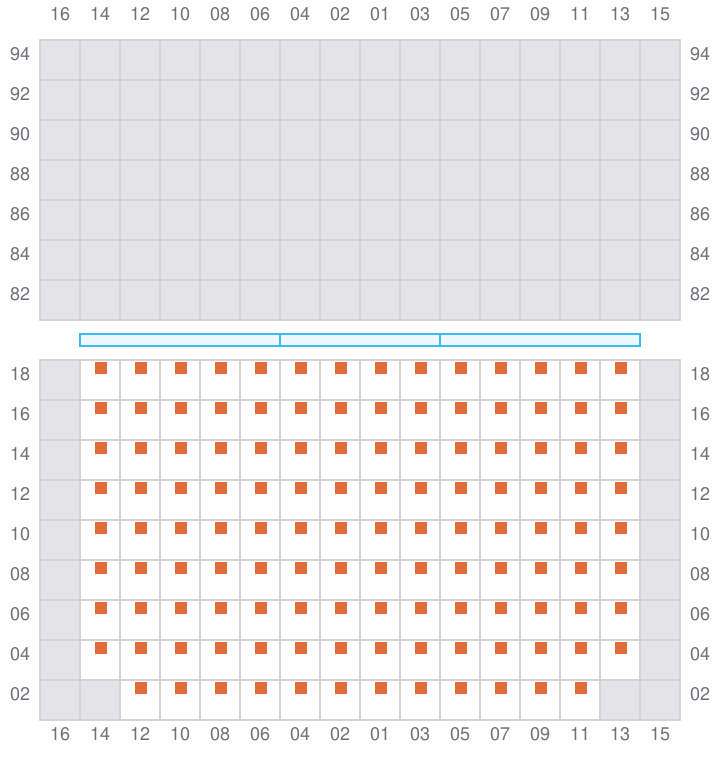

Bay 041 view and slots of ITAL USODIMARE

043 (042)

  • ←
  • → / ?
  • →

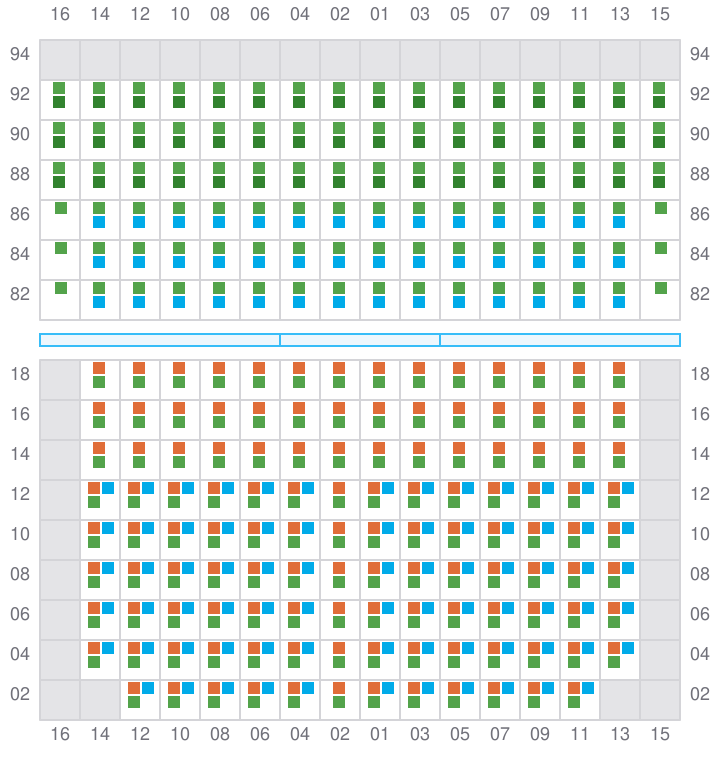

Bay 043 view and slots of ITAL USODIMARE

045

  • → / ?
  • →

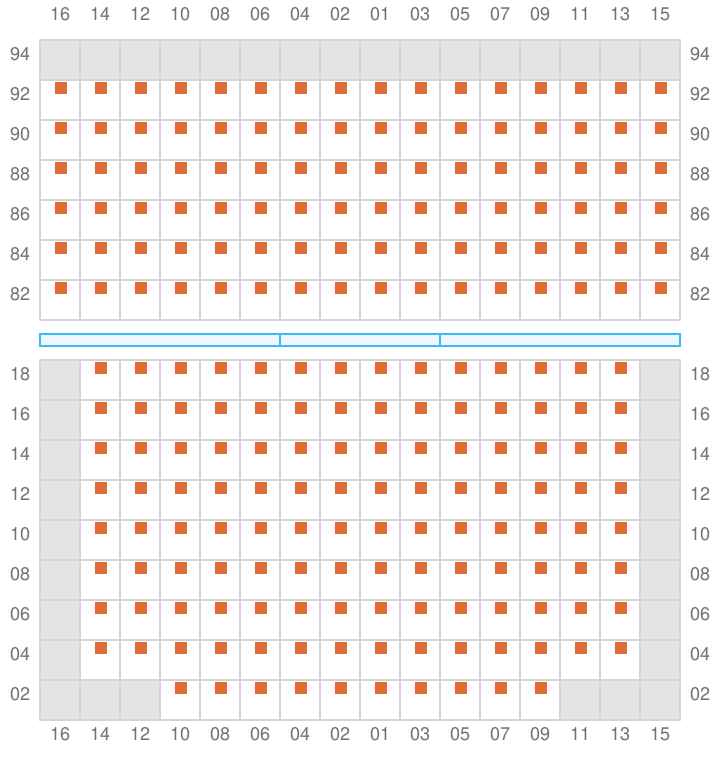

Bay 045 view and slots of ITAL USODIMARE

047 (046)

  • ←
  • → / ?
  • →

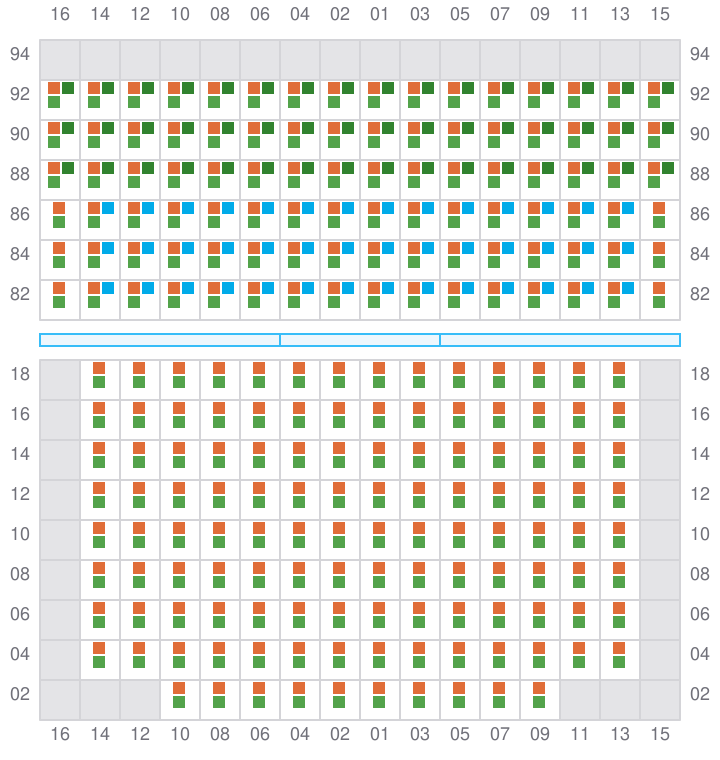

Bay 047 view and slots of ITAL USODIMARE

049

Bay 049 view and slots of ITAL USODIMARE

051 (050)

  • ←
  • → / ?
  • →

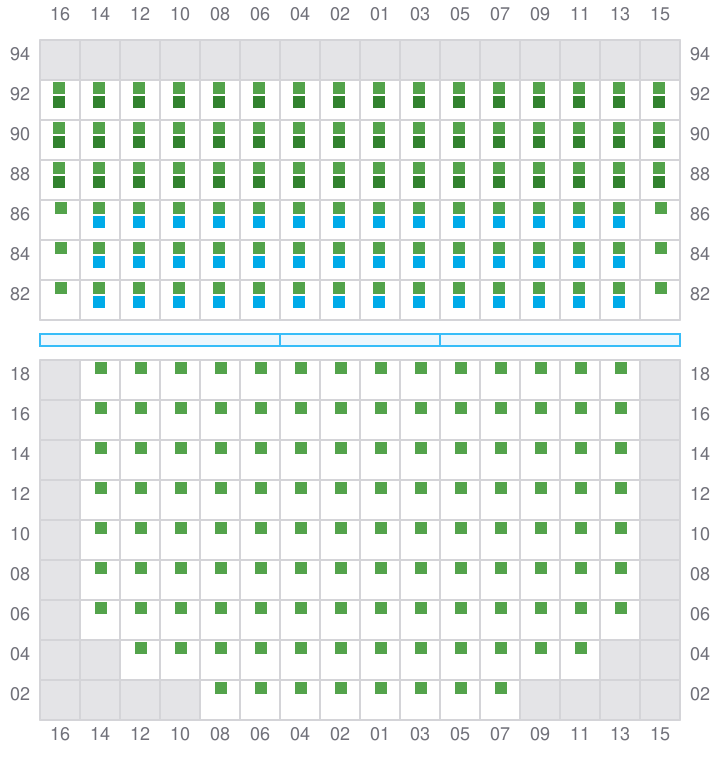

Bay 051 view and slots of ITAL USODIMARE

053

Bay 053 view and slots of ITAL USODIMARE

055 (054)

  • ←
  • → / ?
  • → / ?

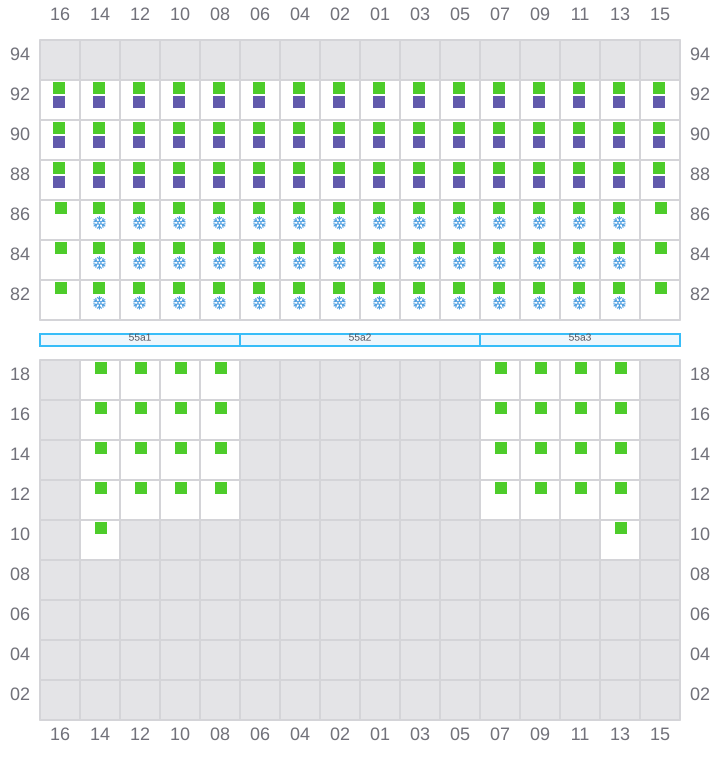

Bay 055 view and slots of ITAL USODIMARE

057

  • → / ?
  • →

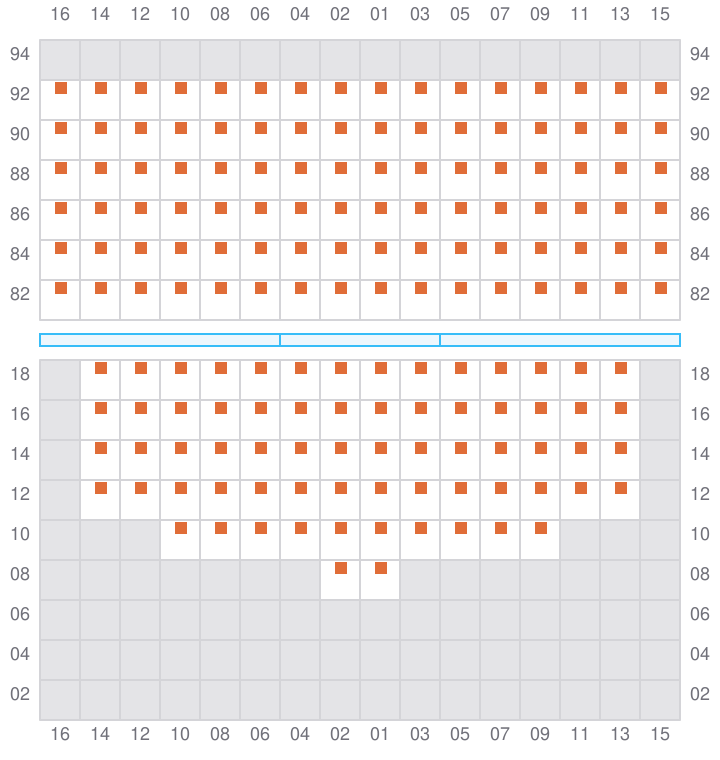

Bay 057 view and slots of ITAL USODIMARE

059 (058)

  • ←
  • → / ?
  • →

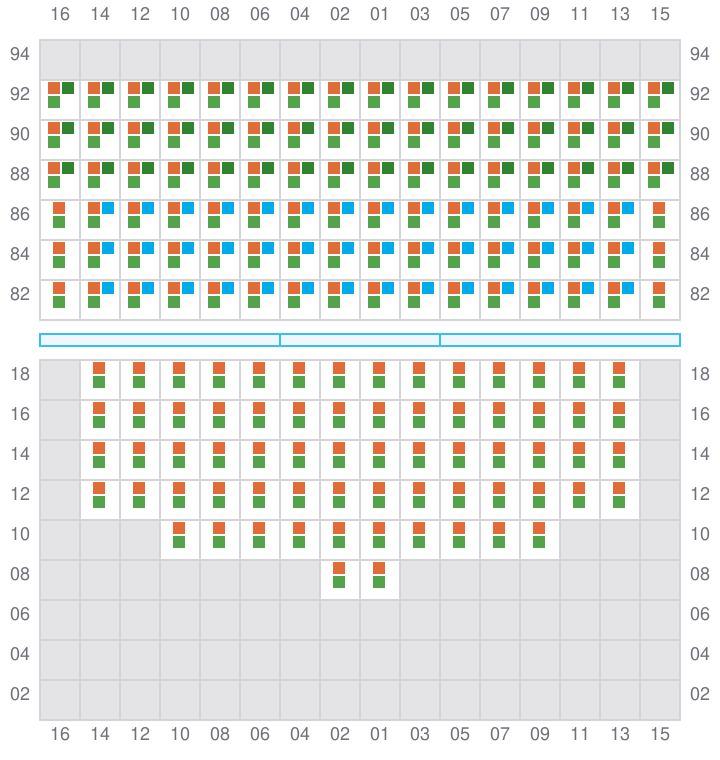

Bay 059 view and slots of ITAL USODIMARE

061

  • ? / →

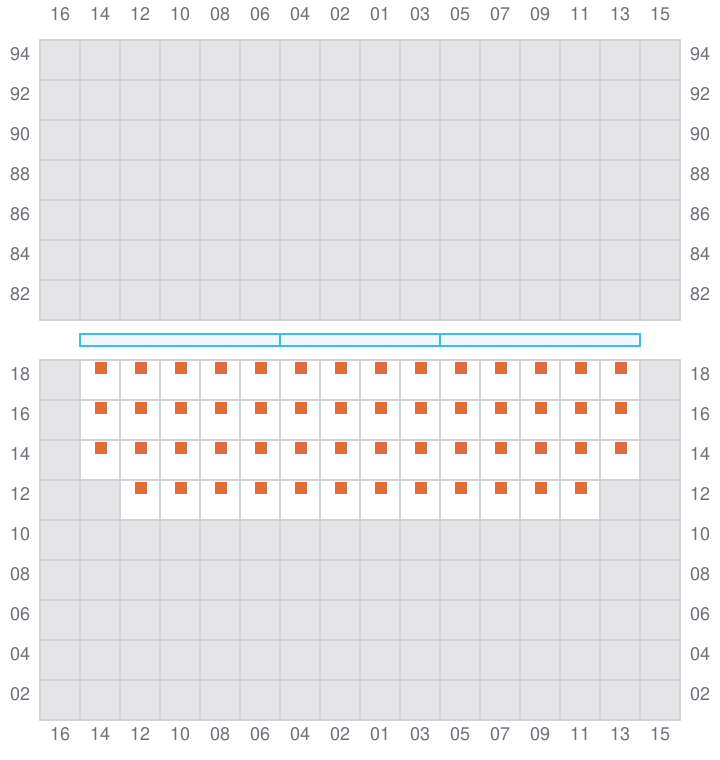

Bay 061 view and slots of ITAL USODIMARE

063 (062)

  • ←
  • → / ?
  • →

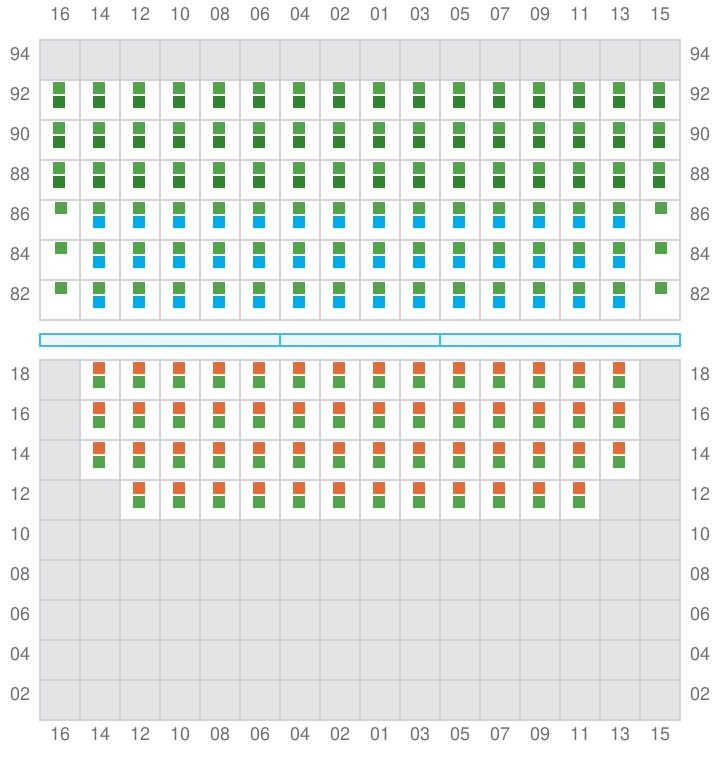

Bay 063 view and slots of ITAL USODIMARE

065

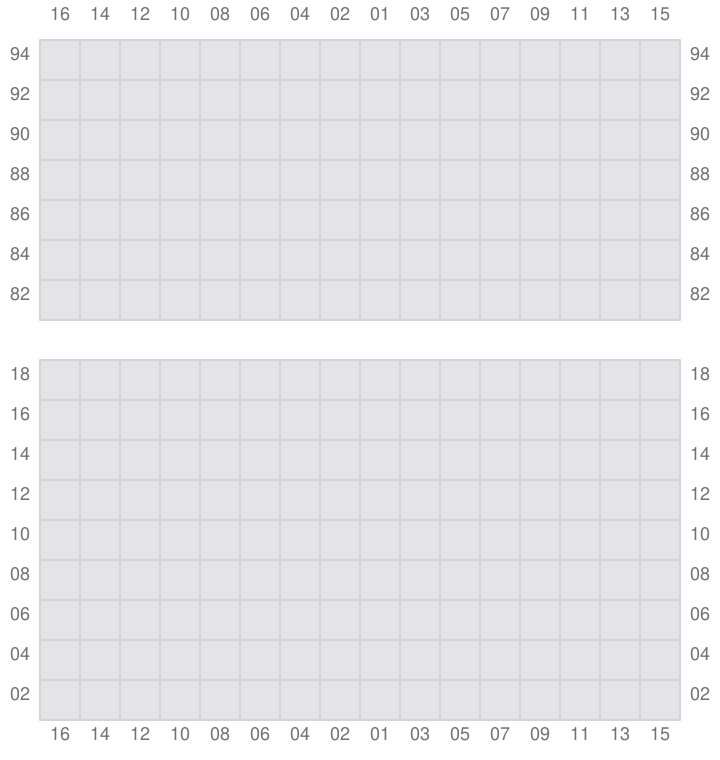

Bay 065 view and slots of ITAL USODIMARE

067 (066)

  • ← / ?
  • → / ?
  • → / ?

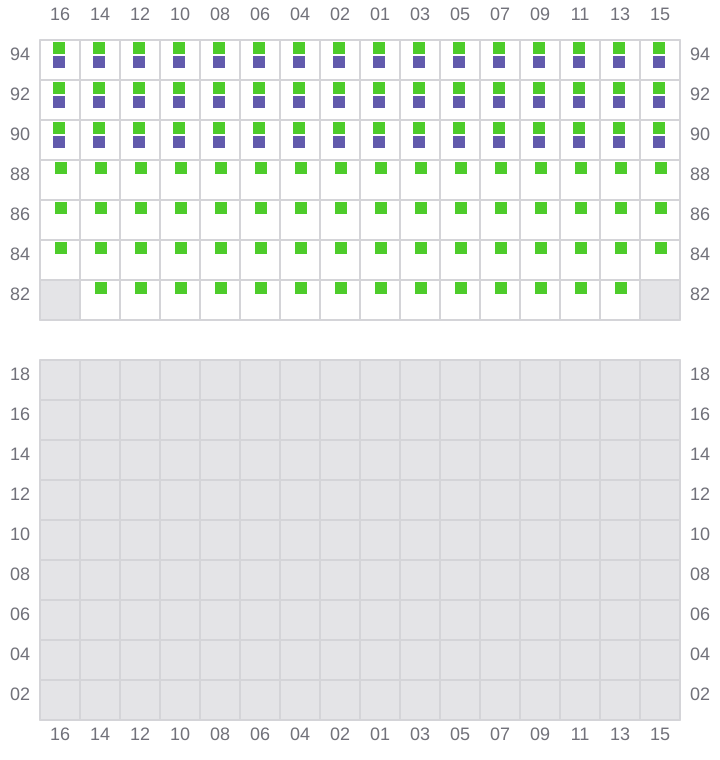

Bay 067 view and slots of ITAL USODIMARE
