IZUMI MAS
9164249 | YDIM2 | 9164249 by ********* Last update: Sun Mar 17 2024
General Info
Ship Name:IZUMI MAS
IMO Code:9164249
Call Sign:YDIM2
Line Operator:9164249
Class Name for Sister Ships:8FT
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):155.00
LOA (Length Overall):155.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,166
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

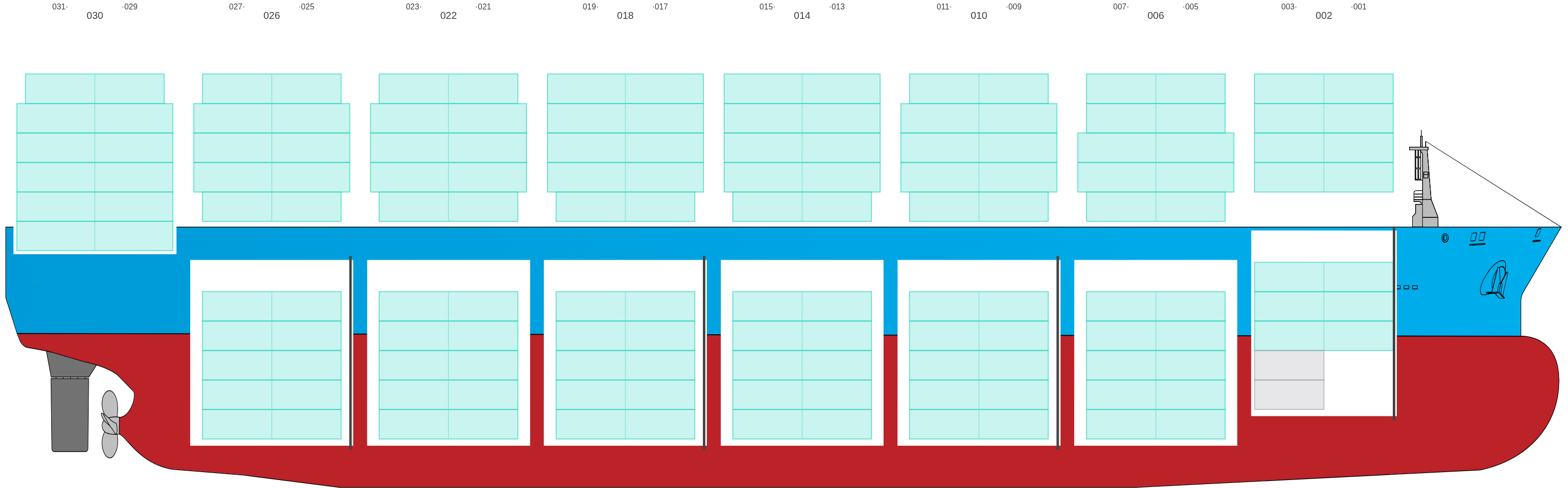

Side View
Hatch-Covers View

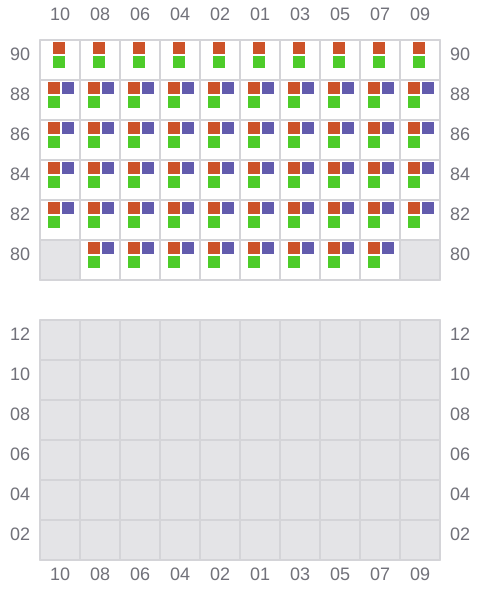

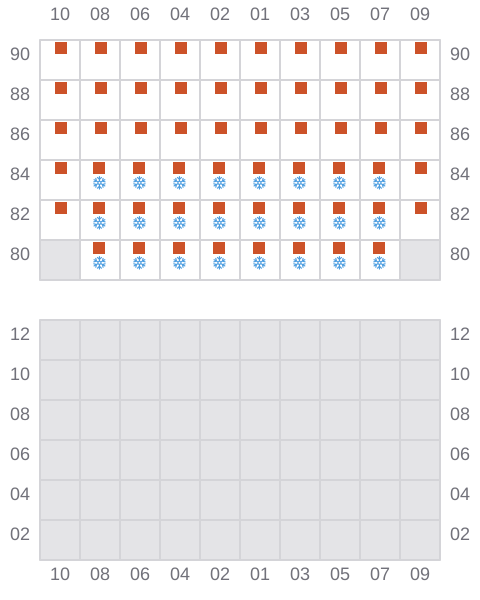

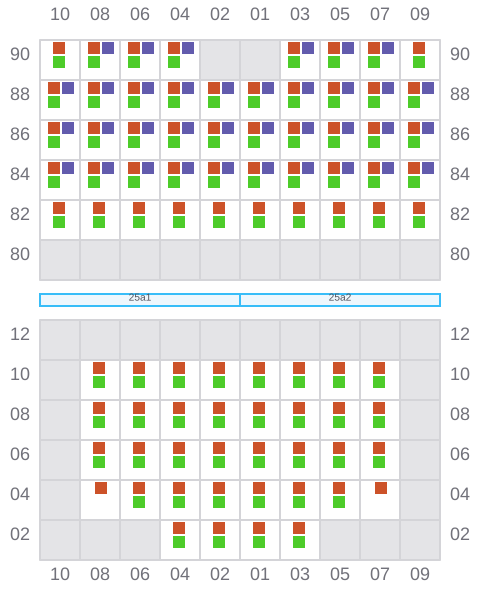

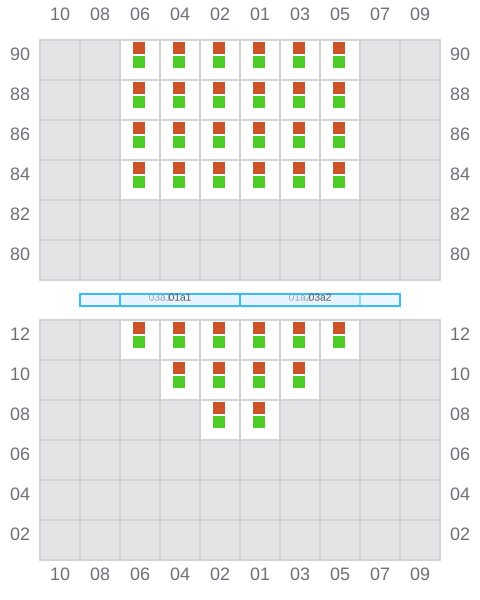

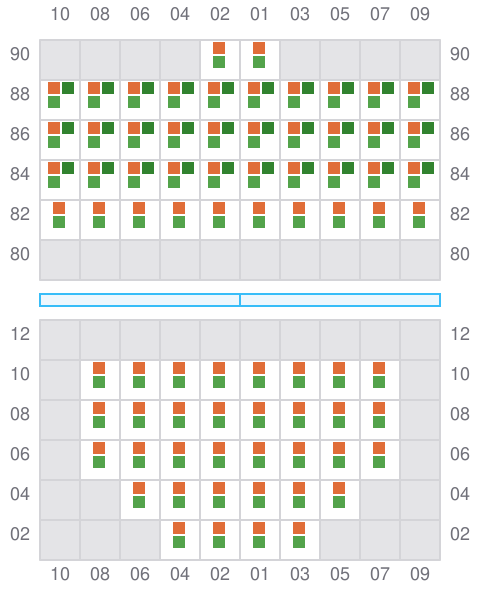

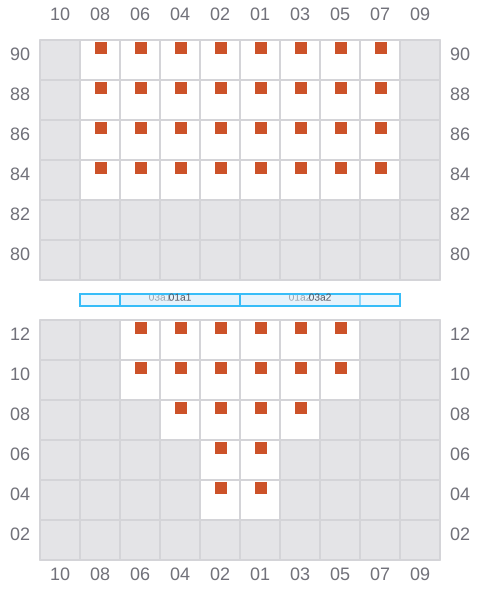

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←

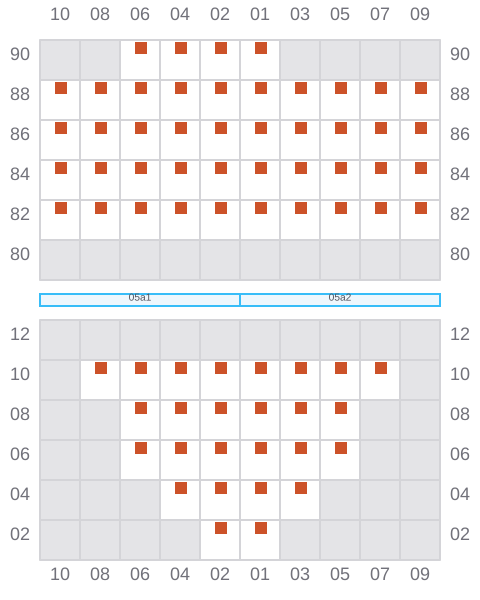

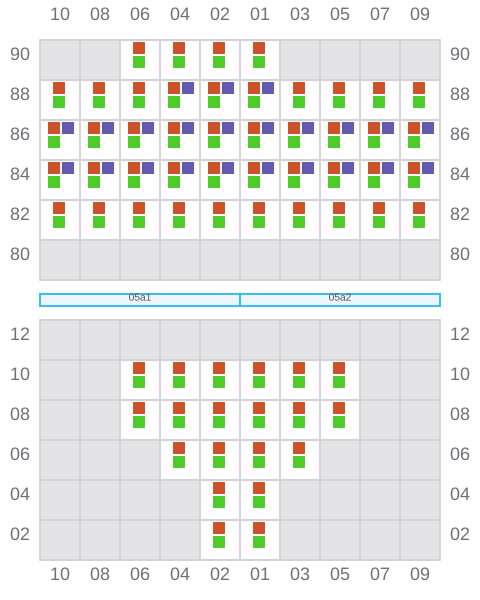

005 (006)
- →
007
- ←

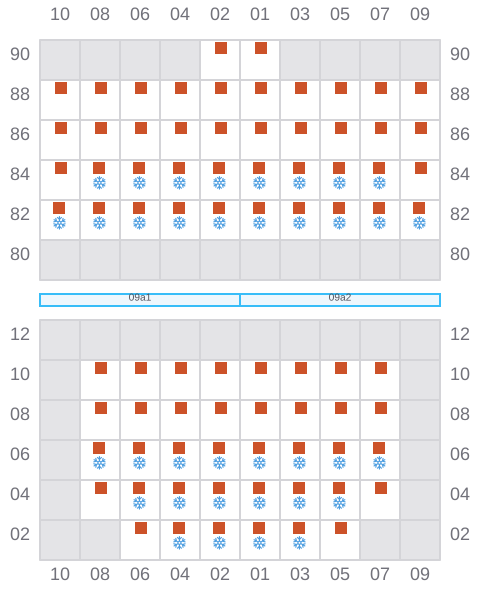

009 (010)
- →
011
- ←
- →

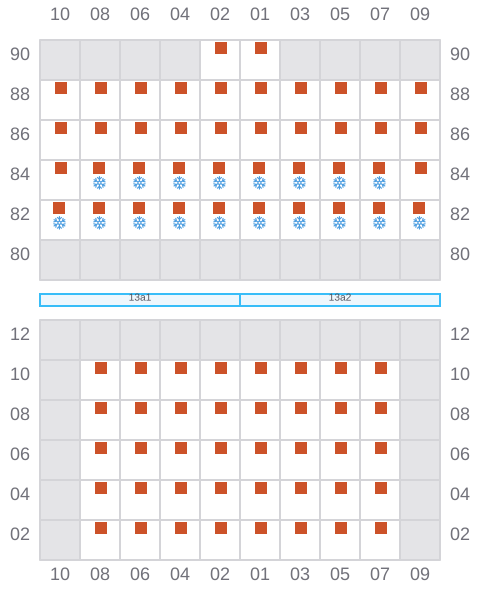

013 (014)
- →
- ? / ←
015
- ←
- → / ?

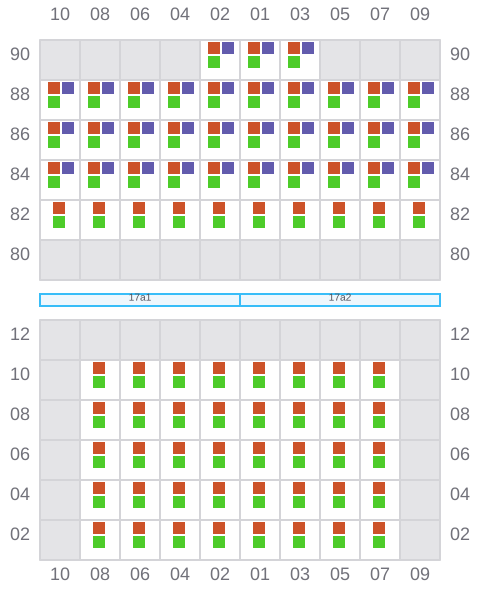

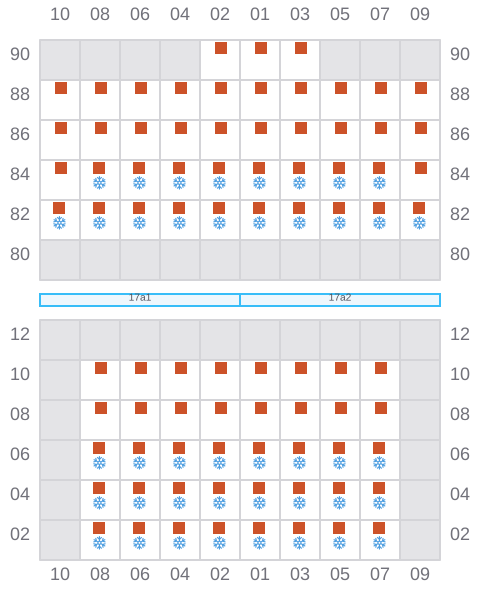

017 (018)
- →
019
- ←
- →

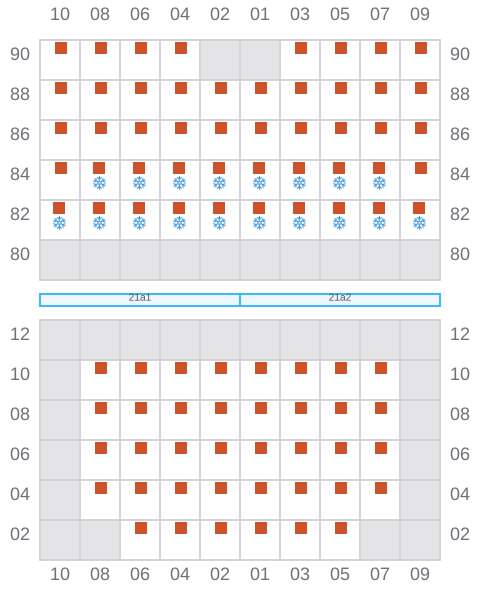

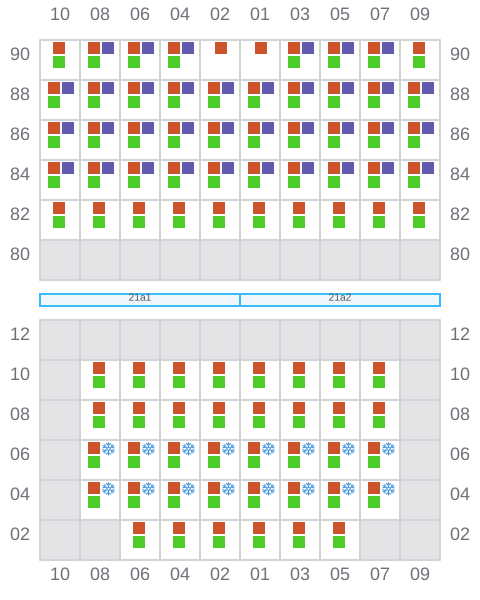

021 (022)
- →
- ? / ←
023
- ←
- → / ?
025 (026)
- →
027
- ←
- →
029 (030)
- → / ?
- → / ?
031
- ← / ?
- → / ?
