JACOB
9300166 | V7FG6 | 9300166 by ********* Last update: Wed Apr 10 2024

General Info

Ship Name:JACOB

IMO Code:9300166

Call Sign:V7FG6

Line Operator:9300166

Class Name for Sister Ships:CMA CGM ANAPURNA

Year Built:2006

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:043

Max ISO Row:10

Center Line Row:Yes

Max Above ISO Tier:92

Min Above ISO Tier:82

Max Below ISO Tier:12

Min Below ISO Tier:02

Total TEU:1,854

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

Side view of JACOB

Hatch-Covers View

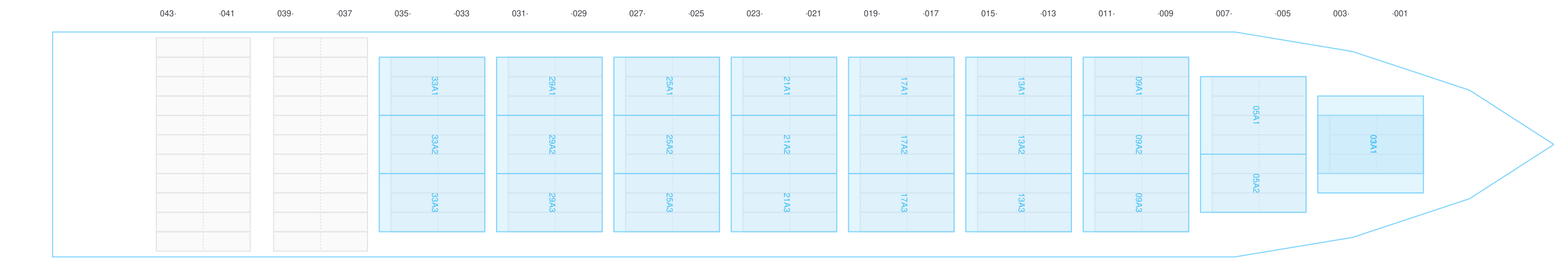

Deck view of JACOB

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

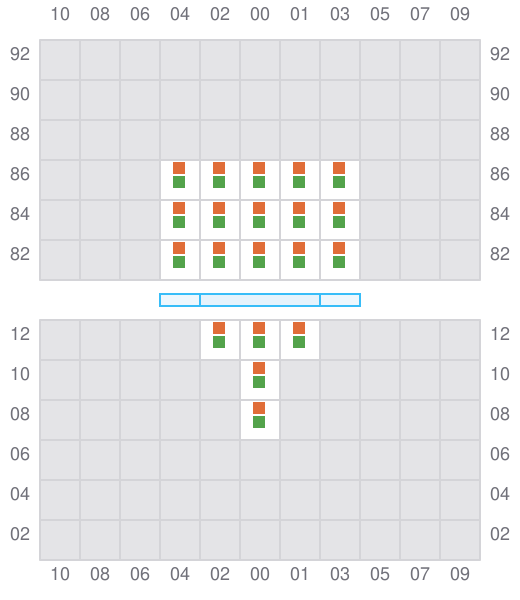

001 (002)

→

Bay 001 view and slots of JACOB

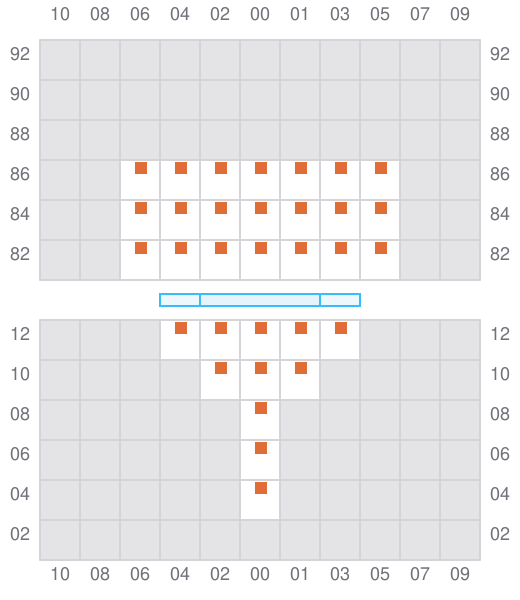

003

←

Bay 003 view and slots of JACOB

005 (006)

→

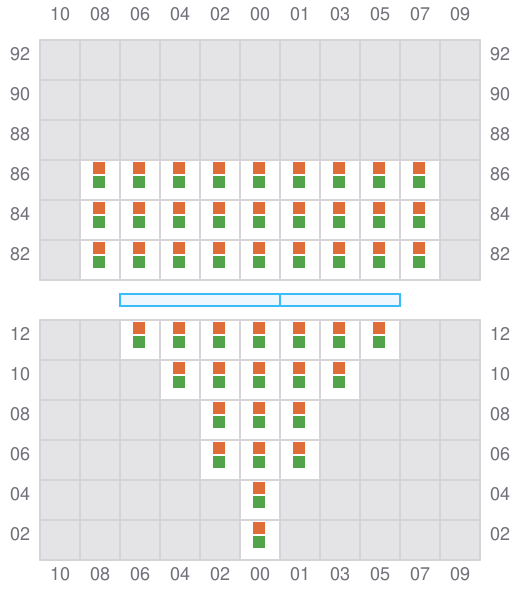

Bay 005 view and slots of JACOB

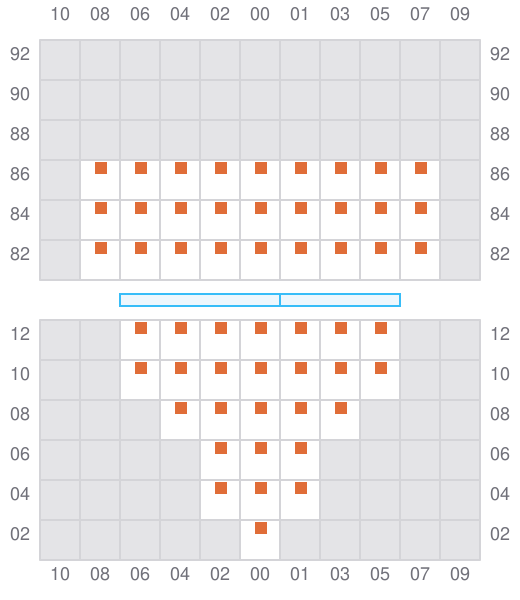

007

←

Bay 007 view and slots of JACOB

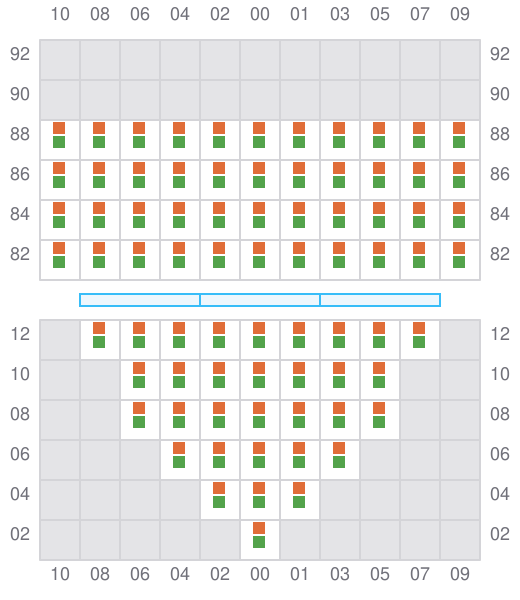

009 (010)

→

Bay 009 view and slots of JACOB

011

←

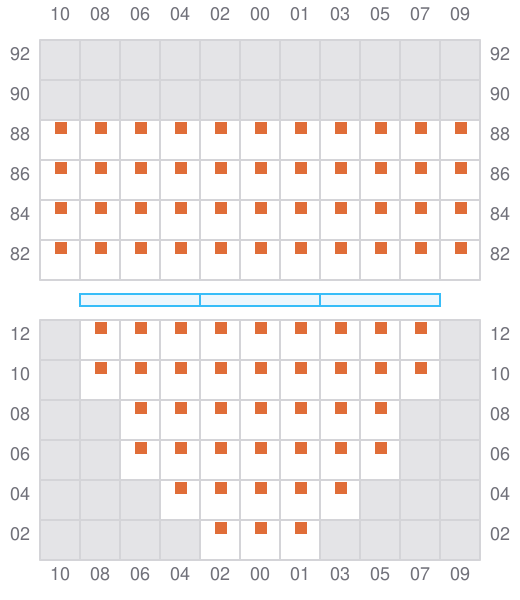

Bay 011 view and slots of JACOB

013 (014)

→

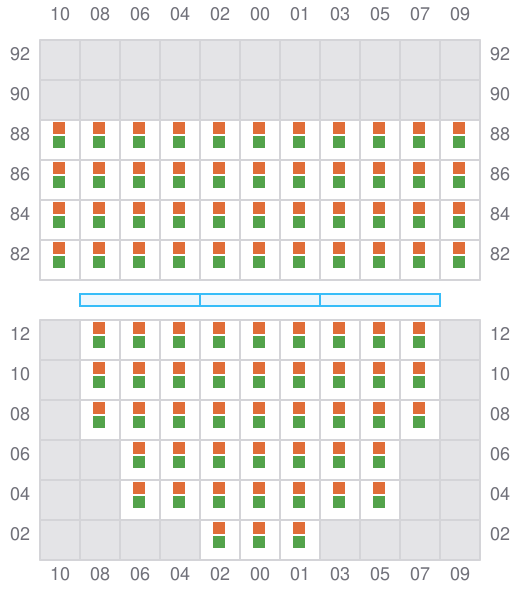

Bay 013 view and slots of JACOB

015

←

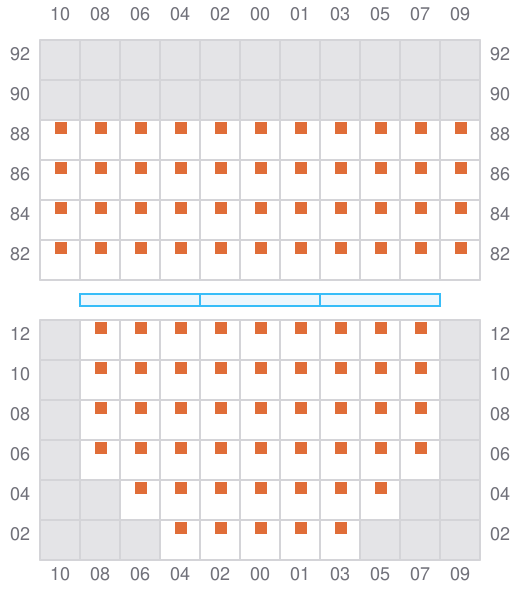

Bay 015 view and slots of JACOB

017 (018)

→

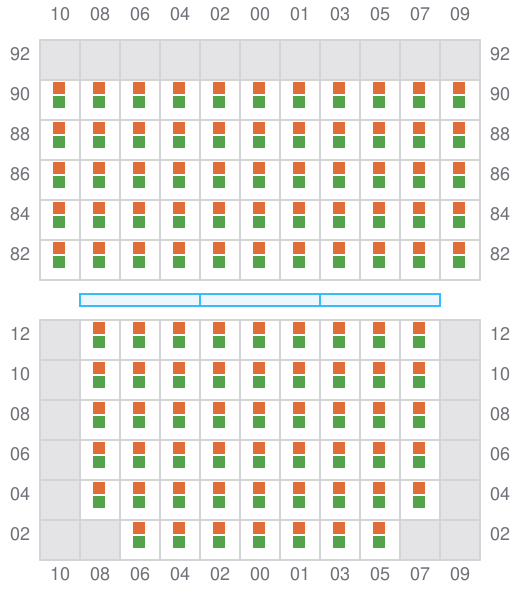

Bay 017 view and slots of JACOB

019

←

Bay 019 view and slots of JACOB

021 (022)

→

Bay 021 view and slots of JACOB

023

←

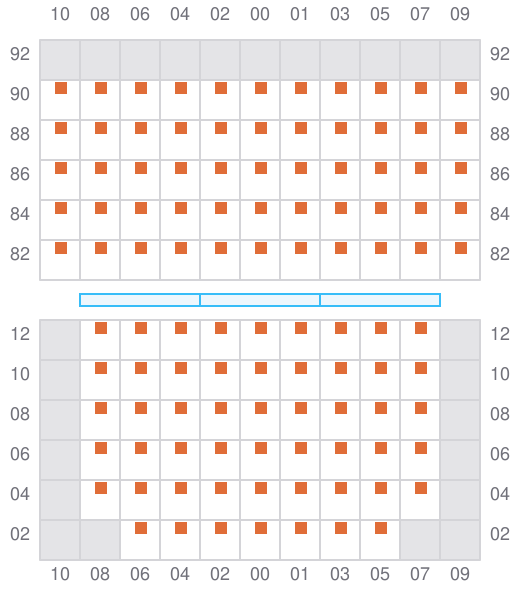

Bay 023 view and slots of JACOB

025 (026)

→

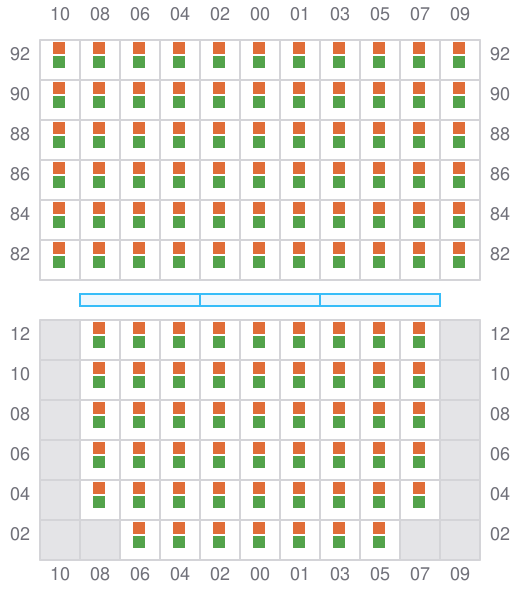

Bay 025 view and slots of JACOB

027

←

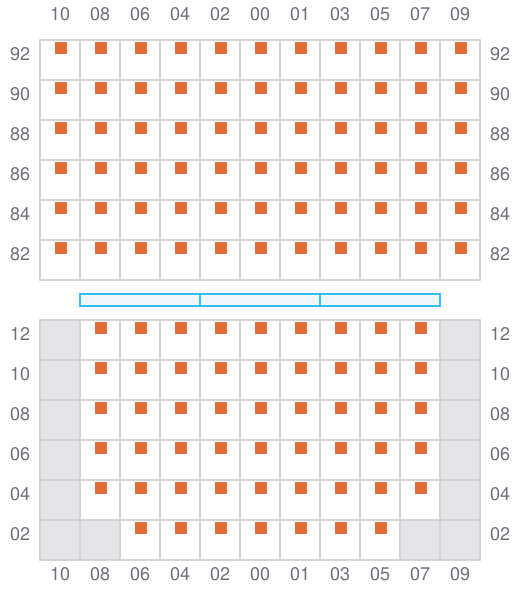

Bay 027 view and slots of JACOB

029 (030)

→

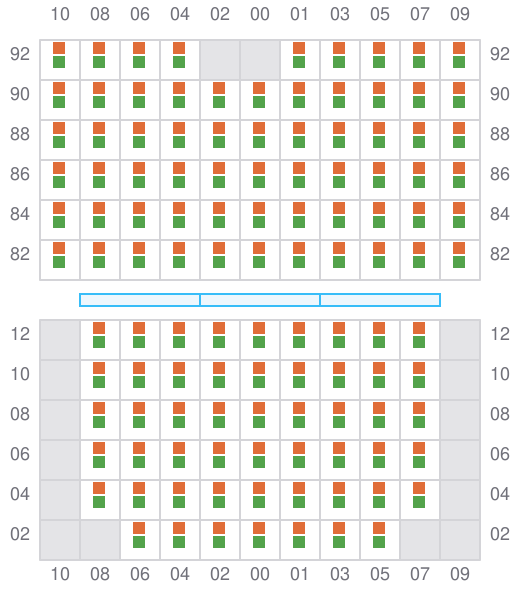

Bay 029 view and slots of JACOB

031

←

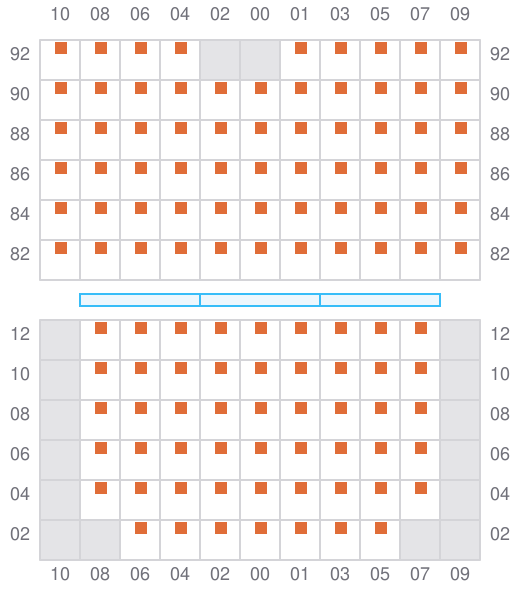

Bay 031 view and slots of JACOB

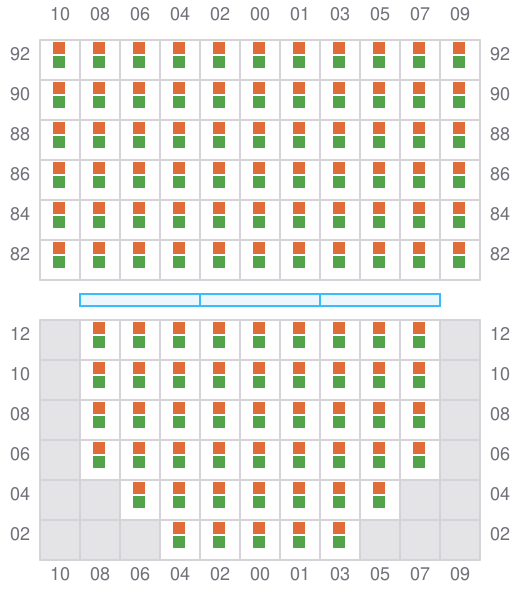

033 (034)

→

Bay 033 view and slots of JACOB

035

←

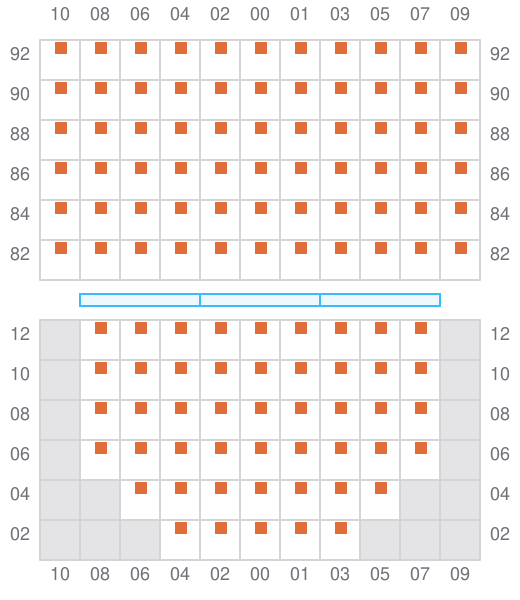

Bay 035 view and slots of JACOB

037 (038)

^→ / _?

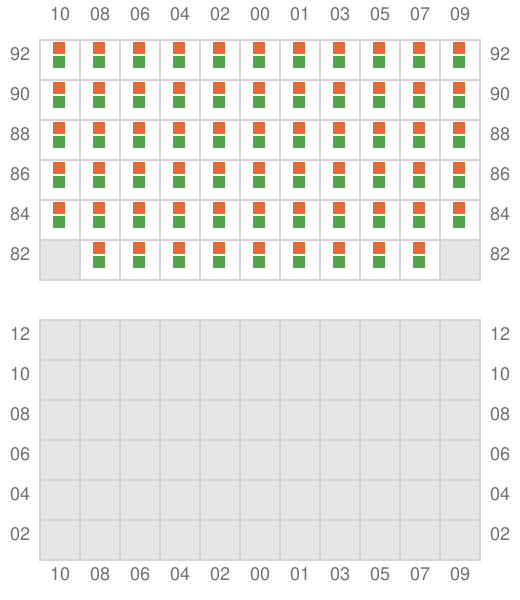

Bay 037 view and slots of JACOB

039

^← / _?

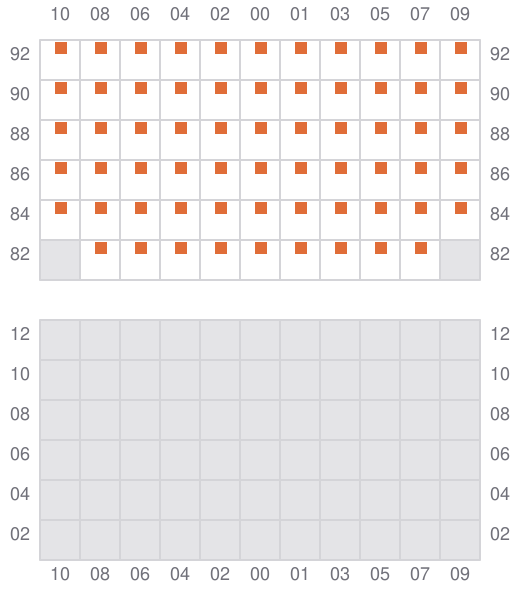

Bay 039 view and slots of JACOB

041 (042)

^→ / _?

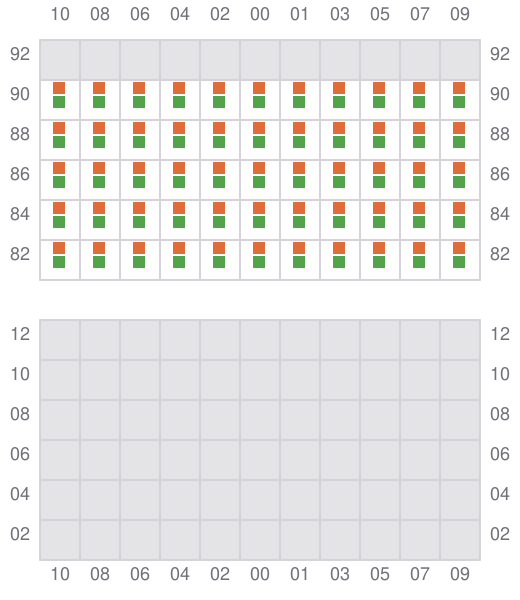

Bay 041 view and slots of JACOB

043

^← / _?

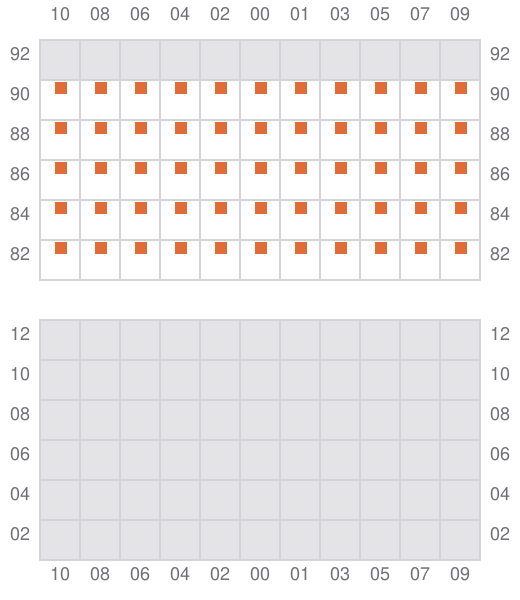

Bay 043 view and slots of JACOB
