JADRANA
9619385 | CQIW | 9619385 by ********* Last update: Thu Jul 11 2024
General Info
Ship Name:JADRANA
IMO Code:9619385
Call Sign:CQIW
Line Operator:9619385
Class Name for Sister Ships:MSL
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:057
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,957
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

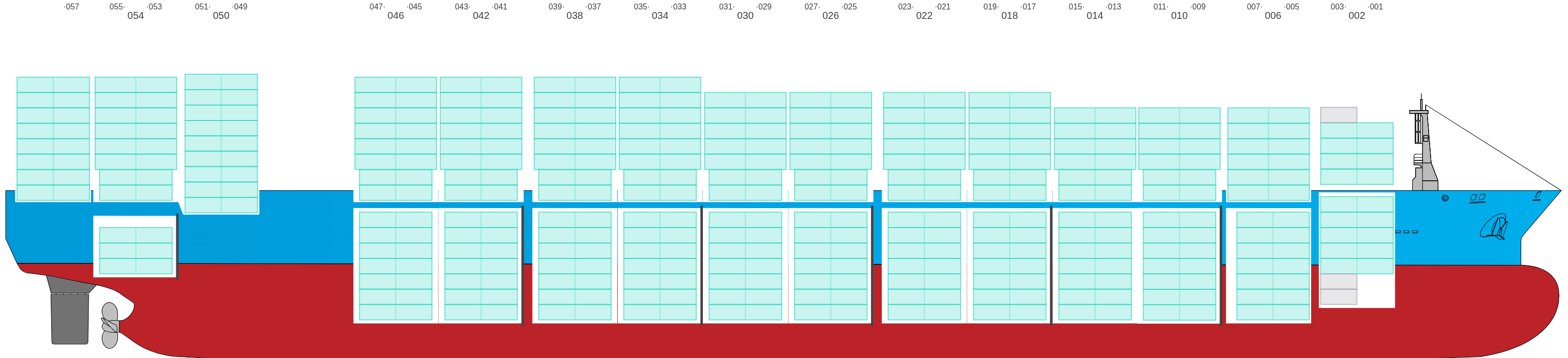

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

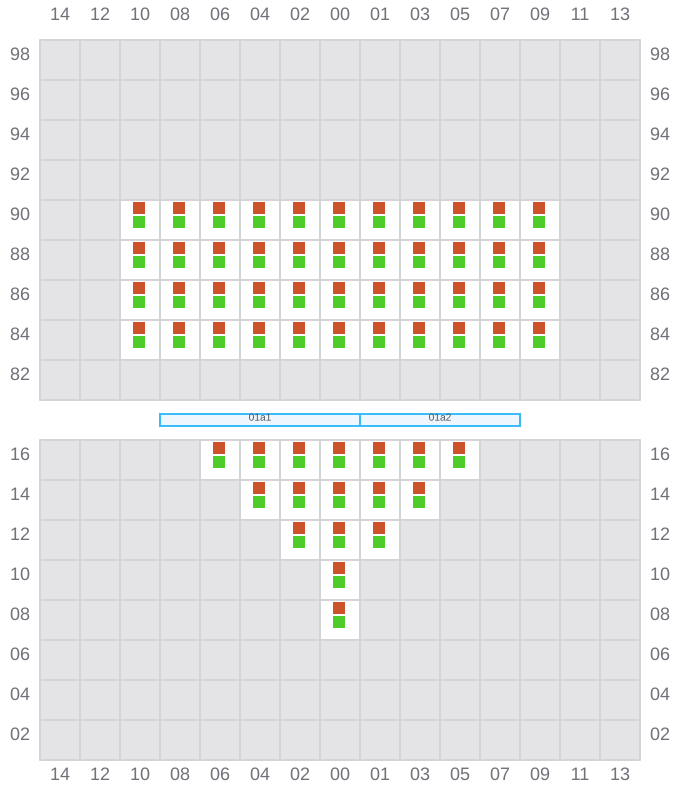

001 (002)
- →

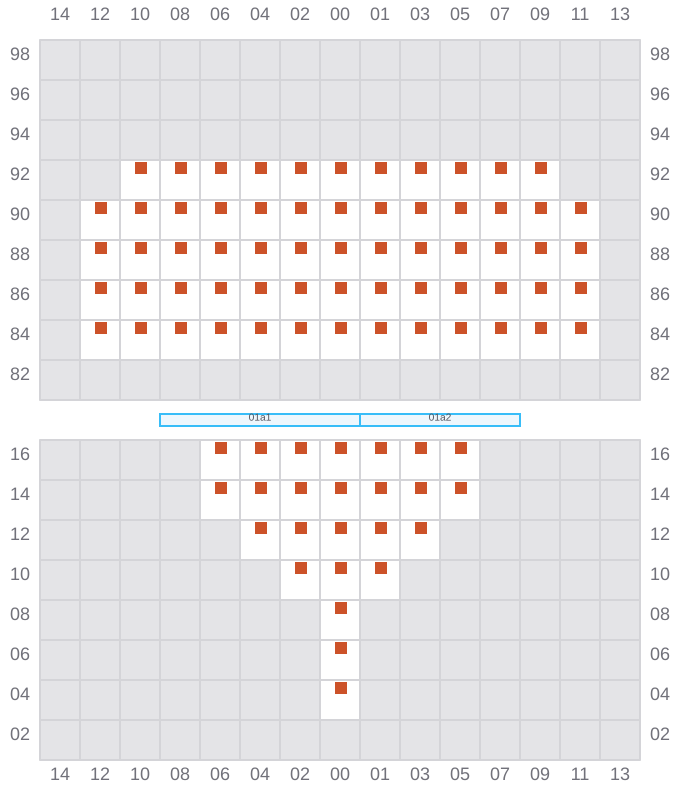

003
- ←

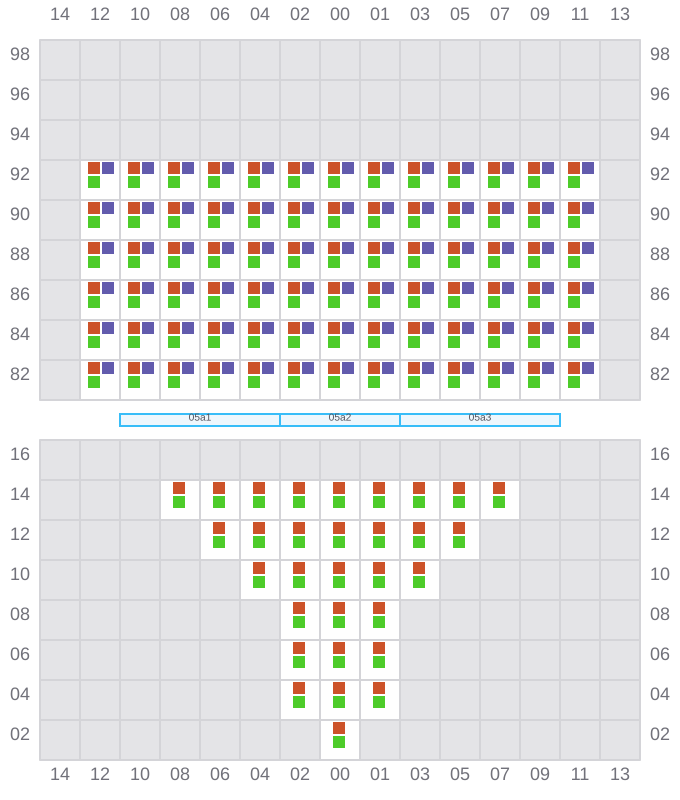

005 (006)
- →

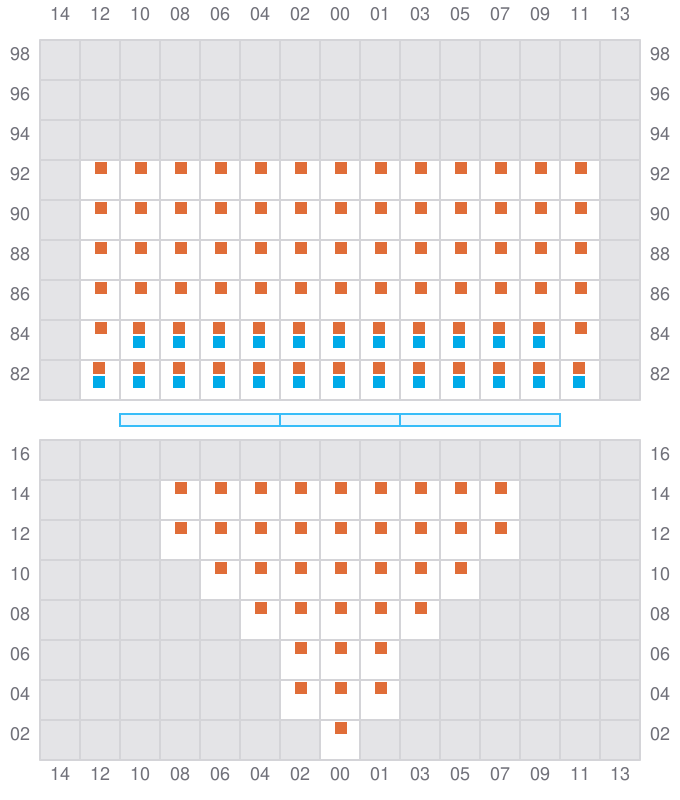

007
- ←
- → / ?

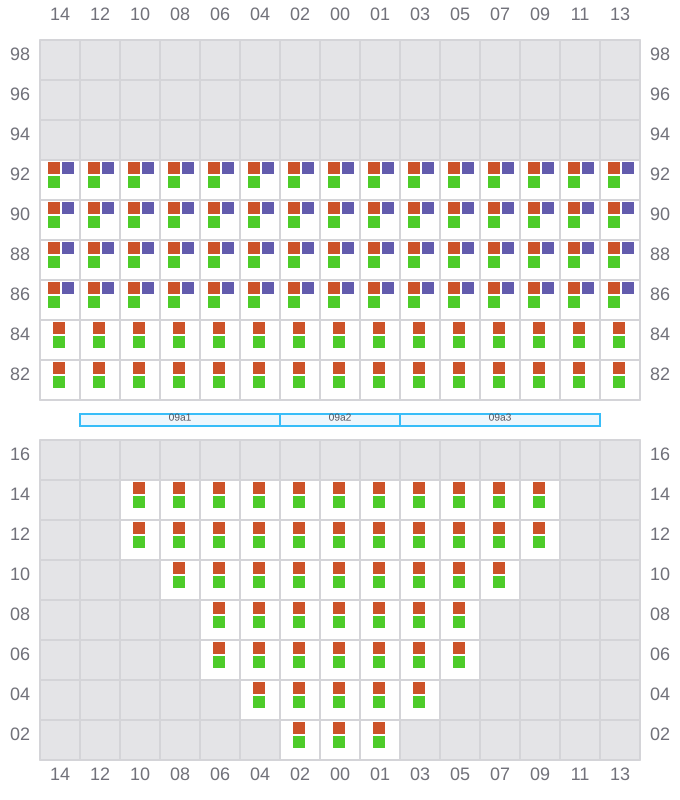

009 (010)
- →

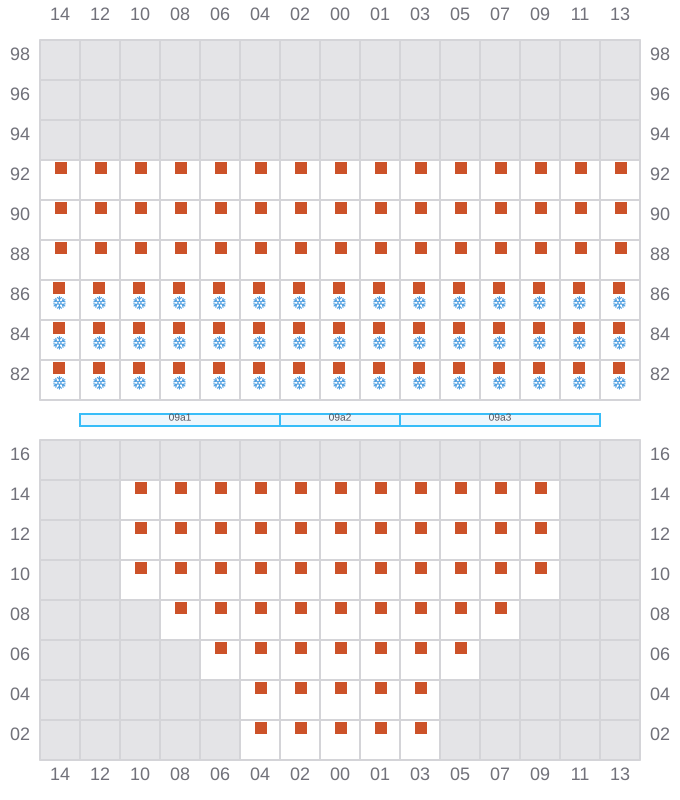

011
- ←
- → / ?

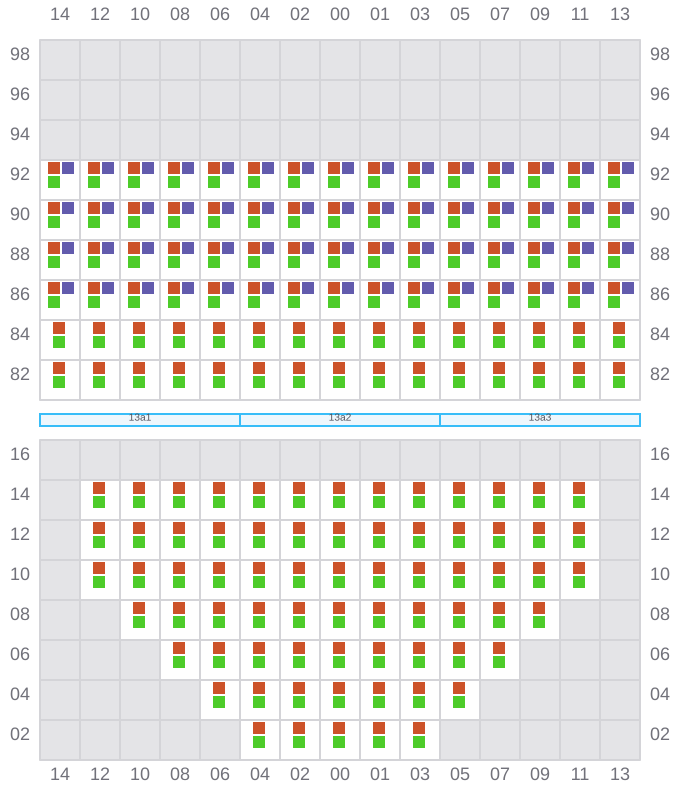

013 (014)
- →

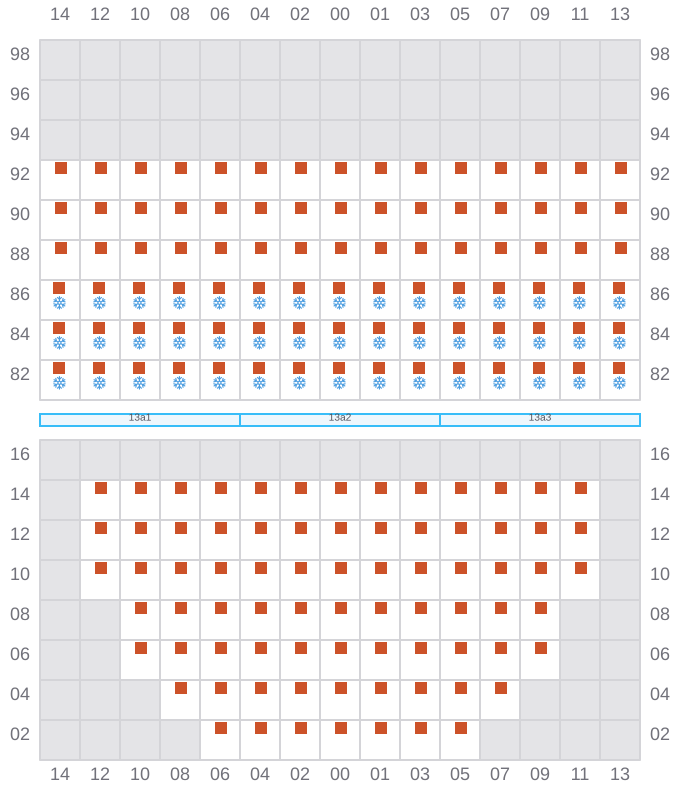

015
- ←
- → / ?

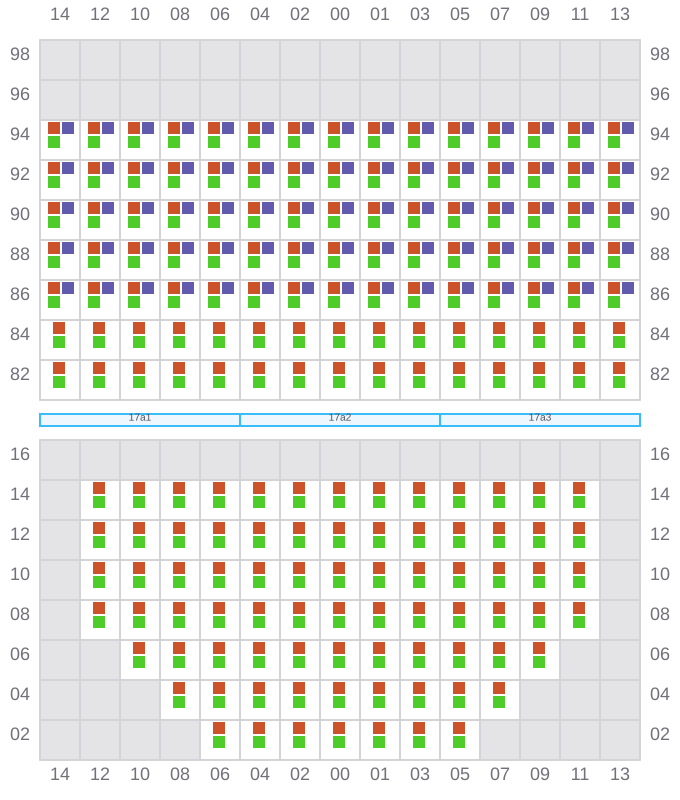

017 (018)
- →

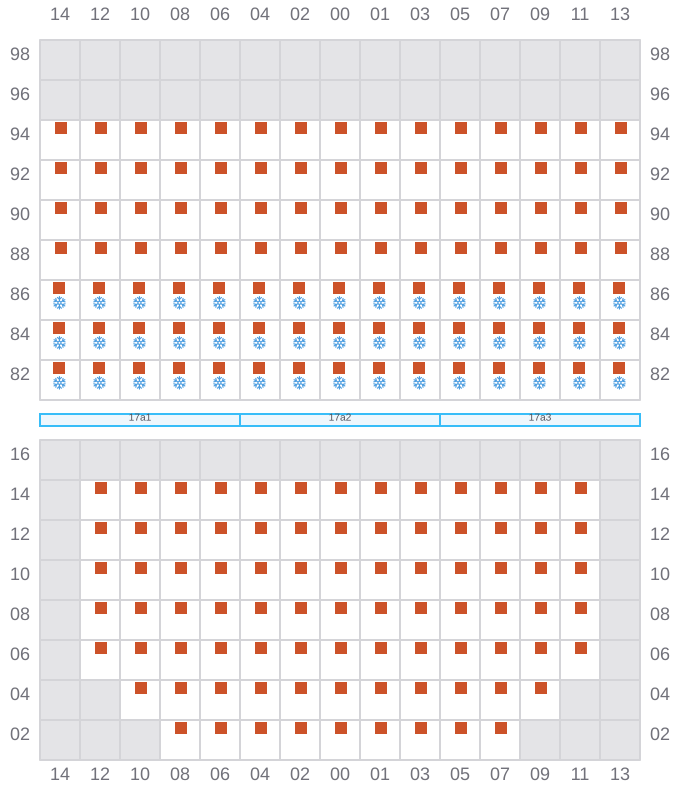

019
- ←
- → / ?
021 (022)
- →

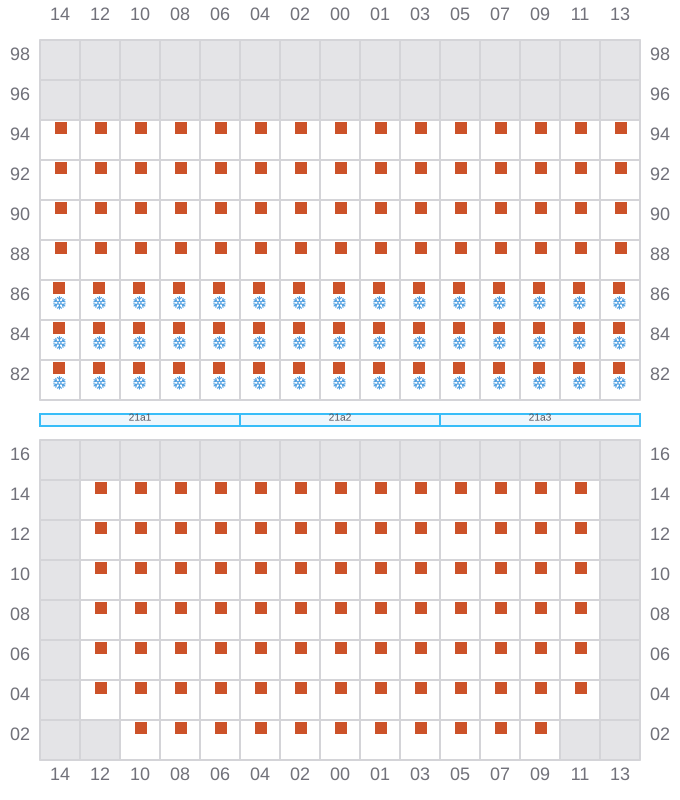

023
- ←
- → / ?
025 (026)
- →
027
- ←
- → / ?

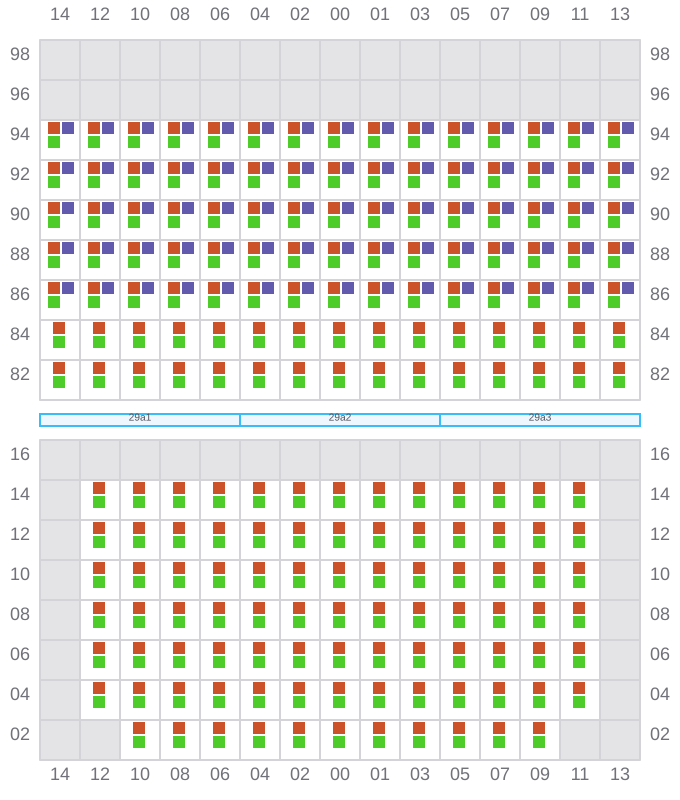

029 (030)
- →
031
- ←
- → / ?
033 (034)
- →
035
- ←
- → / ?

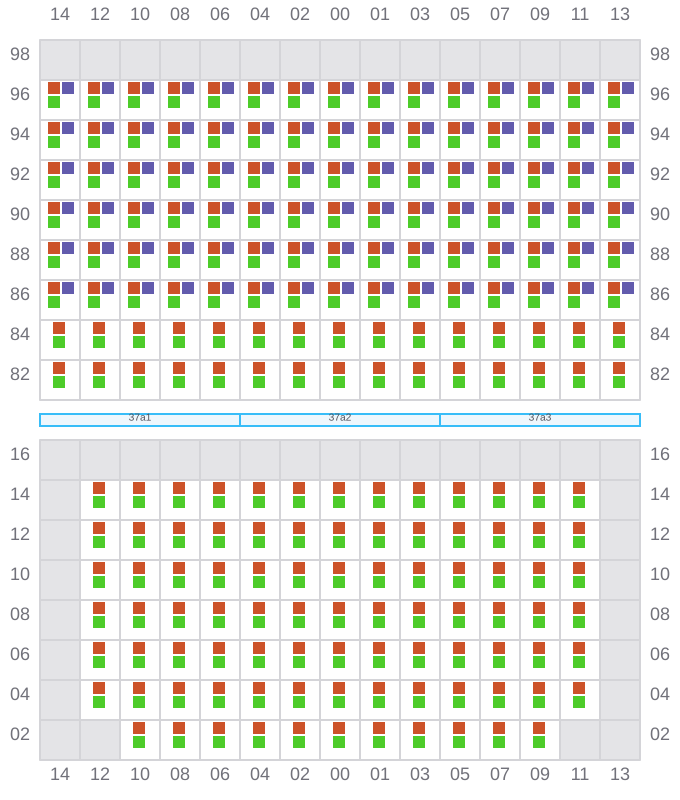

037 (038)
- →

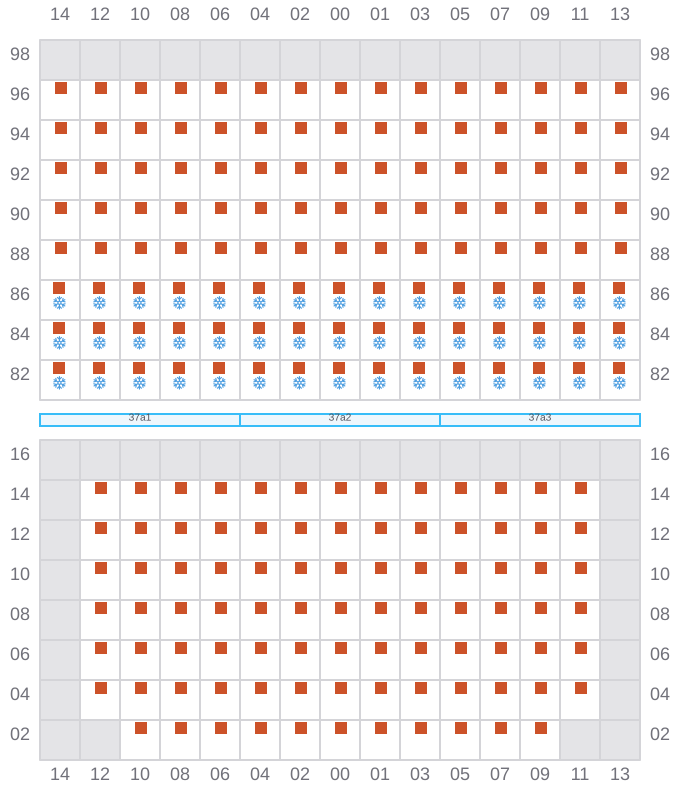

039
- ←
- → / ?

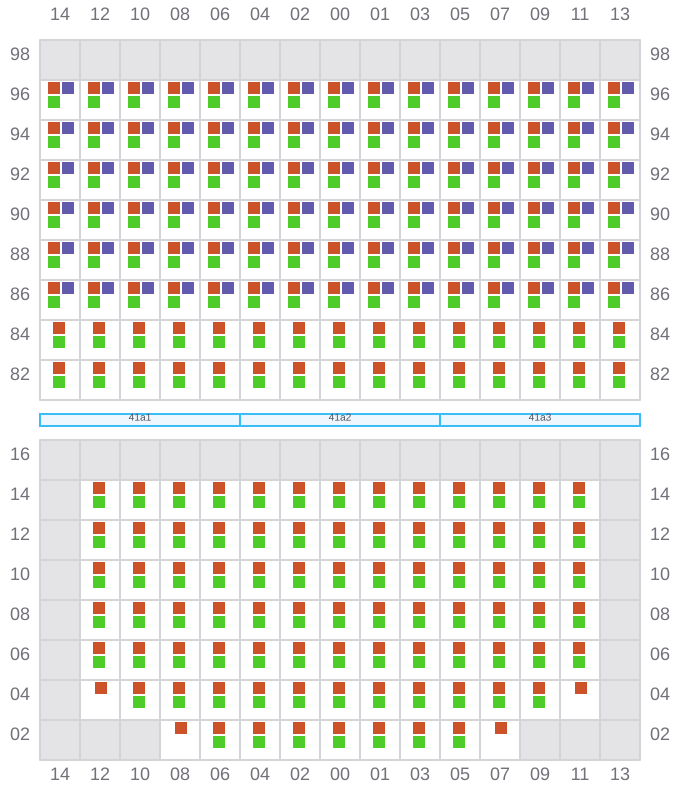

041 (042)
- →

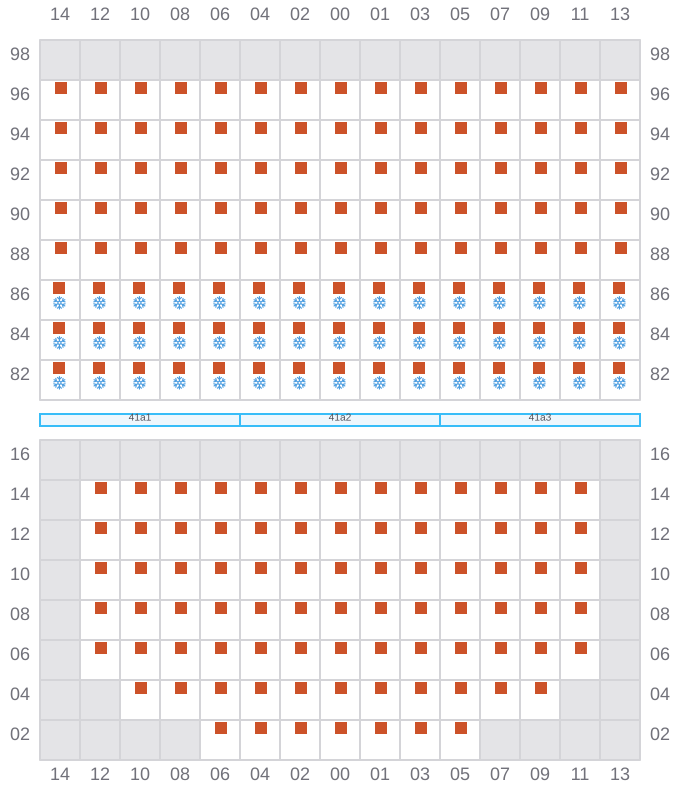

043
- ←
- → / ?

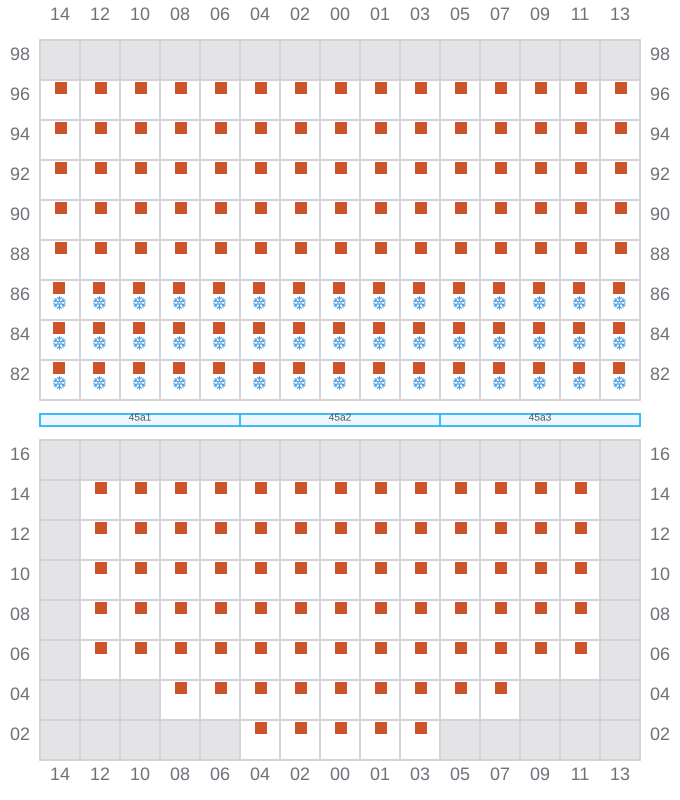

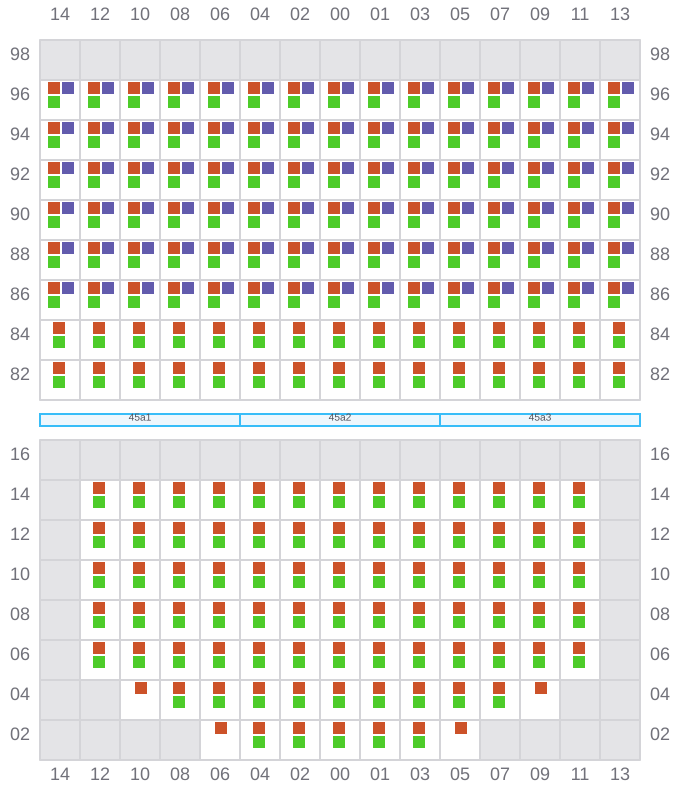

045 (046)
- →
047
- ←
- → / ?

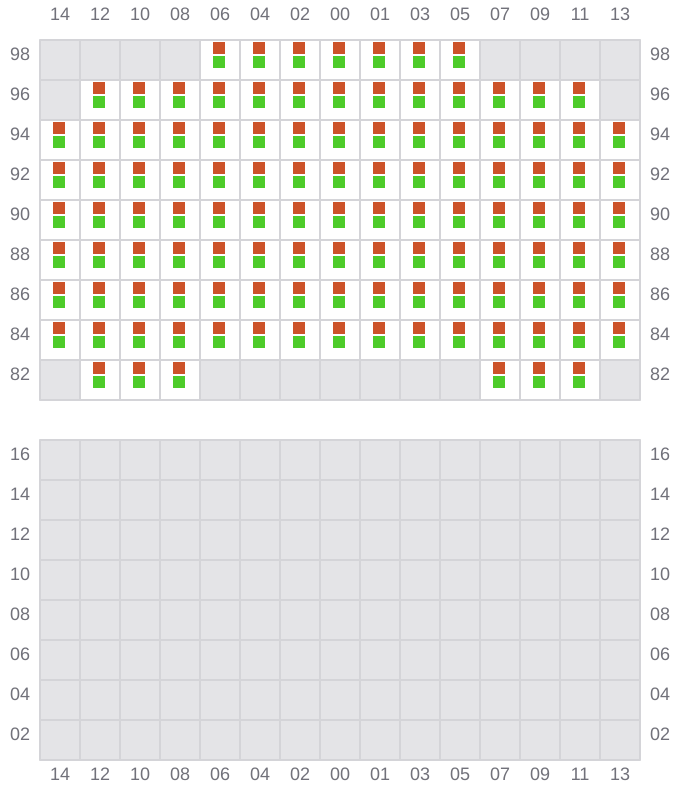

049 (050)
- → / ?

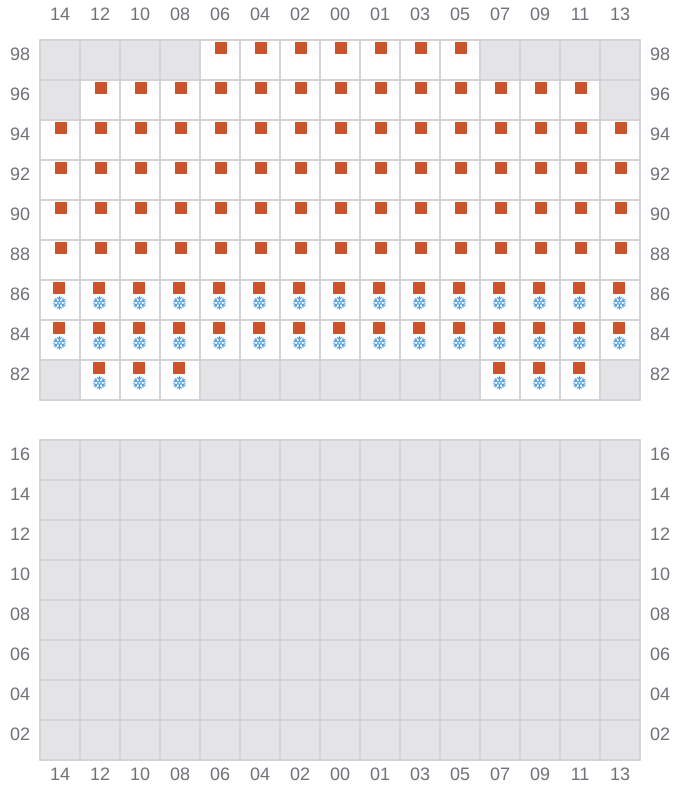

051
- ← / ?
- → / ?

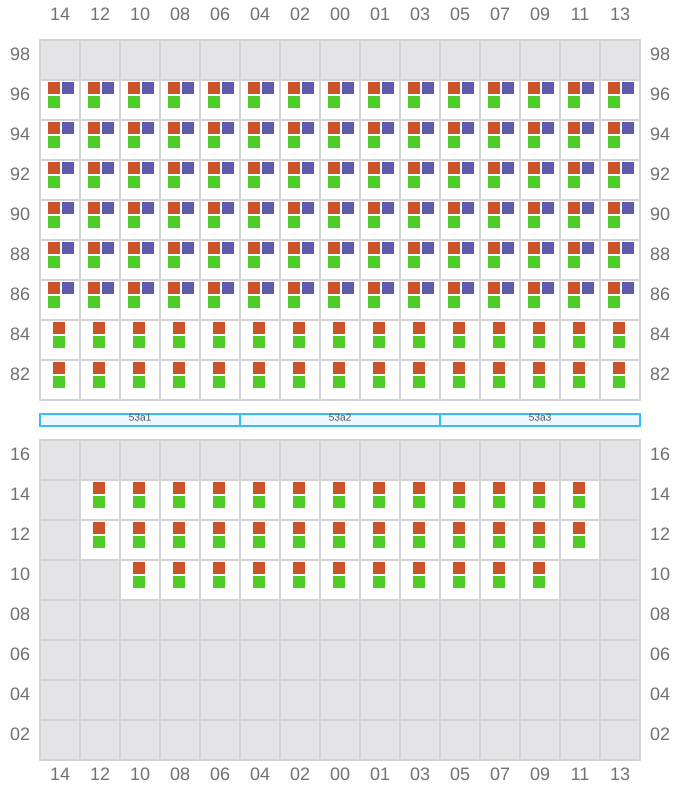

053 (054)
- →

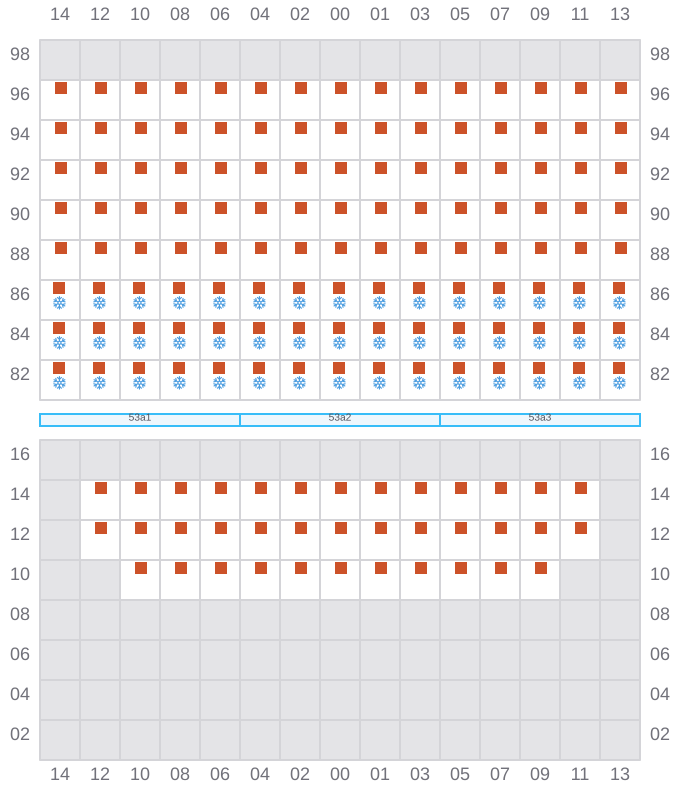

055
- ←
- → / ?

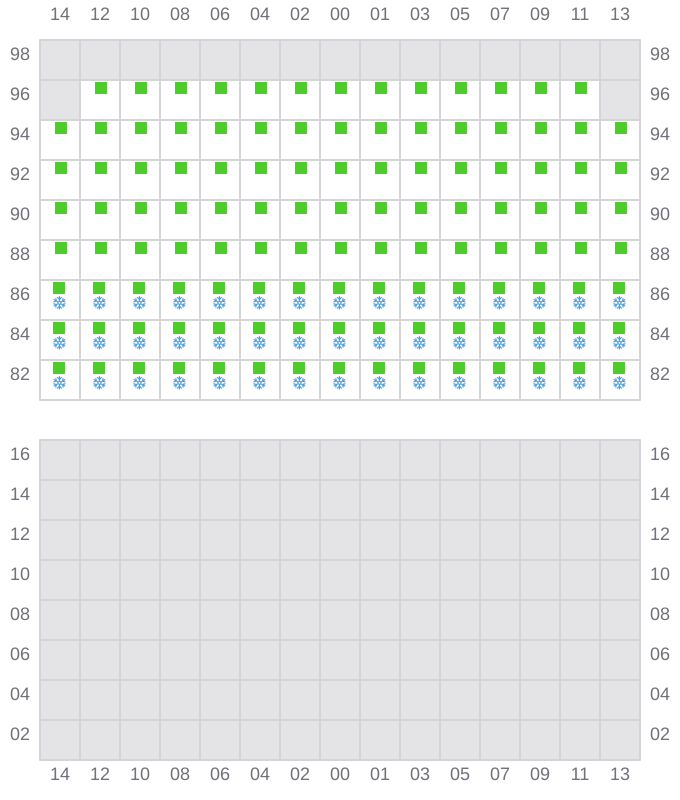

057 (058)
- → / ?
- ← / ?
