JANET C
9430129 | 2BZI7 | BBH by ************************** Last update: Thu Jun 01 2023

General Info

Ship Name:JANET C
IMO Code:9430129
Call Sign:2BZI7
Line Operator:BBH
Class Name for Sister Ships:JTC
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:033
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:86
Min Above ISO Tier:78
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,188

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

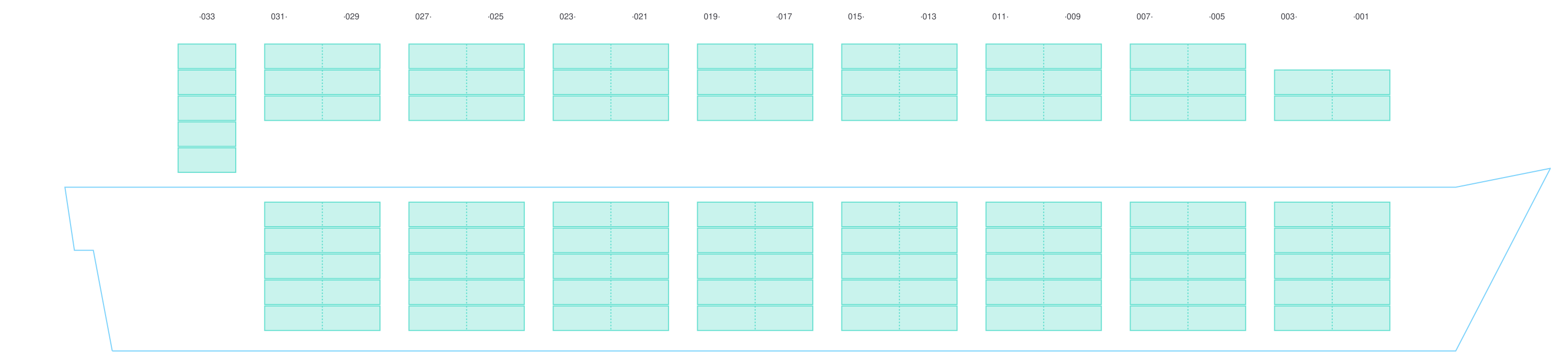

Side View

Side view of JANET C

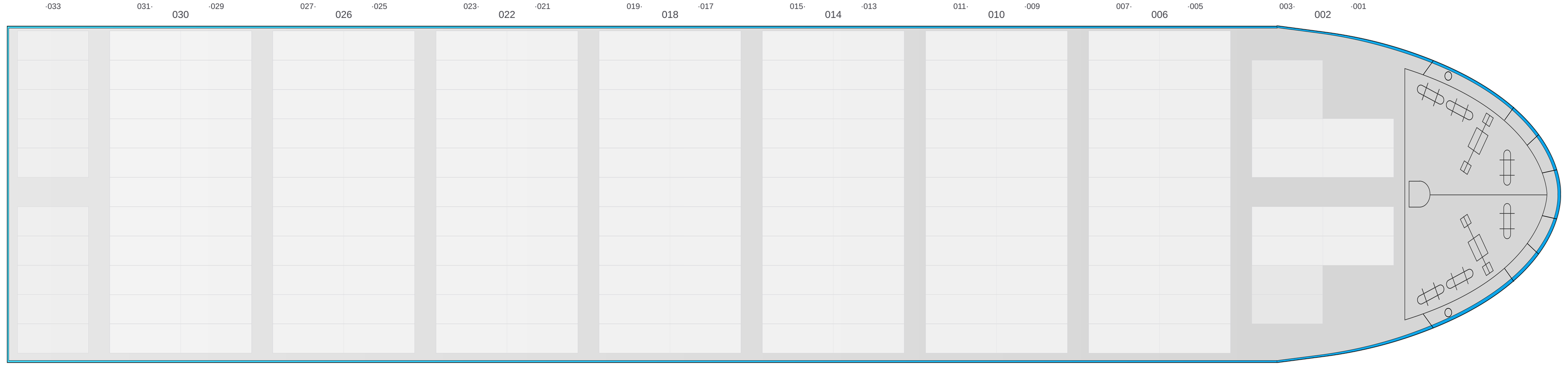

Hatch-Covers View

Deck view of JANET C

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

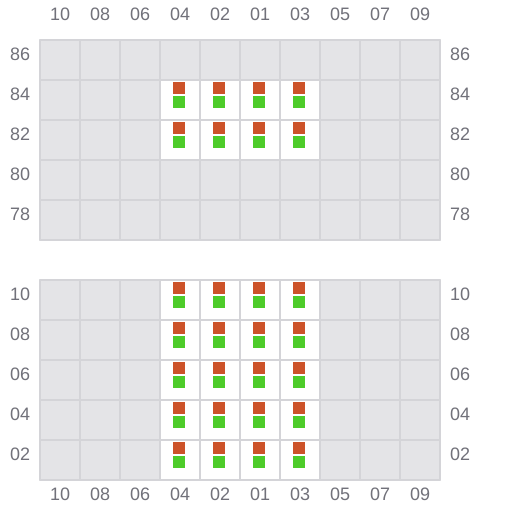

001 (002)

  • →
Bay 001 view and slots of JANET C

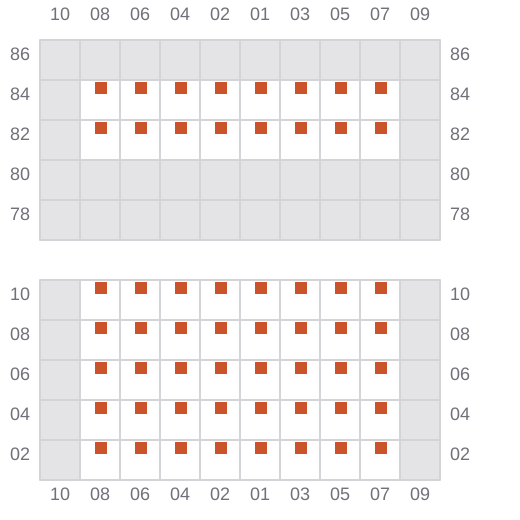

003

  • ←
Bay 003 view and slots of JANET C

005 (006)

  • →
Bay 005 view and slots of JANET C

007

  • ←
Bay 007 view and slots of JANET C

009 (010)

  • →
Bay 009 view and slots of JANET C

011

  • ←
Bay 011 view and slots of JANET C

013 (014)

  • →
Bay 013 view and slots of JANET C

015

  • ←
Bay 015 view and slots of JANET C

017 (018)

  • →
Bay 017 view and slots of JANET C

019

  • ←
Bay 019 view and slots of JANET C

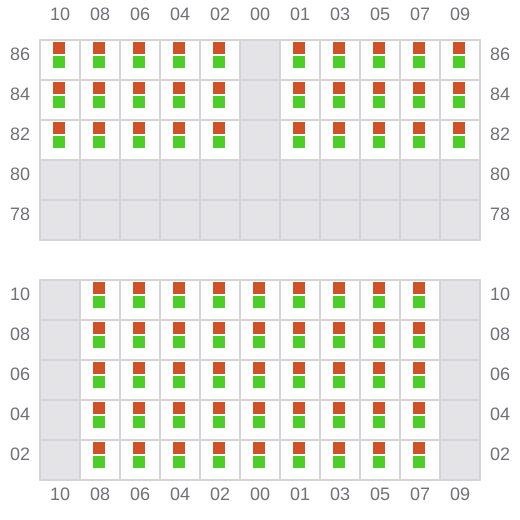

021 (022)

  • →
Bay 021 view and slots of JANET C

023

  • ←
Bay 023 view and slots of JANET C

025 (026)

  • →
Bay 025 view and slots of JANET C

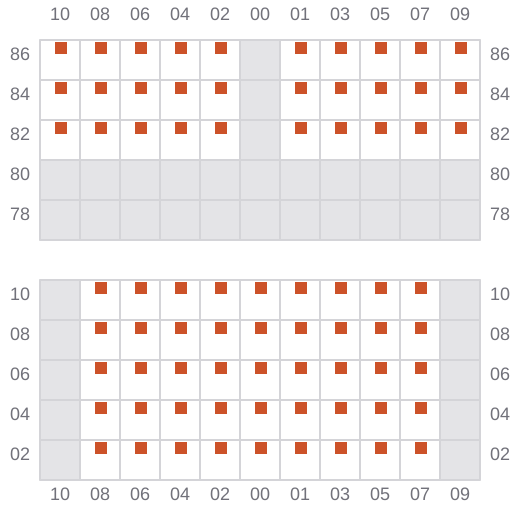

027

  • ←
Bay 027 view and slots of JANET C

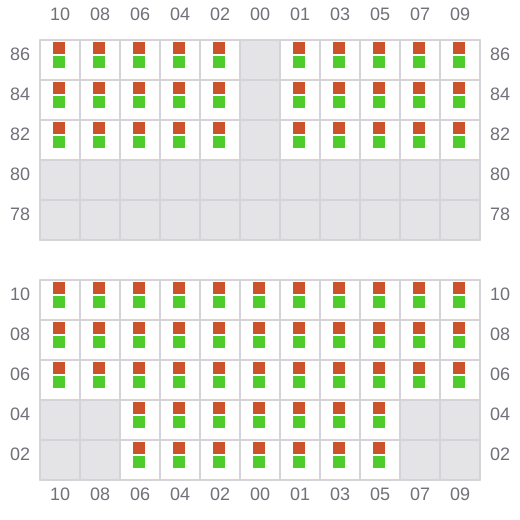

029 (030)

  • →
Bay 029 view and slots of JANET C

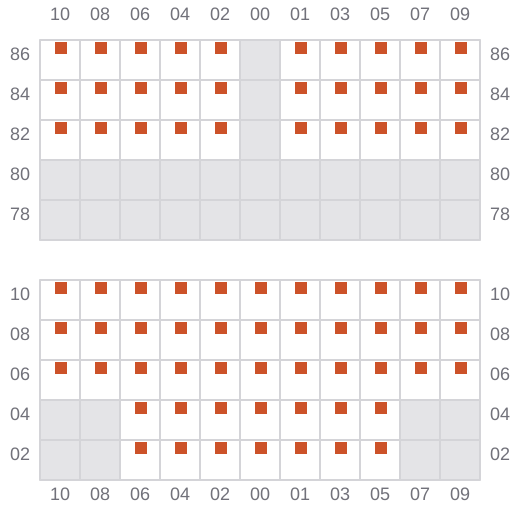

031

  • ←
Bay 031 view and slots of JANET C

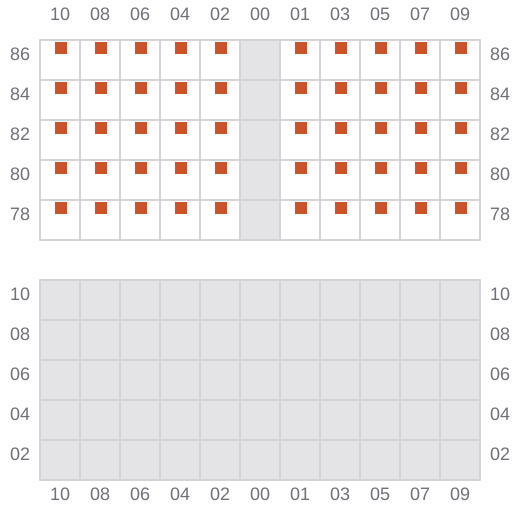

033

  • → / ?
Bay 033 view and slots of JANET C
