JETTE
9374117 | CQAR3 | 9374117 by ********* Last update: Sat Mar 23 2024
General Info
Ship Name:JETTE
IMO Code:9374117
Call Sign:CQAR3
Line Operator:9374117
Class Name for Sister Ships:6BP
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-
Size Summary
ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,113
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

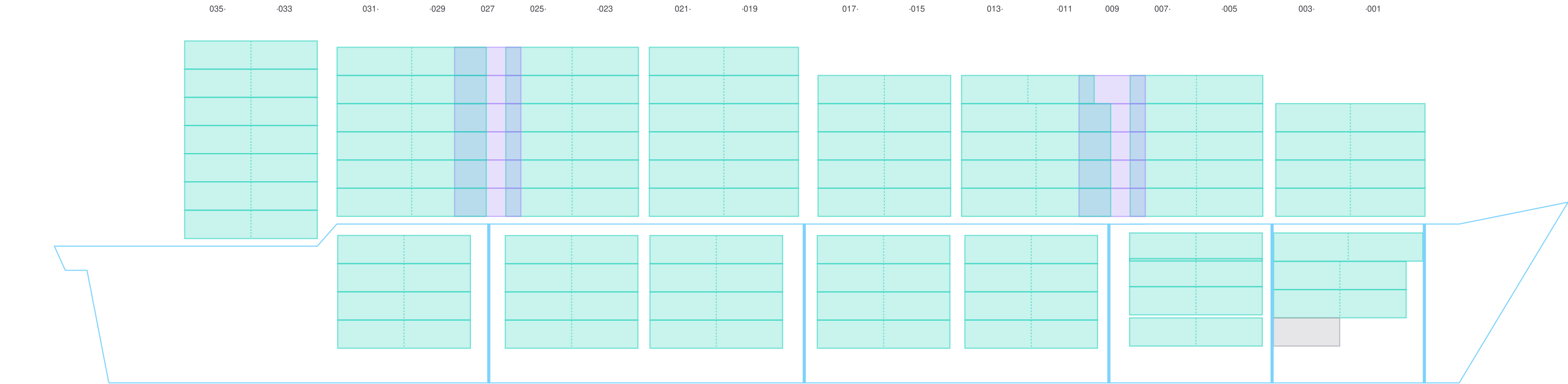

Side View

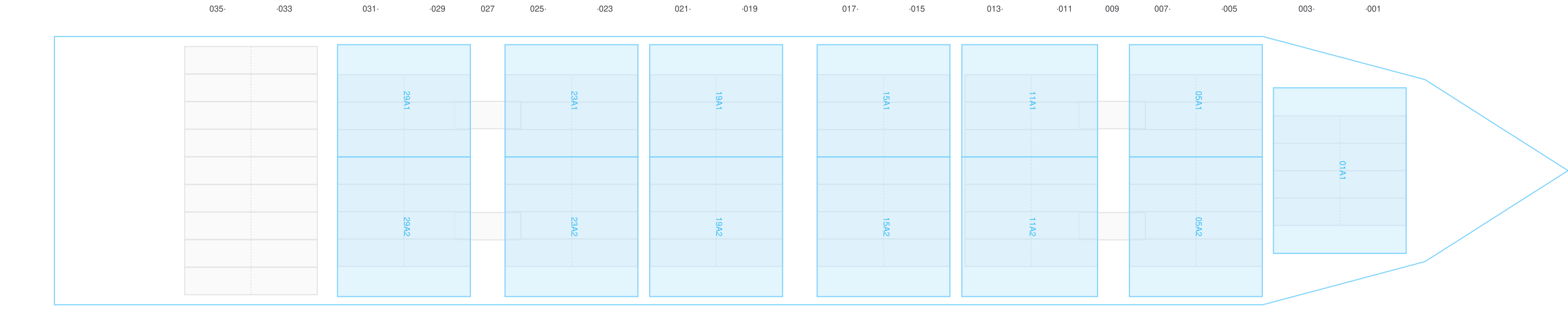

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001 (002)
- →
- ← / ?
003
- ←

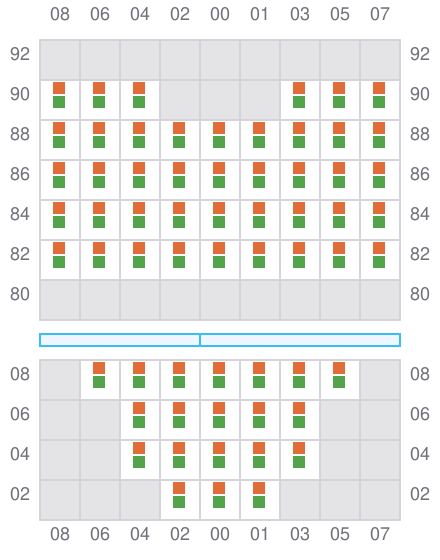

005 (006)
- →

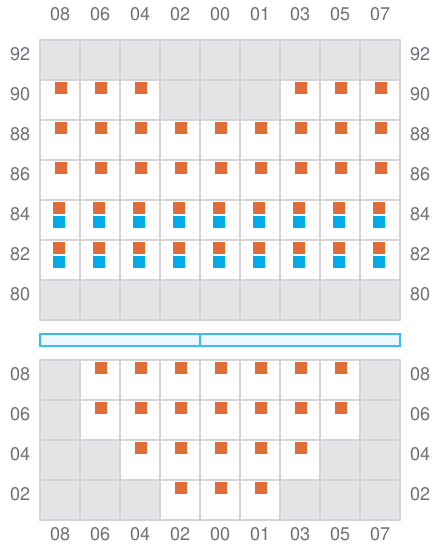

007
- ←
- → / ?

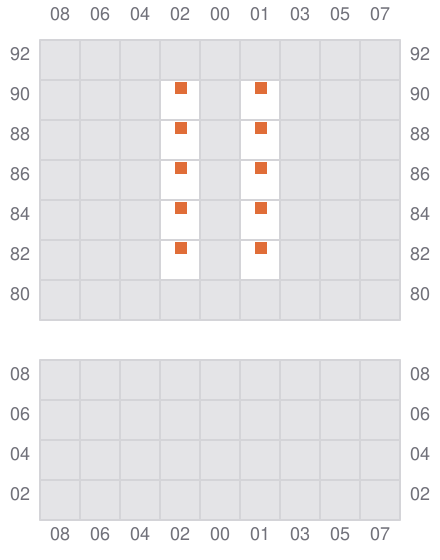

009

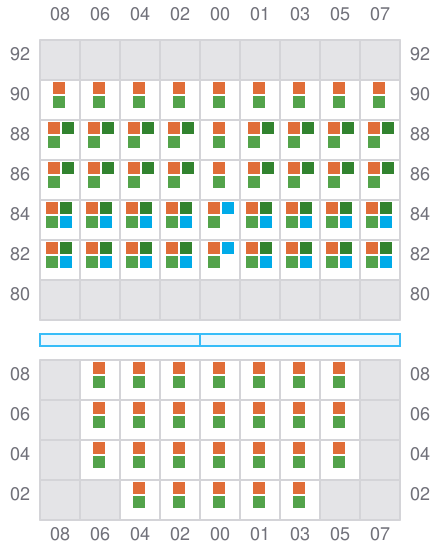

011 (012)
- →
- ← / ?

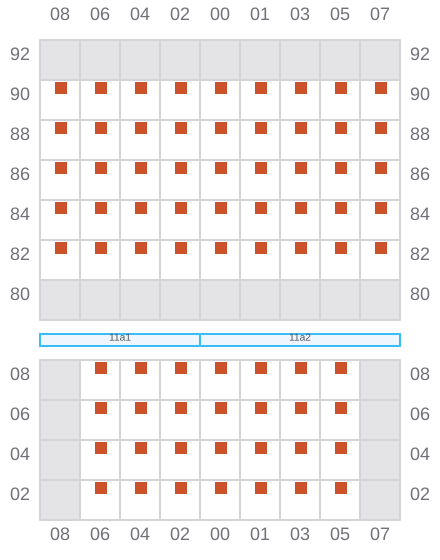

013
- ←

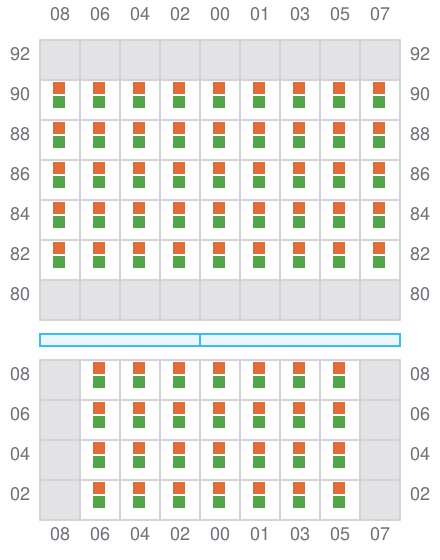

015 (016)
- →

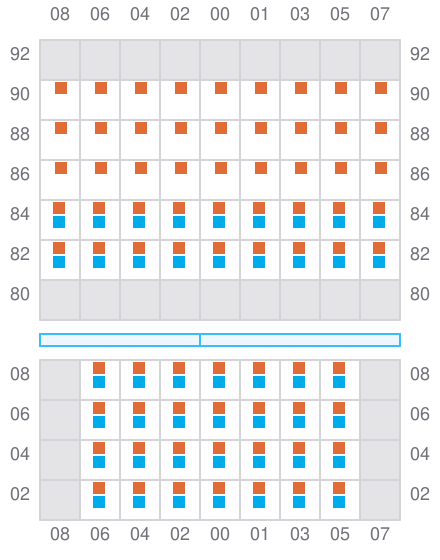

017
- ←
- →

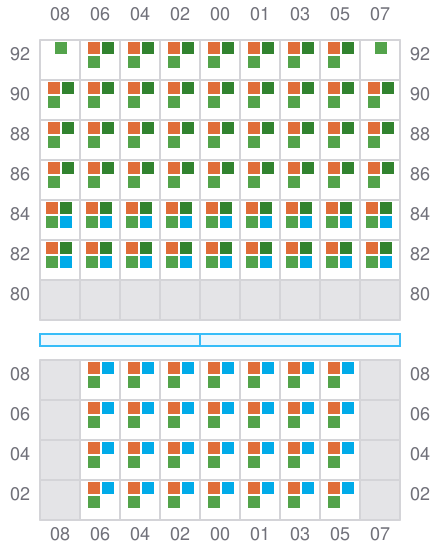

019 (020)
- →
- ←

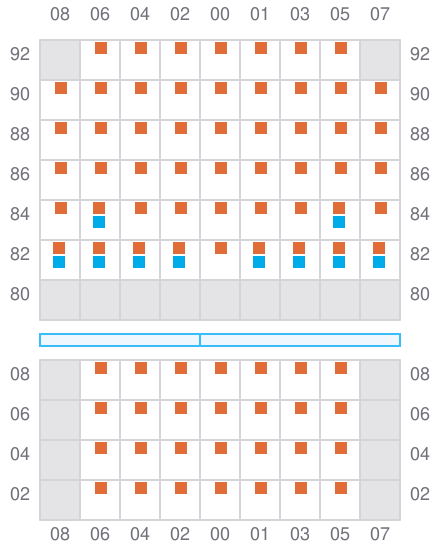

021
- ←
- → / ?

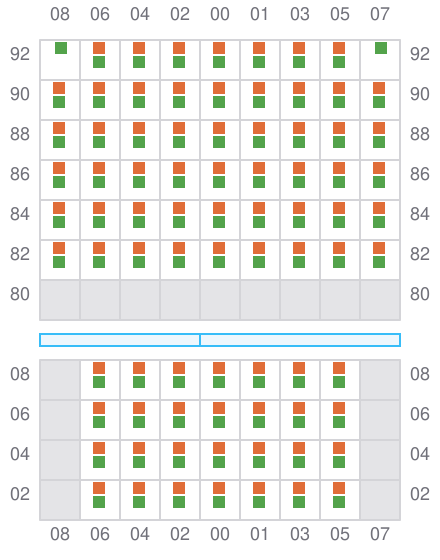

023 (024)
- →

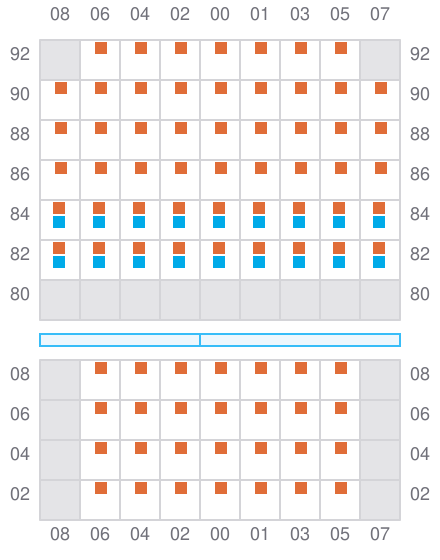

025
- ←
- → / ?
027

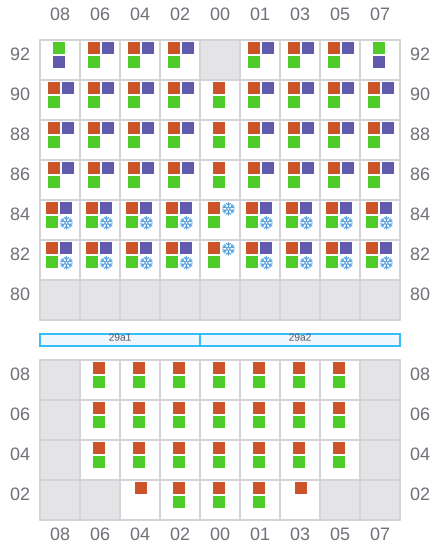

029 (030)
- →
- ← / ?

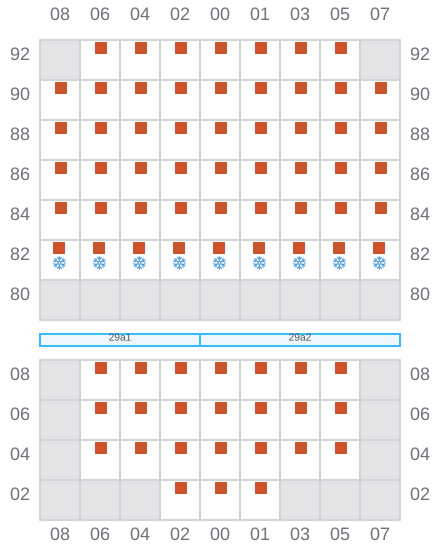

031
- ←
- → / ?

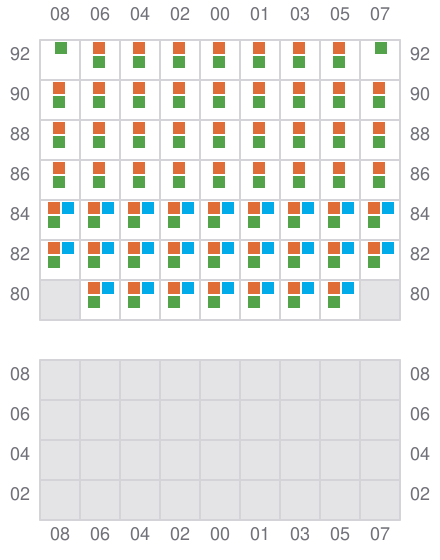

033 (034)
- → / ?
- ← / ?

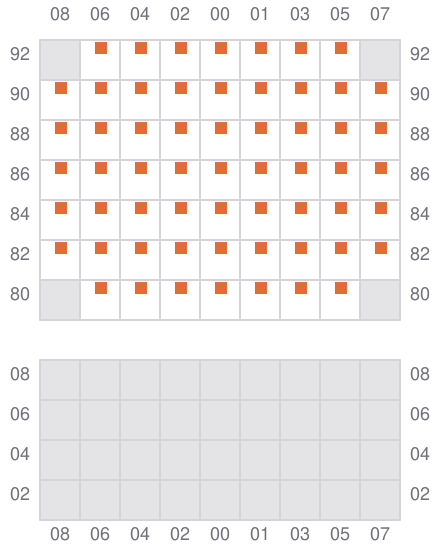

035
- ← / ?
