JI RUN
9037252 | VRAD3 | 9037252 by *********** Last update: Sun Mar 03 2024
General Info
Ship Name:JI RUN
IMO Code:9037252
Call Sign:VRAD3
Line Operator:9037252
Class Name for Sister Ships:8Y2
Year Built:1994
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:027
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:587
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

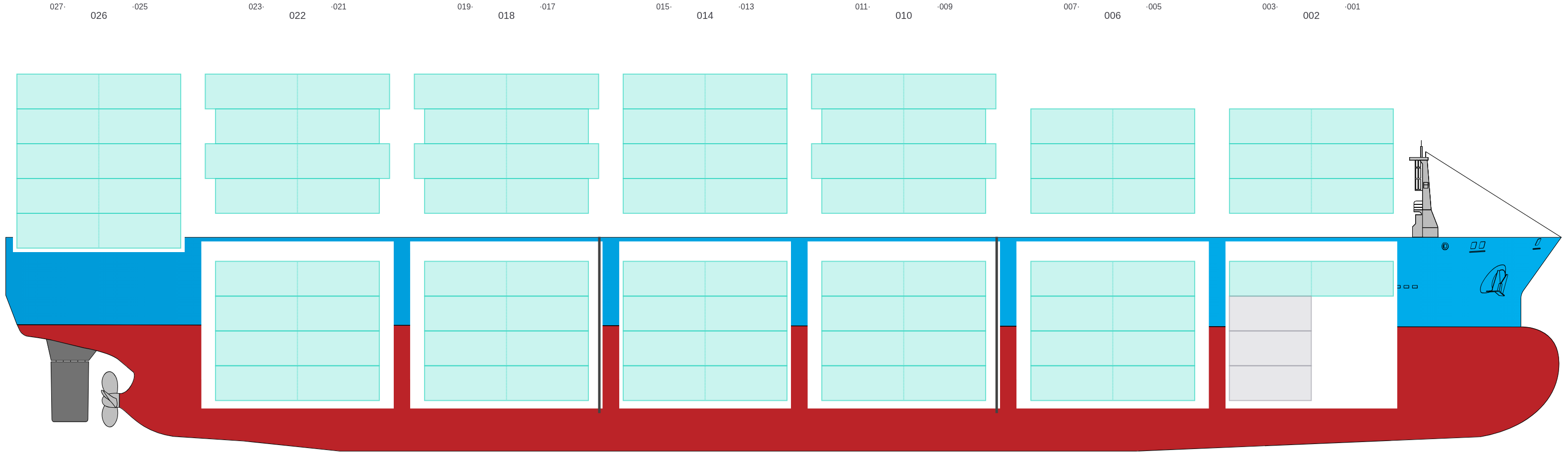

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

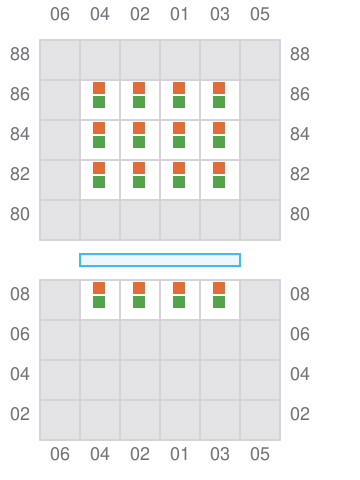

001 (002)
- →

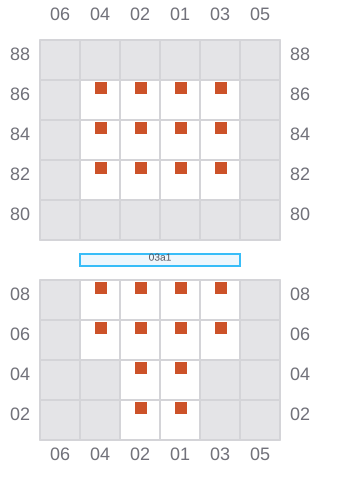

003
- ←

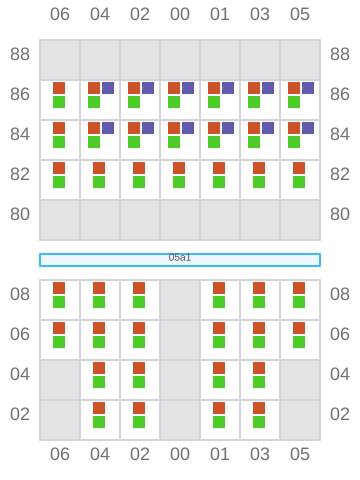

005 (006)
- →

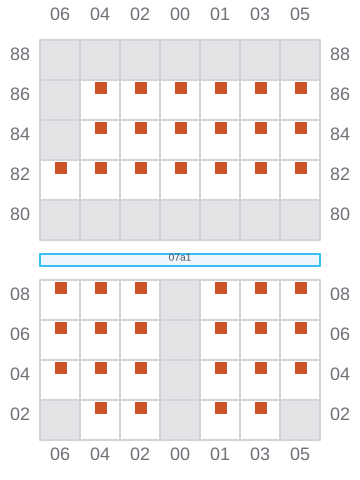

007
- ←
- → / ?

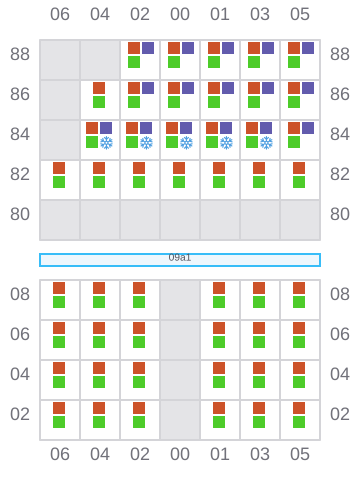

009 (010)
- →
- ← / ?
011
- ←

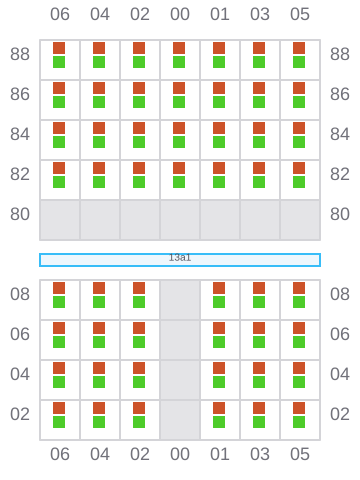

013 (014)
- →
015
- ←

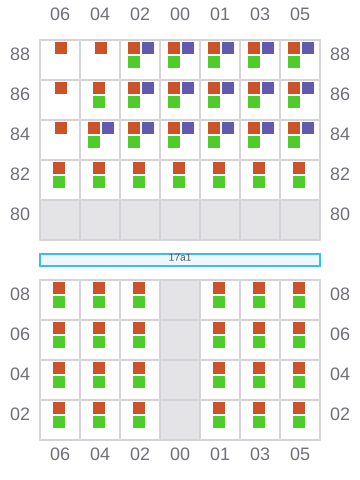

017 (018)
- →

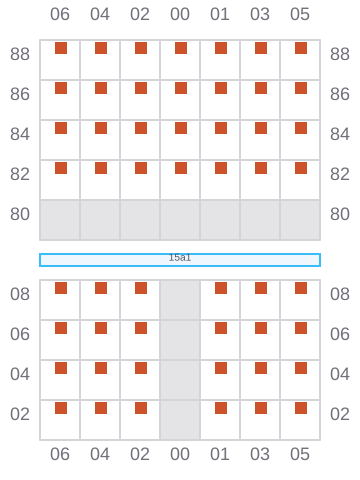

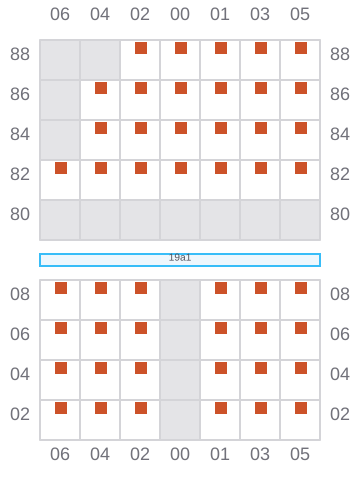

019
- ←
- → / ?

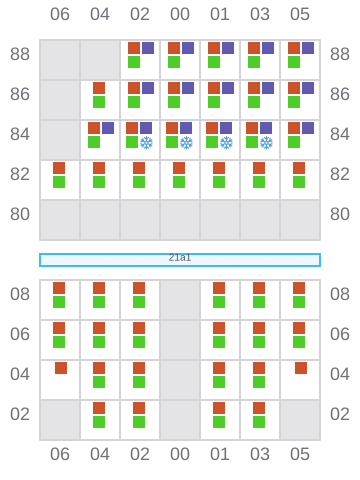

021 (022)
- →
- ← / ?

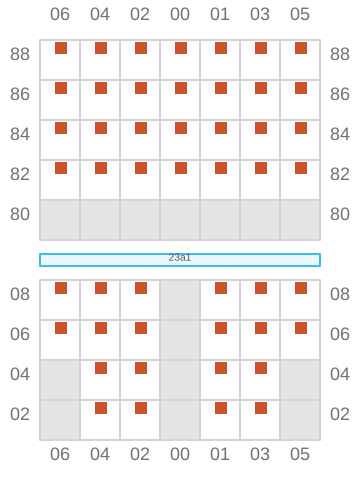

023
- ←

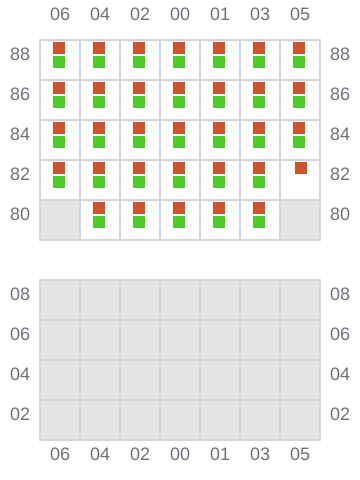

025 (026)
- → / ?
- ← / ?

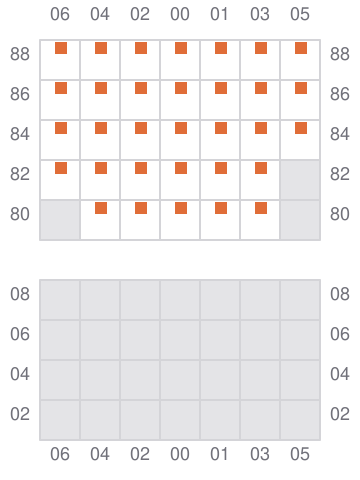

027
- ← / ?
